Split Gear Dot Peen Vertical Rotary Marking Machine

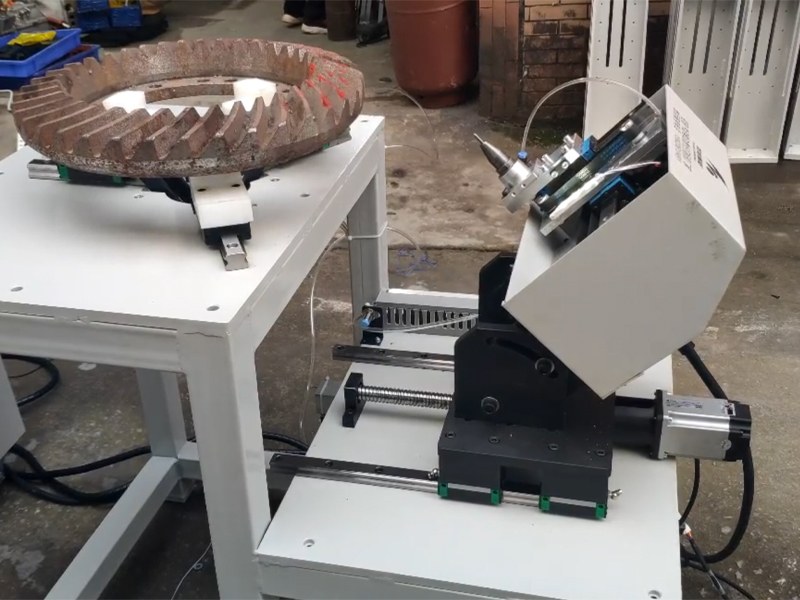

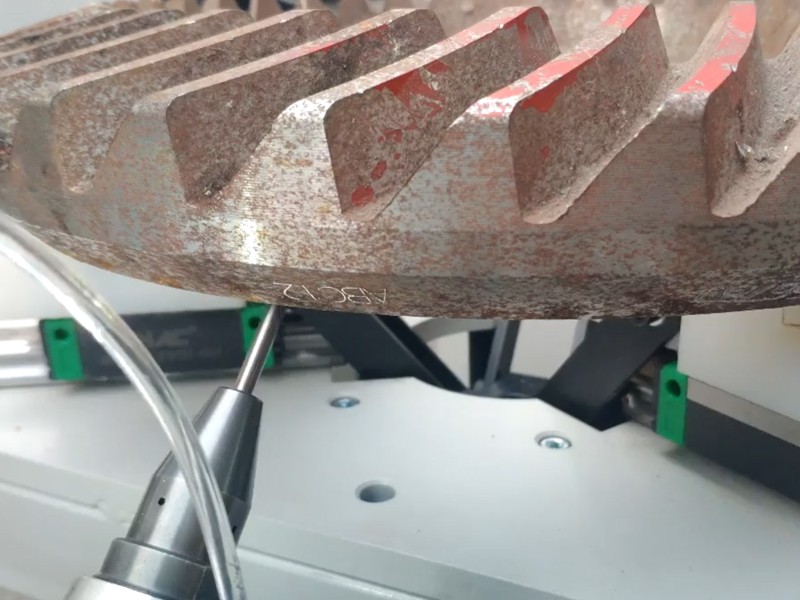

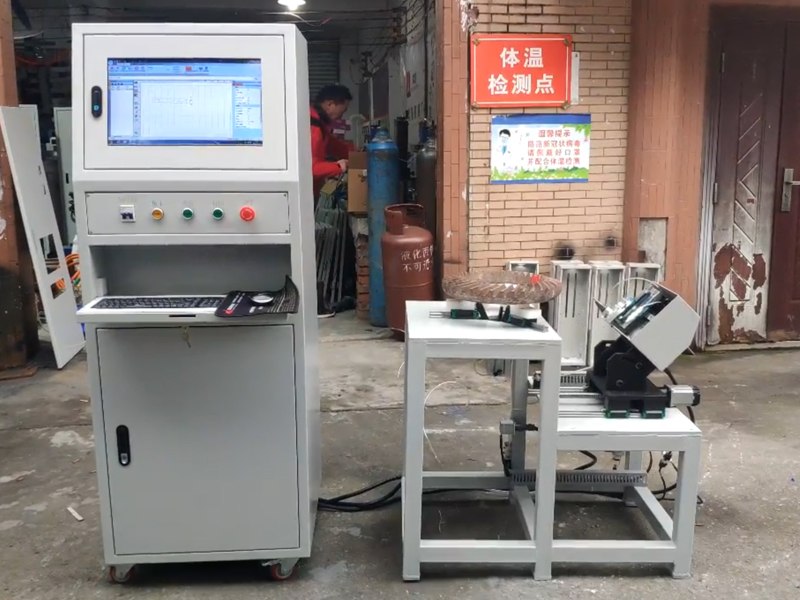

This automated production line gear marking machine adds a pneumatic chuck rotary fixture to our standardized table-top flange horizontal rotary marking machine, and replaces the manually adjusted X-axis slide with a servo motor mobile module. Its gear rotary fixture uses a planetary reducer and an automatic pneumatic chuck to automatically clamp and release the gear at the beginning and end of marking, greatly improving the efficiency of gear rotary marking on automated production lines. The mobile module approaches the workpiece when receiving the MES instruction to start marking, and retreats and returns a signal to the MES system at the end of marking, thereby avoiding collisions and failures when loading and unloading with a robot arm or overhead crane. The system uses our powerful Thorx-7 system control cabinet, which is convenient for adjustment and setting in a standing position, and can be arranged separately from the marking machine itself to save valuable available space around the automated production line.

For product pricing, customization, or other inquiries:

Description

Basic Information

  • Unit of measurement: Set
  • Retail Price: 1 set or more
  • Distributor Discount: 5 sets or more
  • Region Agency Discount: 10 sets or more
  • Warranty: 2 years
  • Payment method: T/T, D/A, D/P, Other
  • Transportation method: Sea, Land, Air, Express, Other
  • Shipping port: Chongqing, Guangzhou, Shenzhen, Shanghai, Hong Kong
  • Origin: China
  • Quality/safety certification: CE
rotary marking machine
Handheld Pneumatic Dot Peen Gas Cylinder Marking Machine
Handheld Pneumatic Dot Peen Gas Cylinder Marking Machine
Split Gear Dot Peen Vertical Rotary Marking Machine

About Company

Our company, Chongqing Zixu Machine Works, was founded in 2006 and has been engaged in the marking business. Over the years, we have continued our R&D efforts in marking and provide customized solutions for different work areas and automation levels to maximize our customers’ marking productivity and reduce costs. Contact us for further real customer case and effect.

We have ISO9001, CE, RoHS and other kinds of certificates, and our products are exported to more than 170 countries, such as USA, Russia, UK, France, Germany, Italy, Spain, Switzerland, India, Mexico, Brazil, Colombia, Chile, Slovenia, etc. With more than 15 years of ODM experience in marking machine, we provide excellent marking products and services to our customers. As the source factory of marking solutions, we provide customers with lifetime free training and continuously improve our products to ensure stable profits for our agents. Meanwhile, we are continuously seeking for agents for pneumatic marking machines and laser marking machines.

| Related PRODUCTS

| Get in touch

Application Context for Split Gear Dot Peen Vertical Rotary Marking Machine

This page is part of CNMarking’s Dot peen and scribe marking content library. For buyers comparing similar equipment, the key question is not only whether the sample can be marked, cleaned, welded, or processed, but also whether the final setup can match production speed, fixture stability, marking depth, visual quality, and long-term maintenance requirements. The application is most relevant to permanent identification on metal parts, VIN and chassis numbers, nameplates, flanges, cylinders, rods, and industrial traceability components.

When evaluating a similar project, CNMarking normally checks the workpiece material, available marking area, expected cycle time, required code or logo content, fixture method, safety enclosure needs, and whether the process must connect with an existing line, MES, scanner, or operator workflow. These details help choose between a standard machine, a semi-custom workstation, or a fully automated solution.

Recommended CNMarking Product Pages

Related CNMarking Case Studies and Guides

How to Choose a Similar Setup

  • Send clear photos or drawings of the workpiece, including the required marking or processing position.
  • Confirm the material, surface coating, required depth or contrast, and any durability requirements after cleaning, painting, heat treatment, or outdoor use.
  • Share the expected production rhythm, such as pieces per hour, operator loading method, fixture constraints, and whether automatic code reading is required.
  • For new applications, request sample testing first so the marking quality, processing speed, and fixture plan can be confirmed before mass production.

FAQ

Can CNMarking test my own samples before quotation?

Yes. For most marking, cleaning, welding, and precision laser processing projects, sample testing is the safest way to confirm process feasibility. A short video, test photos, and recommended configuration can be prepared after the workpiece and target result are confirmed.

What information should I send for a faster recommendation?

Please send the material, dimensions, required content, target cycle time, production environment, and any automation requirements. If the project is replacing an existing process, also share the current pain point, such as low efficiency, unstable quality, consumable cost, surface damage, or traceability requirements.

Need a similar solution? Contact CNMarking with your workpiece photos and target result. Our engineers can recommend a standard model or a customized workstation based on your sample and production requirements.
