Handheld Electric Dot Peen Marking Machine 150x50mm K3
Portable electric dot peen marker / 150 x 50mm marking area
Handheld Electric Dot Peen Marking Machine 150x50mm K3
A customized handheld electric dot peen marking machine for OEM projects that need a larger marking window than the standard 120 x 30mm model, while keeping the K3 integrated touchscreen, anodized aluminum body and portable handling.
Product View
Built as a larger-window handheld K3 marker

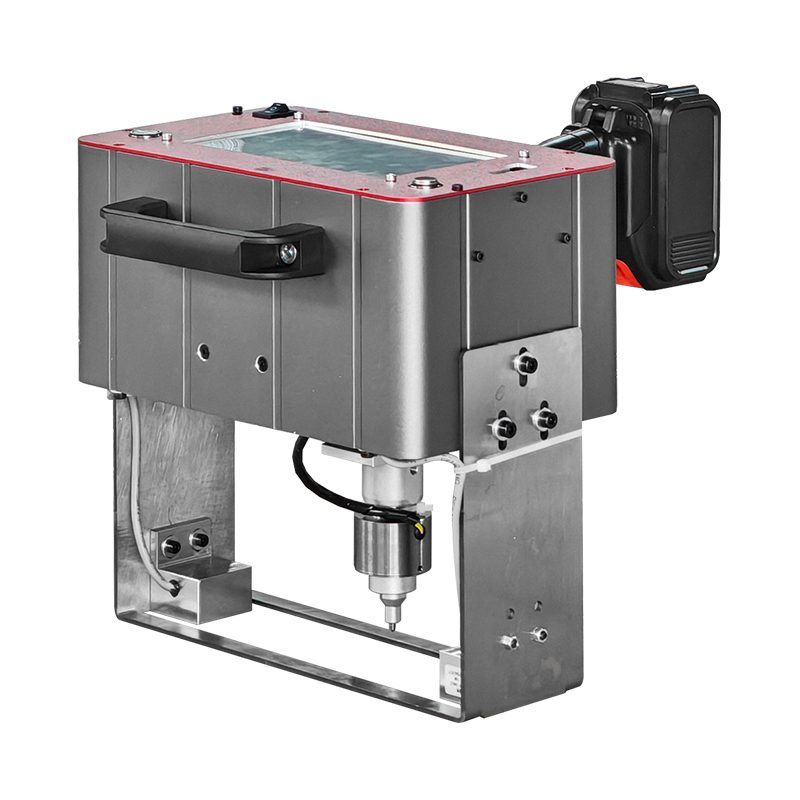

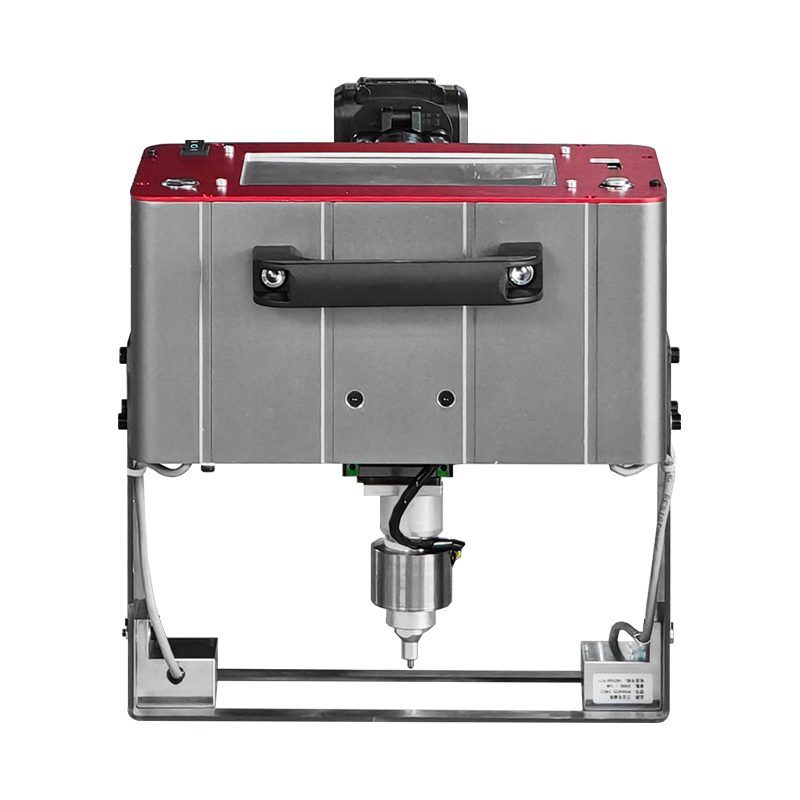

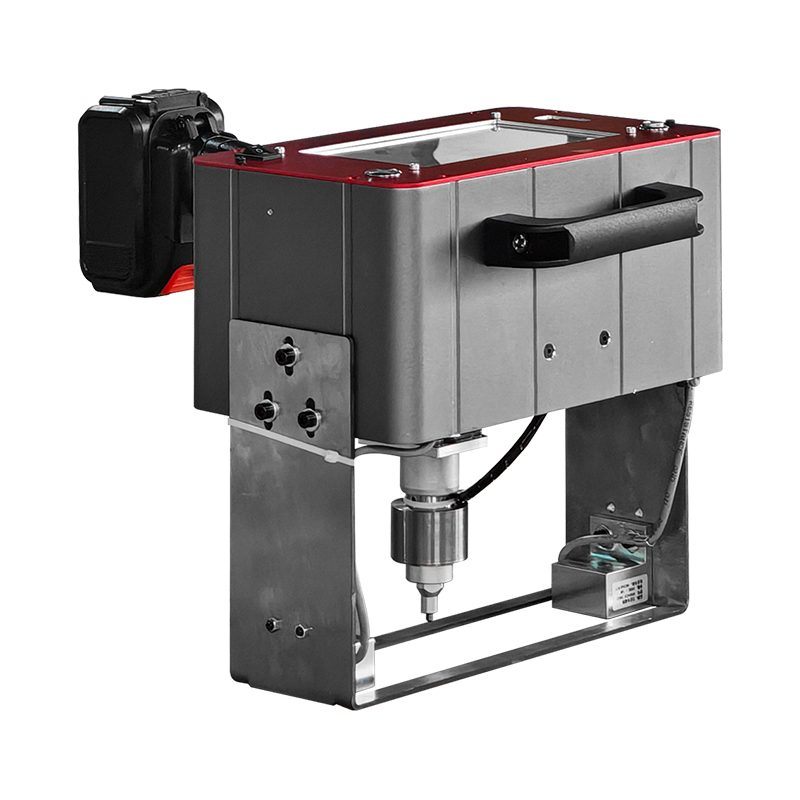

The product images show the customized structure, integrated controller body and compact magnetic fixture used to keep the larger 150 x 50mm machine practical for handheld marking.
Video
See the marking workflow
The video helps confirm how the K3 handheld electric dot peen marker is positioned and operated for portable marking tasks.
Description
Customized for larger permanent metal identification
This handheld electric dot peen marking machine was customized for an OEM customer who already used the standard 120 x 30mm model but needed a larger marking area. The 150 x 50mm working window supports longer serial numbers, larger logos and multi-line identification codes on metal parts.
The machine uses an integrated die-cast anodized aluminum alloy housing to keep the appearance consistent for OEM branding. The fixture uses compact flat electromagnets to control size and weight after increasing the marking area.
Key Features
Portable electric dot peen marking without compressed air
Designed for VIN-style marks, serial numbers, QR/Data Matrix codes, logos and traceability marks on metallic and nonmetallic materials below HRC60.
150 x 50mm working area for longer codes, larger graphics and multi-line identification.
Kingmark-3 software with an integrated 5-inch touchscreen controller for on-machine editing.
Electromagnetic dotting system creates permanent marks without a separate pneumatic compressor.
Hiwin guide rails support motion precision and reduce vibration during marking.
Flat electromagnets help reduce fixture size and weight for easier handheld use.
Supports letters, numbers, Data Matrix, QR codes, barcodes, serial numbers, dates, VIN codes, time, logos and graphics.
Basic Information
Technical specifications
Parameters are kept from the supplied product sheet and should be confirmed against the final marking sample and workpiece material before production.
| Marking Type | Electromagnetic dotting |
|---|---|
| Marking Speed | 2-5 characters (2 x 2mm) per second |
| Marking Depth | 0.01 – 1.2mm, depending on material |
| Marking Contents | English letters, numbers, Data Matrix or QR codes, shift codes, barcodes, serial numbers, dates, VIN codes, time, logos and graphics |
| Stylus Pin Hardness | HRA93 |
| Marking Area | 150 x 50mm |
| Marking Materials | Metallic and nonmetallic materials below HRC60 |
| Repeat Accuracy | 0.02 – 0.04mm |
| Rated Power | 300W |
| Power Input | AC 110V 60Hz or AC 220V 50Hz |
| Control Software | Kingmark-3 |
| Controller | Integrated 5-inch touchscreen |

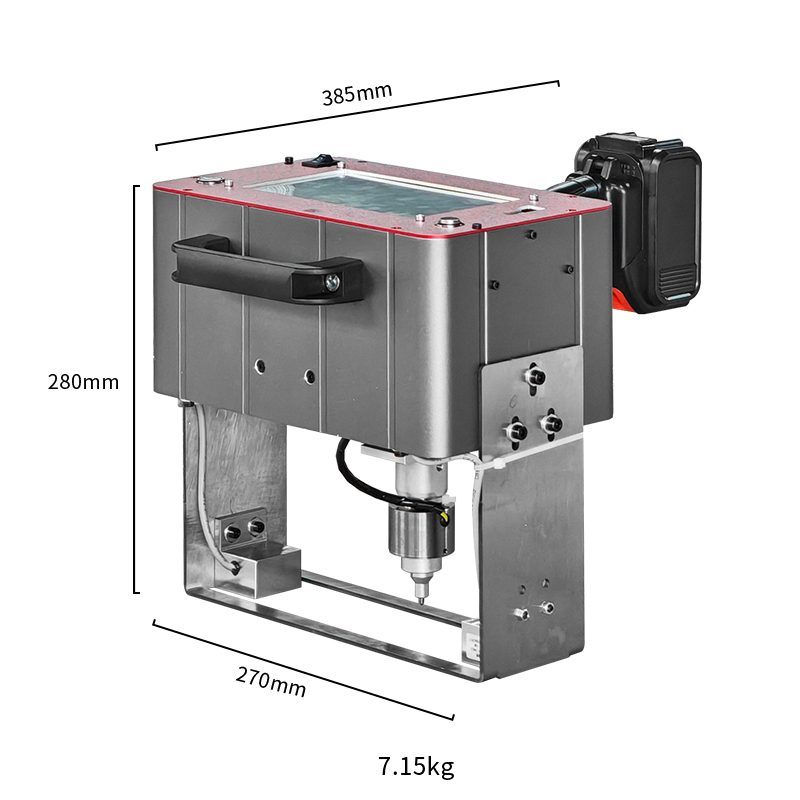

| Dimensions | 385 x 270 x 280mm |
| Net Weight | 7.15kg |
| Package Dimensions | 430 x 330 x 350mm |
| Gross Weight | 10.5kg |
Marking Samples
Permanent marks for industrial traceability

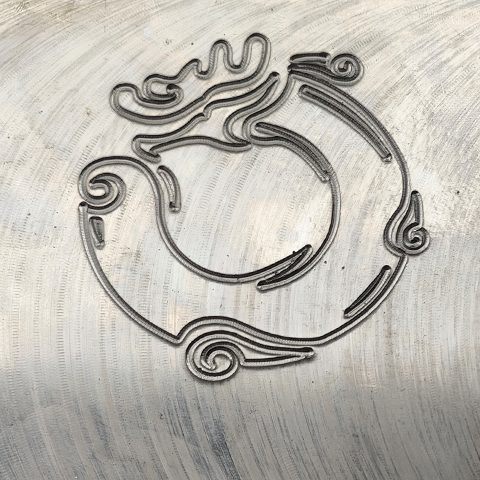

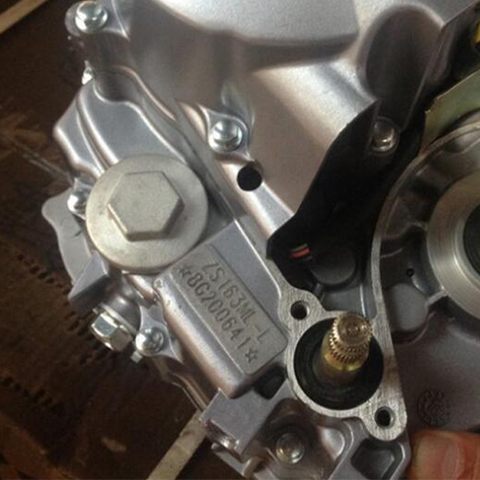

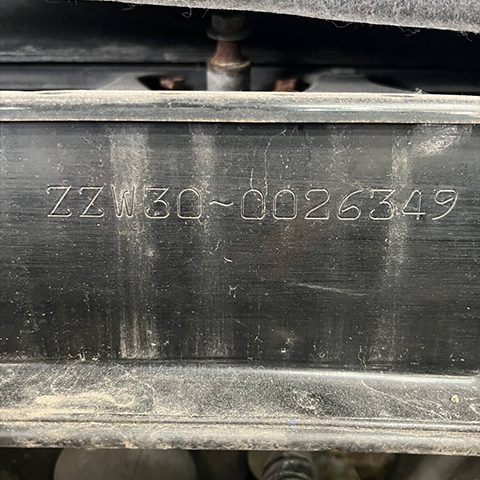

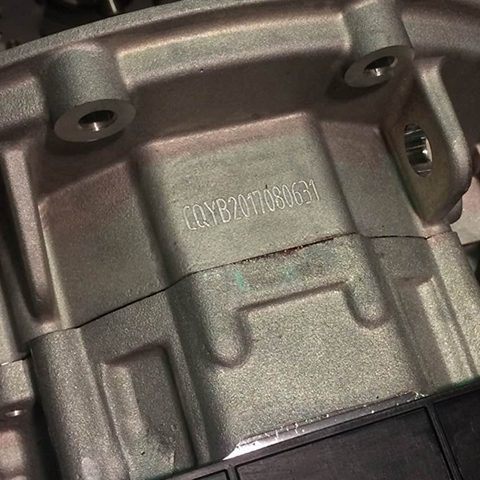

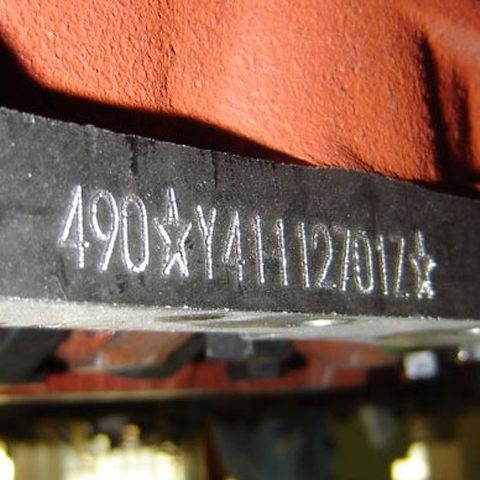

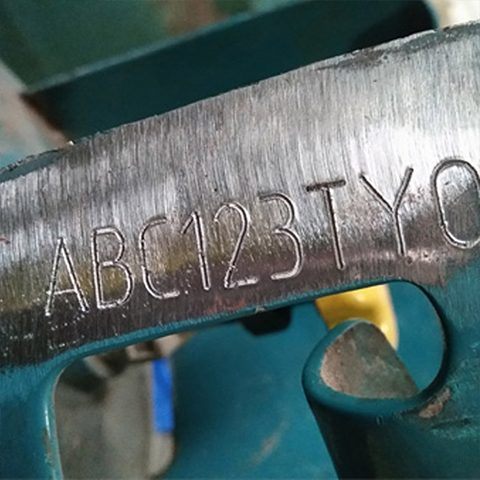

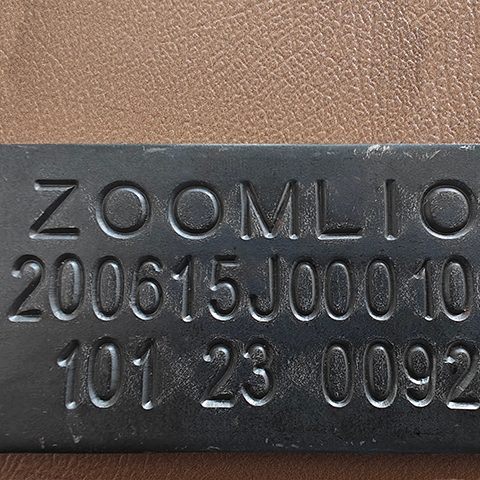

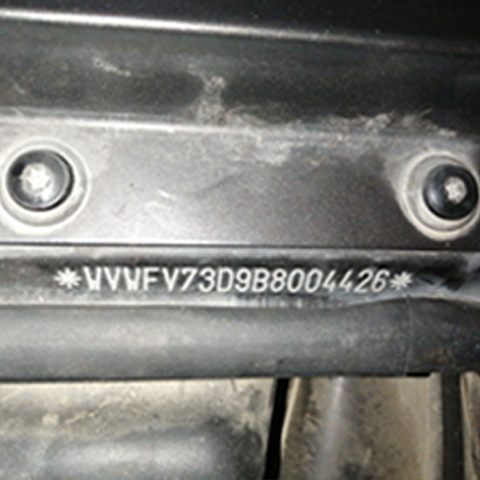

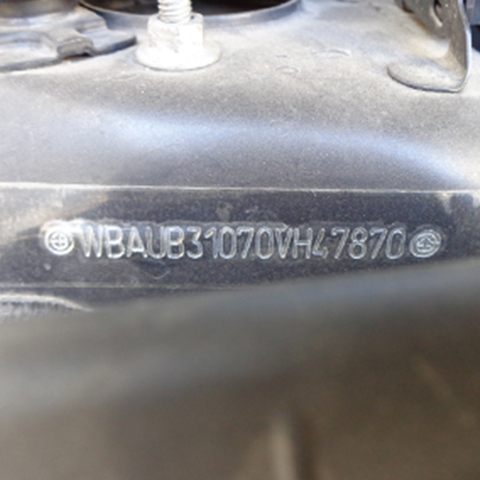

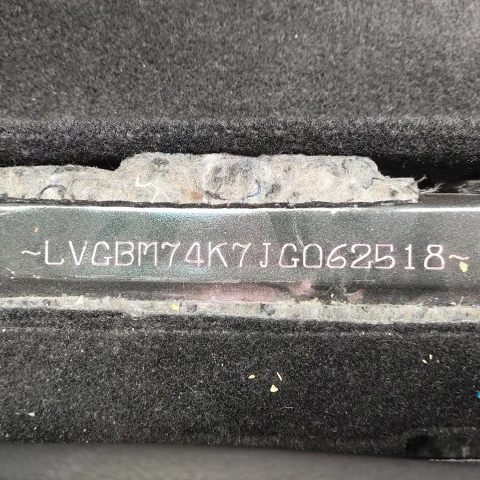

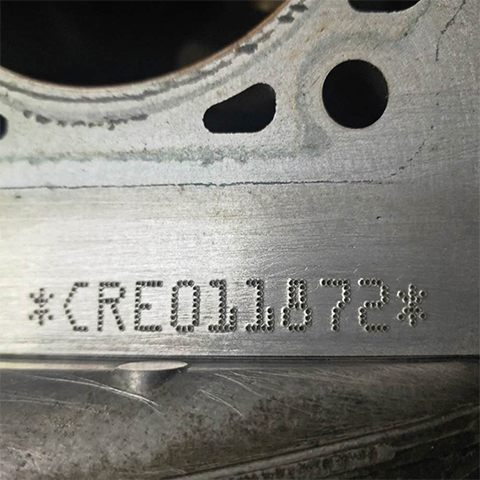

Sample images show durable serial numbers, logos and traceability marks on vehicle frames, cast parts, curved metal surfaces and engine components.
Product Details
Readable close-up product details
Only the usable close-up views are kept here, so the fixture and marking head details stay readable on desktop and mobile screens.

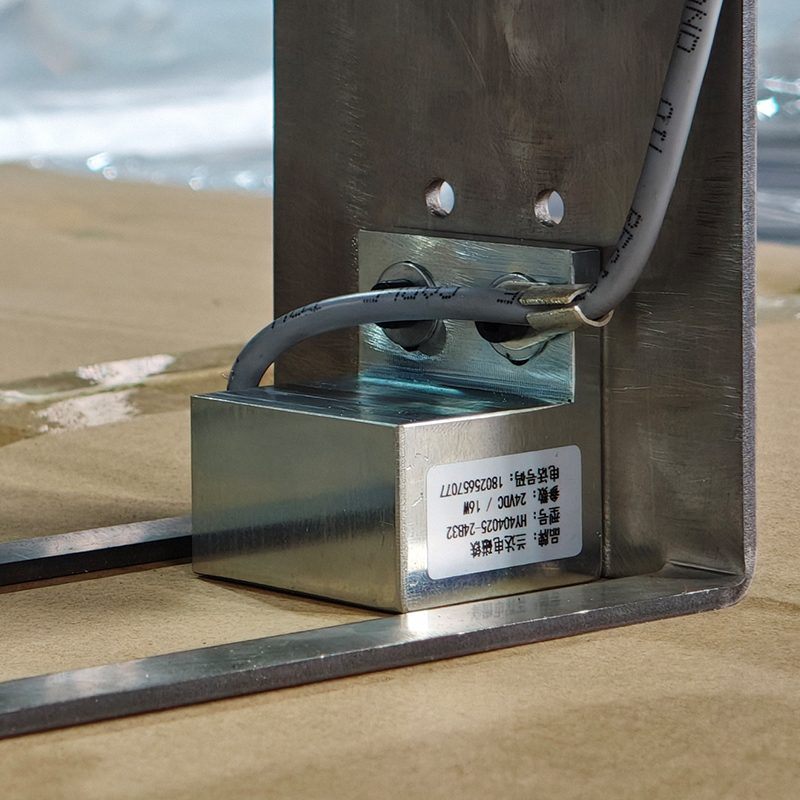

The customized handheld body uses a smaller flat electromagnet to keep the fixture compact while still helping the marker hold steady on suitable metal surfaces.
This is useful when the marking window is enlarged to 150 x 50mm, because the holding structure still needs to stay practical for on-part handling. For uneven or nonmagnetic surfaces, confirm a custom locator before production.

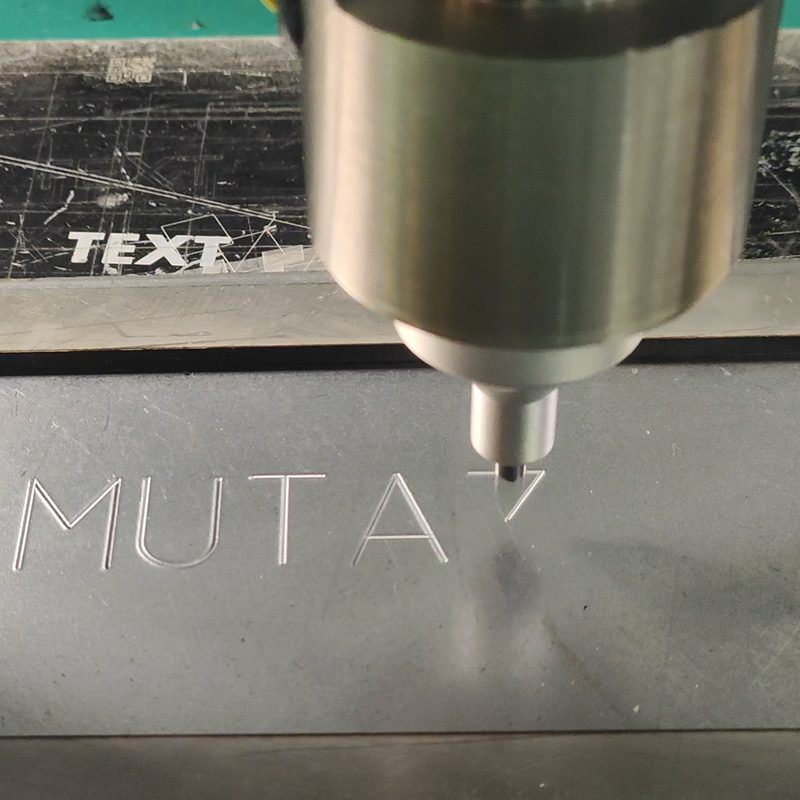

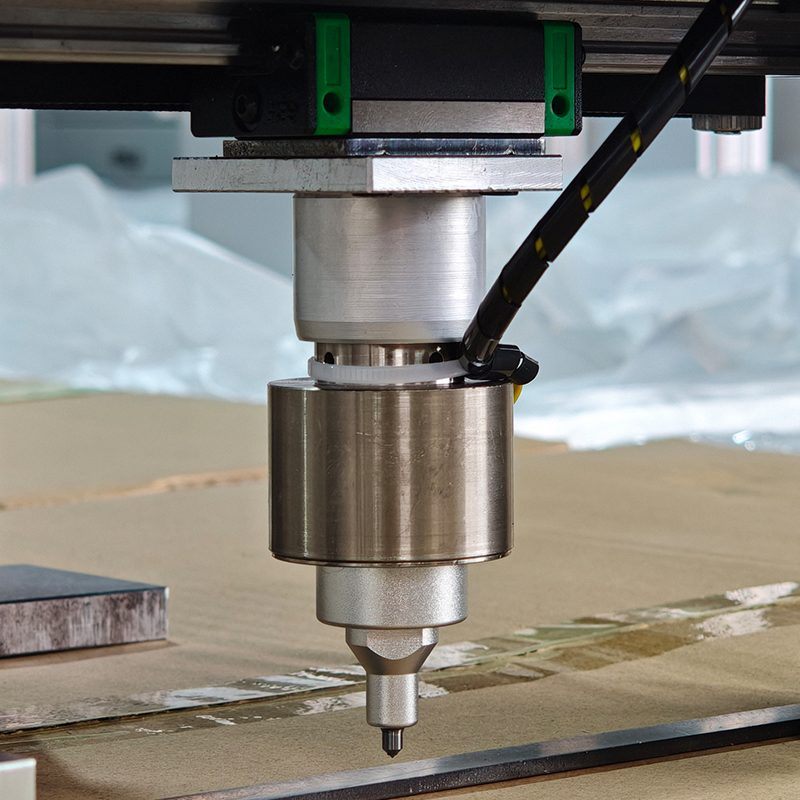

Hiwin guide rails and the electromagnetic marking pin help reduce shake during marking, keeping serial numbers, QR/Data Matrix codes and logos clear on metal workpieces.
This detail is the main area to check when the application needs consistent code depth, readable 2D codes or repeated positioning on vehicle frames, engine parts and cast metal components.
Applications
Where this handheld electric marker fits
Use this model when a standard small-window handheld dot peen marker is not enough, but the workpiece still requires portable on-part marking instead of a fixed bench machine.
VIN-style codes, frame numbers and maintenance traceability marks on assembled metal parts.
Permanent serial numbers, shift codes and batch codes on steel, aluminum and other materials below HRC60.
Private-label portable marking projects that need a larger work area and consistent industrial appearance.
About Company
Zixu builds customized marking systems for practical production needs
Zixu Marking supplies dot peen, laser marking and industrial identification equipment for factories, distributors and system integrators. For custom dot peen projects, the useful details are the workpiece material, marking area, code content, required depth, fixture method and power supply.
Zixu Marking Resources
Related links grouped by buyer intent
Products, cases, technical reading and buyer guidance are separated so users can choose the next useful page instead of scanning one mixed list.
FAQ
Common selection questions
Answers below stay within the supplied product facts and parameter sheet.
What is the marking area of this handheld K3 marker?
The marking area is 150 x 50mm according to the supplied parameter sheet.
Does it require compressed air?
No. The marking type is electromagnetic dotting, so it is an electric dot peen marker rather than a pneumatic dot peen marker.
What controller does it use?
The source parameter sheet lists Kingmark-3 control software and an integrated 5-inch touchscreen controller.
What materials can it mark?
The supplied parameter sheet states metallic and nonmetallic materials below HRC60. Actual depth depends on material and marking settings.
