Best 8 Cordless Dot Pin Marking Machines Driven by Lithium Battery in 2026

If you need to mark large metal parts away from a workstation, a cordless dot pin marking machine can be much more convenient than a pneumatic handheld marker or a cabled benchtop system. The challenge is that battery-powered dot peen markers vary widely in marking depth, marking window, controller functions, balance, durability and price.

This 2026 review compares eight cordless dot pin marking machines used for portable permanent marking on metal, plastic, castings, plates, frames, pipes and industrial components. The list includes Zixu’s K31230, SIC Marking E-MARK XL, Automator/Pannier ADP2560BA, Pryor PortaDot 60-30, Datamark MP-100, Markator FlyMarker mini 120/45 plus, Luyue CNC white-label models and Baijin white-label models.

For buyers comparing these machines, the most important questions are simple: how large is the marking area, how stable is the fixture, how deep can the stylus mark, how long does the battery last, and whether the controller is practical for daily work.

Quick Comparison: Best Cordless Dot Pin Marking Machines in 2026

Model	Marking area	Weight	Best for	Main limitation
Zixu K31230	120 x 30 mm	6 kg	Deep portable marking, multilingual operation, high-value industrial use	Heavier and higher priced than basic Chinese electric models
SIC Marking E-MARK XL	120 x 40 mm	3.6 kg	Mainstream industrial users who prefer an established European brand	High price and heat sensitivity in hot environments
Automator/Pannier ADP2560BA	25 x 60 mm	3 kg	Small permanent marks on metal, aluminum, cast iron and plastic	Small marking field and premium price
Pryor PortaDot 60-30	60 x 30 mm	Not specified	All-day portable marking with touchscreen or app control	Small marking window and expensive configuration
Datamark MP-100 Mobile	100 x 30 mm	4.2 kg	Mobile DPM and Datamatrix code marking	Marking width may be short for some VIN and long-code applications
Markator FlyMarker mini 120/45 plus	120 x 45 mm	3.1 kg	Lightweight handheld marking with strong feature set	High price and larger body size
Luyue CNC white-label model	90 x 30 mm or 120 x 30 mm	3.5 kg	Budget deep marking with wide private-label availability	Higher rear center of gravity and fragile handle design
Baijin white-label model	120 x 30 mm	5.5 kg	Low-cost electric marking with optional magnetic fixture	Small contact area, wobble risk and weaker fit and finish

1. Zixu K31230 Cordless Dot Pin Marking Machine

Zixu developed the K31230 after distributing other electric markers and receiving feedback about inconsistent quality, build strength and long-term reliability. The machine uses a 120 x 30 mm marking area, a 21V lithium battery with 84Wh capacity, and two batteries in the standard kit for continuous field work.

The body uses 1 mm anodized aluminum with chamfered edges and a high-strength rubber grip designed to resist cracking after drops. The machine has also been tested in hot environments above 45 degrees Celsius, including Chongqing and overseas markets such as India and Saudi Arabia.

Another key advantage is the Kingmark-3 control system. Compared with simpler entry-level controllers, it supports English, Spanish, Portuguese, French, German, Arabic, Russian and other languages. Operators can import custom fonts, graphics, QR codes and Datamatrix codes through USB, making it suitable for factories that need more than basic text marking.

Pros: excellent build quality, high reliability, rich controller functions, strong value, and portable deep marking performance.

Cons: heavier and more expensive than basic Chinese electric models.

• Model: ZX-EMK-K31230
• Marking area: 120 x 30 mm
• Size: 315 x 270 x 220 mm
• Weight: 6 kg

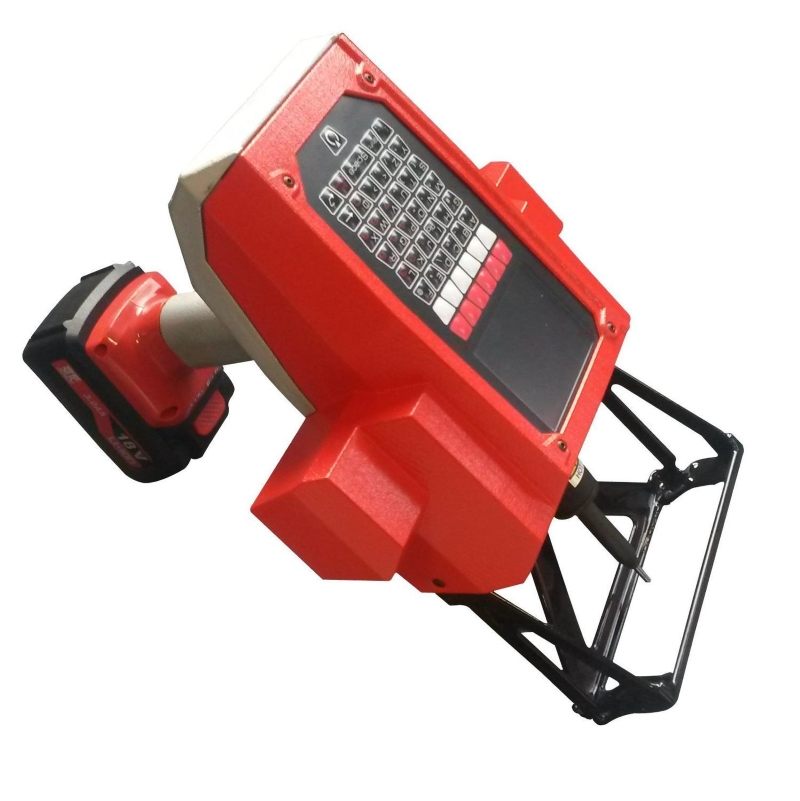

2. SIC Marking E-MARK XL

The E-MARK XL is a cordless portable dot peen marking machine from SIC Marking, a brand widely used across automotive OEM and parts supply chains. It offers a 120 x 40 mm marking window and an 18V Li-Ion battery, with two batteries and a fast charger supplied in a carrying case.

Its cast alloy base, compact body and strong striking force make it suitable for demanding industrial environments and heavy parts. The machine is easy to set up, with stylus distance adjustment through a knob, and it can mark text, logos and 2D Datamatrix codes.

Pros: mainstream marking range, compact body, light weight and complete feature set.

Cons: small battery, high price, and the screen may overheat in environments above about 35 degrees Celsius.

• Model: E-MARK XL
• Marking area: 120 x 40 mm
• Size: 330 x 254 x 70 mm
• Weight: 3.6 kg

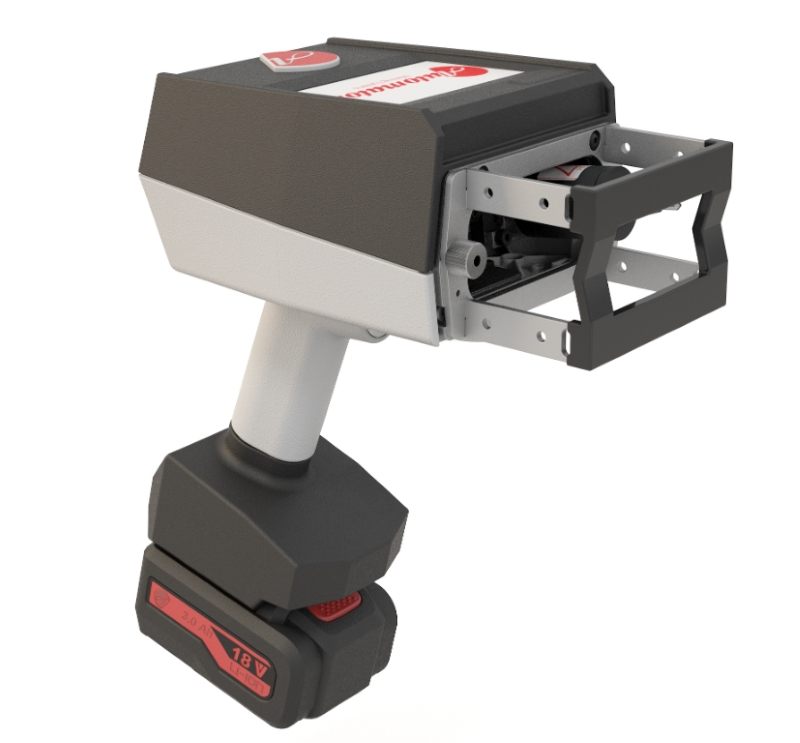

3. Automator / Pannier ADP2560BA

The ADP2560BA battery-powered dot pin marking machine, originally from Automator and also sold by Pannier, is a compact unit for permanent marking on metal, aluminum, iron, cast iron and plastic. Its software allows adjustment of text or image height, width, position and marking parameters.

Independent X and Y axis motors control tip movement and marking depth, allowing operators to tune the mark to the workpiece and required result. Its main advantage is portability, but the marking window is smaller than most other machines in this review.

Pros: one of the lightest models in its class and easy to use.

Cons: small battery, small marking area and high price.

• Model: ADP2560BA
• Marking area: 25 x 60 mm
• Size: 136 x 266 x 304 mm
• Weight: 3 kg

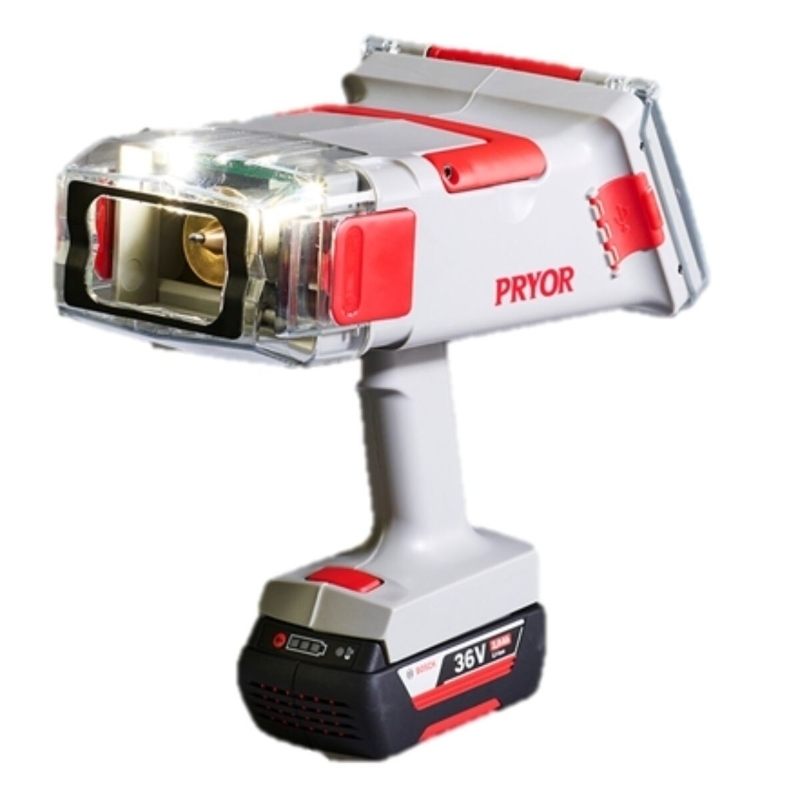

4. Pryor PortaDot 60-30

The Pryor PortaDot 60-30 is a handheld dot peen marking machine with a 60 x 30 mm marking area. It uses a Bosch 36V battery for long operating time, and its technology is designed to maintain marking force as the battery discharges.

The Touch version integrates a 4000 series controller with a 5.7 inch touchscreen for creating, editing and saving programs directly on the unit. The Connect version can operate through a mobile app, which is useful when operators prefer a phone-based interface.

Pros: touchscreen or mobile app control, consistent marking depth and strong battery setup.

Cons: small marking window, high price and touchscreen operation can be less convenient with gloves.

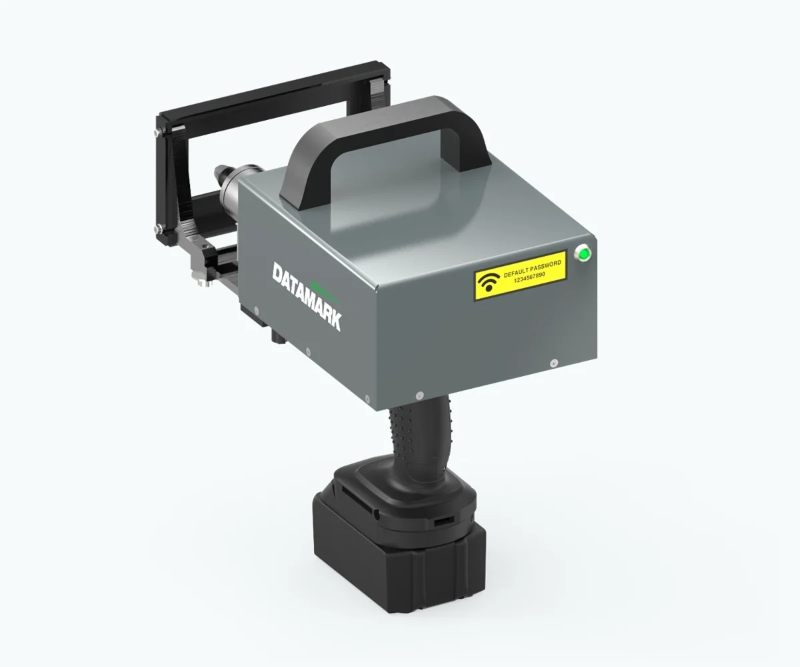

5. Datamark MP-100 Mobile

The Datamark MP-100 Mobile is a portable dot peen marking machine from a brand closely associated with Direct Part Marking and Datamatrix code applications. The MP series includes MP-50, MP-100 and MP-150 versions, with the MP-100 positioned as a mainstream model.

The 100 x 30 mm marking area covers many common applications, though it can be slightly short for some 110 to 120 mm width requirements such as car and motorcycle VIN marking. Its fixture has a relatively large contact area, which helps stability during handheld work.

Pros: relatively compact, editable through mobile app and stable because of the larger fixture contact area.

Cons: small battery and marking range may be insufficient for some long codes.

• Model: MP-100
• Marking area: 100 x 30 mm
• Size: 280 x 270 x 165 mm
• Weight: 4.2 kg

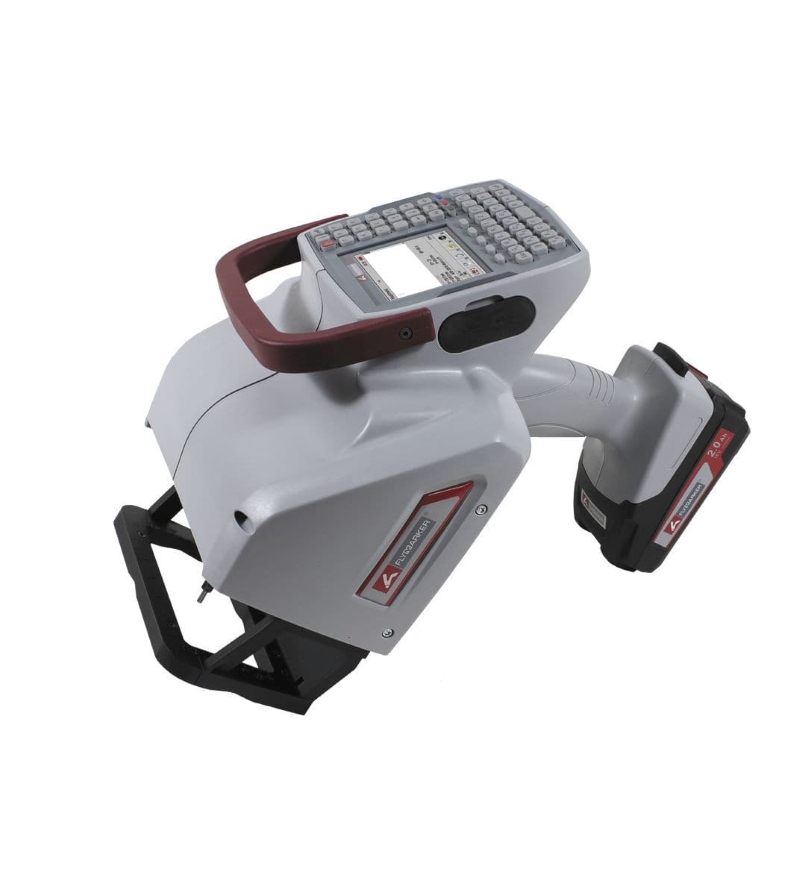

6. Markator FlyMarker mini 120/45 plus

The Markator FlyMarker mini 120/45 plus uses a 4.3 inch touch color display and updated processor. The battery-powered system weighs about 3.1 kg including battery and provides a 120 x 45 mm marking field.

It includes useful industrial details such as prism fences for round parts, an extra-strong magnet for deep marks, an 18V lithium-ion battery and a removable handle. It can also be paired with a stand to convert quickly into a benchtop marking machine.

Pros: mobile app editing, easy operation, light weight, optional integrated barcode scanner and benchtop stand compatibility.

Cons: high price and larger physical size compared with several other portable units.

• Model: FlyMarker mini 120/45 plus
• Marking area: 120 x 45 mm
• Size: unknown
• Weight: 3.1 kg

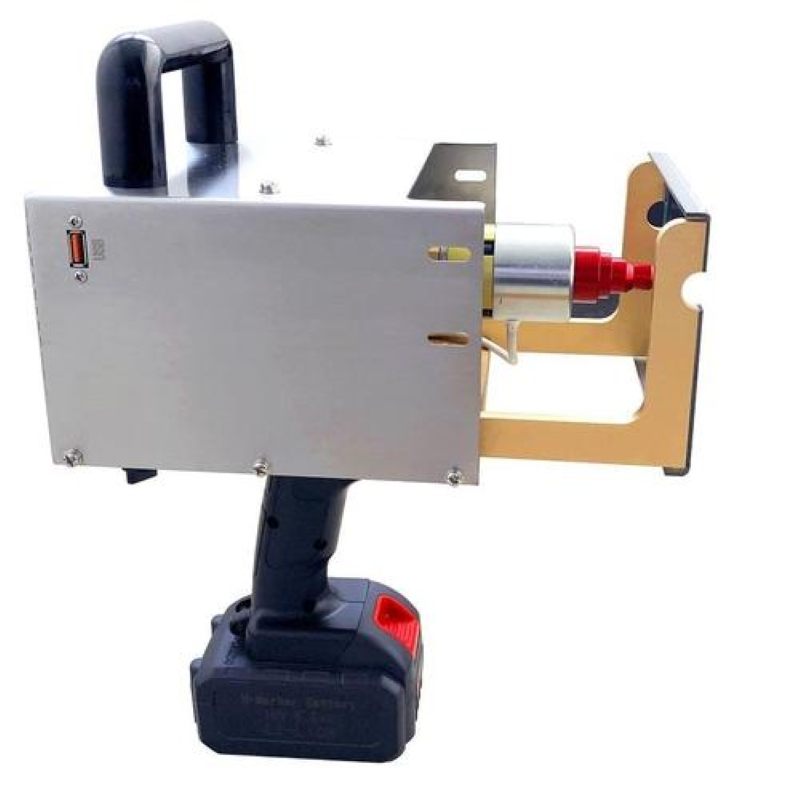

7. Luyue CNC White-Label Cordless Dot Peen Marker

This dot peen marking machine is originally manufactured by Luyue CNC and is widely white-labeled for many brands worldwide. It is available with 90 x 30 mm or 120 x 30 mm marking area, and uses a brushed stainless steel body with a gold-framed fixture.

Recent improvements from upstream Chinese electric stylus suppliers have helped this type of electric marker approach the marking depth of traditional pneumatic and high-end electric models. Similar white-label units are widely available through international reseller brands.

Pros: deep marking performance close to pneumatic driven models, large fixture contact area for stability and optional Wi-Fi operation.

Cons: high and rear-biased center of gravity, plus a thin plastic handle that may be fragile in industrial use.

• Model: varies by reseller
• Marking area: 90 x 30 mm or 120 x 30 mm
• Size: 275 x 172 x 165 mm
• Weight: 3.5 kg

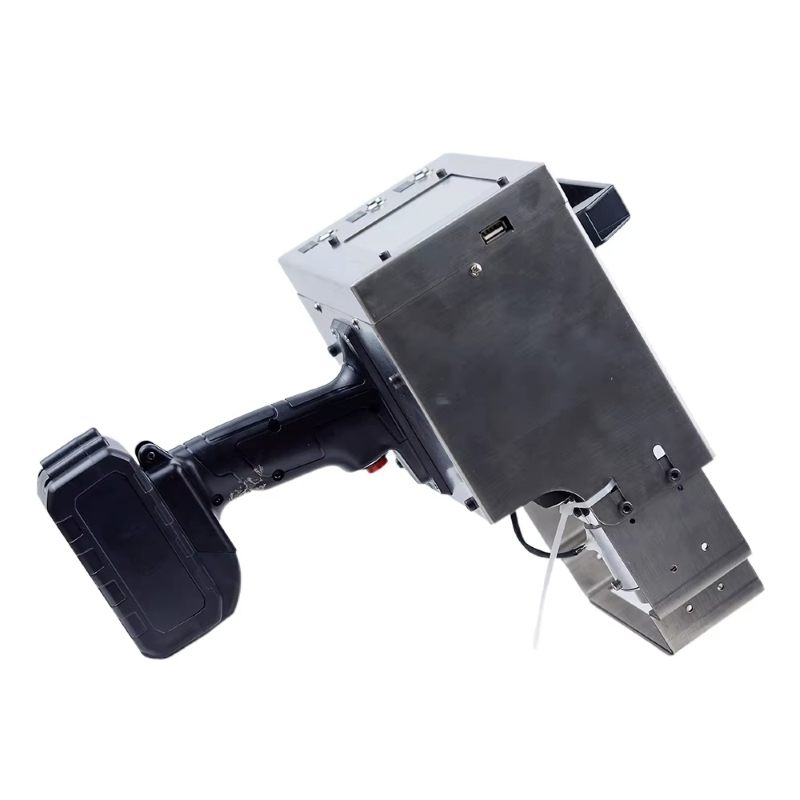

8. Baijin White-Label Cordless Dot Pin Marking Machine

This 120 x 30 mm cordless dot pin marking machine is originally manufactured by Baijin and is also white-labeled for many brands. It uses a stainless steel body with rounded transitions between the housing and fixture, and it can be supplied with optional magnetic fixture assistance.

Like the Luyue-style model, it benefits from newer Chinese-made electric stylus systems that can create deeper marks than earlier low-cost electric units. Its biggest advantage is price, but the body finish, handle strength and fixture contact area are not as strong as more industrial designs.

Pros: deep marks, low price, simple operation and optional electromagnet fixture add-on.

Cons: small fixture contact area, wobble risk at some angles, weaker fit and finish and a thin plastic handle.

• Model: varies by reseller
• Marking area: 120 x 30 mm
• Size: 290 x 252 x 210 mm
• Weight: 5.5 kg

How to Choose a Cordless Dot Pin Marking Machine

For most industrial buyers, the best cordless dot pin marking machine is not simply the lightest one. A very light tool can feel attractive during a short demo, but it may lack battery capacity, fixture stability or marking depth when used on steel parts all day.

If you mark VIN numbers, long serial codes or large product IDs, prioritize a 120 mm class marking width. If you mark small plates or short Datamatrix codes, a 60 mm or 100 mm width may be enough. For outdoor work, maintenance sites and high-temperature workshops, battery reliability, controller heat resistance and impact-resistant construction matter as much as marking speed.

Buyers should also check language support, USB import, QR code and Datamatrix support, available spare styluses, battery certification, charger certification and after-sales access. These details often decide whether a portable marker remains useful after the first few months.

Best Overall Recommendation

For buyers who need a balance of deep marking performance, practical controller functions and industrial durability, the Zixu K31230 is the strongest value choice in this comparison. It is not the lightest model, but it offers a large 120 x 30 mm marking field, strong battery capacity, multilingual software, USB import and a body designed for tougher factory and field conditions.

European and premium brands such as SIC Marking, Pryor, Datamark and Markator remain strong choices when brand standardization, global sourcing rules or existing plant approvals matter. Lower-cost white-label models from Luyue CNC and Baijin can work for price-sensitive applications, but buyers should evaluate handle strength, fixture stability and real marking depth before purchasing in volume.

Related Zixu Solutions

If you are comparing cordless and pneumatic systems, you may also want to review Zixu’s electric dot peen engraver series, handheld pneumatic dot peen marking machines, and portable VIN marking machine solutions. For technology comparison, see our guide to dot peen vs laser marking.

For a specific workpiece, marking depth, fixture or production environment, contact Zixu and share your material, marking size, code type and daily production requirement.

FAQ

What is a cordless dot pin marking machine?

A cordless dot pin marking machine is a battery-powered dot peen marker. It uses a driven stylus to create permanent dot patterns on metal or other industrial materials without needing compressed air or a fixed workstation.

Is cordless dot pin marking deep enough for metal parts?

Modern electric stylus systems can create deep marks on many metal parts, but depth depends on stylus force, material hardness, fixture stability and marking parameters. For very deep or high-cycle work, compare cordless electric models with pneumatic dot peen markers before deciding.

Which marking area is best?

A 120 x 30 mm marking area is a practical choice for many industrial users because it can handle longer serial numbers, VIN-style codes and product IDs. Smaller fields such as 60 x 30 mm or 25 x 60 mm are better for compact parts and short codes.

Can cordless dot pin markers print QR codes or Datamatrix codes?

Many modern models can mark QR codes and Datamatrix codes, but the result depends on controller support, dot density, material surface and scanning requirement. Always test the exact code size and scanner before mass production.

Should I choose a cordless electric marker or a pneumatic marker?

Choose cordless electric marking when portability and cable-free operation are the priority. Choose pneumatic marking when you need continuous production, very deep marks, lower tool weight at the marking head or integration with a fixed workstation.
