Handheld Pneumatic Flange Marking Machine

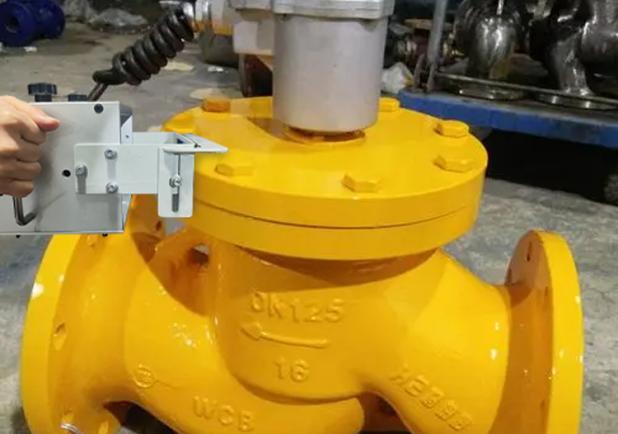

Some manufacturers who need to produce and mark small quantities of flanges, especially large ones, opt for a handheld flange marking machine. For such users, the return on investment of a customized desktop system is too low. Handheld engravers are better suited for marking flanges of different sizes in a flexible manner. We customized the fixtures to work with standard handheld pneumatic dot peen marking machine in order to hold it in place on the flange edge and then manually adjust it to complete the marking process.

For product pricing, customization, or other inquiries:

Description

The Handheld Flange Marking Machine is one of our most specialized marking machine series. Due to the varying needs of our customers, we have sold this series to dozens of customers over the past ten years. Each customer has different requirements regarding flange shapes, sizes, weights, fixtures, and operating modes. We take pride in solving problems and improving the quality and convenience of our customers’ markings in a cost-effective manner. To receive the best solution and quotation, please provide detailed information about your flanges and working scenarios.

Technical data of our handheld pneumatic flange marking machines

Choose from our standard machines below and slide to the right for more information, or contact us for a solution.

Typical AppearanceMachine TypeWork AreaMarking SpeedMarking DepthAir SupplyMarking Needle

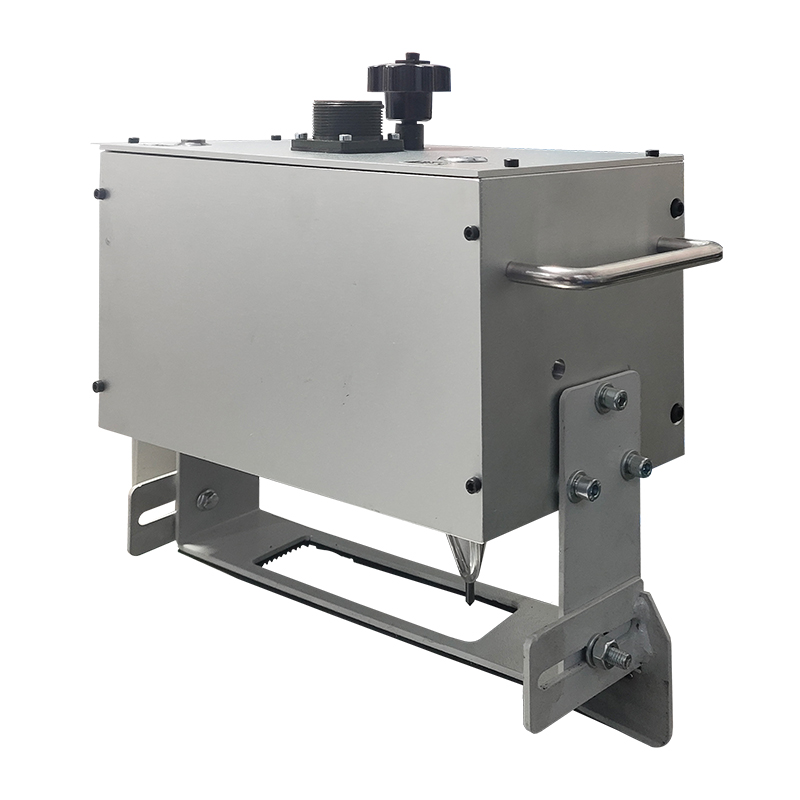

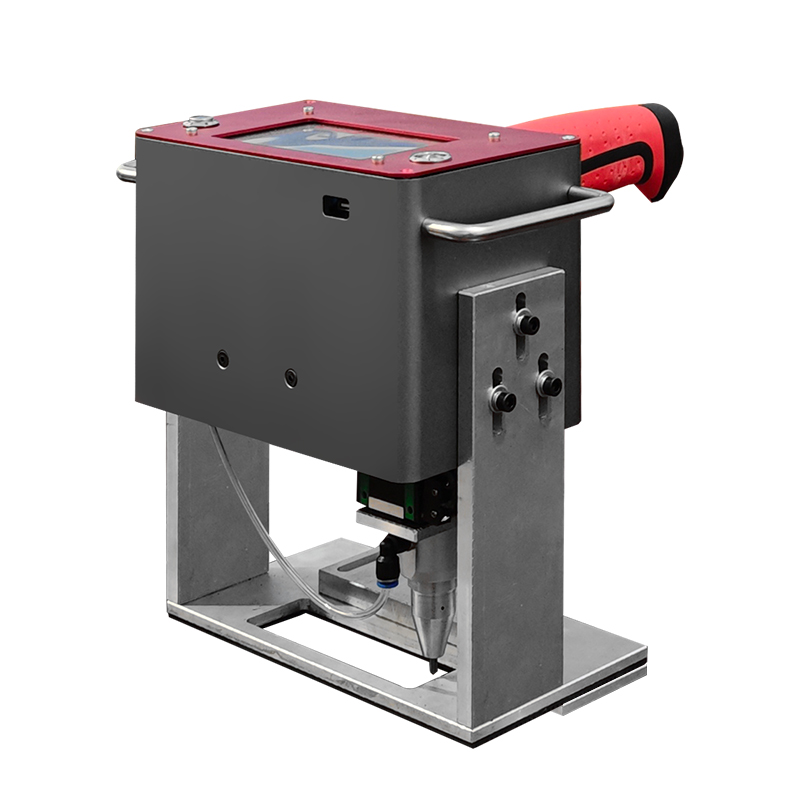

Handheld Dot Peen Flange Marking Machine 1One/Two-handed130*30mm1~5cps or 5~100mm/s0.1~0.3mm for single write on steel, 1mm max.0.4~0.6MPaL4-17.2-65-M26 for standard, or custom needles for specialized purpose.
Handheld Dot Peen Flange Marking Machine 2Two-handed120*50mm
Handheld Dot Peen Flange Marking Machine 3Two-handed110*20mm

Choose software on your handheld flange marking demanding

The basic Thorx-6 controller is sufficient to mark cylinders well with date, batch, serial number, and logos. However, you may need a Kingmark-8 controller for non-English characters. Want other controller software or types?

Thorx-6
Thorx-6		Kingmark-8
Kingmark-8
UI LanguageEnglishAll language
Marking ContentEnglish fonts (letters & numbers), vector graphicsAll language fonts & dot-fonts, vector graphics, Datamatrix & QR codes
Font FormatSHX, SLF, TTF, SHP
Graphic FormatPLT, SLG, WMF, EMF, DWG, DXF
Controller ConfigurationTouchscreen controller or industrial PC controller with USB &RS232 connection
Touchscreen Size7’’10.1’’

Marking Samples

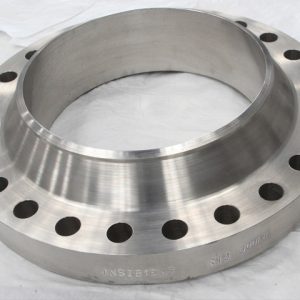

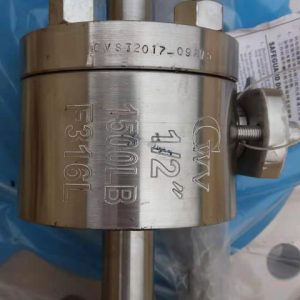

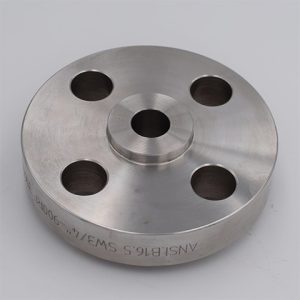

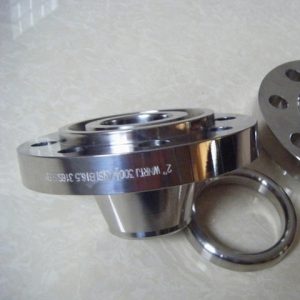

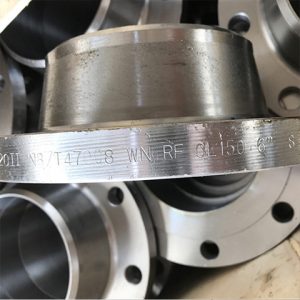

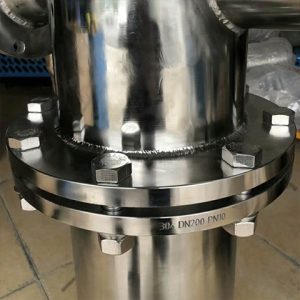

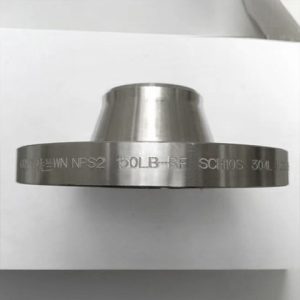

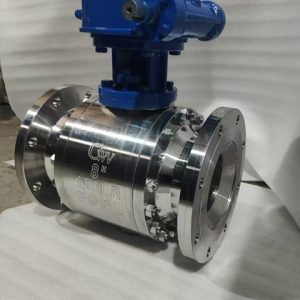

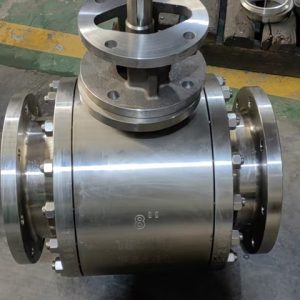

Flange Marking Samples 3

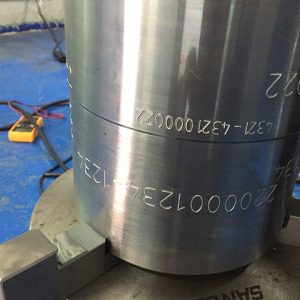

Flange Marking Samples 4

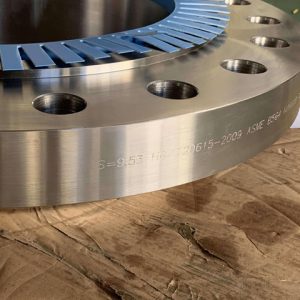

Flange Marking Samples 5

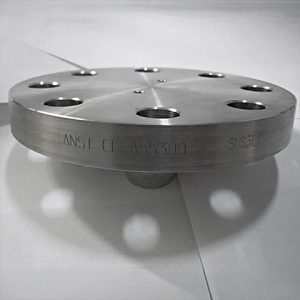

Flange Marking Samples 6

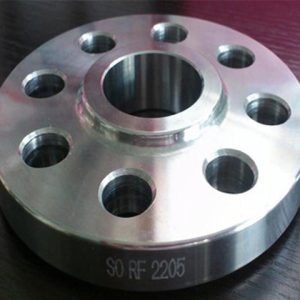

Flange Marking Samples 7

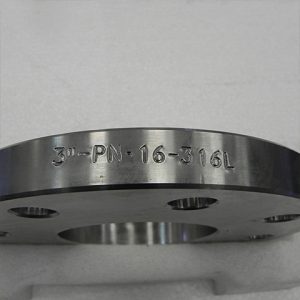

Flange Marking Samples 8

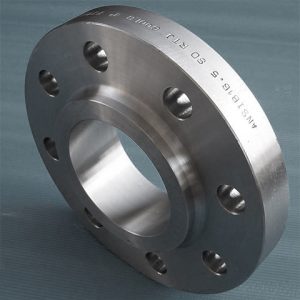

Flange Marking Samples 9

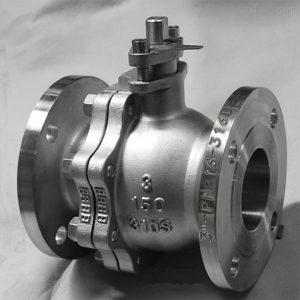

Flange Marking Samples 10
Flange Marking Samples 2
Flange Marking Samples 1
Flange Marking Samples 16
Flange Marking Samples 15
Flange Marking Samples 14
Flange Marking Samples 13
Flange Marking Samples 12
Flange Marking Samples 11

Clients who chose our flange dot peen marking machines.

UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer
UV Laser Marking Machine Customer

FAQs about our flange marking machines

The cost of a desktop flange engraving machine depends mainly on the size and weight of the flange. Larger sizes require a larger table, which varies in cost and freight. Heavier weights require more powerful drive motors and planetary gearboxes to support rotation, which can significantly increase the cost. Hand-held flange engraving machines require customization of the marking head, tooling, and operation according to the customer’s flange size. Therefore, we cannot use a standardized package size. If you need to consider shipping methods and freight costs, please contact us for the most appropriate packaging method and size.

The final dimension and weight of machine and shipping package are influenced by detail configuration, including machine model, controller and purchased consumable marking needles, etc. We developing and manufacturing very single machinery for each client for specialized demanding and we recommend configuration based the factors on work environment, language and marking content.

We offer 2 years of online video and live chat technical support for all of our machines, as well as in-house manufactured marking needles at a discounted price to help our customers reduce their total cost of ownership.

We manufacture every single machine according to the specialized order, the standard machines take no more than 3 working days, and lite customized machines usually take 10~15 working days. Then the delivery based on air or sea takes 5~60 days.

Want an un art handing video demonstration on specialized material? Looking for solution of your specialized environment or automatic process demanding?
