Gas Cylinder Pneumatic Marking Machine
A dedicated industrial gas cylinder pneumatic marking machine featuring an 80×40 mm marking window and a 0.2–0.6 MPa air-driven impact mechanism, delivering permanent, deep (0.1–1.2 mm) indentations across curved cylinder shoulders, steel bottles, and cast parts at speeds exceeding 3 characters per second — ensuring zero consumables, high repeatability (≤0.01 mm), and complete safety in hazardous gas environments.
High-impact marks physically stamped into metal, permanently surviving shot blasting, repainting, and decades of outdoor weathering.
Powered by 0.2–0.6 MPa compressed air with no ink or ribbons; durable mechanical design built for harsh shop floors.
Repeatability ≤0.01 mm with embedded controller for auto-serializing, date coding, and inspection data without an external PC.

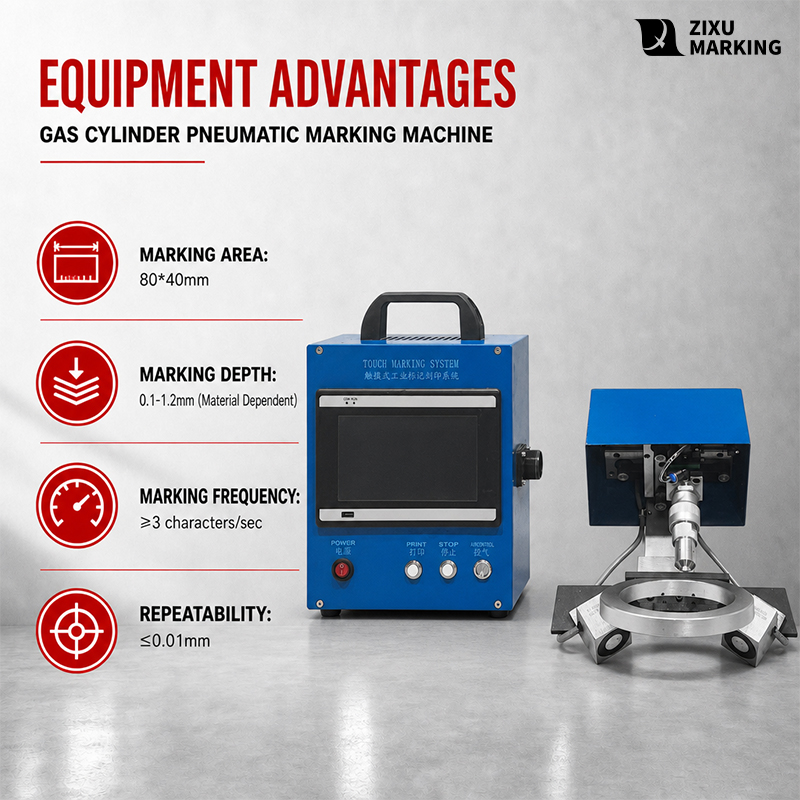

The Gas Cylinder Pneumatic Marking Machine is an industrial solution engineered for deep, permanent traceability on gas cylinders, seamless steel bottles, and heavy metal components. Operating on standard 0.2–0.6 MPa compressed air and AC220V 50Hz power, the system drives an ultra-hard alloy needle at 300 impacts per second, delivering marking speeds of ≥3 characters per second and permanent indentations from 0.1 to 1.2 mm deep (material dependent) across its 80×40 mm marking window.
Featuring custom curved-surface clamping fixtures, high repeatability (≤0.01 mm), and a standalone controller, it eliminates hazardous manual punch hammers with sub-8-second automated marking. With zero consumables, dust-sealed mechanics, and an explosion-proof cold pneumatic process, it ensures maximum safety, regulatory compliance, and permanent readability in gas filling stations, cylinder inspection plants, and heavy fabrication shops.
| (Parameter) | (Specification Value) |
| Product Name | Gas Cylinder Pneumatic Marking Machine |
| Marking Area | 80 × 40 mm |
| Marking Depth | 0.1 – 1.2 mm (Material Dependent |
| Marking Frequency | ≥ 3 characters / second |
| Impact Speed | 300 times / second |
| Air Supply Pressure | 0.2 – 0.6 MPa |
| Voltage | AC 220V, 50Hz (Standard Single-Phase) |
| Repeatability | ≤ 0.01 mm |
| Brand & Manufacturer | ZIXU |
| Marking Method | Curved cylinder shoulder, cylinder body, and planar metal parts |
| Stylus / Pin Hardness | ≥ HRC 85 (High-density tungsten carbide alloy) |
| Workpiece Hardness | ≤ HRC 65 (Gas cylinder steel, cast iron, structural steel, aluminum) |
| Marking Content | Text, serial numbers, VIN, tare weight, test dates, 2D DataMatrix |
| Standard Accessories | Curved clamp fixture, air hose, tungsten needle, standalone controller, regulator |
| Certifications & Warranty | CE Certified (Machinery & EMC Directives), ISO9001 | 12 Months Warranty |
Features

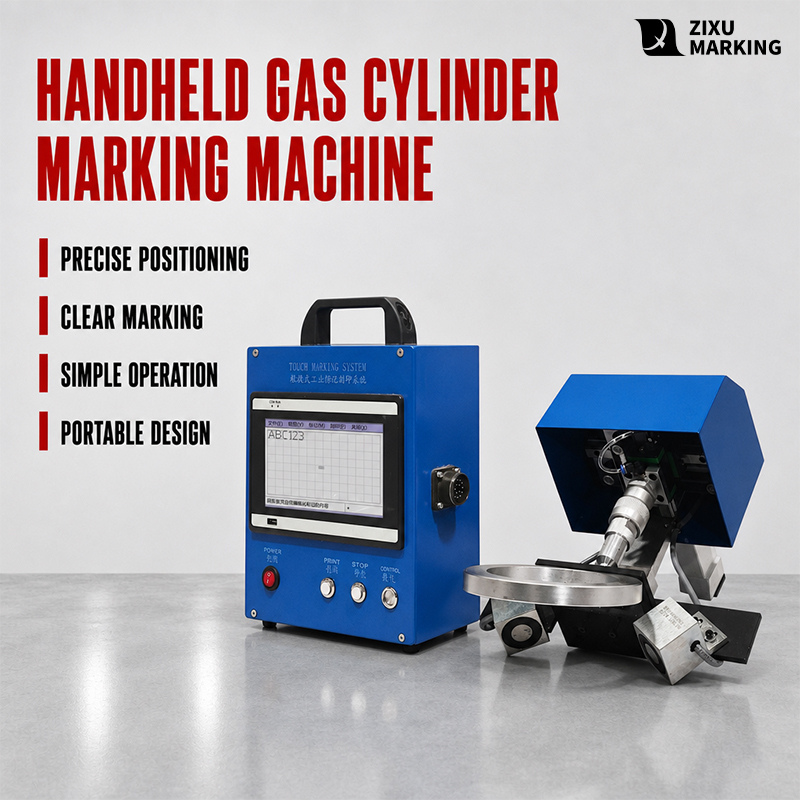

Handheld Portable Design
Flexible on-site marking with a lightweight, ergonomic body. No fixed installation required, easily meeting mobile marking needs for large gas cylinders and heavy workpieces, greatly improving work efficiency.
Specially Adapted for Curved Surfaces
Clear marking without distortion. Specially optimized for cylindrical curved surfaces, firmly fitting the cylinder body without shifting. Uniform engraving depth ensures characters, serial numbers, and 2D codes remain sharp, wear-resistant, and permanent, fulfilling long-term traceability and regulatory requirements for special equipment.
Simple & Smart Operation
One-key fast marking with intuitive editing for numbers, letters, dates, serial numbers, QR codes, etc. Intuitive parameter adjustment enables quick operation without specialized training. Single-operator batch marking significantly reduces labor costs.
Stable, Durable & Reliable
Industrial-grade build featuring a heavy-duty carbide pin and rugged chassis. Resistant to oil stains and vibrations, with long service life and low failure rate. Built for demanding continuous industrial environments with minimal maintenance and low consumable costs.

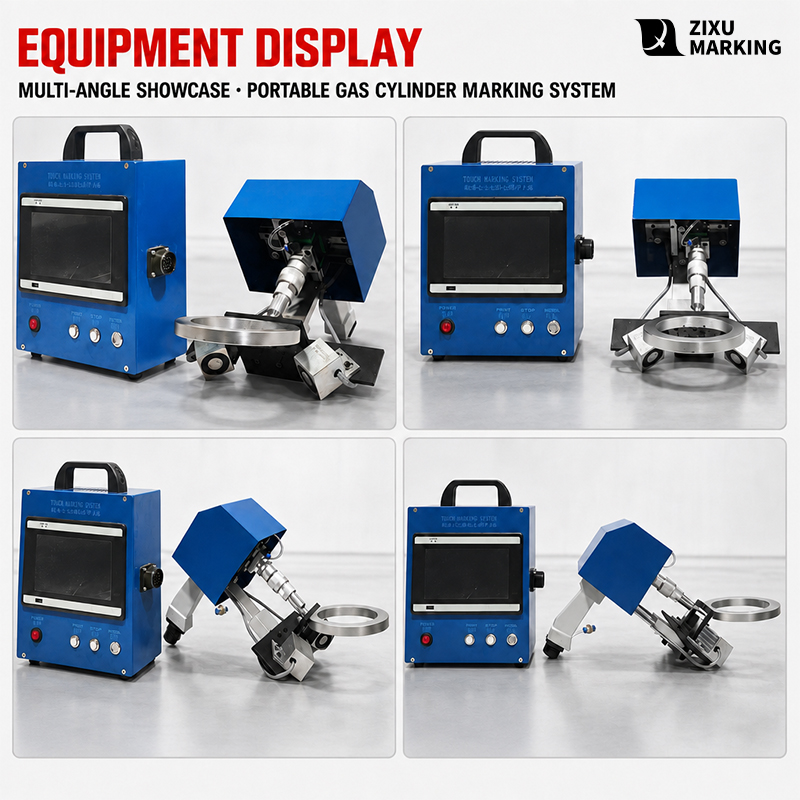

| # | (Component) | (Engineering Function) |

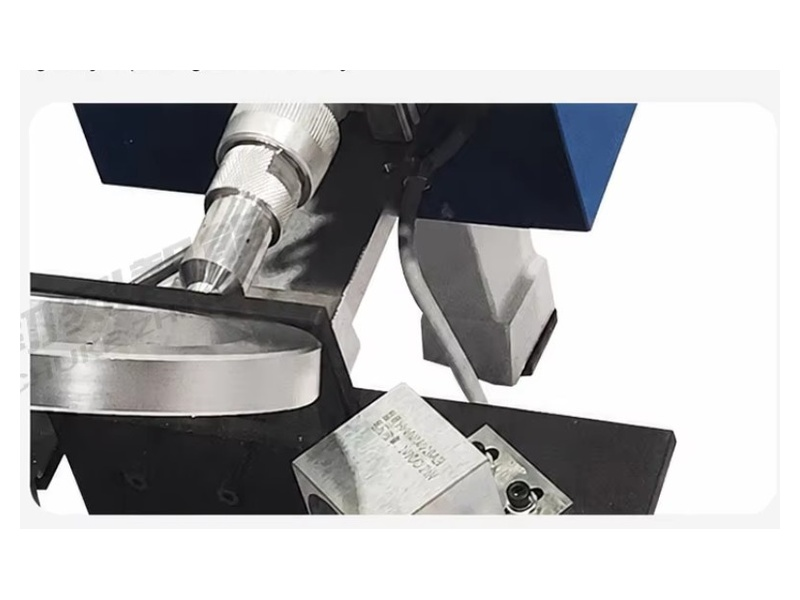

| 1 | Dedicated 80x40mm Marking Head | Precision-machined X-Y axis movement frame with ≤0.01mm repeatability in an 80×40mm window. |

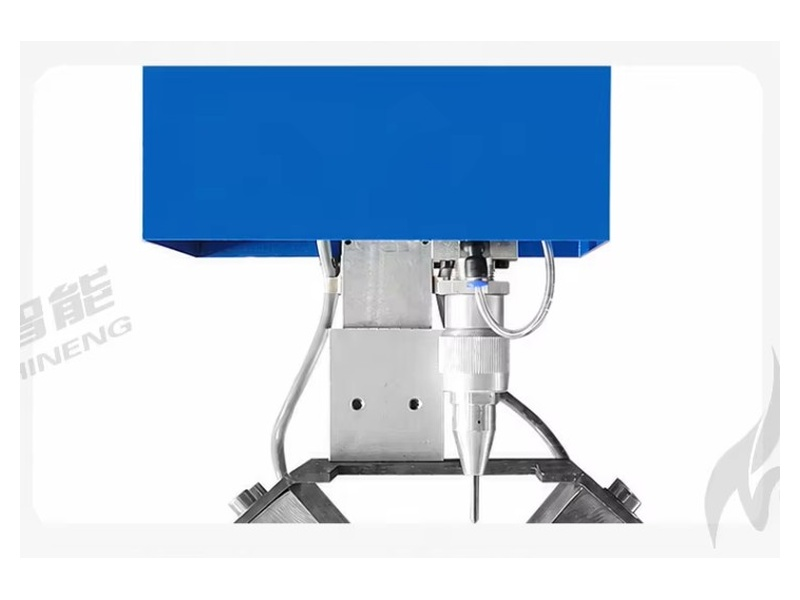

| 2 | Tungsten Stylus (300 impacts/sec) | High-velocity hardened needle (HRC > 85) delivering 0.1–1.2mm deep indentations on curved cylinders. |

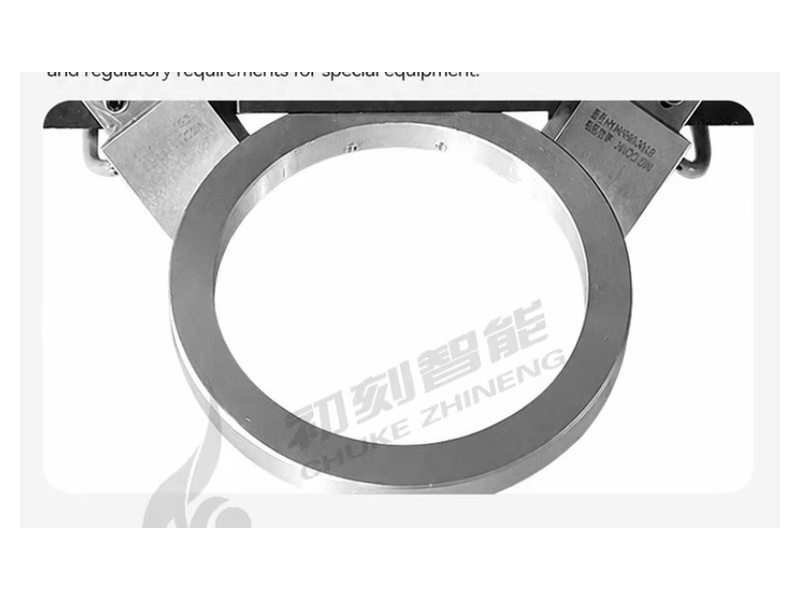

| 3 | Cylinder Shoulder Clamping Fixture | Custom radius-matching clamp and magnetic base for fast, firm attachment to gas cylinder shoulders. |
| 4 | Precision Air Filter & Regulator | Stabilizes incoming 0.2–0.6 MPa shop air, ensuring consistent impact force and moisture-free pneumatic drive. |

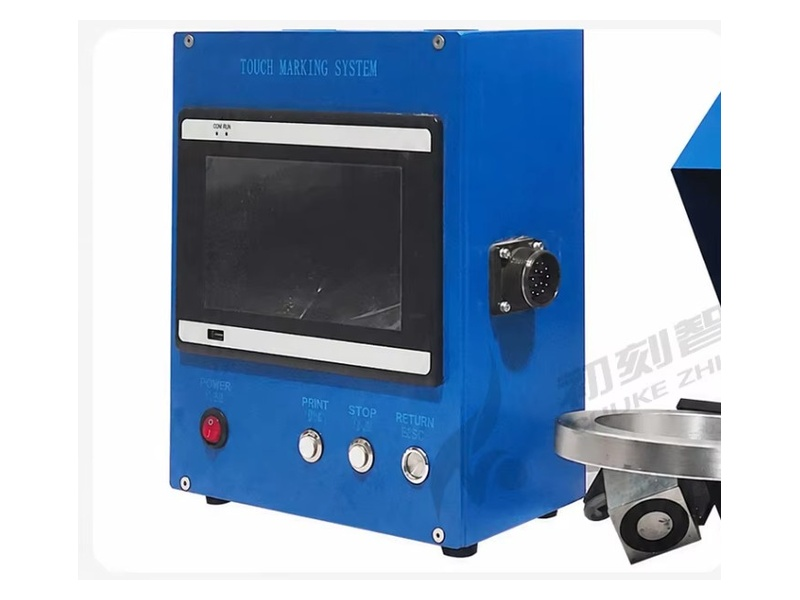

| 5 | Industrial Standalone Controller | Embedded touchscreen/keypad unit operating on AC220V 50Hz; stores multi-format marking templates without a PC. |
Material Compatibility
| (Material) | |||
| Gas Cylinder Seamless Steel | 37Mn, 34CrMo4, 30CrMo | Ideal | 0.35–0.5 MPa； |
| LPG Welded Steel | HP295, HP325, HP345 | Ideal | 0.3–0.45 MPa； |
| Gray & Ductile Cast Iron | HT200, HT250, QT450, QT500 | Ideal | 0.4–0.6 MPa； |
| Cast Bronze & Brass | ZCuSn10Pb1, C83600, C93200 | Ideal | 0.3–0.4 MPa； |
| Structural Carbon Steel | Q235B, Q345B, A36, 1045 | Ideal | 0.35–0.5 MPa； |
| Aluminum Alloy Cylinders | 6061-T6, 7075-T6 | Suitable | 0.2–0.35 MPa； |
| Stainless Steel | 304, 316, 316L (Annealed) | Suitable | 0.4–0.6 MPa； |
| Engineering Plastics / Bakelite | POM, Nylon, Bakelite, PVC | Suitable | 0.2–0.3 MPa； |
| Hardened High-Alloy Steel | HRC > 65 (Case Hardened) | Not Suitable |
Explore the Materials You Can Engrave with Our Pneumatic Dot Peen
| Material Category | Pneumatic Dot Peen |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | X |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | √ |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | X |
| Silicone Rubber | X |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | X |
| Rubber (NR / NBR / EPDM) | X |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | X |
| PU / PVC Synthetic Leather | X |
| Fabric & Textile | X |
| Denim & Garment | X |
| Non-Woven Fabric | X |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | √ |
| Bamboo & Cork | √ |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | X |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | X |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | √ |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | X |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | X |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | X |
| Abrasives & Grinding Wheels | √ |
| Food, Eggshell, Produce | X |

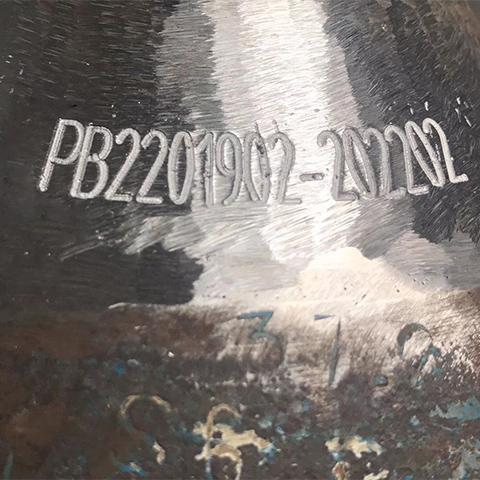

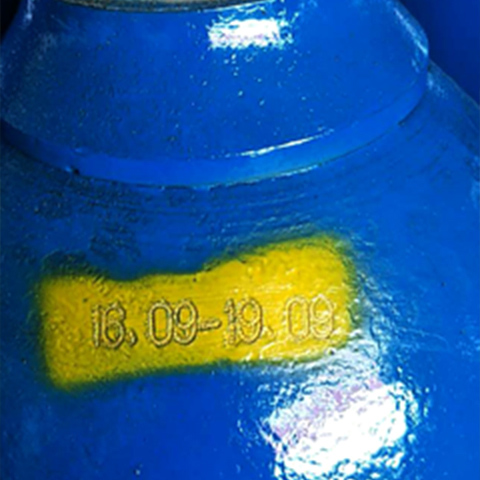

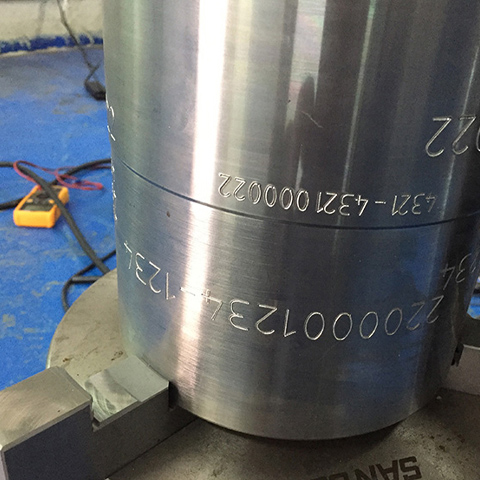

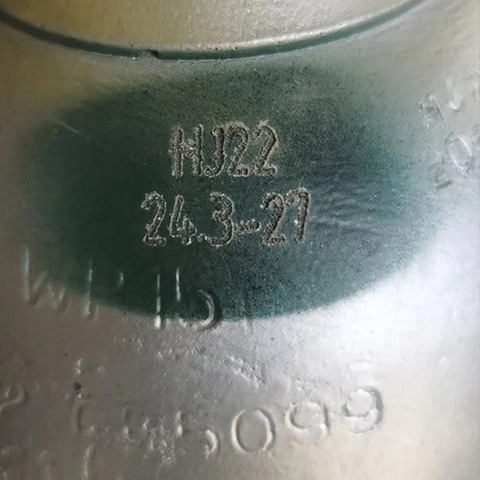

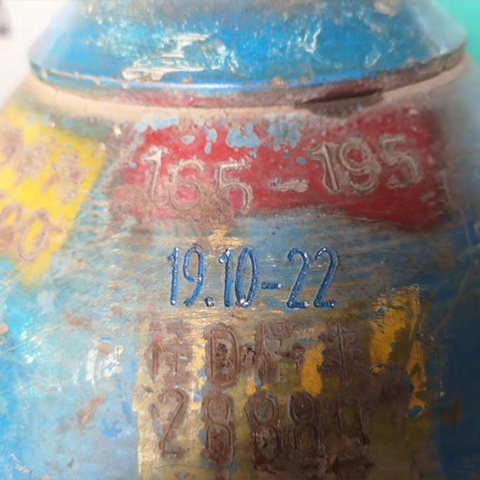

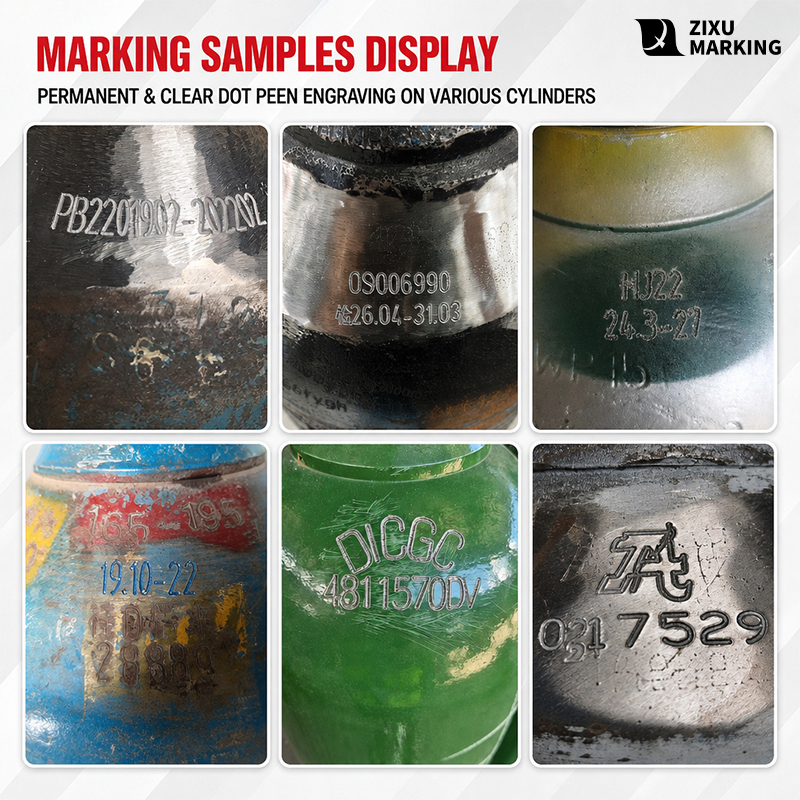

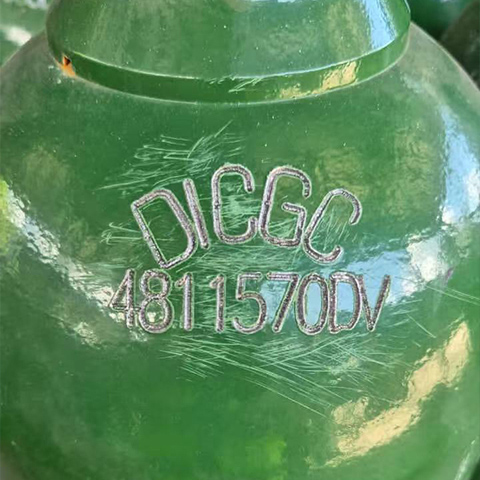

Marking Samples
