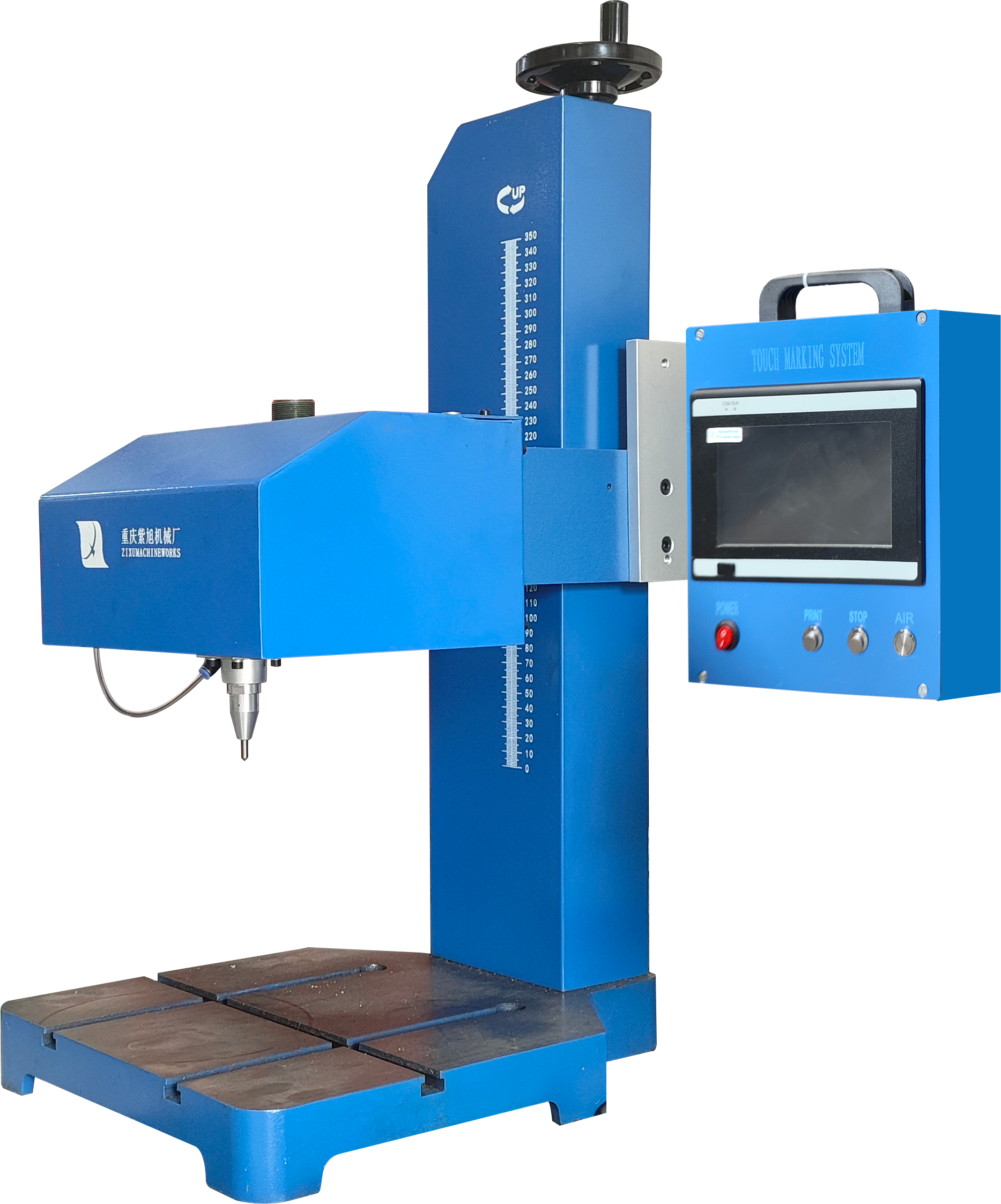

PMK-DT1480 Pneumatic Marking Machine
Industrial pneumatic marking machine imprints permanent characters, digits, and logos on metals, plastics, and wood through high-frequency mechanical impacts at 2–5 characters per second, with a 140×80 mm marking area.

Uses 0.2–0.6 MPa compressed air to create permanent marks on metals, plastics, and wood through high-frequency impacts.
Offers ≤0.01 mm repeatability and positioning accuracy, adjustable 0.01–0.5 mm depth, and a 140 × 80 mm area for text, numbers, and logos.
Features a cast iron base, 20 guide rail, 57# NEMA motor, separate controller, and HRC 85+ stylus for marking materials up to HRC 60.
The pneumatic marking machine is a high-efficiency industrial marking device powered by compressed air. Through high-frequency mechanical impacts, it permanently imprints identifiers on rigid materials, including metals, plastics, and wood surfaces. Its characteristics are rapid operation, exceptional durability, and high-definition marking, and it is widely used in manufacturing, auto components, aerospace, and electronics industries.

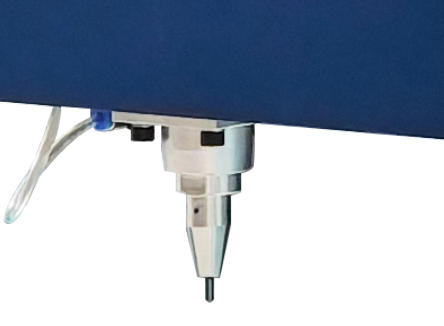

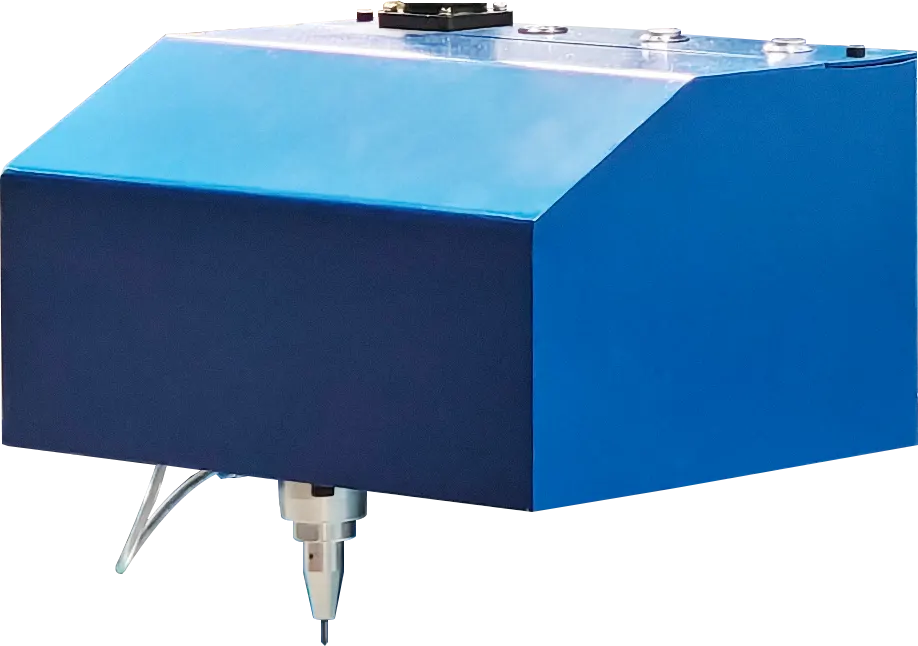

The marking head works within a 140 × 80 mm marking area on plane and near-plane surfaces, at a marking speed of 2–5 characters per second and a marking depth of 0.01–0.5 mm. Marking content covers Chinese/English characters, digits, and logos. Repeat accuracy and positioning accuracy are both ≤0.01 mm, and the machine handles workpiece materials up to HRC 60 with a stylus hardness above HRC 85.

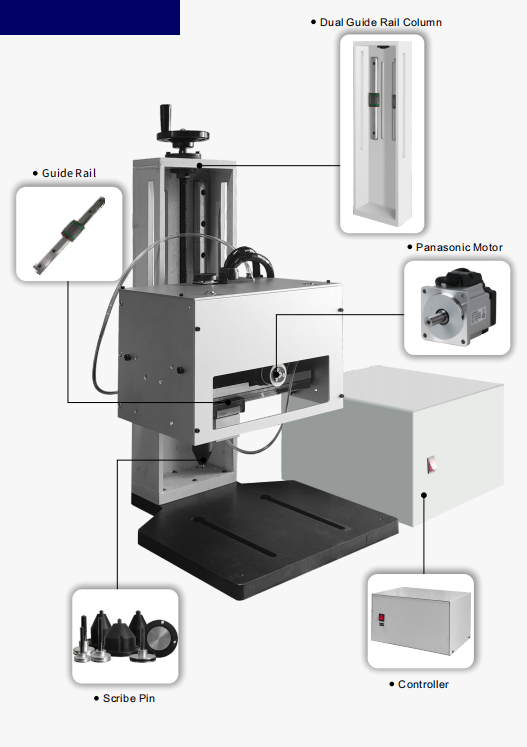

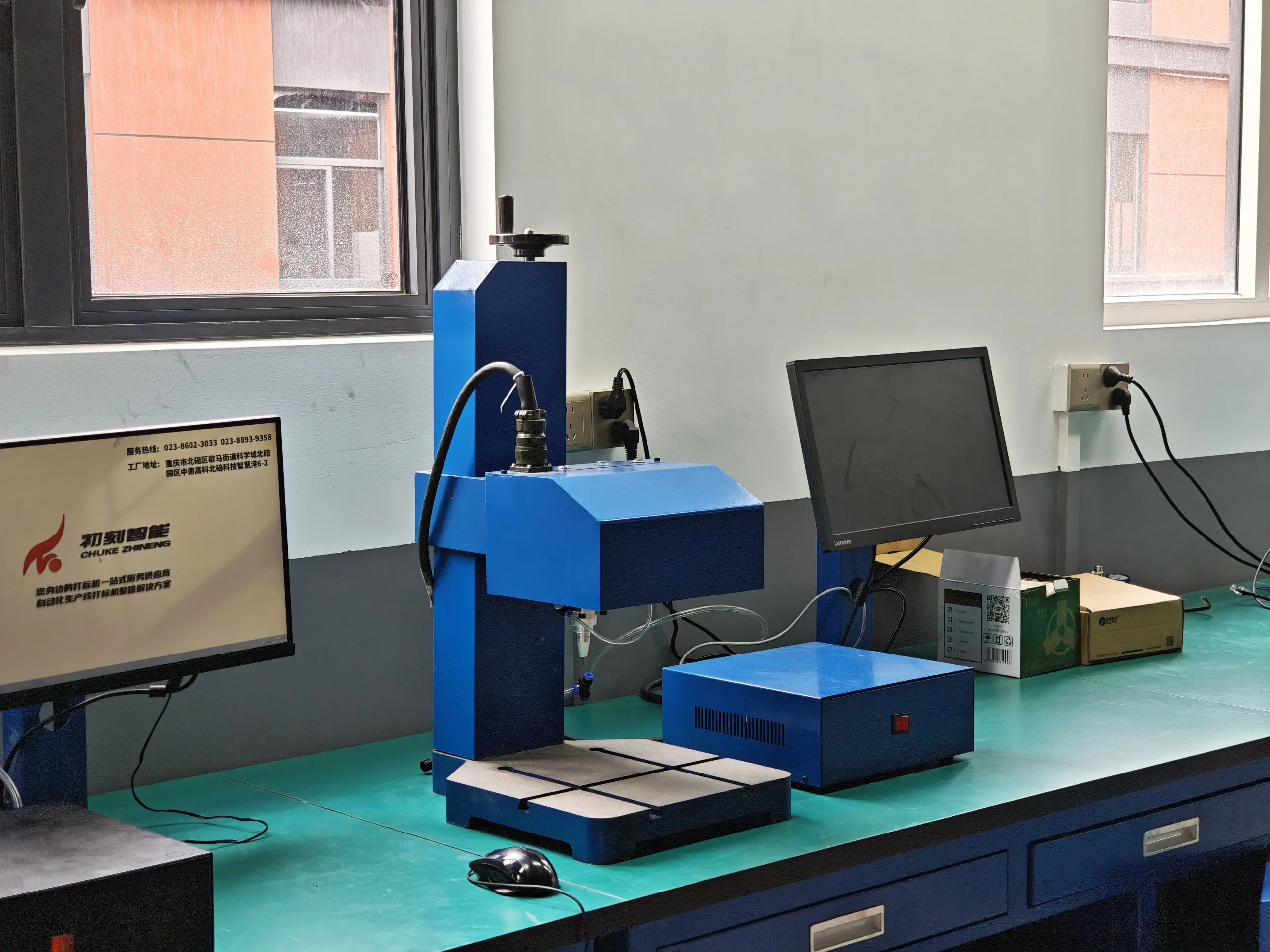

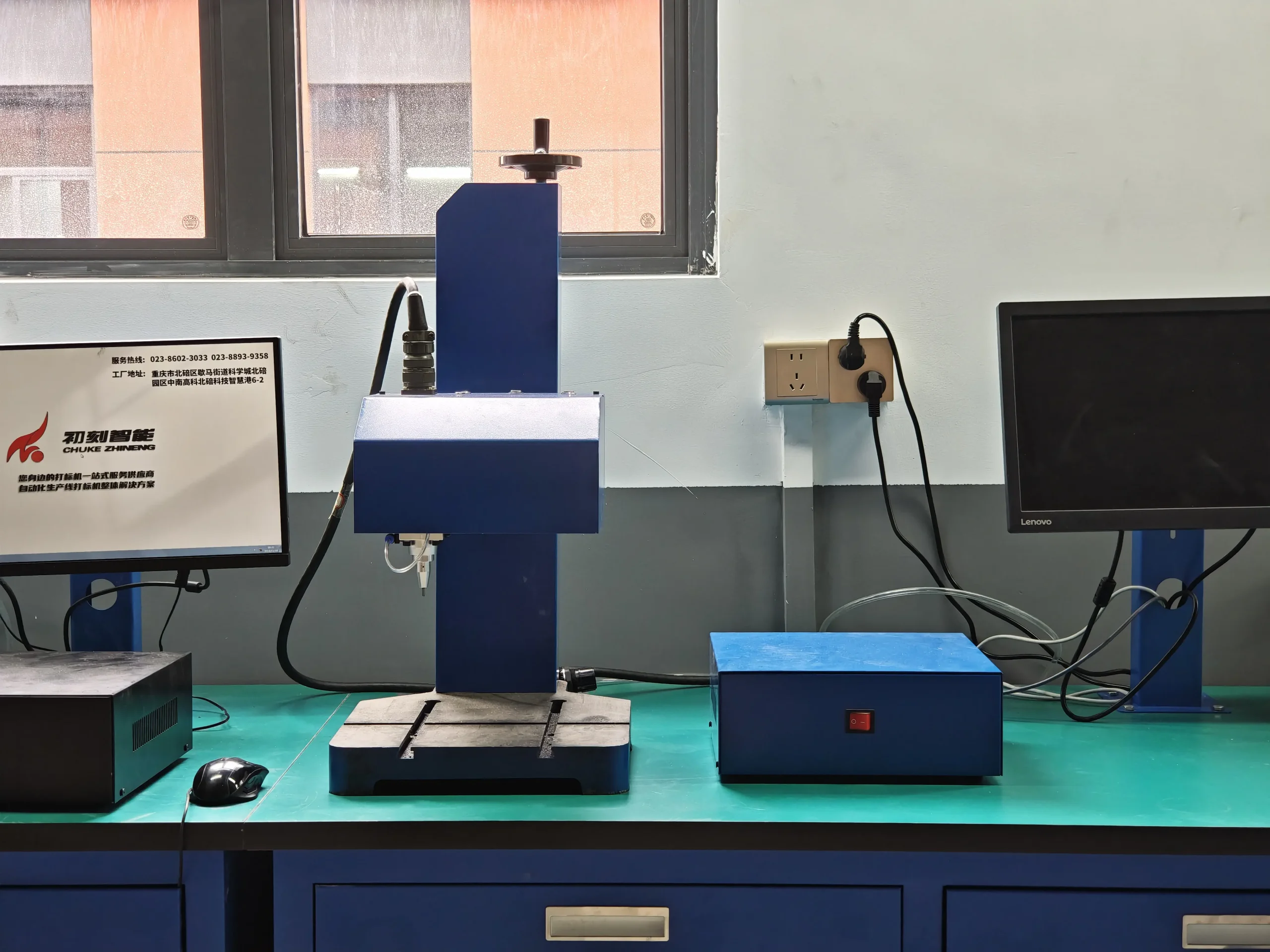

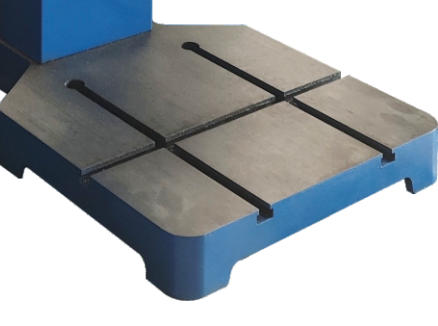

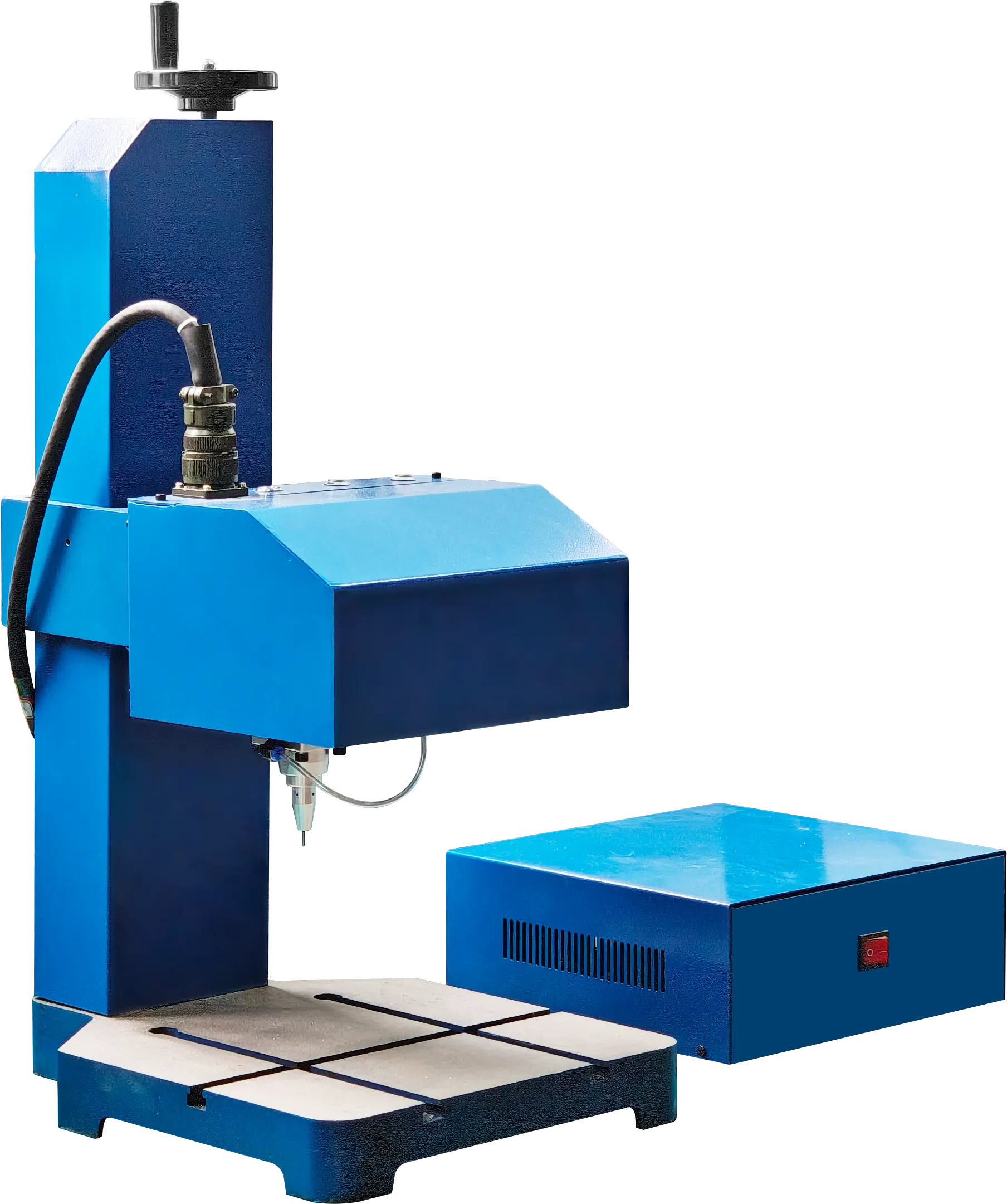

The machine is built around a heavy-duty cast iron base, a 20 guiderail and a 57# NEMA motor, with a separate controller connected by an aviation connector cable and reinforced polyurethane hose. Air pressure runs at 0.2–0.6 MPa and power input is 220V/110V ±10%, 50/60Hz, with an operating temperature range of -10 to 50 °C. Marking heads and controllers are available in several configurations, so please confirm the head size, controller type, and marking area required for your workpiece before ordering.
| Parameter | Specification |
| Model | PMK-DT1480 |
| Marking Method | Plane & Near-Plane Surfaces |
| Marking Depth | 0.01–0.5 mm |
| Marking Speed | 2–5 characters/s |
| Marking Area | 140 × 80 mm |
| Marking Content | Chinese/English characters, digits, logos |
| Material Hardness | < HRC 60 |
| Stylus Hardness | > HRC 85 |
| Repeat Accuracy | ≤ 0.01 mm |
| Positioning Accuracy | ≤ 0.01 mm |
| Air Pressure | 0.2–0.6 MPa |
| Power Input | 220V/110V ±10%, 50/60Hz |
| Operating Temperature | -10~50 °C |
| Dimensions | 320 × 410 × 740 mm |
| Weight | 50 kg |
| Standard Accessories | Marking pin, reinforced polyurethane hose, aviation connector cable, air pressure regulator, controller |
Features

Material Adaptability
Marks metals, plastics and wood surfaces, covering rigid materials with hardness up to HRC 60.
High Efficiency & Durability
A marking speed of 2–5 characters per second, combined with a heavy-duty cast iron basement, 20 guiderail and 57# NEMA motor, supports continuous industrial use.


Legible Marking
Marking depth of 0.01–0.5 mm produces clear, permanent characters, digits and logos within a 140 × 80 mm marking area.
Precise Control
Repeat accuracy and positioning accuracy are both ≤0.01 mm, with stylus hardness above HRC 85.


Flexible Machine & Controller Selection

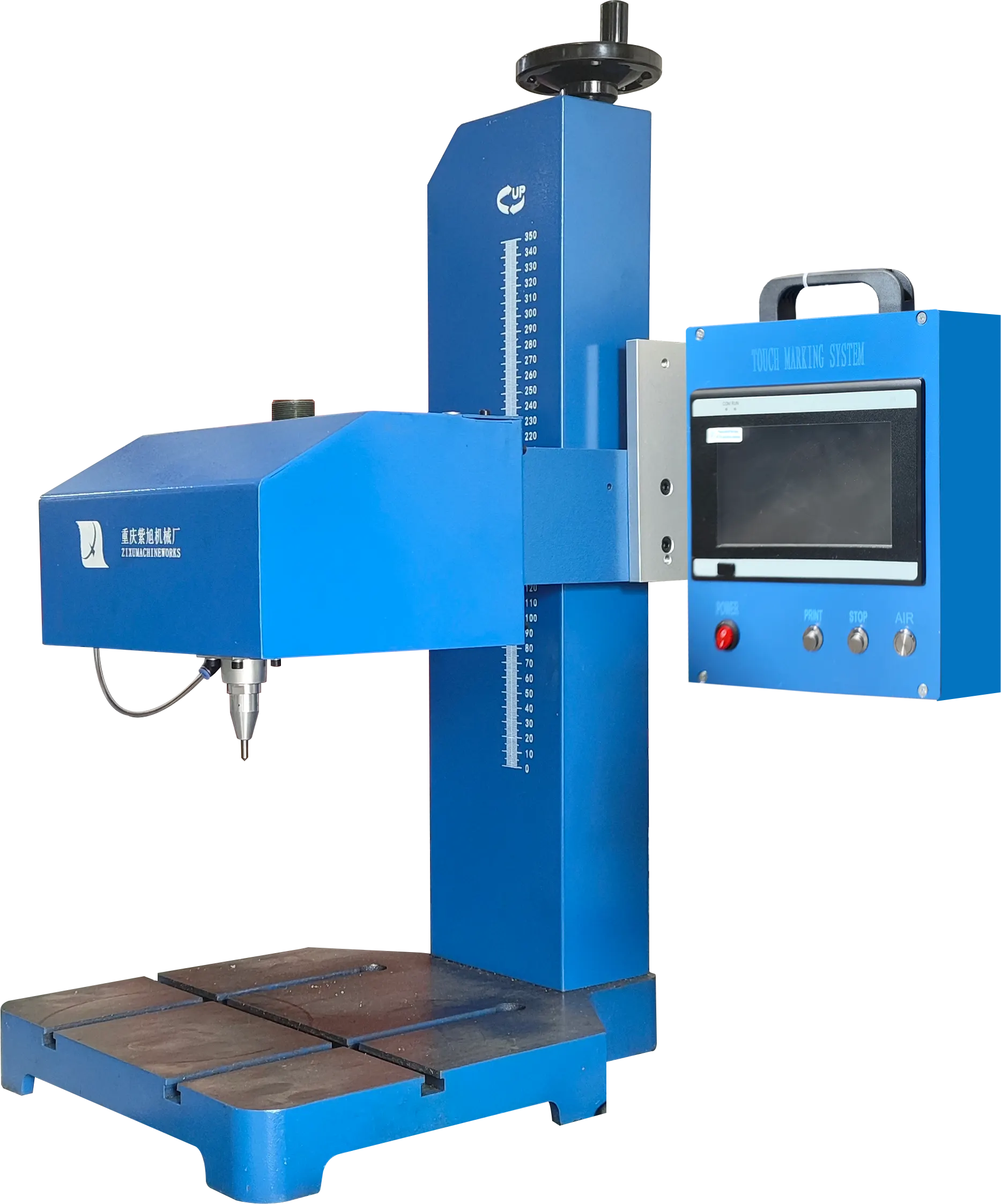

Six marking head configurations and four controller types are available to match different workpiece sizes and production setups.
| Option | Footprint | Height |
| Head 1 | 190 × 300 | 240 |
| Head 2 | 260 × 120 | 260 |
| Head 3 | 340 × 160 | 220 |
| Head 4 | 340 × 160 | 220 |
| Head 5 | 340 × 230 | 290 |
| Head 6 | 160 × 170 | 170 |
| Option | Form Factor |
| Controller 1 | Compact desktop box |
| Controller 2 | Portable with screen & handle |
| Controller 3 | Portable with screen & handle |
| Controller 4 | Laptop-style console |

Material Compatibility
| Material Category | Compatible Materials | Typical Marking Effect & Applications |
| Metals | Metals (workpiece hardness must be < HRC 60) | Permanent marking of characters, digits, logos, part numbers and serial numbers. Samples show markings on metal rings, machined components, hexagonal fittings and metal plates, including a QR code and asterisk-delimited codes. |

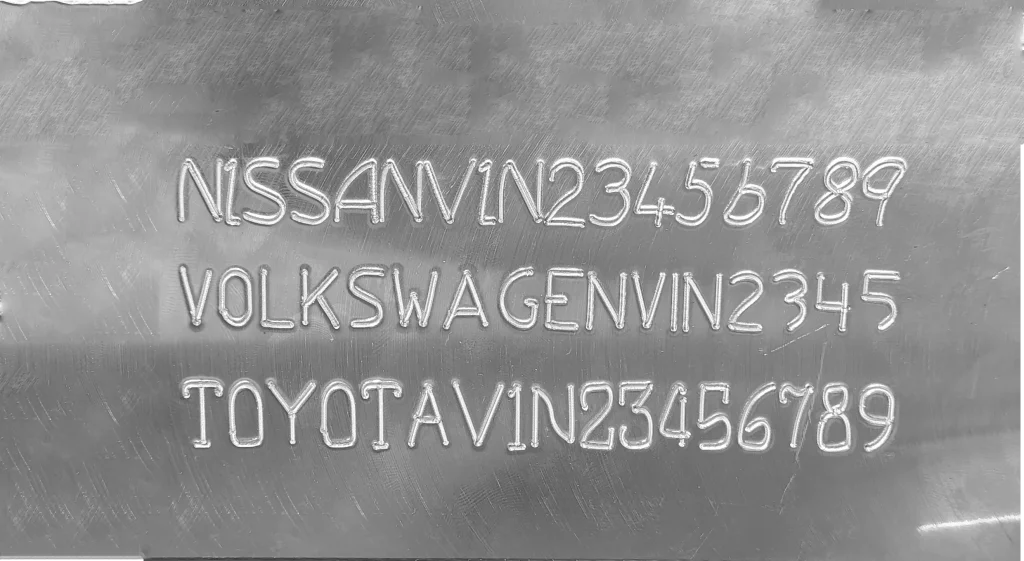

| Metals | Automotive / Motorcycle Manufacturing | VIN (Vehicle Identification Number), engine number, frame number, chassis number; parts such as connecting rods, piston rings, cylinders, gears, bearings, brake discs, and wheel hubs. |

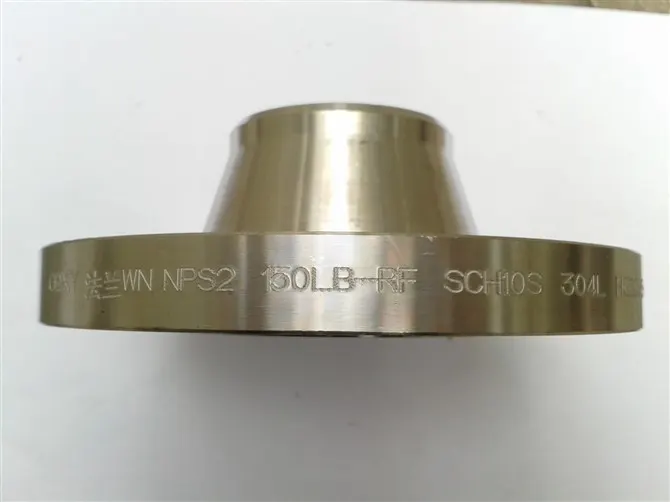

| Metals | Machinery Manufacturing and Heavy Industrial Equipment | Gears, molds, machine tool components, pump bodies, valves, flanges, and large castings/forgings (heavy-duty equipment requires deep marking). |
| Metals | Hardware Tools and Metal Products | Hardware tools, stainless steel products, signs and nameplates, fasteners (bolts and nuts), metal piping, steel products |

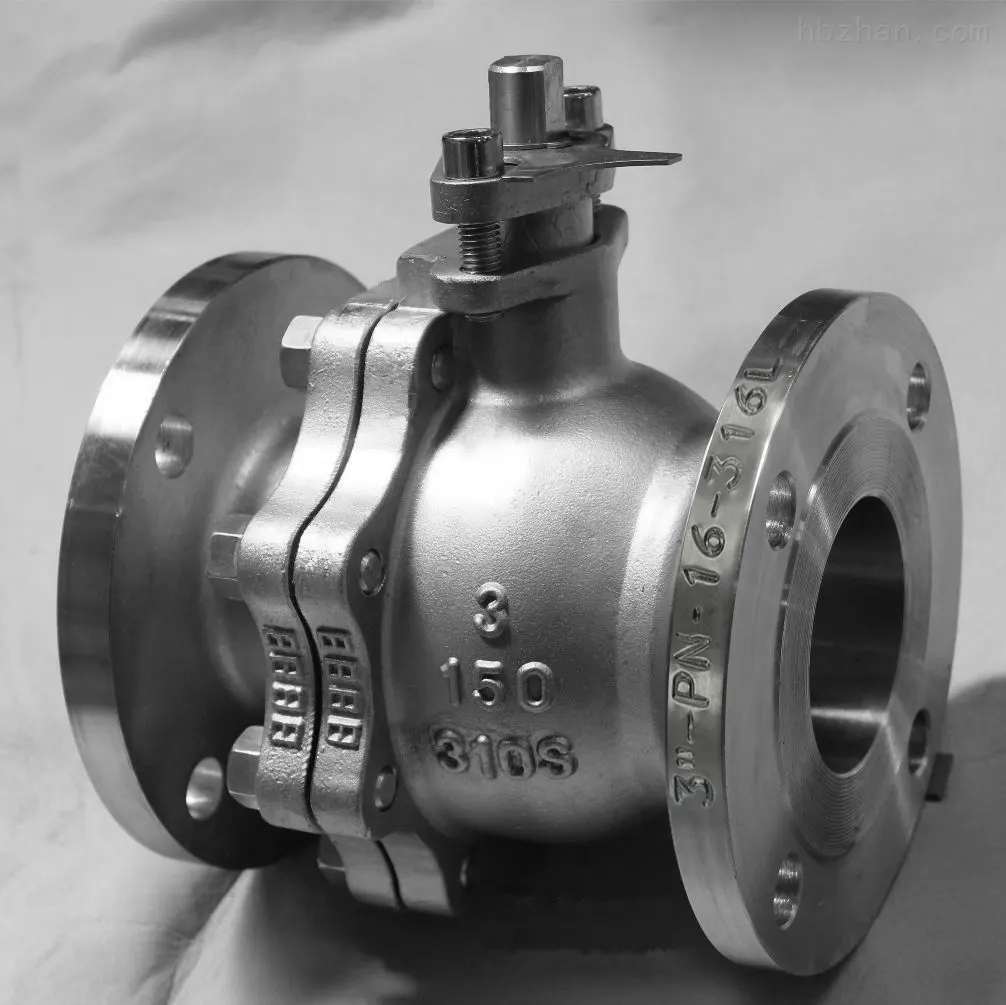

| Metals | Oil & Gas / Energy | Pipes, valves, and flanges — markings must be resistant to coatings, corrosion, and outdoor environments. |
Explore the Materials You Can Engrave with Our Pneumatic Dot Peen
| Material Category | Pneumatic Dot Peen |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |

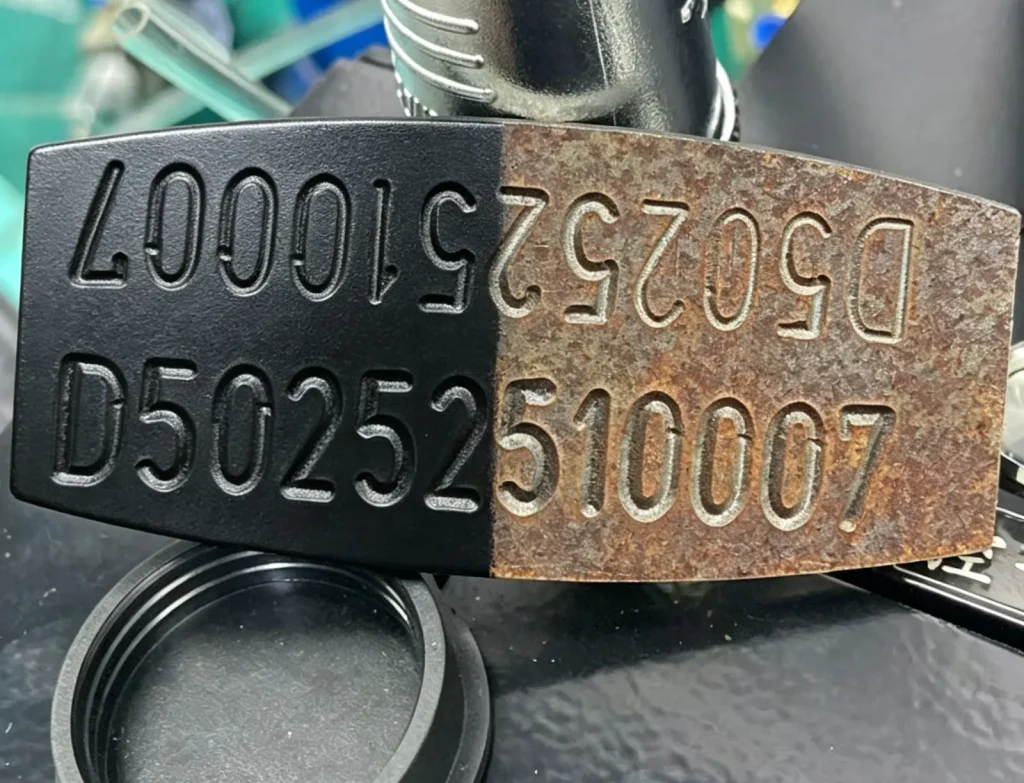

| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | X |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | √ |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | X |
| Silicone Rubber | X |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | X |
| Rubber (NR / NBR / EPDM) | X |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | X |
| PU / PVC Synthetic Leather | X |
| Fabric & Textile | X |
| Denim & Garment | X |
| Non-Woven Fabric | X |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | √ |
| Bamboo & Cork | √ |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | X |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | X |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | √ |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | X |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | X |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | X |
| Abrasives & Grinding Wheels | √ |
| Food, Eggshell, Produce | X |

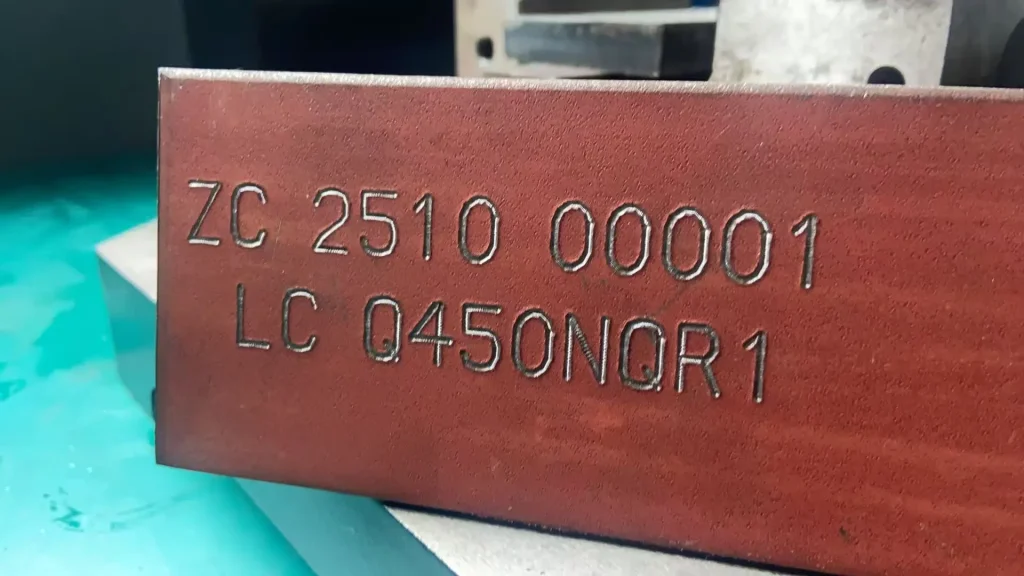

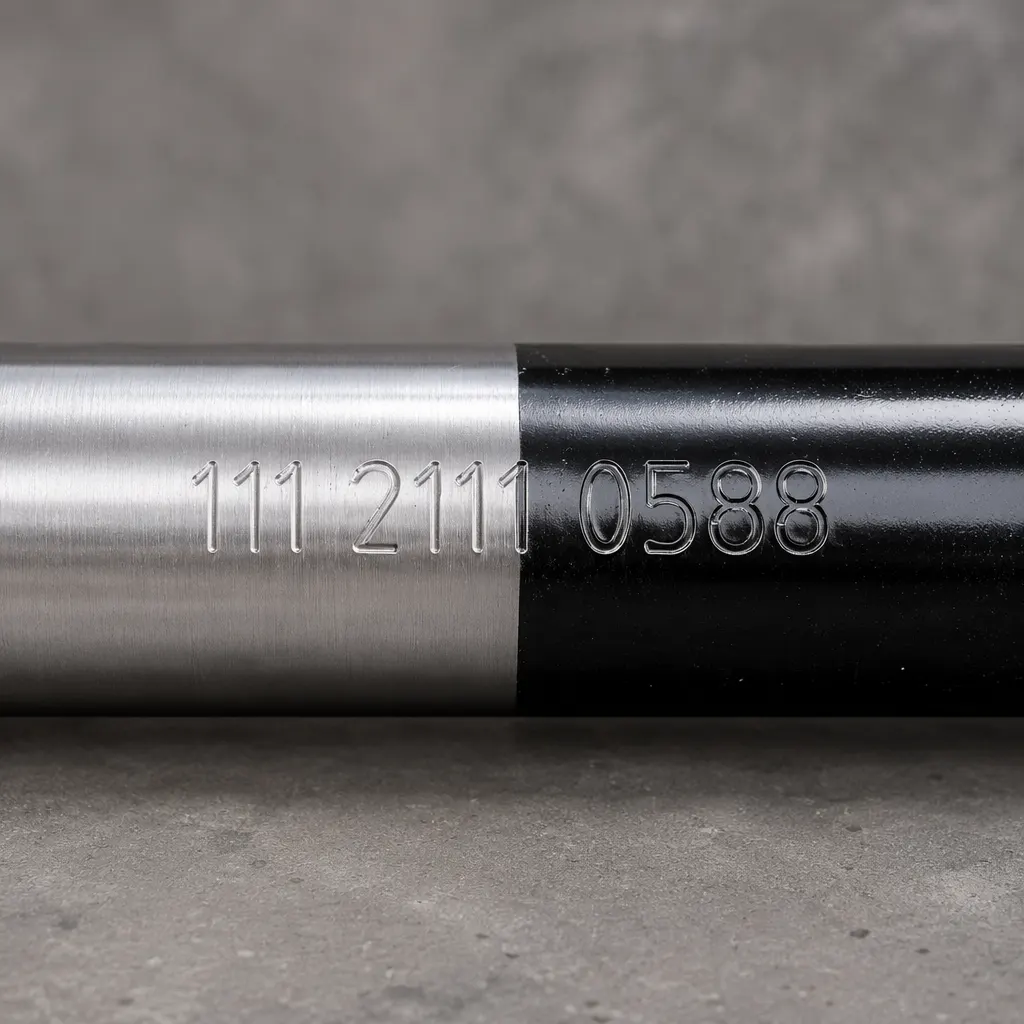

Marking Samples
