Pneumatic Dot Peen Marking Machine | 1mm Deep Marking
A portable pneumatic dot peen marking machine that drives a hardened needle up to 1 mm deep into metal below HRC65 — permanent, wear-resistant marks on large or fixed parts.
A purpose-developed deep-marking needle presses up to 1 mm into the part, so the data is carried by the material instead of sitting on the surface.
The head is portable and held by a powerful solenoid fixture, so chassis, frames and installed components are marked where they sit.
Compressed air drives the needle instead of a laser, so there is no laser safety classification and no optical enclosure to maintain.

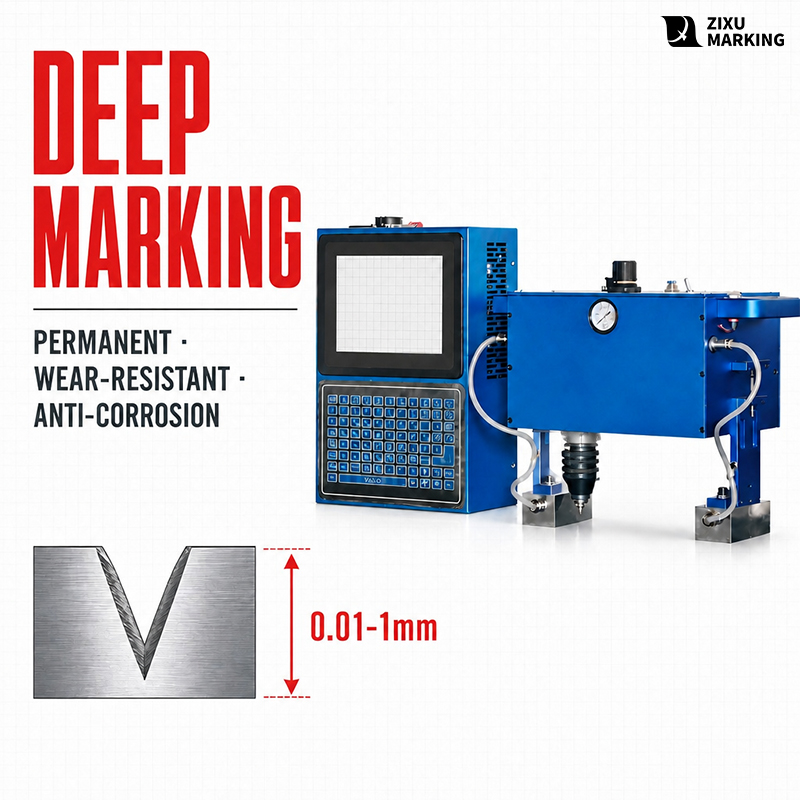

This portable pneumatic dot peen marking machine is designed for deep, durable marking on metal parts. Driven by compressed air, its hardened alloy needle delivers up to 300 impacts per second, achieving marking depths of 0.01–1 mm on metals with hardness below HRC65.
The portable marking head is suitable for large, heavy or fixed workpieces, including chassis, welded frames, castings and structural steel. Solenoid fixtures help secure the head during marking, ensuring stable operation on site.
Deep marking helps maintain readability in applications exposed to abrasion and corrosion, making the machine suitable for permanent part numbers, nameplates and multi-line production data.
The dedicated controller features an integrated display and keyboard, allowing users to create and run text and vector graphics without a separate PC. The machine operates with 0.2–0.6 MPa compressed air and a 110V or 220V single-phase power supply. With a net weight of approximately 17 kg, it can be easily transported between workstations.
Operating temperatures range from -10°C to 50°C, making it suitable for various industrial environments.

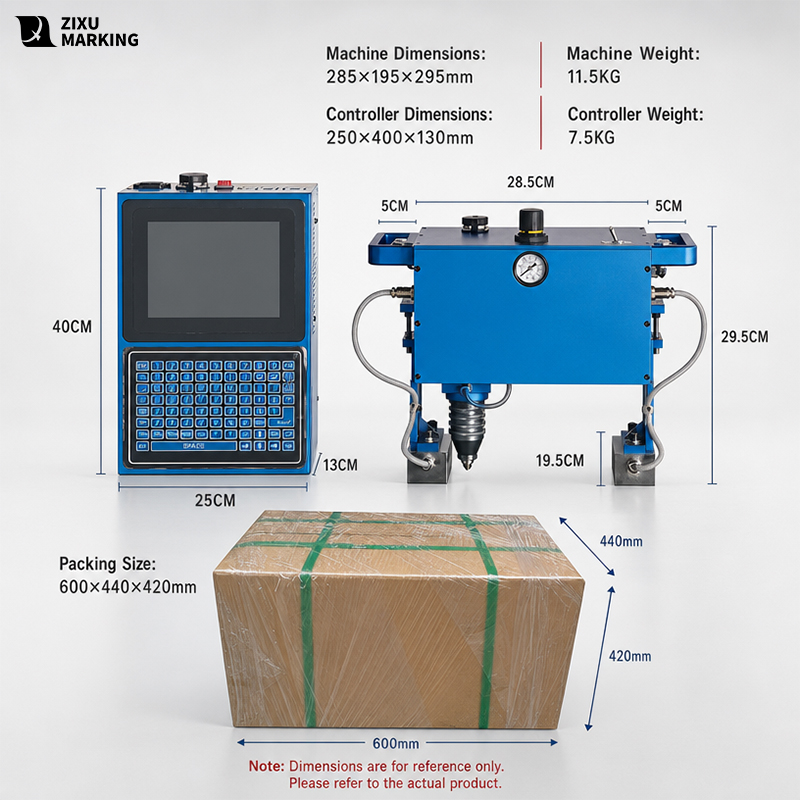

| Parameter | Value |
| Brand | CKMACHINE |
| Model / software version | Software-T6 / Software-K8 |
| Machine type | Pneumatic dot peen marking machine — portable head + separate controller |
| Marking depth | 0.01-1 mm |
| Marking speed | 300 times / second |
| Marking method | Plane / near-plane |
| Marking area | 150 × 80 mm |
| Marking content | Vector graphics and text |
| Workpiece hardness | Below HRC65 (metallic and non-metallic) |
| Marking needle hardness | Above HRC85 |
| Repeat precision | ≤ 0.01 mm |
| Motion precision | ≤ 0.01 mm |
| Air source pressure | 0.2-0.6 MPa |
| Power input | 220 V / 110 V ± 10%, 50/60 Hz |
| Rated power | 300 W |
| Working environment | -10 ~ 50 °C |
| Net weight | 17 kg |
| Gross weight | 24 kg |
| Package size | 60 × 45 × 45 cm |
| Controller | Dedicated control unit with display and keyboard |
| Standard accessories | Air tube, aviation cable, deep marking needle, controller, regulator |
| Warranty | 1 year |
| Place of origin | Chongqing, China |
| MOQ | 1 piece |
| Customisation | Nameplate (MOQ 1) / logo or graphic design (MOQ 5) |
Features
German-Imported Linear Guide Rail

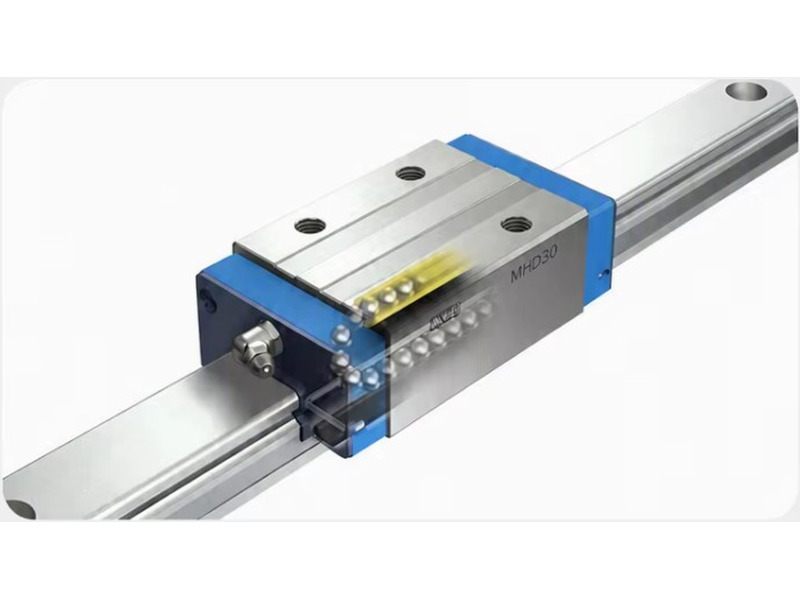

The marking head travels on a German-imported linear guide rail instead of a plain bushing. The recirculating-ball carriage keeps the head on a straight, low-friction path, so dot spacing stays even across the 150 × 80 mm marking area and the head does not deflect when the needle fires at 300 impacts per second.
High-Power Stepper Motor

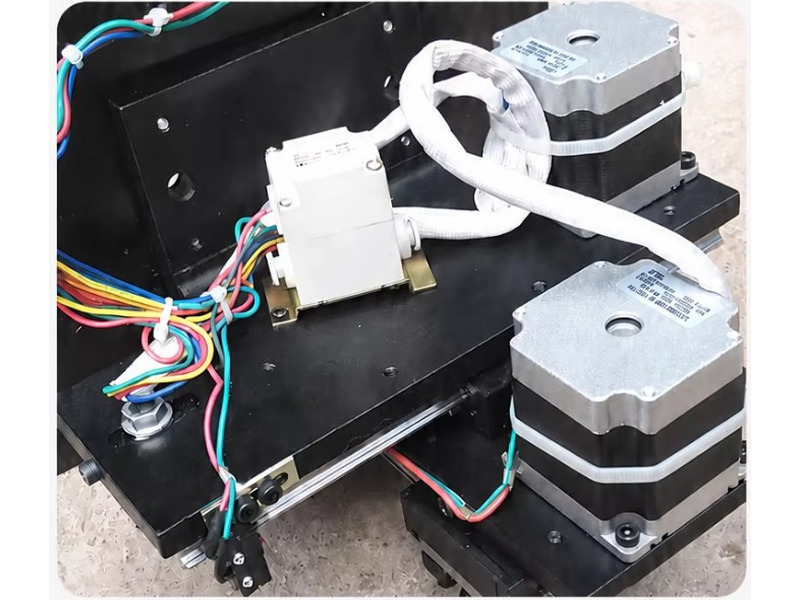

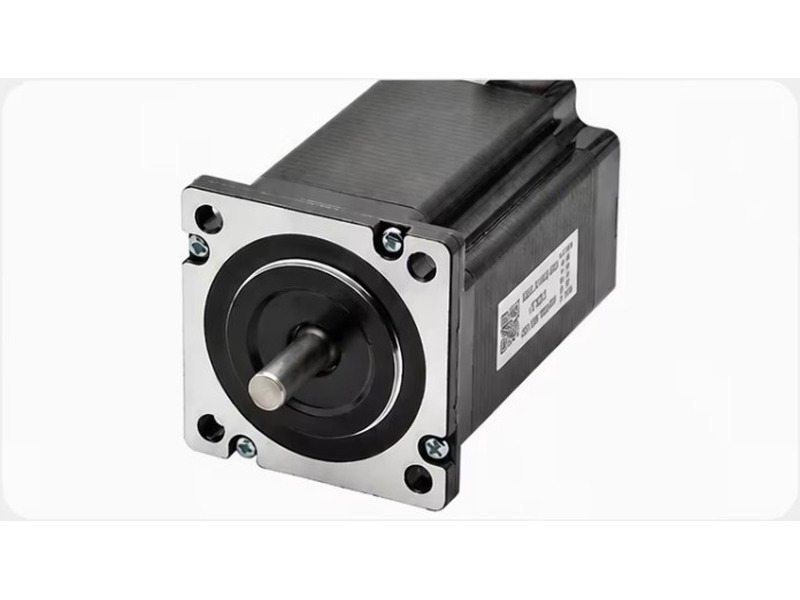

Stepper motors drive the marking axes. Every impact pushes back against the head, so the motors are sized for torque rather than raw speed: they hold position against the reaction force, run without losing steps and keep the motion smooth — which is what holds character spacing consistent from the first dot to the last.
Thickened Aviation Aluminium Frame
The frame is machined from thickened aviation-grade aluminium plate rather than folded sheet steel. A head firing 300 times a second sends that vibration straight into the frame, so mass and rigidity are what keep the axis alignment from drifting; the body is built as one unit instead of a bolted-together sheet-metal box.

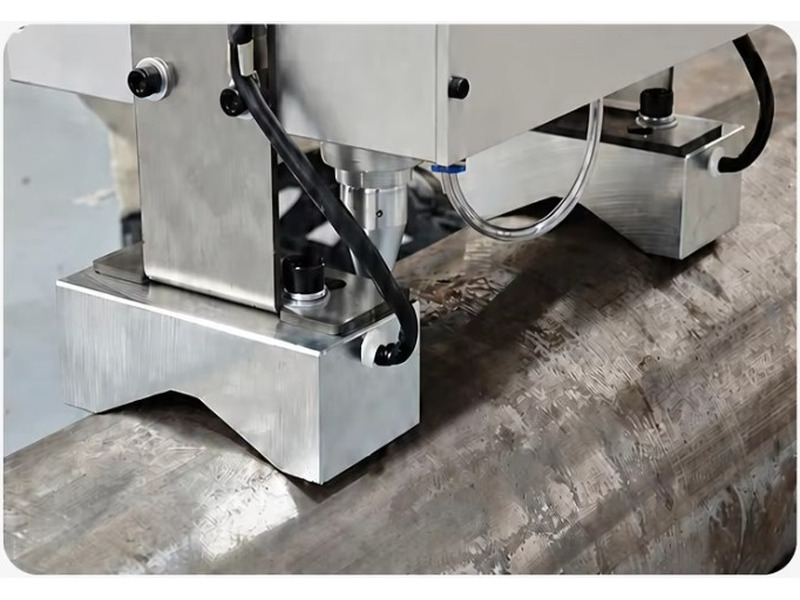

High-Suction Electromagnetic Fixture
The fixture holds itself to the workpiece with a high-suction electromagnet instead of hand pressure. On flat steel plate the head stays fixed while the needle fires, so characters do not drift and the operator keeps both hands free to guide the marking path — the reason this format works on large parts marked in place.
High-Frequency Impact Marking Needle

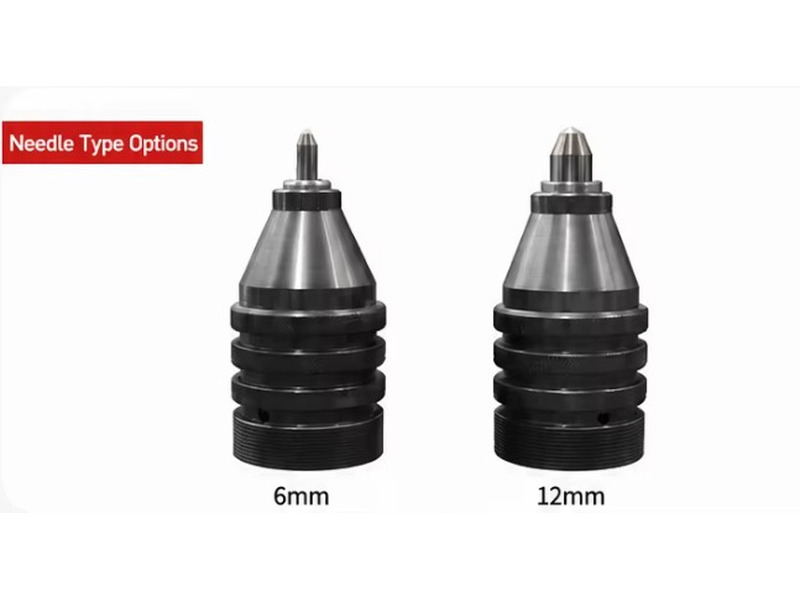

Compressed air drives a hardened alloy needle into the surface at high frequency, building each character from individual dots. Two needle options are offered, 6 mm and 12 mm, covering finer character work through to deeper marks. The needle is the only real consumable in the system.

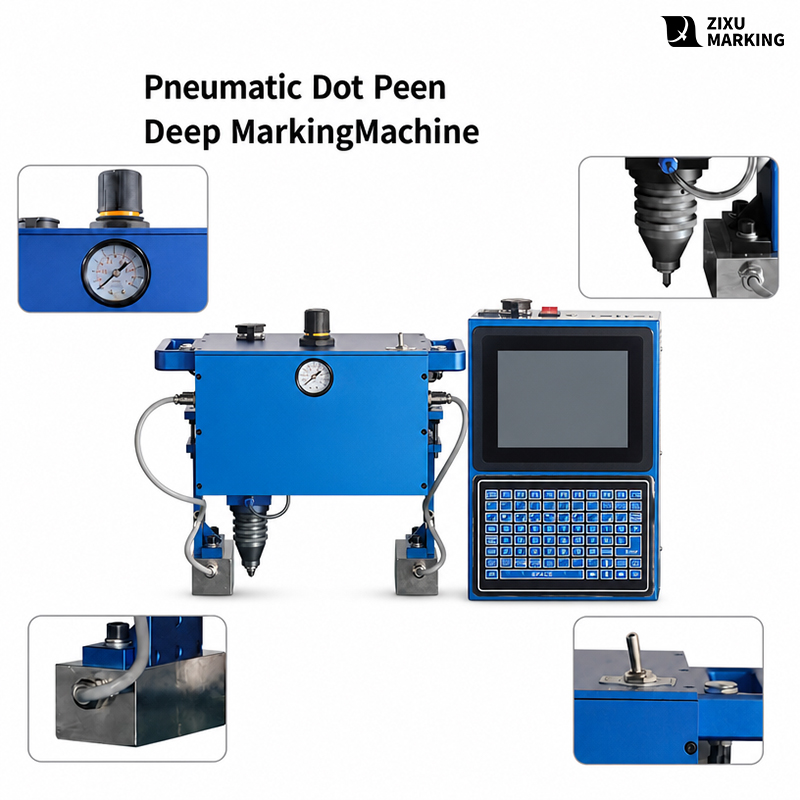

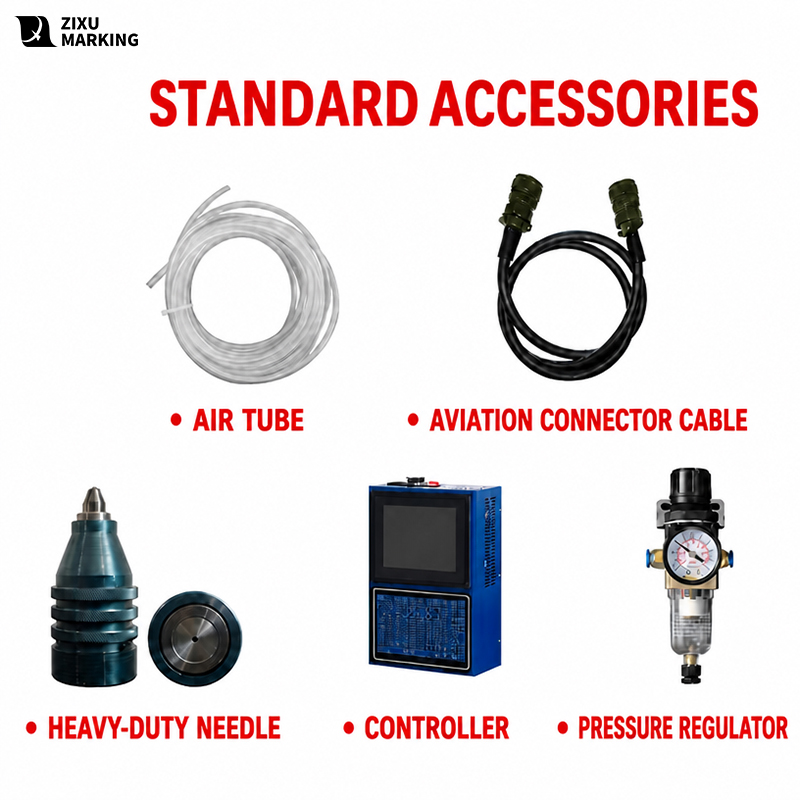

Four serviceable assemblies make up the system. The head carries the needle and the solenoid fixtures; the controller and regulator stay outside the impact zone.
| # | Component | Function |
| 1 | Controller | Display + keyboard unit; stores and runs marking files, no external PC required |
| 2 | Regulator | Sets and displays air pressure to the marking head (0.2-0.6 MPa working range) |
| 3 | Deep marking needle | Hardened alloy needle, above HRC85, purpose-developed for deep marking |
| 4 | Solenoid | Electromagnetic fixture that clamps the head to the workpiece during impact |
Material Compatibility
| Material | Hardness condition | Is it applicable? |
| Mild / low-carbon steel | Typically well below HRC65 | Suitable |
| Stainless steel 304 / 316 | Below HRC65 in annealed condition | Suitable |
| Cast iron / castings | Below HRC65 | Suitable |
| Aluminium and aluminium alloy | Below HRC65 | Suitable |
| Copper / brass | Below HRC65 | Suitable |
| Titanium (annealed) | Below HRC65 | Suitable |
| Hardened steel / heat-treated parts | Above HRC65 | Not suitable |
Explore the Materials You Can Engrave with Our Pneumatic Dot Peen
| Material Category | Pneumatic Dot Peen |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | X |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | √ |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | X |
| Silicone Rubber | X |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | X |
| Rubber (NR / NBR / EPDM) | X |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | X |
| PU / PVC Synthetic Leather | X |
| Fabric & Textile | X |
| Denim & Garment | X |
| Non-Woven Fabric | X |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | √ |
| Bamboo & Cork | √ |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | X |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | X |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | √ |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | X |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | X |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | X |
| Abrasives & Grinding Wheels | √ |
| Food, Eggshell, Produce | X |

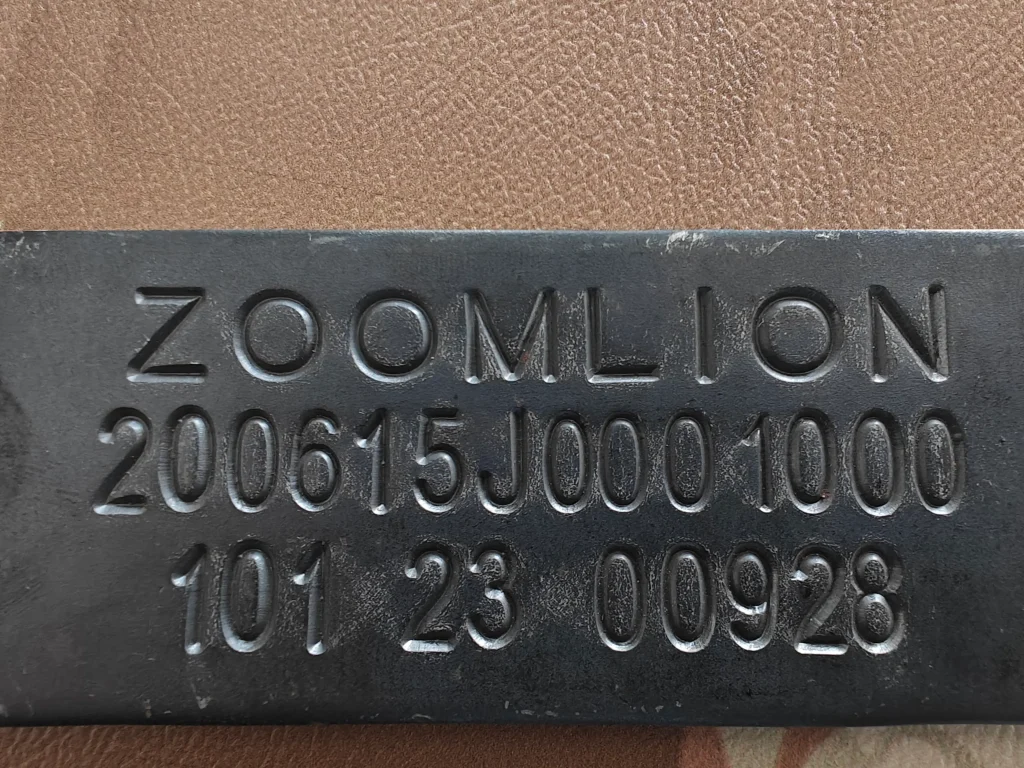

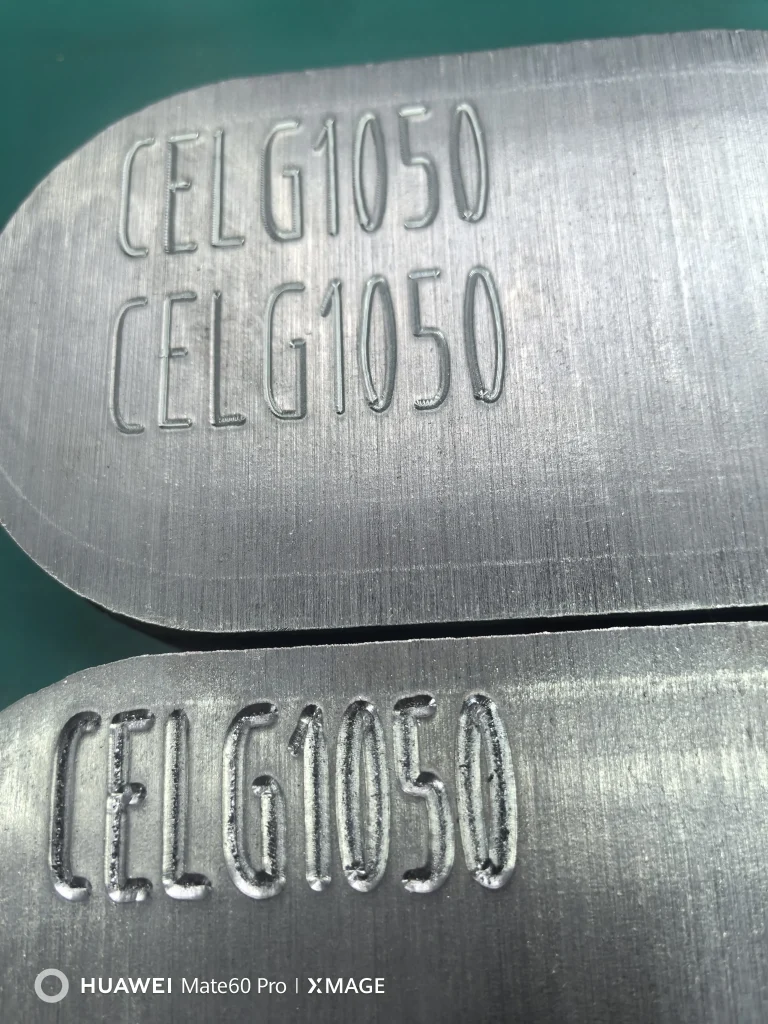

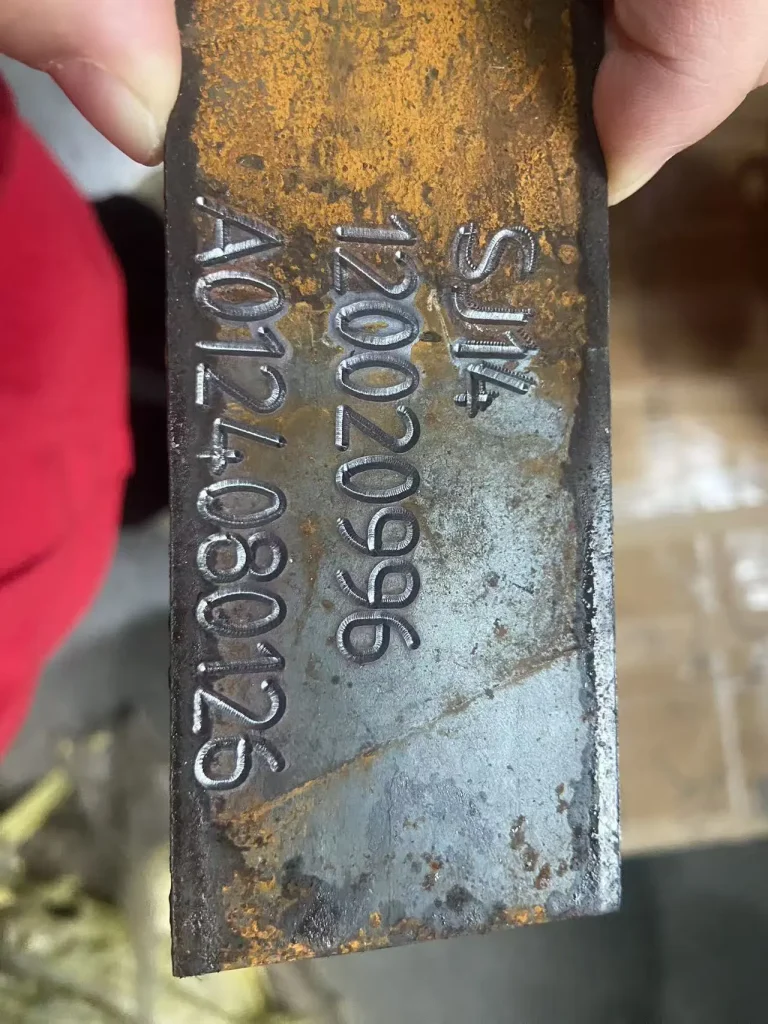

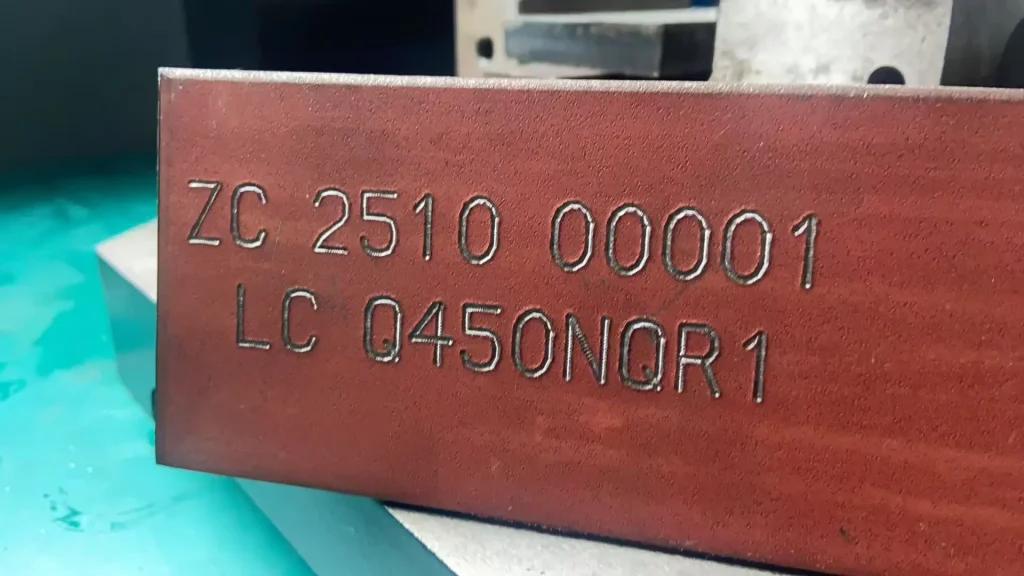

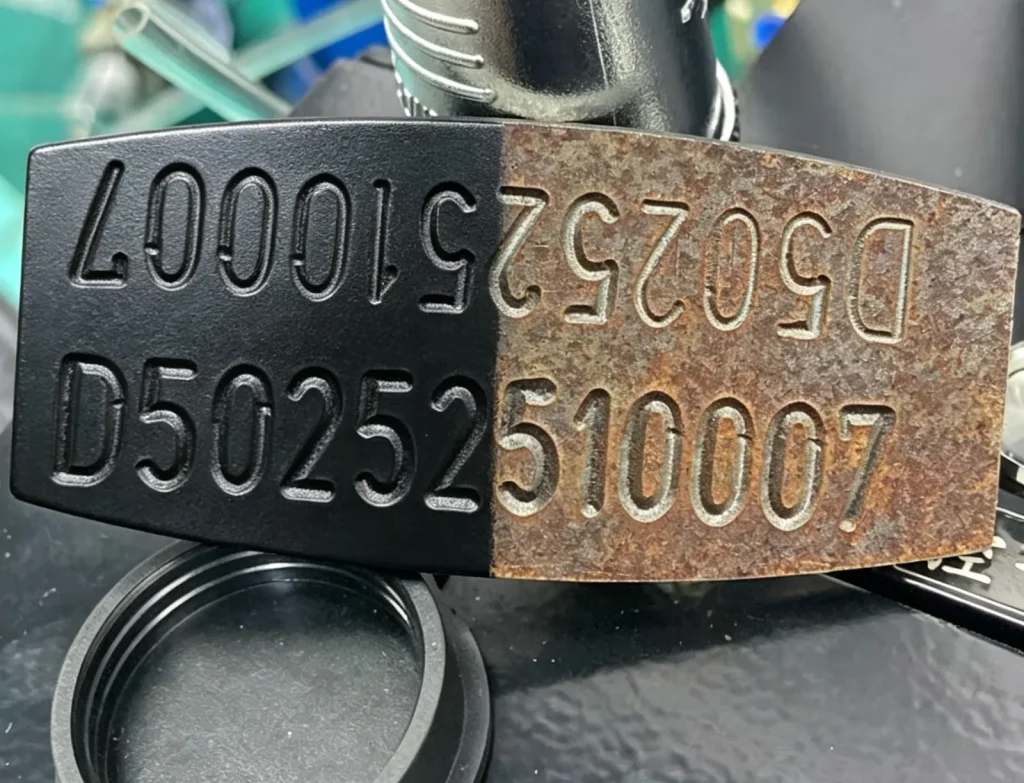

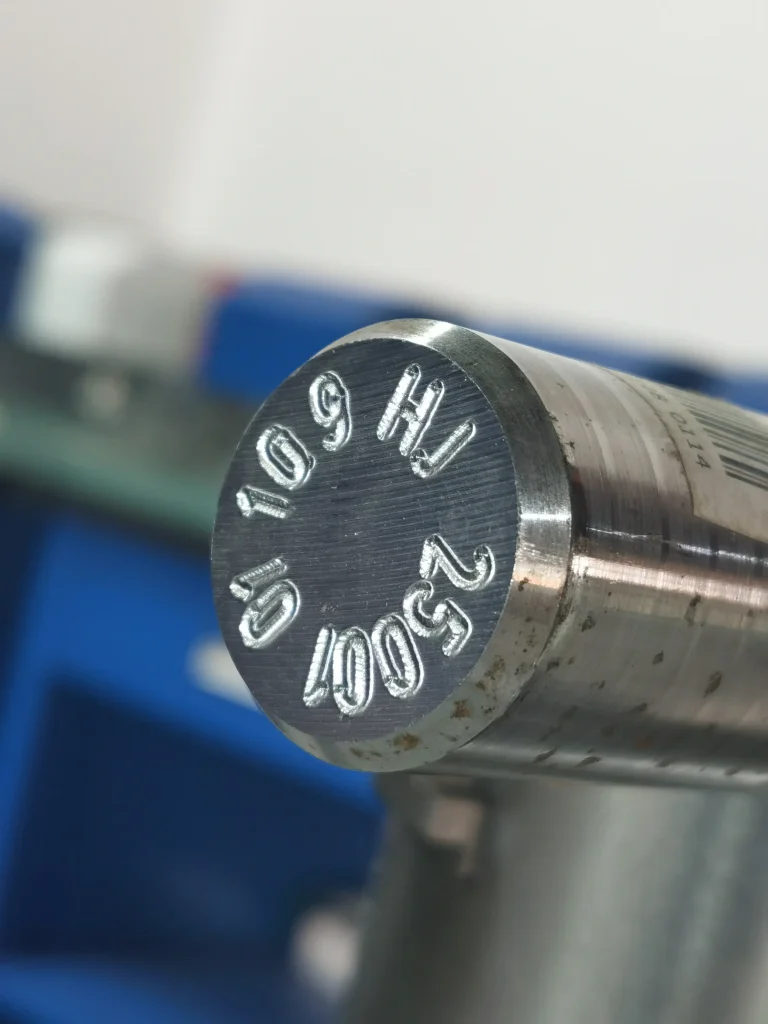

Marking Samples
Related Products
Send us an email to get further information you need, including our latest price, the best-customized solution, or any problem with the existing machine.
