Highly Automated Flange Marking Workstation — 300% Efficiency Boost for Vietnam Connector Flanges Manufacturer

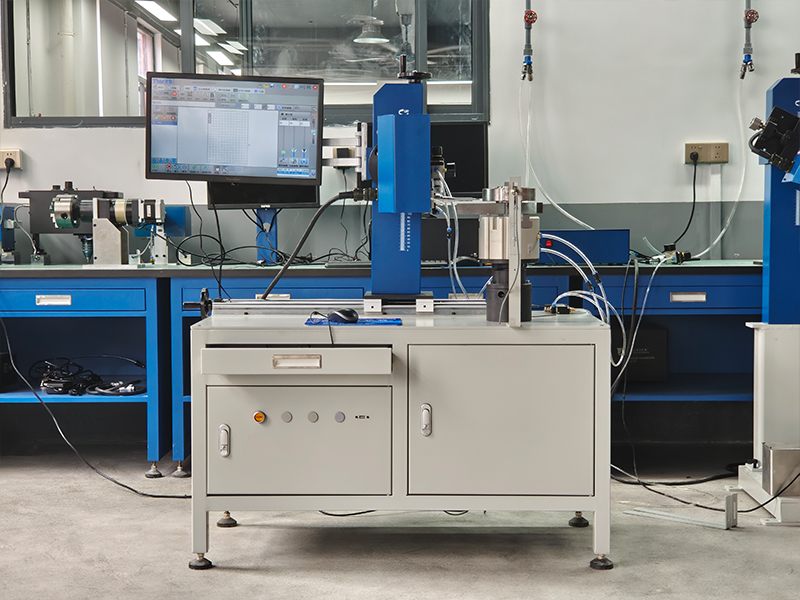

Automated flange marking workstation with robotic loading — Custom flange marking workstation with automatic pneumatic clamping and photoelectric sensing for robotic loading. View flange marking machines.

This flange marking machine was customized for robotic loading. Upgrades include automatic pneumatic clamping and photoelectric sensing switches, increasing efficiency more than tenfold compared to manual loading.

The rotating fixture automatically resets at the end of each marking session to prevent air tube entanglement.

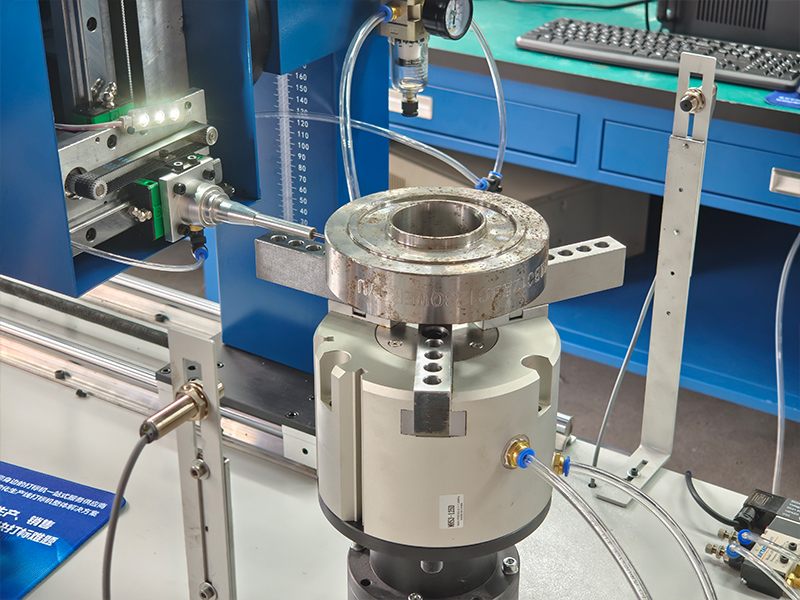

The machine uses our advanced Thorx-7 control system. The pneumatic clamps fix and release at the start and end of the marking process with appropriate delay settings. Photoelectric sensors notify the customer’s PLC of workpiece presence with 100% accuracy.

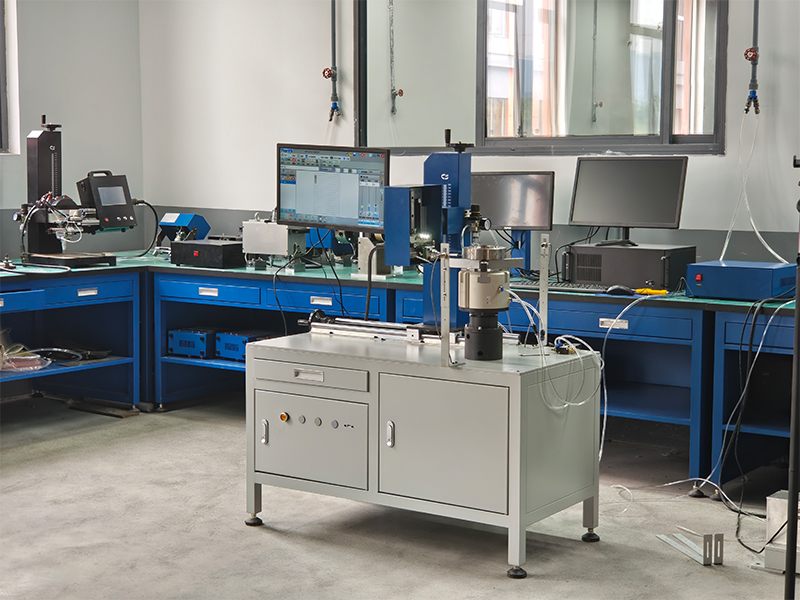

Rotary fixture with automatic reset — The rotating fixture prevents air tube entanglement.

If budget allows, we can further automate with X-Y-Z axis moving module for fully unattended marking 24/7. Contact us for similar solutions.

Application Context for Highly Automated Flange Marking Workstation — 300% Efficiency Boost for Vietnam Connector Flanges Manufacturer

Automation projects need more than a marking head. The feeding method, positioning logic, PLC communication and quality inspection flow decide whether the marking system can run reliably in production.

How to Choose a Similar Marking Setup

Before selecting a machine, prepare a short sample brief with the following information. This helps CNMarking recommend the right laser, dot peen, scribe or automation configuration instead of only matching a picture.

Part feeding and unloading method
Positioning tolerance and fixture repeatability
PLC, barcode, MES or vision integration
Expected cycle time and maintenance access

FAQ

Can CNMarking test my own samples before I choose a machine?

Yes. For most marking, cleaning and welding projects, sample testing is the fastest way to confirm contrast, depth, speed and fixture requirements before final configuration.

What information should I send for a quotation?

Please send the material, part size, marking or cleaning area, required result, production volume and any automation or traceability requirements. Photos or short videos of the current process are also helpful.

How to use this page for an industrial marking project

This page is part of Zixu’s application and product knowledge base for permanent industrial identification. If you are comparing marking methods, use it together with the related product pages below to confirm the right marking depth, marking speed, fixture style, automation level, and material compatibility before requesting a quotation.

Recommended next pages

Selection notes

For a project similar to Highly Automated Flange Marking Workstation — 300% Efficiency Boost for Vietnam Connector Flanges Manufacturer, please confirm the workpiece material, marking area, required cycle time, code type, production environment, and whether the machine needs to be handheld, benchtop, enclosed, or integrated into an automatic line. These details help us recommend a stable configuration instead of only matching a laser power or marking window size.

Send us your sample or drawing

If you are not sure which machine is suitable, send us product photos, marking content, drawing dimensions, and expected output. Zixu can provide sample marking feedback, fixture suggestions, and a practical machine configuration for distributors, factories, and system integrators.
