Description
What Is the Flying Automation Solution?
Configure your laser system with a flight stand instead of a regular cabinet for a more flexible use of space and angles.

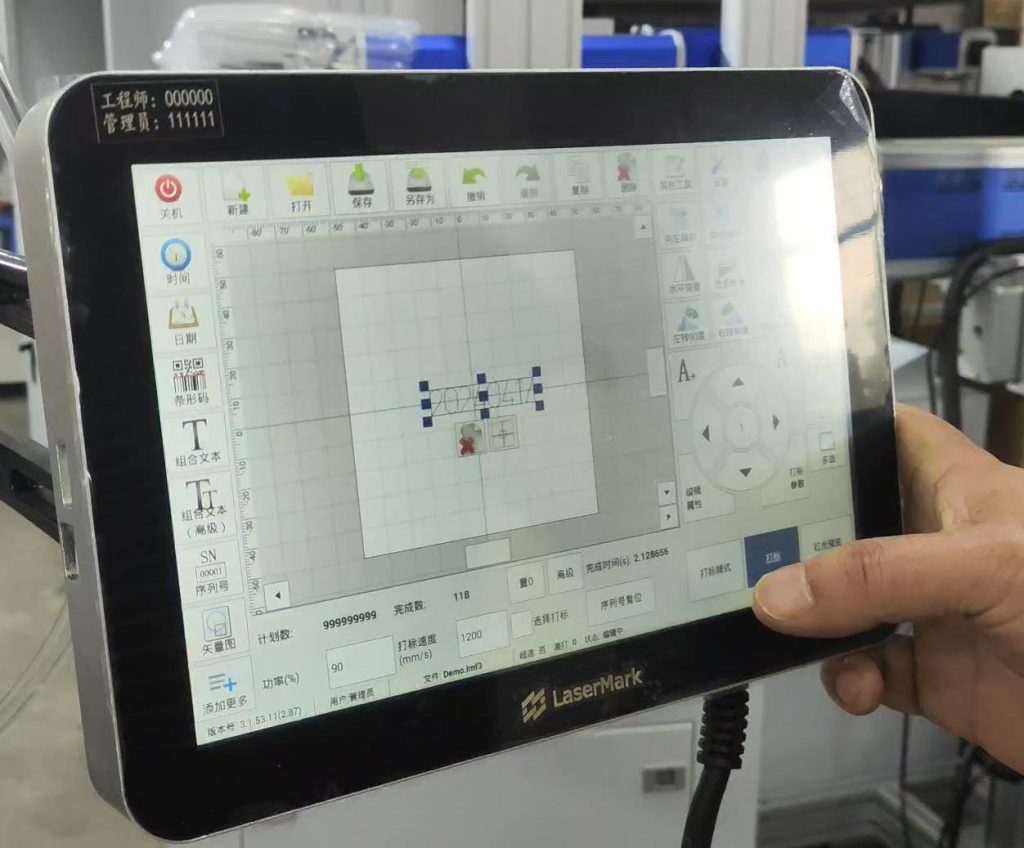

Nimble Touch Screen Control
Powerful yet easy-to-use integrated controller with touch screen.
Applicable to the Industry
Compatible with food, beverage, electronic, automobile, medical, metal hardware, and more industries with automated marking assembly line.
Features of Flying Solution
- Angel adjustable flying arm to fit practical needs.
- High consistent marking quality and located with a fixture or visual positioning.
- Reduce manpower and cost in the marking process.
- High return on investment with maximum productivity.
Support ODM/OEM Service
Customized Service
Customize the exclusive cleaning machine according to your requirements.
Qualification Certificate
Performance Parameter
| Laser Wavelength | 355nm/1064nm/10600nm±5% | |
| Marking depth | 0.01~0.2mm | |
| Marking Speed | Up to 14000mm/s | |
| Positioning Speed | Up to 23000mm/ss | |
| Writing Speed | Up to 600cps | |
| Step Response Time (1% of full scale) | Down to 210μs | |
| Step Response Time (10% of full scale) | Down to 710μs | |
| Minimum character | 0.15mm | |
| Minimum line width | 0.01mm | |
| Linearity | ≥99.9% | |
| Repeatability (RMS) | <8μRad | |
| Marking Content | Graphic, text, barcodes, QR code, production date, batch number, serial number, etc. | |
| Graphic format supported | BMP, PNG, AI, EXF, DST, PLT | |
| Power Supply | 220V 50Hz/110V 60Hz | |
| Package Size | 75*65*145cm (standard configuration with wood tray) | |
| Gross Weight | 140~190kg | |
| Control Interface | USB-A port | |
| Working Temperature | 0~45℃ or 32~104℉ | |
| Laser Module Life | ≥100000 hours |
| Related PRODUCTS
YAG Laser Jewelry Welder
Integrated in Line UV Laser Marking Machine
Automatic Laser Cleaner
Enclosed Fiber Laser Marking Machine
| Get in touch
Application Context for Flying Solution
This page is part of CNMarking’s Automated marking and production-line integration content library. For buyers comparing similar equipment, the key question is not only whether the sample can be marked, cleaned, welded, or processed, but also whether the final setup can match production speed, fixture stability, marking depth, visual quality, and long-term maintenance requirements. The application is most relevant to inline marking, robotic loading, conveyor integration, visual positioning, automatic code reading, and repeatable factory traceability workflows.
When evaluating a similar project, CNMarking normally checks the workpiece material, available marking area, expected cycle time, required code or logo content, fixture method, safety enclosure needs, and whether the process must connect with an existing line, MES, scanner, or operator workflow. These details help choose between a standard machine, a semi-custom workstation, or a fully automated solution.
Recommended CNMarking Product Pages
Related CNMarking Case Studies and Guides
- Custom Side Laser Marking Conveyor Case Study
- Fully Automated Steel Pipe Dot Peen Marking Demonstration
- Automated Flange Marking Workstation Vietnam Case
How to Choose a Similar Setup
- Send clear photos or drawings of the workpiece, including the required marking or processing position.
- Confirm the material, surface coating, required depth or contrast, and any durability requirements after cleaning, painting, heat treatment, or outdoor use.
- Share the expected production rhythm, such as pieces per hour, operator loading method, fixture constraints, and whether automatic code reading is required.
- For new applications, request sample testing first so the marking quality, processing speed, and fixture plan can be confirmed before mass production.
FAQ
Can CNMarking test my own samples before quotation?
Yes. For most marking, cleaning, welding, and precision laser processing projects, sample testing is the safest way to confirm process feasibility. A short video, test photos, and recommended configuration can be prepared after the workpiece and target result are confirmed.
What information should I send for a faster recommendation?
Please send the material, dimensions, required content, target cycle time, production environment, and any automation requirements. If the project is replacing an existing process, also share the current pain point, such as low efficiency, unstable quality, consumable cost, surface damage, or traceability requirements.
Need a similar solution? Contact CNMarking with your workpiece photos and target result. Our engineers can recommend a standard model or a customized workstation based on your sample and production requirements.
