Fiber Laser Marking Machine for Stainless Steel & Aluminum
A fiber marker that fits on a shop counter: source, galvo, and controller live in one body, 14 kg gross, and it runs on 220 V or 110 V the moment it is plugged in. Power: 20- 100 W, work area: 100 × 100 to 300 × 300 mm, air-cooled.
Measures 320 × 490 × 650 mm and weighs 14 kg, ideal for shops, labs, and small production spaces without requiring a dedicated room.
The 1064 nm laser marks metals, alloys, plated parts, anodised surfaces, and some plastics. Highly reflective metals may need adjusted settings, while glass and acrylic require a coating or different wavelength.
Uses under 1 kW with no ink or solvents. Optional rotary axes, lift tables, positioning pointers, safety enclosures, fume extraction, foot switches, and key switches adapt the machine to different needs.

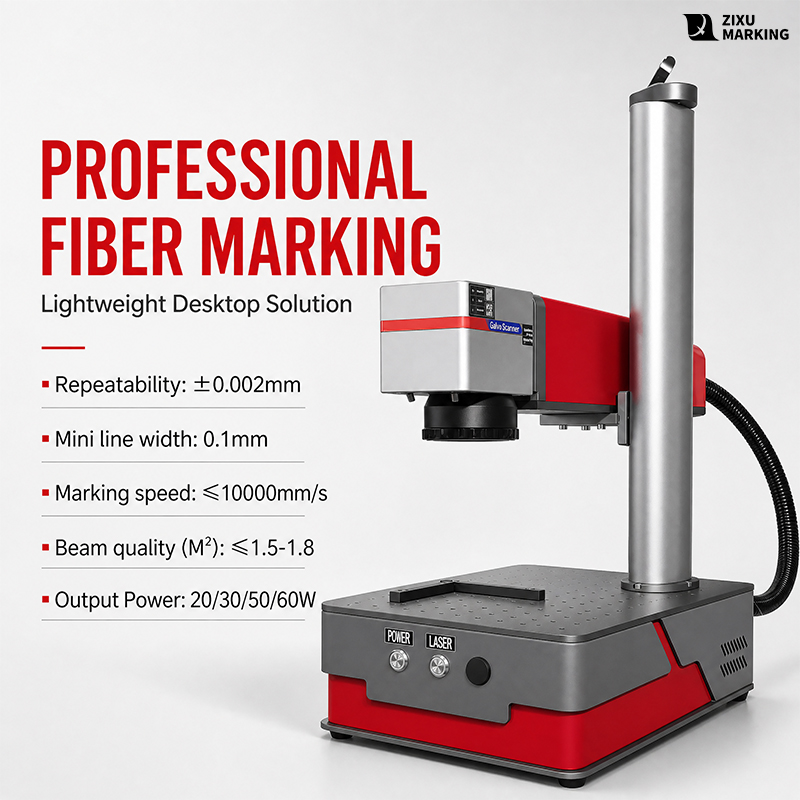

This desktop integrated fiber marker puts the source, the galvo, the controller, and the software into one body: no external cabinet, no inter-unit cabling. Plug it into 220 V or 110 V, open EZCAD, and mark. Gross weight is 14 kg in a 60x60x80 cm carton – one person can carry it.
Power is selectable from 20 to 100 W at 1064 nm with beam quality below M2 = 2; marking runs at 7000 mm/s with a minimum line width of 0.001 mm and repeatability of ±0.002. The field comes in 100×100, 200×200, and 300×300 mm, customizable. Graphics, characters, barcodes, and QR codes are all within scope.
The source is air-cooled; the machine draws under 1 kW and is rated for 100,000 hours, with no chiller required. It marks metals and non-metals: steel, stainless, aluminium, copper, alloys, plated and anodised surfaces, plus some plastics and coatings. Typical users are hardware tools, electronic components, jewellery, gift personalisation, medical devices, packaging labels and lab R&D.
| Parameter | Value |
| Output Power | 20 W / 30 W / 50 W / 60 W / 100 W |
| Applicable Materials | Metals & non-metals |
| Light Beam Quality | <2 (M2) |
| Marking Speed | 7000 mm/s |
| Wavelength | 1064 nm |
| Marking Area | 100×100 / 200×200 / 300×300 mm (customization) |
| Marking Content | Graphic / characters/barcode / QR code |
| Repeatability | ±0.002 |
| Min Line Width | 0.001 mm |
| Power Supply | AC220V / 110V ±10%, 50Hz / 60Hz |
| Power Consumption | <1 kW |
| Cooling Way | Air cooling |
| Lifespan of Laser Source | 100,000 hours |
| Brand/type | ZIXU / desktop integrated unit |
| Laser source brand | JPT / Raycus |
| Control board/software | JCZ board / EZCAD |
| Supported formats | PLT / DXF / BMP / DST / DWG / LAS / DXP |
| Gross weight/package | 14 kg / 60x60x80 cm |
| Warranty | 2 years (attribute); service clause adds free parts and remote support |
| Certification | Complies with EU standards (as listed) |
| Origin | Chongqing, China |
| MOQ / lead time | 1 set / 1-5 sets 8 days, 6-10 sets 31 days, >10 negotiated |
Heat Dissipation Holes
Simple design, efficient heat dissipation, ensuring stable operation of the machine. The vents run through the body, so air passes over the internals instead of relying on the casing, which keeps output stable through an eight-hour shift rather than fading as the machine heats up.
Control Switch
Humanised control system with separate power and laser switches, so each can be turned off independently to save energy. Three switches in a row let an operator read the state at a glance – no menu, and no need to take gloves off.
High-Transmittance Field Lens
Coated high-transmittance field lens with strong light transmission and a smooth output, built for dusty and oily environments. The lens sets the field: the 100, 200 and 300 mm options correspond to three focal lengths.
High-Speed Galvanometer
A high-precision scanning galvanometer that holds character position within 0.5 mm, marking at 7000 mm/s across the whole field.
Precision Lifting Adjustment System
Lead-screw drive: smooth travel with no binding. The column carries a clear scale, so after a workpiece change the head returns to its focal position by reading the scale instead of test-marking.
| Item (datasheet wording) | Function |
| Laser Source | Fiber source, 20-100 W optional; JPT / Raycus |
| Laser Galvo | Scanning head at 7000 mm/s; sets line width and repeatability |
| Field Lens | Focusing; the 100 / 200 / 300 mm field corresponds to different lenses |
| Column | Height adjustment for focal length across part heights |
| Buttons | Start and operation; foot switch, key switch and stop available |
| Configuration | W x D x H | Source |
| Desktop unit (no cabinet) | 320 x 490 x 650 mm | Datasheet drawing |
| With optional cabinet | 650 x 800 x 1450 mm | Datasheet drawing |
| Tall column/fixture version | 480 x 550 x 1480 mm | Datasheet drawing |
| Package | 60 x 60 x 80 cm (14 kg gross) | Page |
| Item | Requirement | Source |
| Power | AC220V or 110V ±10%, 50/60Hz, under 1 kW | Datasheet |
| Cooling | Air-cooled; no chiller, no compressed air | Datasheet |
| Site | Level bench or worktable; fume extraction advised for plastics and coatings | Recommendation |
| Environment | Indoor, ambient; keep dust off the field lens | Practice |
| Earthing | Reliable earth required (standard for laser equipment) | Standard |
Material Compatibility
| Material | Result | Note |
| Stainless 304 / 316 | Good | Dark, high contrast; first choice for serials and QR |
| Carbon/alloy steel | Good | Deep marking possible; paint after marking |
| Aluminium (bare) | Good | White or dark depending on parameters |
| Anodised aluminium | Very good | Marks by colour change on the oxide; gift and enclosure work |
| Copper/brass | Workable | Highly reflective; slow down and raise power, test first |
| Zinc/nickel plated | Workable | Breaks the coating; assess corrosion requirements |
| Some plastics (ABS / PC / PA) | Workable | Depends on colour and grade; extraction needed |
| Painted/coated surfaces | Workable | Removes paint to reveal the substrate |
| Glass/acrylic (clear) | No | 1064 nm does not act; needs a coating or UV / CO2 |
| Mirror aluminium / pure copper | Limited | High reflection loss; slower speed, more power or another wavelength |
Explore the Materials You Can Engrave with Our Fiber Laser
| Material Category | Fiber Laser |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | √ |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | X |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | √ |
| Silicone Rubber | √ |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | √ |
| Rubber (NR / NBR / EPDM) | √ |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | √ |
| PU / PVC Synthetic Leather | √ |
| Fabric & Textile | √ |
| Denim & Garment | √ |
| Non-Woven Fabric | √ |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | X |
| Bamboo & Cork | X |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | √ |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | √ |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | X |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | √ |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | √ |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | √ |
| Abrasives & Grinding Wheels | X |
| Food, Eggshell, Produce | X |
Marking Samples
