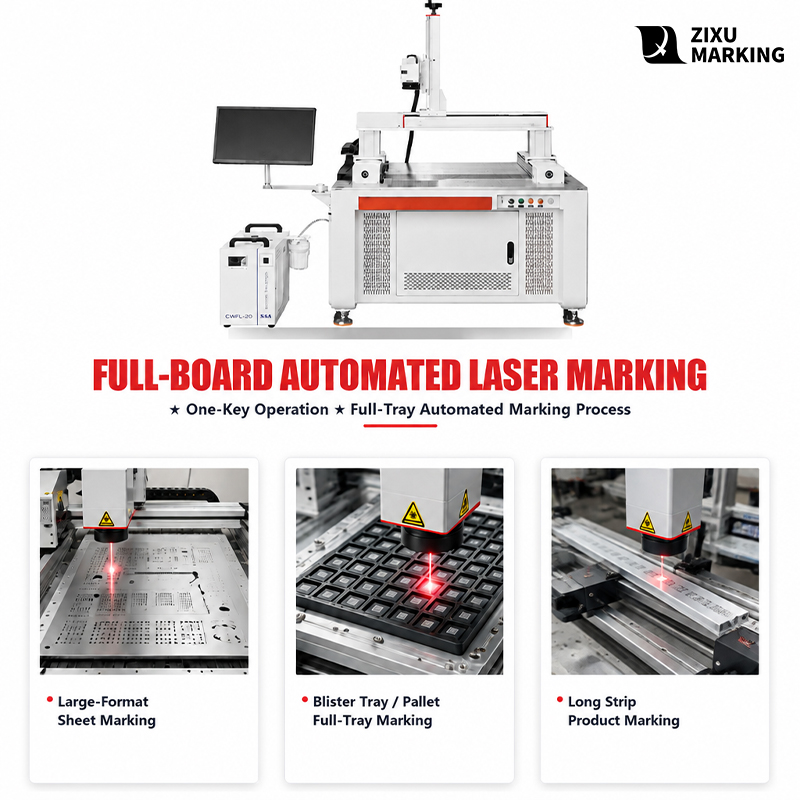

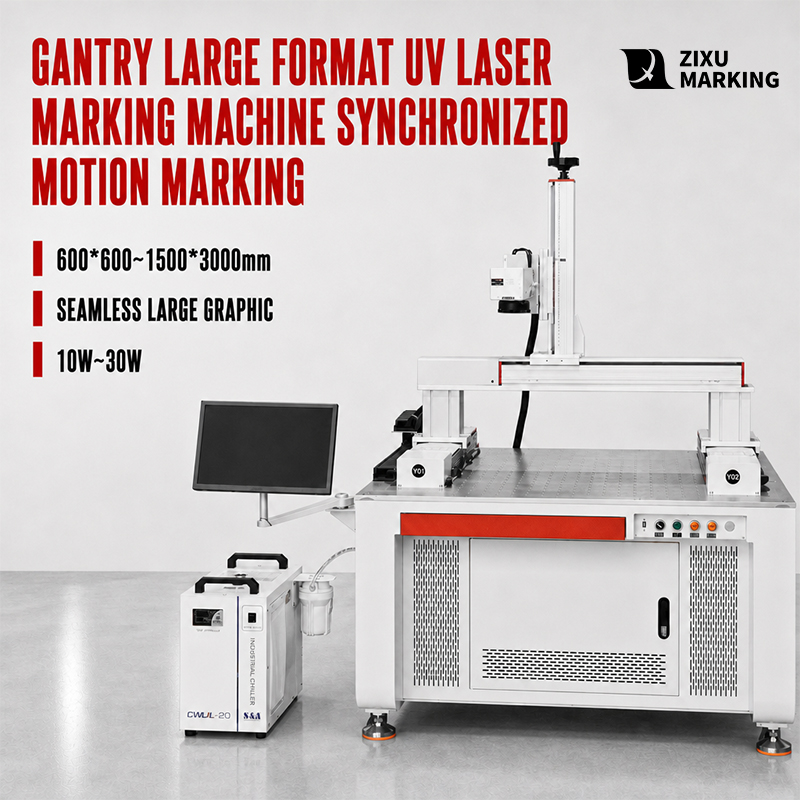

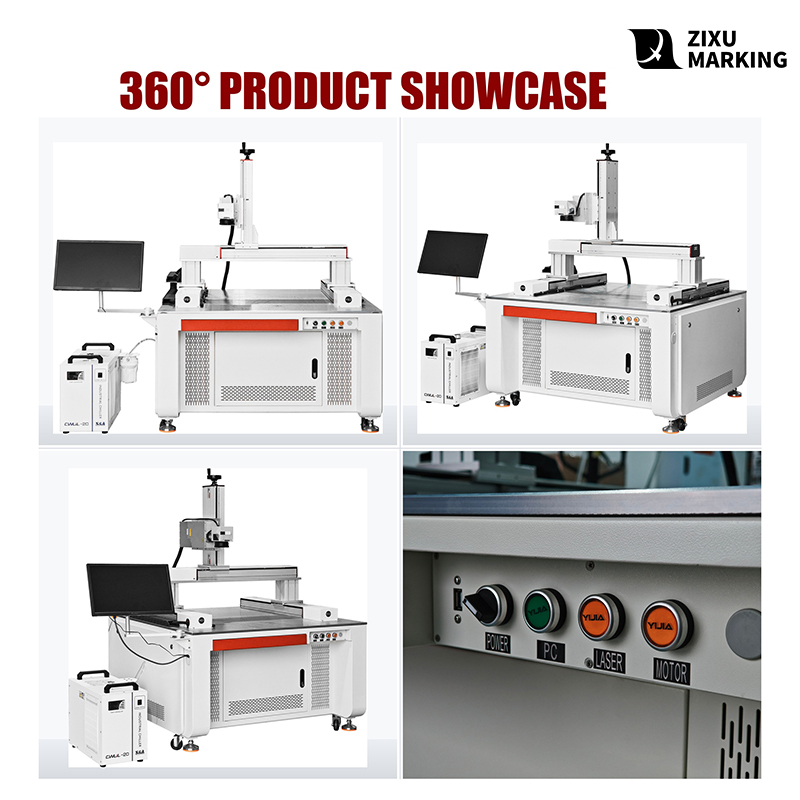

Large Format Gantry UV Laser Marker for Glass & FPC
A gantry UV marker: the servo gantry covers the travel, the galvo holds the precision, so full-board glass, FPC and PCB arrays mark in one clamping with no visible seam. 300 to 2000 mm, 355 nm, 7000 mm/s.
With 0.01 mm positioning precision and speeds up to 7000 mm/s, it delivers precise micro-text and readable QR codes across large-format workpieces.
The integrated gantry, UV source, water cooling and industrial PC fit into one cabinet. Operating on 220 V / 50 Hz with 1000–1500 W consumption, it suits standard workshop power supplies.
Supports multiple file formats, built-in text and code generation, and coordinated motion control. MES connectivity enables machine-status monitoring and production traceability.
This machine splits the job in two: a servo gantry carries the head anywhere on the board, and the galvo holds the pattern accurate locally. The result is that the field is no longer capped by a galvo’s economic view – 300×300 up to 2000×2000 mm in four sizes, one clamping for a full board. The seam is where machines of this class are actually judged: dual-galvo stitching with dynamic focusing holds the joint to about 0.05 mm, so a dense QR array or a long character string shows no step.
The source is 355 nm UV, a cold process: photons break the surface bonds instead of burning material away, and the heat-affected zone stays tiny. On a large format that compounds – marking a glass sheet or a PCB array in sections adds heat with every pass, while a cold process adds none. A 0.015 mm minimum line width, 0.01 mm positioning and 7000 mm/s marking, held steady over a long run by water cooling and the Syntec control system.
Overall Machine Parameters
| Parameter | Specification |
| Product Name | XYZ-Axis Laser Marking Machine |

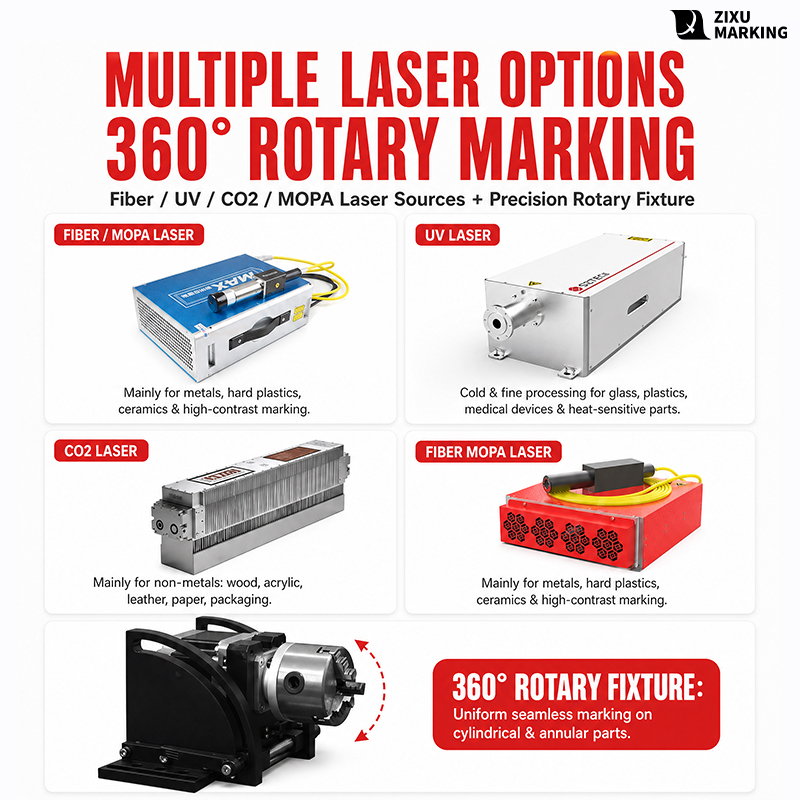

| Laser Source Options | Fiber / CO2 / UV |
| Output Power | 3W – 200W |
| Laser Wavelength | 355nm / 1060nm / 1064nm |
| Working Area | 300×300mm / 500×500mm / 1000×1000mm / 2000×2000mm |
| Precision | 0.01mm |
| Marking Speed | 7000mm/s |
| Marking Depth | 0.01-6mm（Depending on material） |
| Min. Line Width | 0.015mm |
System, Electrical and Application
| Parameter | Specification |
| Working Voltage | 220V / 50Hz (Customizable） |
| Power Consumption | 1000W – 1500W |
| Supported Formats | PLT, BMP, JPG, PNG, DXF |
| Application Fields | Tray-packed products, full-board large-format laser engraving, tray IC chips, reagent test cards, and other precision fields |
| Processing Content | Text, graphics, serial numbers, QR codes, barcodes, time, date, custom artwork and logos, etc. |
| Service & Support | On-site training, video tutorials, remote guidance, complete operation training |
Features

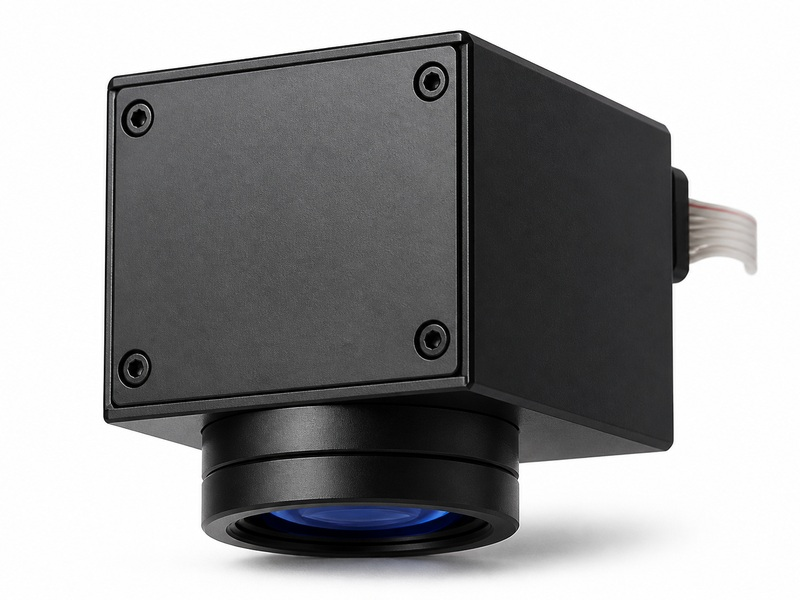

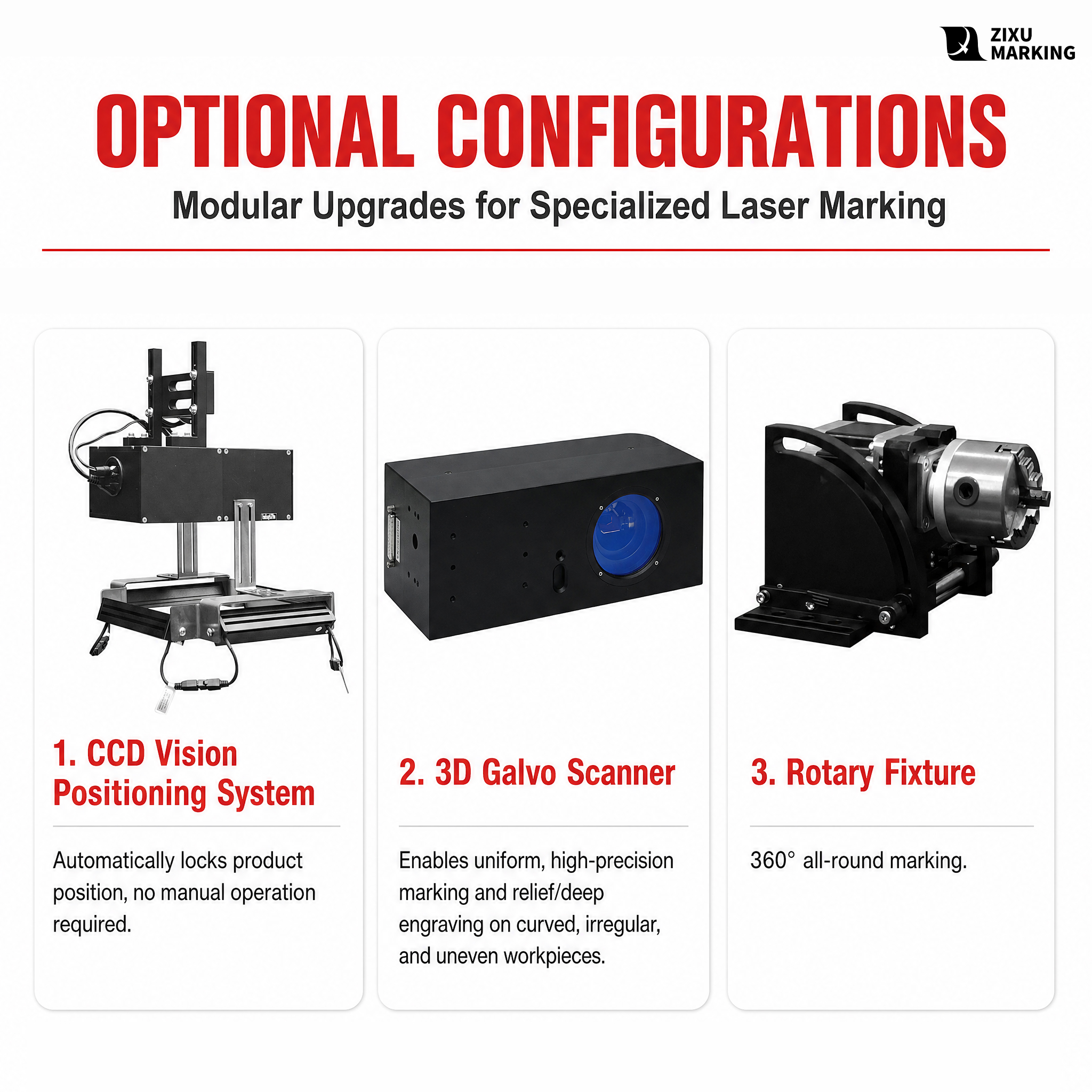

Galvo head: 0.02 mm scanning, 8000 mm/s
The galvo is the heart of a marker. This one is a 3D dynamic-focus head: 0.02 mm scanning accuracy, 8000 mm/s marking, with Z-axis focus that tracks a curved or stepped surface. The 7000 mm/s and 0.01 mm in the specification sheet come from this part.

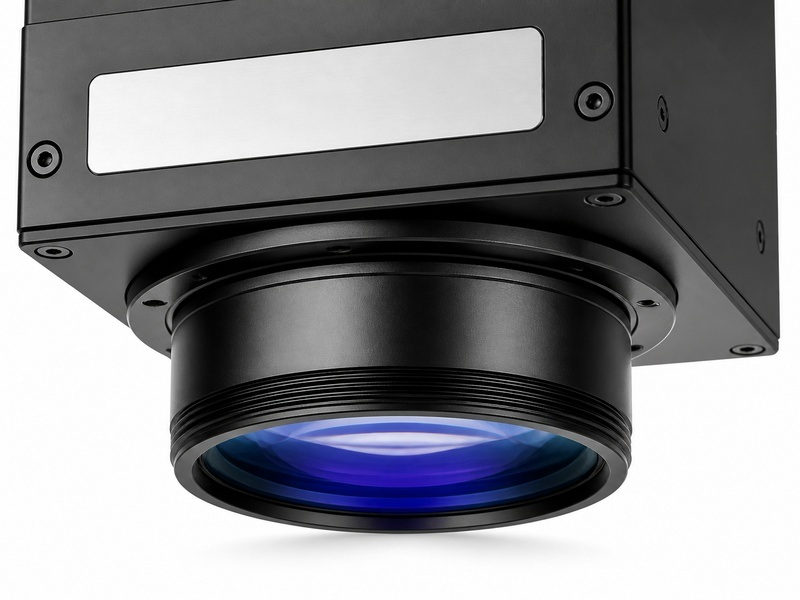

Field lens: imported F-Theta, sized to the power
The field lens sets both the single-field view and the spot quality at the edge. Standard is 110×110 mm, stepping to 175×175 mm at 20 W, 200×200 mm at 30 W and 300×300 mm at 50 W and 100 W, with custom sizes available. Changing the lens changes the field without changing the machine.

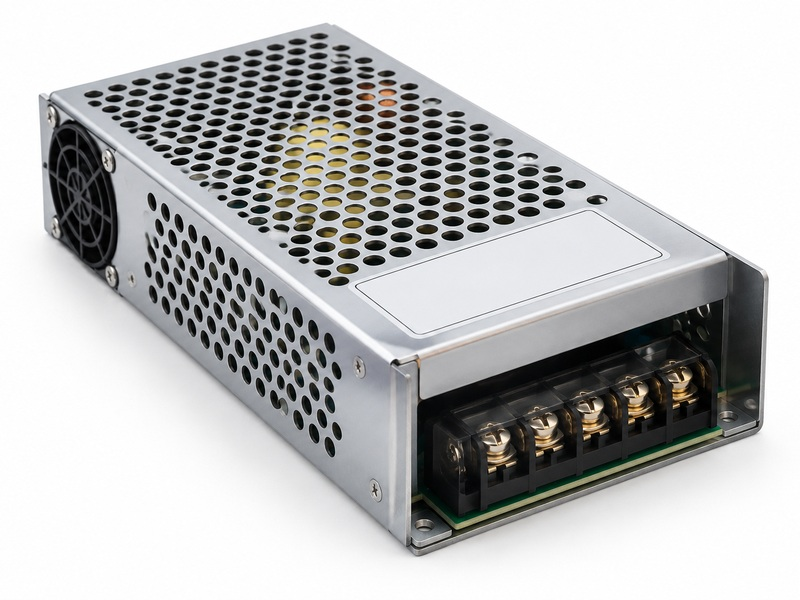

Power supply: MeanWell LRS-330-24, verifiable on the label
The power supply is where service life is usually lost. This machine uses a MeanWell LRS-330-24 at 24 V / 14 A, whose model is a published catalogue part, so its rating and certification can be checked, and it is rated for 24-hour continuous duty. When a PSU fails the whole machine stops, which is why this is not the part to economise on.

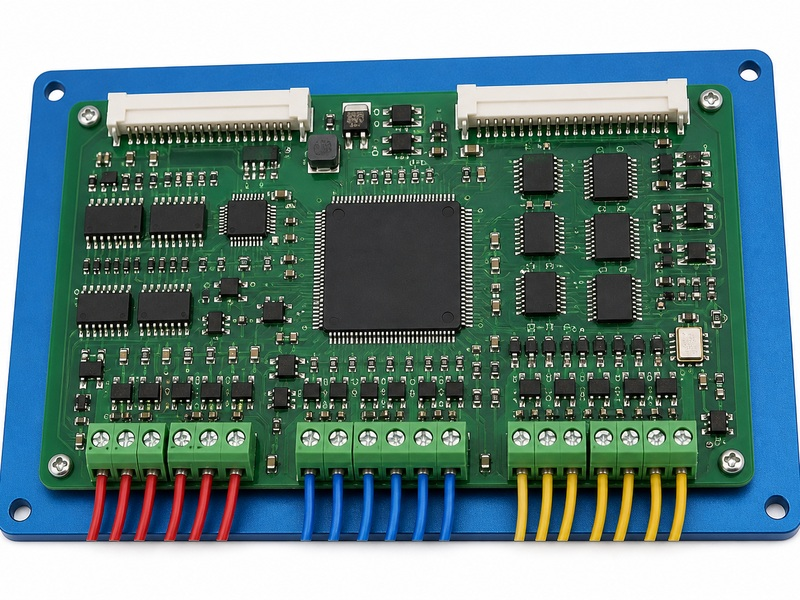

Control card and licensed software: Windows 32- and 64-bit
A genuine control card paired with licensed marking software, installable on 32- and 64-bit Windows with a one-touch Chinese/English switch. What the card buys is noise immunity and throughput: complex artwork keeps up, and a long batch run does not freeze.

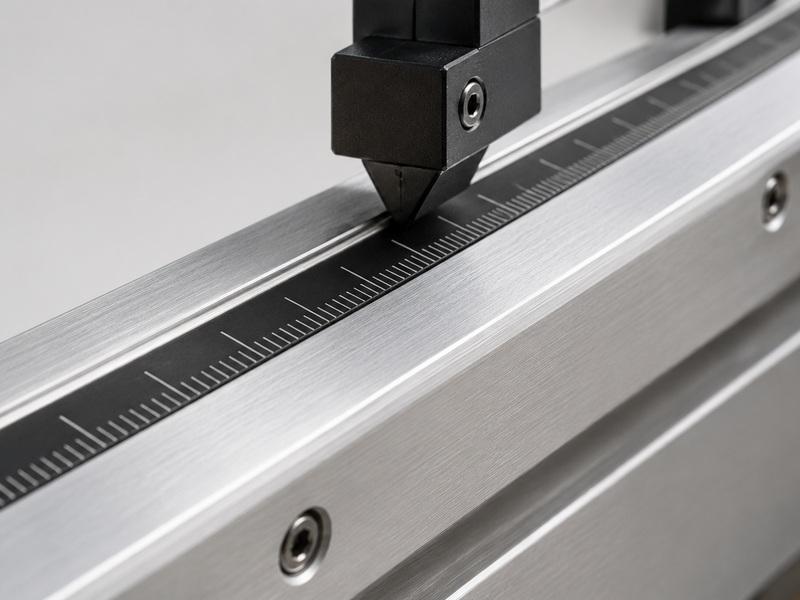

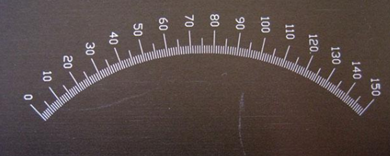

Scale ruler: aviation aluminium, an assembly datum you can see
A gantry machine lives or dies on assembly. Skew a rail by 0.02 mm and the error at two metres is a misregister. This machine carries an aviation-aluminium precision scale on the working travel, clearly graduated, used as the datum for assembly and re-inspection – half of whether 0.05 mm stitching is achievable is decided here.

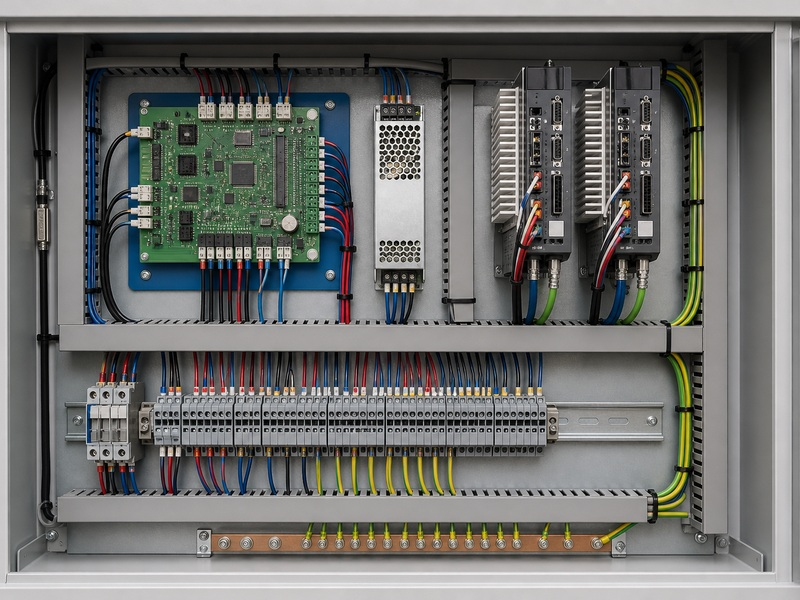

Wiring: straight runs, grouped by function
Every run sits in a slotted duct with evenly spaced ties and a crimped ferrule on each core; power and signal are separated and grounds bus to their own copper bar. The benefit is practical: a fault can be traced by eye, cables are neither crossed nor pinched, the risk of an aged short drops, and service time is halved.
| Assembly | What it does |
| Servo gantry | Long X/Y travel carrying the head; servo driven, 0.01 mm positioning |
| 3D galvo with dynamic focusing | Fast local sweep, with Z-axis focus compensation for height differences |
| Field lens | Sets the single-field view (300/500/1000/2000 mm by configuration) and the spot |
| UV source | 355 nm, water cooled, power by configuration (the SKU lists 10-30 W) |
| Water cooling | Takes heat off source and galvo so a long batch run holds |
| Syntec control | Motion and marking coordinated; MES-ready |
| Table and fixtures | Datum for a full board; vacuum or tray fixtures optional |
Material Compatibility
| Group | Materials | Note |

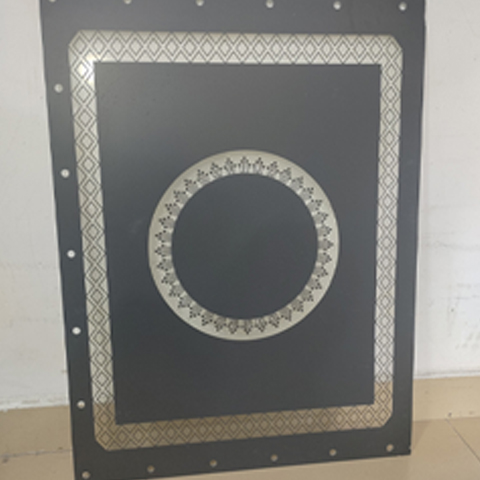

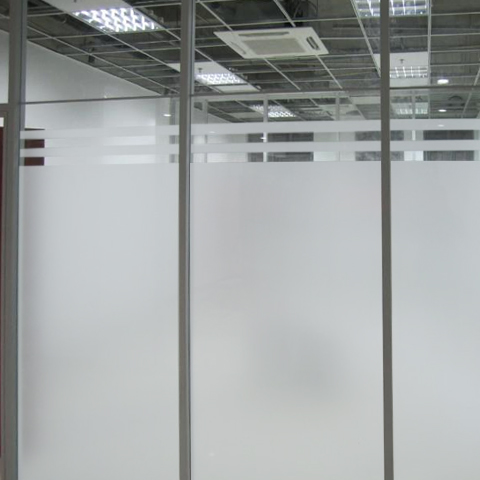

| Transparent and brittle | Glass, quartz glass, ceramics, electronic ceramics, glazed tile, marble | Whole glass sheets, window and door glass, smart-mirror panels: no micro-crack band, no accumulated heat stress |
| Transparent and brittle | ★ Crystal and gemstone (including sub-surface engraving), ★ sapphire and optical crystal | Only UV can take these in the matrix |
| Electronics | ★ Silicon wafer, ★ IC package, PCB/FPC, components, cable, keypads, battery shells | PCB arrays, long FPC strips and tray ICs – exactly the fields the parameter card names |
| Metals | Stainless, carbon steel, alloy steel, cast iron, aluminium, copper, galvanised, titanium, magnesium, precious metals, plated parts, foil under 0.5 mm, hardware, medical UDI | Shallow marking; choose the fiber configuration for deep engraving |
| Polymers and film | Acrylic, TPU/TPE, foam, PTFE coating, carbon fibre, paint and coatings (removal type) | No carbonisation on heat-sensitive plastics; large film areas avoid accumulated distortion |
| Organic and fibre | Leather, PU/PVC leather, fabric, non-woven, paper and board, corrugated, labels, wood and MDF, bamboo, food and eggshell | Markable, but the CO2 configuration is more economical |
Explore the Materials You Can Engrave with Our UV Laser
| Material Category | UV Laser |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | X |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | X |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | X |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | √ |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | X |
| PVC | √ |
| PMMA / Acrylic (clear) | √ |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | √ |
| Silicone Rubber | √ |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | √ |
| Rubber (NR / NBR / EPDM) | √ |
| Foam (EVA / EPE / Sponge) | √ |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | √ |
| PU / PVC Synthetic Leather | √ |
| Fabric & Textile | √ |
| Denim & Garment | √ |
| Non-Woven Fabric | √ |
| Paper & Cardboard | √ |
| Corrugated Carton | √ |
| Paper Label & Barcode | √ |
| Wood & MDF | √ |
| Bamboo & Cork | √ |
| Glass, Ceramic & Stone | |
| Glass | √ |
| Quartz Glass | √ |
| Crystal & Gemstone (incl. 3D inner engraving) | √ |
| Ceramic (Daily & Art Ware) | √ |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | √ |
| Glazed Tile | √ |
| Marble & Granite | √ |
| Concrete & Cement Products | X |
| Sapphire & Optical Crystal | √ |
| Electronics & Semiconductor | |
| PCB / FPC | √ |
| Silicon Wafer | √ |
| IC Package & Semiconductor Device | √ |
| Electronic Components | √ |
| Cable & Wire | √ |
| Keypad & Switch | √ |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | √ |
| PTFE / Teflon Coating | √ |
| Carbon Fiber & Composites | √ |
| Abrasives & Grinding Wheels | X |
| Food, Eggshell, Produce | √ |

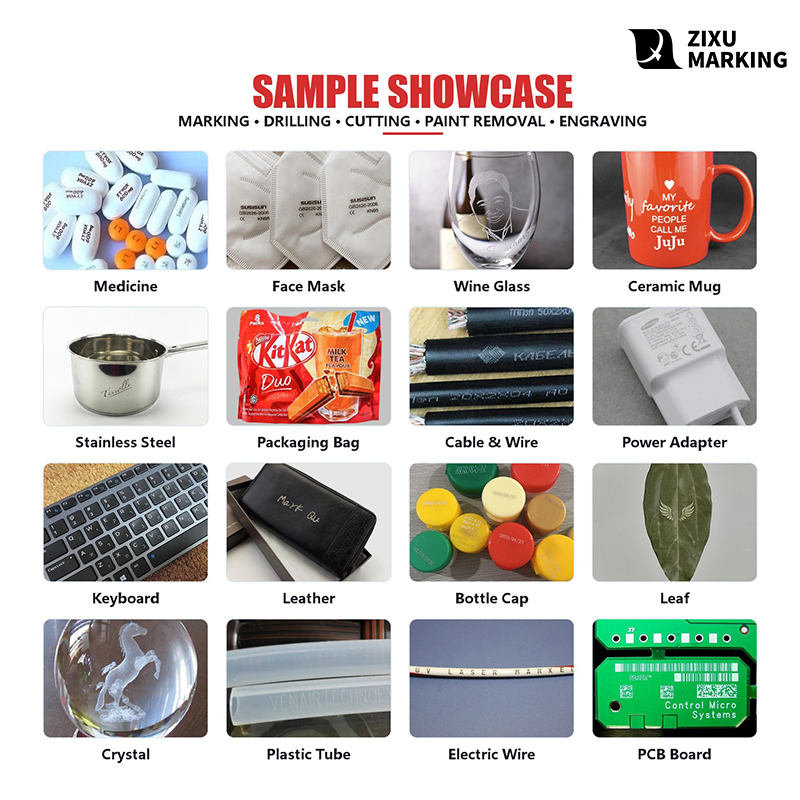

Marking Samples
