Handheld pneumatic gas cylinder marking machine
Since the introduction of our proprietary pneumatic dot peen marking machines in 2009, we have received a number of requests from customers in the industrial gas industry to mark cylinders of various capacities. For this reason, we have developed a series of patented magnetic fixtures for the most common cylinder types required by our customers, combined with our reliable and high quality hand-held pneumatic dot peen marker with cylinder engraving purpose optimization, it now becomes a line of hand-held gas cylinder engravers that can be flexibly customized to meet more specific needs.
For product pricing, customization, or other inquiries:
Description
Because the marking area of a gas cylinder is usually in a conically curved area near the top, individual markings such as a single line of date, serial number, or manufacturer’s name are subject to different curvatures at different positions. Gravure marking is therefore traditionally used for efficient marking in mass production, but when cylinders are subsequently recycled, or when flexible marking by date or gas type is required, they are usually marked manually with an electro-engraving pen. For this purpose, we use a specially developed marking needle with extended length and amplitude in combination with an electromagnetic tool, based on the standard 120*50mm Thorx-6 pneumatic marking machine, to realize flexible and versatile pneumatic cylinder marking.
Technical data of our handheld pneumatic dot peen gas cylinder marking machines
Choose from our standard machines below and slide to the right for more information, or contact us for a solution.

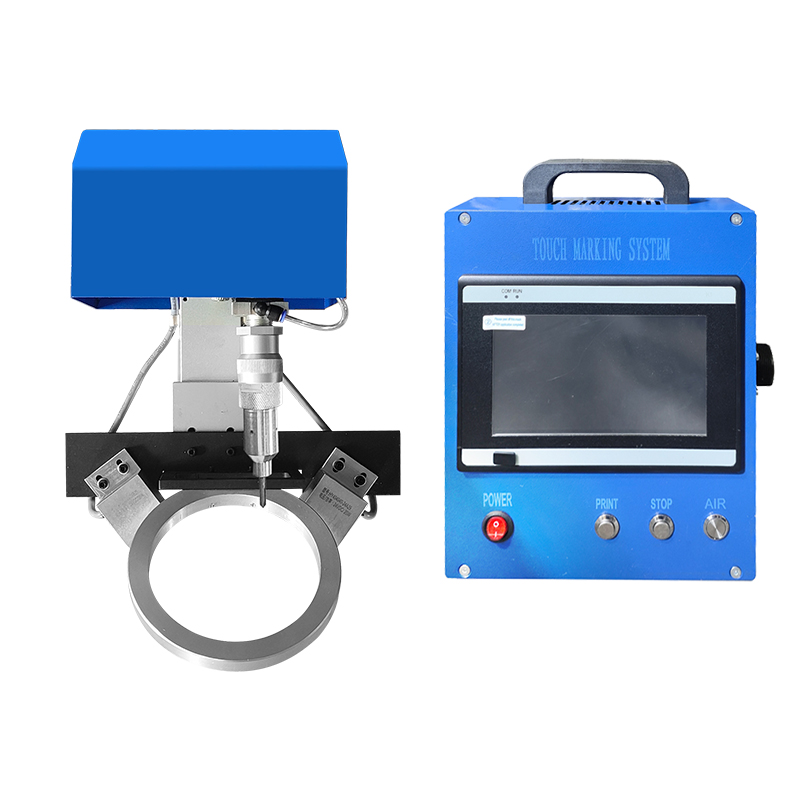

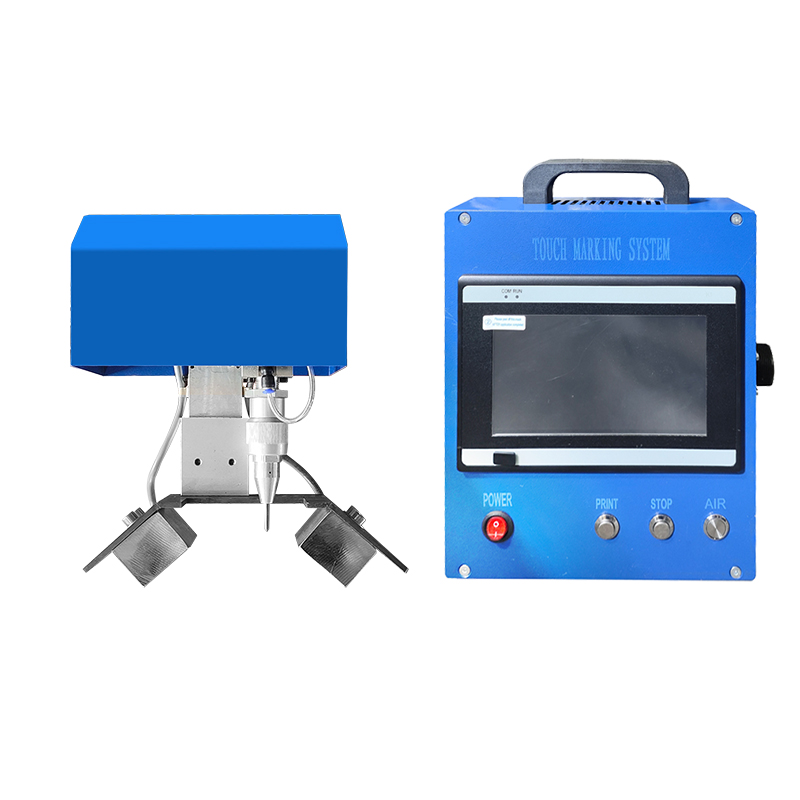

| Typical Appearance | Cylinder Type | Work Area | Marking Speed | Marking Depth | Air Supply | Marking Needle |
 | Dia. 80mm CO2, Dia. 108mm O2, Dia. 118mm LPG | 80*40mm | 1~5cps or 5~100mm/s | 0.1~0.3mm for single write on steel, 1mm max. | 0.4~0.6MPa | L4-17-90-M26 or L4-17.2-120-M26 for standard, or custom needles for specialized purpose. |
 | LNG |
Choose control software on your cylinder marking demanding
The basic Thorx-6 controller is sufficient to mark cylinders well with date, batch, serial number, and logos. However, you may need a Kingmark-8 controller for non-English characters. Want other controller software or types?
 Thorx-6 |  Kingmark-8 | |
| UI Language | English | All language |
| Marking Content | English fonts (letters & numbers), vector graphics | All language fonts & dot-fonts, vector graphics, Datamatrix & QR codes |
| Font Format | SHX, SLF, TTF, SHP | |
| Graphic Format | PLT, SLG, WMF, EMF, DWG, DXF | |
| Controller Configuration | Touchscreen controller or industrial PC controller with USB &RS232 connection | |
| Touchscreen Size | 7’’ | 10.1’’ |

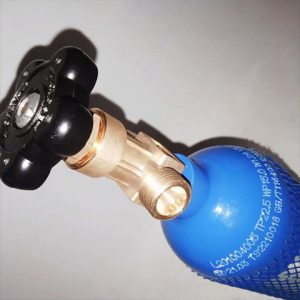

Marking Samples
Clients who chose our gas cylinder dot peen marking machines
FAQs about our gas cylinder marking machines.
Want an un art handing video demonstration on specialized material? Looking for solution of your specialized environment or automatic process demanding?
