Tungsten Carbide Marking Needle
Solid tungsten carbide core at 93HRA. One thread and pin-diameter family covers pneumatic, electric, and scribe heads, with 0.01-1.5 mm engraving depth and 0.02-0.04 mm repeatability – steel, aluminium, and nameplates in one pass.

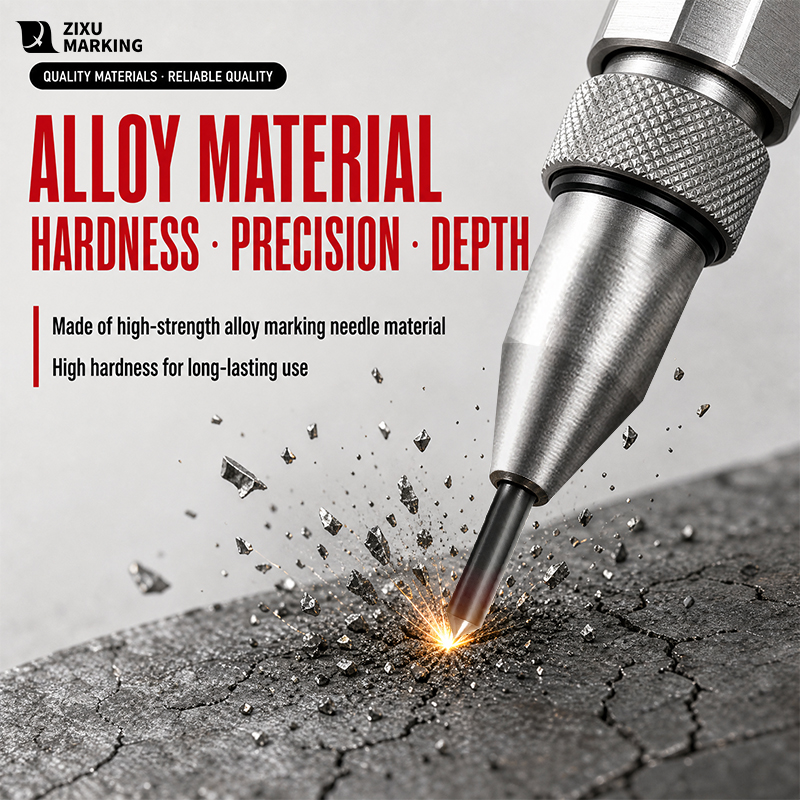

Features a 93 HRA solid tungsten carbide core (approximately 68 HRC) for consistent marking depth, clean edges, and reduced stylus changes. Delivers up to 3× the service life of conventional alloy pins, reducing downtime and replacement costs.
Provides quiet, reliable marking without a compressor or air line, while maintaining depth comparable to pneumatic pins. Its optimized head design supports continuous operation on nameplates and machined parts.
Supports M18–M45 threads and 1–10 mm pin diameters across pneumatic marking, electric marking, and pneumatic scribe models. Custom options include tip angle, overhang, color, and laser marking.

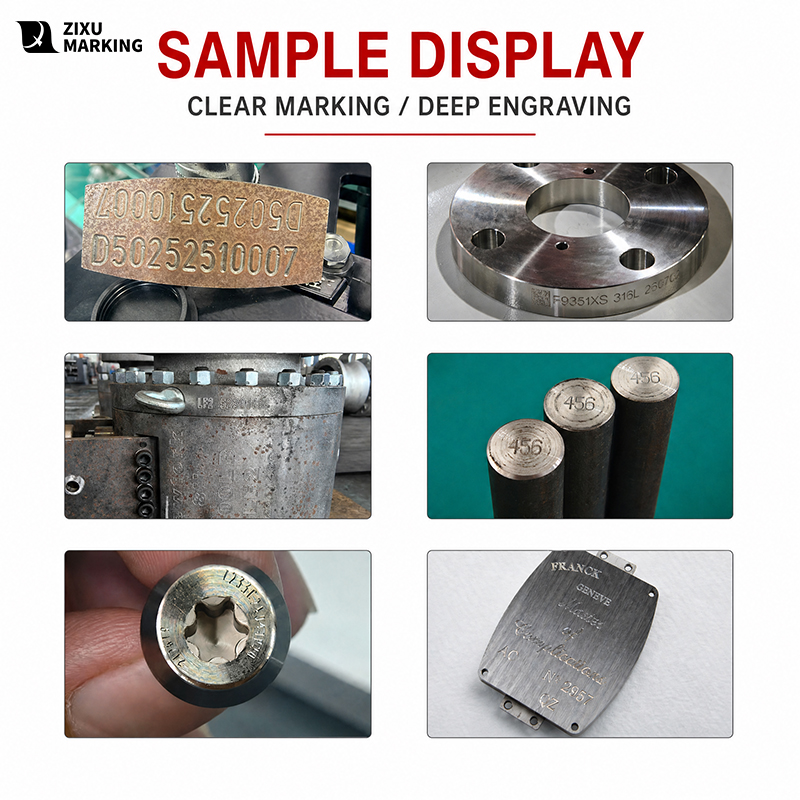

A solid carbide core at 93HRA, built for pneumatic marking machines, electric marking machines and pneumatic scribe heads. Threads run M18 to M45 and pin diameters 1 to 10 mm, with 0.01-1.5 mm engraving depth and 0.02-0.04 mm repeatability, marking stainless steel, aluminium, copper, cast iron, nameplates, glass and ceramic. The electric pin needs no air supply, runs quiet and hits hard, matching a pneumatic pin on depth for scattered workstations or shops without a compressor. Tip angle, overhang, colour and laser marking are customizable; give us the material, the depth and the character height and the pin follows. Pins ship from stock in single pieces, so a worn tip never waits for a production run.
| Item | Value | Source | Note |
| Core material | Solid tungsten carbide | Product brief | No attribute row yet, add a material row |
| Hardness | 93HRA (about 68HRC) | Product brief | No hardness on the page, see chapter 9 item 1 |

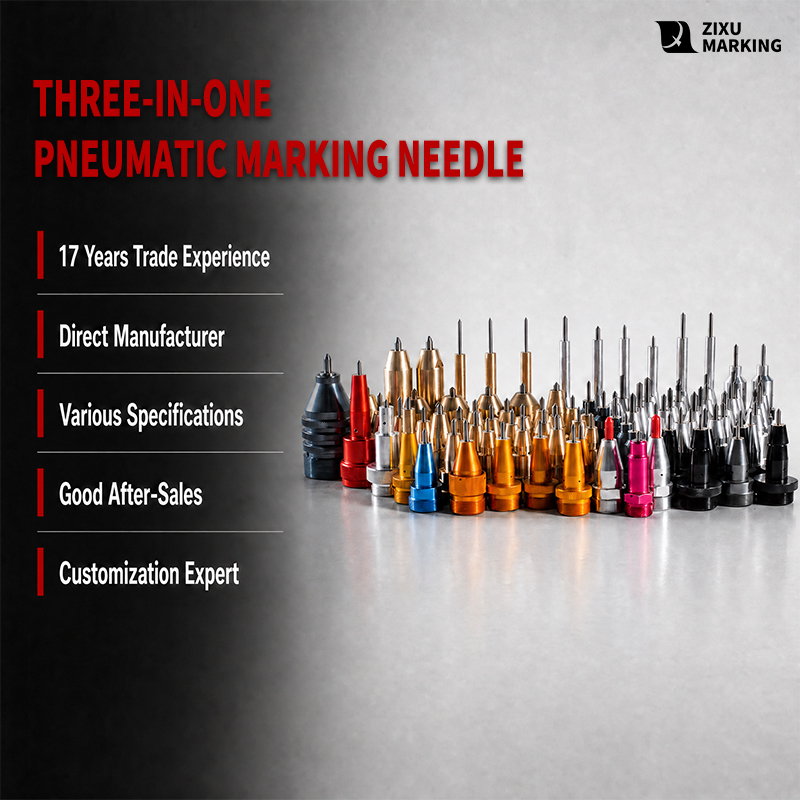

| Product name | Pneumatic Marking Needle | Page description image | Spelling kept as printed |
| Pin type | Pneumatic marking pin / electric marking pin / pneumatic scribe pin | Page SKU | All three orderable |

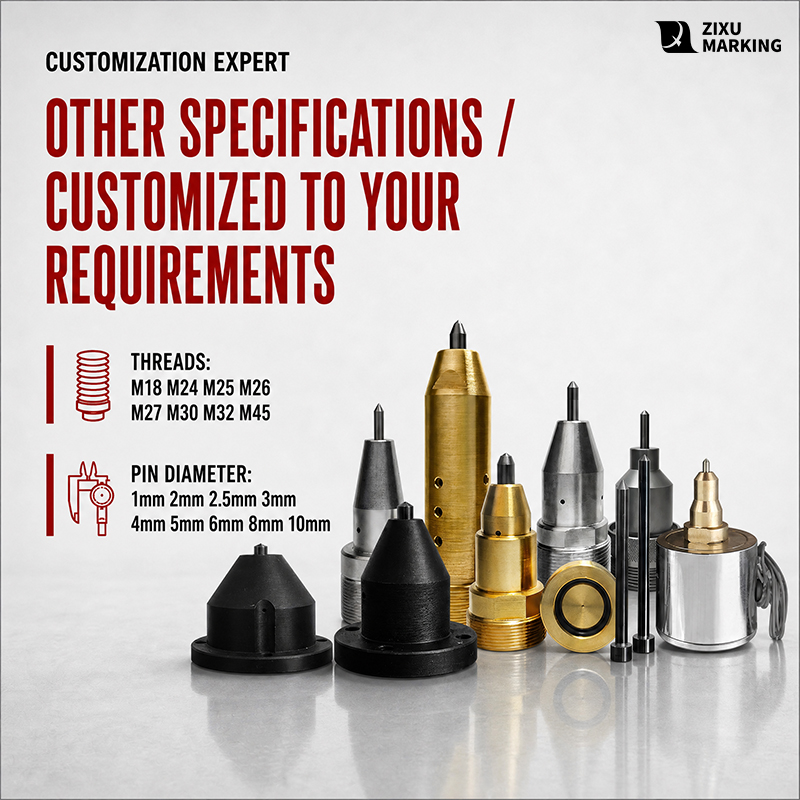

| Threads | M18 / M24 / M25 / M26 / M27 / M30 / M32 / M45 | Page spec image | Eight thread sizes |
| Pin diameter | 1 / 2 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10 mm | Page spec image | Nine steps; 10.7 and 12.8 mm made to order |
| Length | 30-120 mm, customizable | Product brief | Not listed on the page, add a length row |
| Colours | Silver / gold / black / multicolour | Page description image | Colour per order |

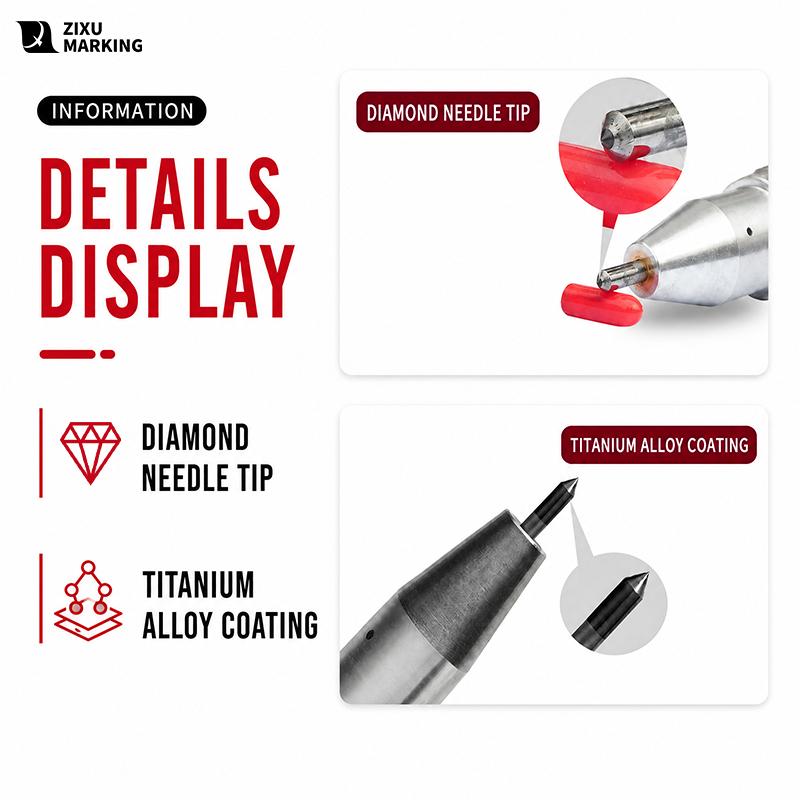

| Tip material options | Stainless steel / copper / alloy / diamond | Page description image | Diamond for glass and ceramic |
| Engraving depth | 0.01-1.5 mm, varies by tip | Page description image | Depth follows tip type and air pressure |
| Repeatability | ≤0.02-0.04 mm | Page description image | Batch consistency figure |
| Compatible machines | Pneumatic, electric and scribe marking machines; customizable | Page attribute | The attribute reads Customizable |
| Customization | Logo or pattern, dimensions, name plate, colour and marking | Page customization options | Min. order 1 piece each |
| Single package | 5 x 5 x 5 cm / 0.5 kg | Page packaging block | Shipped per piece |
| Warranty | 1 year | Page attribute | Attribute says 1 Year and conflicts with the FAQ, see chapter 9 |
| Certification | CE | Page certificate block CE(2) | FDA and ISO9001 in chapter 9 |
| Origin | Chongqing, China | Page attribute | – |
