In-line Pneumatic Dot Peen Marking Machine

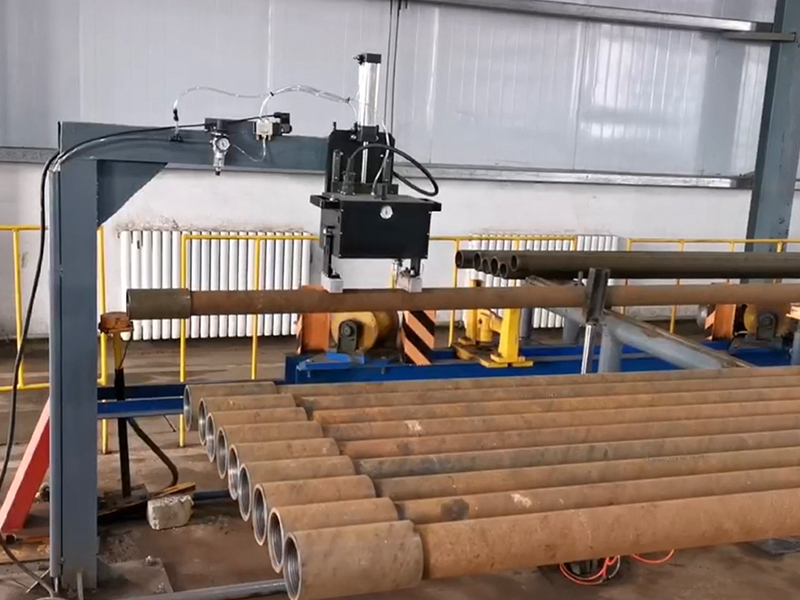

The core components of the inline automatic pneumatic marking machine are the marking head and controller. The working range and the need for a multi-axis motion module, rotary cylinder clamping fixture, or long-amplitude marking needles should be determined according to the customer’s production line layout, loading and unloading situation, workpiece shape, and marking position. This ensures that the machine meets the customer’s marking needs.

The controllers must be scalable and capable of communicating with manufacturing execution systems (MES) and programmable logic controllers (PLC). They must also be capable of operating jointly with other conveyors and tooling. We use powerful control systems, such as Thorx-7 or Kingmark-9, to ensure these functions are available.

For product pricing, customization, or other inquiries:

Description

Technical data of our standardized In-line pneumatic dot peen marking machine

Choose from our standard machines below and slide to the right for more information, or contact us for a solution.

Typical AppearanceMachine TypeWork AreaMarking SpeedMarking DepthControllerAir SupplyMarking Needle
Desktop140*80mm1~5cps or 5~100mm/s0.1~0.3mm for single write on steel, 1mm max or ask for customization.Thorx-6/Thorx-7/Kingmark-3/Kingmark-80.4~0.6MPa3mm V60 & 4mm V80 for standard, or custom needles for specialized purpose.
Desktop200*100mm
Desktop300*200mm
Desktop300*300mm
Desktop400*400mm or customized
Stand-alone140*80mm or customized
Enclosed140*80mm or customized

Choose control software on your marking demanding

Thorx-6 software is widely used in the pin marking industry with sufficient functions for the English environment, however, if you need more language support, check the table for the right one, or ask for advice.


Thorx-6
Thorx-7
Kingmark-3
Kingmark-8
UI LanguageEnglishEnglishAll languageAll language
Marking ContentEnglish fonts (letters & numbers), vector graphicsEnglish fonts & dot-fonts, vector graphics, Datamatrix (QR code)English fonts & dot-fonts, vector graphics, Datamatrix (QR code)All language fonts & dot-fonts, vector graphics, Datamatrix (QR code)
Font FormatSHX, SLF, TTF, SHP
Graphic FormatPLT, SLG, WMF, EMF, DWG, DXF
Controller ConfigurationTouchscreen controller or industrial PC controller with USB & RS232 connection.
Touchscreen Size7’’10.1’’
