ZIXU Intelligent Dual-Handheld V-Type Electromagnetic Large Steel Pipe Marking Machine – Solving Heavy-Duty Pipe Identification Challenges

In core sectors such as heavy industry manufacturing, oil and gas transportation, and large-scale infrastructure, large steel pipes are indispensable fundamental components. These pipes are massive in size and heavy in weight, presenting numerous practical limitations in handling, repositioning, and workstation securing – making pipe identification and traceability a long-standing pain point in production and quality inspection processes. Based on real industrial site needs, Chongqing Chuke Intelligent Machinery Equipment Co., Ltd. ("ZIXU Intelligent") has launched the Dual-Handheld V-Type Electromagnetic Large Steel Pipe Marking Machine. With its flexible and portable operation mode, it solves the identification challenges of heavy-duty curved pipes, improving quality and efficiency for industrial pipe traceability.


For a long time, large steel pipe marking operations have faced multiple practical constraints. Traditional handheld marking equipment lacks a fixed positioning structure – operators need to hold the machine steady with bare hands and manually calibrate the position. Prolonged operation easily leads to fatigue and high labor costs. At the same time, the curved surface of steel pipes makes it difficult for ordinary equipment to fit tightly against the workpiece surface, resulting in issues such as deviation, uneven depth, and blurred characters during the marking process – leading to inconsistent marking quality. For engineering pipes, unclear and non-standard markings not only affect product appearance quality but also hinder subsequent quality inspection, project traceability, and batch management processes, posing hidden risks to enterprise quality management.

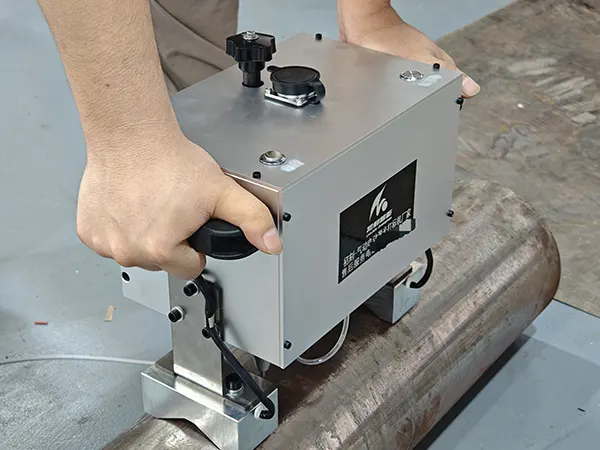

In response to common industry pain points, Chuke Intelligent has deeply cultivated the R&D and manufacturing of industrial identification equipment, focusing on optimizing equipment structure for heavy-duty pipe operation scenarios to create a dual-handheld V-type electromagnetic marking device. The equipment's core innovation is the V-shaped magnetic base, which adapts to the curved surface structure of various circular steel pipes. Based on the principle of electromagnetic attraction, it can firmly attach to the outer wall of the pipe once powered on, quickly completing equipment positioning without the need for cumbersome fixture assistance, eliminating the tedious process of repeated manual calibration and alignment, and greatly simplifying pre-operation preparation procedures.

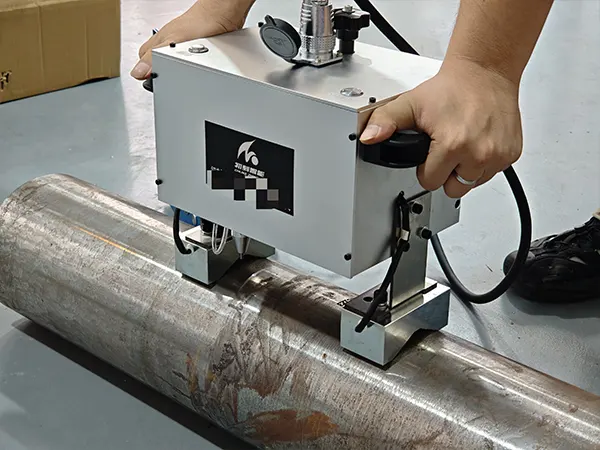

The equipment adopts a dual-handheld structure with handles on both sides, changing the disadvantages of traditional single-hand operation such as uneven force distribution and poor stability. It evenly distributes operating pressure, eliminating the need for continuous manual pressing and fixation, reducing physical fatigue during prolonged operation, and improving operational stability and endurance. The flexible operation mode of magnetic fixation breaks through the site limitations of traditional equipment, freeing itself from fixed workstation constraints. Whether it's routine marking on workshop production lines, batch identification at outdoor material yards, or temporary marking at outdoor construction sites, it can be quickly deployed and operated immediately. It adapts to steel pipe processing needs of various diameter specifications, with superior scenario adaptability compared to traditional identification equipment.


To balance operational convenience and marking professionalism, the equipment adopts a split-type structural design, consisting of a marking main unit and an independent touchscreen control cabinet. The split layout flexibly adapts to complex on-site environments, facilitating cable organization and equipment placement/commissioning. The accompanying touchscreen interface is simple and intuitive – operators can independently input traceability information such as pipe specifications, heat numbers, batch numbers, and steel grades, and freely adjust character size, layout spacing, and marking parameters. The operation threshold is low, and the learning curve is fast. The equipment uses pneumatic dot-peen marking to form clear and durable marks on the steel pipe surface, with neat characters, uniform depth, and corrosion resistance – suitable for long-term traceability verification needs in outdoor and complex working conditions.


Compared with homogeneous marking equipment on the market, this marking machine from Chuke Intelligent achieves a breakthrough upgrade in operation mode. It uses flexible equipment to adapt to heavy workpieces – no need to move heavy steel pipes, reducing equipment wear, labor consumption, and safety hazards caused by heavy material handling. Its stable positioning structure, operation process, and marking results improve pipe identification efficiency and product qualification rates, helping heavy industry enterprises build a standardized, refined, and traceable quality management system.
Having deeply cultivated the industrial intelligent identification field for nearly 20 years, Chuke Intelligent takes scenario needs as its core and continuously iterates equipment technology and product experience. The launch of this dual-handheld V-type electromagnetic large steel pipe marking machine is a targeted innovation by the company to meet the pipe processing needs of the heavy industry. In the future, Chuke Intelligent will continue to deeply cultivate segmented industrial scenarios, polishing more practical and intelligent industrial identification equipment, injecting new momentum into the quality improvement and upgrading of the heavy manufacturing industry.
