Adapted for Curved-Surface Marking – ZIXU’s Compact Round Pipe & Flange Pneumatic Marking Machine Empowers Pipe Upgrading

As the digital traceability system in manufacturing continues to improve, component identity marking has become a core part of industrial production, quality control, and product circulation. In response to personalized production needs in segmented fields, Chongqing ZIXU Machine Works has deepened its R&D in industrial marking equipment and newly launched a small flange round pipe circular pneumatic marking machine. It specifically addresses the pain points of curved-surface workpiece marking, providing lightweight, high-precision identification solutions for industries such as pipe processing, pressure vessels, engineering machinery, and petroleum pipe fittings.

In batch production scenarios for pipe fittings and flanges, information such as product batch numbers, specification parameters, production codes, and anti-counterfeiting marks is the key basis for full lifecycle traceability and ensuring equipment operation and maintenance. Most general-purpose marking machines on the market are designed for flat workpieces. When used for curved-surface marking, they are prone to issues such as character deformation, blurred edges, and positioning deviation, which not only affect the product's appearance and regularity but also cause traceability information to become invalid, bringing many hidden risks to enterprise quality inspection, warehousing, and after-sales management. The newly iterated equipment from ZIXU focuses on the segmented scenario of small and medium-sized circular workpieces, abandoning the adaptation shortcomings of general-purpose equipment, and through structural optimization and program upgrades, adapts to the marking needs of various circular metal workpieces.

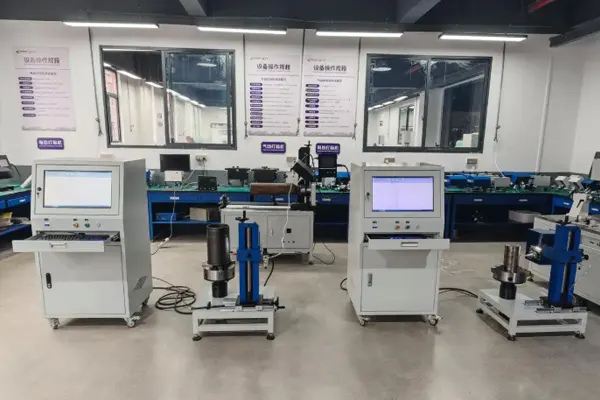

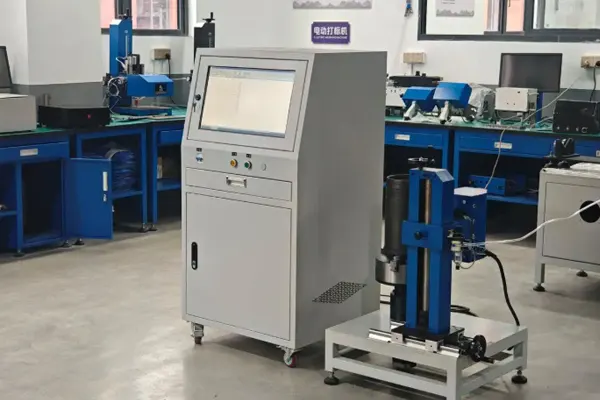

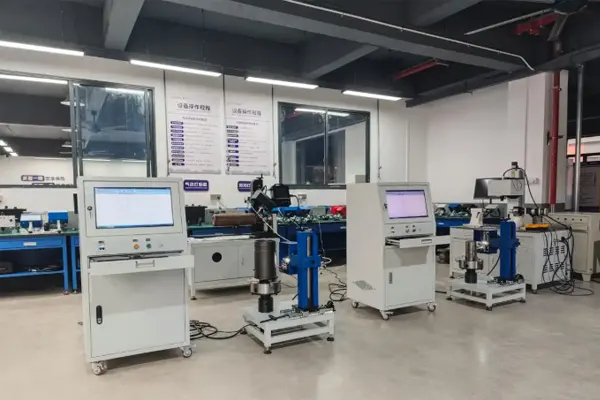

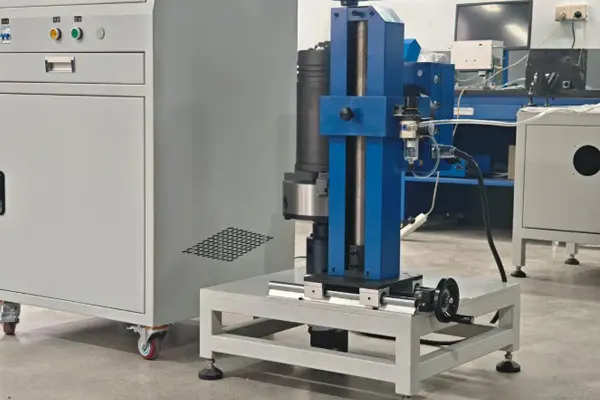

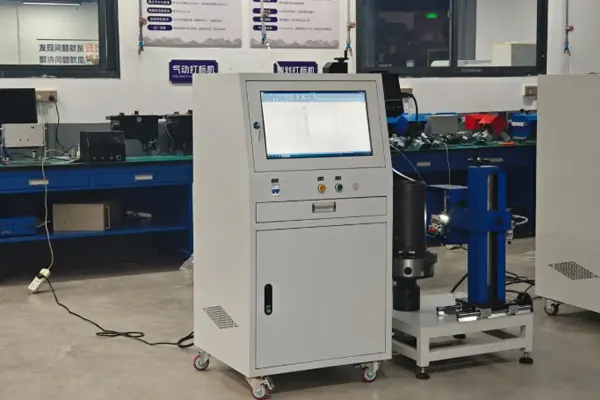

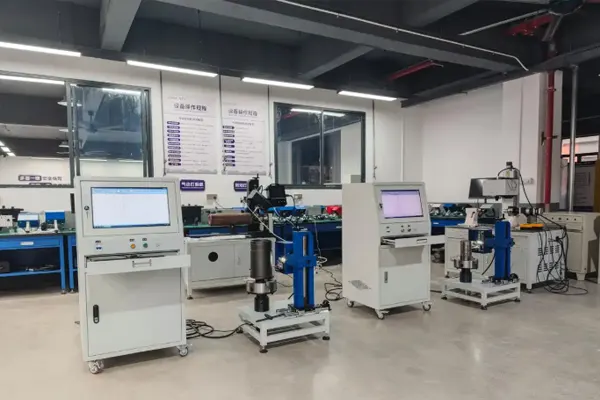

The core advantage of this new pneumatic marking machine lies in its dedicated structural optimization for curved-surface workpieces. The equipment is equipped with a self-calibrated adjustable rotary fixture and a multi-dimensional fine-tuning positioning base, which can flexibly adapt to round pipes and flanges of different diameters and thicknesses. Without complex tooling modifications, it can quickly secure the workpiece and calibrate the marking position. Paired with an intelligent touchscreen control system featuring a simple and intuitive interface, it supports custom editing of text, graphics, serial numbers, and dedicated codes. The system can synchronize with the rotary mechanism to mark along the curved surface trajectory of the workpiece, ensuring uniform and neat characters throughout the process and eliminating the marking defects of traditional equipment.

Based on the mature pneumatic marking principle, the equipment uses a precision needle to create indented marks through high-frequency impact. The marks are highly hard and unaffected by oil, slight rust, or coating on the workpiece surface. It adapts to complex industrial conditions and retains marking information over the long term, meeting industry traceability standards for heavy manufacturing, pressure pipelines, and special equipment. The machine features a lightweight, compact body with a simple, rational layout and movable casters, combining fixed-station operation with mobility. It is suitable for routine batch production in workshops and also meets mobile marking needs across multiple workstations and areas, adapting to flexible factory production models.

In terms of operational experience and protection, the equipment fully meets frontline production needs. The R&D team simplified the operation process based on workshop scenarios, lowering the learning curve. Operators can independently complete the entire process—parameter setting, workpiece clamping, and batch marking—after brief training, saving training and production time costs. A built-in intelligent protection program allows free adjustment of marking force and speed to control marking depth for fragile workpieces such as thin-walled steel pipes and precision flanges, ensuring clear marks while preventing workpiece deformation and surface damage. It adapts to circular workpieces of different materials and thicknesses. The automatic shutdown protection under abnormal conditions further enhances workshop operational stability.

For a long time, the pipe processing industry has faced a dilemma in curved-surface marking. Simple equipment lacks precision and produces poor marking results, while imported curved-surface marking machines come with high purchase costs, cumbersome operation and maintenance, and delayed after-sales response—greatly increasing the pressure on small and medium-sized enterprises to upgrade production. Leveraging the advantages of Southwest China's intelligent manufacturing industry and nearly 20 years of deep cultivation in industrial marking equipment, ZIXU has continuously visited pipe manufacturing and machining enterprises, thoroughly explored end-user production pain points, and integrated frontline operational needs into product R&D and iteration. The launch of this new product matches the lightweight upgrading needs of small and medium-sized manufacturers. It requires no large-scale infrastructure modification, features low implementation cost and strong adaptability, and provides the industry with a cost-effective domestic curved-surface marking solution.

Currently, this small pneumatic marking machine can be widely used on pressure vessel flanges, industrial round pipes, precision steel pipes, petroleum pipe fittings, mechanical round shafts, and various other circular components. It covers multiple application scenarios such as factory marking, quality inspection coding, traceability archiving, and brand labeling, helping enterprises standardize product identification management, improve component identification and product standardization, and lay a solid foundation for production traceability, quality control, and market circulation.

The upgrading of intelligent manufacturing stems from the refinement and optimization of every production detail. As a local enterprise focused on the R&D and production of industrial marking equipment, ZIXU always takes market demand as its core and technological innovation as its driving force, continuously overcoming marking challenges for irregular workpieces and complex working conditions. In the future, the company will continue to deeply cultivate segmented manufacturing scenarios, continuously refine product performance, optimize equipment experience, and launch more intelligent marking equipment tailored to domestic factory conditions, helping traditional manufacturing achieve refined, digital, and standardized upgrading.
