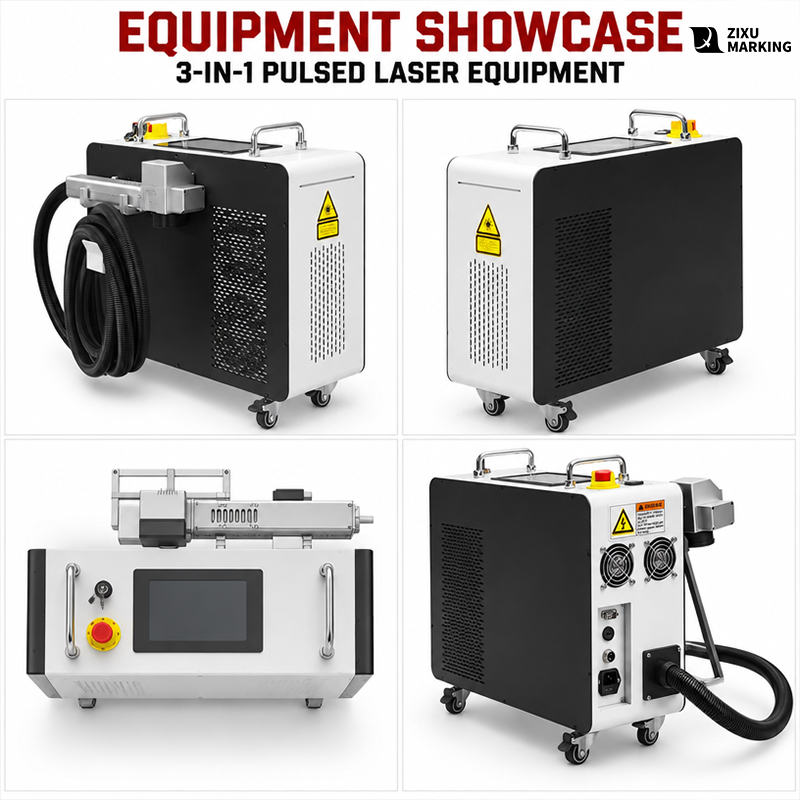

3-in-1 Handheld Laser Cleaning Cutting Marking Machine for Stainless Steel, Carbon Steel and Aluminium
One head, three jobs: cleaning, cutting and marking on a 0.75 kg handheld head, switched on a 7-inch screen. 100/200/300 W pulsed, 110×110 mm field, 2 mm cut, 22 kg body on casters, under 1 kW.
Ideal for on-site trimming, thin-sheet cutting, and burr removal, reducing the need for secondary grinding or workshop rework.

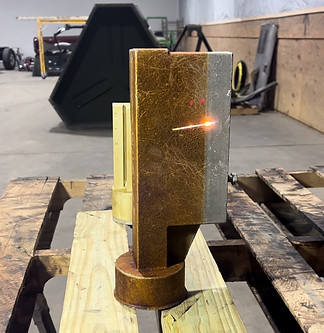

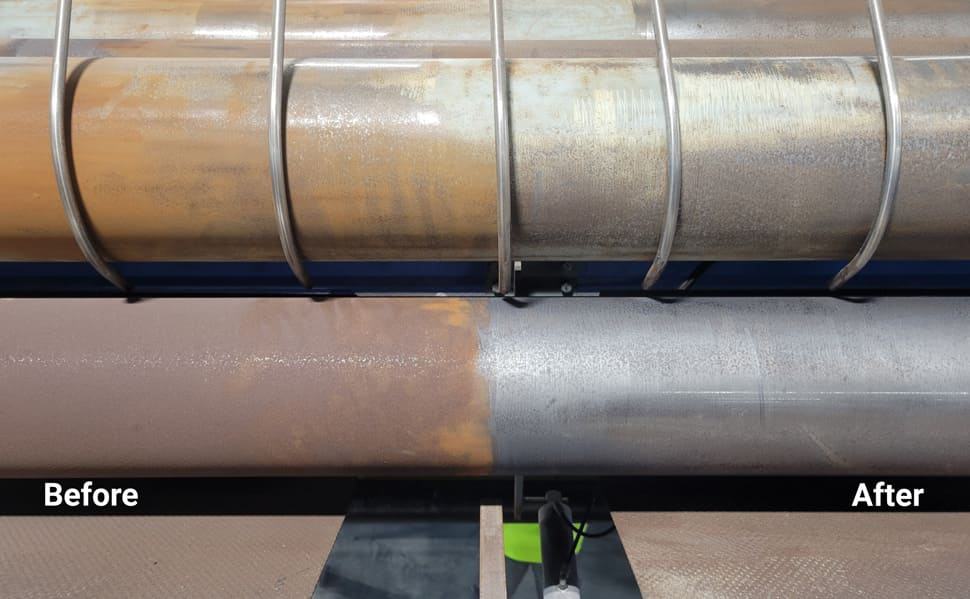

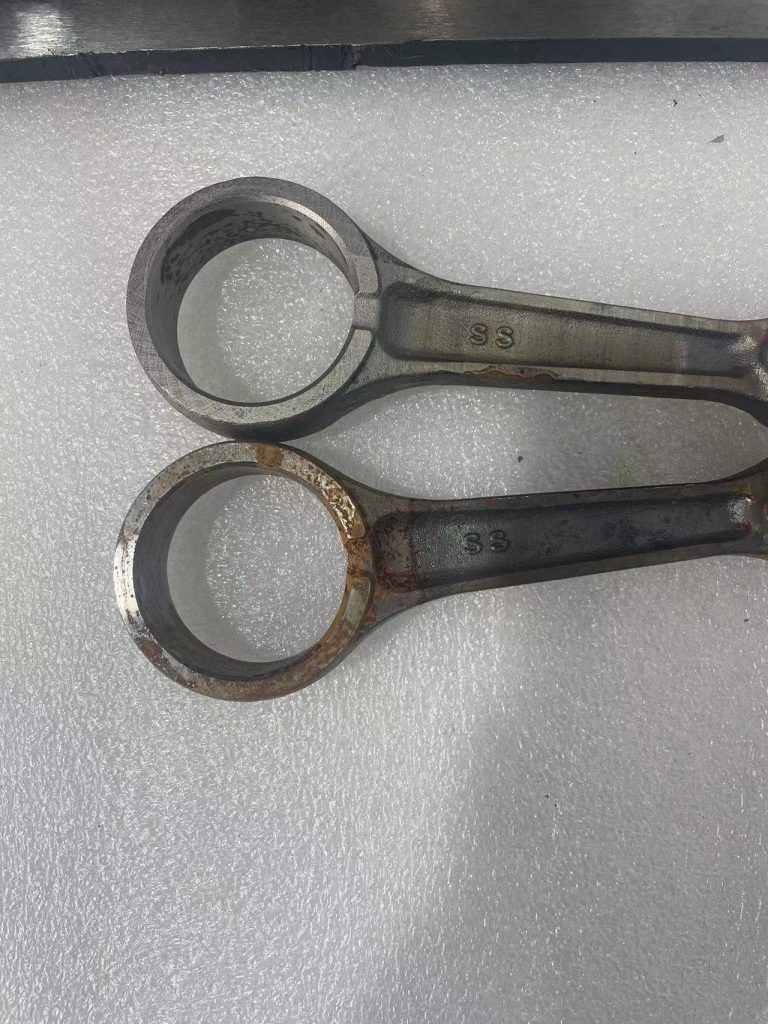

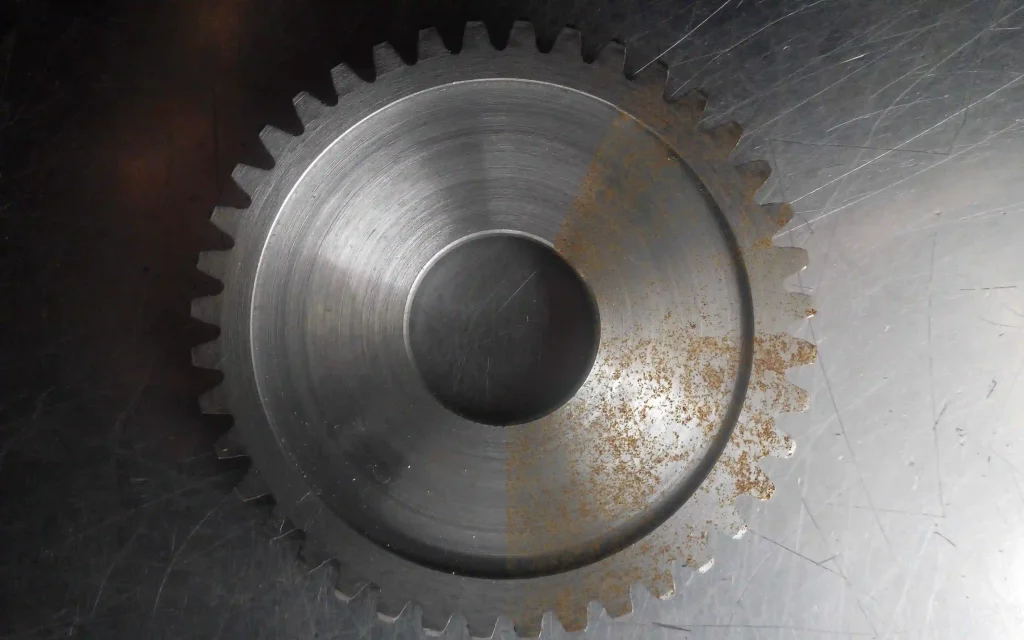

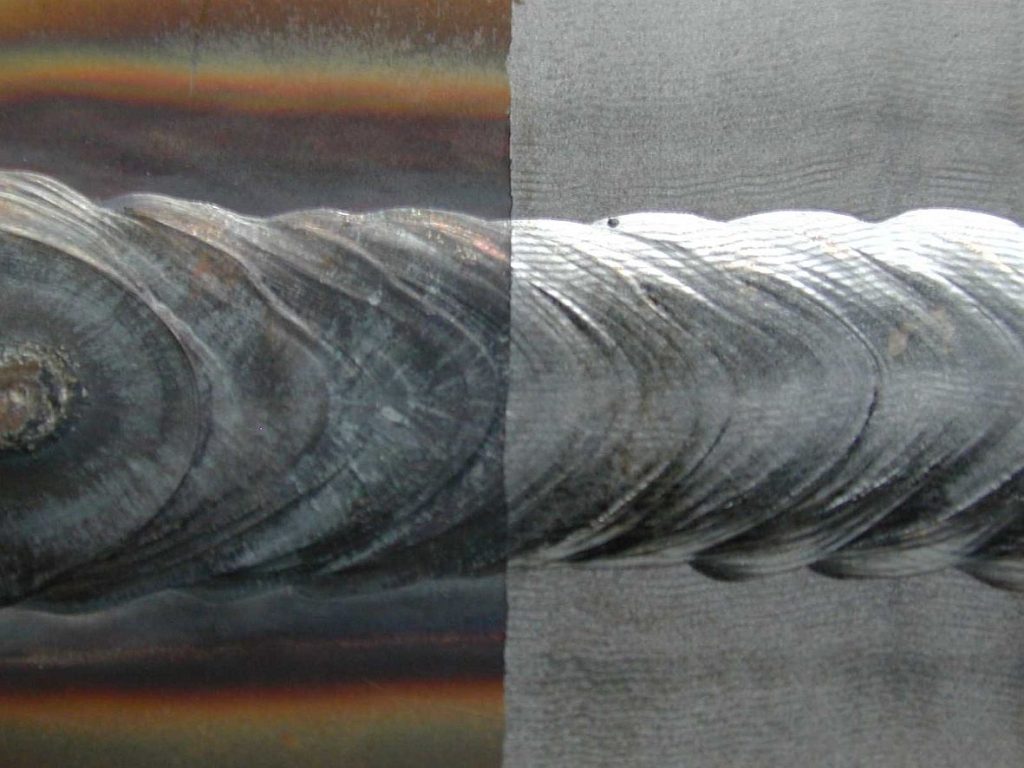

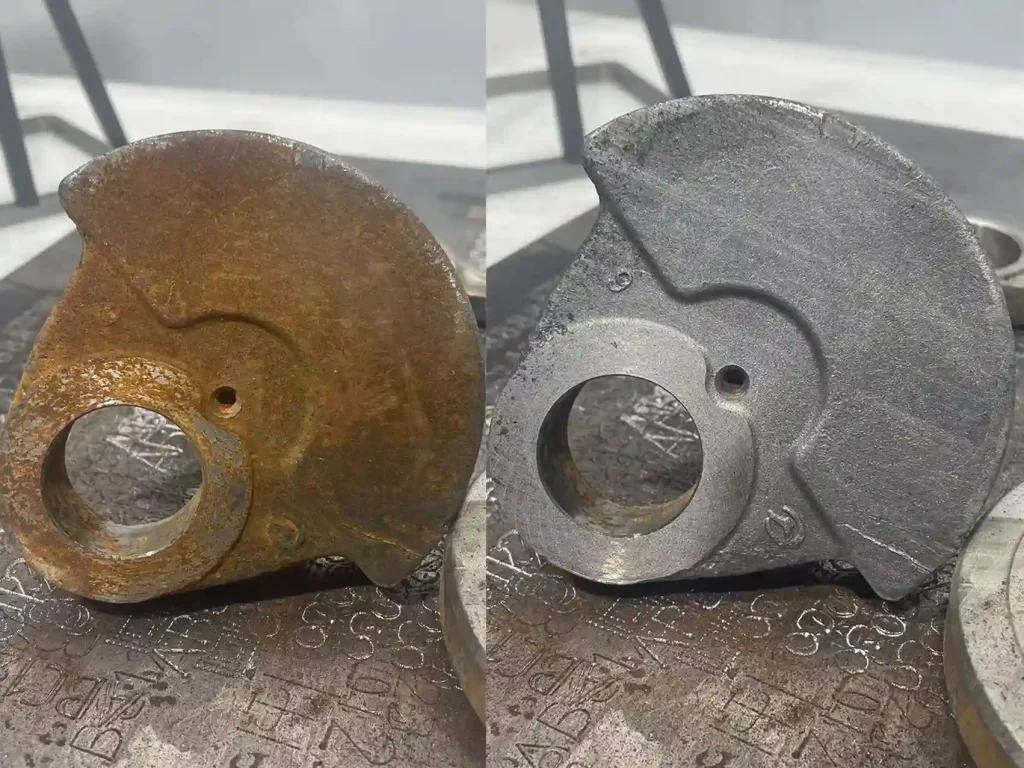

Remove rust, oil, paint, and oxides with selectable cleaning modes. No abrasives or chemicals are required; only the protective lens needs periodic replacement.
ðLO
One handheld unit: cleaning, cutting and marking switched on a 7-inch screen, so the part never moves. 100-300 W pulsed, 110×110 mm, cuts to 2 mm, 22 kg body, under 1 kW.
| Parameter | Value |
| Wavelength | 1060-1080nm |
| Pulse Width | 200ns |
| Frequency | 1-3000kHz |
| Maximum Pulse Energy | 1.5mJ |
| IO | QCS |
| Cooling | Air Cooled |
| Laser Type | Pulsed |
| Power | 100W / 200W / 300W Optional |
| Cleaning Area | 110x110mm (Customizable) |
| Cutting Thickness | ≤2mm |
| Marking Area | 110x110mm (Customizable) |
| Cleaning Gun | 0.75kg |
| Cable Length | 5 meters |
| Power Supply | 220V 50Hz / 110V 60Hz |
| Power Consumption | <1kW |
| Net Weight | 22kg |
| Gross Weight | 30kg |

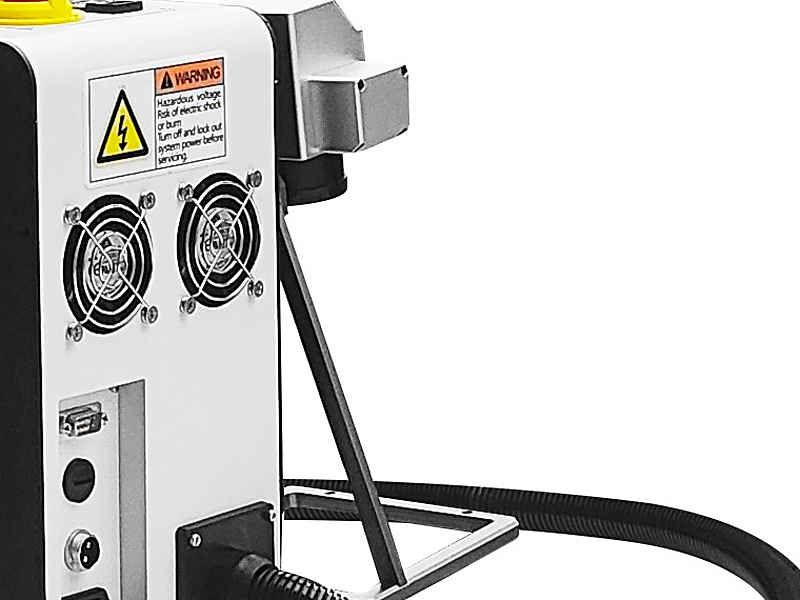

Twin-fan air cooling: no water circuit, none of its failures
Two fans side by side on the rear panel, one drawing in and one pushing out, against a fully perforated side panel. The unit draws under 1 kW and needs no chiller, no water line and no antifreeze – the three things that fail first on a machine that travels.

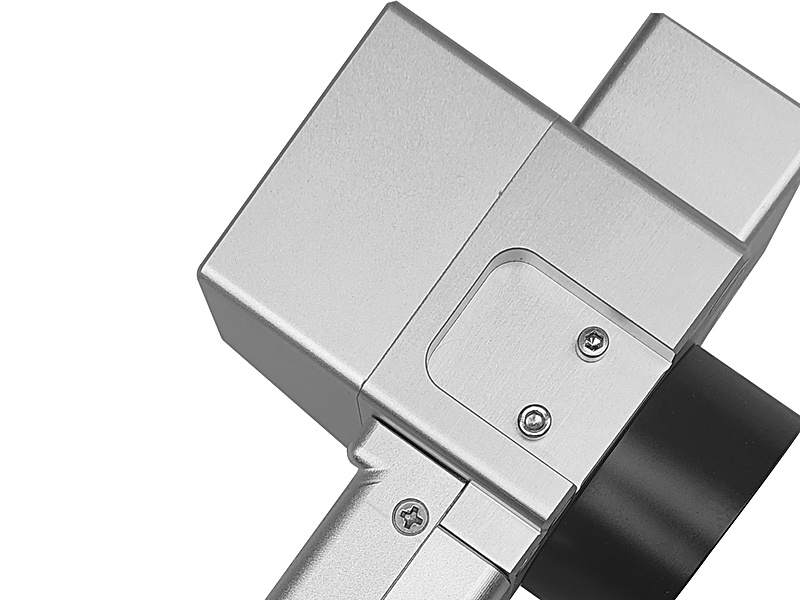

0.75 kg head, 280 mm long: a day of holding, and it reaches inside box sections
The head is one aluminium body, 100×60 mm at the face, with the protective lens seated on four screws and an adjuster on the side. 0.75 kg at 280 mm is the compromise between steady in one hand and long enough to reach: inside a weld, between pipes, behind a frame.

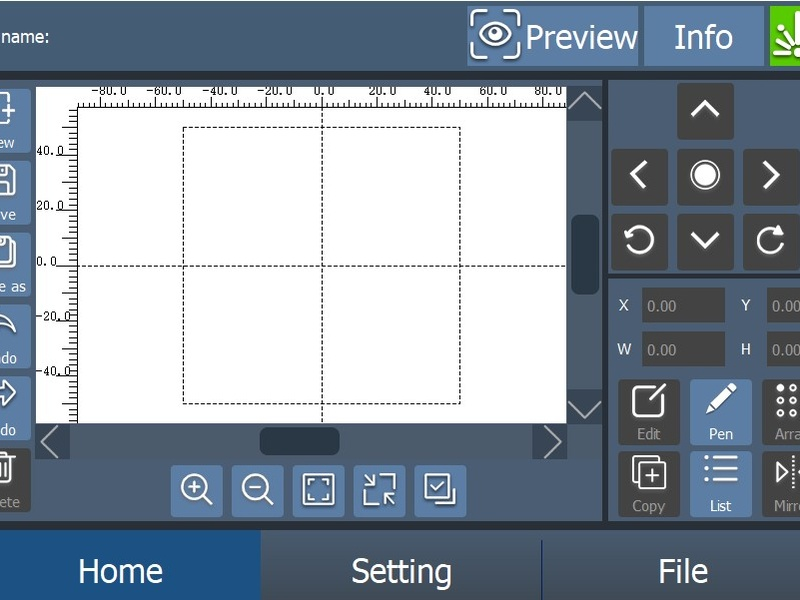

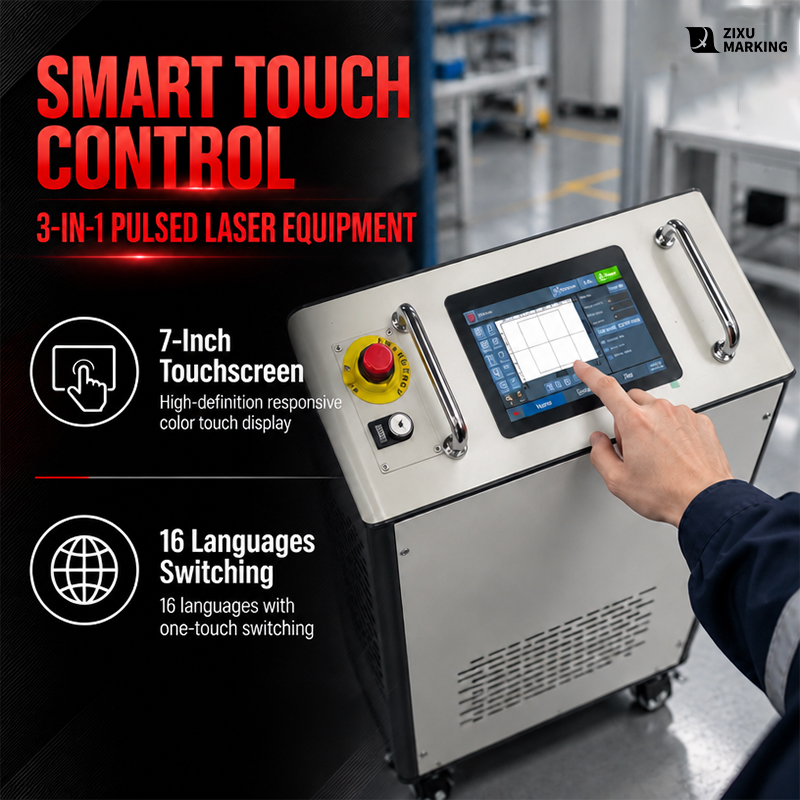

One screen, three processes: change the mode, not the machine
A 7-inch Linux touchscreen in 16 languages. Cleaning, cutting and marking each hold their own parameter page, saved as a group; switching changes the power and frequency set for that process without refocusing or changing the head.

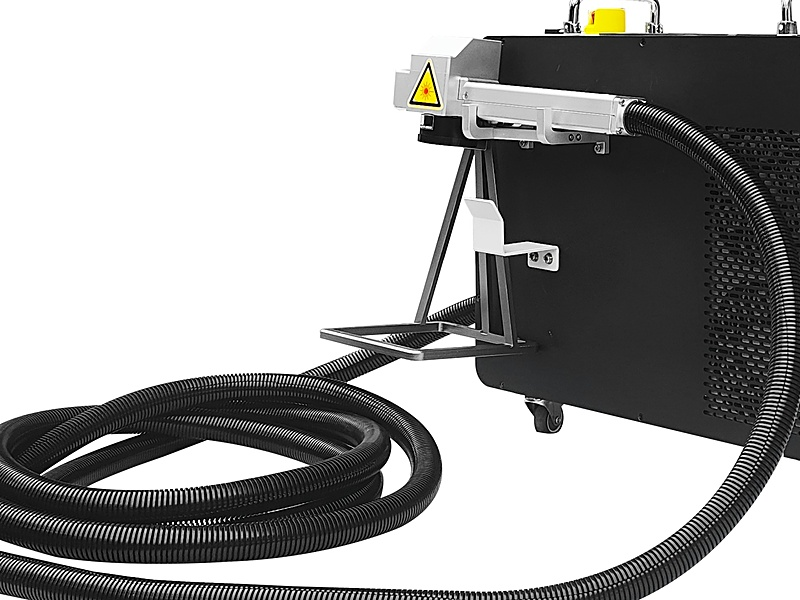

5 m cable and an integrated cradle: it packs away, so it travels
The cable runs in a stainless flexible conduit that takes being stepped on. The cradle is fixed to the side of the body, so the head has somewhere to sit when the job ends. Five metres sets the working radius and lets the body stay in the aisle while the operator works deep inside the bay.

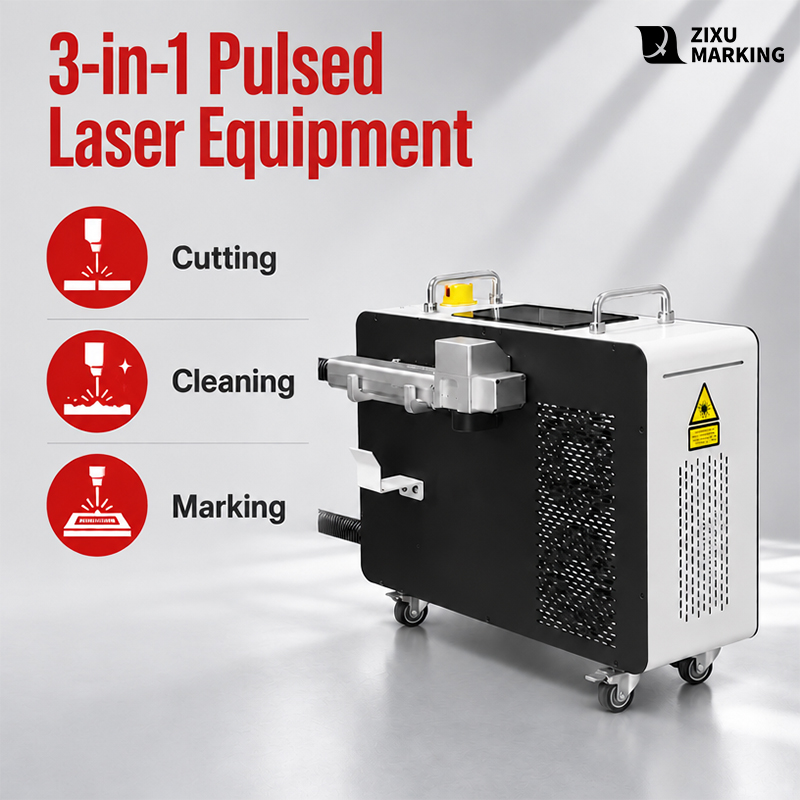

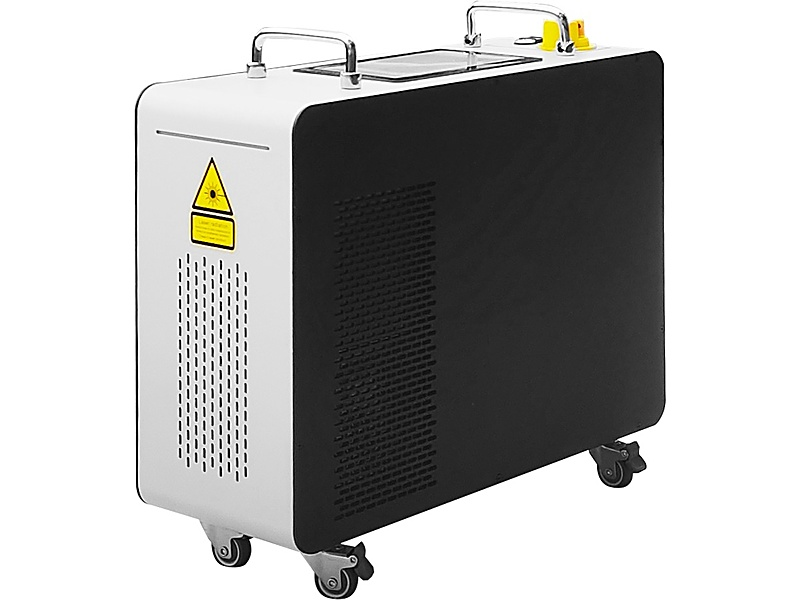

22 kg with casters and two handles: one person loads it
A 450x170x370 mm body with a handle on each side and four braked casters. Lift by the handles over a sill, roll it on the flat; it fits a car boot, a lift and the gap between machines without a forklift.
JPT or GZ Tech source: this is where the service life is capped
The pulsed fibre source sits inside the black housing. 1060-1080 nm, 200 ns, 1-3000 kHz, 1.5 mJ per pulse, in 100/200/300 W steps. It is the one part whose failure stops everything, so the choice of source sets how many years the machine gives.

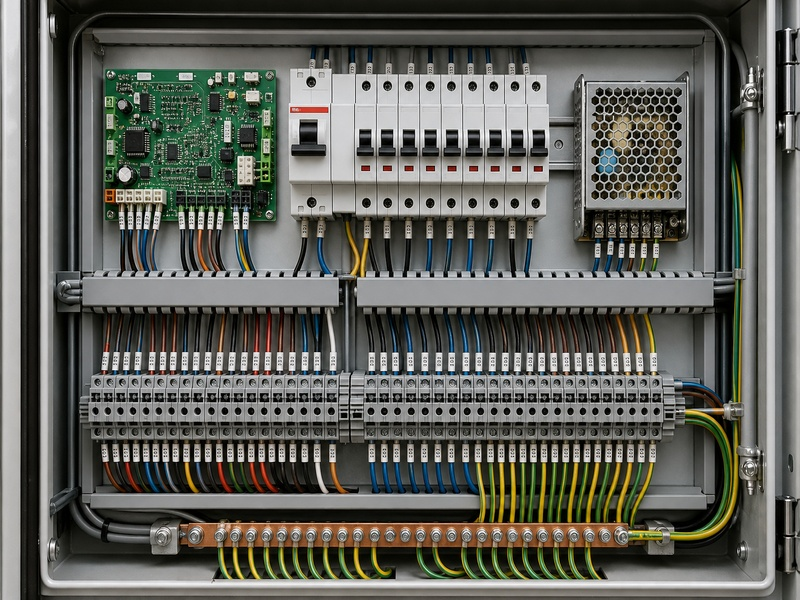

Wiring inside the bay: it saves half a day, not ten minutes
Breakers and the main switch on the top rail, control board and power supply in their own zones, harness in slotted duct with square corners, a ferrule number on every core, and one copper earth bar along the bottom. Tidy is not cosmetic: how fast a single wire can be traced sets how long the line stays down.
| In the box | Note |
| Main unit | 22 kg, 450x170x370 mm, casters and handle |
| Handheld head | 0.75 kg, 280 mm long, 100×60 mm face |
| Cable | 5 m |
| Touchscreen | 7-inch Linux, 16 languages, one-touch mode switch |
| Protective lens | the only consumable |
| Safety kit | goggles and foot switch by configuration |
| Site | Requirement |
| Power | 220 V 50 Hz or 110 V 60 Hz, under 1 kW, ordinary socket |
| Air | no compressor |
| Cooling | air cooled, no chiller, no water line |
| Floor | 45 cm body; working radius set by the 5 m cable |

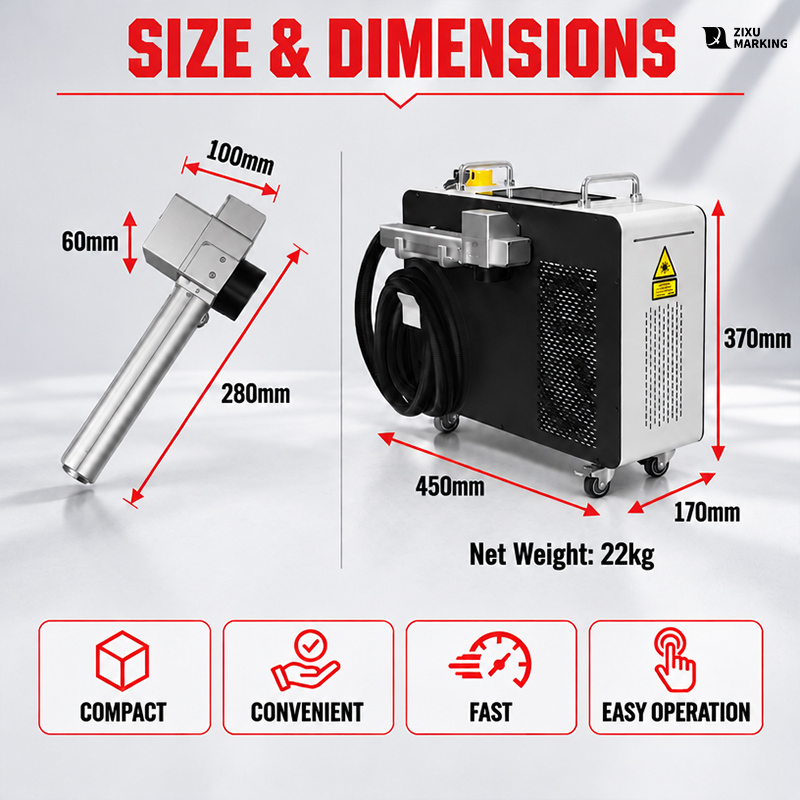

Size and weight
| Item | Value |
| Body | 450x170x370 mm |
| Head | 280 mm long, 100×60 mm face |
| Net / gross | 22 kg / 30 kg |
| Carton | 55x35x47 cm |
Material Compatibility
| Scene | Typical objects | Model | Why |
| High level and structural | Bridge steelwork, tower sections, scaffold welds and old paint | 100SC / 200SC | 7-12.5 kg, carried up, both hands on the structure |
| Narrow and enclosed | Pipe internals, holds, tanks, machine cavities | 50SC | 210x118x265 mm, smallest case, one person can turn with it |
| No mains on site | Remote maintenance, outdoor refurbishment, graffiti removal | 200SC / 300SC + battery | 60-80 minutes per battery at 200/300 W |
| High-value delicate work | Stone and carved surfaces, local degreasing on precision parts | 50SC / 100SC | 1.1-1.5 mJ low step, 13-500 ns pulse |
| Medium-area intermittent rust | Railings, cabinets, frames, local corrosion | 200SC | 10-140 mm width, 30000 mm/s |
| Mixed energy demand | Thick paint next to a delicate face | 200MC / 300MC | 5 mJ and 15 mJ modes on one unit |
Boundaries
| Use | Why not |
| Cutting over 2 mm | beyond the head; step up in power or use a cutter |
| Full-panel derusting | spot and mid-area tool; panels want a trolley unit |
| High-volume marking | a shared galvo will not match a dedicated marker at the limit |
| Transparent substrate | light passes through; low power, short dwell |
Cutting Samples
