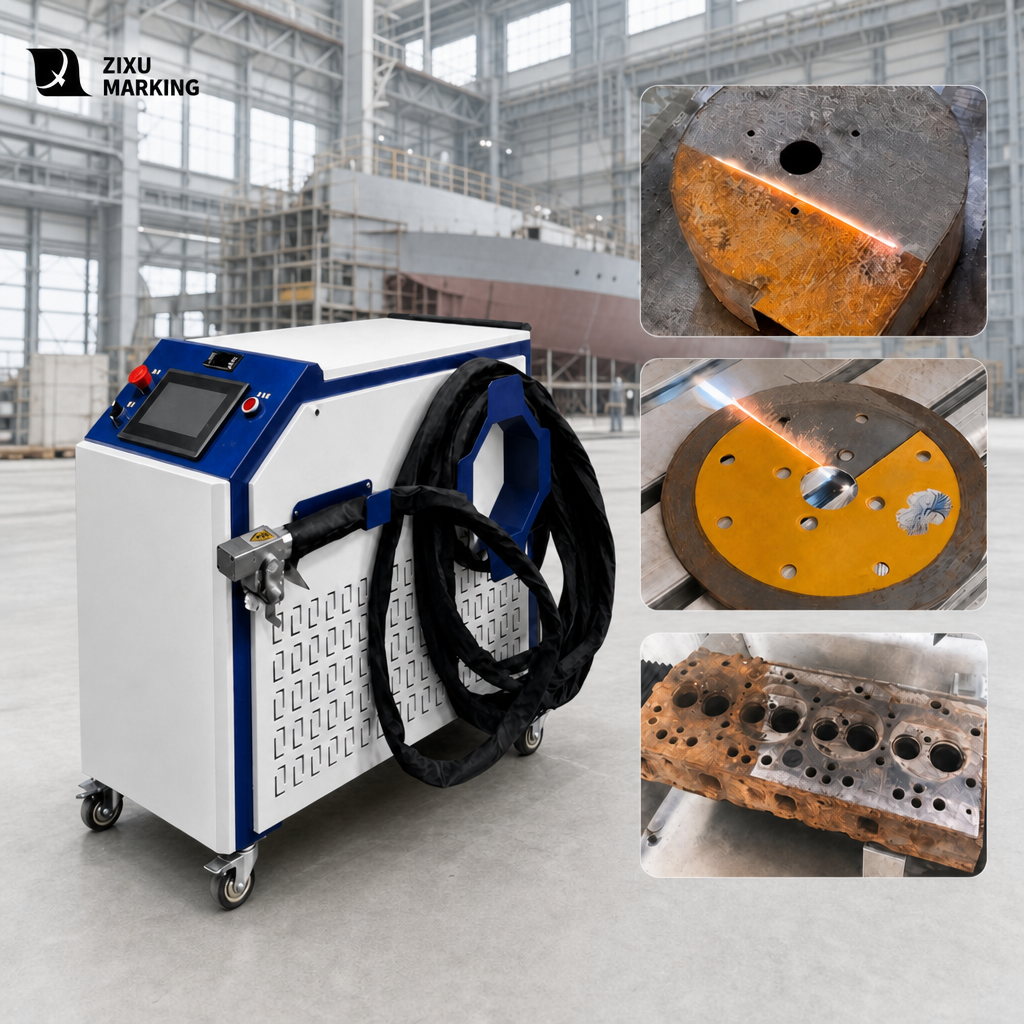

Continuous Laser Cleaning Machine
Our continuous wave (CW) laser cleaning machine delivers high-power, high-efficiency surface treatment. It easily strips thick paint and rust from large metal structures with zero chemical pollution, saving substantial energy and operational costs.
01. Unmatched Cleaning Efficiency
Utilizes high-power continuous laser beams to rapidly peel off thick rust layers and heavy paint across large surfaces like ship hulls and steel bridges, achieving speeds close to traditional sandblasting.
02. 100% Eco-Friendly (No Consumables)
Guarantees no chemical pollution, no consumables, and no secondary waste, making it a perfectly green replacement for hazardous chemical stripping and abrasive blasting.
03. Versatile Wide-Format Operations
Features a handheld cleaning galvo capable of reaching up to 300mm cleaning widths (for high-power models), making weld pre-treatment and post-weld oxide removal incredibly efficient.
The Continuous Laser Cleaning Machine is highly advanced industrial equipment that utilizes a high-power continuous wave (CW) laser beam to clean object surfaces. It effectively achieves non-contact, high-efficiency, and non-destructive cleaning through the intense interaction between the laser and the pollutants on the material surface—heating, vaporizing, or peeling off rust, oil, coatings, and thick oxide layers instantly.
Unlike pulsed laser cleaners meant for delicate, heat-sensitive molds, the CW laser cleaning machine is built for heavy-duty scenarios. It is the ultimate laser rust removal machine for ship hulls, large steel structures, petrochemical pipelines, and aerospace components. With advanced built-in water chillers and robust handheld cleaning galvos, the system supports prolonged operations and delivers energy-saving performance without generating any chemical waste.

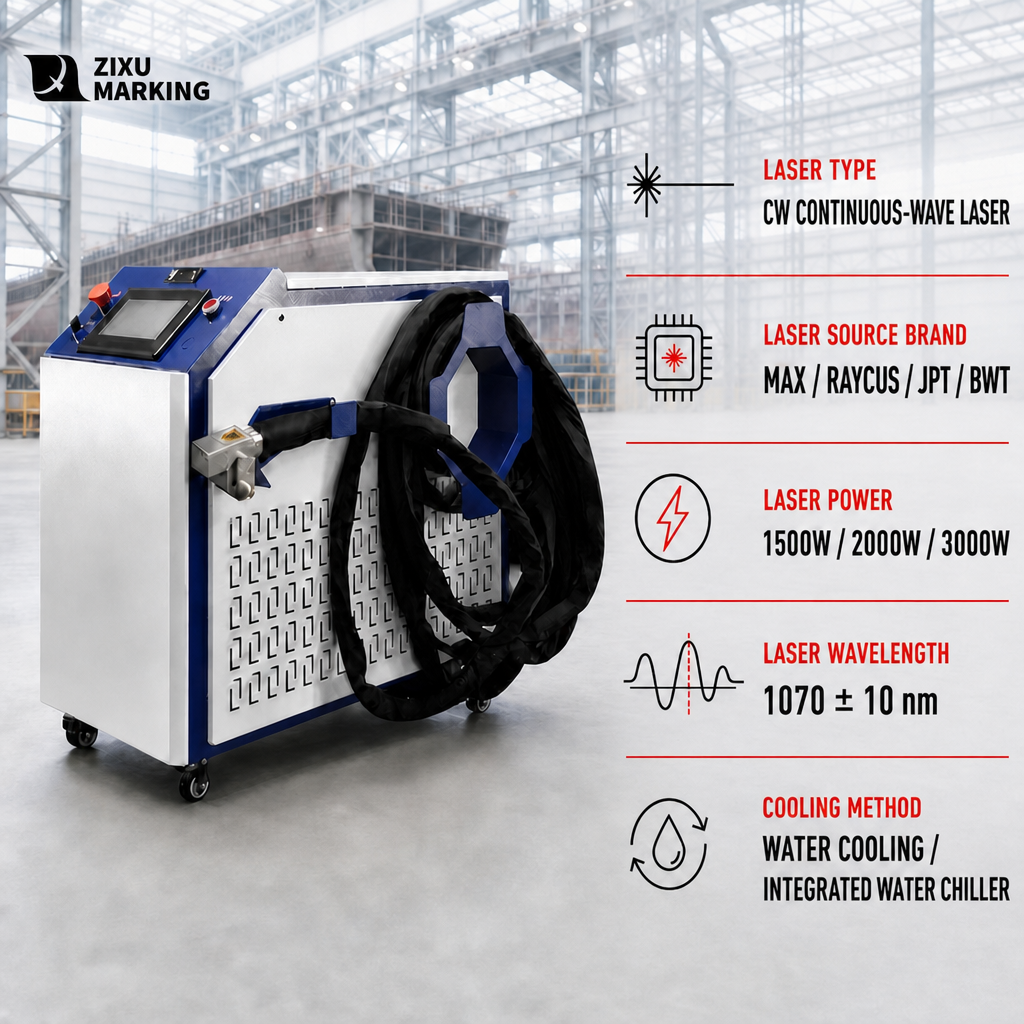

| Parameter | Specification |
| Laser Brand | MAX / RAYCUS / JPT / BWT |
| Laser Type | CW (Continuous Wave) Fiber Laser |
| Laser Power | 1500W/2000W/3000W/6000W |
| Wavelength | 1080nm±10 |
| Cooling Way | Water Cooling (Built-in Chiller) |
| Cleaning Head Brand | SUP / ZBTK |
| Cleaning Format (Width) | ≤300mm |
| Cleaning Mode | Optional Types |
| Cleaning Speed | ≤ 35000mm/s |
| Weight of Gun | 6.8kg |
| Input Power | 220V/50Hz, 380V/60Hz |
| Machine Weight | 160KG |

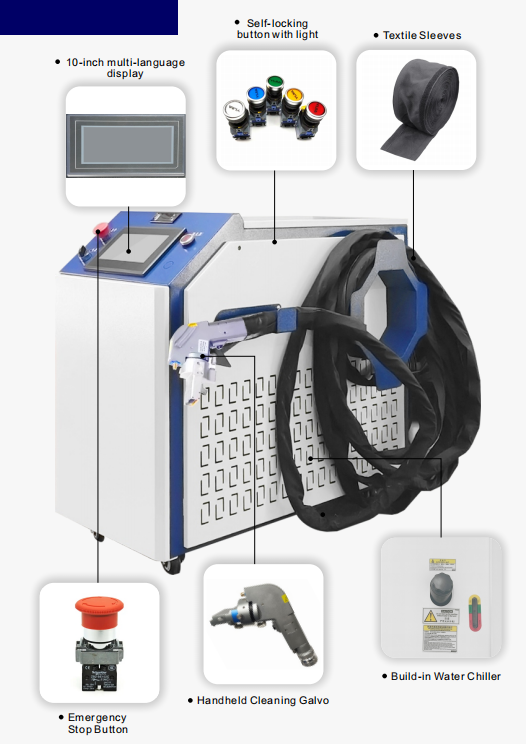

Features

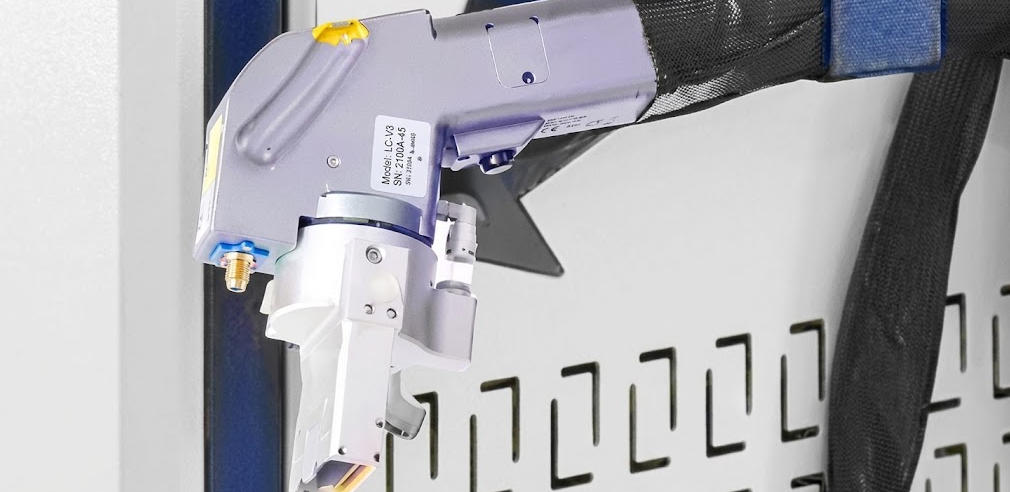

01 Intelligent Handheld Cleaning Galvo

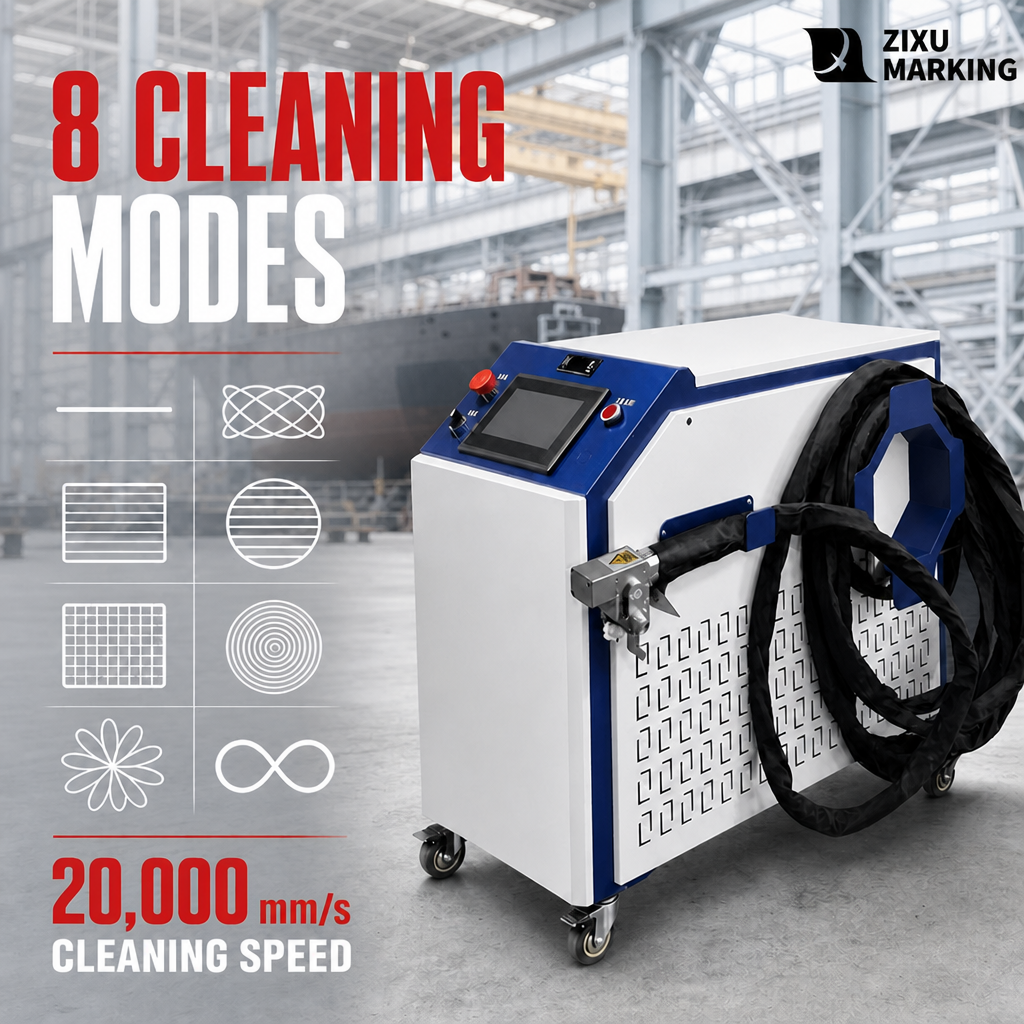

Description: Equipped with a lightweight, ergonomic handheld gun featuring multiple optional cleaning modes for varying surface geometries.

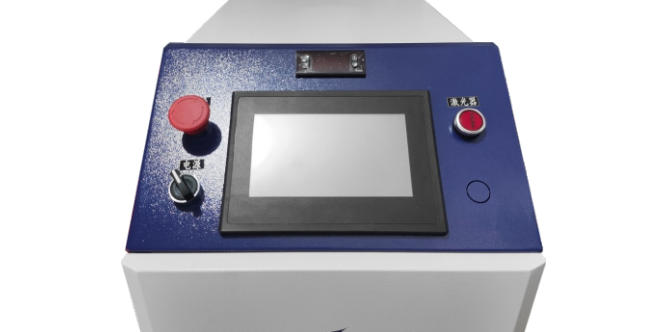

Interactive Multi-Language Display
Description: Features a 10-inch multi-language touch display for intuitive control over laser modes, power output, and scanning width.
Built-in Robust Water Chiller
Description: Ensures the continuous wave laser source remains stable during long-duration, high-power heavy-duty rust and paint removal tasks.

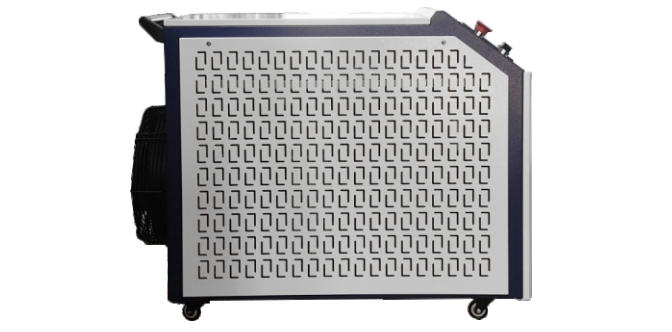

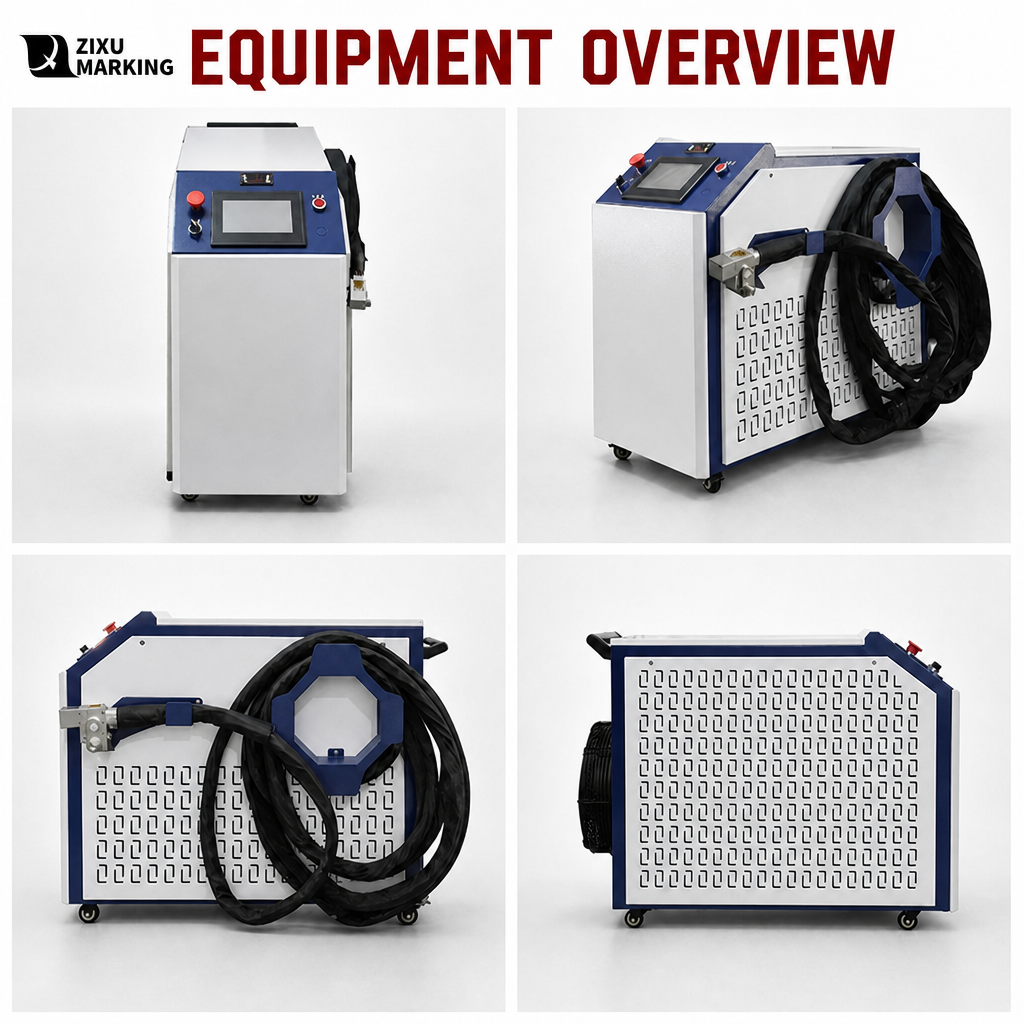

Model Size
Material Compatibility
| Material Category | Compatible Materials | Application / Notes |
| Steel & Iron | Carbon steel, stainless steel, cast iron | Best for heavy rust, oxide scale, and thick oil removal on large structures. |
| Aluminum & Alloys | Aluminum plates and profiles | Effectively removes oxide layers and paint without damaging the substrate. Crucial for EV lightweight frames. |
| Copper & Brass | Copper, brass components | Removes heavy oxidation and oil; parameter adjustments required due to high reflectivity. |
| Titanium Alloys | Titanium aerospace parts | High-precision cleaning for aerospace applications requiring strict surface integrity. |

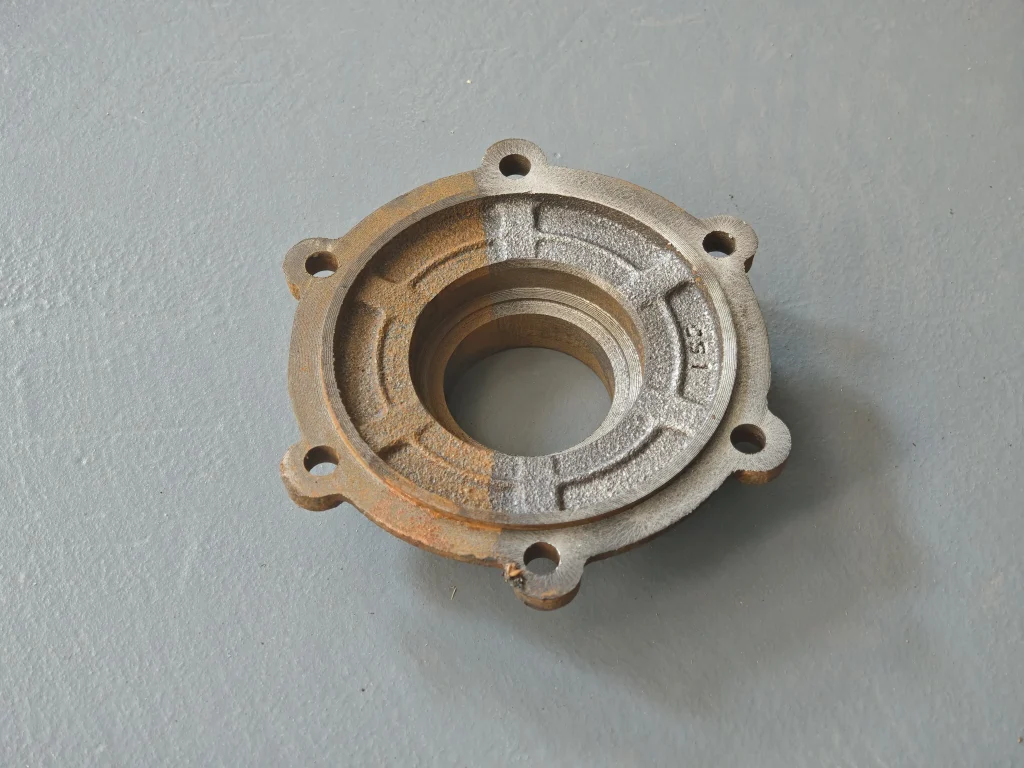

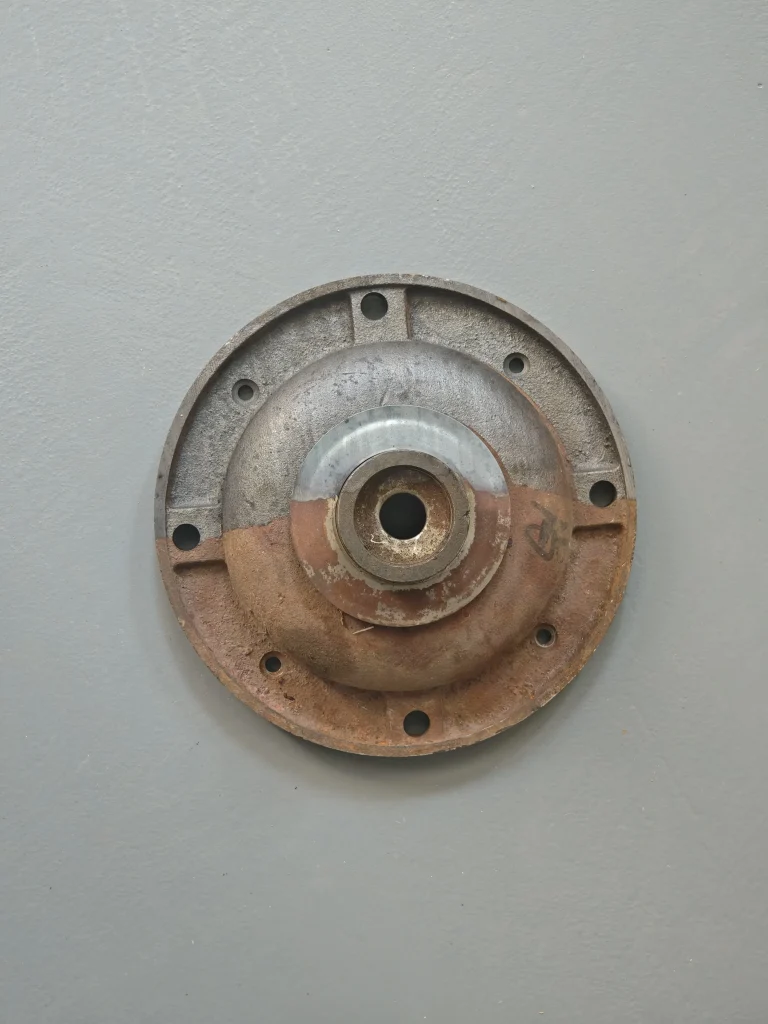

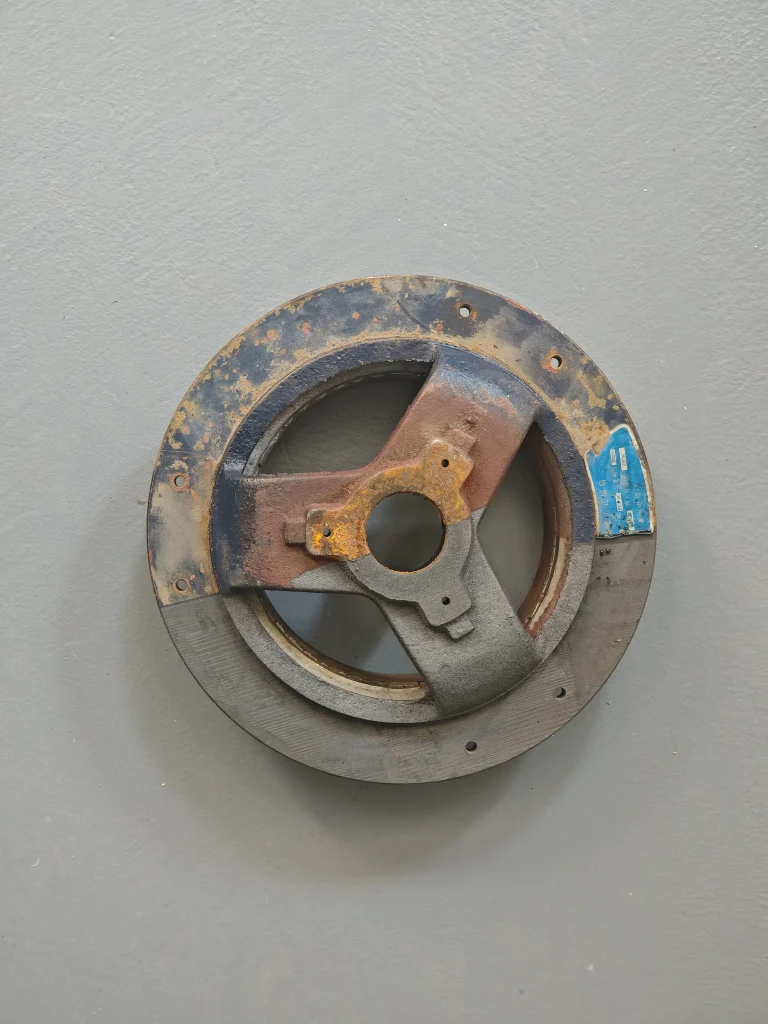

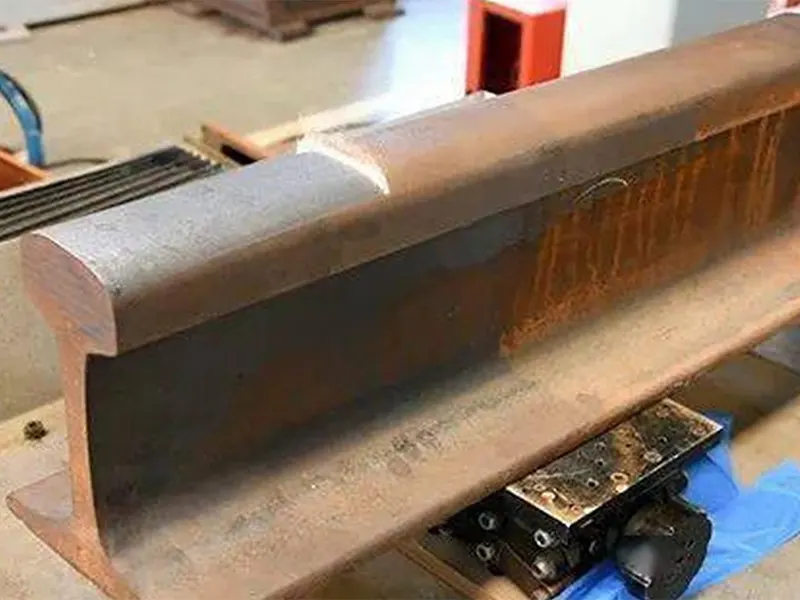

MarkingSamples
