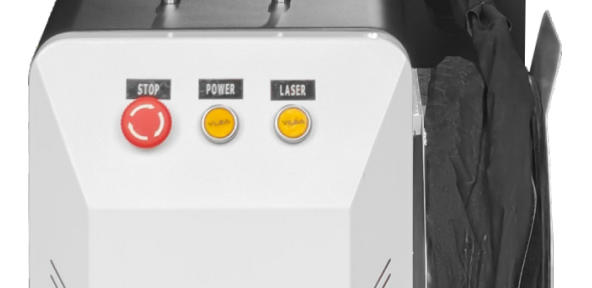

Pulsed Laser Cleaning Machine
The pulsed laser cleaning machine provides a high-precision, non-contact solution for removing rust, paint, oil, and oxides. It ensures damage-free surface preparation ideal for molds and precision components, offering a 100% eco-friendly process with zero consumables.

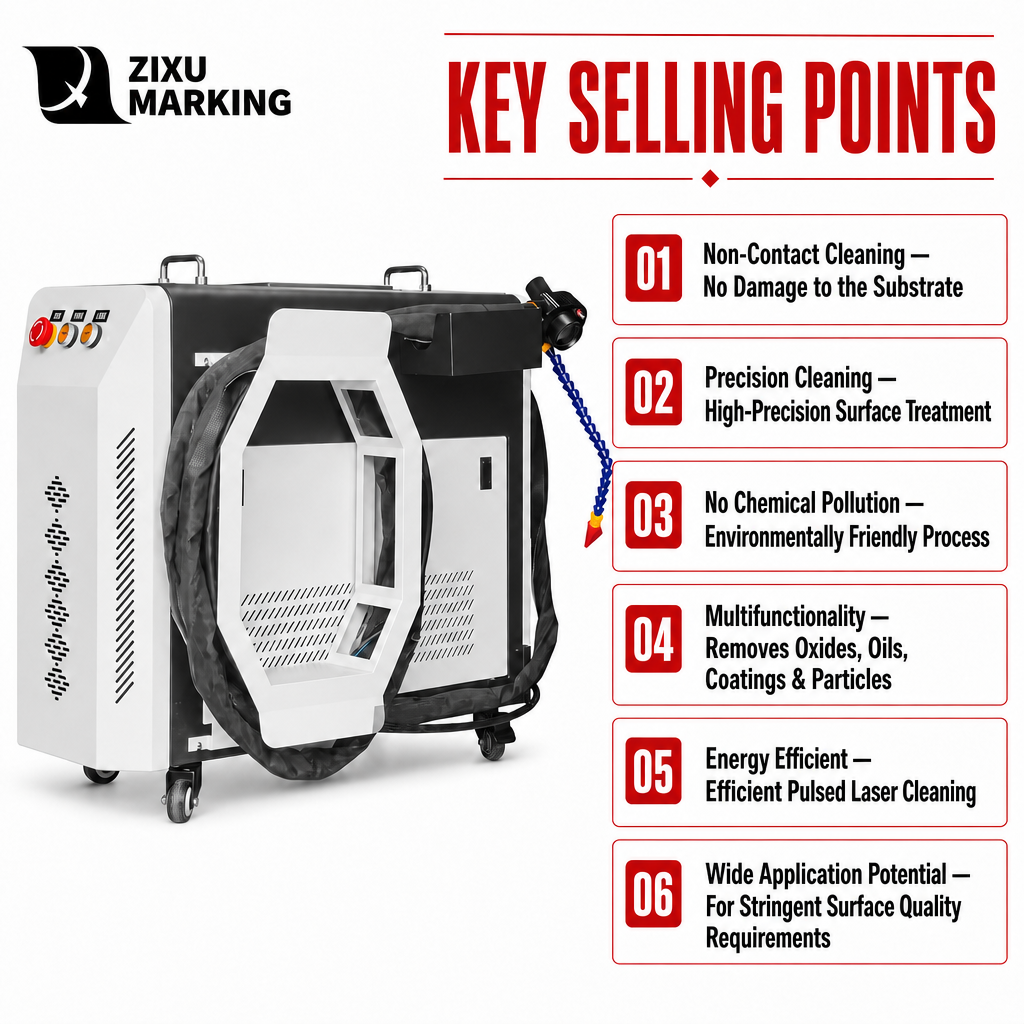

01. No Consumables & Zero Secondary Waste
Completely eliminates the need for abrasive media or toxic solvents, leaving no chemical residues. It is a 100% green alternative to traditional sandblasting and chemical baths.
02. Non-Contact & Non-Damaging
Utilizes high-energy pulsed laser beams to precisely vaporize contaminants without scratching or thermally altering the underlying substrate (temperature rise is only 5-6°C).
03. Versatile & Highly Efficient
Available in multiple power options (200W/300W/500W) with customizable handheld galvo heads, achieving >99% technical cleaning efficiency for complex parts and outdoor operations.
The pulsed laser cleaning machine is a cutting-edge industrial tool designed to remove stubborn contaminants such as oxides, oils, rust, and coatings from metallic and sensitive surfaces. By leveraging high-energy pulsed laser technology rather than continuous waves, it ensures a minimal thermal impact—typically raising surface temperatures by only 5-6°C. This makes it exceptionally safe for precision parts, aerospace components, and valuable injection molds where maintaining dimensional accuracy is critical.

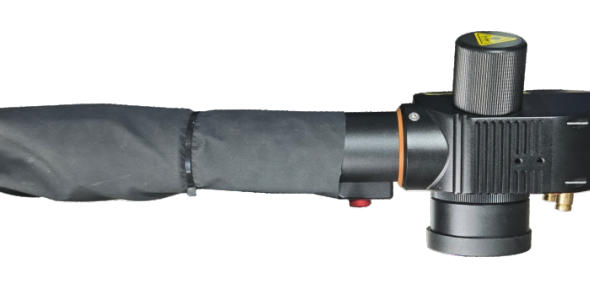

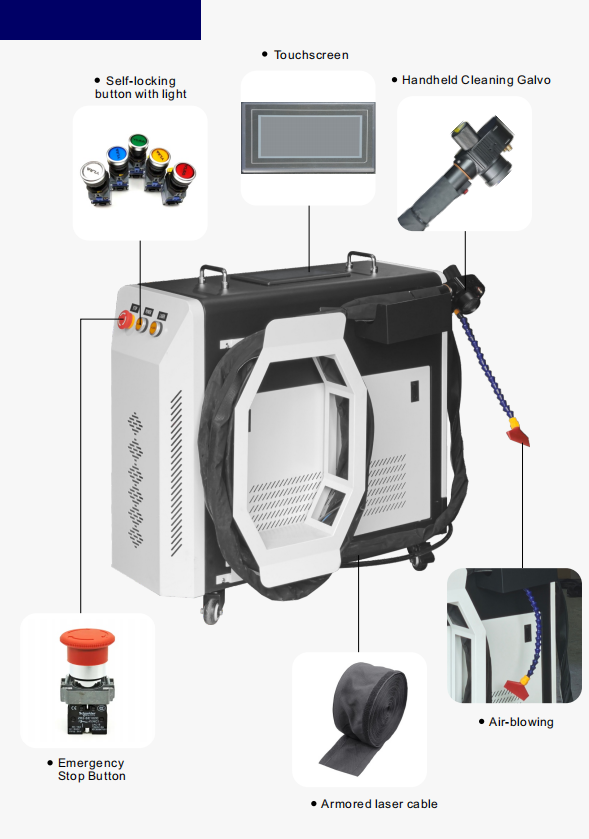

Its core differentiator lies in its environmental and operational value: it operates completely free of consumables. Compared to traditional chemical baths or mechanical sandblasting, this pulsed laser cleaner leaves no chemical residues and generates no secondary waste, providing a truly zero-pollution cleaning process. Equipped with an intuitive touchscreen interface, an armored laser cable, and an ergonomic handheld cleaning galvo, it effortlessly restores heritage stones, prepares aluminum alloys for welding, and strips aircraft skins with over 99% technical efficiency.
| Parameter | Specification |
| Laser Power | 200W / 300W / 500W |
| Work Scope | Up to 185*185 mm or customize |
| Scanning Speed | 10 ~ 35000 mm/s |
| Energy per Pulse | 200W: 1.5mJ, 5mJ 300W: 1.5mJ, 5mJ, 15mJ 500W: 15mJ, 50mJ |
| Pulse Width | 2 ~ 500 ns |
| Pulse Frequency | 1 ~ 4000 kHz |
| Input | 100 ~ 240VAC / 50 ~ 60Hz |
| Cooling Method | Air Cooling |
| Safety Classification | Class IV |
| Dimension (Air Cooling Model) | 300*680*650 mm |
| N.W. (Net Weight) | 46 ~ 50 kg |

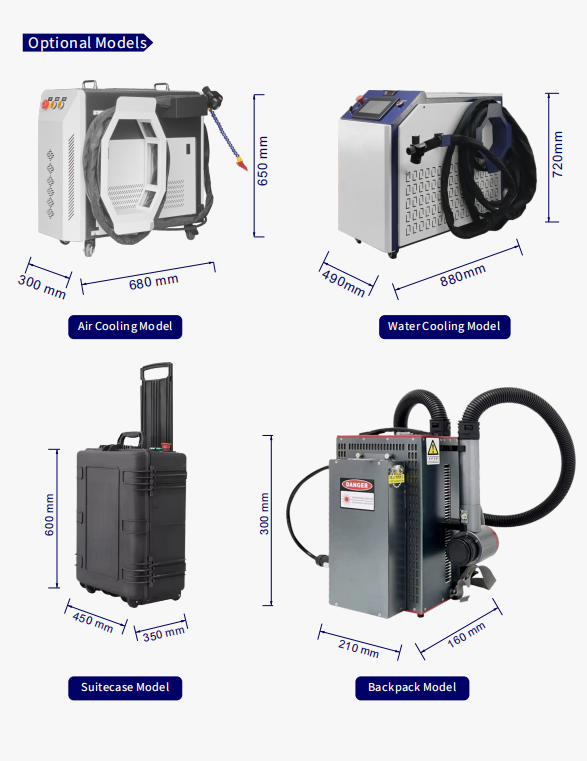

| Optional Models | Air Cooling Model, Water Cooling Model, Suitcase Model, Backpack Model |
Features
100% Eco-Friendly (No Consumables)
Description: Requires no water, chemicals, or abrasive media. The laser vaporizes surface pollutants directly, ensuring a clean, dry, and zero-waste process that meets the strictest environmental regulations.
Unmatched Substrate Protection
Description: The short pulse width (2~500ns) ensures contaminants are ablated instantly with almost zero heat accumulation, perfectly preserving the integrity of delicate molds and titanium alloys.
Superior Pre & Post-Weld Processing
Description: Capable of removing oxides and oils to significantly enhance weld quality, achieving over 99% technical efficiency compared to traditional chemical treatments (~96%).
Material Compatibility
| Material Category | Compatible Materials | Application / Notes |
| Steel & Iron | Carbon steel, stainless steel, cast iron | Excellent for rust, oxide scale, and oil removal. Ideal for pre-weld preparation and ship/bridge maintenance. |
| Aluminum & Alloys | Aluminum alloys (e.g., EV lightweight parts) | Removes oxide layers, machining residues, and paint without damaging the substrate. |
| Copper & Brass | Copper, brass | Removes oxides and oil stains. Note: Requires specific parameter adjustments due to high reflectivity. |
| Titanium Alloys | Titanium | High-precision cleaning suitable for aerospace engine components. |
| Stone & Concrete | Marble, granite | Effectively removes graffiti and crusts. Darker stones absorb the laser energy better for faster cleaning results. |

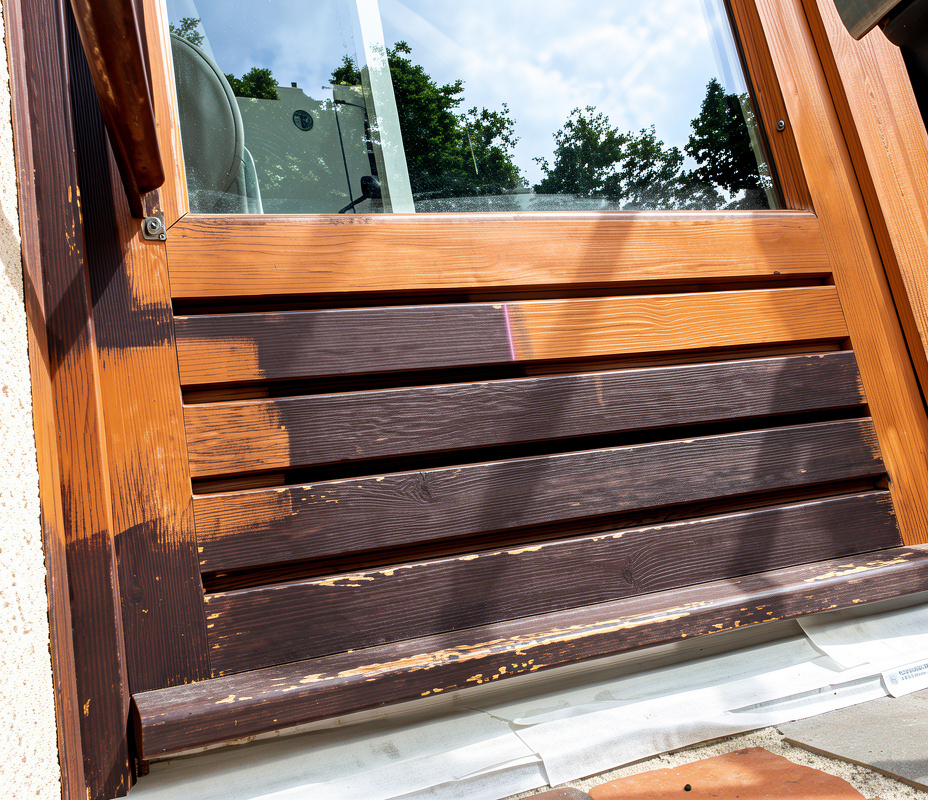

| Wood | Select wood applications (heritage restoration, surface paint stripping) | Highly heat-sensitive with a risk of carbonization. Limited scenarios; some models may not be suitable for general wood cleaning. |
| Ceramics & Composites | Certain ceramics, CFRP (Carbon Fiber Reinforced Polymers) | Requires careful thermal sensitivity evaluation before cleaning CFRP. Select ceramics can be effectively cleaned. |

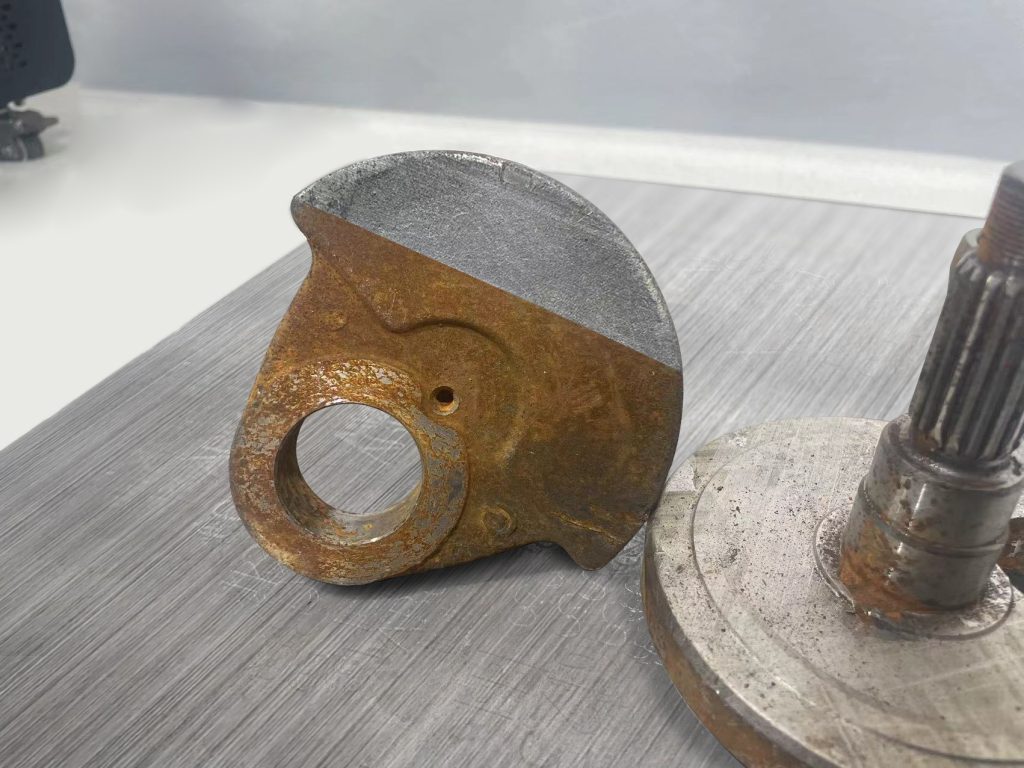

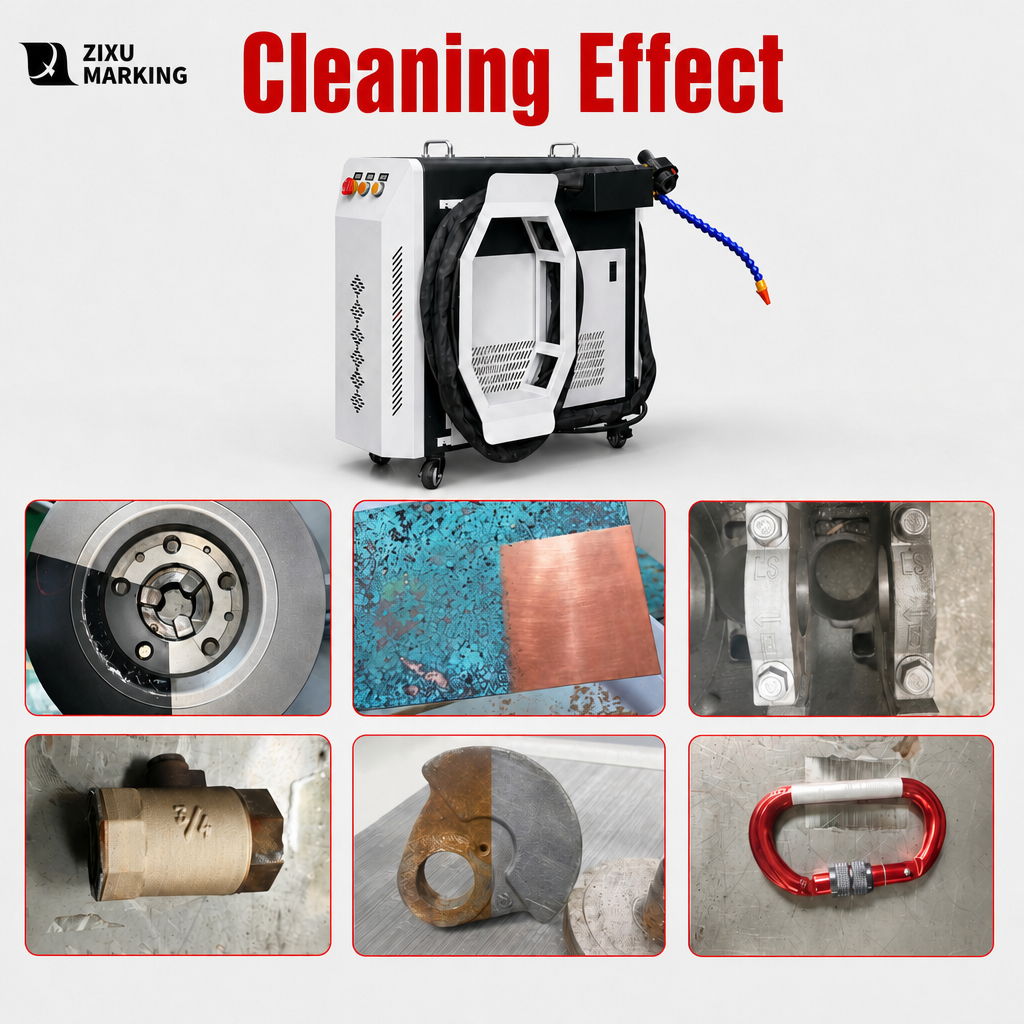

Marking Samples
