Automatic CNC Platform Laser Galvo Welder

Gantry Automatic Laser Galvo Welding Machine

Compared to standard automated platform laser welding machines, this model utilizes a gantry cabinet to support automated welding of larger workpieces. While the product image shows a commercially available gantry cabinet, customers can customize larger gantry cabinets to accommodate specific workpiece dimensions or integrate the system into existing production lines for automated welding operations. Configuration flexibility accommodates diverse operational requirements, offering choices ranging from cost-effective CW lasers to QCW lasers optimized for welding thin sheets of penetrable materials, and AOB hybrid spot lasers deliver uniform weld quality.

For product pricing, customization, or other inquiries:

Description

Laser Type

CW Fiber

QCW Fiber

AOB Fiber

Laser Brand

MAX, Raycus, BWT or customize

MAX, JPT, Raycus or customize

Laser Power

1500W

2000W

3000W

6000W

50W / 500W

60W / 600W

75W / 750W

150W / 1500W

300W / 3000W

450W / 4500W

600W / 6000W

1500W / 15000W

1000W / 1000W

2000W / 2000W

4000W / 2000W

4000W / 4000W

6000W / 6000W

Laser Wavelength

1080 ± 5nm

Max. Energy per Pulse

N/A

7.5W

15J

30J

45J

60J

150J

N/A

Pulse Duration

N/A

0.01 ~ 50ms

N/A

Pulse Frequency

N/A

1 ~ 10kHz

1 ~ 5kHz

Axis Control

X, Y, Z, Rotary, Tilting

Travel Length of Motion

Customize

Moving Module Accuracy

± 0.005mm or customize

Wire Diameter

0.8mm, 1mm, 1.2mm, 1.6mm, 2mm

Optional Feeder

Single wire, dual wires, triple wires feeder with mixed feeding.

Feeding Speed

30 ~ 600mm/s

Cooling Method

Integrated water cooling

Water cooling

Air Supply

0,4MPa compressed air or protective Argon, Nitrogen, etc.

Air Blowing Mode

Coaxial blowing, side blowing or mixed blowing.

Power Input

100 ~ 240VAC @ 50 / 60 Hz

360 ~ 440VAC @ 50 / 60 Hz

100 ~ 240VAC @ 50 / 60 Hz

360 ~ 440VAC @ 50 / 60 Hz

100 ~ 240VAC @ 50 / 60 Hz

360 ~ 440VAC @ 50 / 60 Hz

Operation Temperature:

10 ~ 40℃ or 50 ~ 104℉

Storage Temperature:

-10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:

10 ~ 80%, no condensation

Basic Information

Unit of measurement: Set
Retail Price: 1 set or more
Payment Methods: T/T, D/A, D/P, Other
Shipping Methods: Ocean, Land, Air, Express, Other
Shipping Ports: Chongqing, Guangzhou, Shenzhen, Shanghai, Hong Kong
Place of Origin: China
Quality/Safety Certifications: CE, FDA

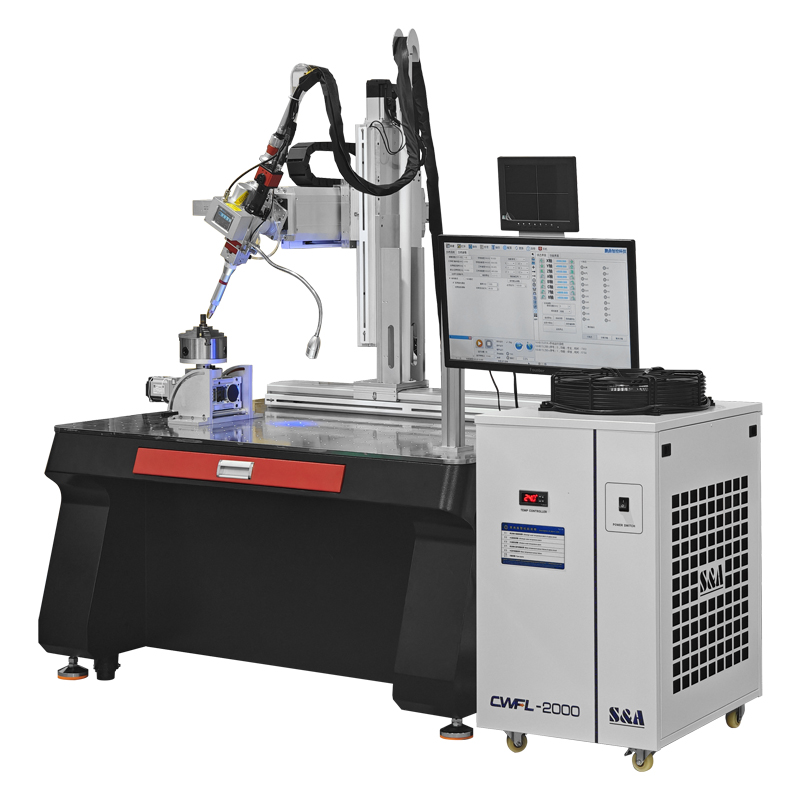

Automatic Platform Laser Welding Machine

The automatic platform laser welding machine is a high-end welding equipment that integrates high-energy laser, precise motion control and automated platform. It is controlled by computer programming and can achieve precise and high-speed welding with complex trajectories. Its core advantages lie in small heataffected zone, minimal workpiece deformation, and beautiful and firm welds, making it especially suitable for the processing of thin plates and precision parts.

Contact ns now

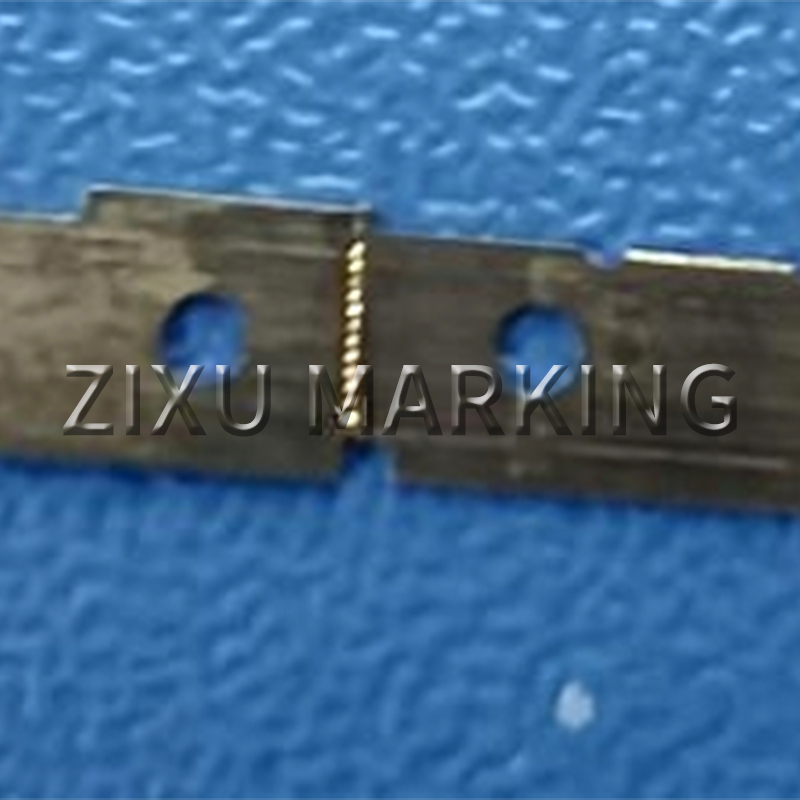

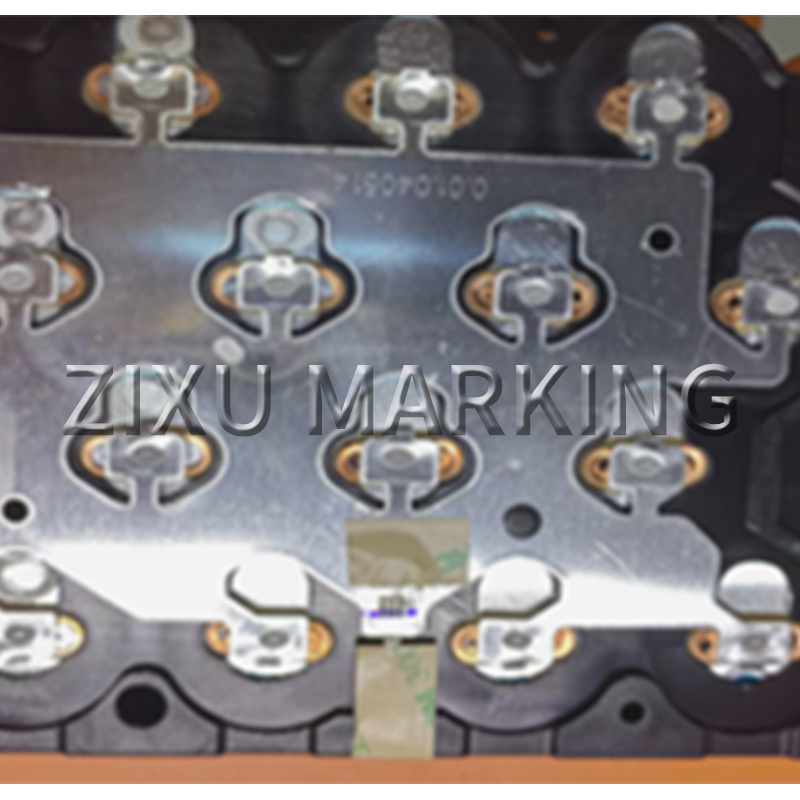

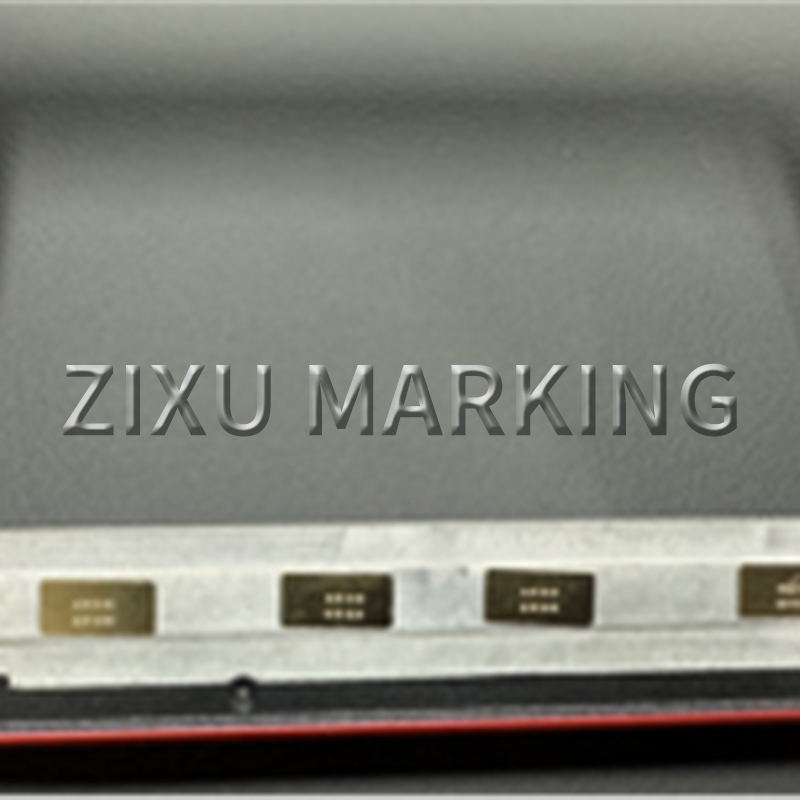

Sample
