PLY-T30 Desktop Fiber Laser Marking Machine
Desktop fiber laser marking machine with 1064nm Yb-doped fiber laser, 20W to 100W, 7000 mm/s speed and 0.001 mm minimum line width, in a compact benchtop design for small parts.
01. Compact Benchtop Design for Small-Part Work
The marking head and control box are separate units, so the machine can be placed on a workbench or in a workshop with limited floor space. Optional cabinets (from 320 × 490 × 650 mm) and fixtures — an XY worktable, rotary chuck and rotary table — allow the same machine to be adapted to different small-part workflows.
02. 1064nm Fiber Laser from 20W to 100W

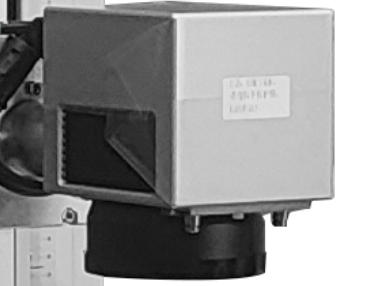

A Yb-doped fiber laser generates a 1064nm near-infrared beam that is focused by a galvanometer system onto the material surface, achieving marking through thermal or photochemical effects. Beam quality is below 2 and the laser source is rated for a 100,000-hour lifespan.
03.Precision Marking without Consumables
Marking speed reaches 7000 mm/s with repeatability of ±0.002 and a minimum line width of 0.001 mm, within marking areas of 100 × 100 mm, 200 × 200 mm or 300 × 300 mm (customization available). The process is non-contact, uses no consumables and produces no chemical pollution; the machine runs on AC 220V/110V ±10%, 50Hz/60Hz with air cooling and power consumption below 1 kW.
The desktop fiber laser marking machine uses a fiber laser as its core light source. It generates a 1064nm near-infrared laser through a ytterbium (Yb)-doped optical fiber, which is focused by a galvanometer system and applied to the surface of the material, producing marks through thermal or photochemical effects. Because the marking head and the control box are separate units, the machine can be installed on an ordinary workbench, which makes it suitable for workshops with limited floor space and for high-precision processing of small and medium-sized parts.
Output power is selectable at 20W, 30W, 50W, 60W or 100W, with beam quality below 2 and a laser source lifespan of 100,000 hours. Marking speed reaches 7000 mm/s with repeatability of ±0.002 and a minimum line width of 0.001 mm. Standard marking areas are 100 × 100 mm, 200 × 200 mm and 300 × 300 mm, with customization available on request, and marking content covers graphics, characters, barcodes and QR codes.

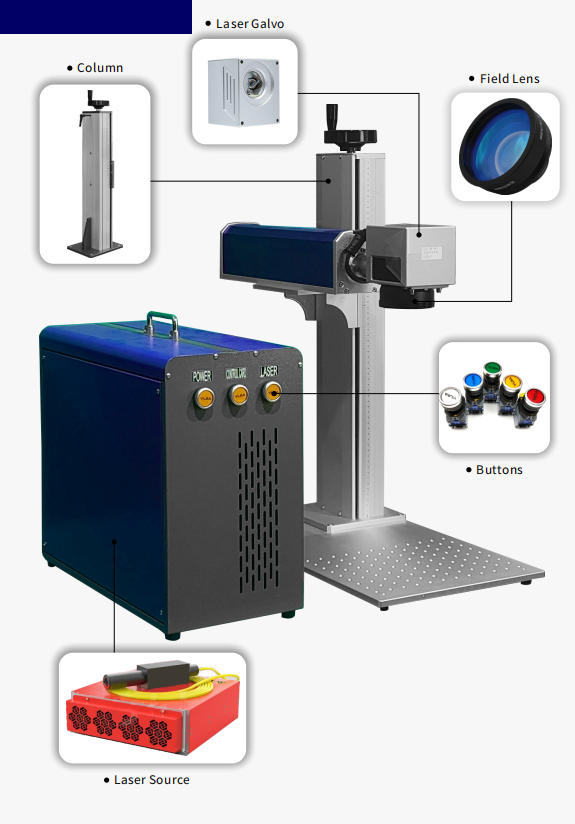

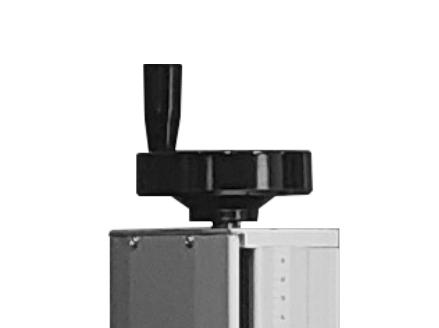

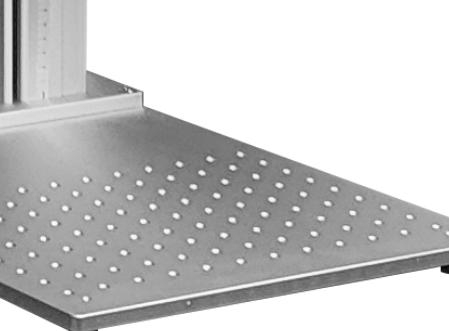

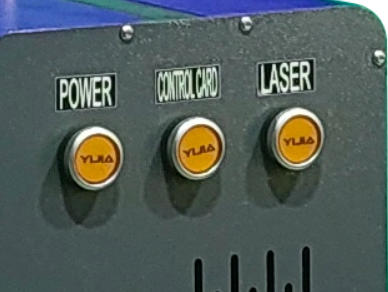

The machine marks metals and non-metals, operates on AC 220V/110V ±10% at 50Hz/60Hz with total power consumption below 1 kW, and is air cooled, so no water chiller is required. The marking head runs on a column above a perforated worktable, while the control box carries the main power, control card and laser switches. Optional cabinets — a compact desktop cabinet, a floor-standing cabinet and an enclosed cabinet — together with optional fixtures including an XY worktable, a rotary chuck and a rotary table, allow the machine to be configured for different part sizes and production volumes.
| Parameter | Specification |
| Model | [待补充]（建议 CK-DFLM 形式） |
| Machine Type | Desktop / benchtop fiber laser marking machine |
| Laser Type | Fiber laser (Yb-doped optical fiber), 1064nm |
| Output Power | 20W / 30W / 50W / 60W / 100W |
| Wavelength | 1064 nm |
| Light Beam Quality | < 2 |
| Marking Speed | 7000 mm/s |
| Marking Area | 100×100 / 200×200 / 300×300 mm (Customization) |
| Marking Content | Graphic / Characters / Barcode / QR Code |
| Repeatability | ±0.002mm |
| Min. Line Width | 0.001 mm |
| Applicable Materials | Metals & non-metals |
| Cooling Way | Air Cooling |
| Lifespan of Laser Source | 100,000 hours |
| Power Supply | AC 220V/110V ±10%, 50Hz/60Hz |
| Power Consumption | < 1 kW |
| Machine Dimensions Weight | [待补充]（资料仅提供选配柜体尺寸） |
| Optional Cabinets | Desktop cabinet 320 × 490 × 650 mm；Floor-standing cabinet 650 × 800 × 1450 mm；Enclosed cabinet 480 × 550 × 1480 mm |
| Optional Fixtures | XY worktable, rotary chuck, rotary table |

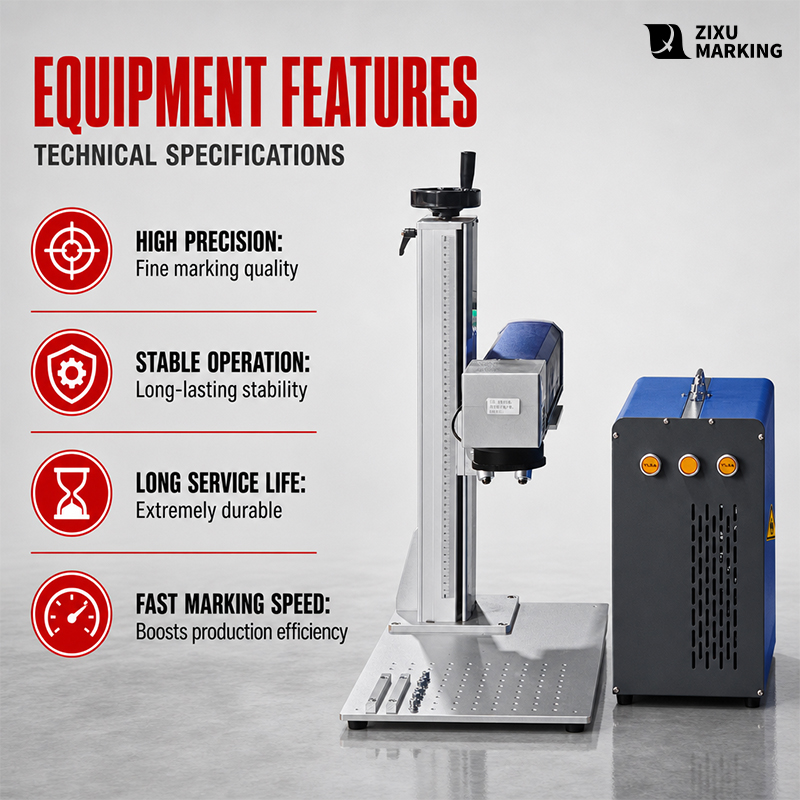

Features
High Precision and Speed
Marking speed of 7000 mm/s with repeatability of ±0.002 and a minimum line width of 0.001 mm, supported by beam quality below 2.
Strong Adaptability to Metal Materials
Performs high-precision marking on metals and also covers non-metallic materials, with marking content including graphics, characters, barcodes and QR codes.
No Consumables and Low Maintenance
A non-contact laser process with no consumables such as ink, and a laser source rated for 100,000 hours of use.
Non-Contact Processing, No Chemical Pollution
Marking is carried out without physical contact with the workpiece and without chemical consumables.

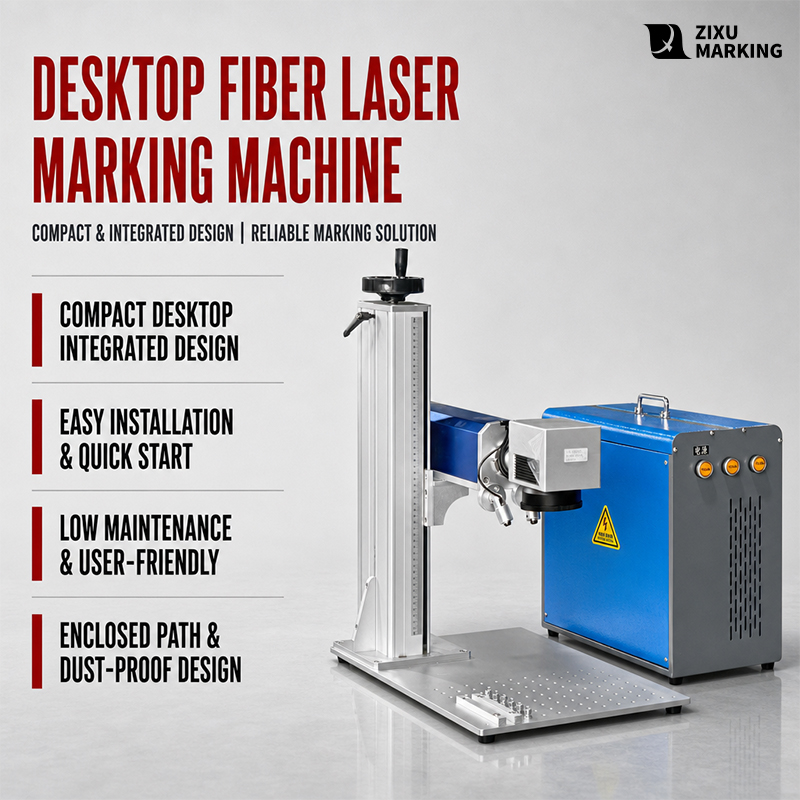

Compact Desktop Configuration
A separate marking head and control box allow bench-top installation, with optional cabinets and fixtures for different small-part workflows.
Material Compatibility
| Category | Compatible Materials | Effect & Applications |

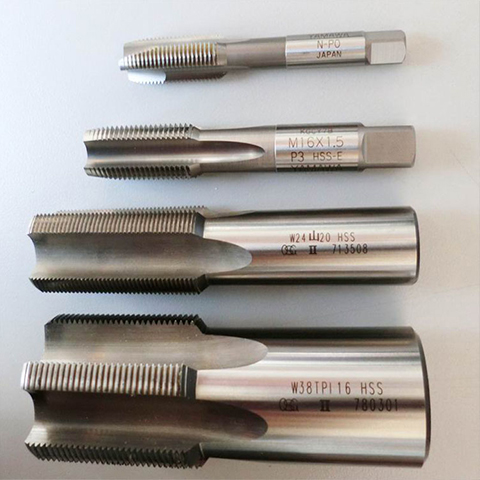

| Metals (Core Strength) | Stainless steel, carbon steel/alloy steel, aluminum and aluminum alloys, copper/brass/copper, titanium alloys, gold/silver/nickel/tungsten, and electroplated/sprayed/painted surfaces—can be oxidized to black/white, engraved, and deeply marked. | High-precision marking of graphics, characters, barcodes, and QR codes; Sample display: refrigeration component nameplate text, metal bar QR codes, ring/flange marking, aluminum alloy die-cast housing marking, red workpiece white text marking, square metal plate patterns. |
| Non-Metals | PC、ABS、PVC、PC+ABS | marking on plastic parts |
| Target Industries | Hardware/Metal Products: Hardware tools, knives, kitchen utensils, locks, bathroom fixtures, stainless steel products 3C Electronics/Electronic Components: Mobile phone cases, buttons, PCBs, IC chips, connectors, resistors, capacitors Automotive Parts: Gears, fasteners, wheel hubs, engine parts, nameplates Medical Devices: Surgical instruments, titanium alloy implants, instrument housings | Logo, specifications, batch number, serial number, QR code, translucent characters, micron-level fine marking, part number, batch number, VIN code, wear-resistant and traceable, UDI mark, batch number, disinfection resistant, compliant and traceable. |

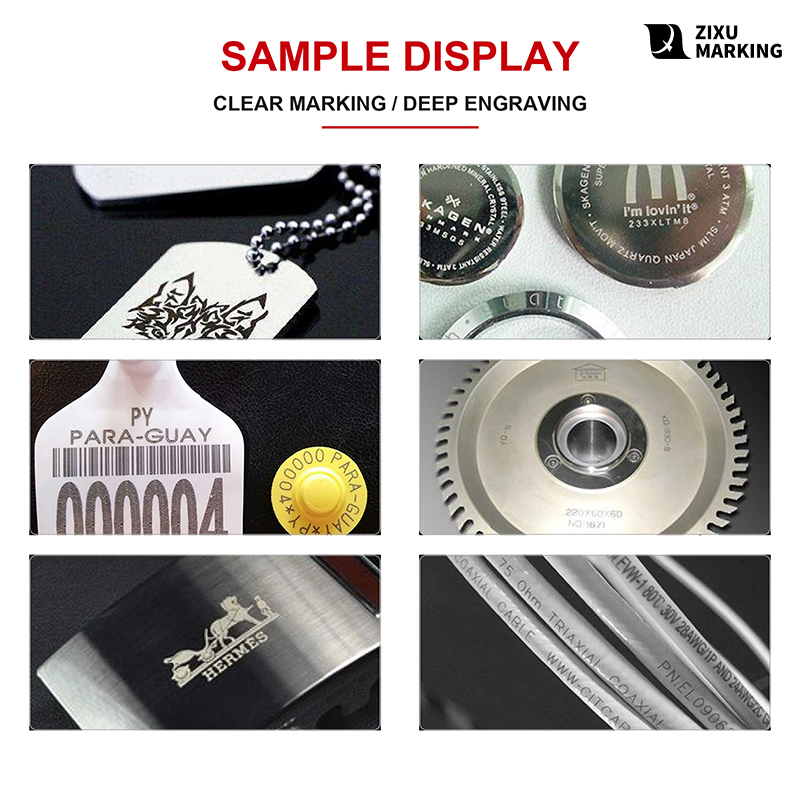

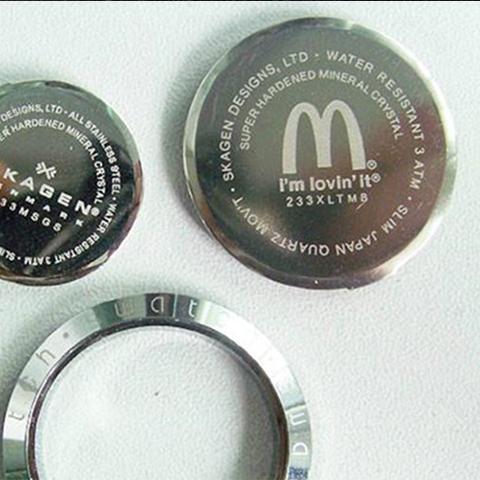

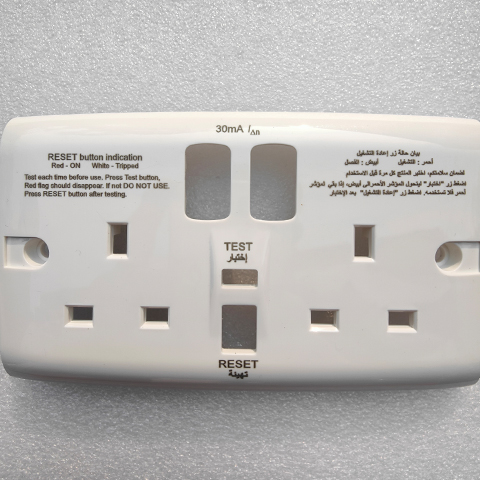

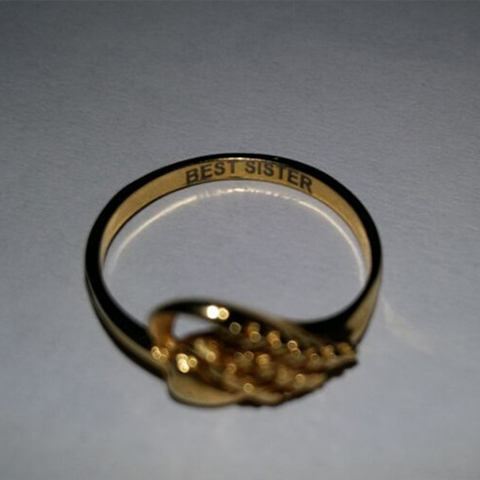

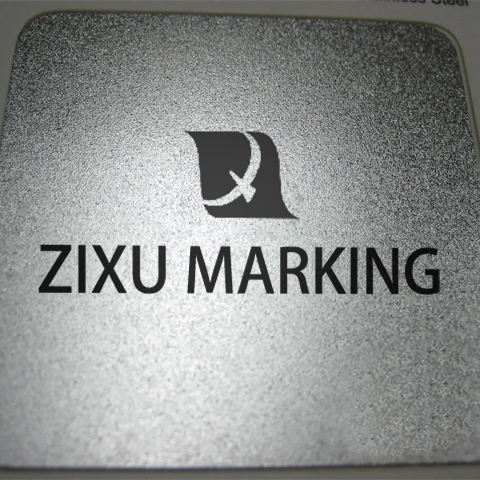

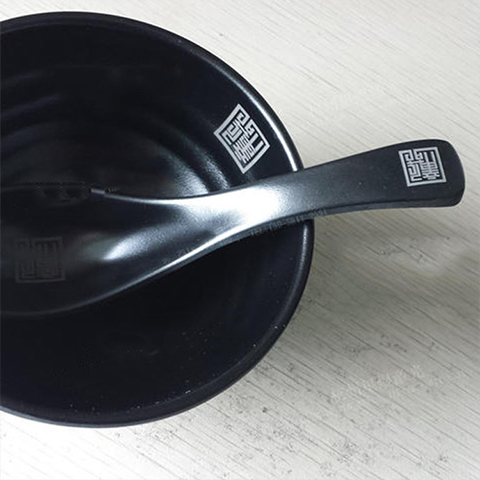

Marking Samples
