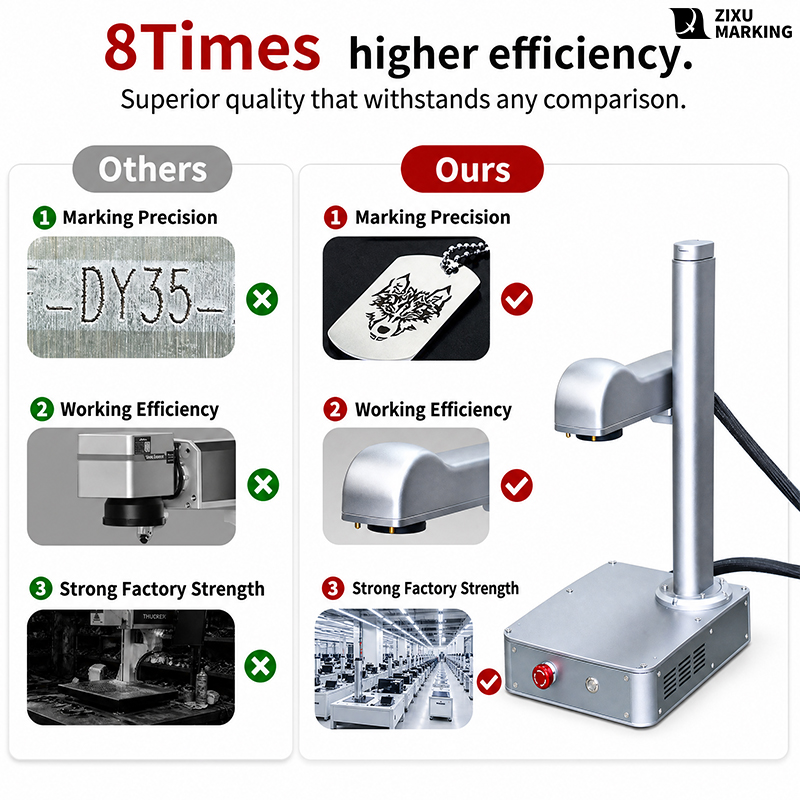

Mini Fiber Laser Marking Machine for Stainless Steel, Jewelry and Hardware Parts – 19W/25W, 100x150mm

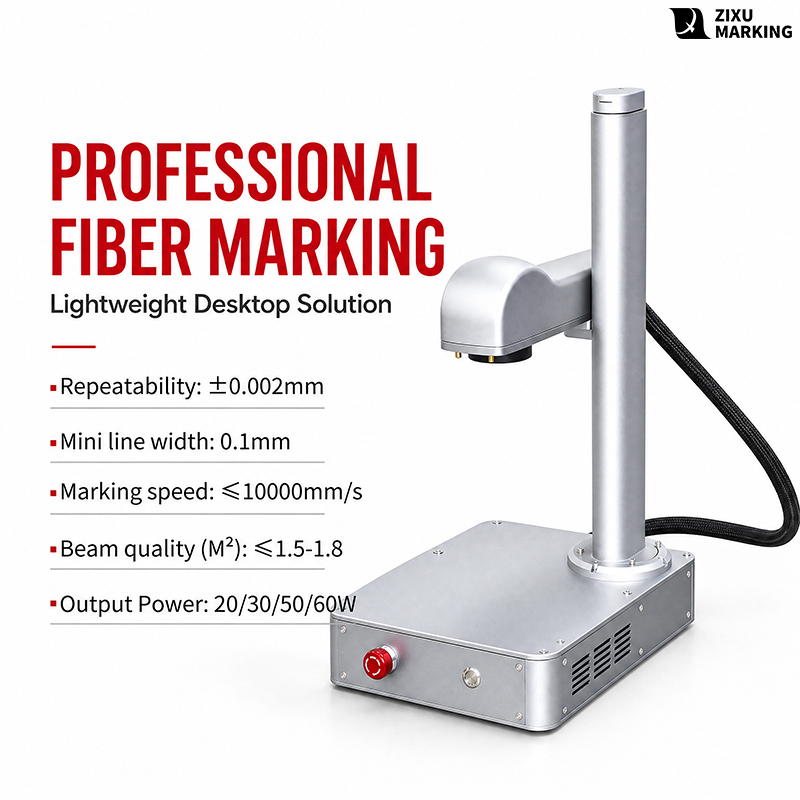

An 8.2 kg fiber marker measuring 360 x 275 x 520 mm: the optical path and column unscrew and pack flat, and it runs off a Windows PC. Field 100-150 mm, minimum line width 0.1 mm, air cooled.
The worktable is a perforated, lockable flat surface: fixtures mount on the standard hole pattern, and the column can be fixed anywhere on the table rather than only in the centre. Marking a ring’s inner wall, the side of a knife handle or a 150 mm nameplate is a fixture change and a column move, not a bespoke jig.

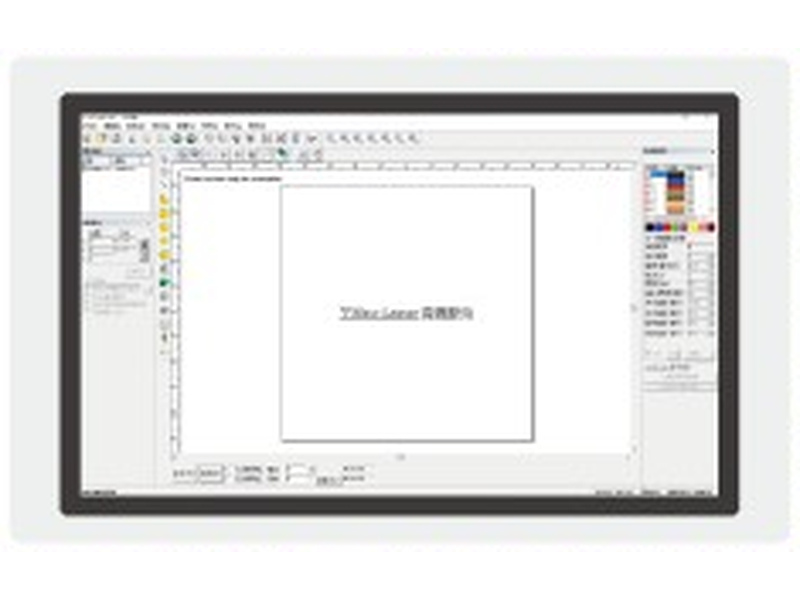

Control is a Windows PC: install EZCAD, connect, and mark. PLT, DXF, BMP, DST, DWG, LAS and DXP are all accepted, with text, graphics, QR codes, barcodes, serial numbers and date codes, and templates saved for the next run. The head carries a built-in dual red pointer, so positioning needs no test mark, and the software switches languages – one training session is enough for an operator.
The standard machine marks flat. A 360-degree rotary disc adds ring ODs and tube circumferences; a lift column covers different heights; a foot switch frees both hands; fume extraction handles plastics and coatings; guarding with an emergency stop and key switch suits shops and teaching rooms. Options follow the work rather than the invoice.
The M5 is a fiber marker built for small parts: 8.2 kg in a 360 x 275 x 520 mm body. The optical path and the column are bolted rather than welded – loosen them and the kit packs into a 557 x 550 x 200 mm case, so moving a shop or clearing a bench needs no van.
Two models: the 20M5+ runs an MFP-20M source at 19 W, the 30M5+ an MFP-25M at 25 W. Beam quality is M2 below 1.4 at 1064 +/- 5 nm, with power stability inside 3% and pulse repetition of 27-60 kHz (30-60 kHz on the 25 W unit). The field is 100-150 mm, marking runs up to 10000 mm/s, repeatability is +/-0.002, minimum line width 0.1 mm, minimum character height 0.15 mm, and engraving depth reaches 1 mm depending on power and time.
Cooling is built-in air; system power is 500 W on 220 V / 50 Hz, with 110 V accepted, and the source is rated for roughly 100,000 hours. Operating range is 0-40 C at 50-85% RH, with no oil mist or condensation. Control is a Windows PC running EZCAD, accepting PLT, DXF, BMP, DST, DWG, LAS and DXP.
| Parameter table (verbatim) | Used in |
| Model Series 20M5+ / 30M5+ | 3.2 |
| Laser Model MFP-20M / MFP-25M | 3.2 |
| Output power 19W / 25W | H1 / Meta / 3.2 |
| Beam quality M2 ≤1.4 | 3.2 / 3.4 |
| Pulse repetition 27-60 kHz / 30-60 kHz | 3.2 |
| Laser wavelength 1064±5 nm | 3.2 / 2.4-02 |
| Output power <3% (power stability) | 3.2 |
| Design life ~100,000 operating hours | 2.3-02 / 3.2 |
| Marking range 100~150mm (optional) | H1 / Meta / 2.3-03 / 3.2 |
| Engraving depth ≤1mm (power and time) | 3.2 / section 4 |
| Engraving speed ≤10000mm/s | 2.3-03 / 3.2 |
| Repetition accuracy ±0.002 | 2.3-03 / 3.2 |
| Min marker line width 0.1mm | 2.3-03 / 3.2 |
| Min character height 0.15mm | 2.3-03 / 3.2 |
| Cooling built-in air cooling | 2.3-02 / 3.2 / 3.6 |
| Power supply 500W / 220V / 50Hz (110V) | 2.3-02 / 3.2 / 3.6 |
| Temperature 0~40C, 50% RH 85% | 3.2 / 3.6 |
| Oil mist, condensation not allowed | 3.6 / 3.2 |
| Support system Windows | 2.4-02 / 3.2 / 3.6 |

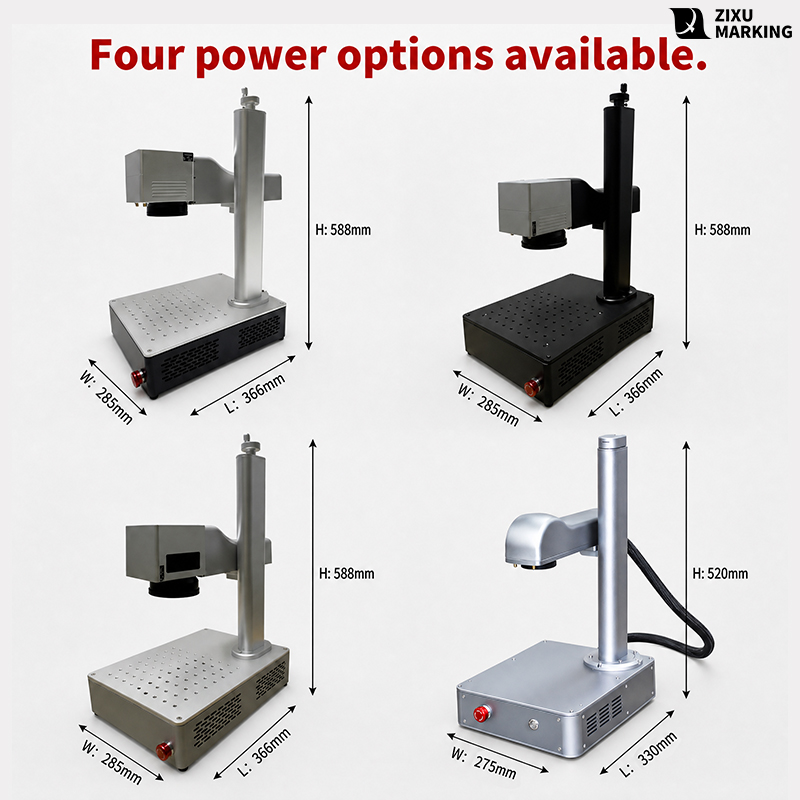

| External dimensions 360x275x520 mm | 2.2 / 2.3-01 / 3.5 |
| Packing size 557x550x200 mm | 2.3-01 / 3.5 |
| Weight approx. 8.2kg | 2.2 / 2.3-01 / 3.2 |
Features
Built to a price you can justify
Desktop fiber marking equipment developed around what a small shop actually needs: simple, compact, flexible and convenient. The body is three assemblies – base, column, head – and fewer parts means fewer failure points, a lower price and a lower cost of ownership.

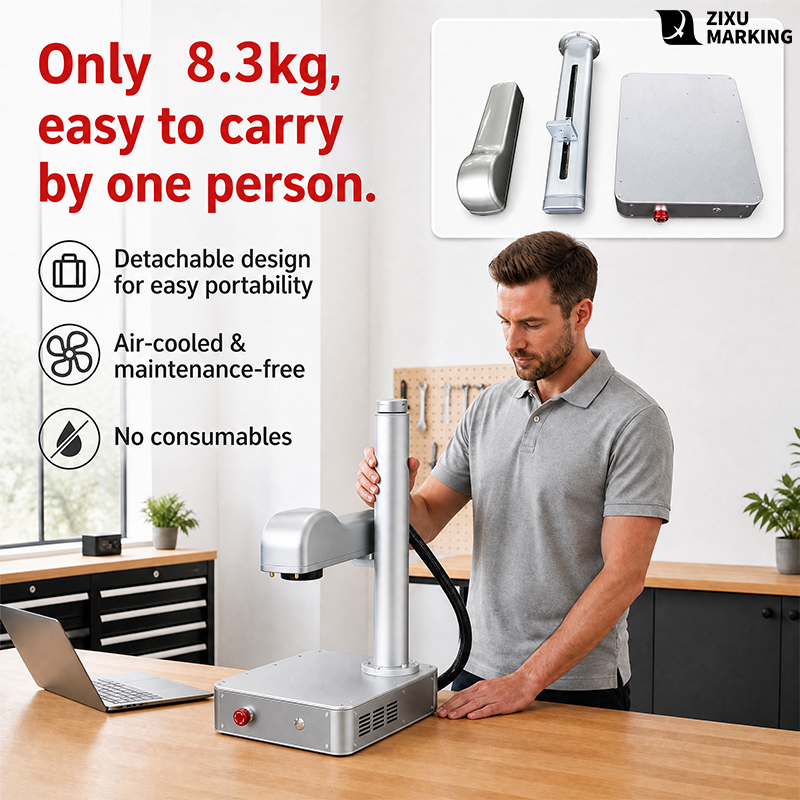

8.2 kg, Move It Between Jobs
The whole machine weighs about 8.2 kg: compact, light and carried by one person. Moving it from a counter to a studio bench or onto a trade-show stand is lift, plug in, carry on – no re-installation and no re-tuning.
One-piece Body, Compact and Solid
One integrated design: a compact, rigid body with stable performance. The base is a single metal block and the optical path and column sit directly on it, so nothing flexes while marking and nothing creeps over years of use. One-year warranty on the whole machine.

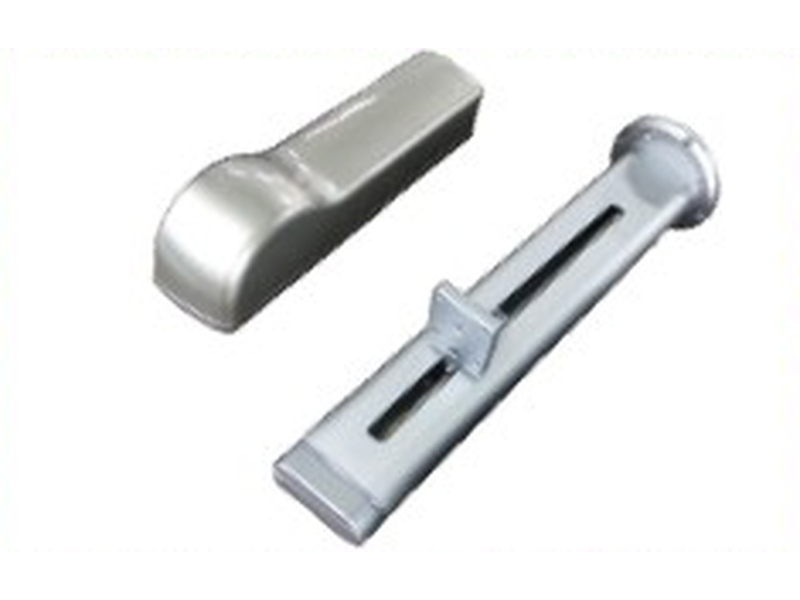

Column and Light Path Come Apart

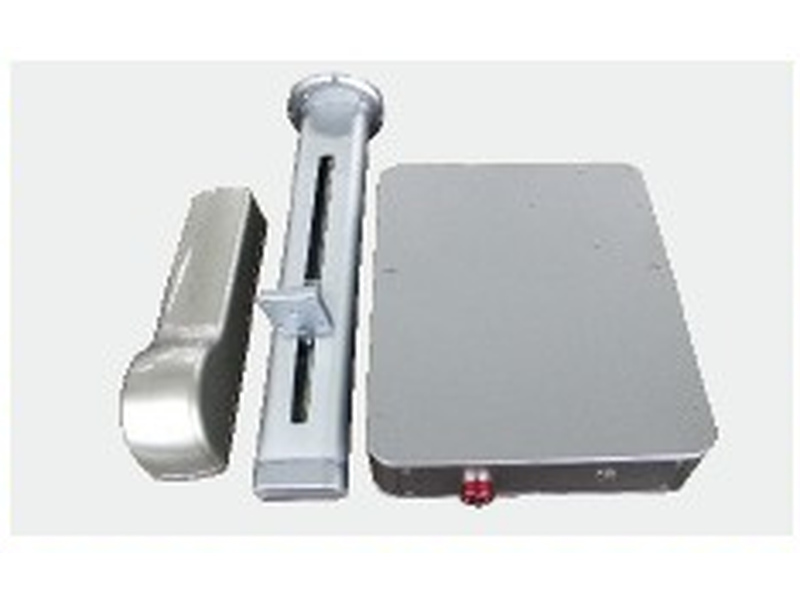

The light path and column come apart freely, and the marking position adjusts at will. A few screws and it separates, which settles packing, stairs and courier shipping – the reason it travels better than a standard desktop unit.
Versatile Software, Install and Run
Runs on a Windows PC: connect, install and mark. The control software is complete and accepts PLT, DXF, BMP, DST, DWG, LAS and DXP, covering text, graphics, QR codes, barcodes, serial numbers and date codes, with a short learning curve.

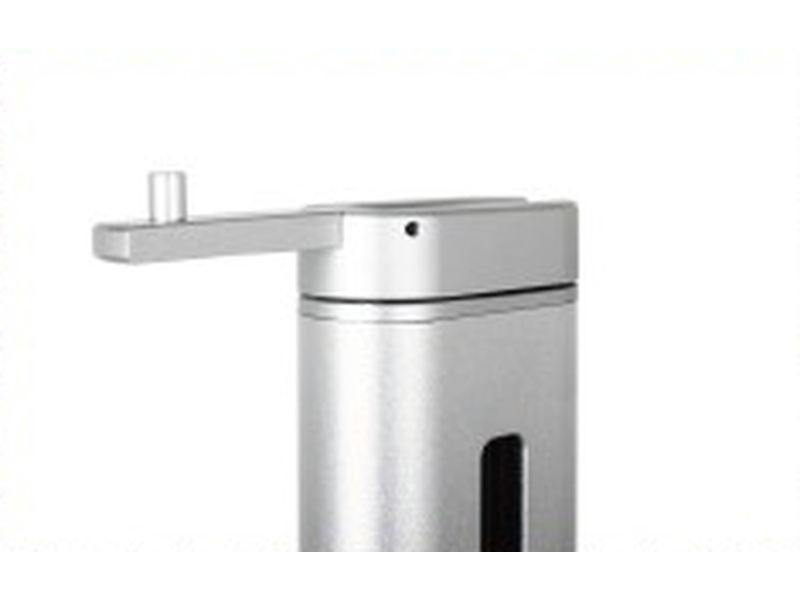

Stowed Rotary Lift
Manual rotary docking control in a clean, simple form that can be stowed when idle. It is what lets this desktop machine mark ring ODs and full tube circumferences without giving up bench space.

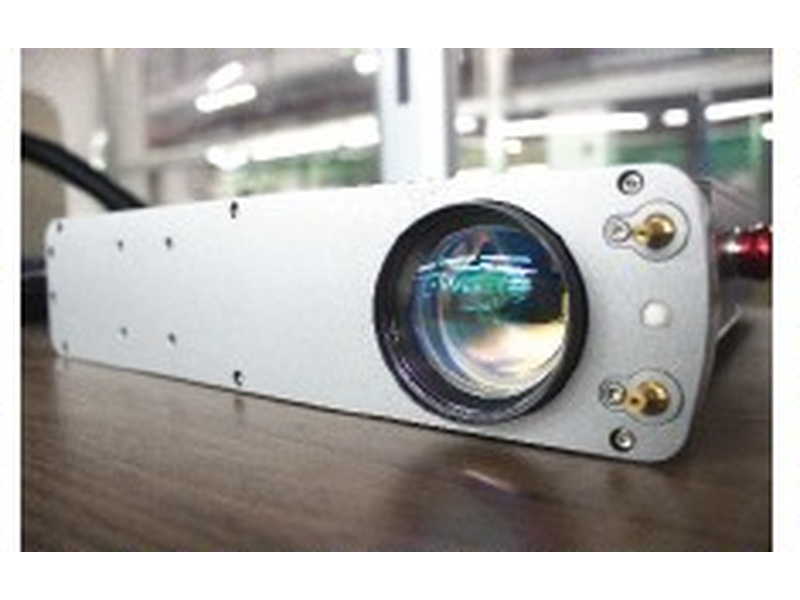

Metal Oscillator with Double Red Light

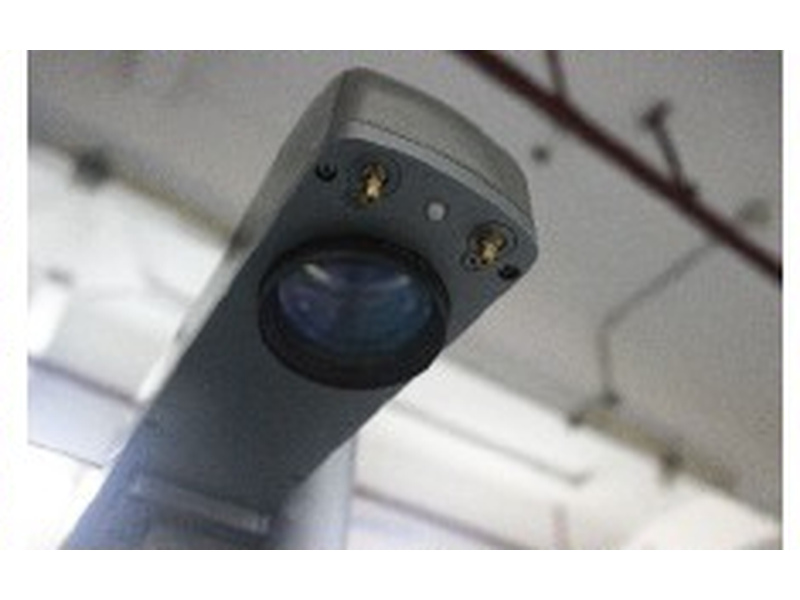

A metal-bodied oscillator with a built-in double red pointer: no adjustment, no maintenance, and upgradeable to a high-speed digital scanning head. The dual pointer means you see the position before you mark, instead of test-marking on scrap.
Advanced Fiber Source

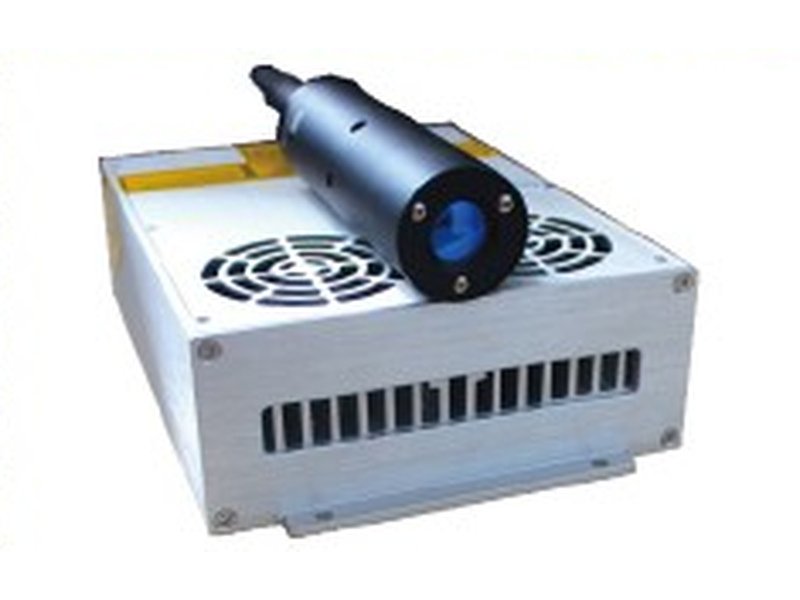

A high-quality source with a clean spot, uniform power density and stable output. It is sealed against light leakage and reflection, which is what mainstream work actually demands. Rated for about 100,000 operating hours, with built-in air cooling and no chiller.
| Item (datasheet wording) | Function |
| Laser light path | Removable; unbolt to separate from the column for packing |
| Lifting column | Manual focus lift; fixes anywhere on the table |
| Equipment table | Perforated lockable flat surface; fixtures bolt to the hole pattern |
| 360 degree rotating disc | Optional; ring ODs and tube circumferences |
| Device buttons / switch | Start, stop and lift control |

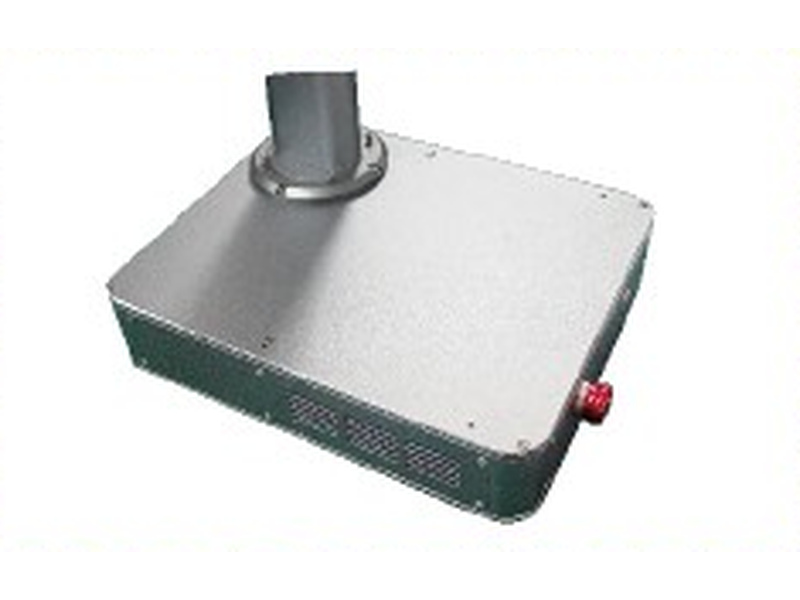

| Equipment Chassis | Integrated base carrying the optical path and table |
| Foot / power / computer interface | Three connectors on the chassis |
Material Compatibility
| Material | Suitability | Note |
| Stainless 304 / 316 | Yes | Rings, nameplates, cutlery, hardware; dark high-contrast marks |
| Gold, silver, copper, titanium | Yes | Ring inner walls, tags, bracelet interiors; no material loss |
| Carbon / alloy steel | Yes | Tools, blades, fasteners |
| Aluminium and anodised aluminium | Yes | Colour change on the oxide without breaking it |
| Copper / brass | Yes (power) | Highly reflective; slow down or take the 25 W model |
| Zinc / nickel plated | Yes | Breaks the coating; assess corrosion requirements |
| ABS / PC / PVC | Yes | Housings and keypads; fume extraction advised |
| Leather | Yes | Personalisation and engraving without coating |
| Ceramic (craft / domestic) | Yes | Tiles and mugs |
| Carbon fibre / composites | Yes | Coating-removal marking |
| Gemstones / crystal / glass | No | 1064 nm does not act; needs UV |
| Clear acrylic | No | Needs CO2 or UV |
| Electronic components (IC / PCB) | No | Needs UV; housings and frames are a separate case |
| Paper / labels | No | Needs CO2 or UV |
Explore the Materials You Can Engrave with Our Fiber Laser
| Material Category | Fiber Laser |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | √ |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | X |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | √ |
| Silicone Rubber | √ |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | √ |
| Rubber (NR / NBR / EPDM) | √ |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | √ |
| PU / PVC Synthetic Leather | √ |
| Fabric & Textile | √ |
| Denim & Garment | √ |
| Non-Woven Fabric | √ |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | X |
| Bamboo & Cork | X |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | √ |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | √ |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | X |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | √ |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | √ |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | √ |
| Abrasives & Grinding Wheels | X |
| Food, Eggshell, Produce | X |

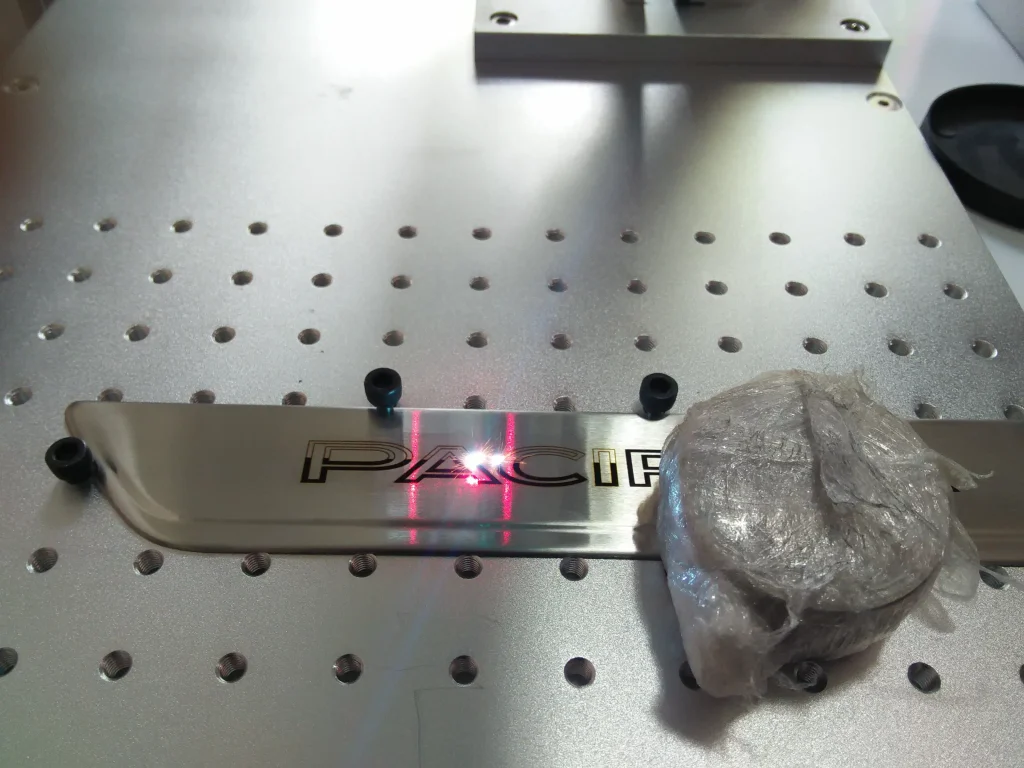

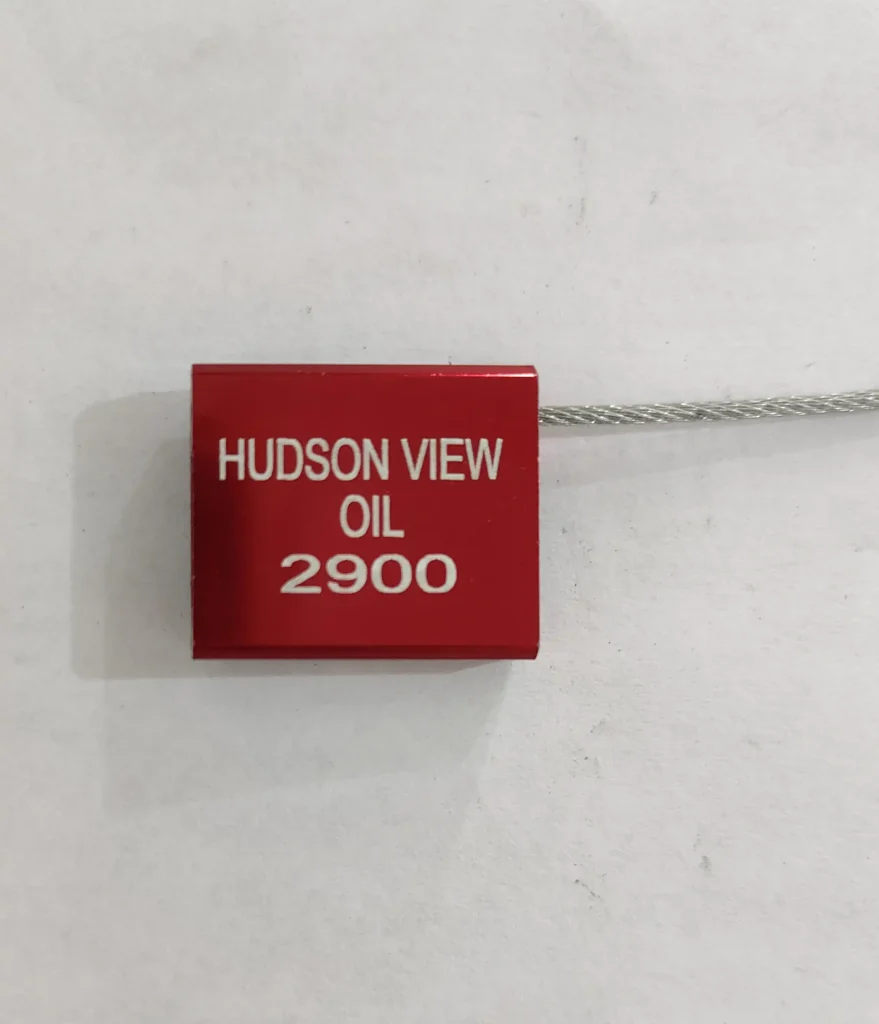

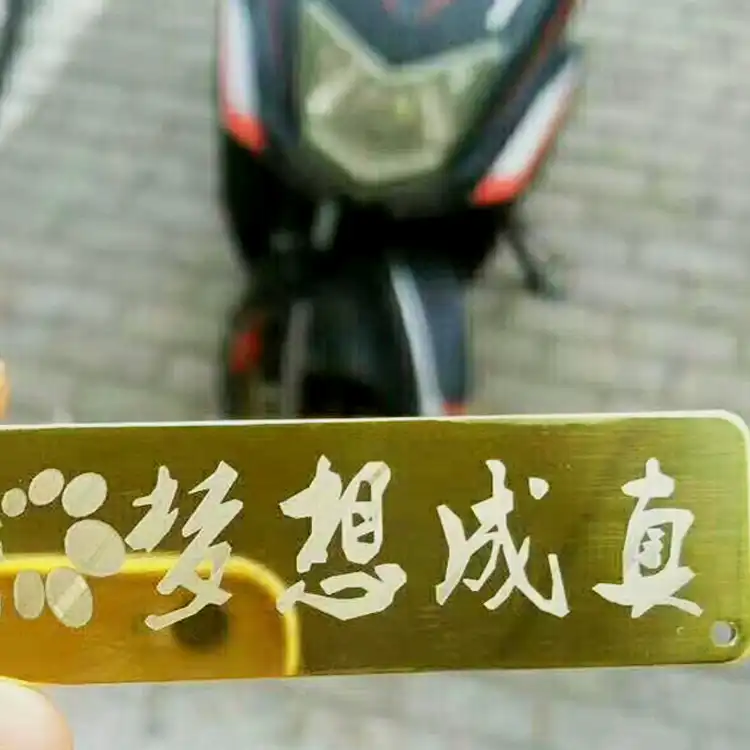

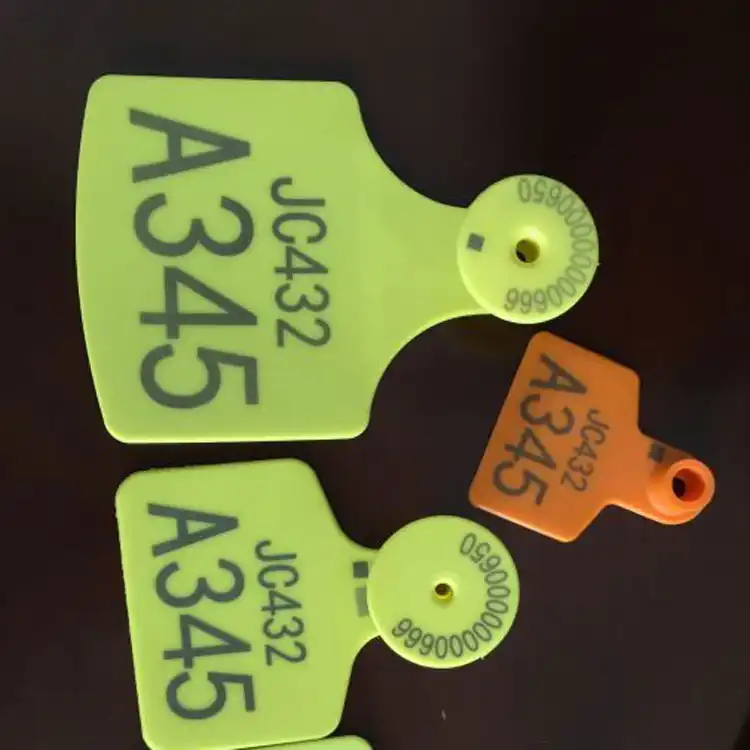

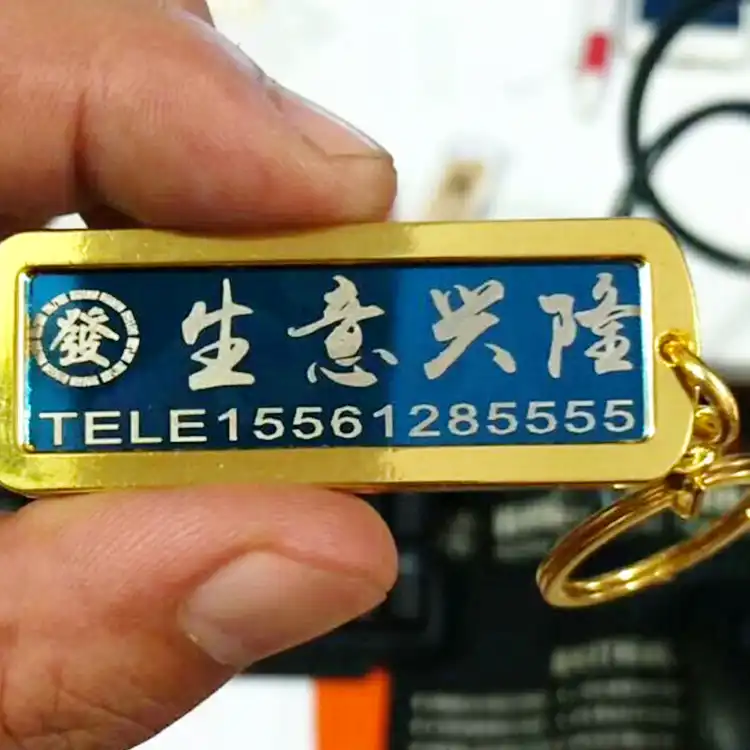

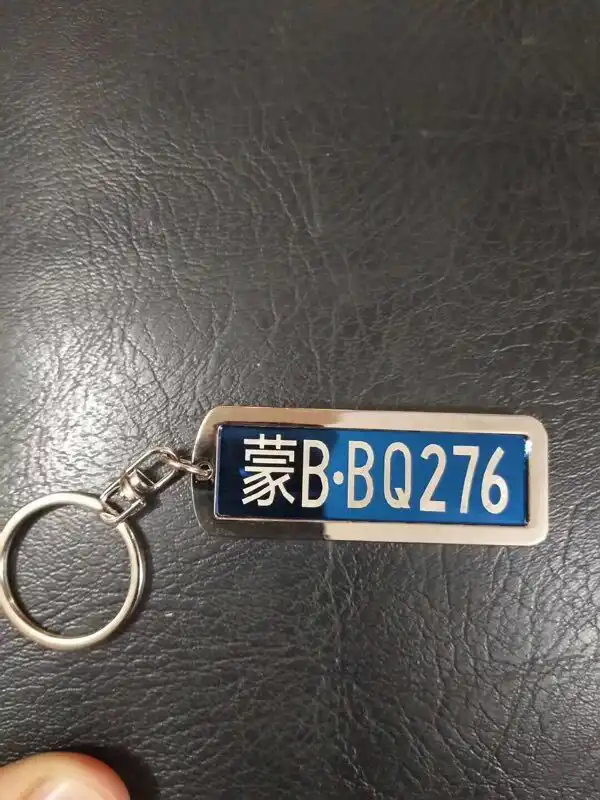

Marking Samples
Send us an email to get further information you need, including our latest price, the best-customized solution, or any problem with the existing machine.
