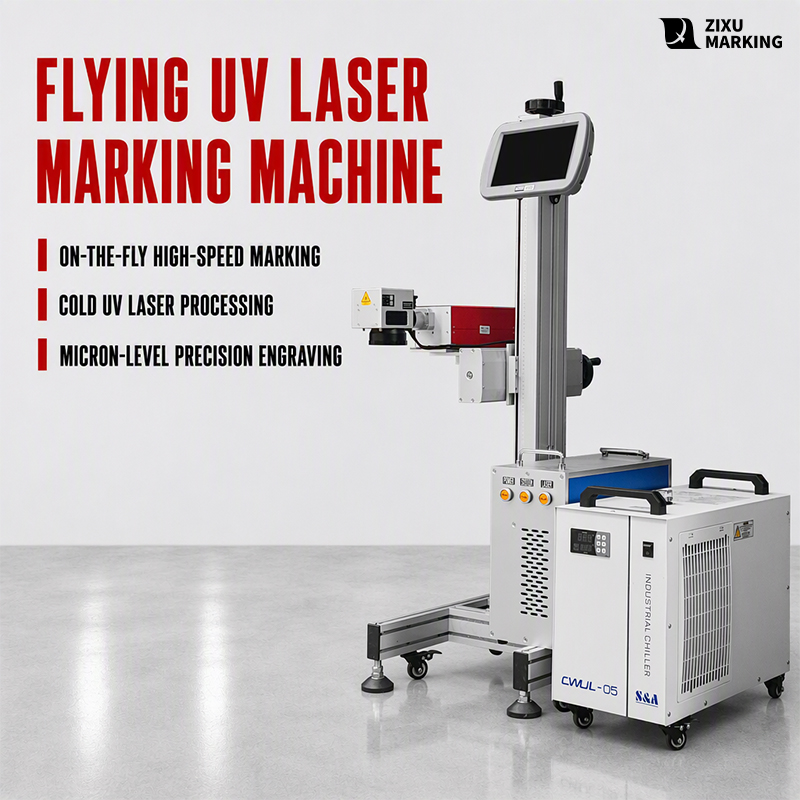

UV Flying Laser Marking Machine
UV industrial flying laser marking machine for on-the-fly coding on production lines, with a 10-inch touchscreen, red light positioning, PLC interfacing and water cooling for food, pharmaceutical and cosmetics packaging.
01. Inline Production Marking
Mobile column-mounted design supports on-the-fly marking on moving products with precise red-light positioning.
02. Standalone Touchscreen Control
10-inch touchscreen operation with PLC connectivity and multi-language software, without requiring an external computer.
03.Fine UV Marking
355nm UV laser produces clear, burr-free marks on heat-sensitive products, including plastics, glass, packaging and medical items.
The UV flying laser marking machine is designed for inline marking on production lines: instead of stopping the line for each code, the system marks products as they pass the marking head. The marking unit is carried on a column and a mobile wheel base, so the machine can be moved between workstations, and the intelligent red light positioning system shows the operator exactly where the mark will be placed. According to the supplier, the machine is intended as a production line partner that improves working efficiency while keeping operation simple and marking clear and stable.
The system is controlled through a 10-inch touchscreen. Software capabilities described by the supplier include typing numbers, letters, QR codes, barcodes, serial numbers and trademarks; interfaces with a PLC to transmit data and realize automatic marking; and multi-language marking with dedicated flight-marking software for high marking speed. The machine does not need to be connected to a computer — it connects to the display screen only — which simplifies installation on the line and reduces the number of failure points.
Cooling is handled by a separate chiller and water tank, and the machine is built on a standard cabinet with a universal roller. Because the platform is UV-based, it is aimed at heat-sensitive products in the medical, food, cosmetics and packaging industries, where marking must be clear and free of burrs without damaging the product surface. Detailed technical parameters — including wavelength, output power, marking area, marking speed, frequency and material compatibility — are not stated in the supplied material and must be confirmed before this page is published.
| Parameter | Specification |
| Model | CK-UV-T10W |
| Machine Type | UV laser flying (flight) marking machine |
| Laser Wavelength | 355 nm |
| Output Power | 3W / 5W / 10W |
| Marking Area | 100*100mm |
| Marking Speed | 3,000–12,000 mm/s |
| Frequency | 20 kHz – 200 kHz (Adjustable) |
| Repeatability / Precision | ± 0.002 mm |
| Cooling Method | Water cooling |
| Control System | 10-inch touchscreen control system |
| Computer Required | Not required |
| Positioning | Intelligent red light positioning / double red light |
| PLC Interface | Supported |
| Software | Multilingual marking software |
| Marking Unit Dimensions | Height 1470 mm; Base 480 mm × 550 mm |
| Chiller Cabinet Dimensions | 286 mm × 460 mm × 560 mm |
| Mobility | Mobile wheel / universal roller |
| Standard Configurations | Chassis、Column、Mobile wheel、Touch screen、Water tank、Double red light |
| Applicable Materials | Bottle and can caps: Plastic bottle caps, bottles, glass bottles, cans; dates, batch numbers, QR codes – most common on production lines. Films/flexible packaging: PE/PET/PP films, hoses, cardboard boxes, labels; three-phase codes, variable information, serial numbers. Pipes/wires: PPR, PVC, PE pipes, cables; wire types, meter markings, manufacturer markings. Light-colored/thermal components: Light-colored plastic casings, electronic casings, medical consumables, LCD glass, acrylic. |
| Certification | CE,ISO9001,FDA |
Features

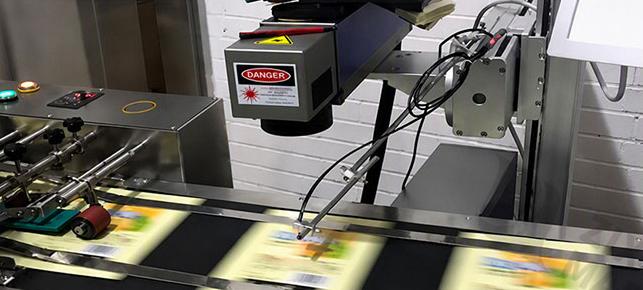

On-the-Fly Marking for Production Lines
Marks products as they move along the line, eliminating the need to stop production for coding (“Assembly line partner, greatly improving work efficiency.”).

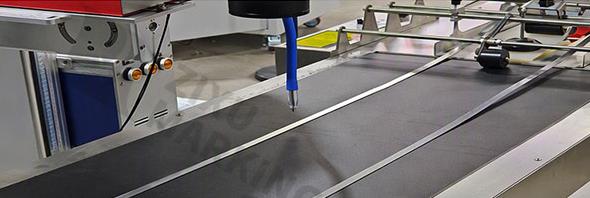

Intelligent Red Light Positioning
A red light positioning system indicates the precise location of the mark; the configuration list includes a double red light assembly.

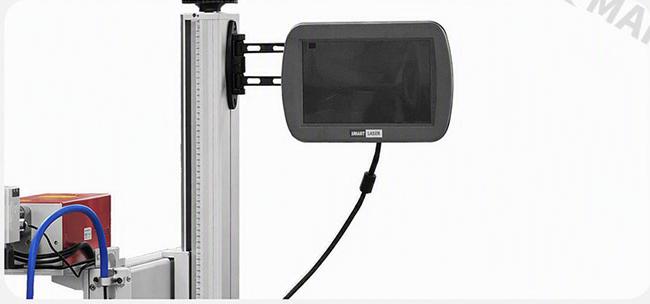

10-Inch Touchscreen, No Computer Required
A 10-inch touchscreen control system operates the machine without a connected computer, with multi-language support and PLC data interfacing for automatic marking.
High-Speed Galvanometer Scanning
A high speed scanning galvanometer is used for fast, high-precision marking with low energy consumption.

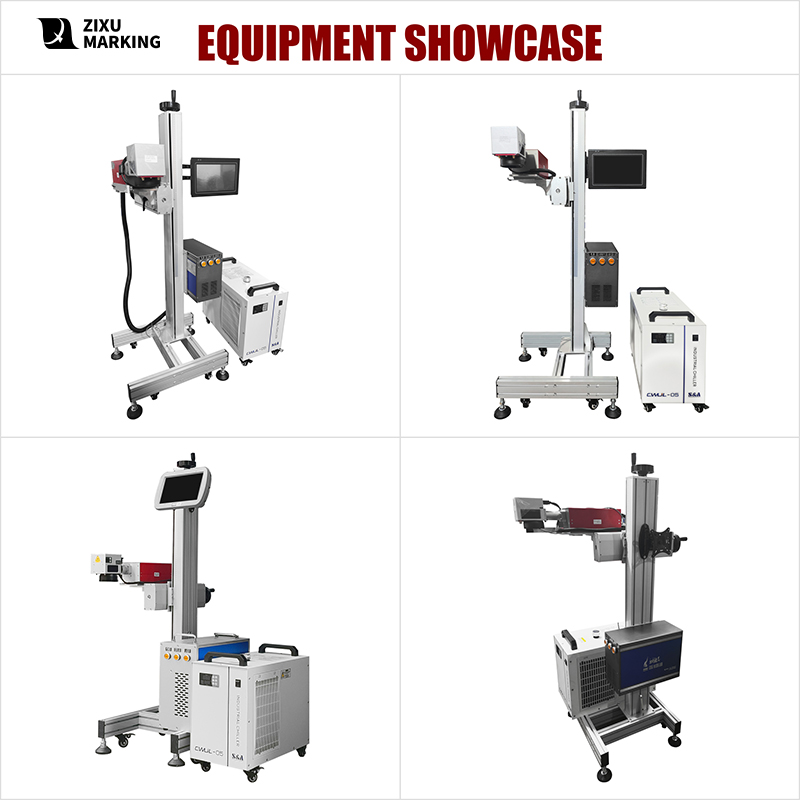

Mobile, Water-Cooled Cabinet Design
The marking head is mounted on a column on a wheeled base, the cabinet includes a universal roller for easy movement, and cooling uses a separate chiller and water tank.
Material Compatibility
| Category | Coverage | Notes |
| Medical / Pharmaceutical | Labeling of medical and pharmaceutical products | Marking of capsules/tablets; marking of pharmaceutical packaging |
| Food | Food packaging labeling | Marking on apple skins, egg labeling, and marking on convenience food packaging |
| Cosmetics | Cosmetic labeling | Marking of essential oil bottles and cosmetic tubes |
| Packaging | Packaging Marking | Electronic components, keyboard keycaps, glassware, etc. |
| Specific Materials | Daily consumer goods industry | PE/PET/BOPP films, paper, glass, plastic, metal, etc. |

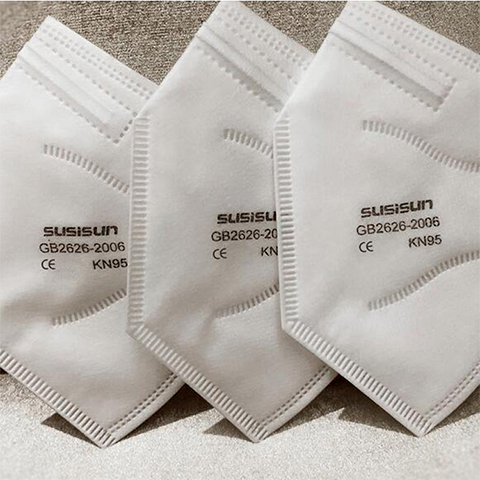

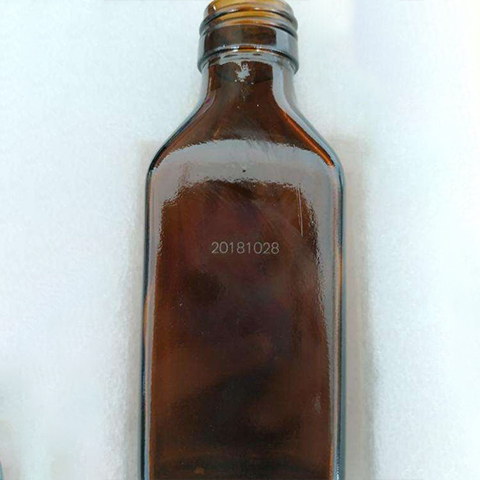

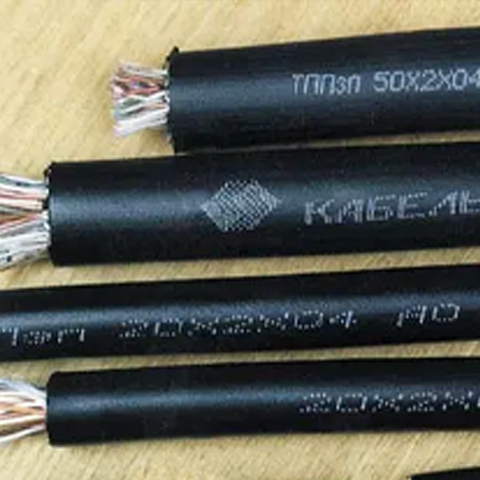

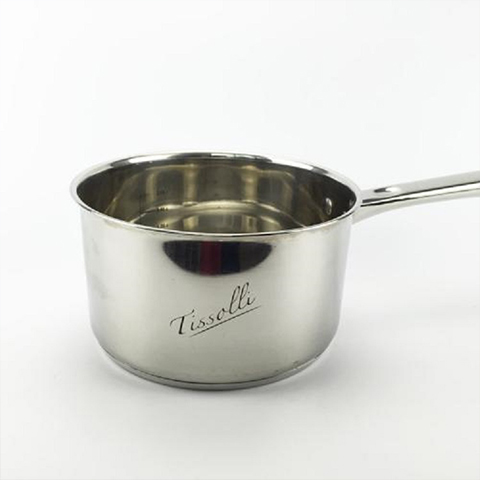

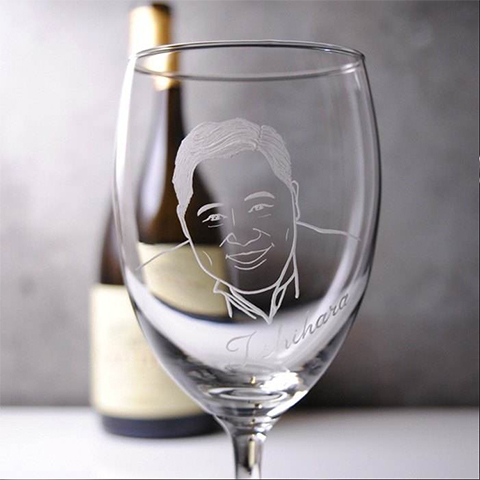

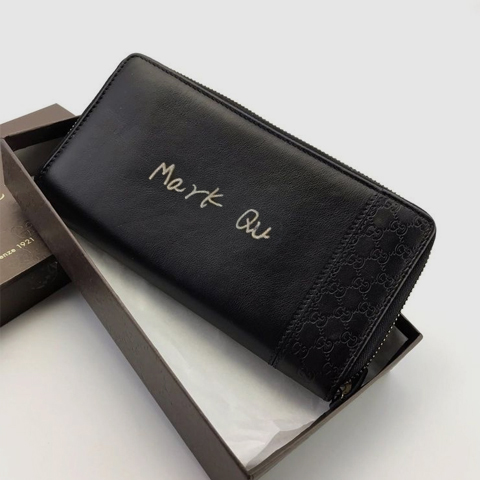

Marking Samples
