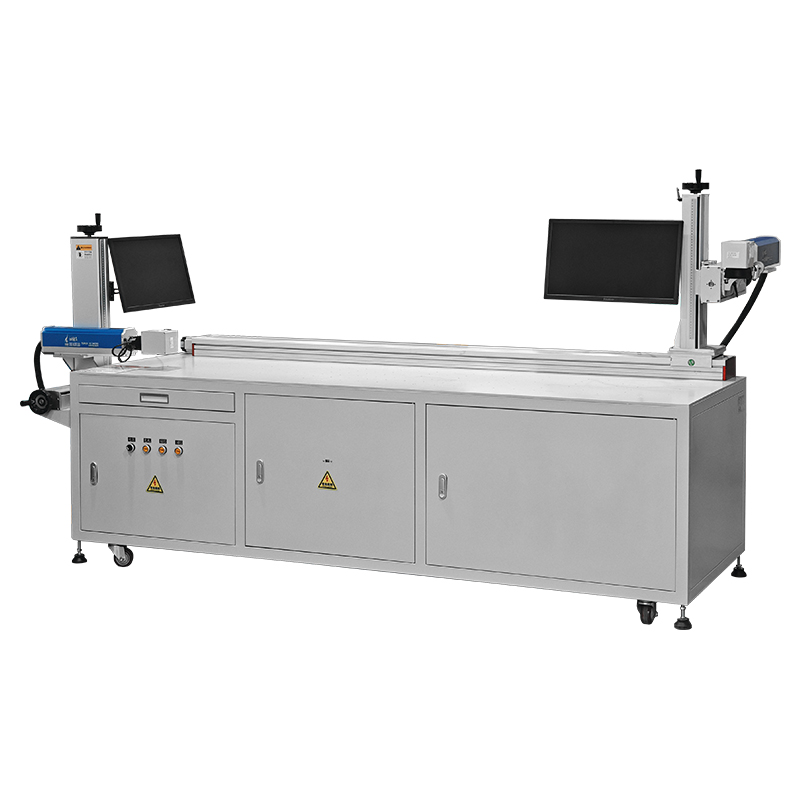

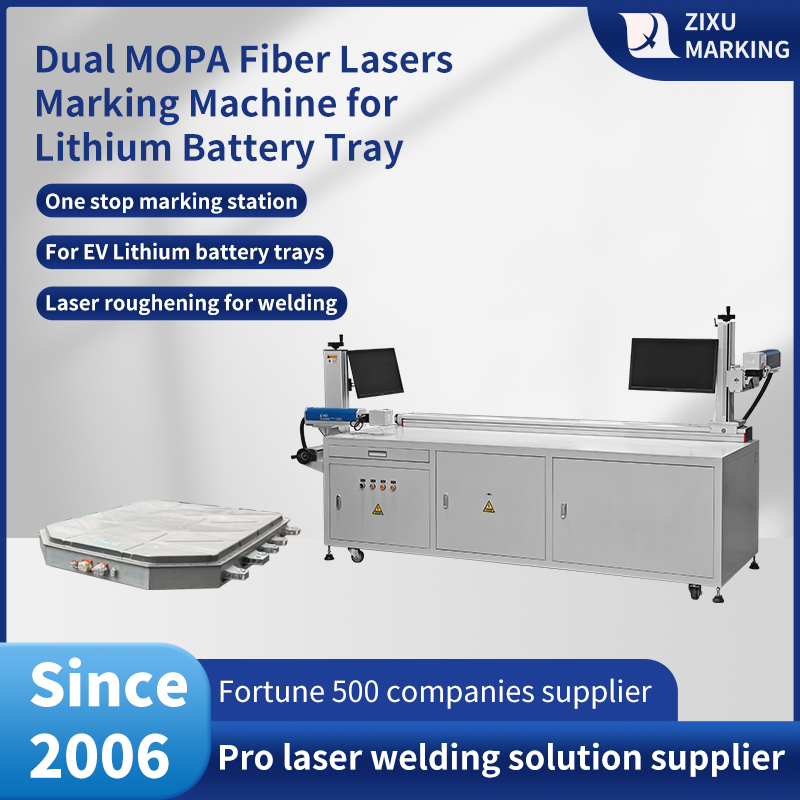

Dual-head battery tray laser marking machine

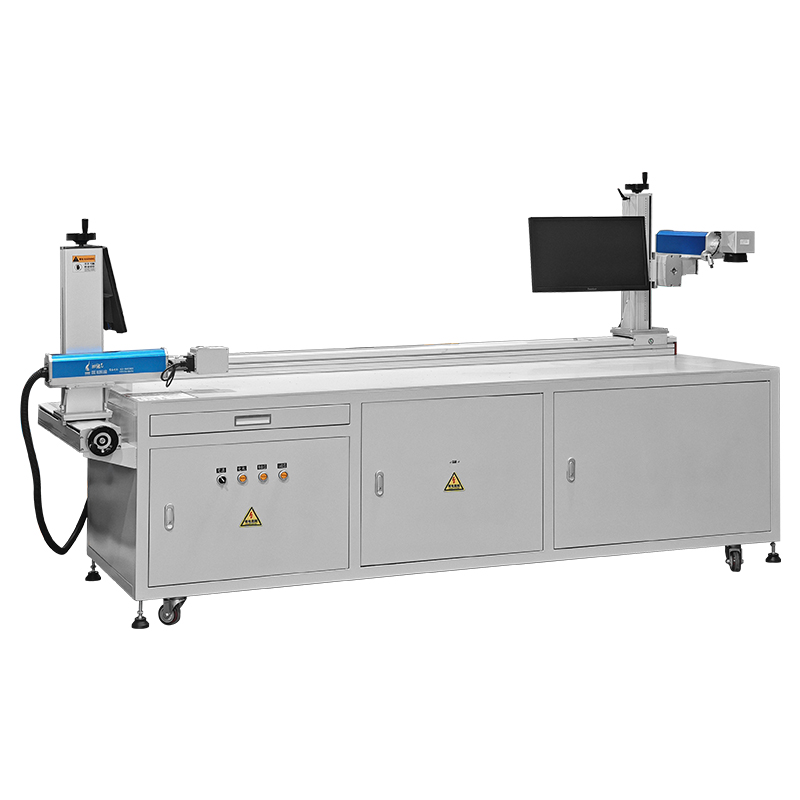

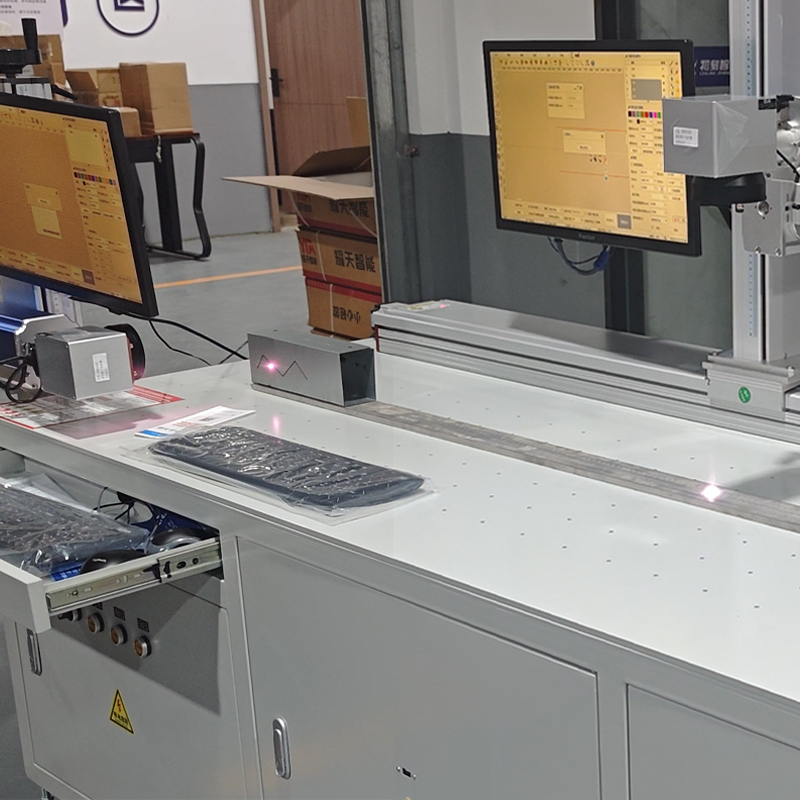

This large-format lithium battery tray laser marking machine is customized for electric vehicle chassis manufacturers. It is primarily used to simultaneously mark the top and sides of the lithium battery pack tray for traceability serial numbers and QR codes. It can also be used for precise selective removal of the anodized layer from the aluminum alloy tray surface before welding, ensuring better welding results. A fixed 50W MOPA fiber laser is used on the sides to meet the marking requirements for serial numbers and QR codes, with a marking area of 200200mm. The top uses a 2000mm servo motor moving module to drive a 100W MOPA fiber laser to ensure efficient depth marking and texturing. The F-Theta field lens is also 200200mm.

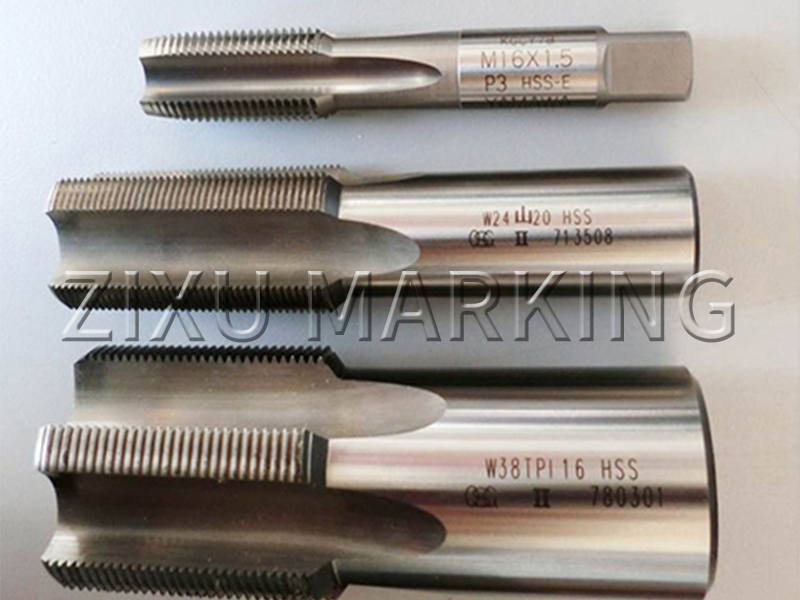

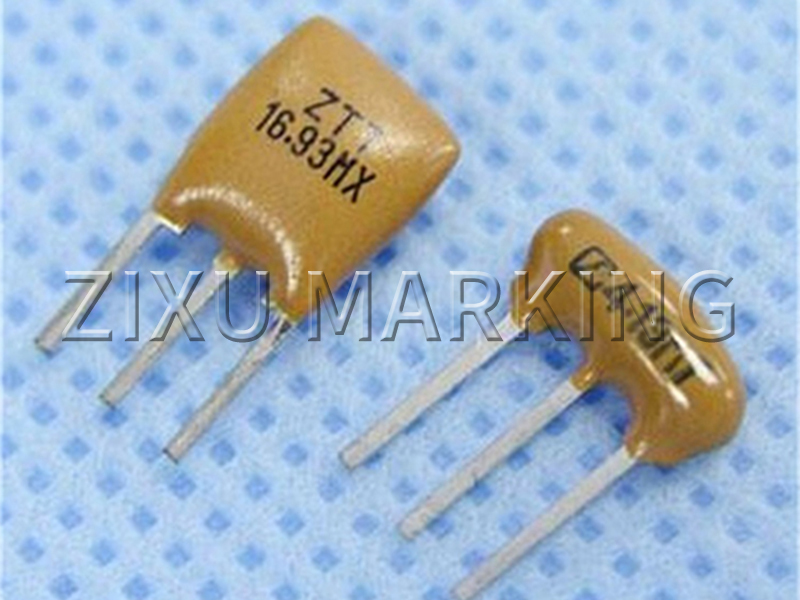

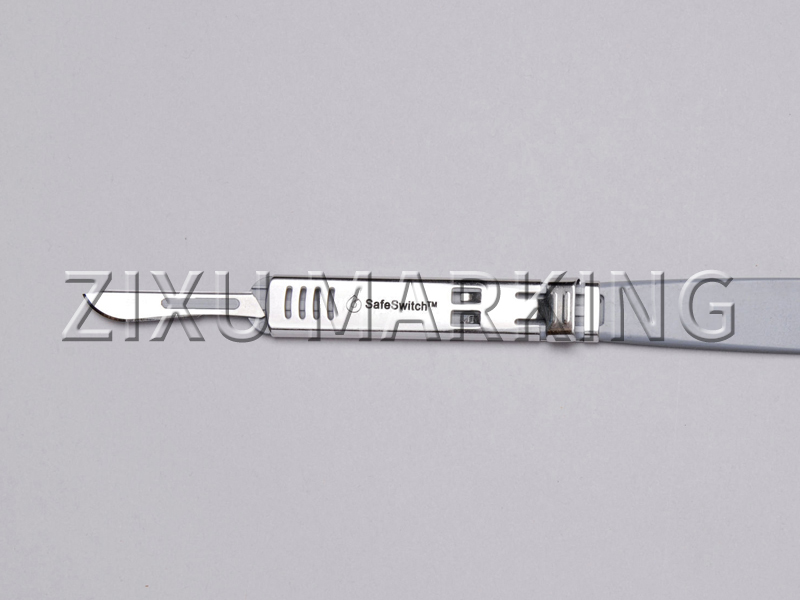

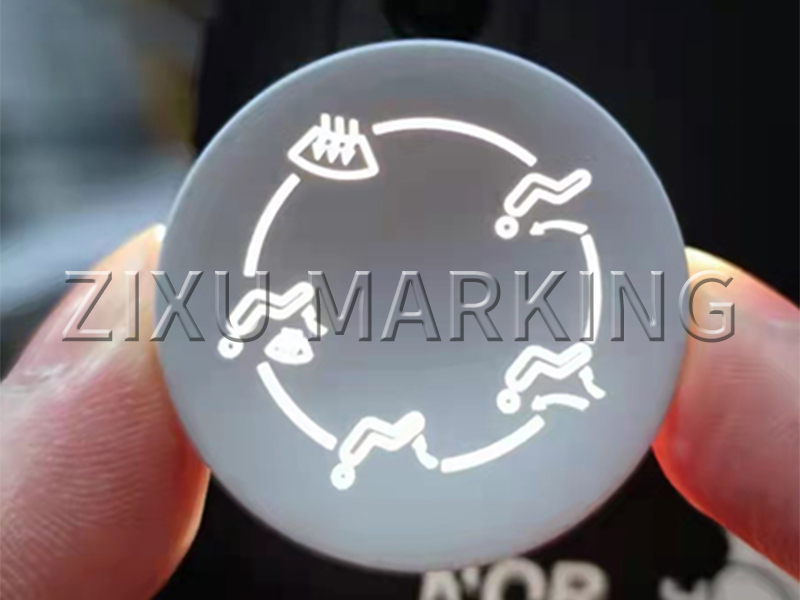

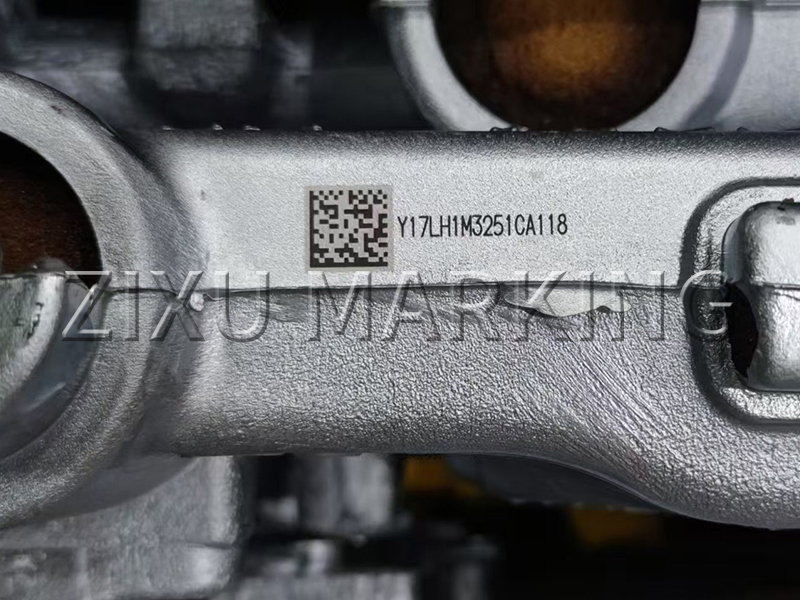

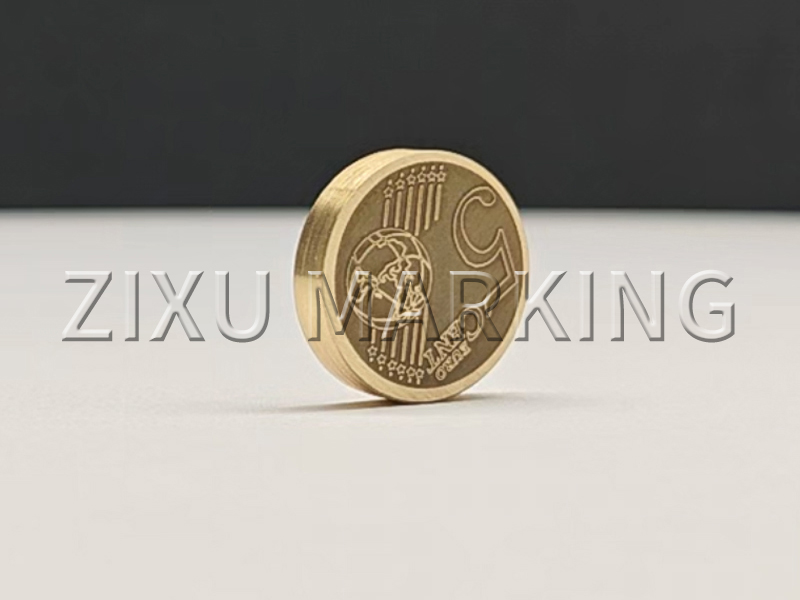

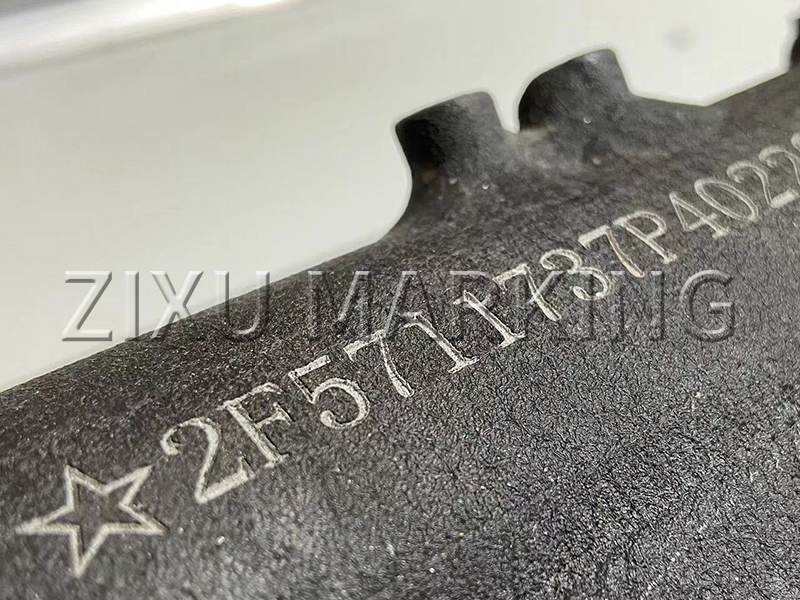

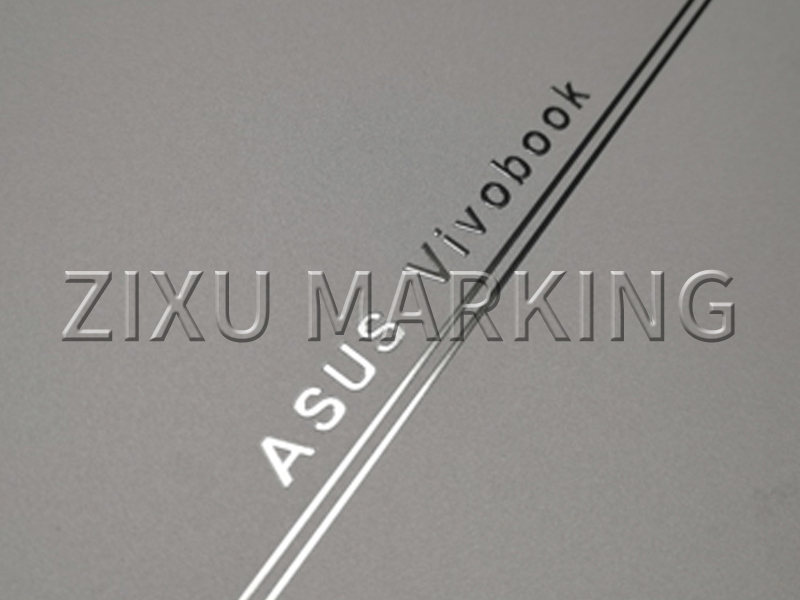

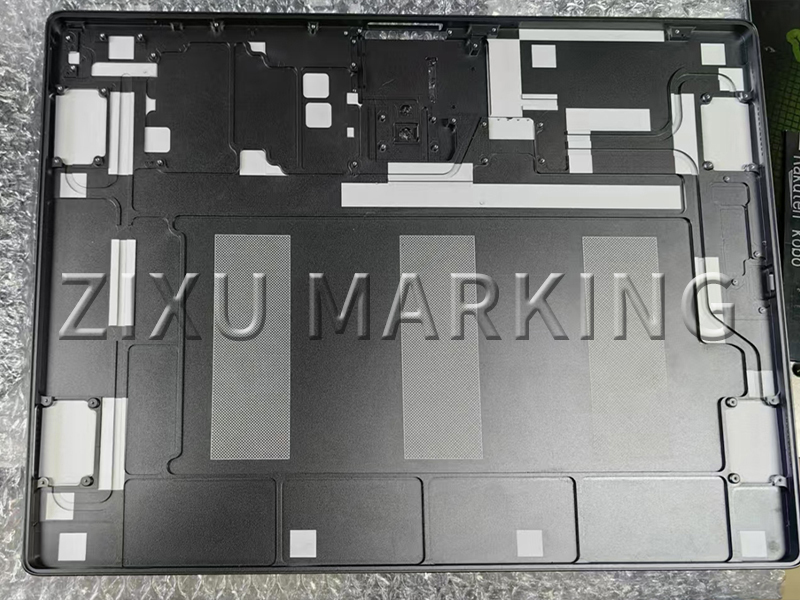

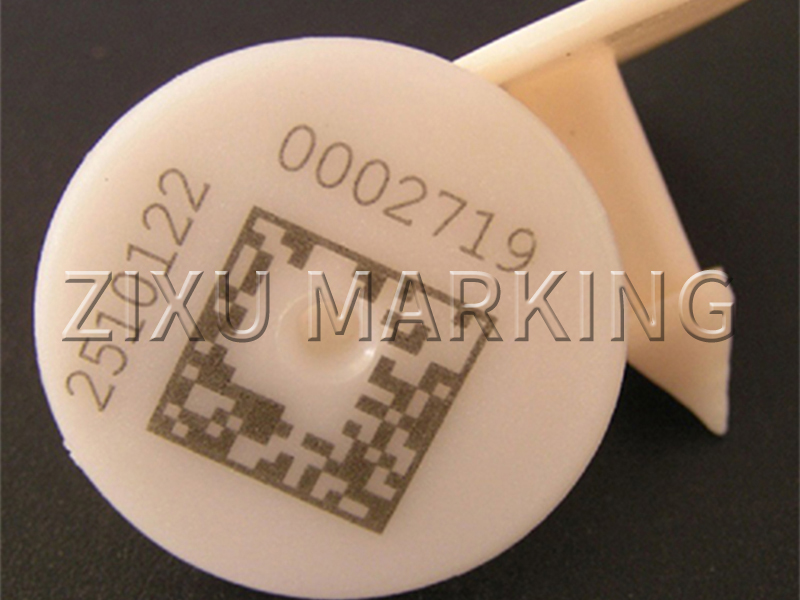

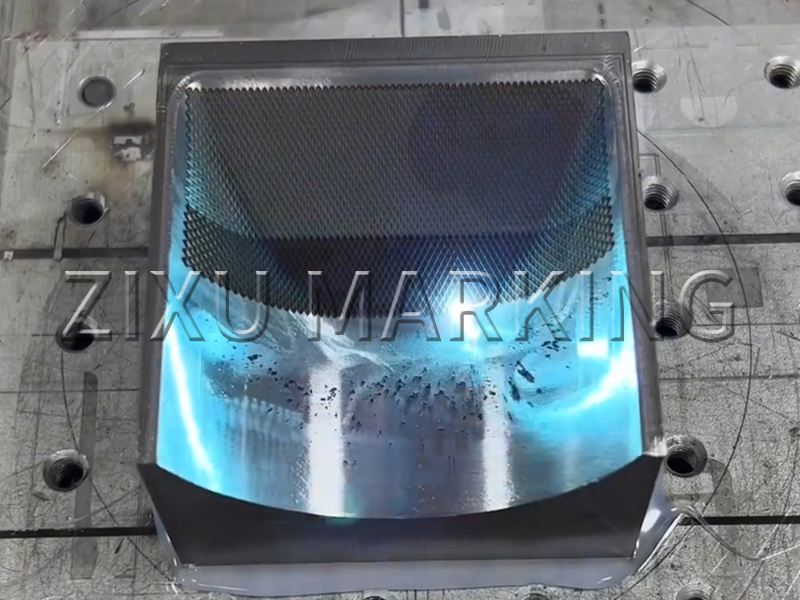

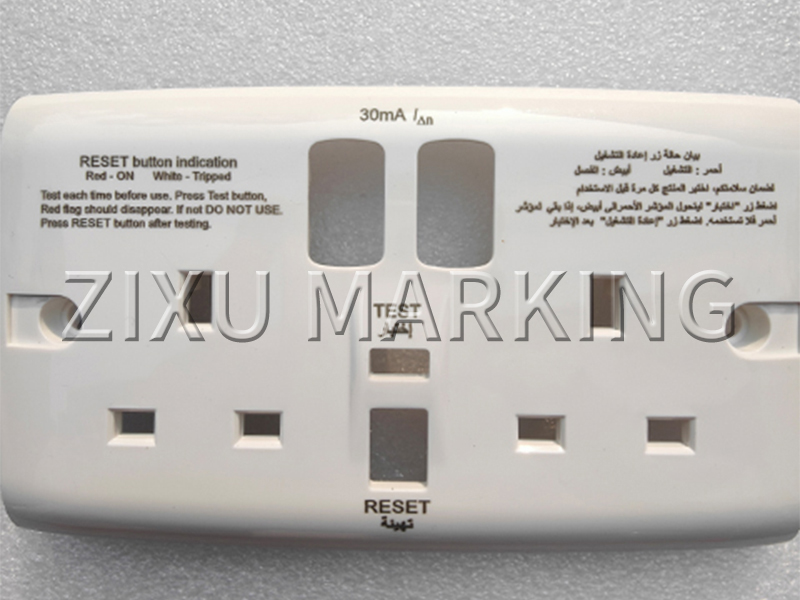

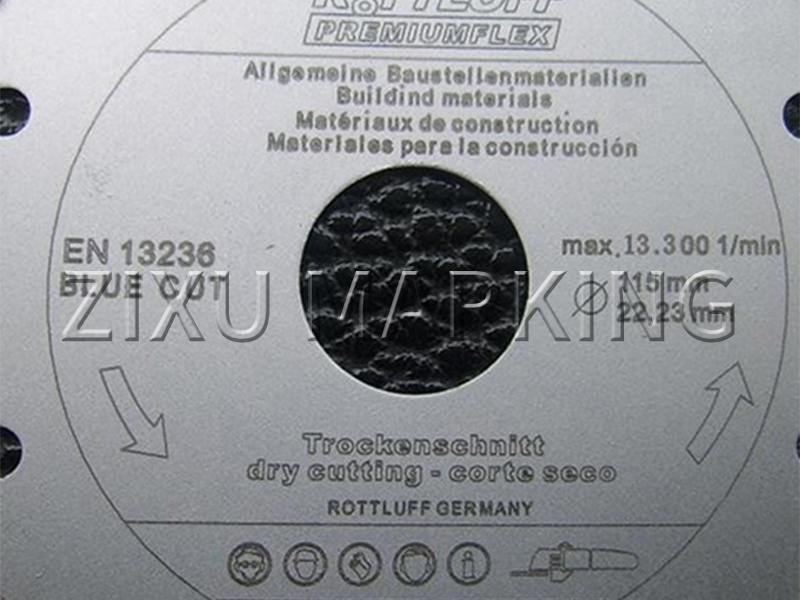

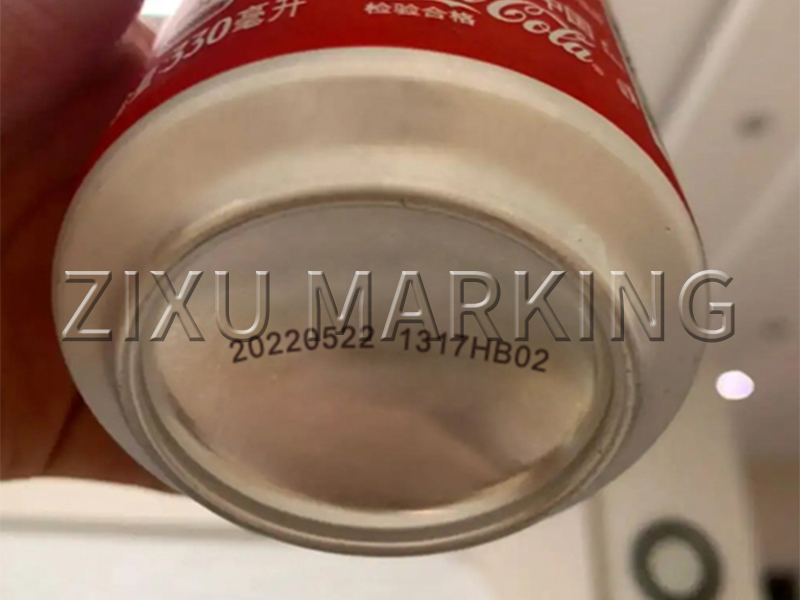

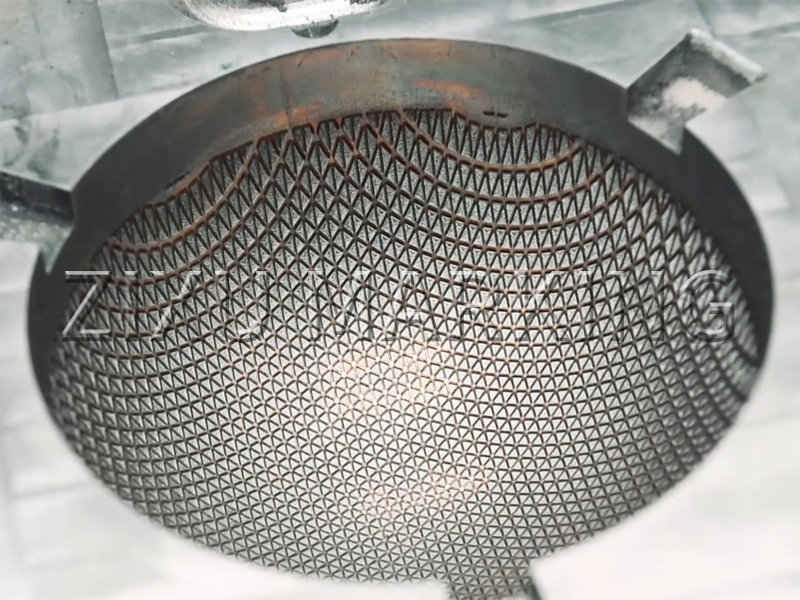

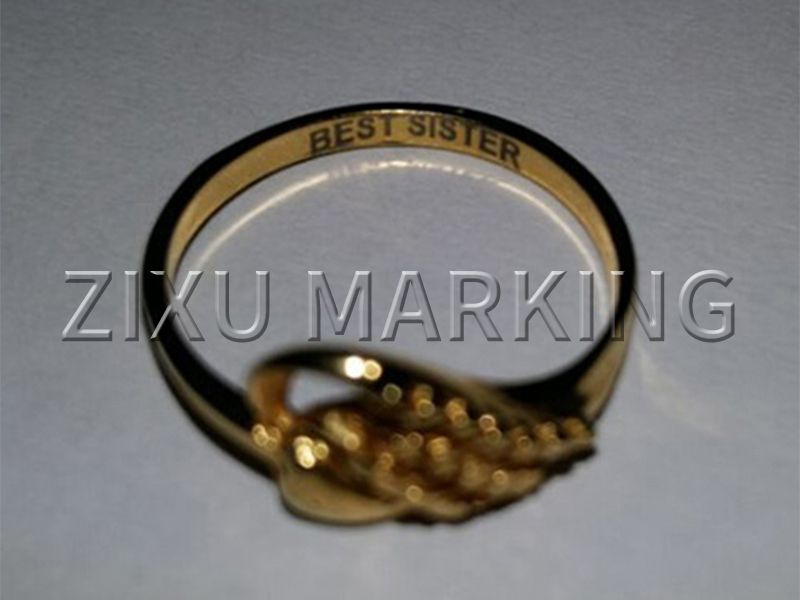

Sample
Specifications
| Laser Type | MOPA Fiber |
| Laser Brand | IPG, Raycus, MAX, JPT, GZTech or customize |
| Laser Power | 100W & 50W or customize |
| Work Area | Both 200 * 200mm or customize |
| Laser Wavelength | 1065 ± 10nm |
| Beam Quality (BBP) | ≤ 1.6㎡ |
| Energy per Pulse | ≤ 1.5mJ |
| Pulse Duration | 2 ~ 500ns |
| Frequency | 1 ~ 4000kHz |
| Positioning Speed | 8000 ~ 23000mm/s |
| Scanning Speed | 5000 ~ 12000mm/s |
| Writing Speed | 400 ~ 500cps |
| Repeat Accuracy | ± 0.002mm |
| Laser Lifespan | ≥ 100,000hrs |
| Cooling Method | Air cooling |
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz |
| Operation Temperature: | 10 ~ 40℃ or 50 ~ 104℉ |
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ |
| Relative Humidity: | 5 ~ 75%, no condensation |

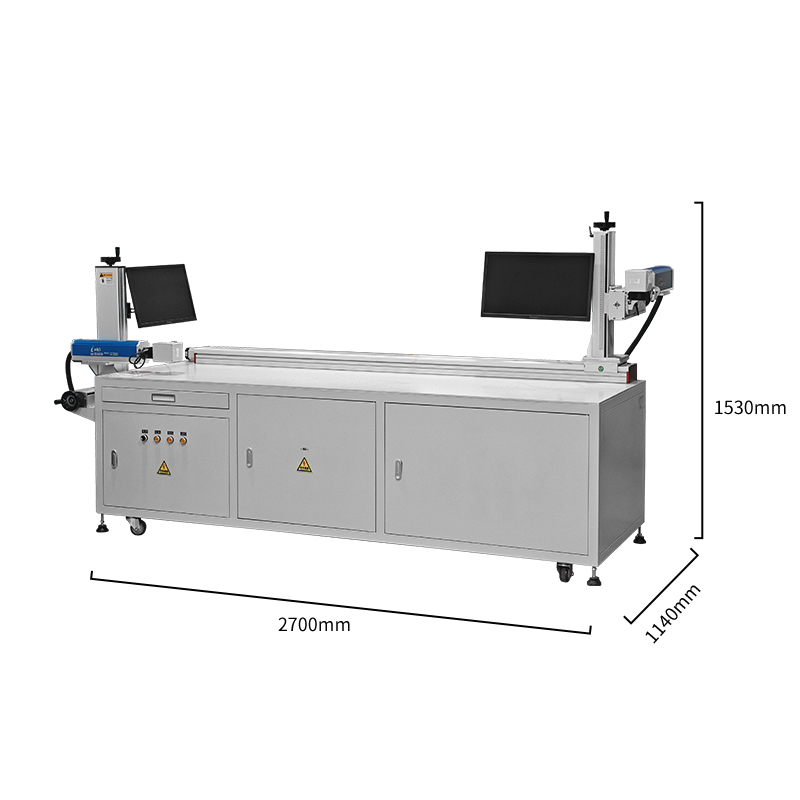

| Dimension | 2700 * 1140 * 1530mm |
| N.W. | 350kg |
| Packaging Dimension | 2850 * 1300 * 1800mm |
| G.W. | 390kg |
| MOQ | 1 |
| Quantity | Price |
| 1 | 7900 |
| 5 | 7700 |
| 10 | 7500 |
This large-format lithium battery tray laser marking machine is customized for electric vehicle chassis manufacturers. It is primarily used to simultaneously mark the top and sides of the lithium battery pack tray for traceability serial numbers and QR codes. It can also be used for precise selective removal of the anodized layer from the aluminum alloy tray surface before welding, ensuring better welding results. A fixed 50W MOPA fiber laser is used on the sides to meet the marking requirements for serial numbers and QR codes, with a marking area of 200*200mm. The top uses a 2000mm servo motor moving module to drive a 100W MOPA fiber laser to ensure efficient depth marking and texturing. The F-Theta field lens is also 200*200mm.
