Small rack automatic platform water-cooled cleaning
Unit of Measurement: Set
Payment Method: T/T, D/A, D/P, Other
Shipping Method: Sea Freight, Land Freight, Air Freight, Express, Other
Port of Shipment: Chongqing, Guangzhou, Shenzhen, Shanghai, Hong Kong
Country of Origin: China
Quality/Safety Certifications: CE, FDA
Sample
Specifications
| Laser Brand | JPT or customize | ||
| Laser Power | 300W | 500W | 1000W |
| Energy per Pulse | 15mJ | 15mJ, 50mJ | 15mJ, 50mJ, 150mJ |
| Pulse Width | 13 ~ 500ns | 30 ~ 500ns | |
| Pulse Repetition Rate Range | 1 ~ 3000kHz | 1 ~ 4000kHz | |
| Work Area | 100 * 100mm, 150 * 150mm or customize | ||
| Travel of the Moving Module | 500 * 400 * 400mm or customize | ||
| Cooling Method | Air cooling | ||
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz | ||
| Operation Temperature: | 0 ~ 40℃ or 32 ~ 104℉ | ||
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ | ||
| Relative Humidity: | 10 ~ 80%, no condensation | ||
| N.W. | 120kg | 135kg | 150kg |

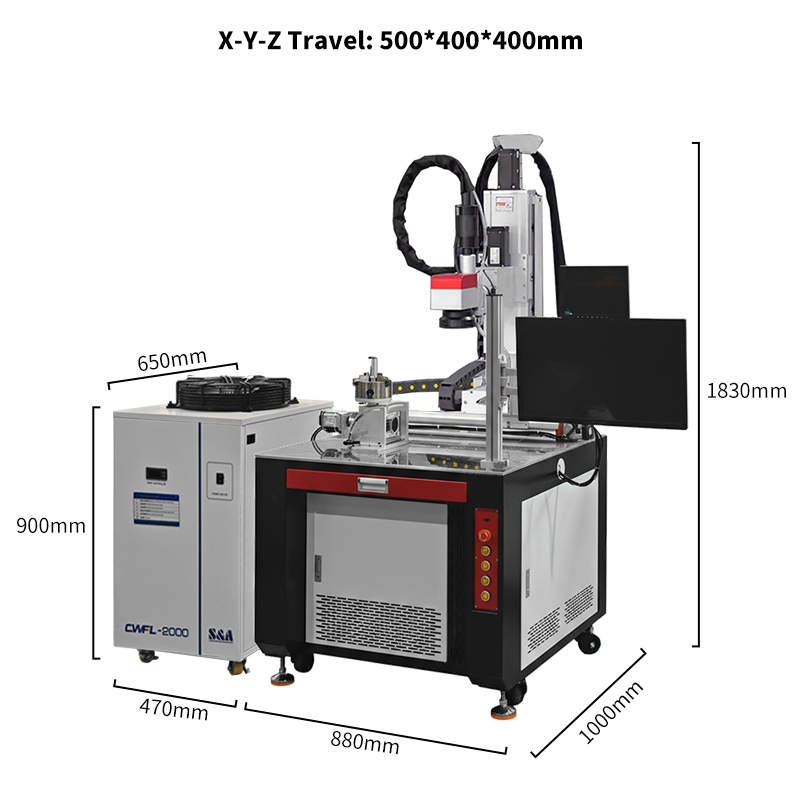

| Dimension | 1000 * 880 * 1830mm & 650 * 470 * 900mm | ||
| G.W. | 145kg | 160kg | 175kg |
| Packaging Dimension | 1150 * 1030 * 2120mm & 770 * 590 * 1050mm | ||
| 300W / 15mJ | 8000 | ||
| 500W / 15mJ | 21000 | ||
| 500W / 50mJ | 21000 | ||
| 1000W / 15mJ | 32000 | ||
| 1000W / 50mJ | 32000 | ||
| 1000W / 150mJ | 35000 | ||

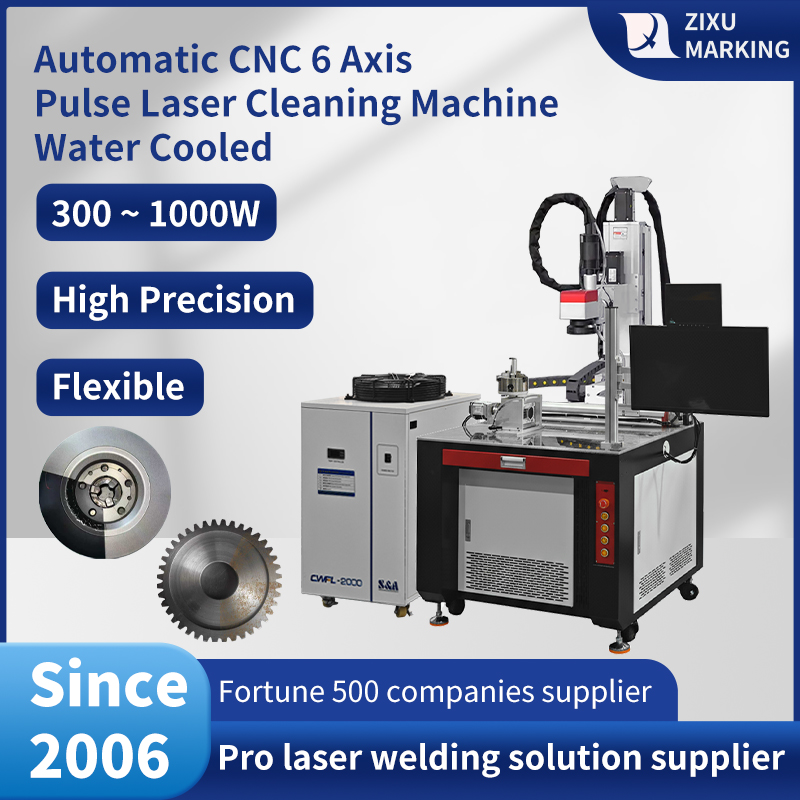

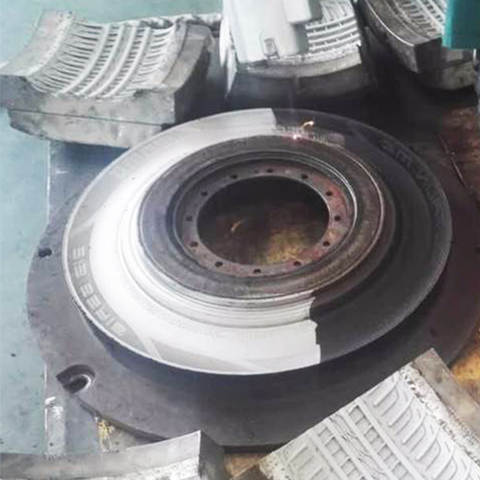

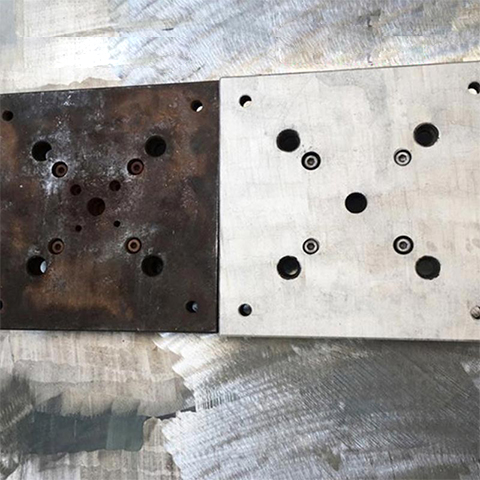

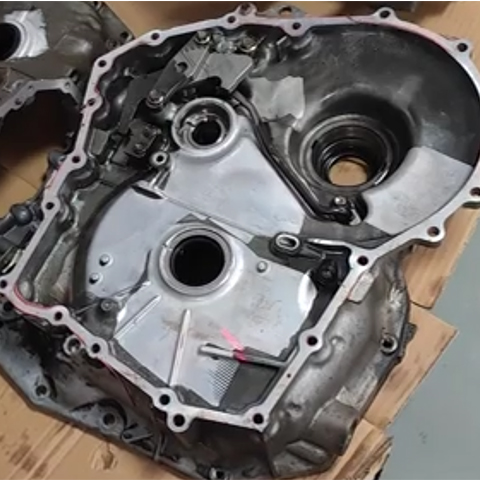

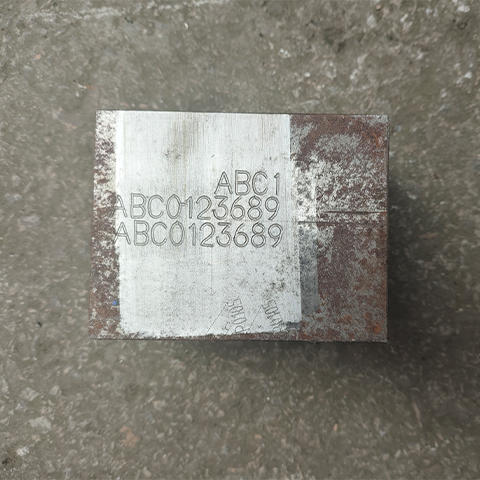

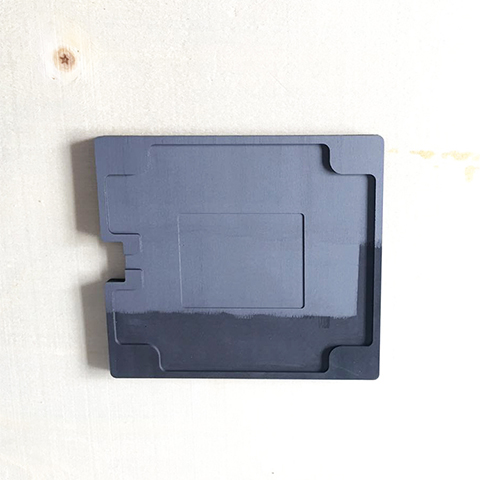

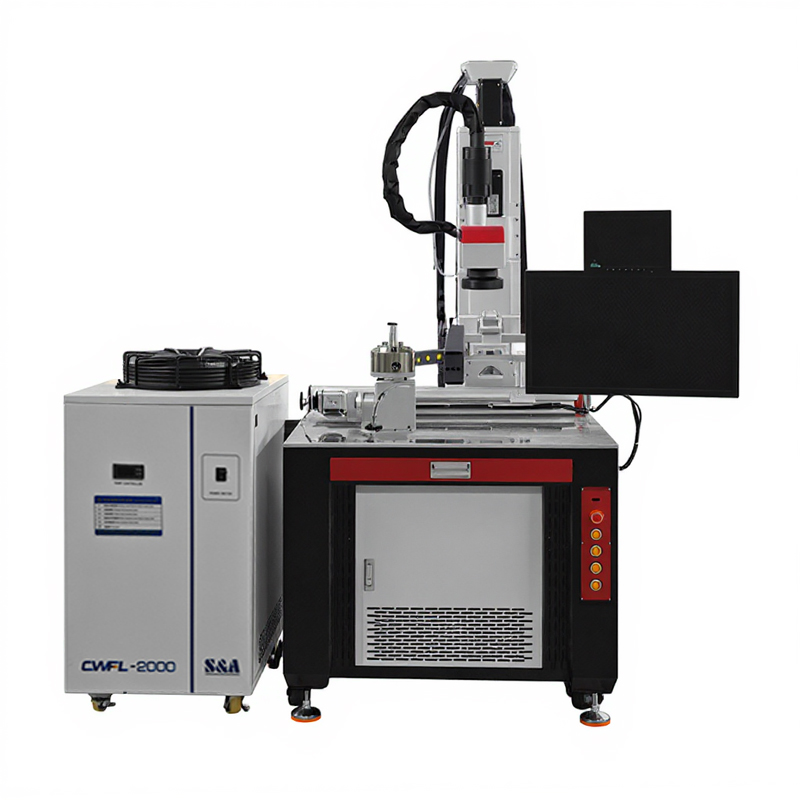

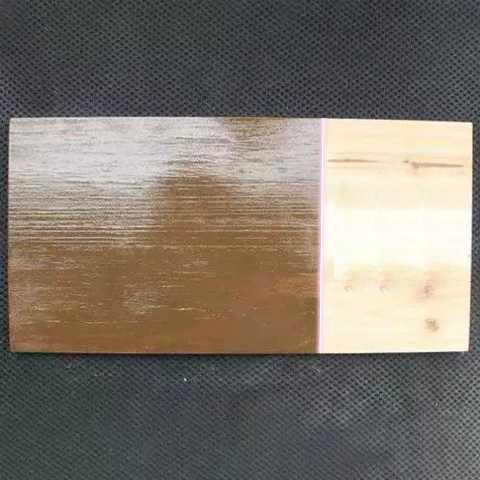

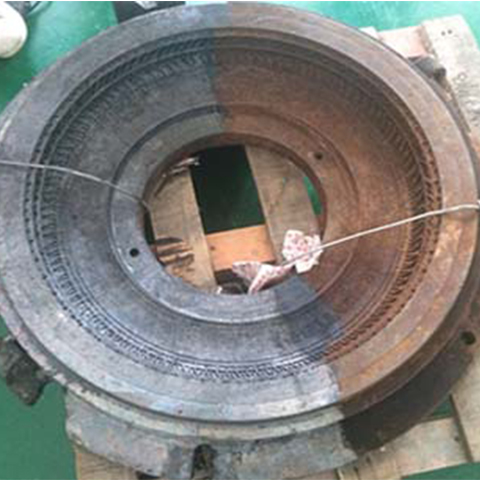

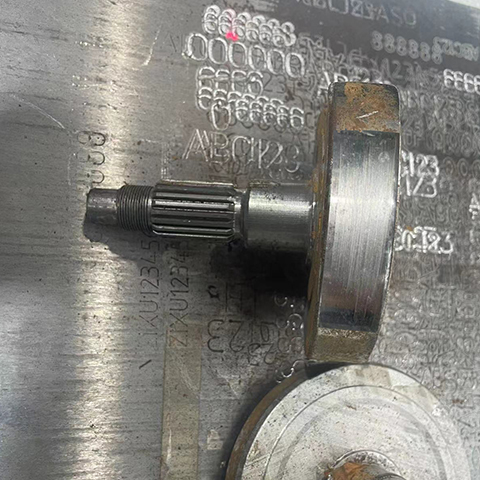

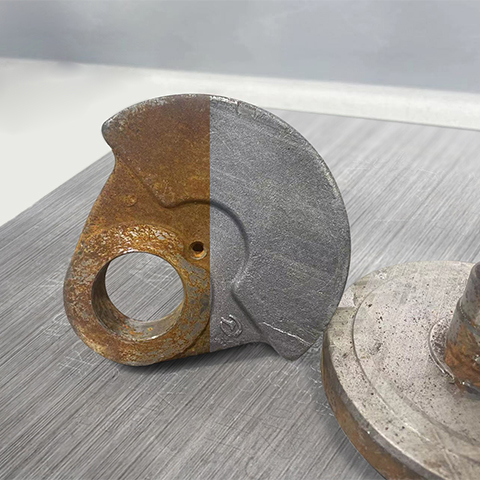

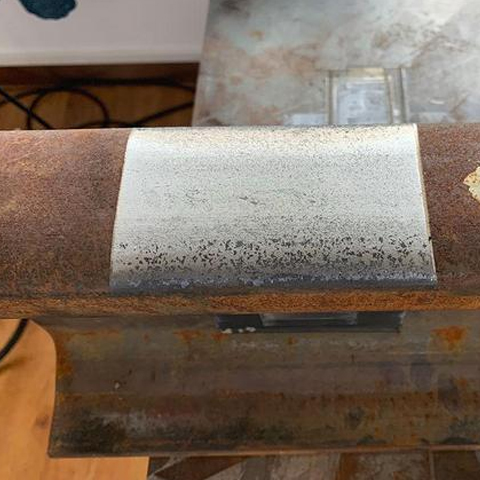

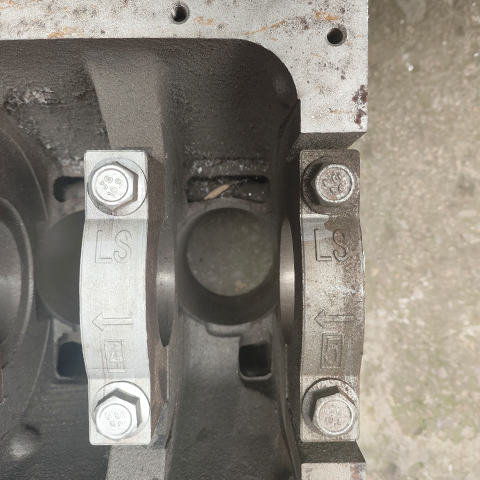

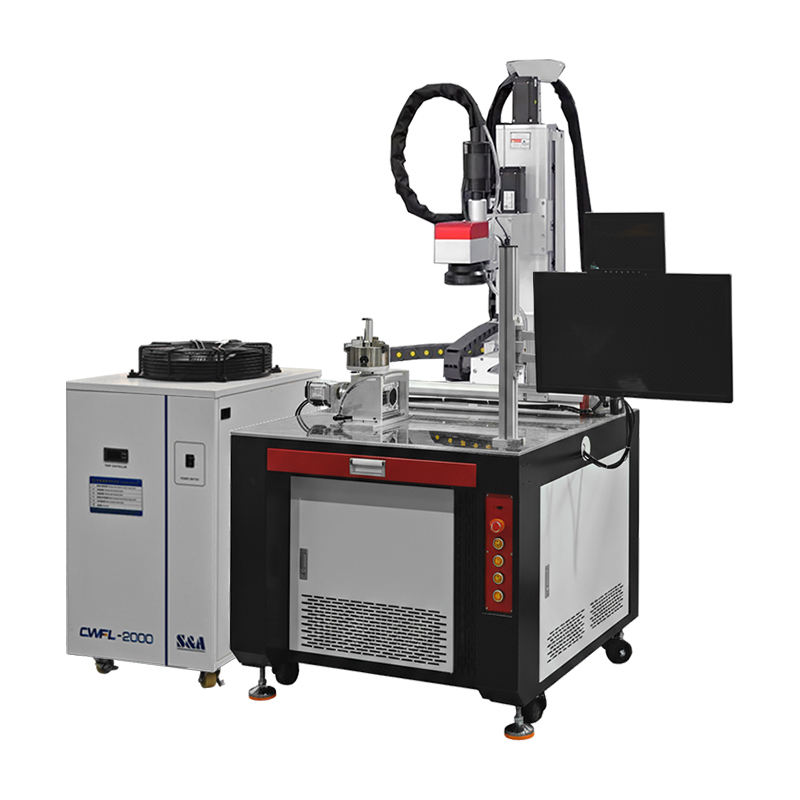

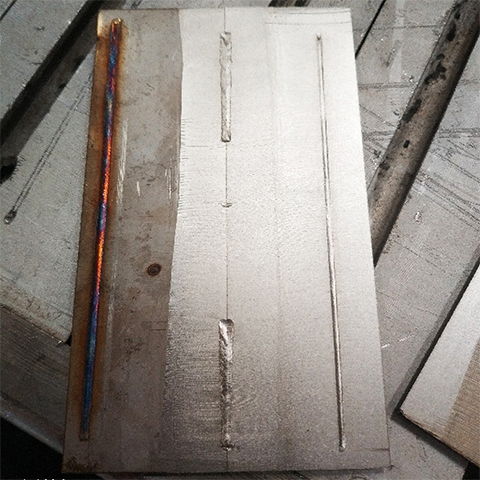

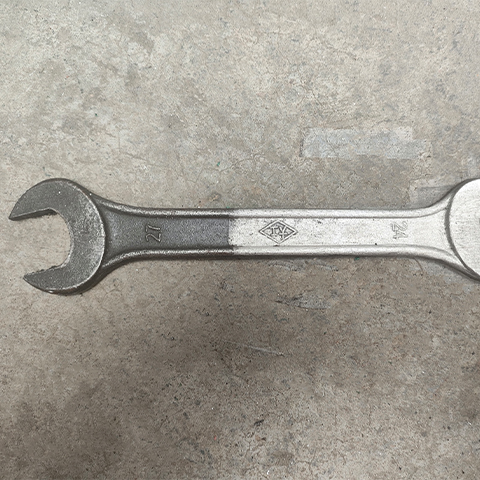

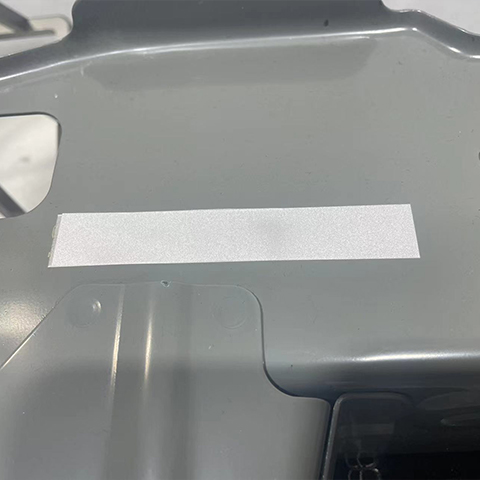

This compact, automatic 6-axis platform water-cooled pulsed laser cleaning machine utilizes a 500*400*400mm X-Y-Z axis moving module. Combined with the reliability of a water-cooled pulsed laser and water-cooled galvanometer, it can stably perform precision laser cleaning applications such as rust removal, paint removal, anode breaking, and paint pretreatment (roughening) on small to medium-sized workpieces for extended periods. This machine typically uses a JPT water-cooled pulsed laser cleaning multimode laser and a tiltable cleaning galvanometer, allowing customers to use an inclined scanning incident angle to reduce interference from impurities and workpiece damage.
