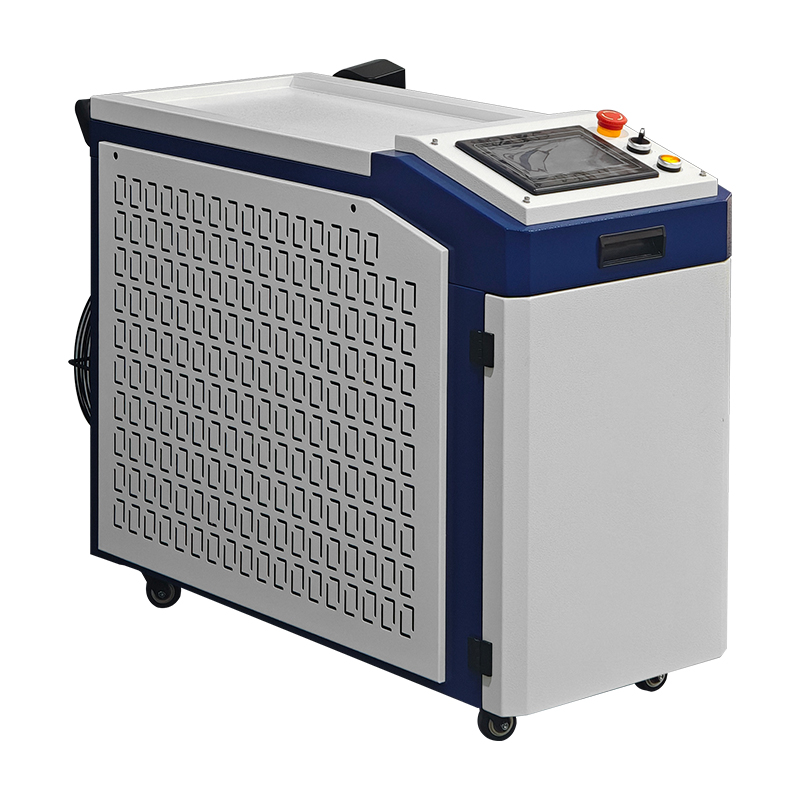

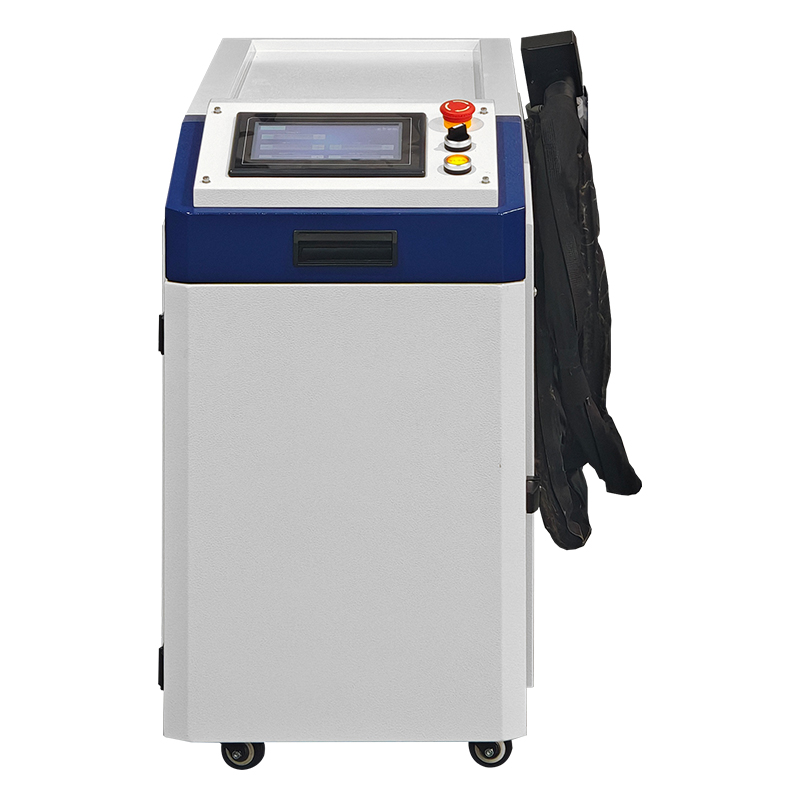

Water-cooled mini server rack

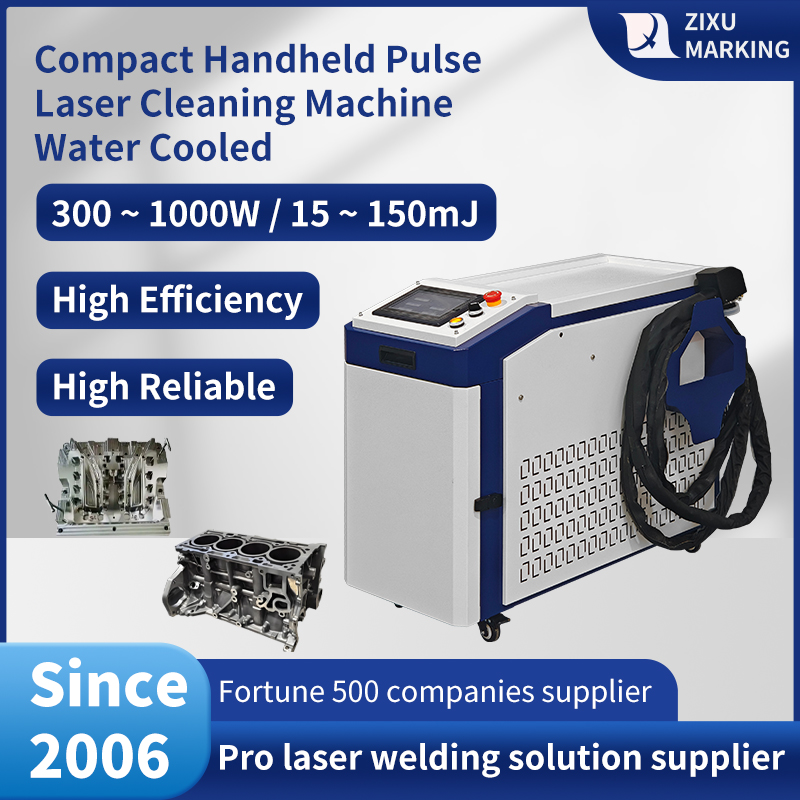

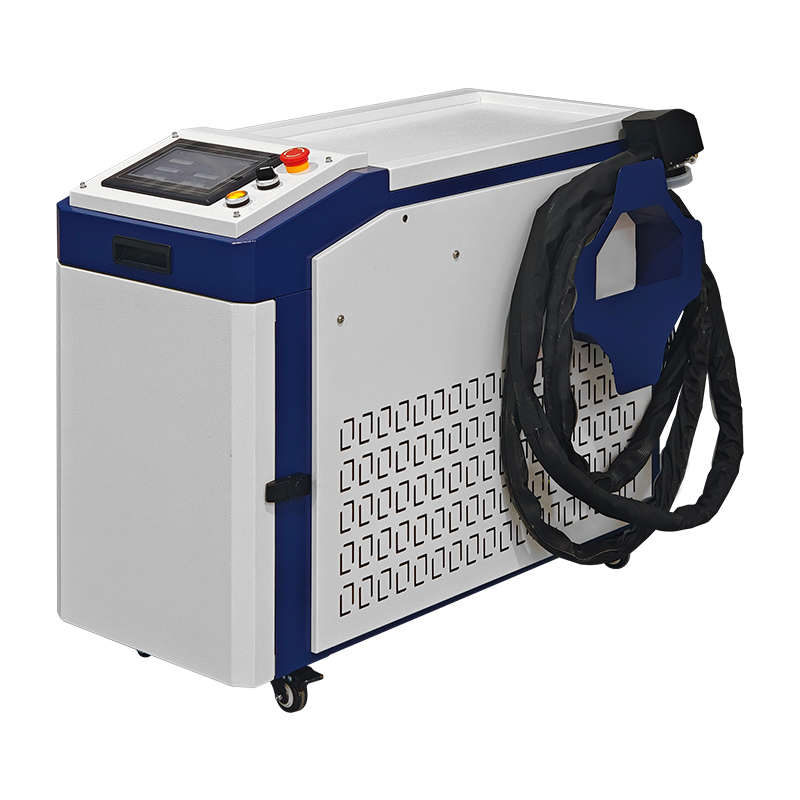

This compact water-cooled pulsed laser cleaning machine utilizes the latest small, integrated water-cooled cabinet from S&A, providing powerful heat dissipation for both the laser and the handheld scanning galvanometer, enabling stable, high-power laser cleaning over extended periods. We typically configure it with a JPT water-cooled pulsed cleaning laser, offering three average power options: 300W, 500W, and 1000W. It can also be configured with a multimode laser with a single pulse energy of up to 150mJ, achieving precise and efficient laser cleaning with surface damage <1 micrometer. This covers industrial cleaning tasks such as rust removal, oil removal, paint removal, oxide layer removal, coating removal, and plating removal for workpieces of various complex shapes.

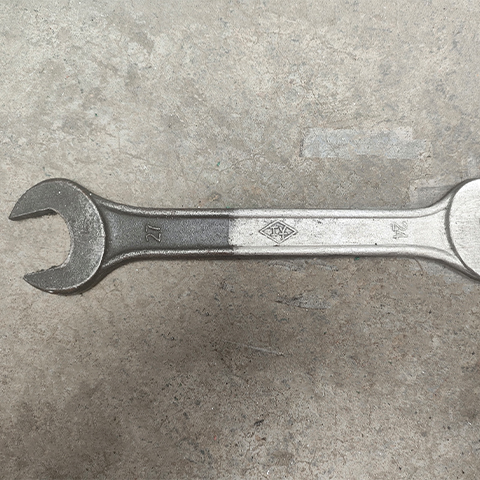

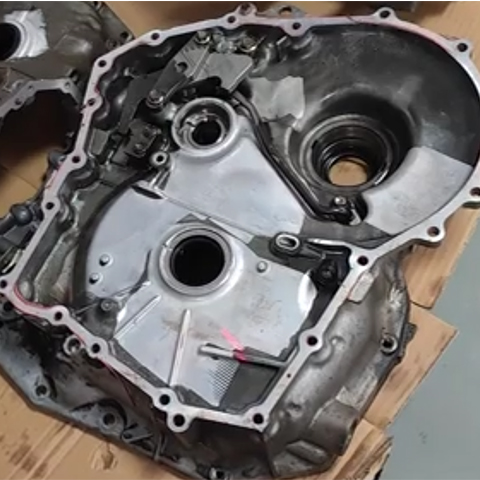

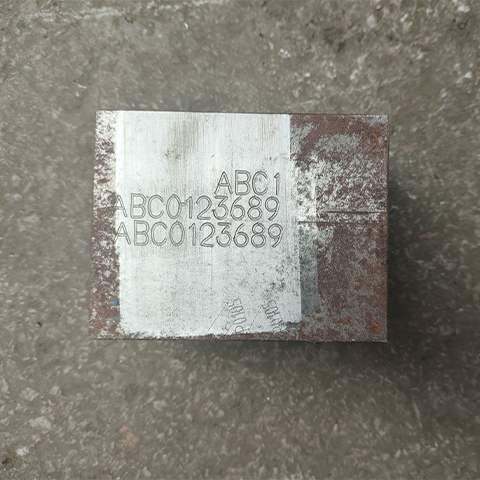

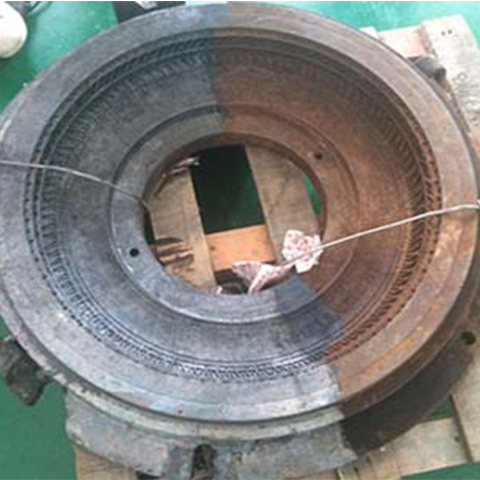

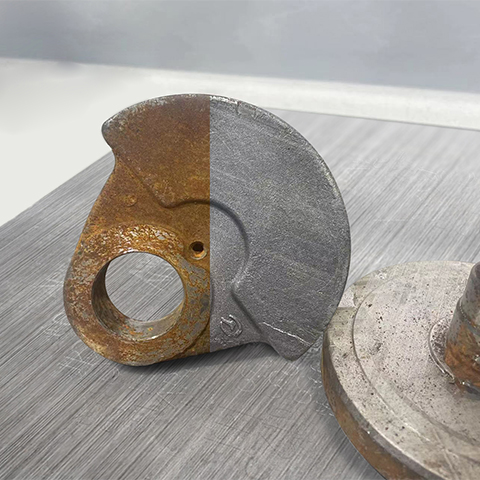

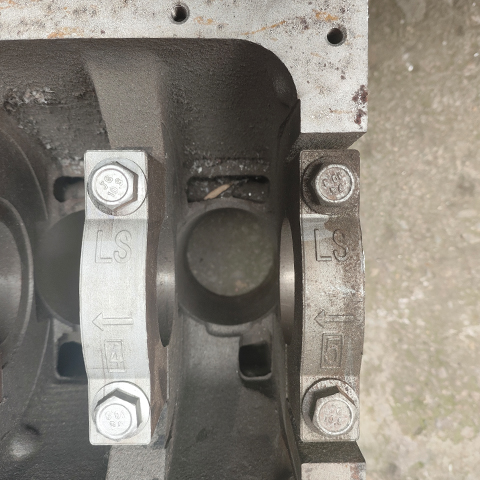

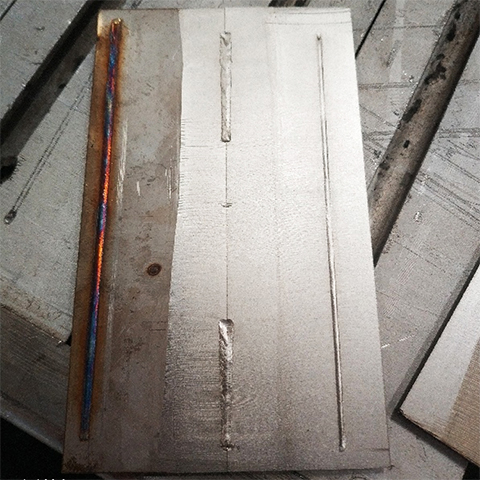

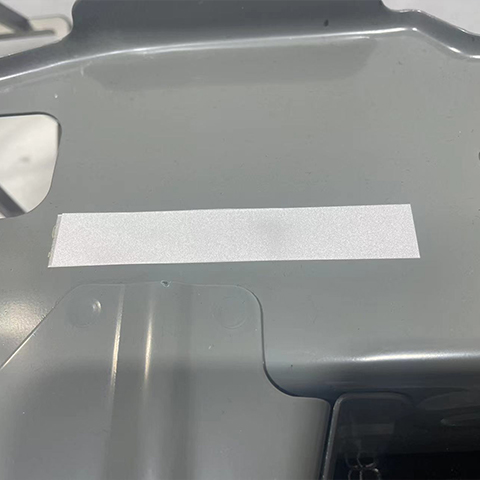

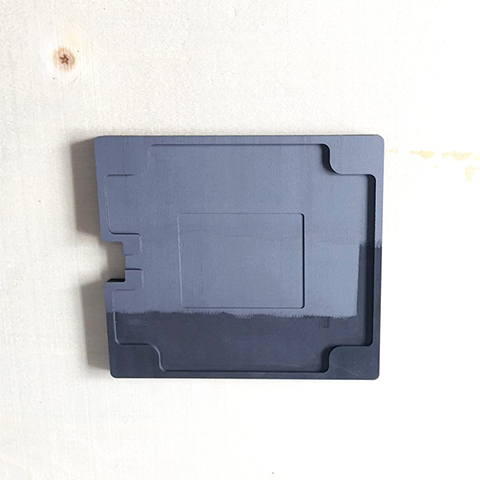

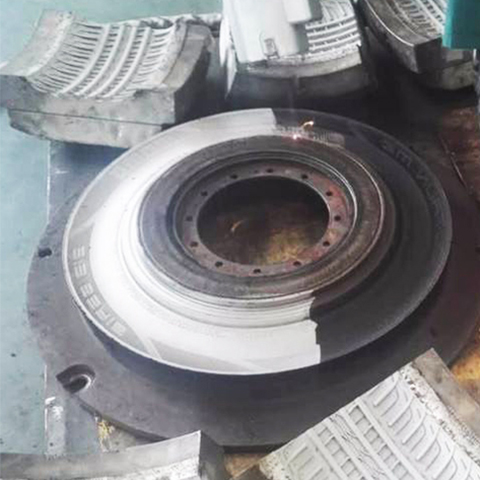

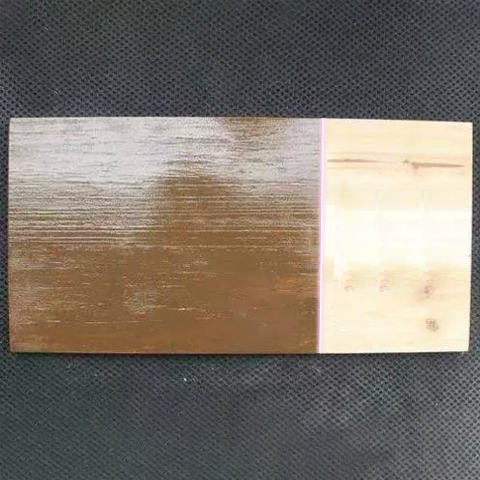

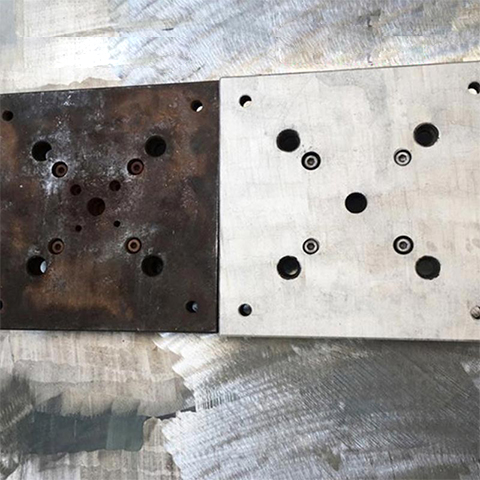

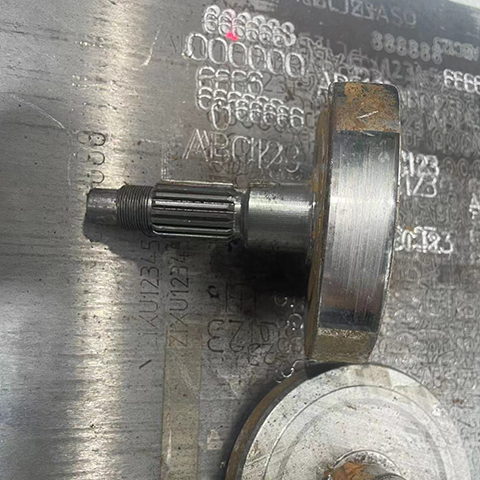

Sample
Specifications
| Laser Brand | JPT or customize | ||
| Laser Power | 300W | 500W | 1000W |
| Energy per Pulse | 15mJ | 15mJ, 50mJ | 15mJ, 50mJ, 100mJ |
| Pulse Width | 30 ~ 500ns | ||
| Pulse Repetition Rate Range | 10 ~ 400kHz | ||
| Work Area | 150 * 150mm or customize | ||
| Cooling Method | Water cooling | ||
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz | ||
| Operation Temperature: | 0 ~ 40℃ or 32 ~ 104℉ | ||
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ | ||
| Relative Humidity: | 10 ~ 80%, no condensation | ||
| N.W. | 130kg | 132kg | 155kg |
| Dimension | 940 * 490 * 730mm | ||
| G.W. | 160kg | 162kg | 185kg |
| Packaging Dimension | 1100 * 650 * 1000mm | ||
| MOQ | 1 | ||
| Configuration | Price | ||
| 300W / 15mJ | 8800 | ||
| 500W / 15mJ | 16800 | ||
| 500W / 50mJ | 17000 | ||
| 1000W / 50mJ | 35000 | ||
| 1000W / 100mJ | 38000 | ||
