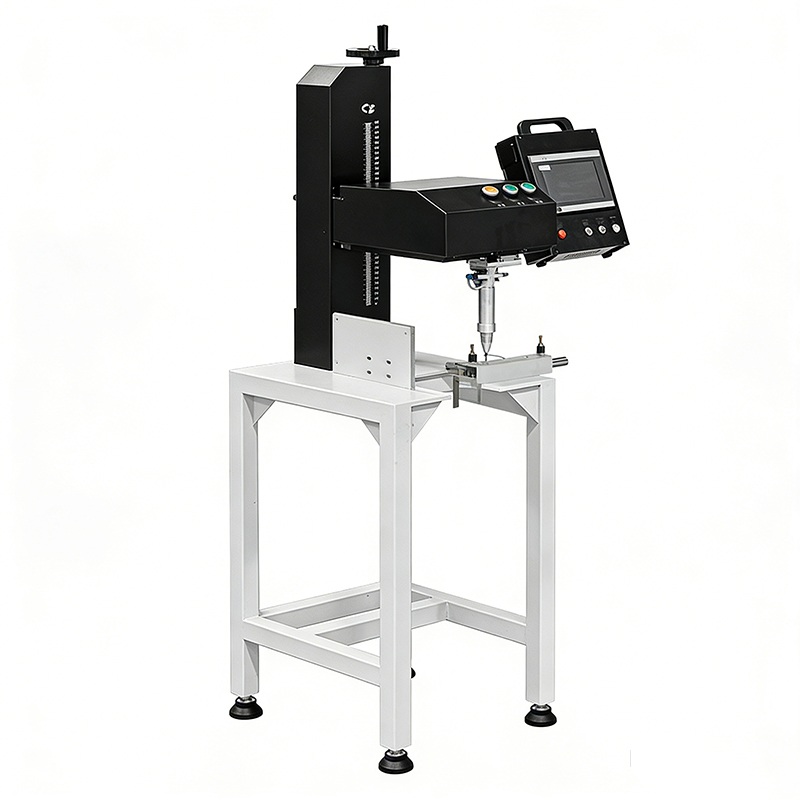

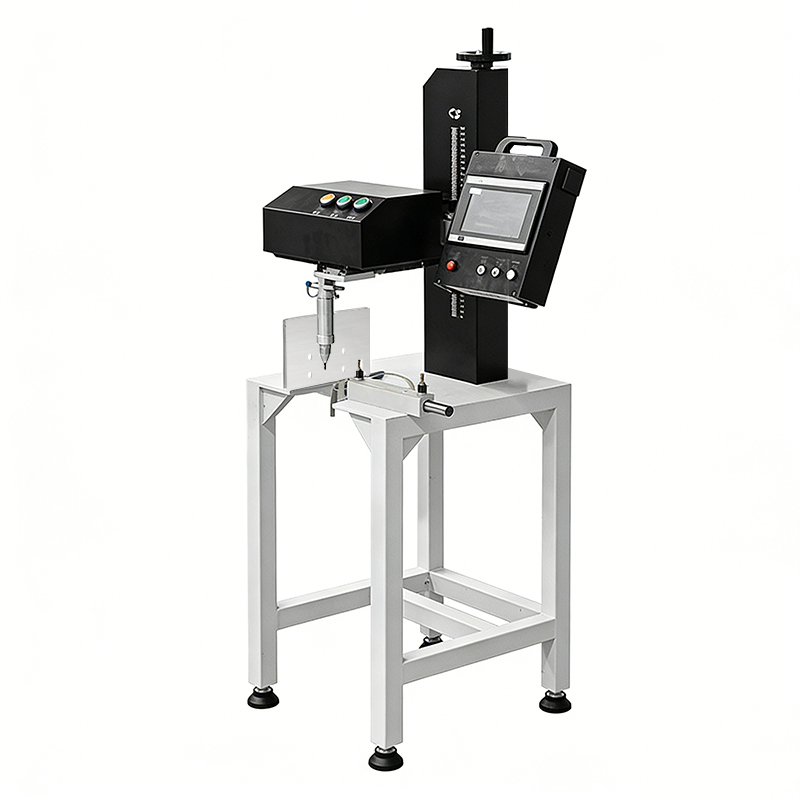

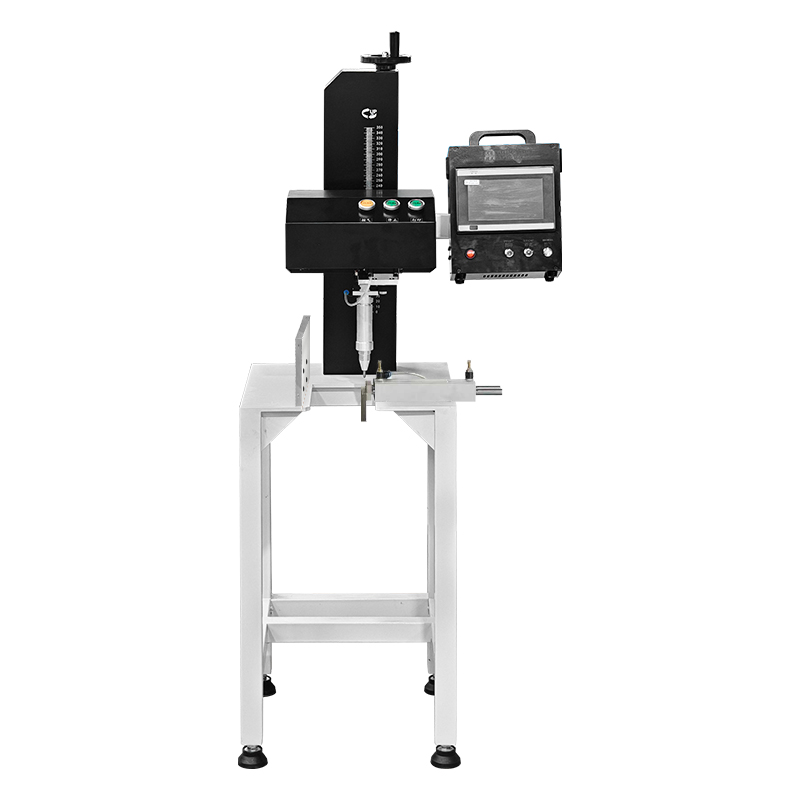

Semi-Automatic Desktop Dot Peen Marking Machine with Cylinder Fixture 140x80mm
This is a lightly customized model based on our basic D01 pneumatic dot matrix marking machine, equipped with a cylinder clamp. It can perform semi-automatic marking of small parts to meet the identification and traceability needs of hardware such as water meters, ball valves, and faucets, as well as products such as wheelchairs and folding chairs in the medical industry. For this type of clamp, we usually only provide a basic limit plate. The customer then creates the tooling fixing part according to the actual product shape and uses Thorx-7 or Thorx-9 software for motion settings to control the marking machine, or uses an additional PLC. When manufacturing the sheet metal cabinet, we will reserve the tooling installation position and screw hole positions according to the customer’s drawings.

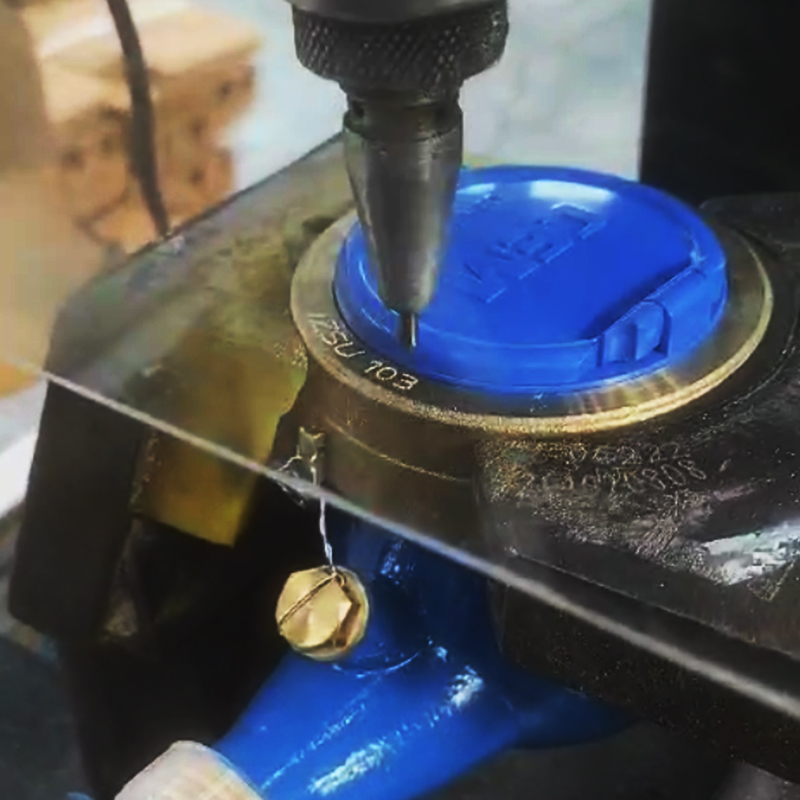

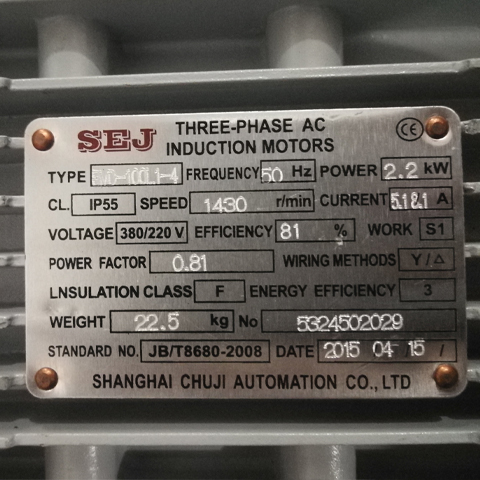

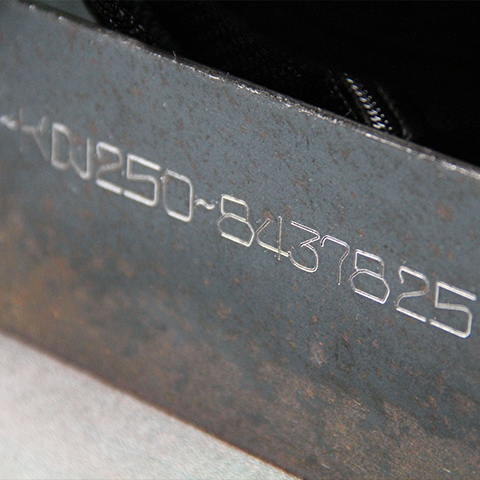

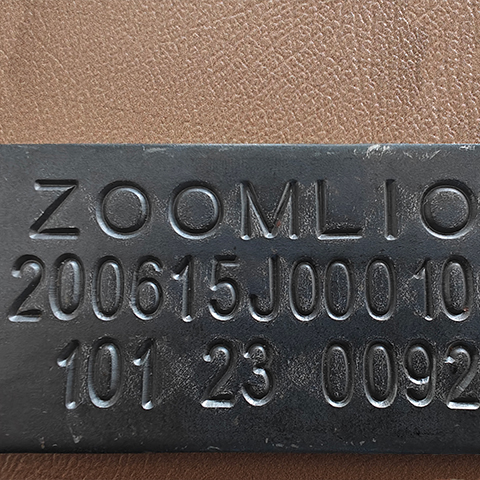

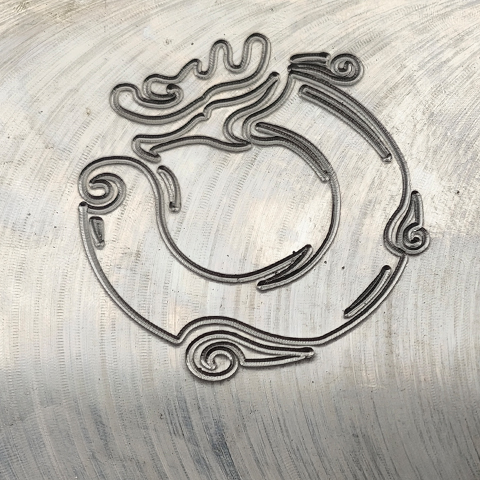

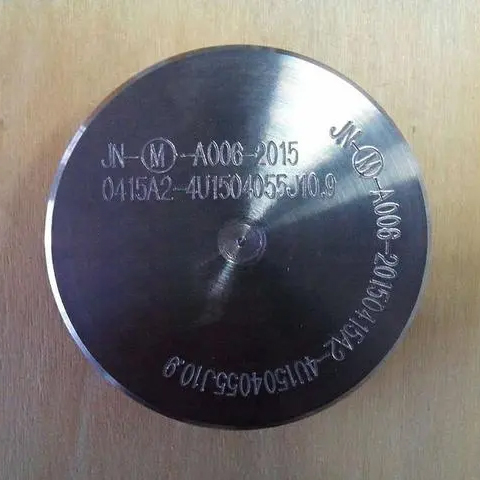

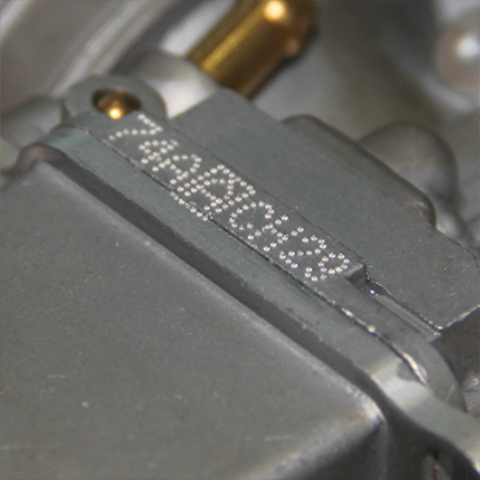

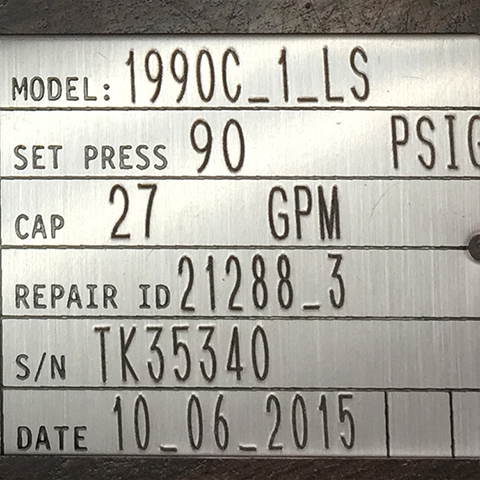

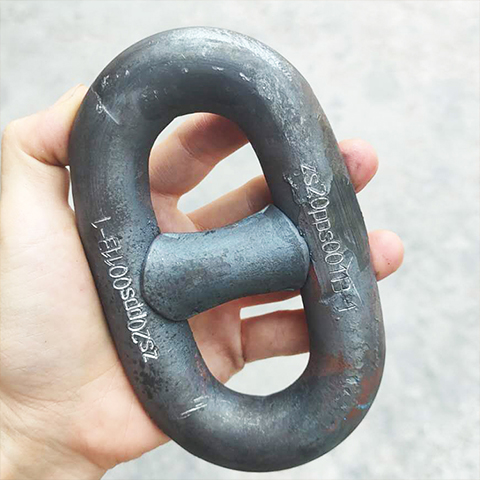

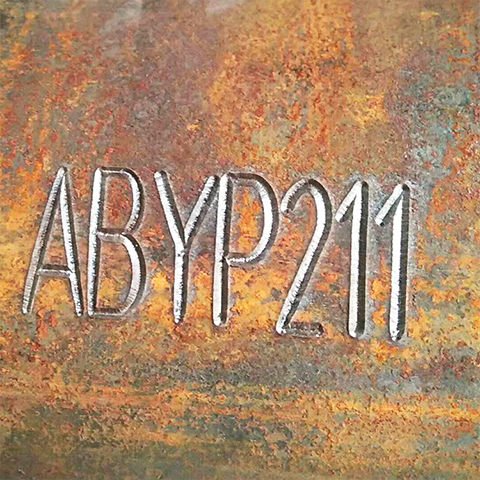

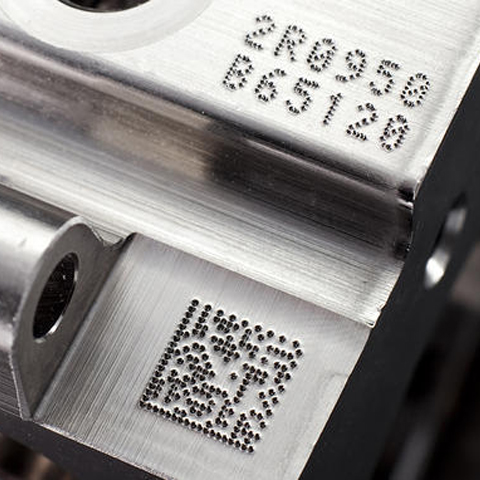

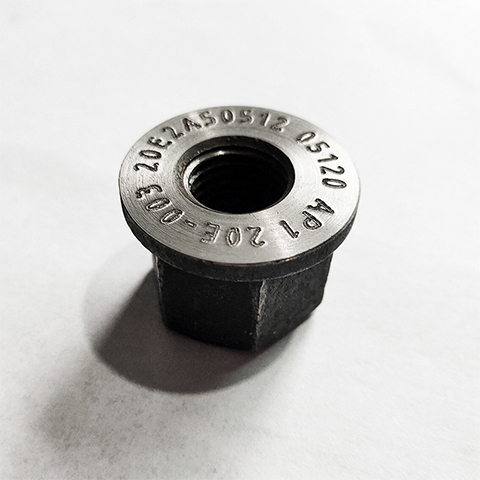

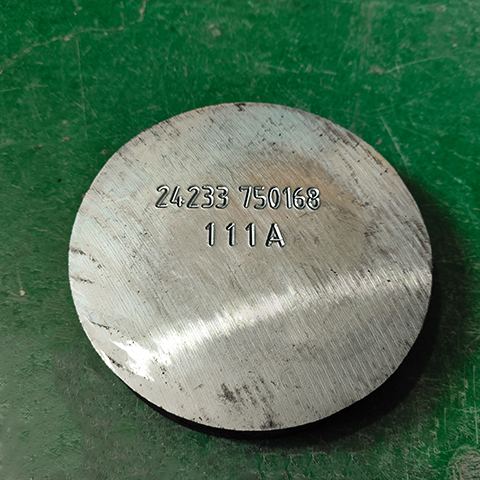

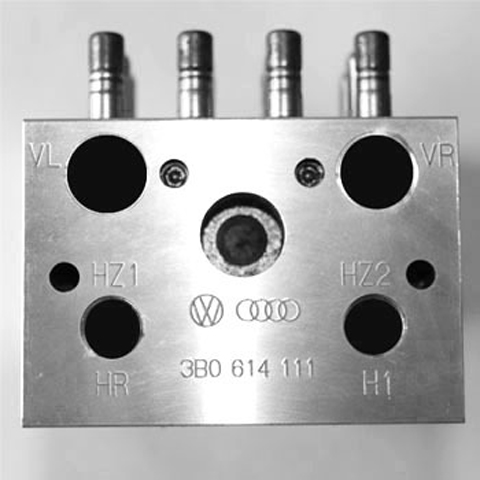

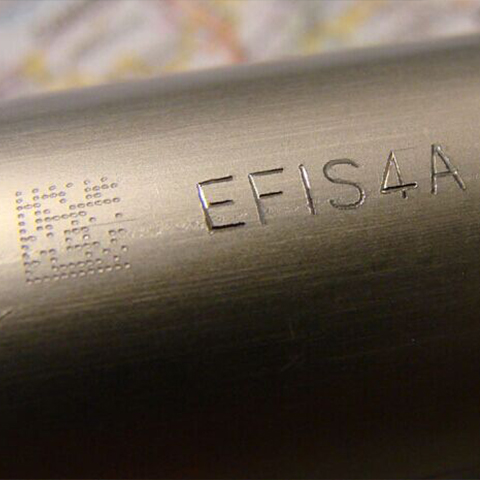

Sample
Specifications
| Marking Type | Pneumatic dotting |
| Marking speed | 2-5 characters (2x2mm)/s |
| Marking depth | 0.01 ~ 1.2mm (Vary to the material) |
| Marking contents | English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc. |
| Stylus Pin Hardness | HRA93 |
| Marking area | 140mm * 80mm |
| Marking materials | Below HRC60 metallic and nonmetallic materials |
| Repeat accuracy | 0.02 ~ 0.04mm |
| Rated Power | 300W |
| Power Input | AC 110V 60HZ or AC220V 50HZ |
| Control Software | Thorx-6、Thorx-7 or Kingmark-8 |
| Controller | 7” or 10.1” touchscreen controller |
| Dimensions | 400 * 400 * 1380mm |
| N.W. | 65kg |
| Package Dimensions | 600 * 550 * 1650mm |
| G.W. | 92kg |
