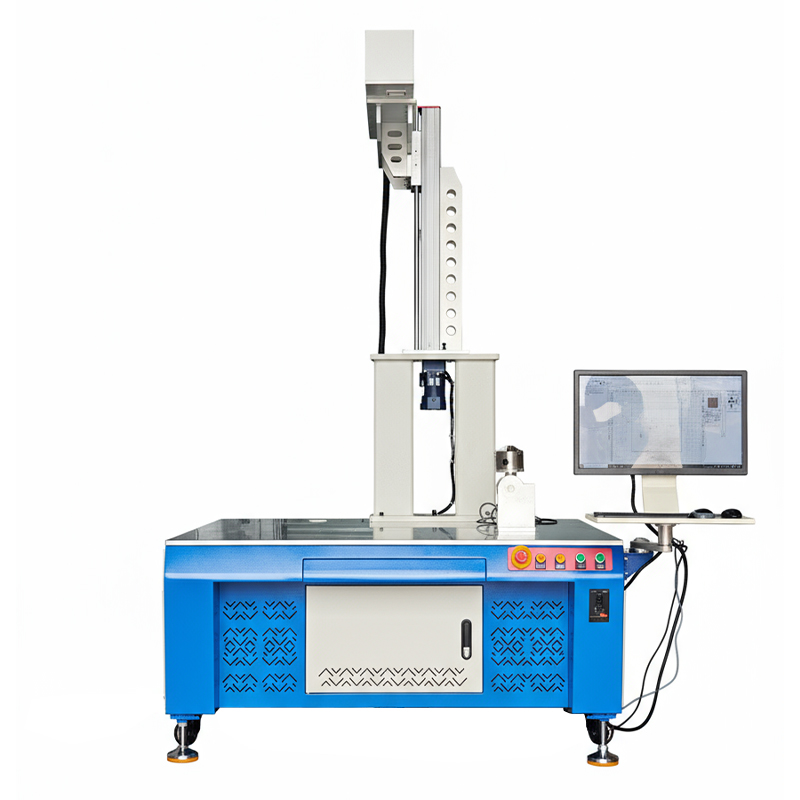

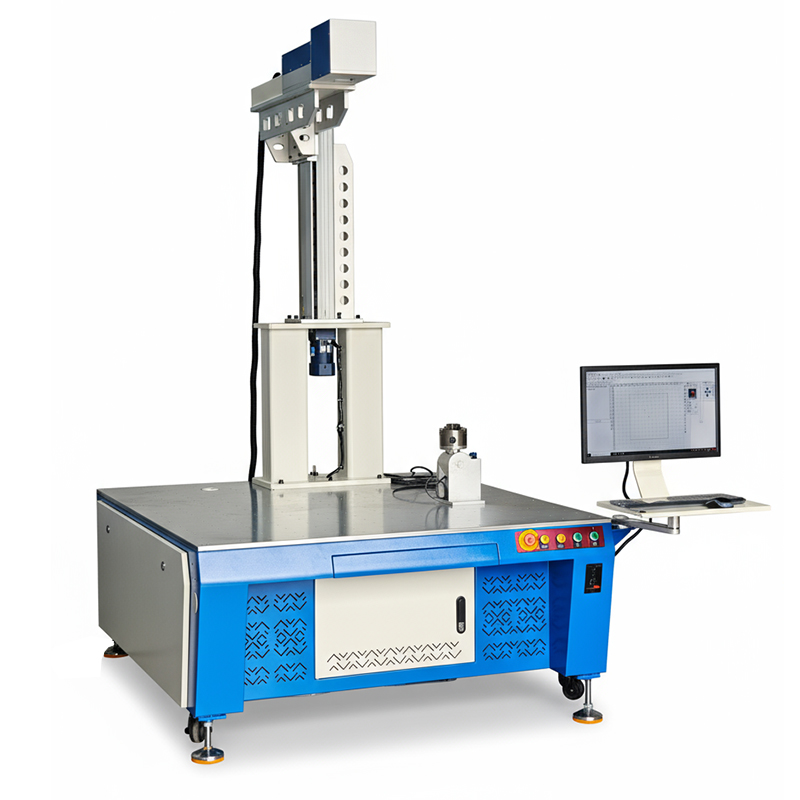

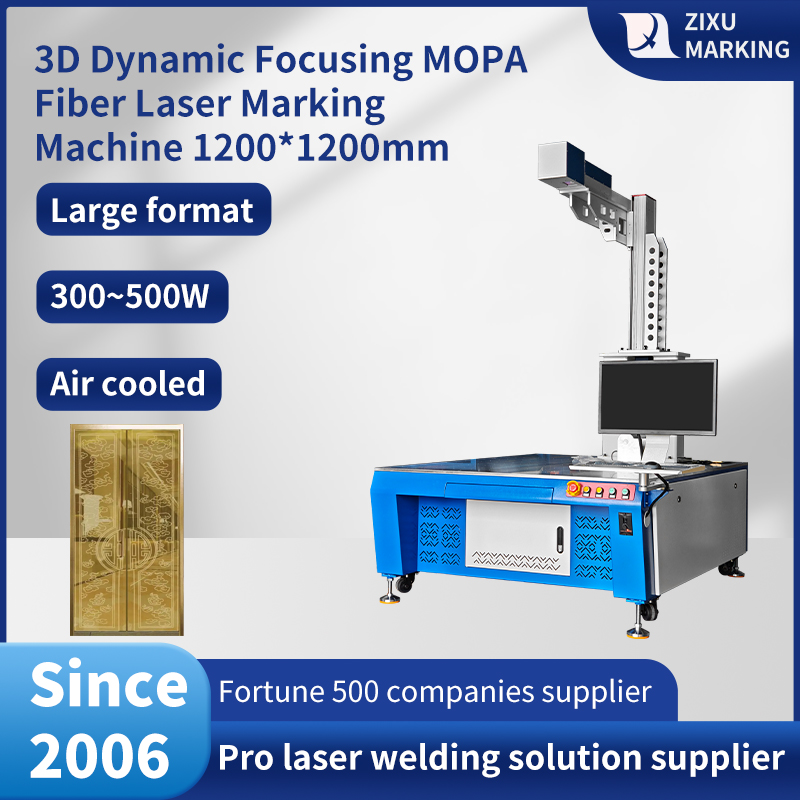

Large Format 3D Galvo MOPA Fiber Laser Marking Machine
This large-format 3D fiber laser marking machine features a 1200*1200mm marking area and utilizes a custom-designed cabinet, enabling it to perform color marking and deep engraving on large-format steel workpieces. It is also suitable for some stone materials, and is particularly well-suited for intricate customization on metal curtain walls, elevator facades, entrance stones, and tombstones. While such systems typically use higher-power lasers due to the energy reduction caused by the longer focal length, the consistent energy intensity across all focal planes achieved by the pre-focusing 3D scanning galvanometer still allows for marking or engraving effects that surpass those of conventional fiber optic or MOPA systems with a moving module.

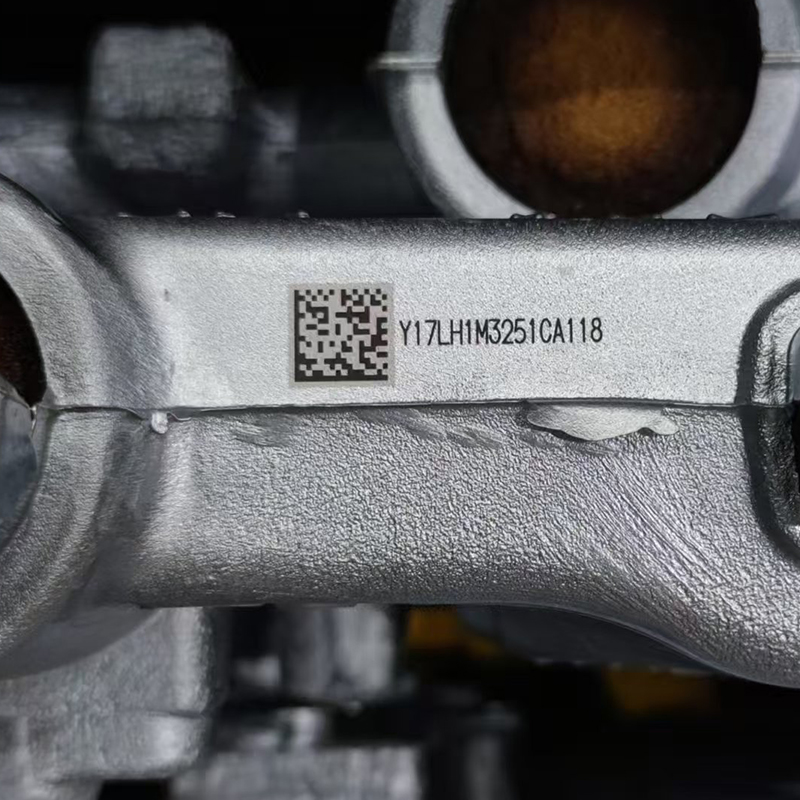

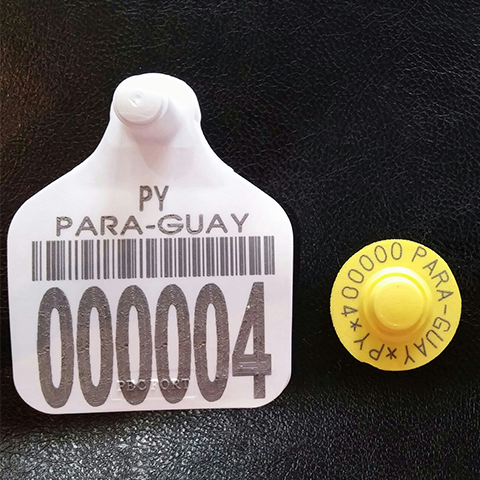

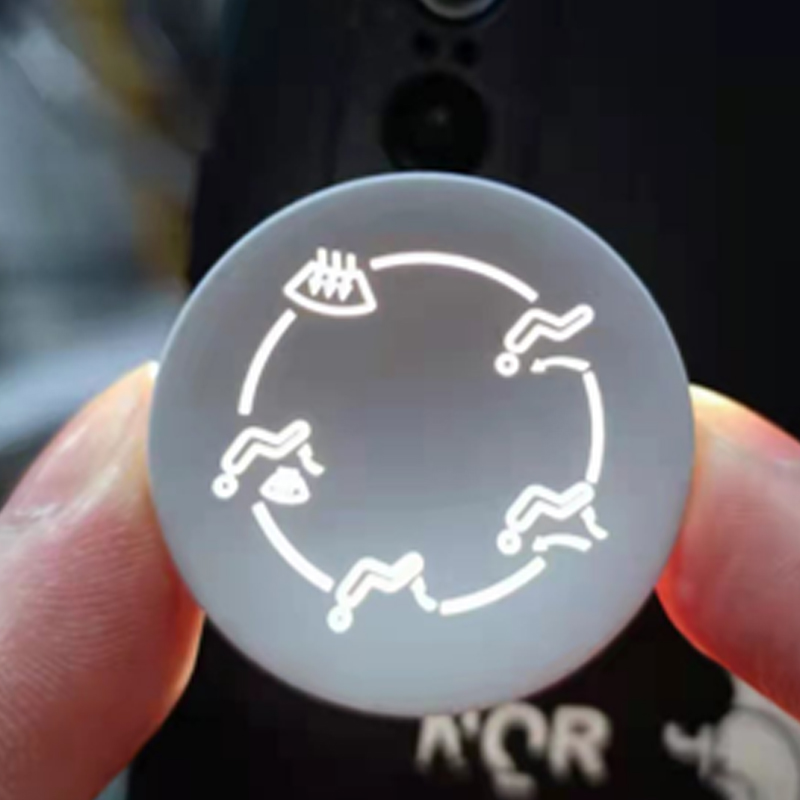

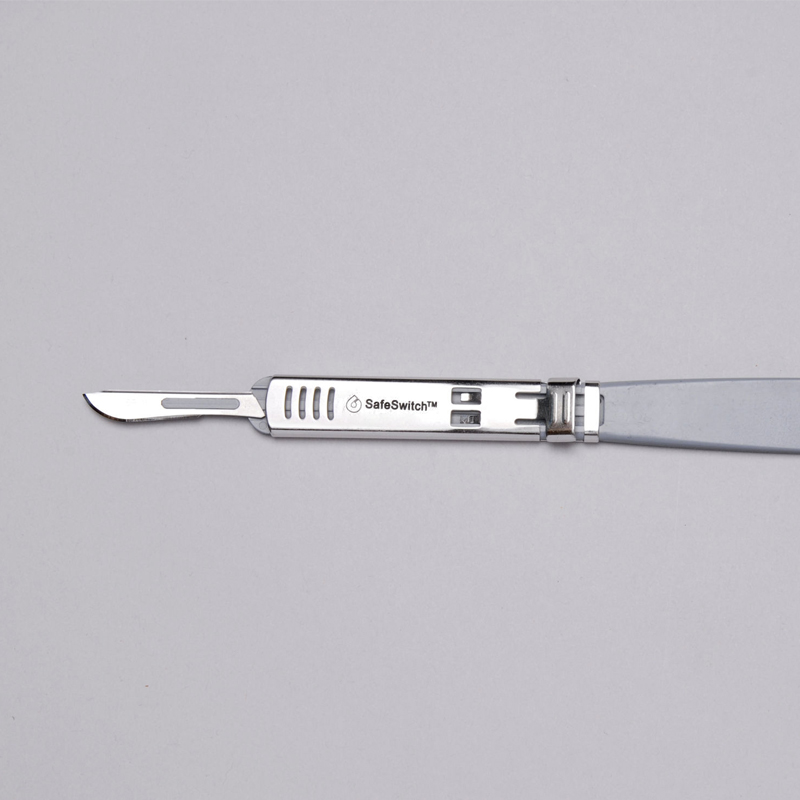

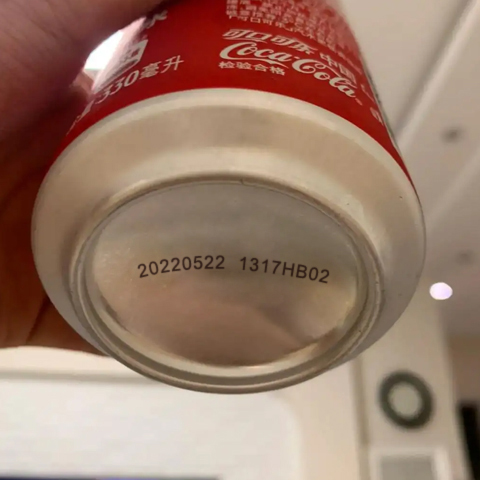

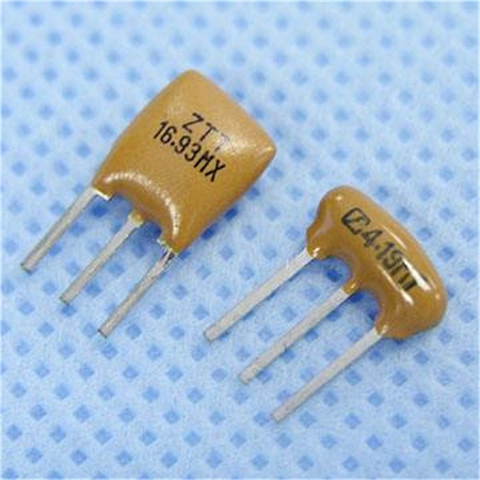

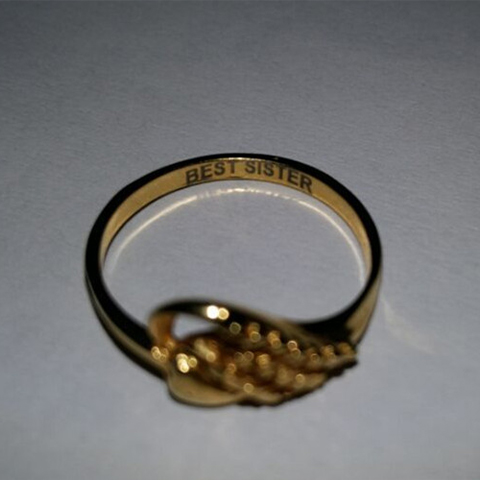

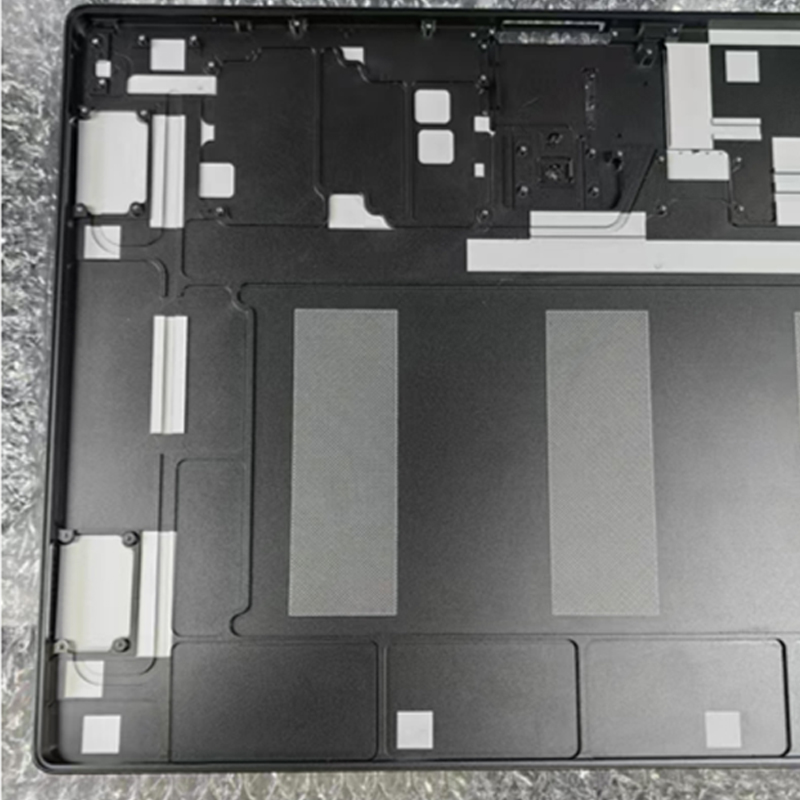

Sample
Specifications
| Laser Type | MOPA Fiber |
| Laser Brand | IPG, JPT, MAX, GZTech, RAYCUS or customize |
| Laser Power | 300W~500W |
| Work Area | 1200 * 1200mm or customize |
| Laser Wavelength | 1070 ± 10nm |
| Laser Lifespan | ≥ 100,000hrs |
| Cooling Method | Air cooling |
| Power Input | 360 ~ 440VAC @ 50 / 60 Hz |
| Operation Temperature: | 10 ~ 40℃ or 50 ~ 104℉ |
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ |
| Relative Humidity: | 5 ~ 75%, no condensation |
| Dimension | 1730 * 1440 * 2200mm |
| N.W. | 1600kg |
| Packaged Dimension | 1950 * 1600 * 2400mm |
| G.W. | 1750kg |
