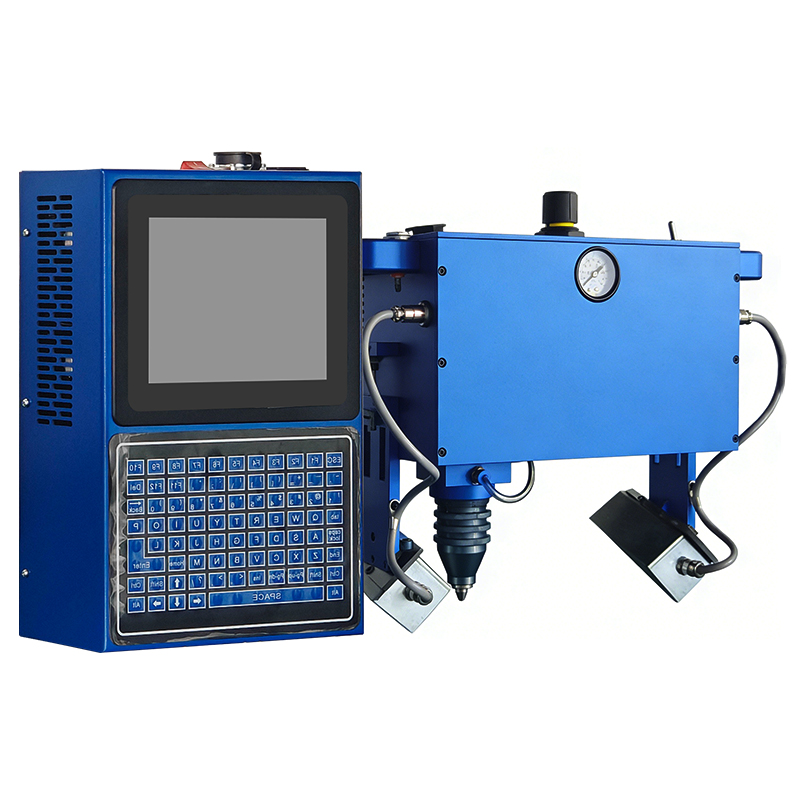

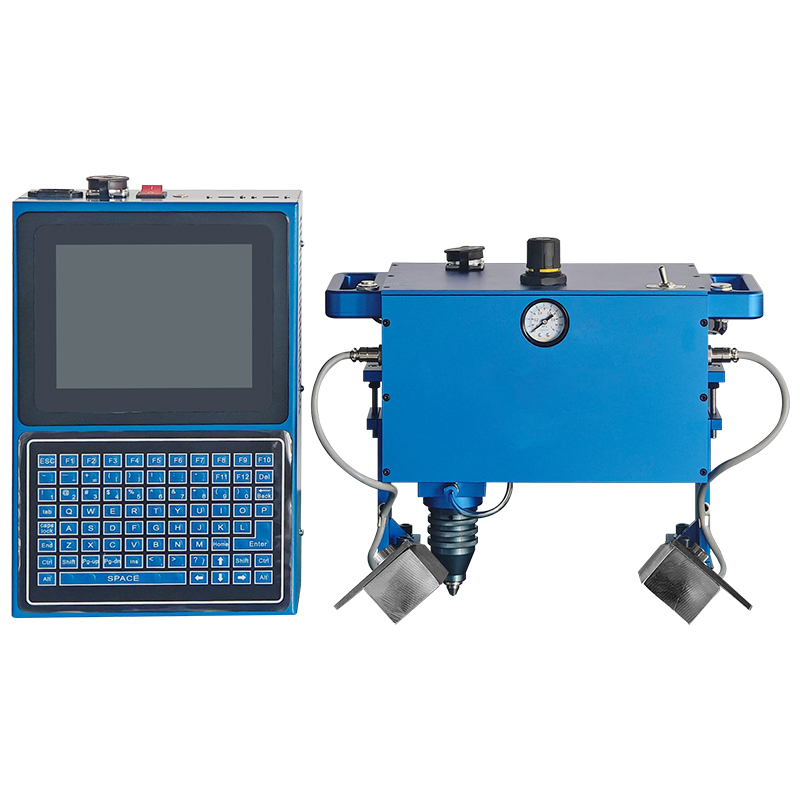

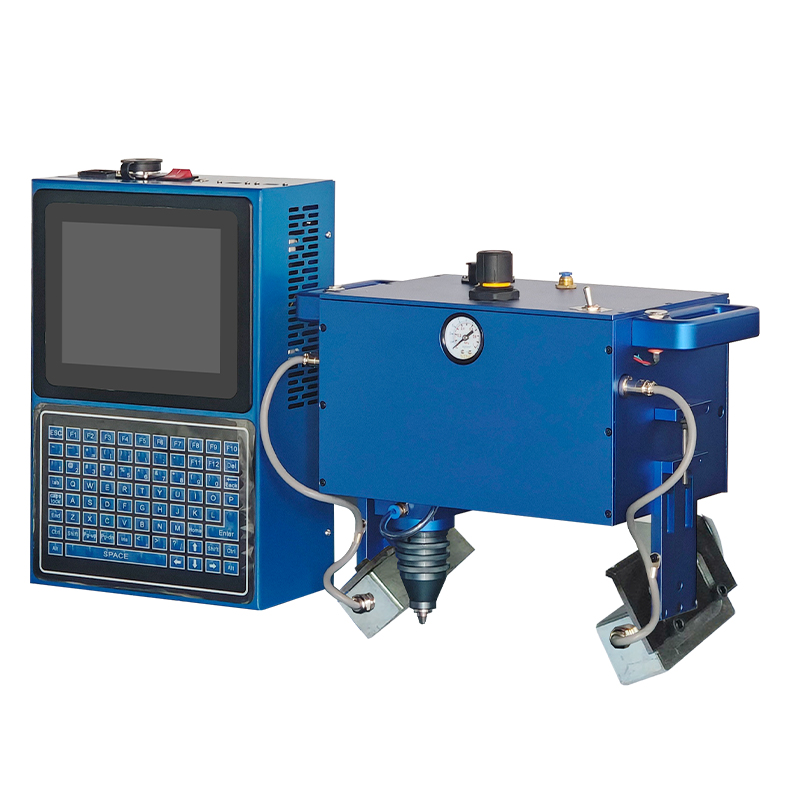

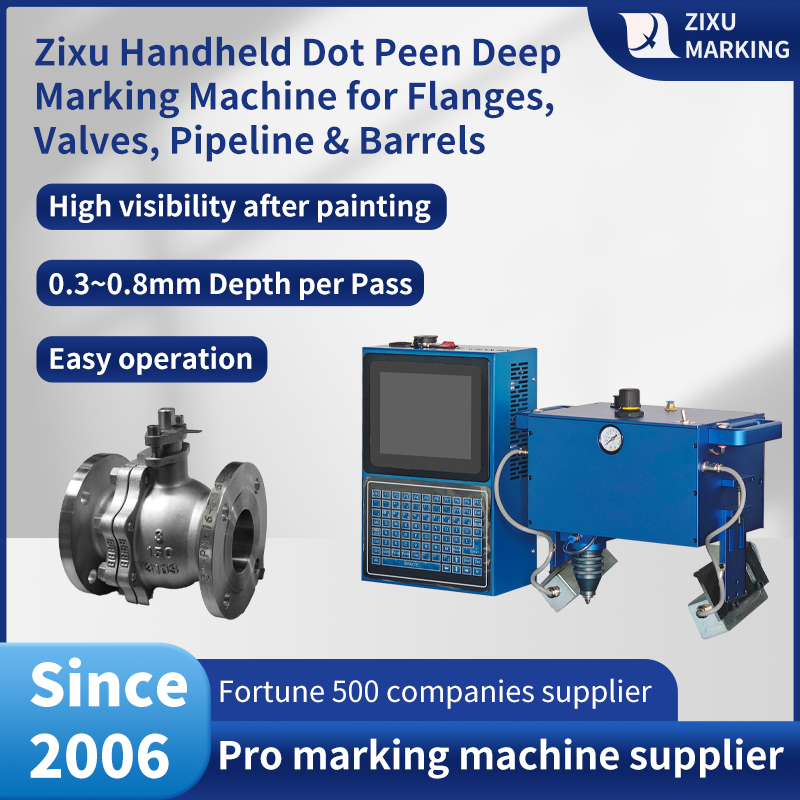

Handheld Flange Deep Dot Peen Marking Machine 150x80mm G03

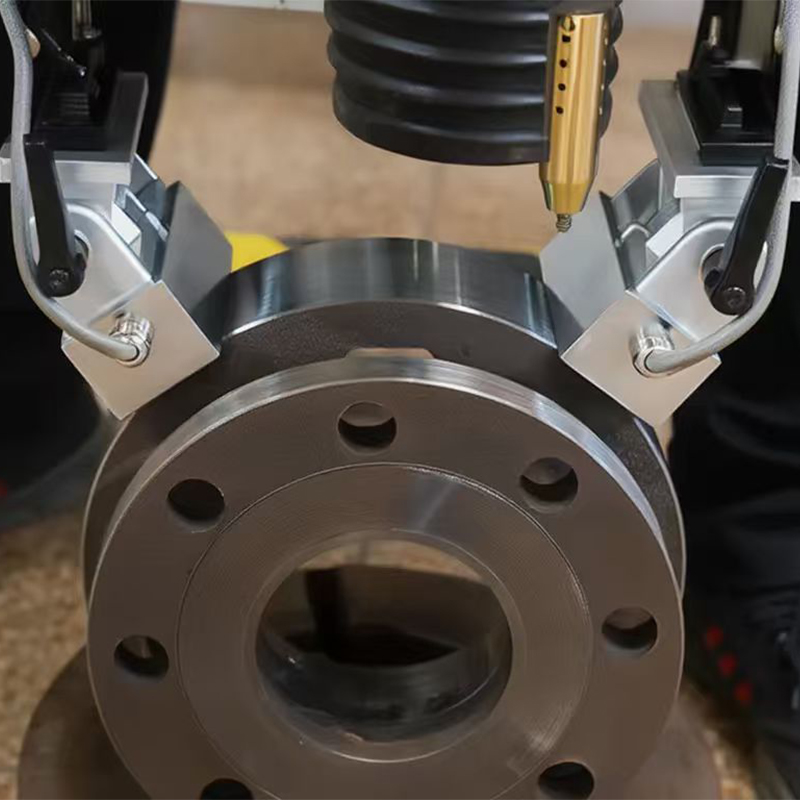

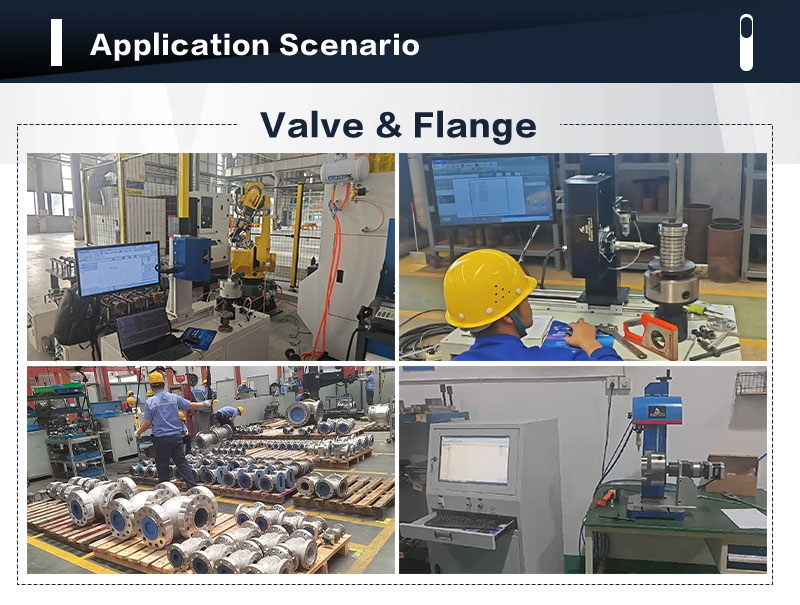

One of our clients, located in Wuxi, Jiangsu, specializing in flange and valve marking equipment, requested a handheld depth marker to supplement their product line. This marker is primarily used to mark installation dates and other information on installed large valve bodies and connecting flanges. To address this, we modified our best-selling G03 model with an adjustable-angle electromagnet fixture. Under air pressure of 0.6~0.8MPa, this machine can achieve a single-stroke marking depth of 0.5~0.8mm on common steel flanges and valve bodies, and a marking depth of 0.7~1.5mm on cast iron, copper, and aluminum materials. Even after re-spraying with anti-rust paint or electroplating, excellent marking visibility is maintained.

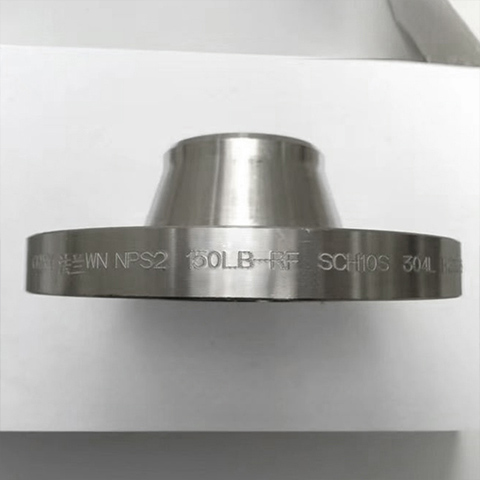

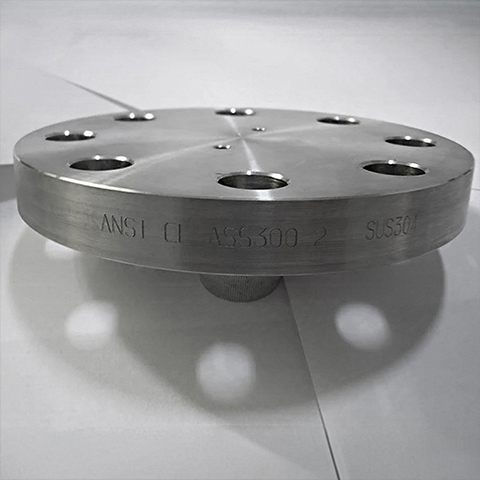

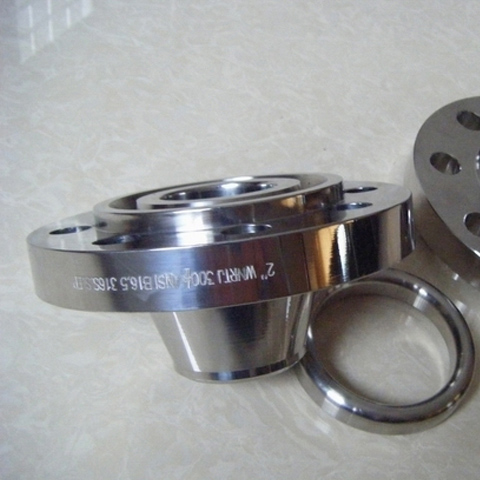

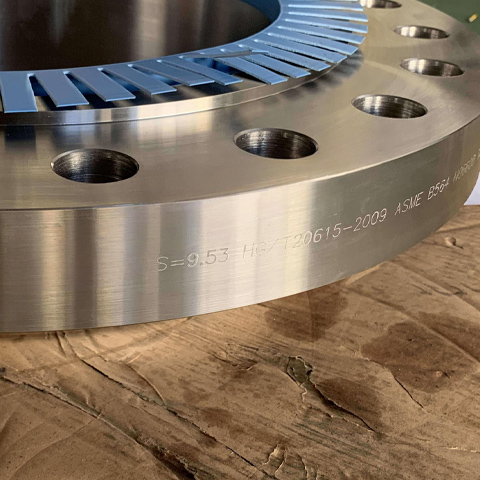

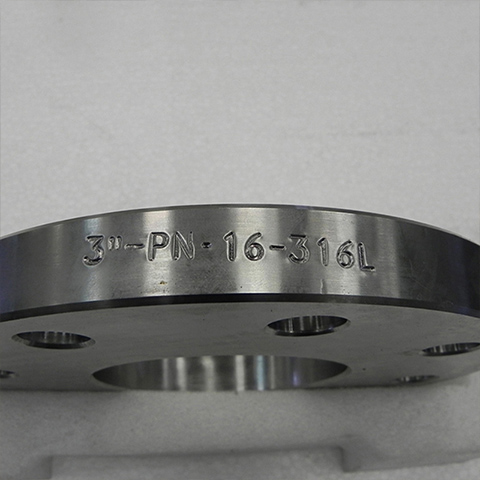

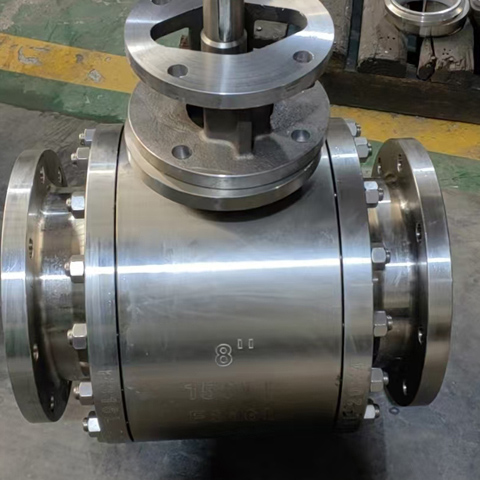

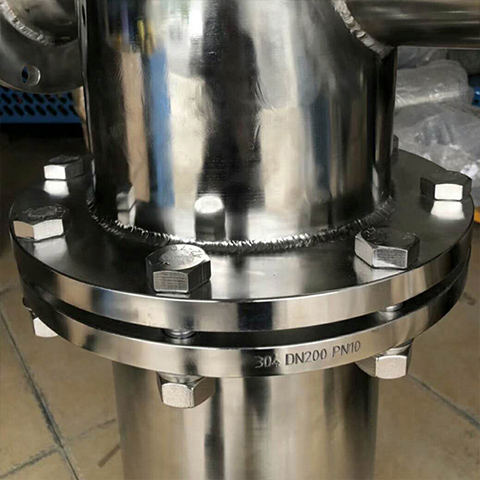

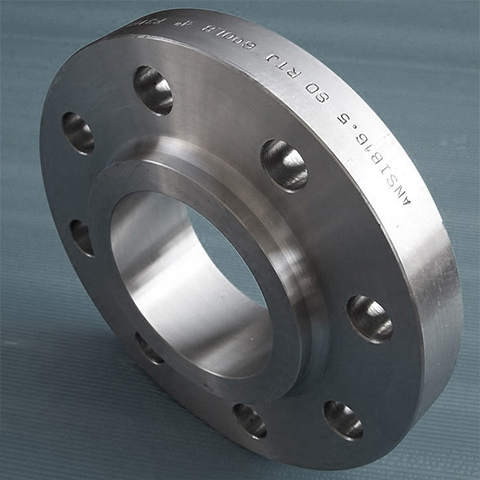

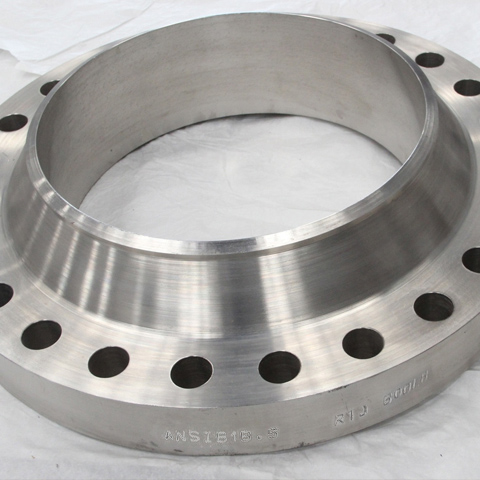

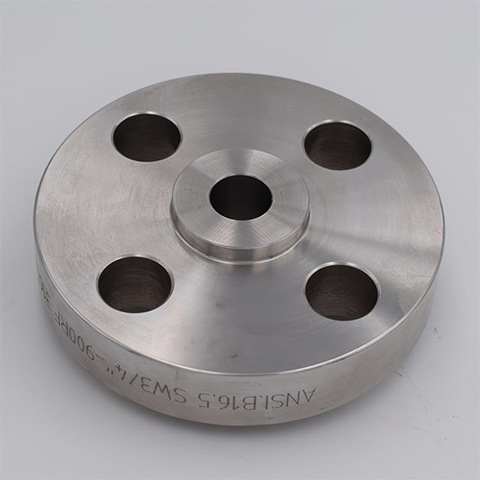

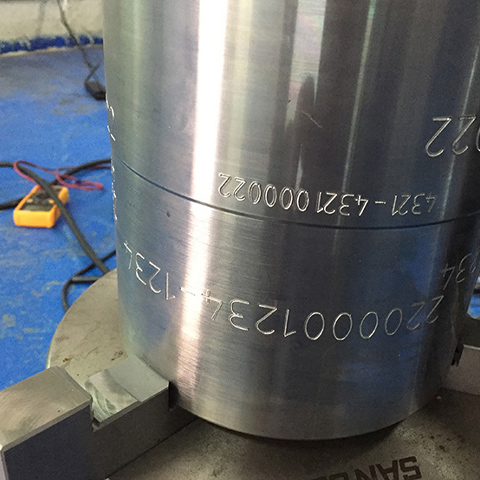

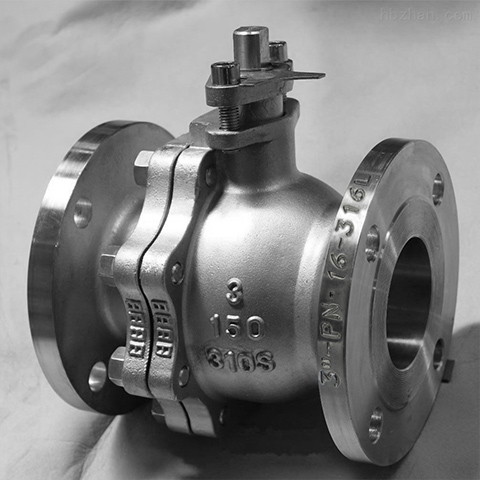

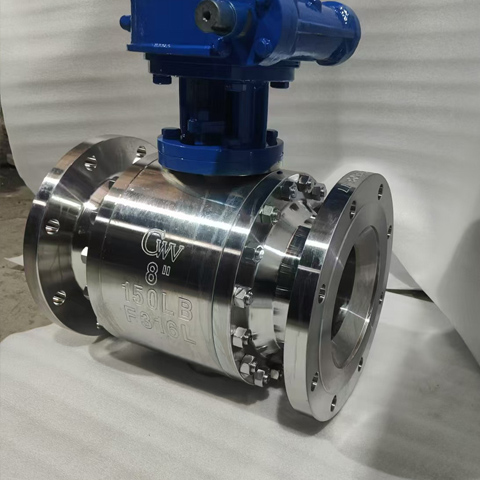

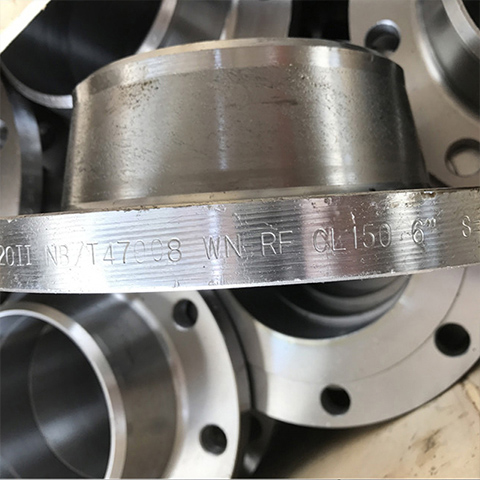

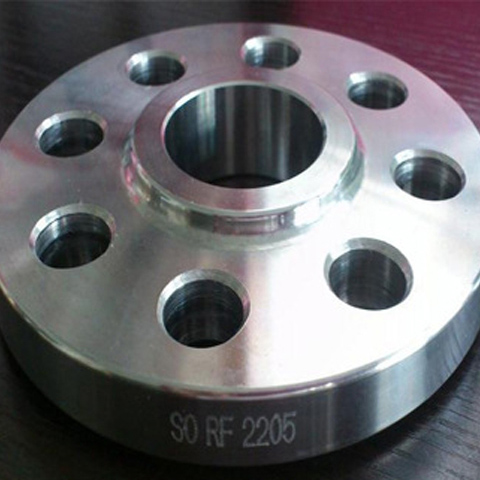

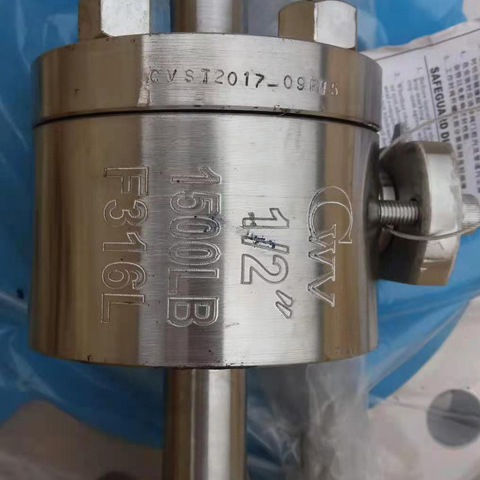

Sample
Specifications
| Marking Type | Pneumatic dotting |
| Marking speed | 2-5 characters (2x2mm)/s |
| Marking depth | 0.5 ~ 2mm (Vary to the material) |
| Marking contents | English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc. |
| Stylus Pin Hardness | HRA93 |
| Marking area | 150mm * 80mm |
| Marking materials | Below HRC60 metallic and nonmetallic materials |
| Repeat accuracy | 0.02 ~ 0.04mm |
| Rated Power | 300W |
| Power Input | 100 ~ 240VAC @ 50 / 60Hz |
| Control Software | Thorx-6 |
| Controller | 7 inches touchscreen controller |
| Dimensions | 4″390 * 195 * 310mm & 250 * 120 * 370mm” |
| N.W. | 19.5kg |
| Packaged Dimensions | 600 * 440 * 420mm |
| G.W. | 26kg |
