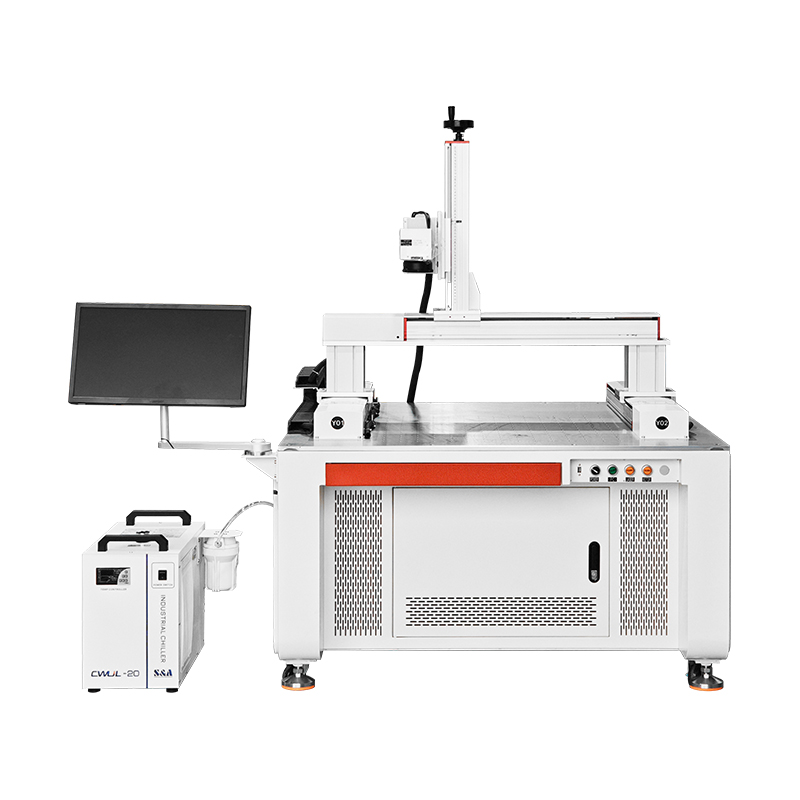

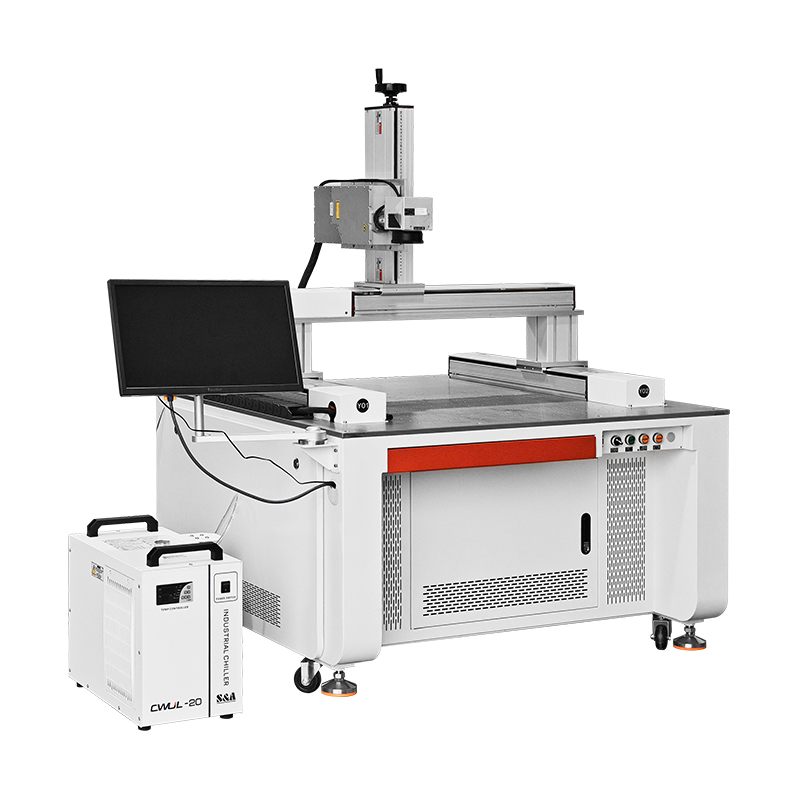

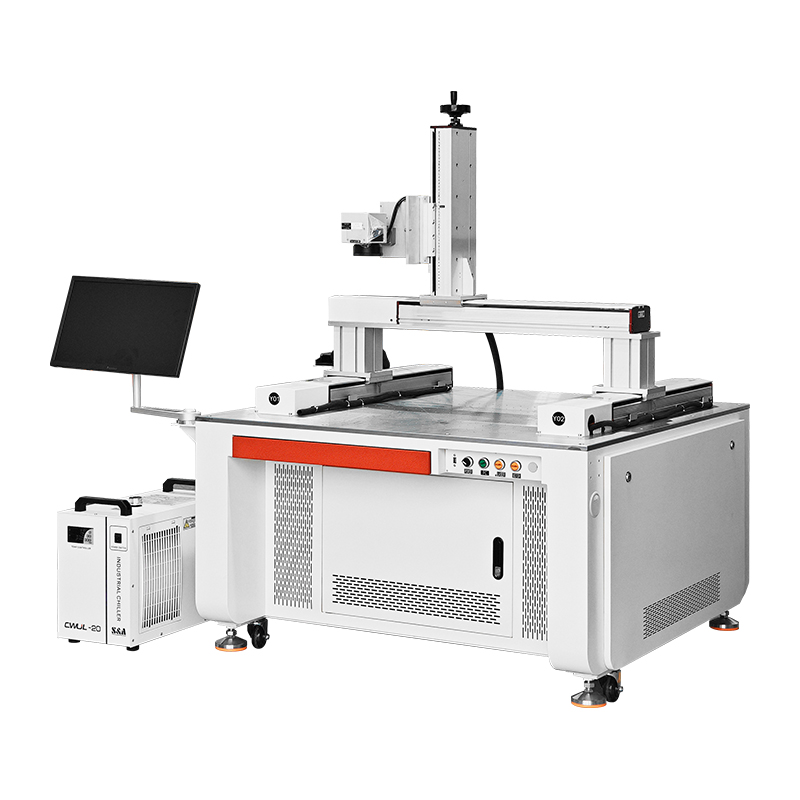

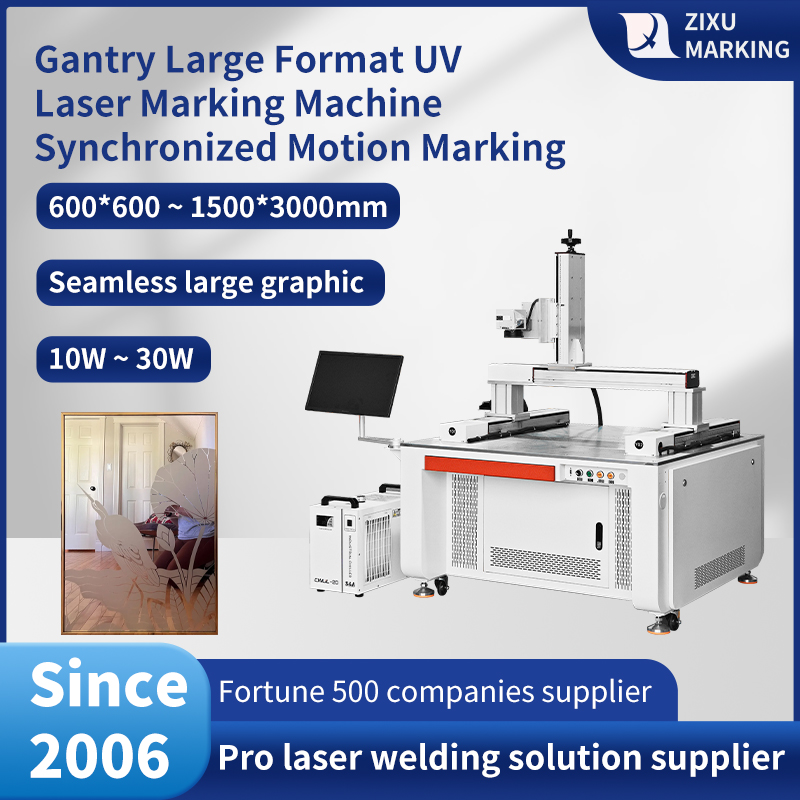

Gantry Large Format UV Laser Marking Machine
This large-format gantry UV laser marking machine has a marking area of 600*600mm. Sold through an intermediary to a prestigious American university renowned for its art and music programs, it features a 20W JPT UV laser, a newer control system, and a matching high-speed servo motor movement module. To reduce vibration and ensure long-term stable support for the large-sized and heavy UV laser, the customer utilized a dual-drive gantry structure. The newer control system enables large-format synchronous motion marking, allowing for seamless marking of large areas within the marking range, making it particularly suitable for marking artistic glass etching and other similar content.

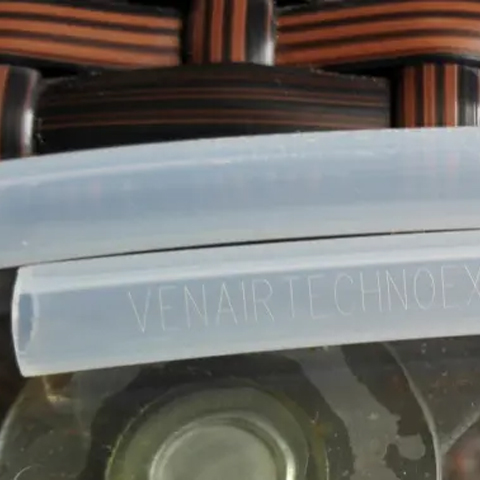

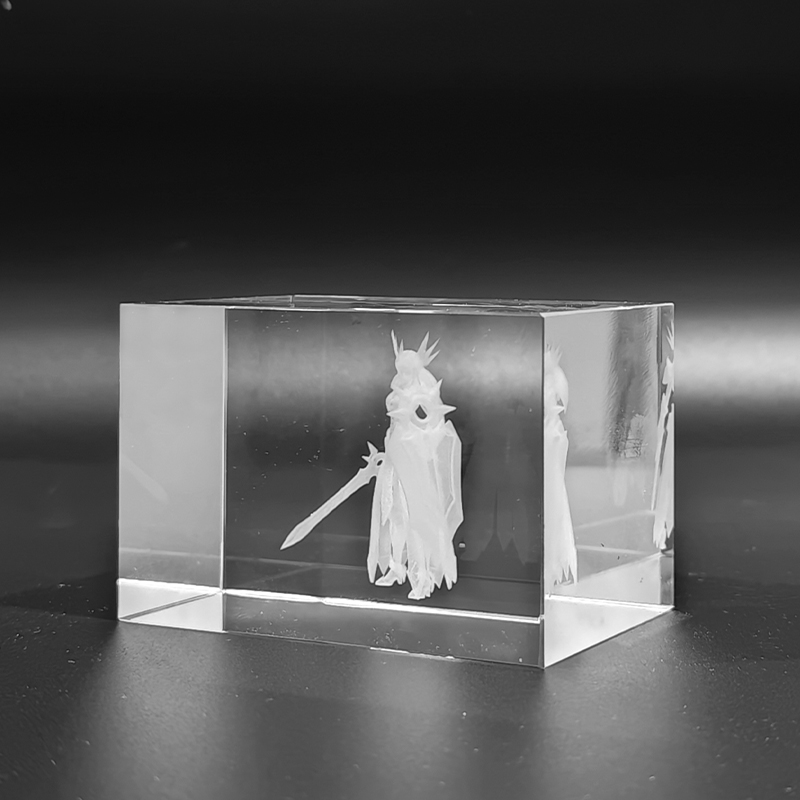

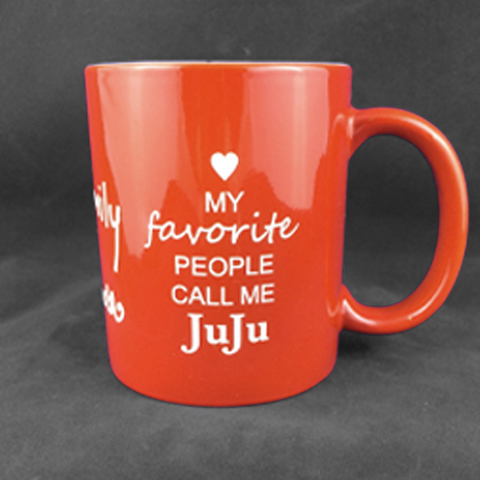

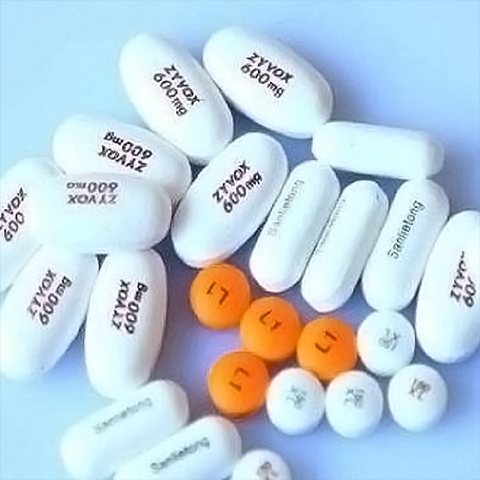

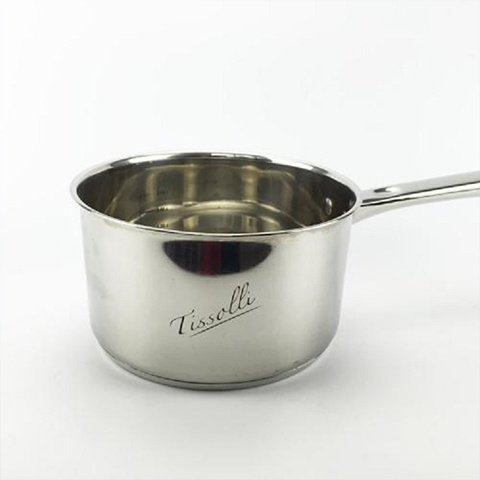

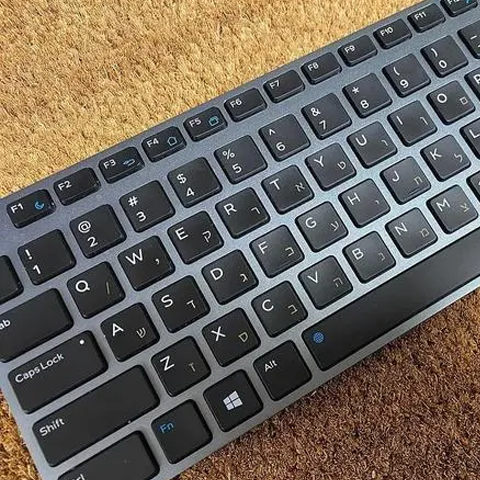

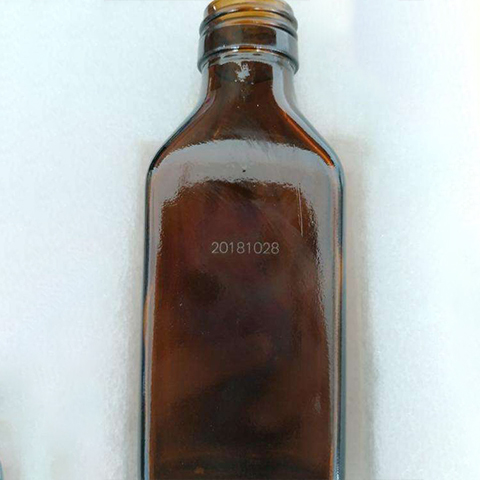

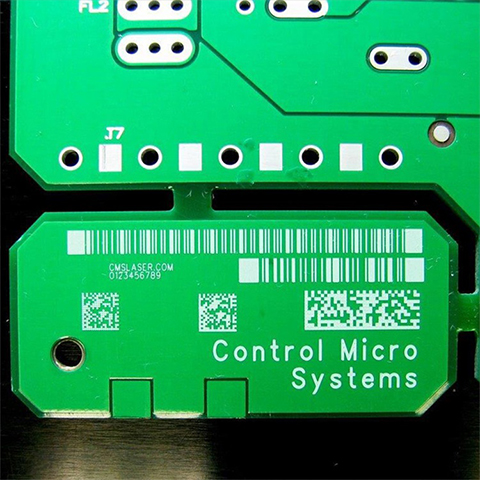

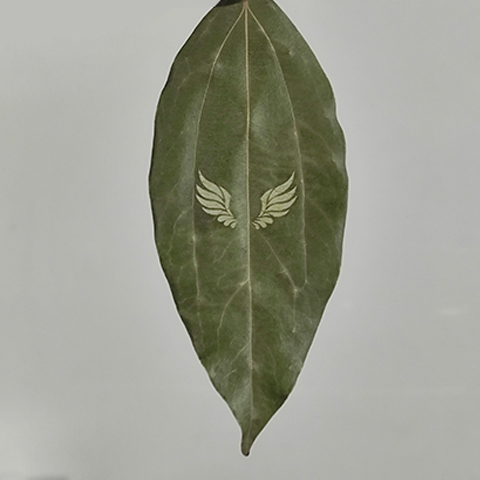

Sample
Specifications
| Laser Type | DPSS UV | |||
| Laser Brand | JPT, GZTech, Huaray or customize | |||
| Laser Power | 10W | 15W | 20W | 30W |
| Work Area | 600 * 600mm or customize | |||
| Laser Wavelength | 355nm | |||
| Laser Lifespan | ≥ 100,000hrs | |||
| Cooling Method | Air cooling | |||
| Power Input | 360 ~ 440VAC @ 50 / 60 Hz | |||
| Operation Temperature: | 10 ~ 40℃ or 50 ~ 104℉ | |||
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ | |||
| Relative Humidity: | 5 ~ 75%, no condensation | |||
| Dimension | 1340 * 1300 * 1780mm & 480 * 280 * 560mm | |||
| N.W. | 1200kg | |||
| Packaged Dimension | 1600 * 1500 * 2030 & 540 * 320 * 660mm | |||
| G.W. | 1250kg | |||
| 10W | 11500 | |||
| 15W | 13750 | |||
| 20W | 15500 | |||
| 30W | 22500 | |||
