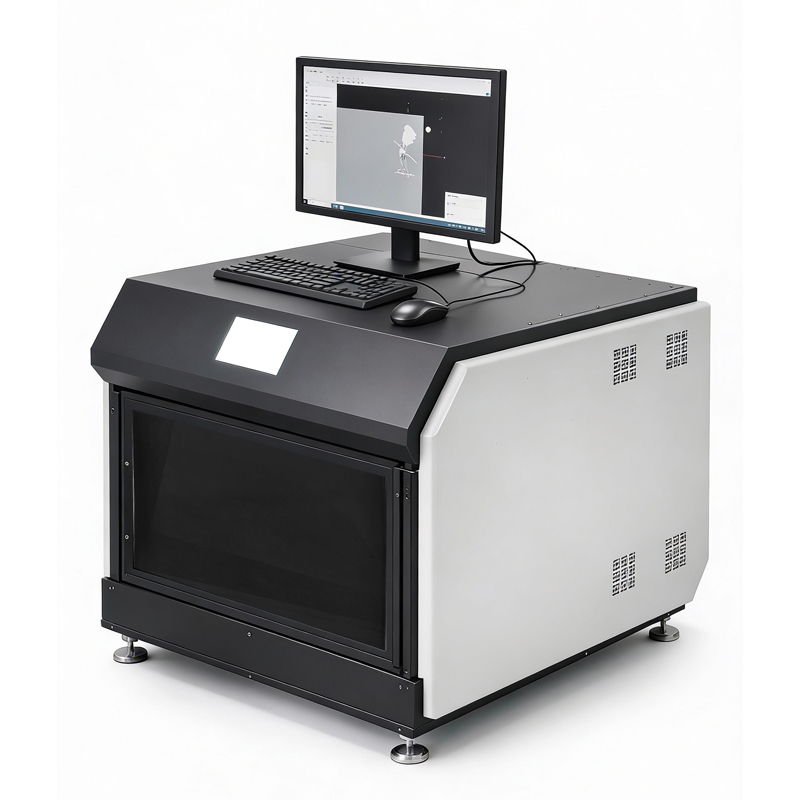

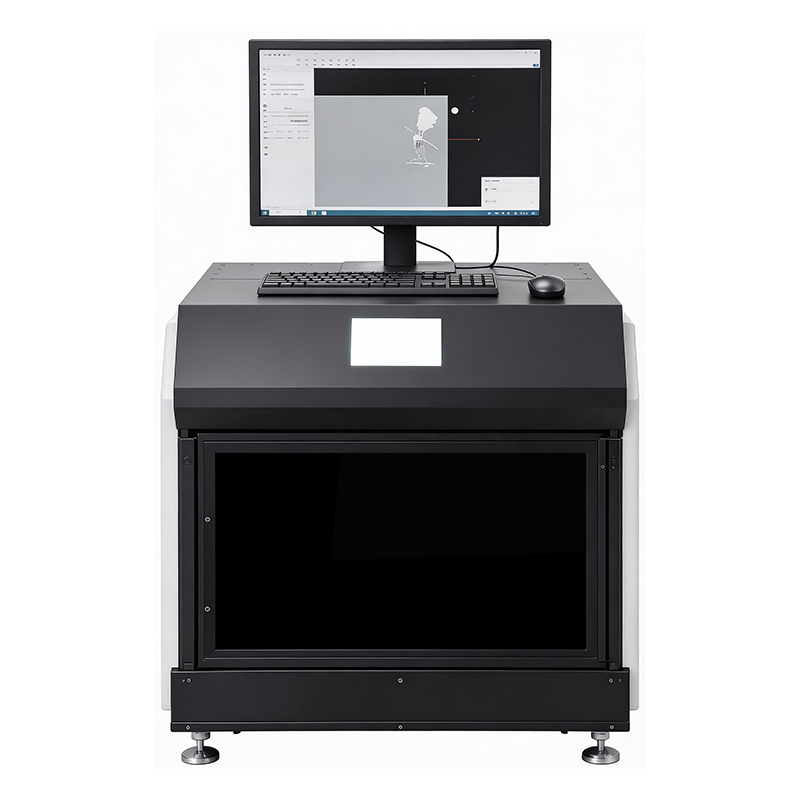

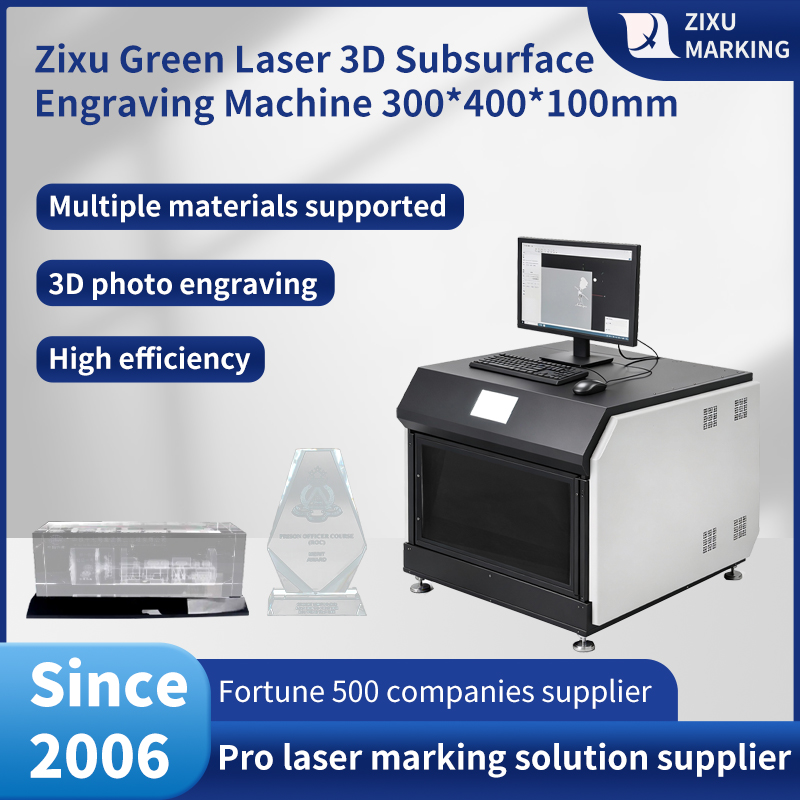

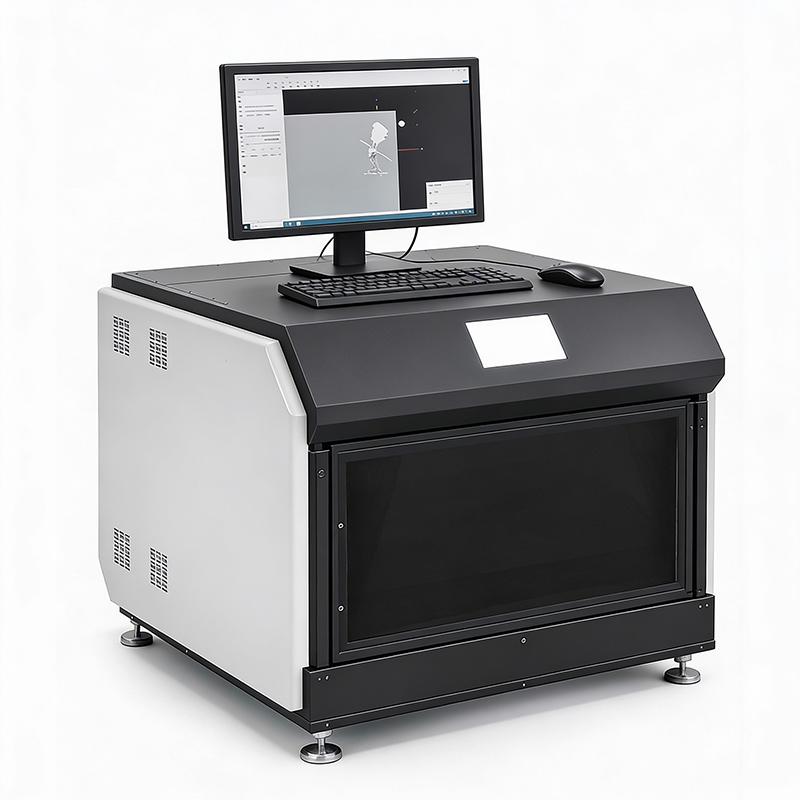

Enclosed Green Laser Subsurface Engraving Machine 300X400X100mm
Product Description: This 5-axis 3D green light engraving machine uses a long-life laser tube combined with five-axis linkage, supporting a workpiece range of up to 300400100mm. It can engrave 2D and 3D content internally on translucent materials such as crystal, glass, acrylic, and PET. Because the engraving is done inside the workpiece, there is no damage to the surface, and the processing produces no pollutants or special odors. It is suitable for processing crystal portraits, trophies, medals, and translucent glass, and is widely used in the advertising industry and souvenir processing.

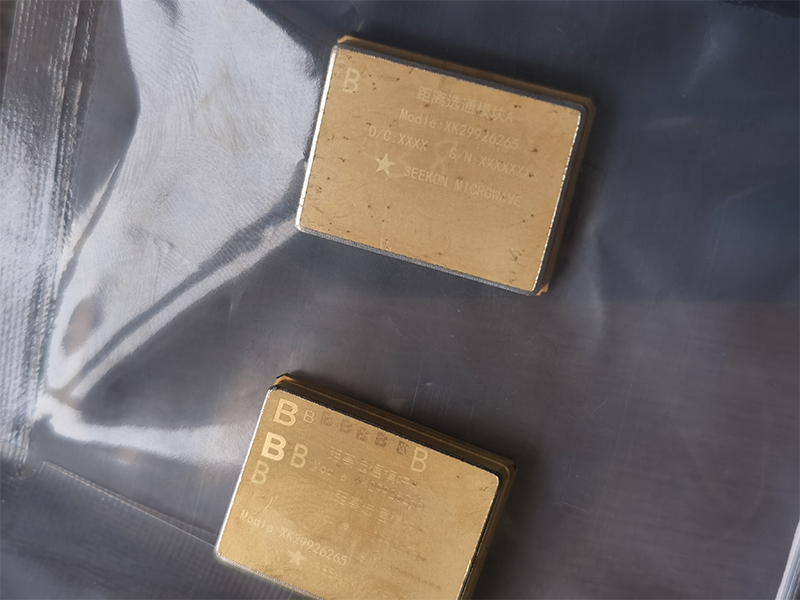

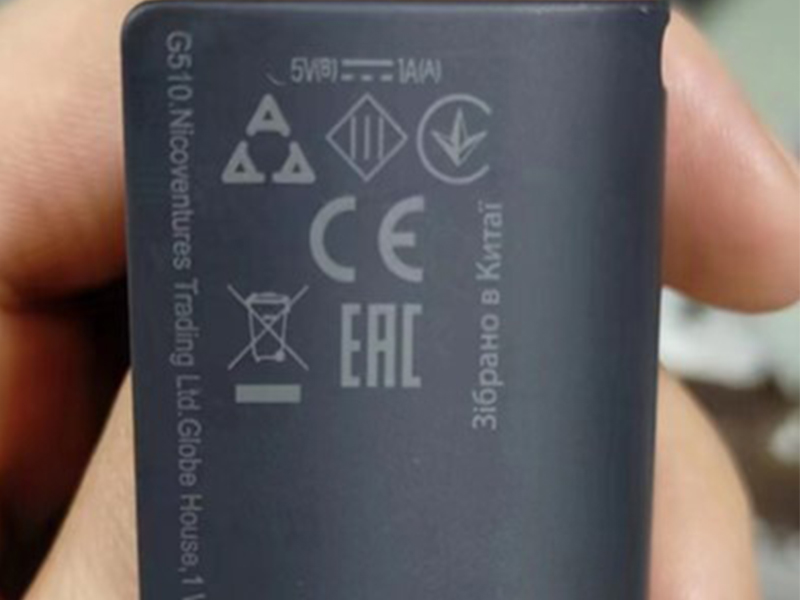

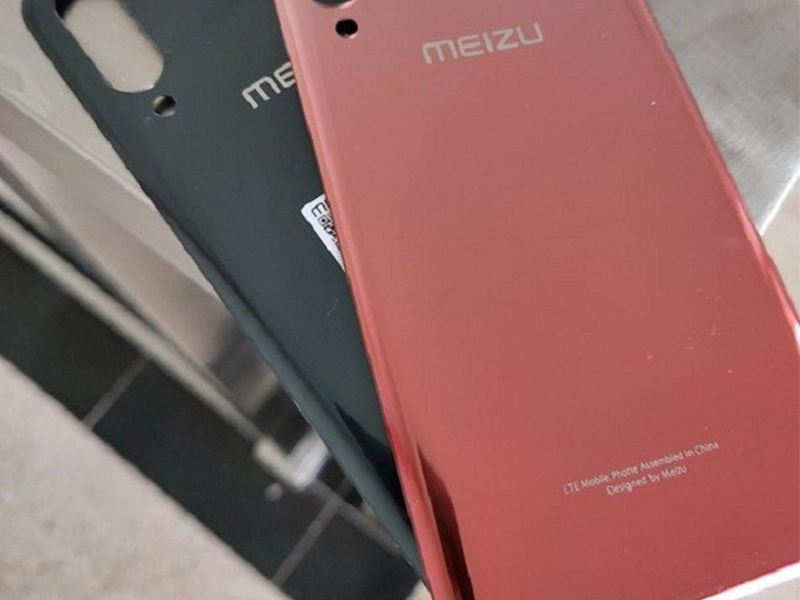

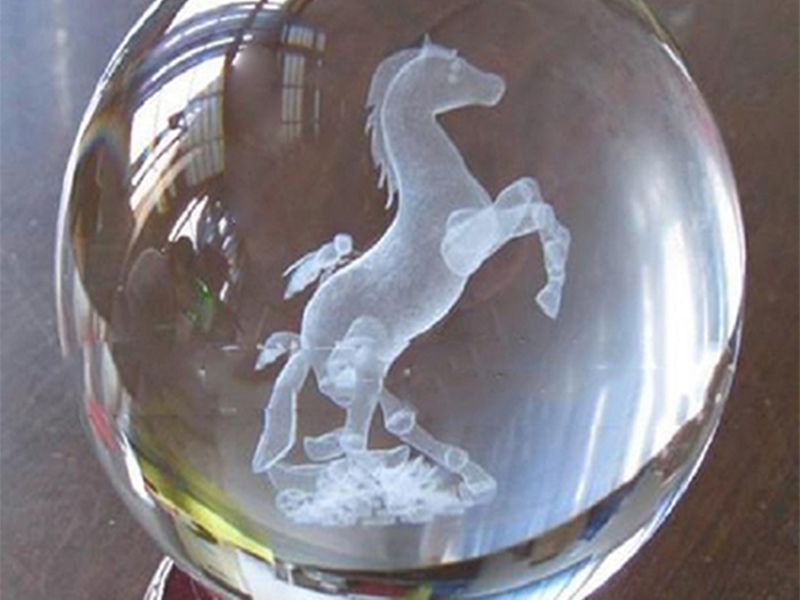

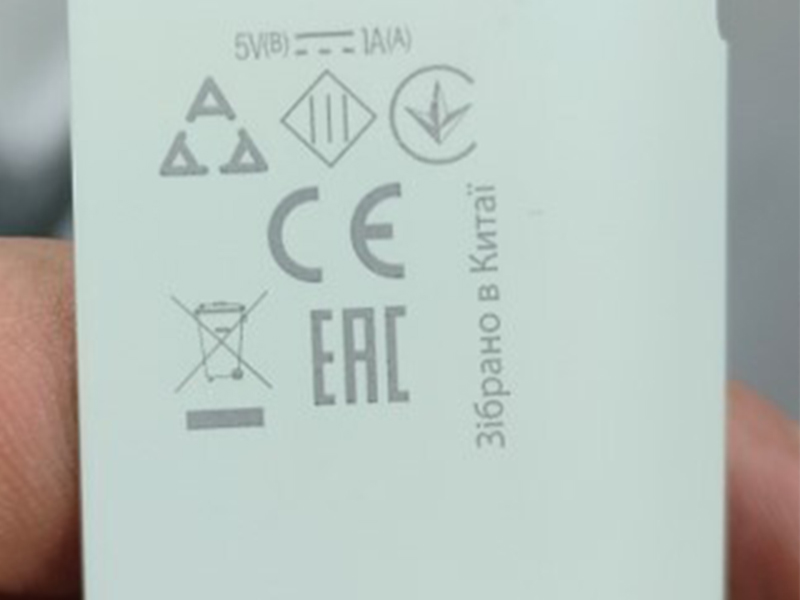

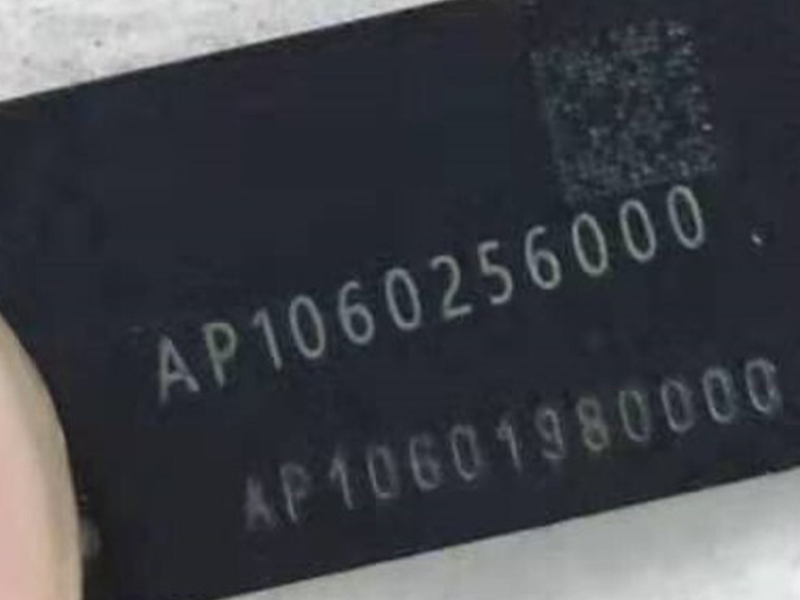

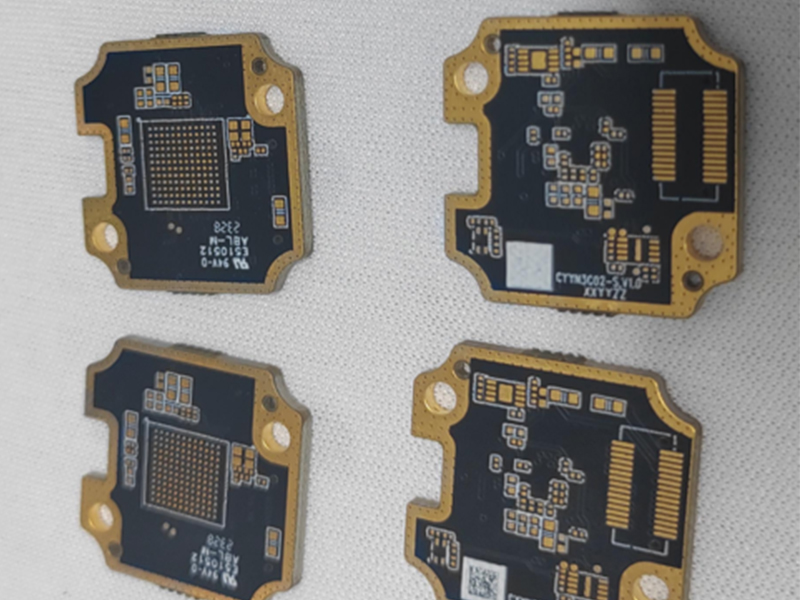

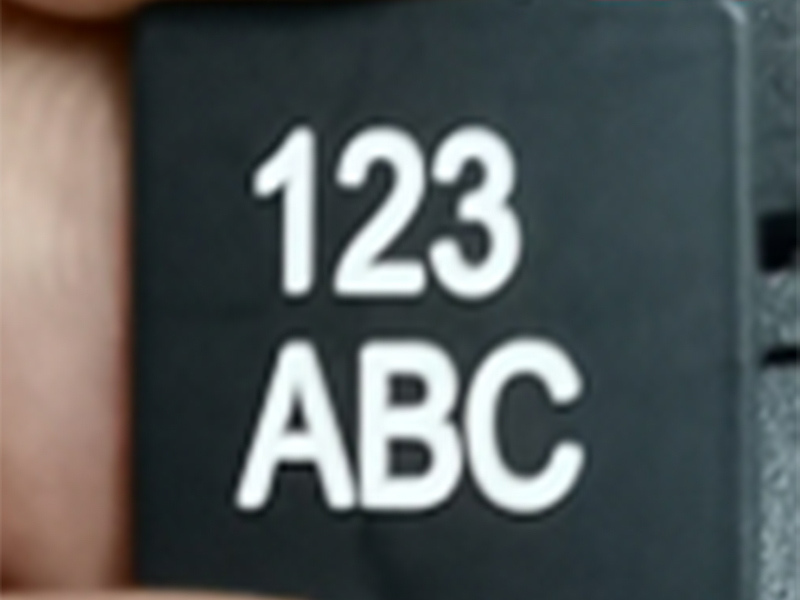

Sample
Specifications
| Laser Type | Laser Diode | |
| Laser Brand | Zixu | |
| Laser Power | 1W | 3W |
| Work Area | 300 * 400 * 100mm | |
| Motion Control | 5 axis | |
| Laser Wavelength | 532nm | |
| Laser Quality | < 1.5㎡ | |
| Pulse Duration | 7 ~ 10ns | |
| Pulse Frequency | 2 ~ 5000Hz | |
| Engraving Speed | 5000 spots/s | |
| Resolution | 500 ~ 1200DPI | |
| Focus Diameter | 0.03mm | |
| Laser Lifespan | ≥ 20,000hrs | |
| Cooling Method | Air cooling | |
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz | |
| Operation Temperature: | 10 ~ 40℃ or 50 ~ 104℉ | |
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ | |
| Relative Humidity: | 5 ~ 75%, no condensation | |
| Dimension | 790 * 940 * 1000mm | |
| N.W. | 140kg | |
| Packaging Dimension | 950 * 1100 * 1250mm | |
| G.W. | 175kg | |
