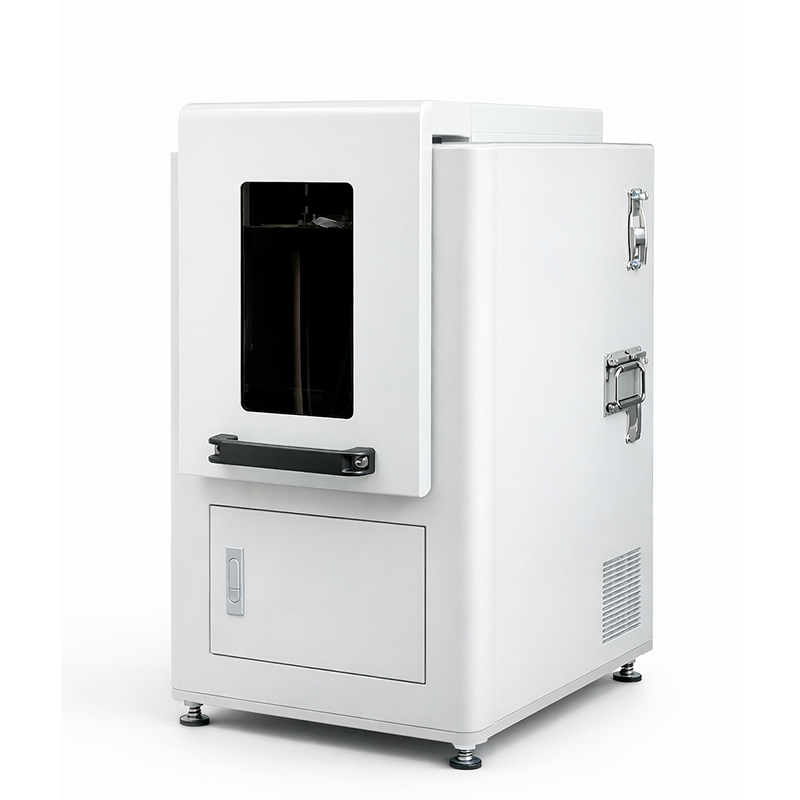

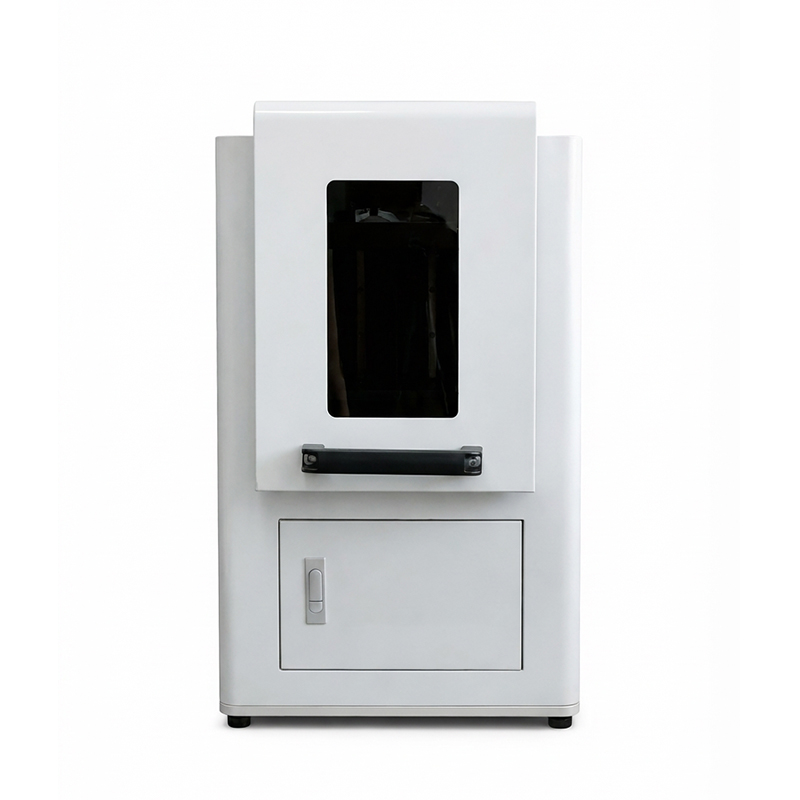

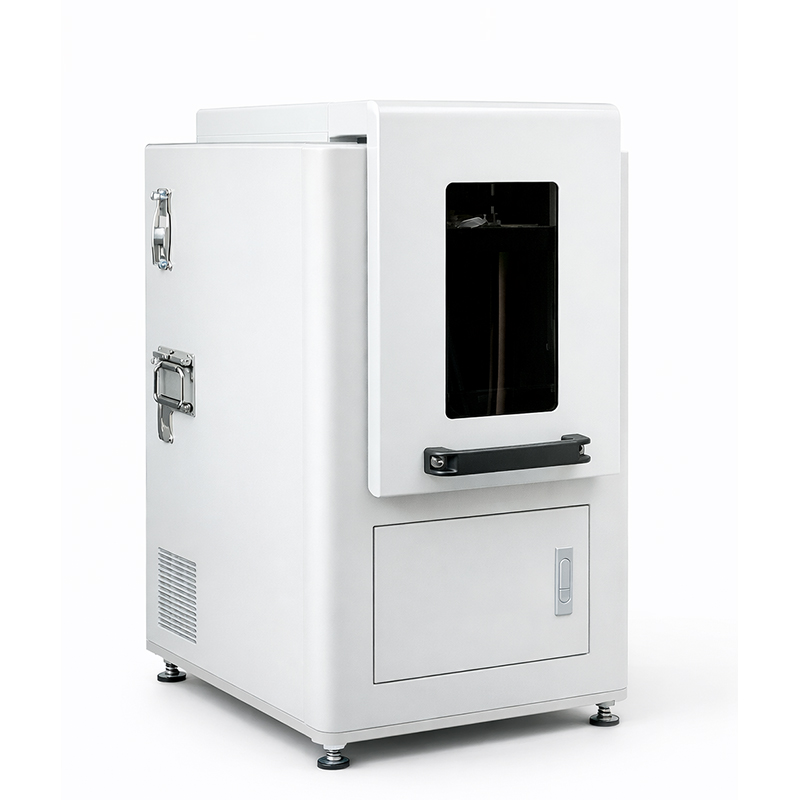

Enclosed Green Laser Subsurface Engraving Machine 150X200X100mm

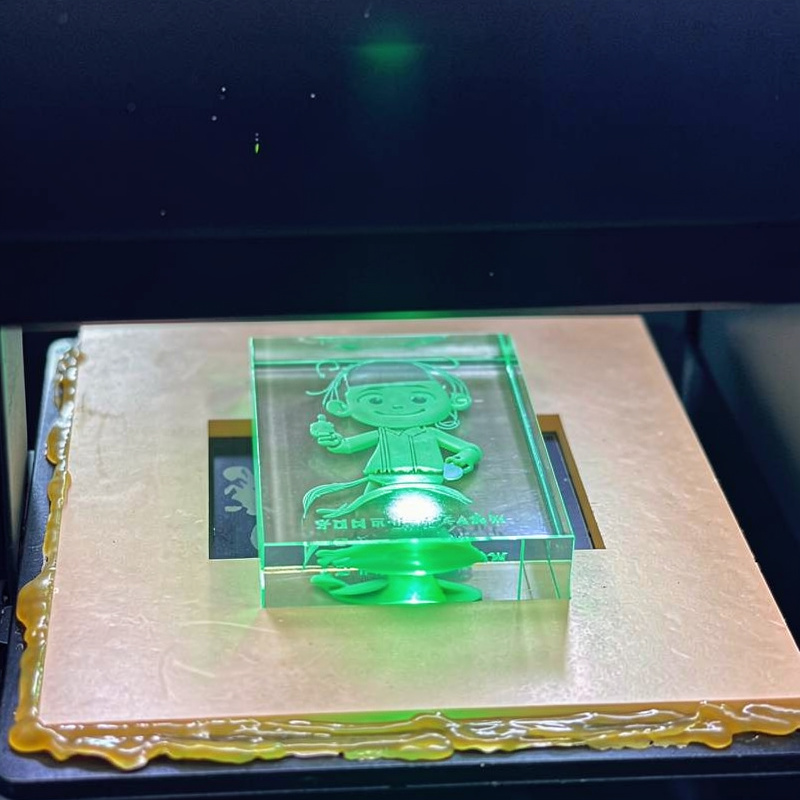

Product Description: This 3D green light engraving machine uses a long-life laser tube and supports workpieces up to 150200100mm in size. It can engrave 2D and 3D content on translucent materials such as crystal, glass, acrylic, and PET. Because the engraving is done inside the workpiece, there is no damage to the surface, and the process produces no contaminants or special odors. It is suitable for processing crystal portraits, trophies, medals, and translucent glass, and is widely used in the advertising industry and souvenir processing.

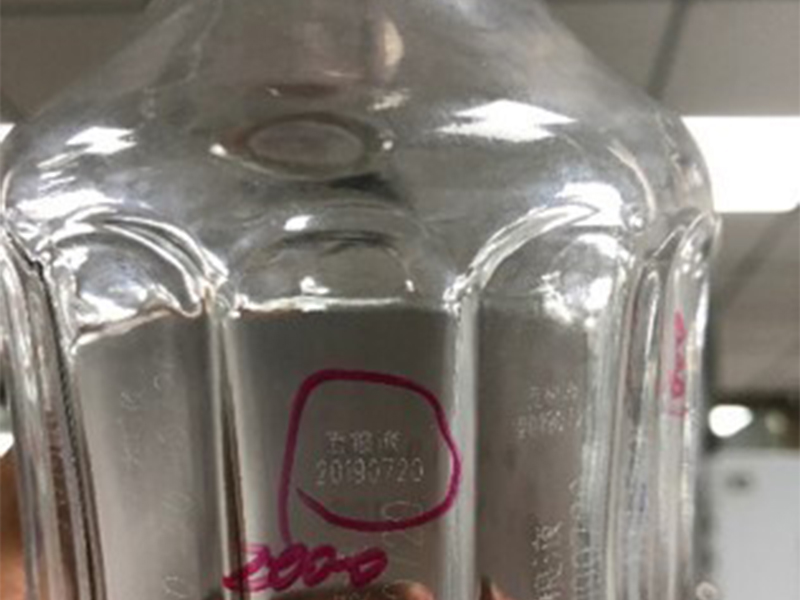

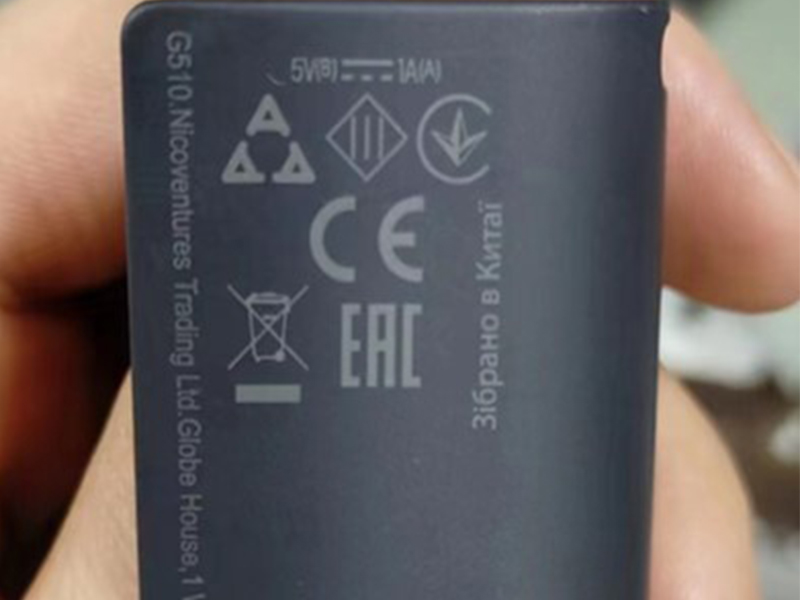

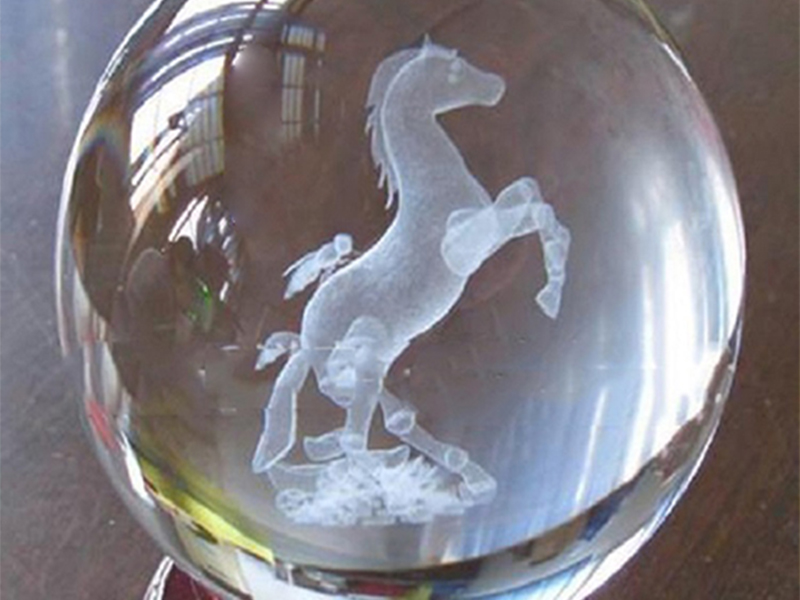

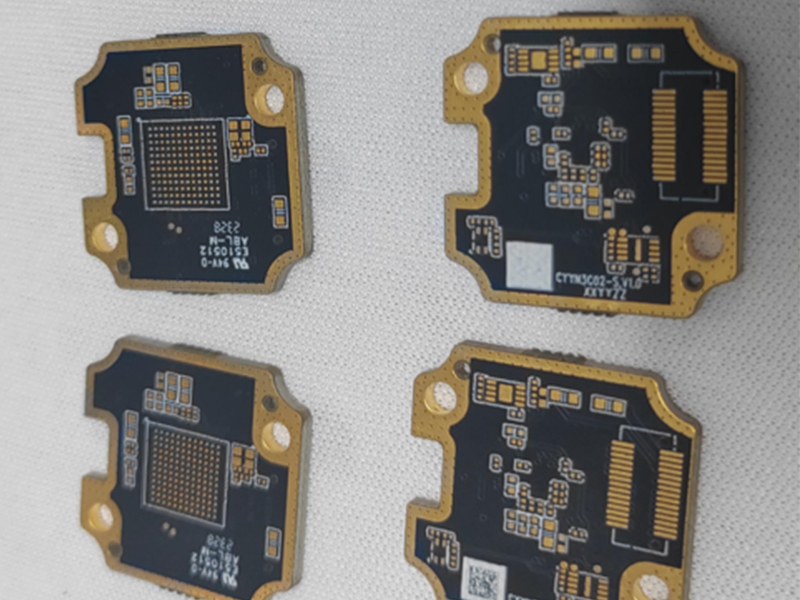

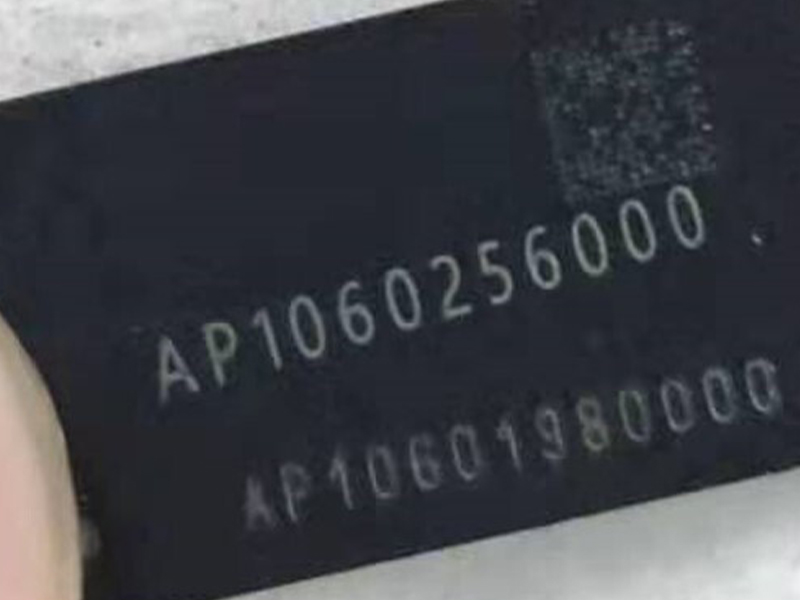

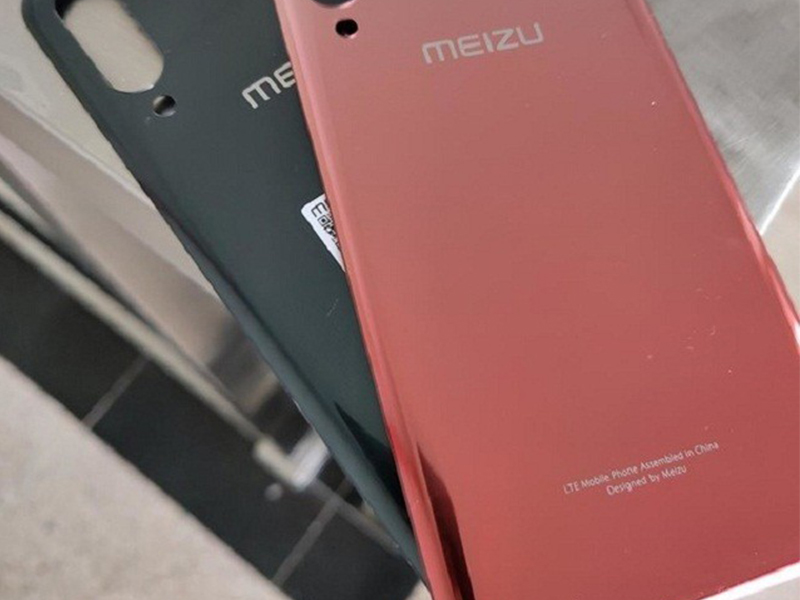

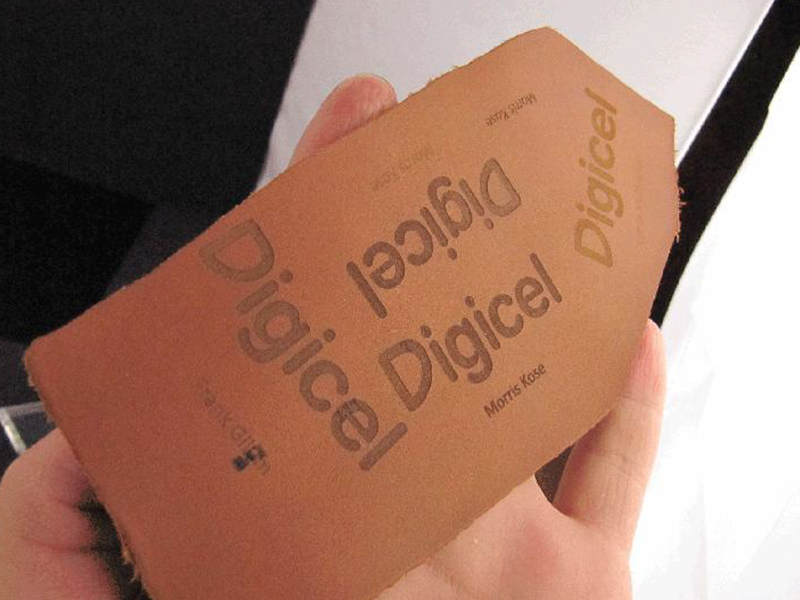

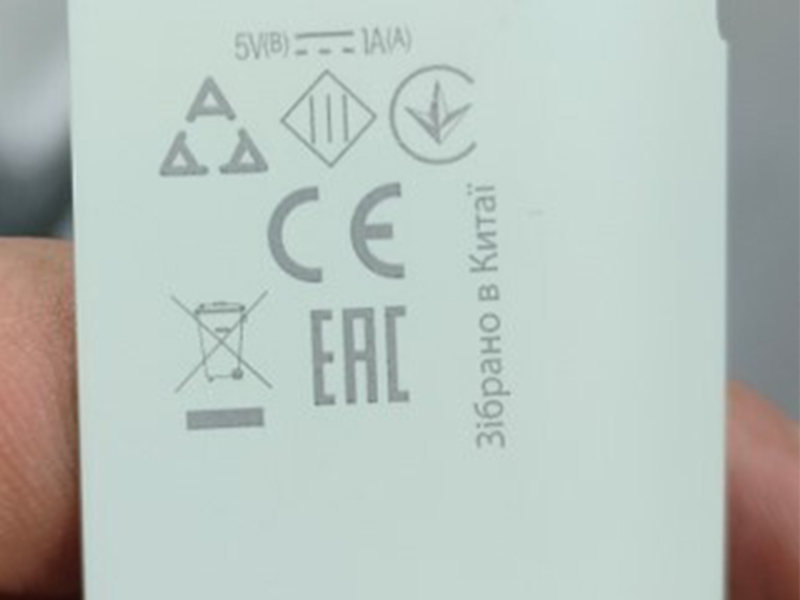

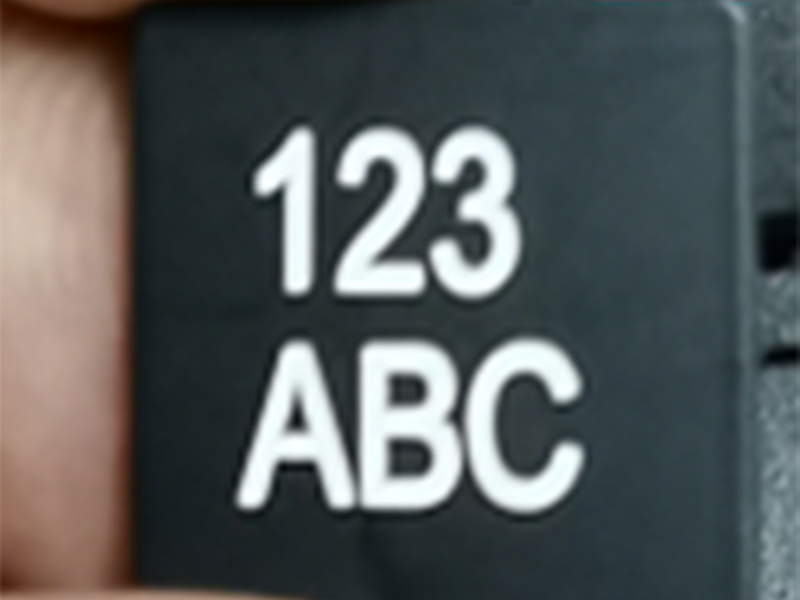

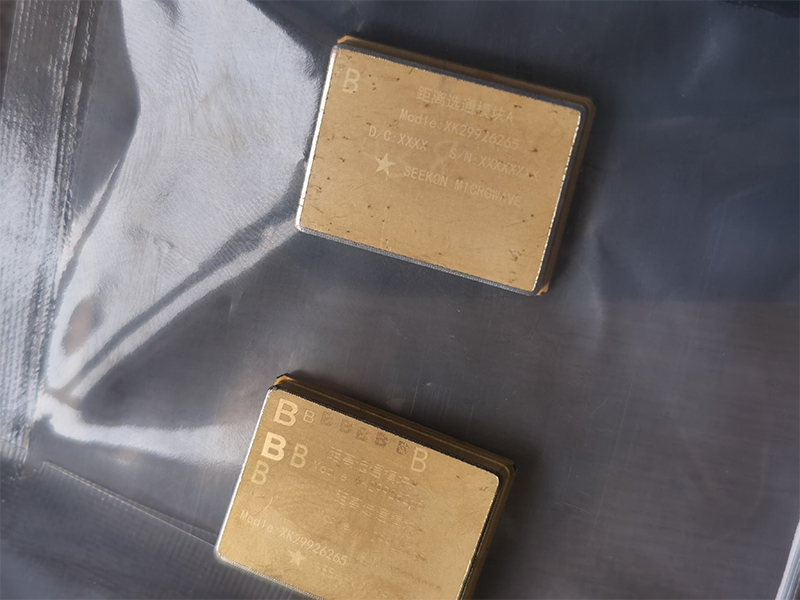

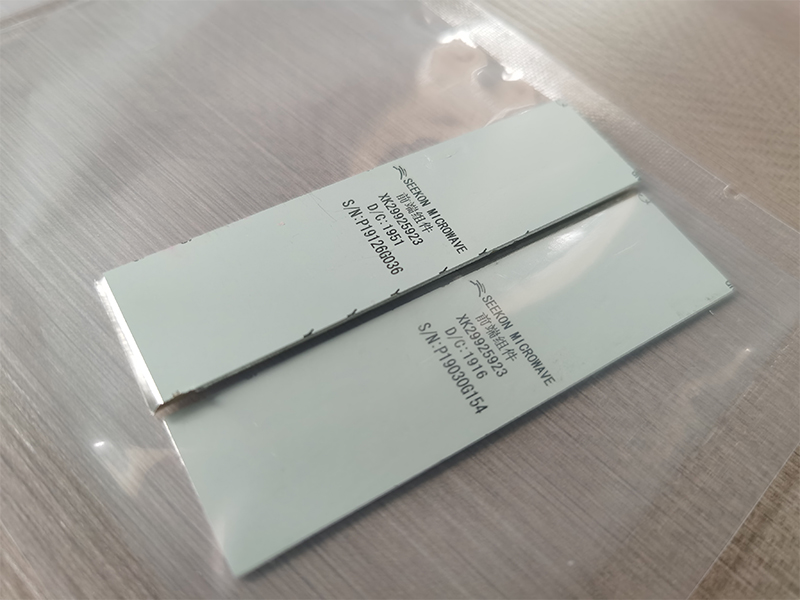

Sample
Specifications
| Laser Type | Laser Diode | |
| Laser Brand | Zixu | |
| Laser Power | 1W | 6W |
| Work Area | 150 * 200 * 100mm | |
| Laser Wavelength | 532nm | |
| Laser Quality | < 1.5㎡ | |
| Pulse Duration | 7 ~ 10ns | |
| Pulse Frequency | 2 ~ 5000Hz | |
| Engraving Speed | 5000 spots/s | |
| Resolution | 500 ~ 1200DPI | |
| Focus Diameter | 0.03mm | |
| Laser Lifespan | ≥ 20,000hrs | |
| Cooling Method | Air cooling | |
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz | |
| Operation Temperature: | 10 ~ 40℃ or 50 ~ 104℉ | |
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ | |
| Relative Humidity: | 5 ~ 75%, no condensation | |

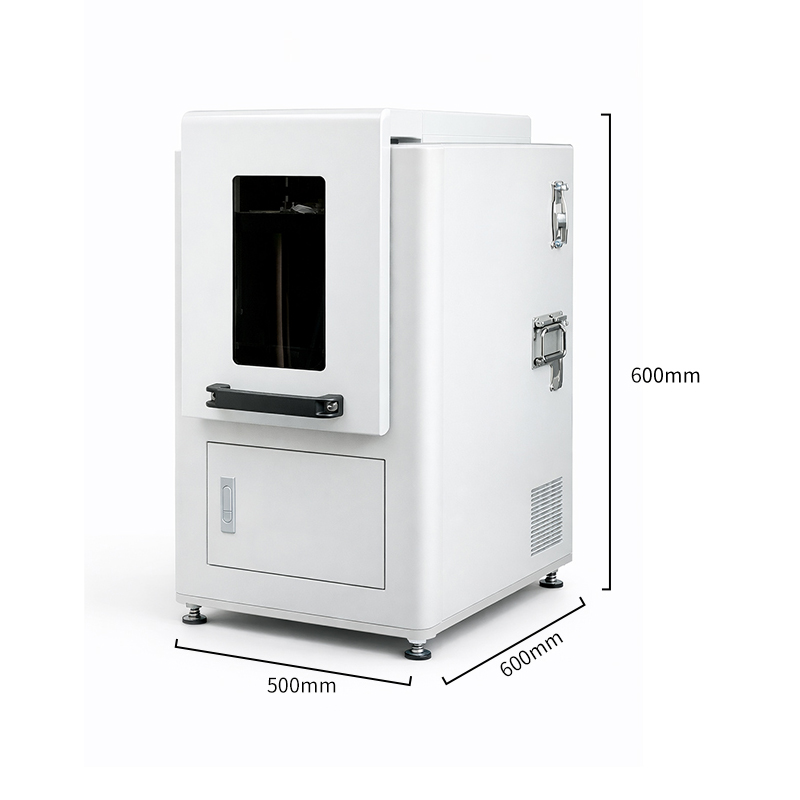

| Dimension | 500 * 600 * 600mm | |
| N.W. | 30kg | |
| Packaging Dimension | 650 * 750 * 820mm | |
| G.W. | 55kg | |
