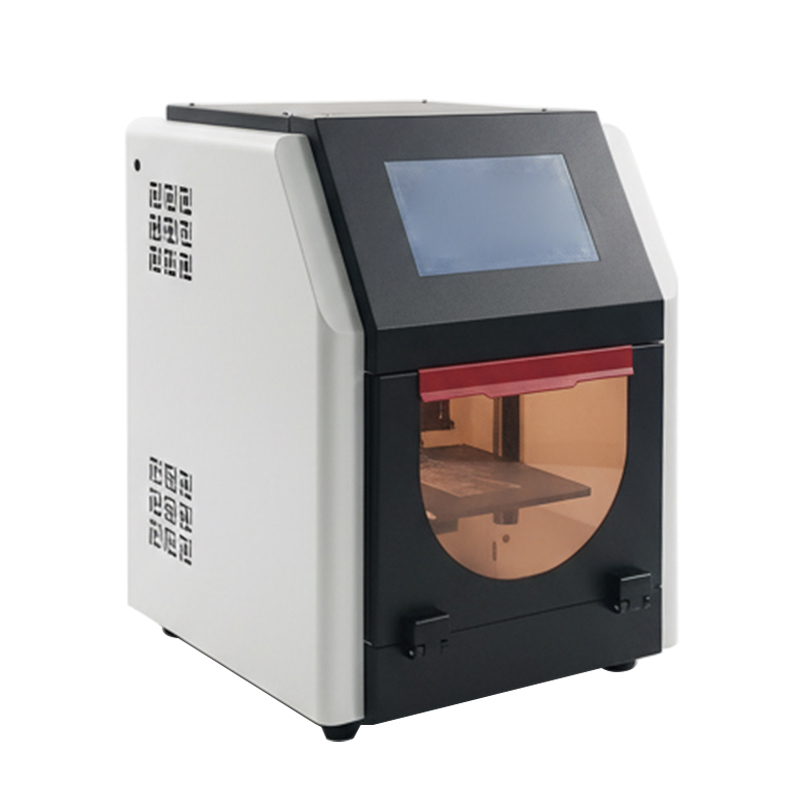

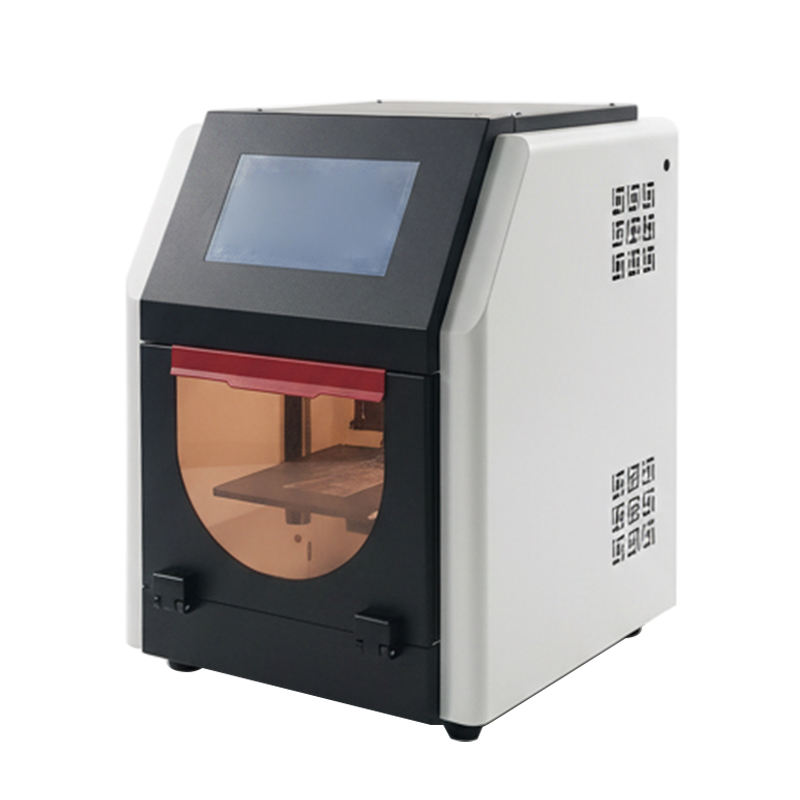

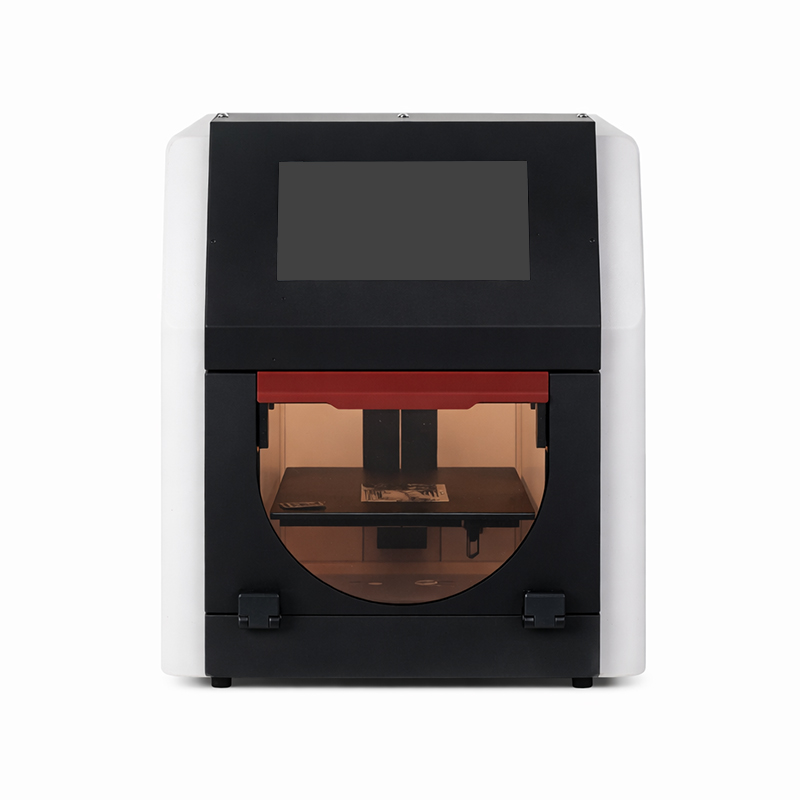

Enclosed Green Laser Subsurface Engraving Machine φ75mm
Product Description: This green light sphere engraving machine uses an upward-emitting light mode, allowing for 3D internal engraving of crystal, glass, or acrylic spheres when used with fixtures of the same material. It also supports 2D graphic engraving of photos, trophies, medals, and luminous glass. Because green light possesses both good penetrability and focused energy absorption in materials such as glass, crystal, and acrylic, it enables highly efficient internal engraving; a single 3D crystal portrait engraving takes only 2-3 minutes.

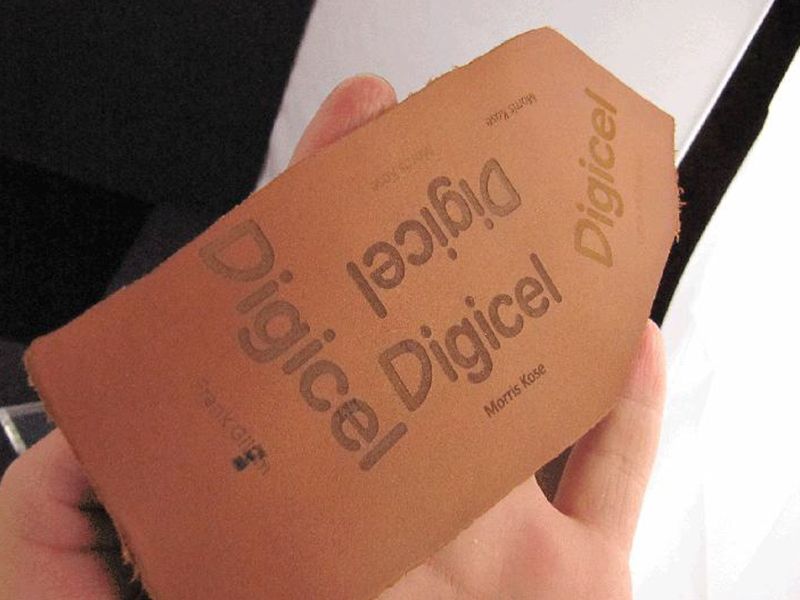

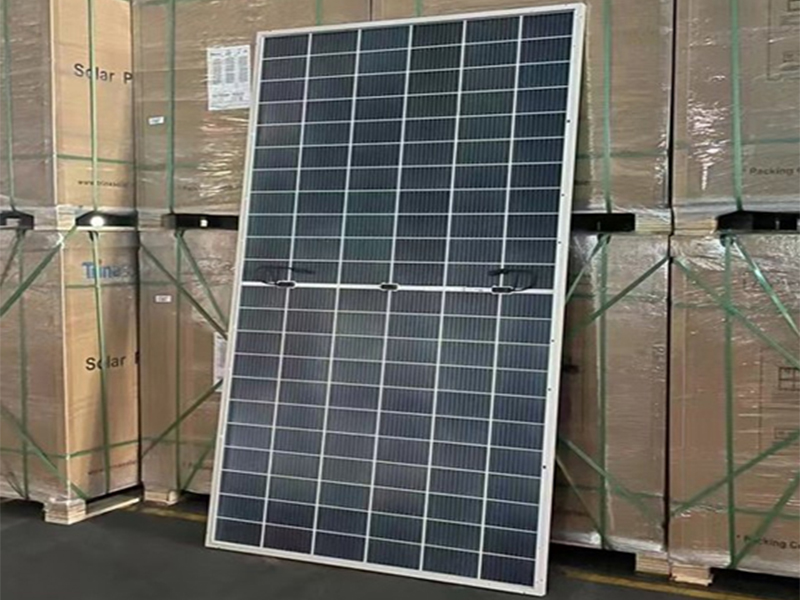

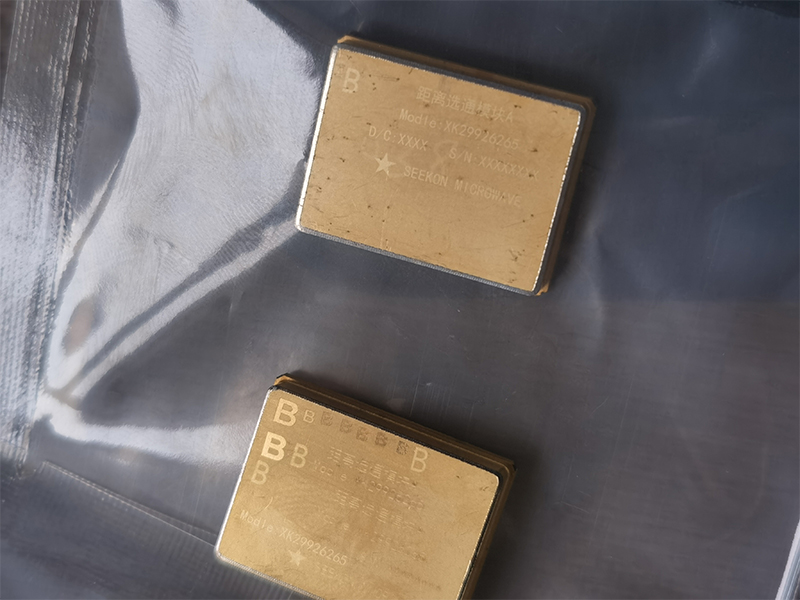

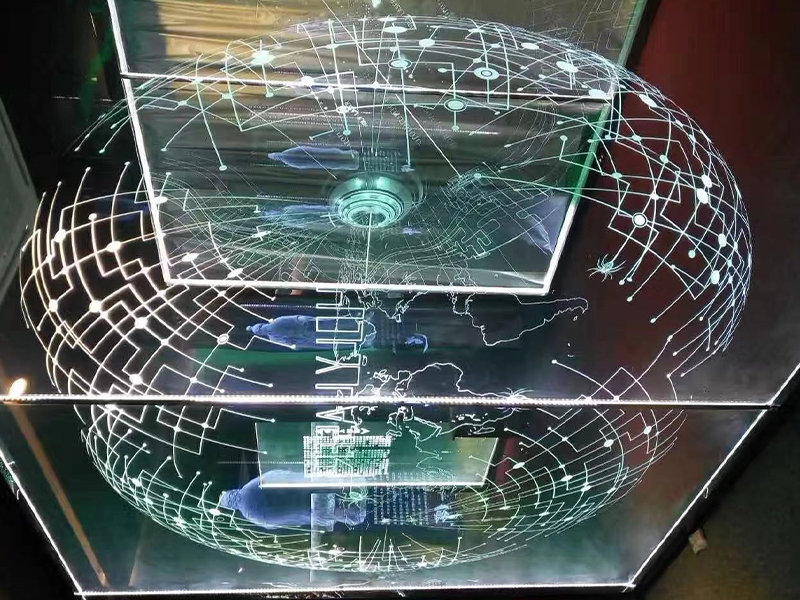

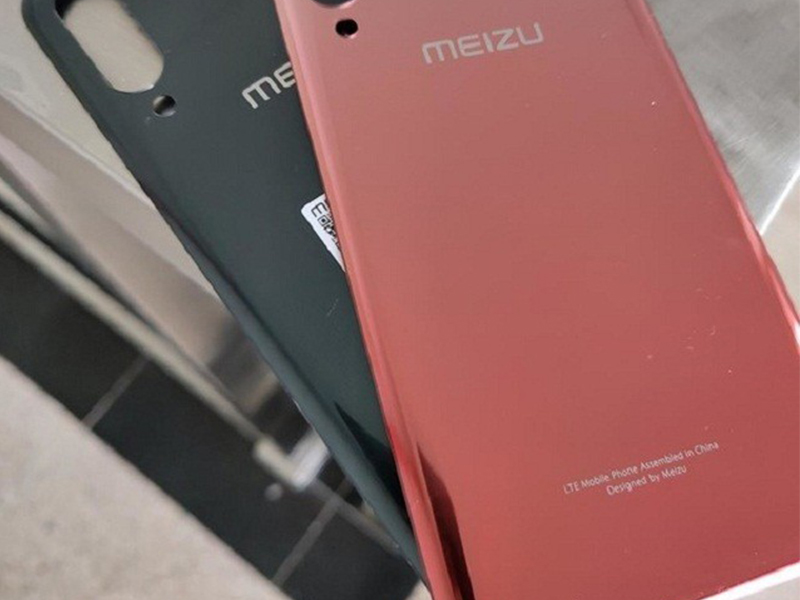

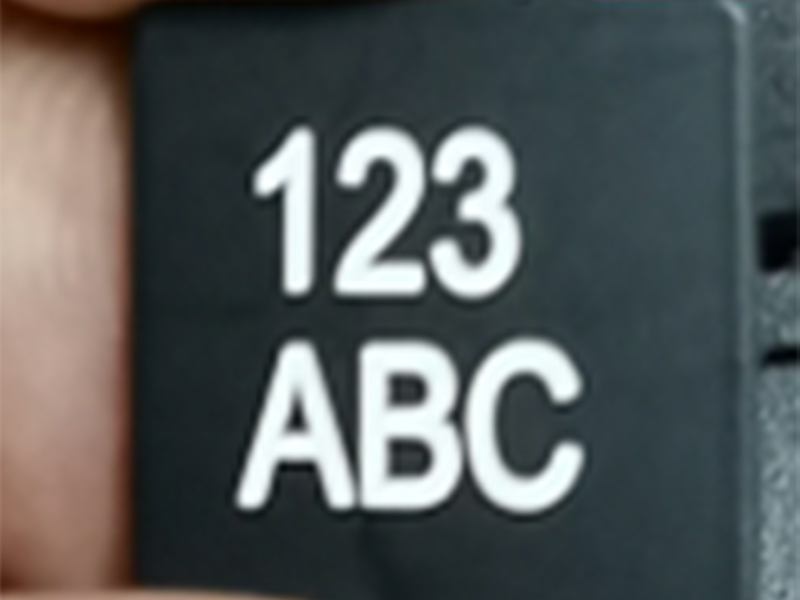

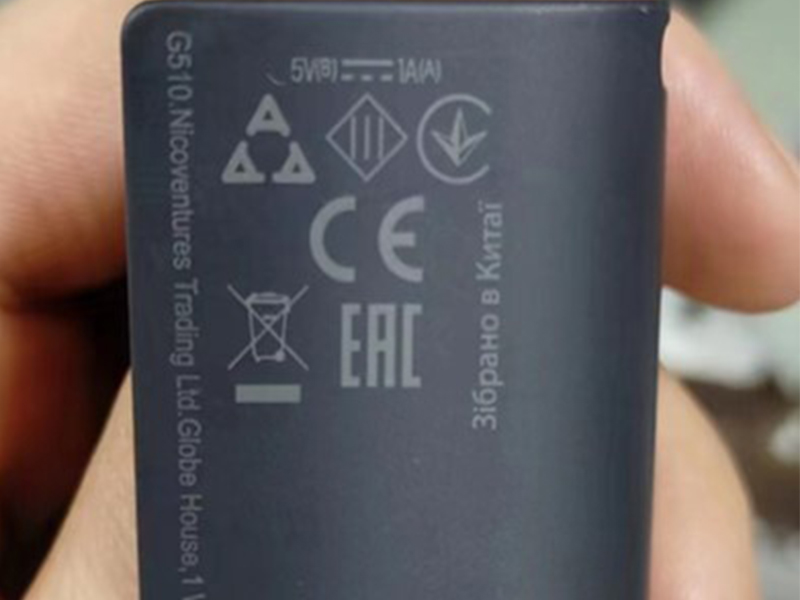

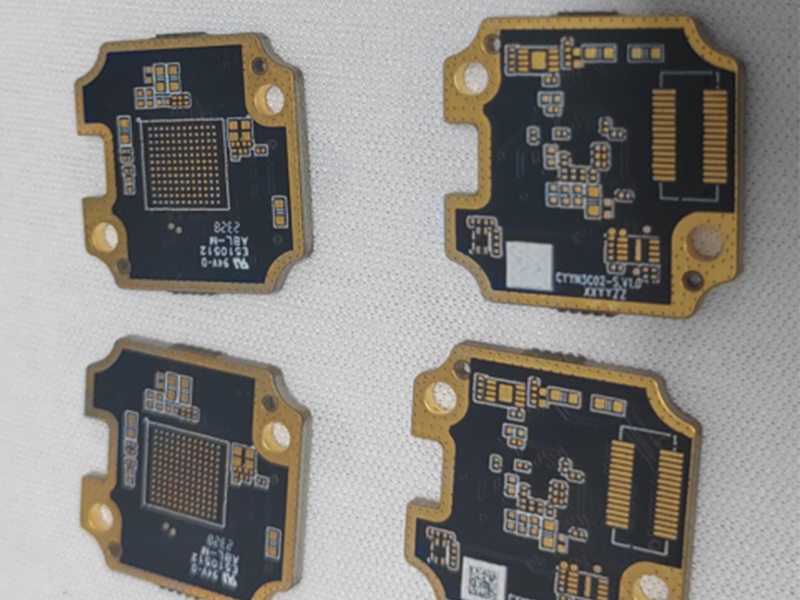

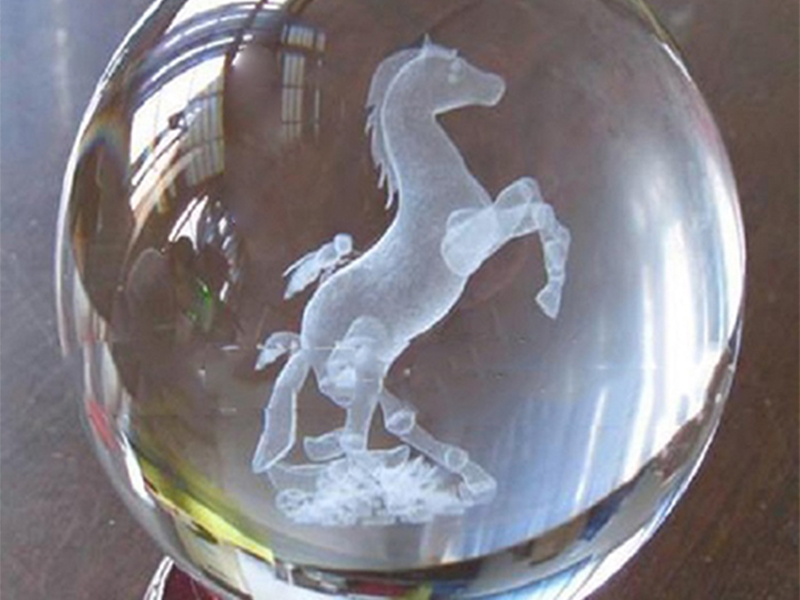

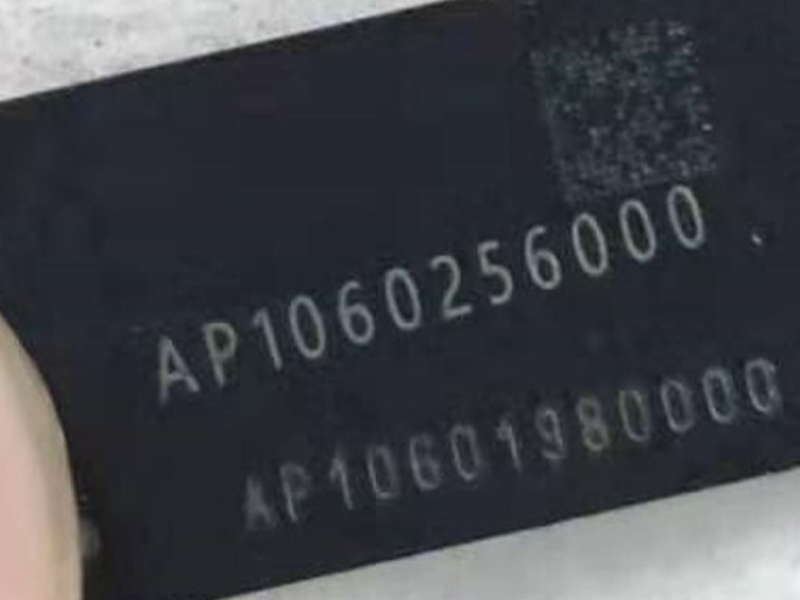

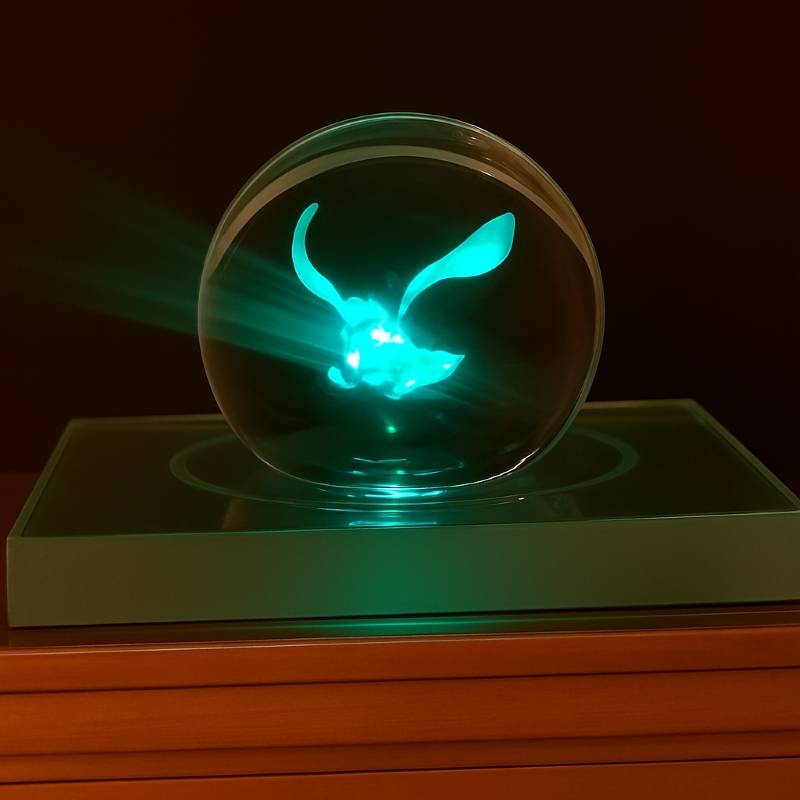

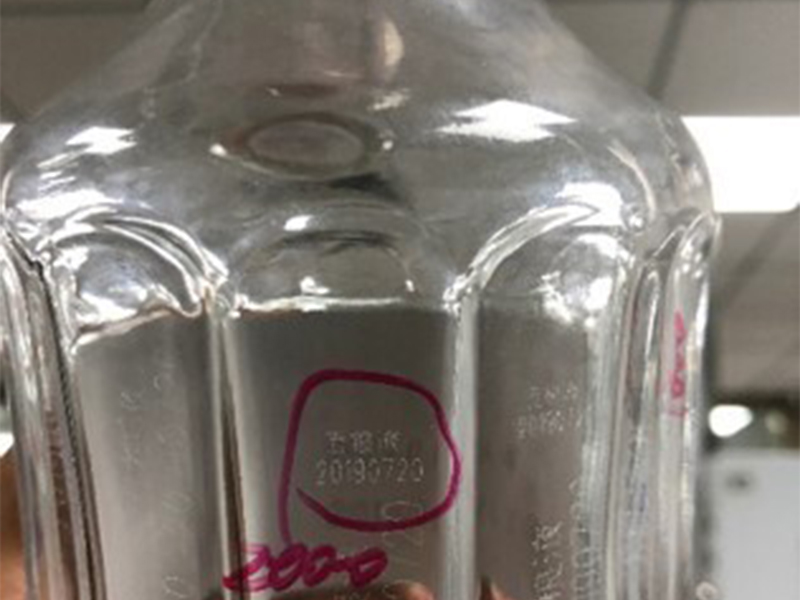

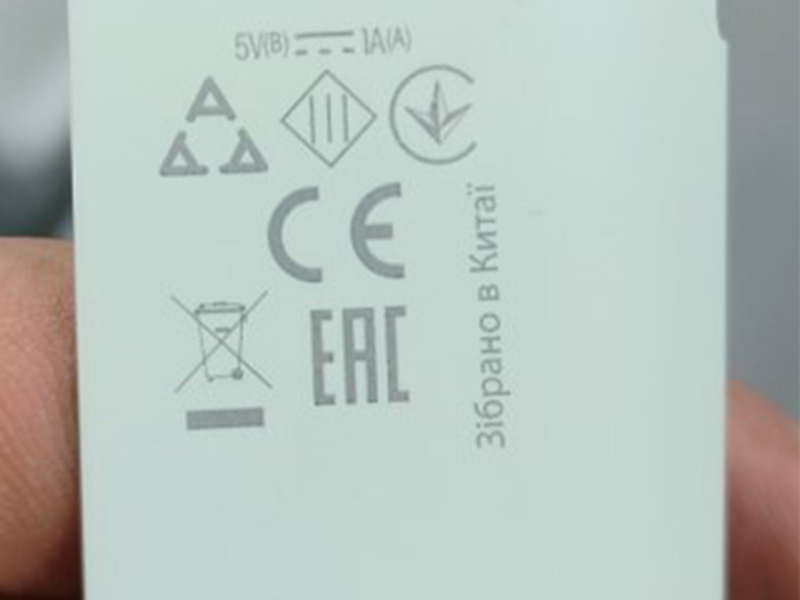

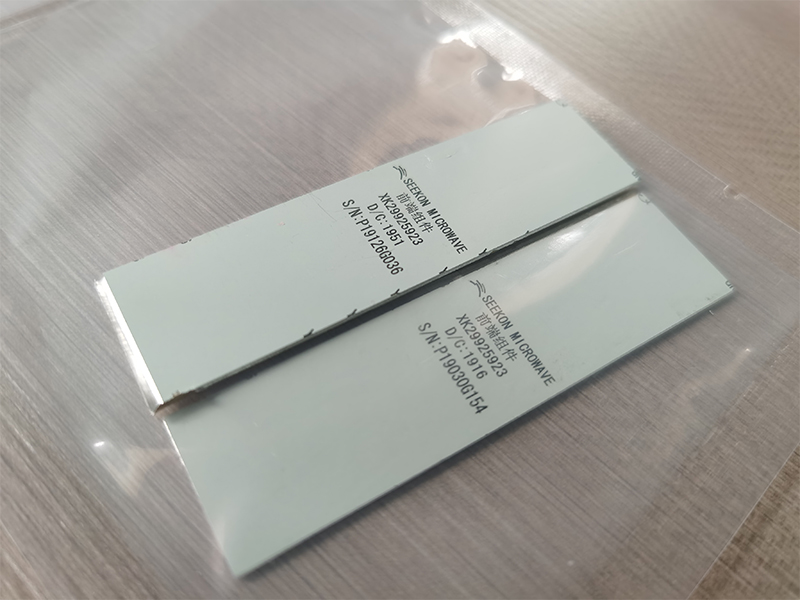

Sample
Specifications
| Laser Type | Laser Diode |
| Laser Brand | Zixu |
| Laser Power | 5W |
| Work Area | ≤ φ75mm |
| Ball Size | ≤ φ150mm |
| Laser Wavelength | 532nm |
| Laser Quality | < 1.5㎡ |
| Pulse Duration | 7 ~ 10ns |
| Pulse Frequency | 2 ~ 5000Hz |
| Engraving Speed | 5000 spots/s |
| Resolution | 500 ~ 1200DPI |
| Focus Diameter | 0.02mm |
| Laser Lifespan | ≥ 20,000hrs |
| Cooling Method | Air cooling |
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz |
| Operation Temperature: | 10 ~ 40℃ or 50 ~ 104℉ |
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ |
| Relative Humidity: | 5 ~ 75%, no condensation |

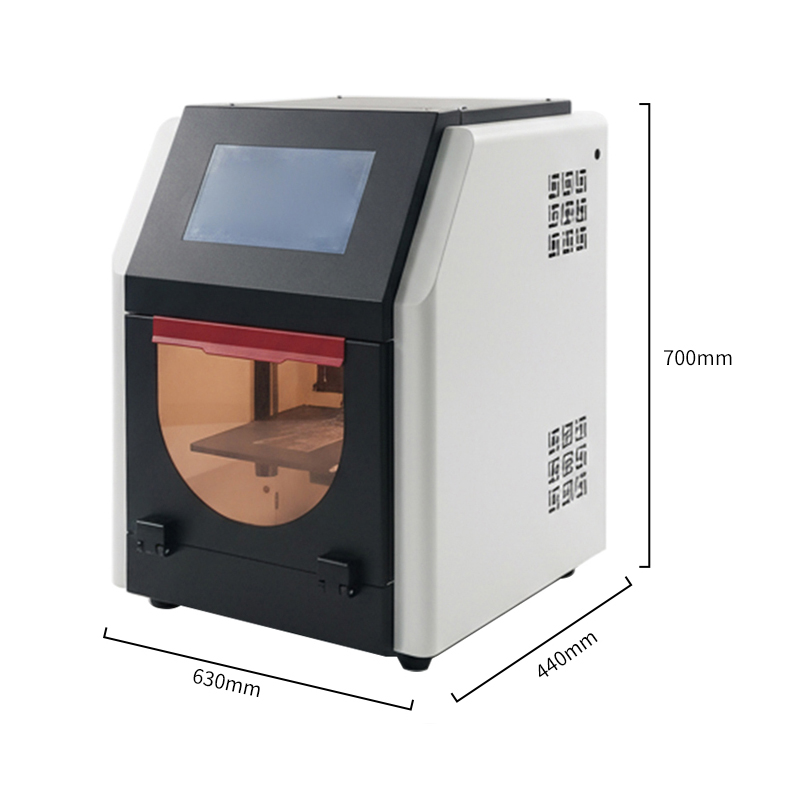

| Dimension | 630 * 440 * 700mm |
| N.W. | 53kg |
| Packaging Dimension | 780 * 650 * 950mm |
| G.W. | 78kg |
