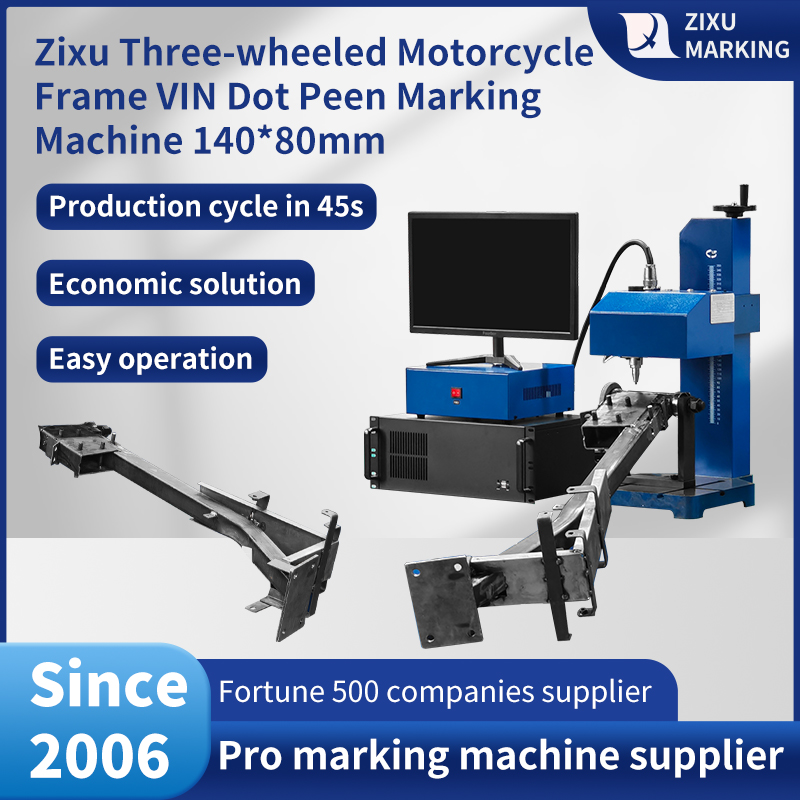

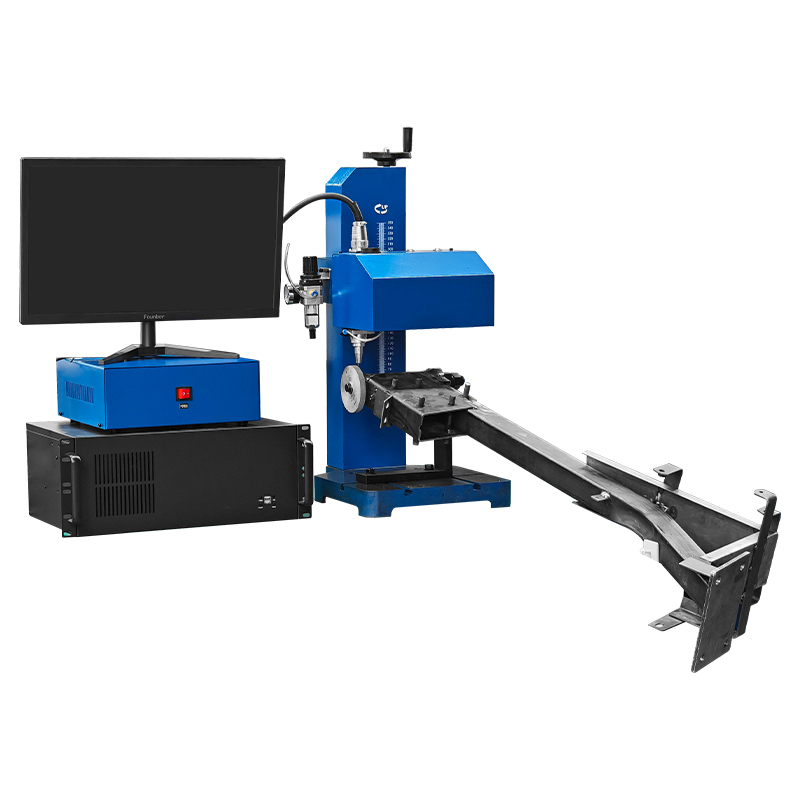

Three-wheeled Motorcycle Chassis Frame VIN Dot Peen Marking Machine 140x80mm B01

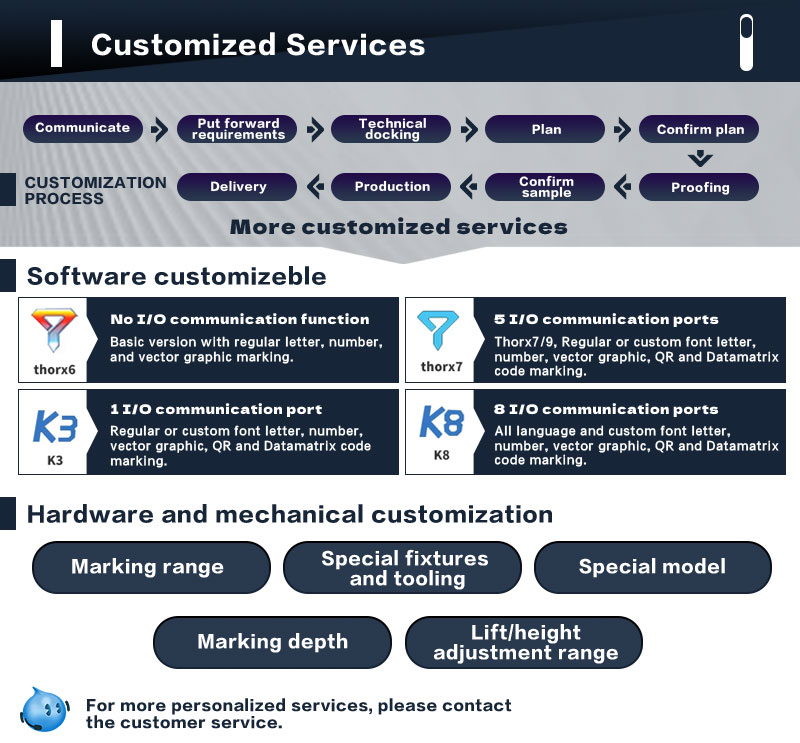

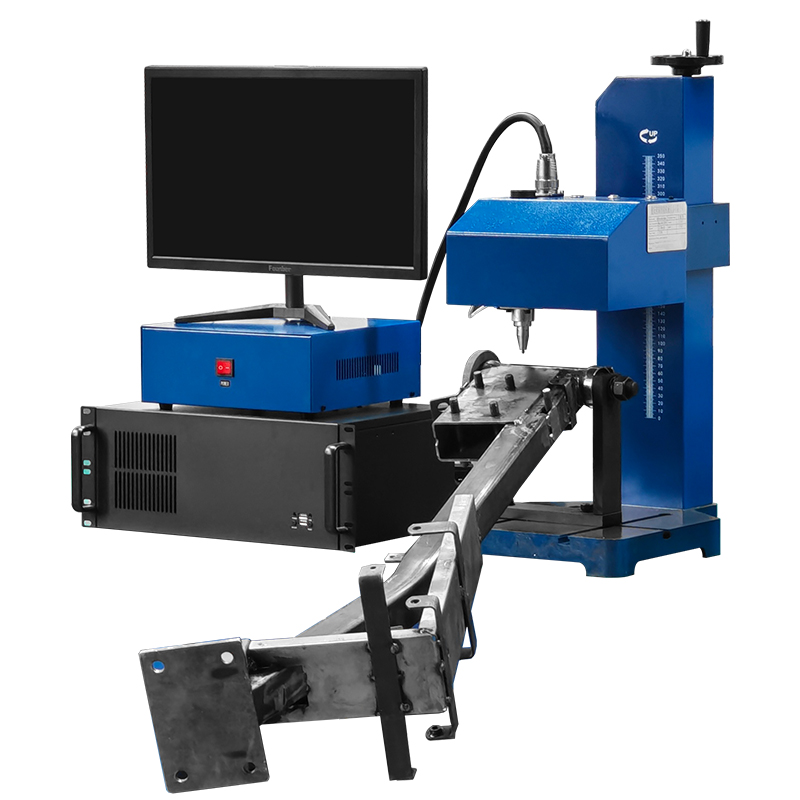

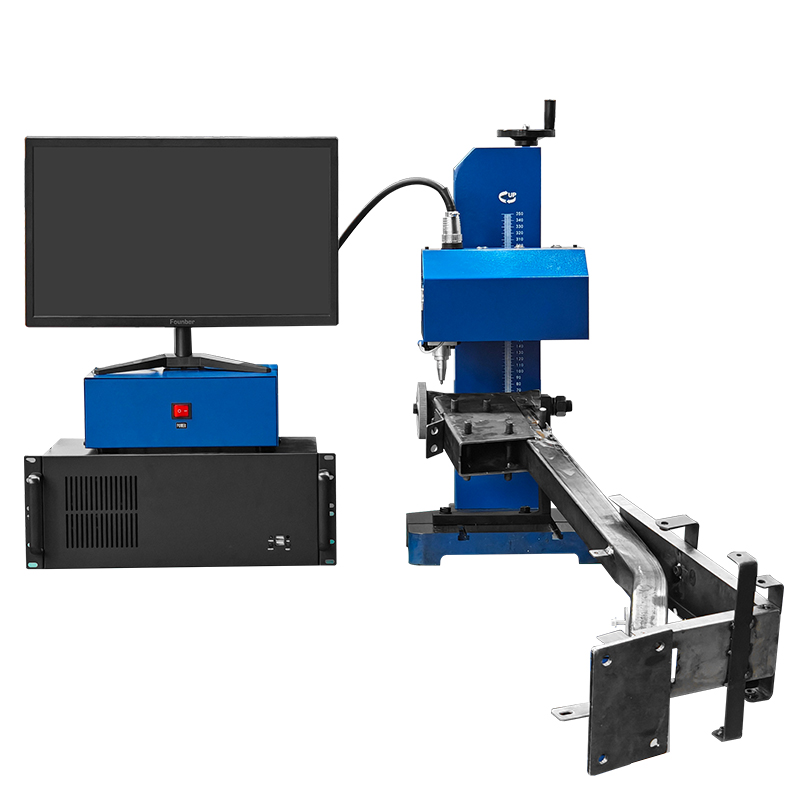

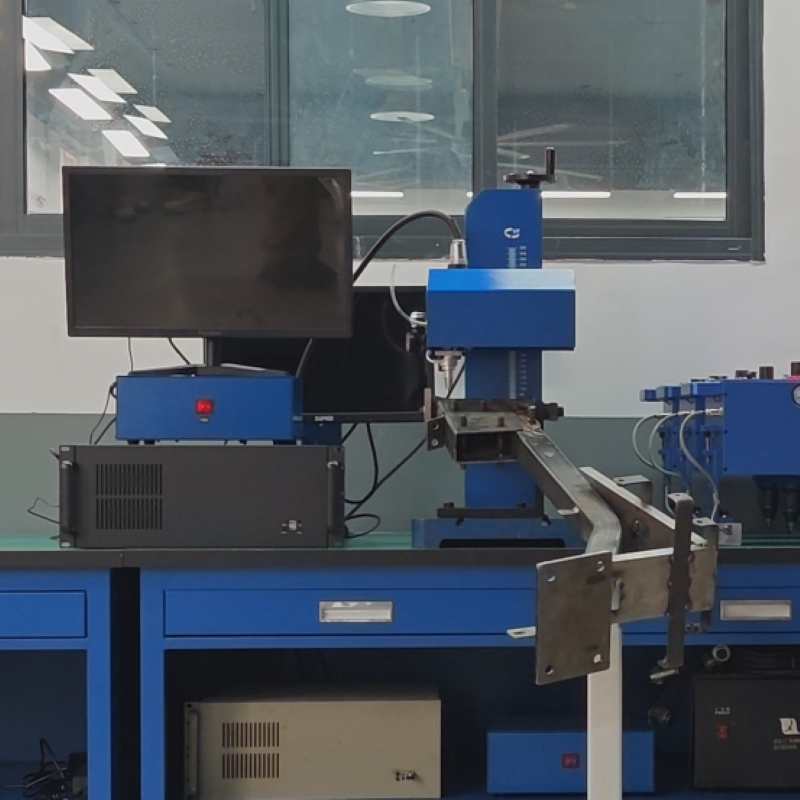

This VIN marking machine for three-wheeled motorcycles is a customized version of our basic 140*80mm desktop pneumatic dot matrix marking machine ZX-PMK-B01, with a fixture for the frame added. The customer needs to input the markings into the system before assembling the three-wheeled motorcycles. Since the customer’s production volume is not large, manual fixing is sufficient for their production cycle requirements. Therefore, automatic fixtures were not customized; instead, the marking problem was solved at a price close to the standard model. This marking machine uses the Thorx-6 control system. The customer does not need to use special fonts, so the basic Thorx-6 software is sufficient. If you need to import special VIN fonts, you will need to select the Thorx-7, Thorx-9, or Kingmark-8 system.

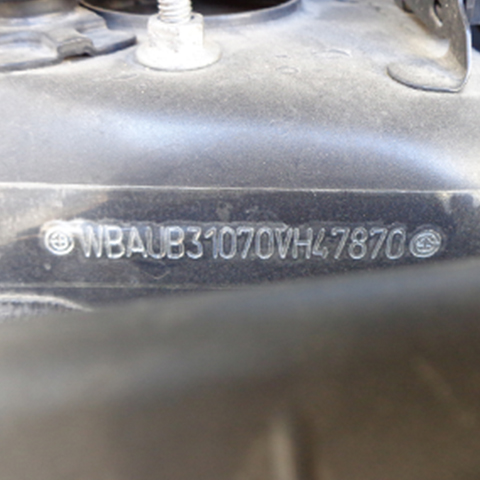

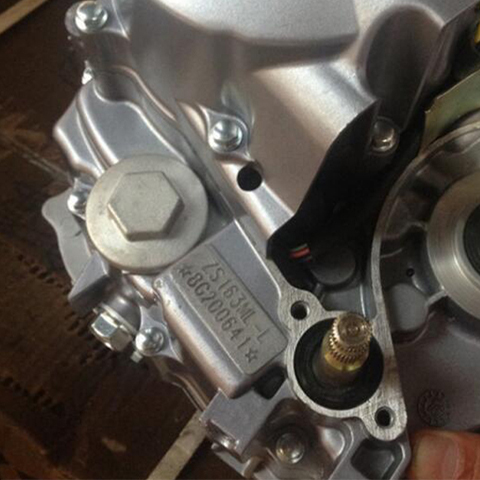

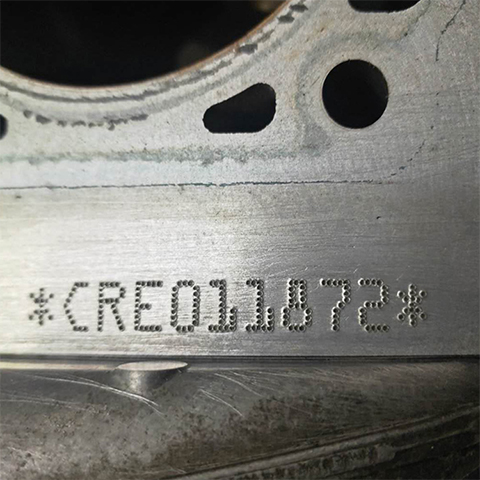

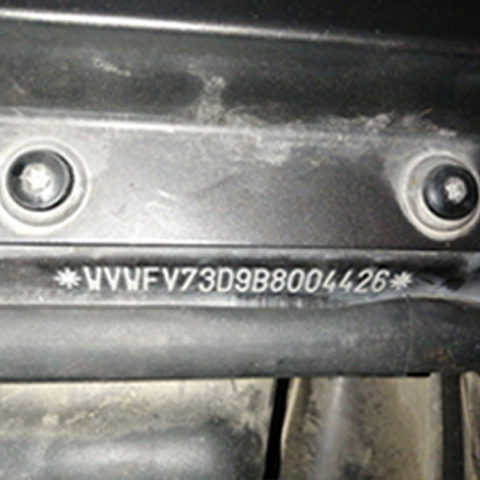

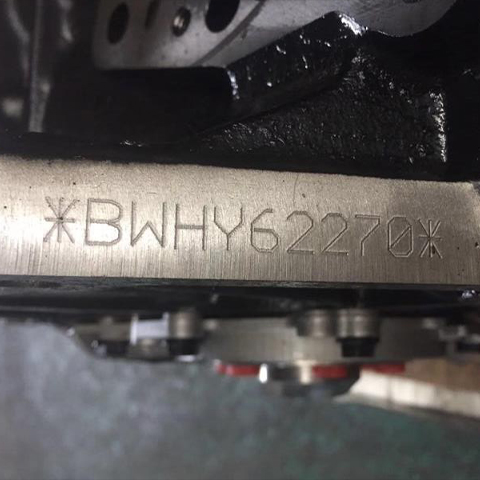

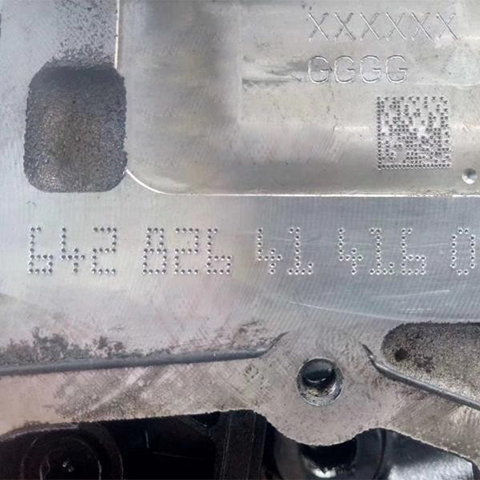

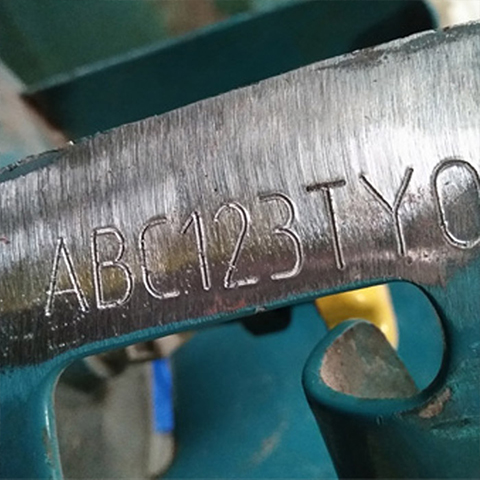

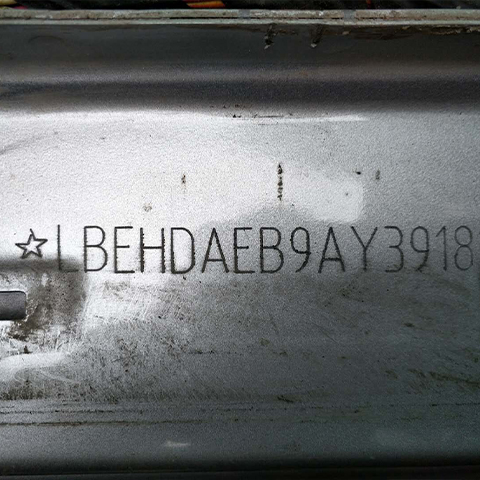

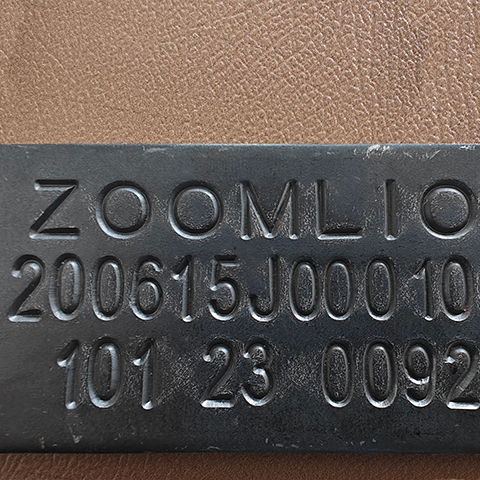

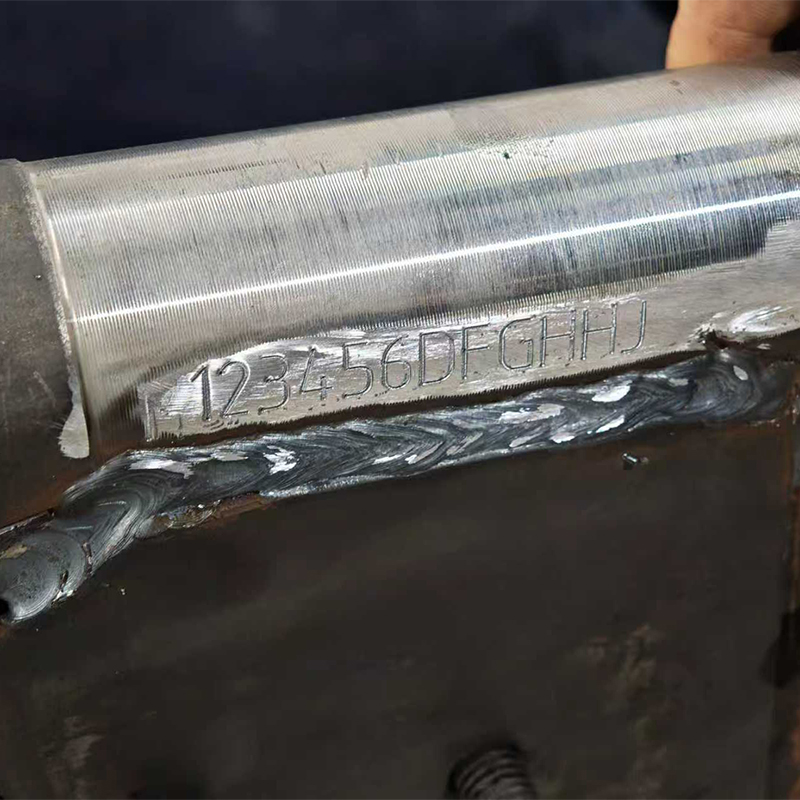

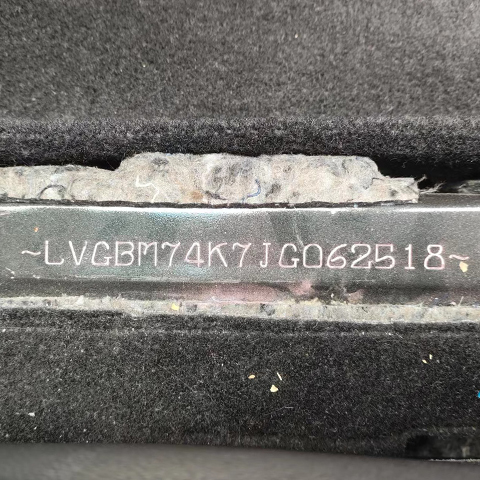

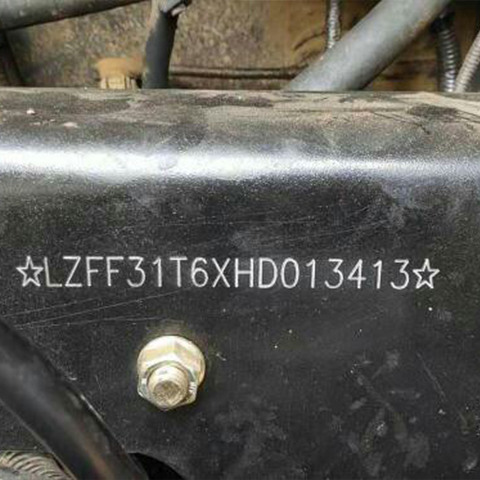

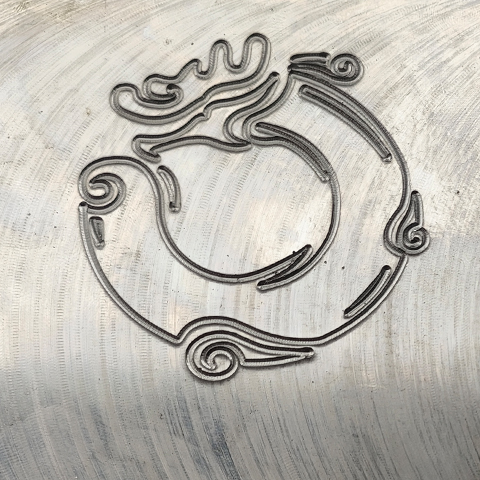

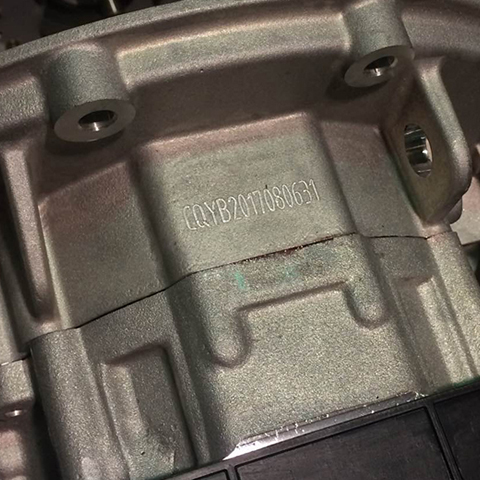

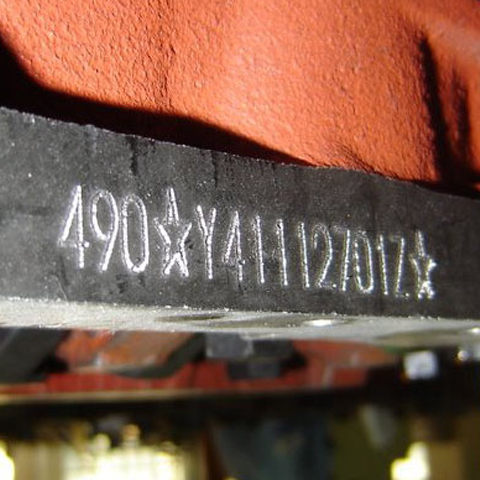

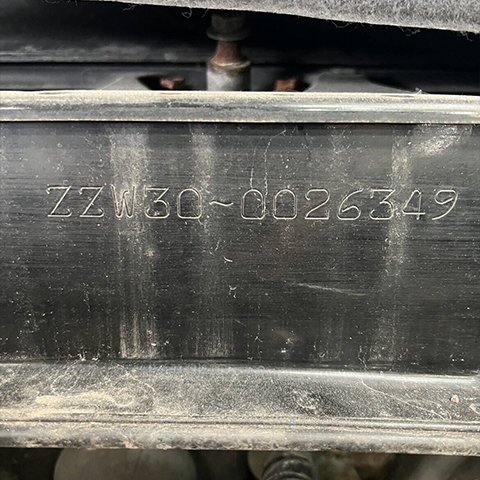

Sample
Specifications
| Marking Type | Pneumatic dotting | |
| Marking speed | 2-5 characters (2x2mm)/s | |
| Marking depth | 0.01 ~ 1.2mm (Vary to the material) | |
| Marking contents | English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc. | English letter, number, dot fonts, QR codes, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc. |
| Stylus Pin Hardness | HRA93 | |
| Marking area | 140mm * 80mm | |
| Marking materials | Below HRC60 metallic and nonmetallic materials | |
| Repeat accuracy | 0.02 ~ 0.04mm | |
| Rated Power | 300W | |
| Power Input | AC 110V 60HZ or AC220V 50HZ | |
| Control Software | Thorx-6 | Thorx-7 / Thorx-9 |
| Controller | PC connection controller | |
| Connection | USB and RS-232 | |
| Dimensions | 410 * 320 * 740mm & 305 * 280 * 120mm | |
| N.W. | 55kg | |
| Package Dimensions | 600 * 400 * 900mm | |
| G.W. | 70kg | |
