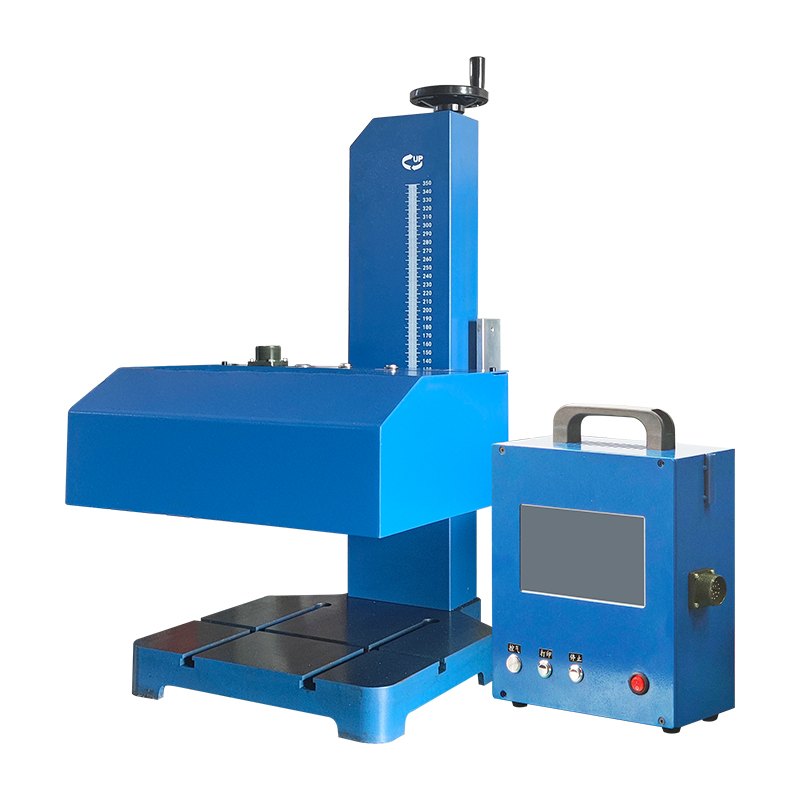

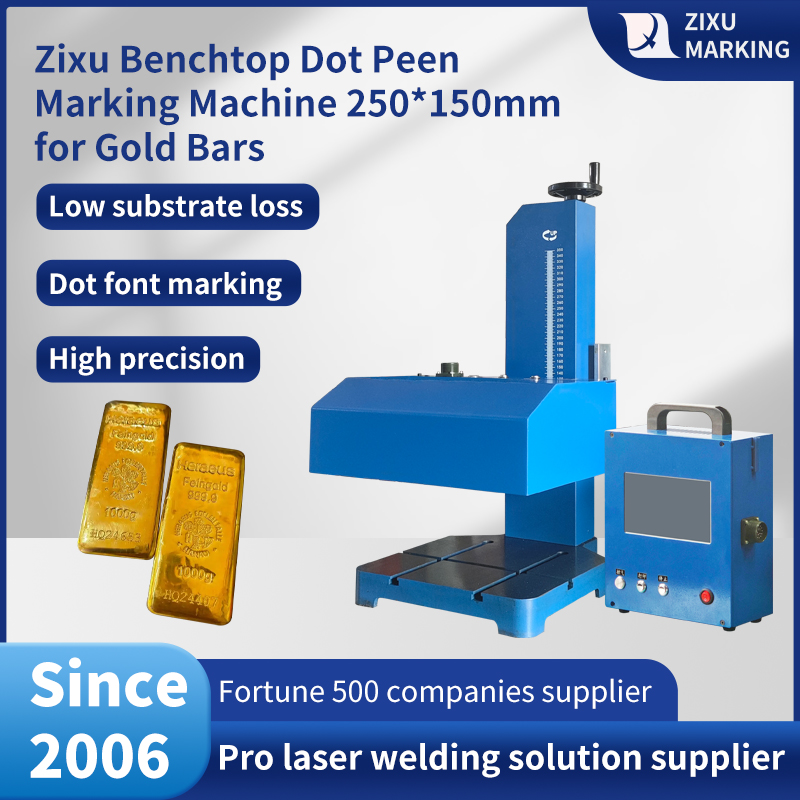

Dot Peen Marking Machine for Gold Bars 250X150mm
Zixu / Benchtop / Dot Peen Marking Machine / Gold Bars / Gold Bricks / 250*150mm

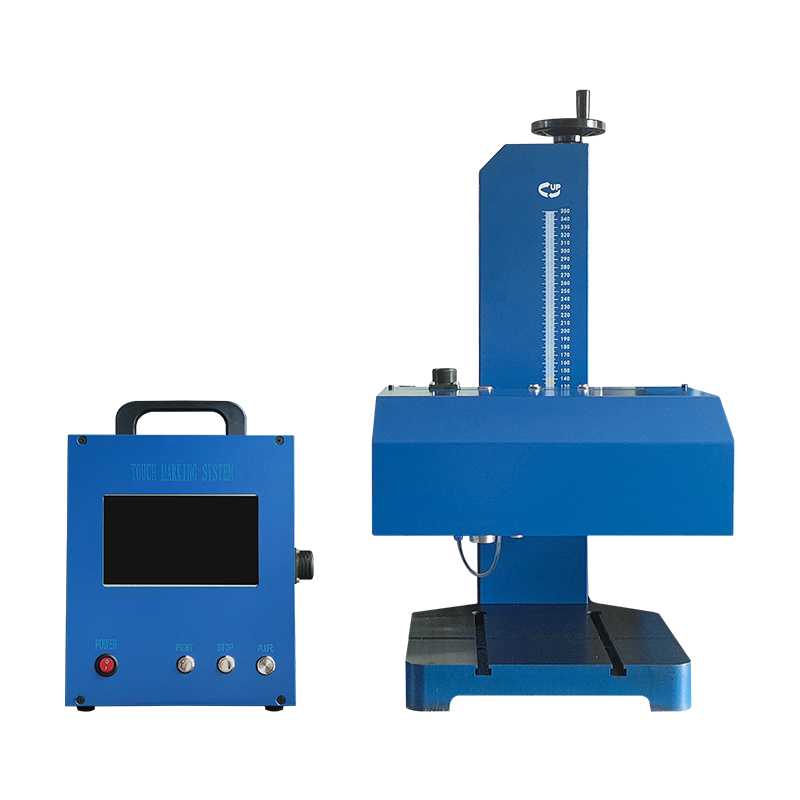

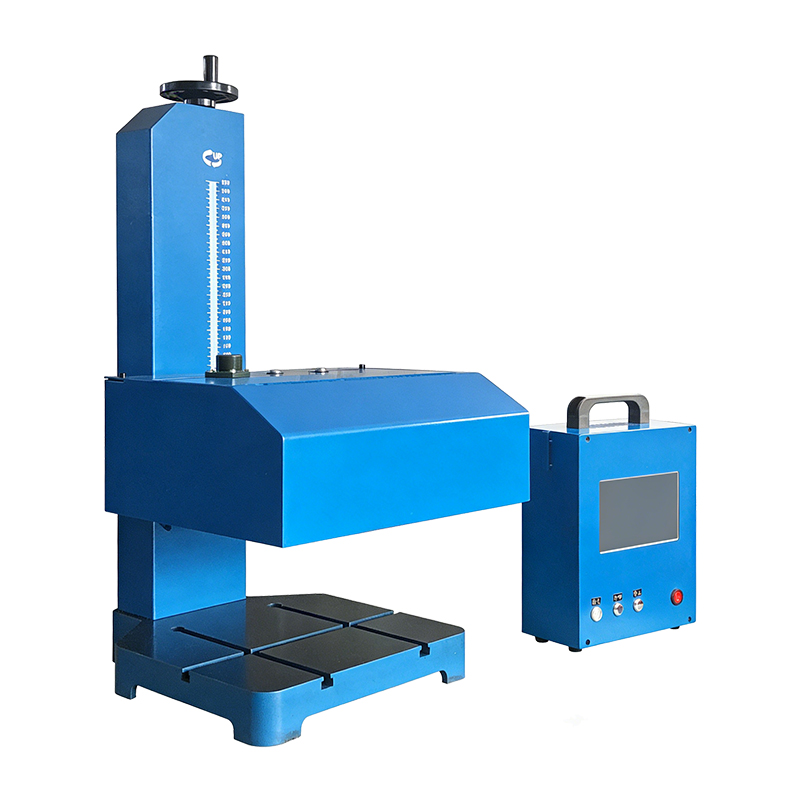

This 250*150mm pneumatic gold bar marking machine is a customized version of the basic model. It uses a high-smoothness 3mm marking needle and can mark at a relatively low air pressure setting of 0.3MPa to avoid excessive deformation or debris on the soft gold bar surface, thus maintaining the net content. It utilizes a powerful Thorx-7 controller to allow customers to mark dot matrix text based on their own fonts. The customer customized the marking area according to the required marking size of 1000g gold bars. Combined with high-precision HIWIN 20 guide rails and SMC solenoid valves from renowned suppliers, this marking machine can mark the entire surface of the customer’s gold bars with dot matrix text, logos, special channel information, and other content with uniform single-dot diameter and shape.

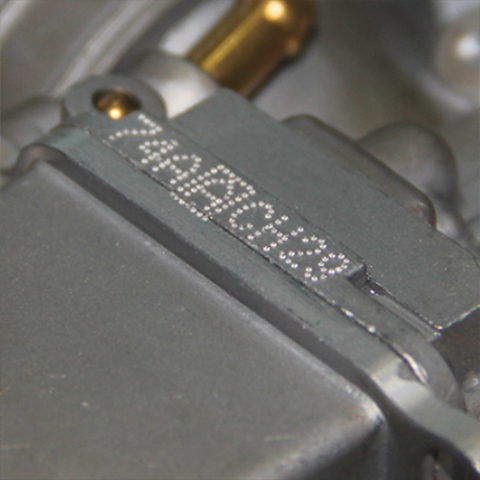

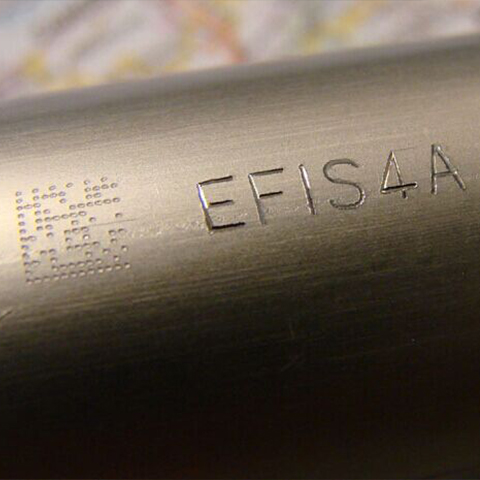

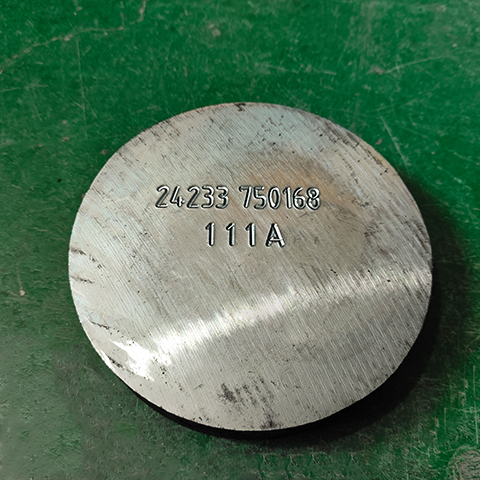

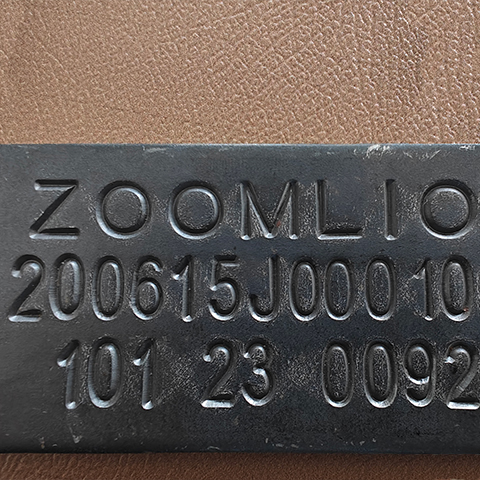

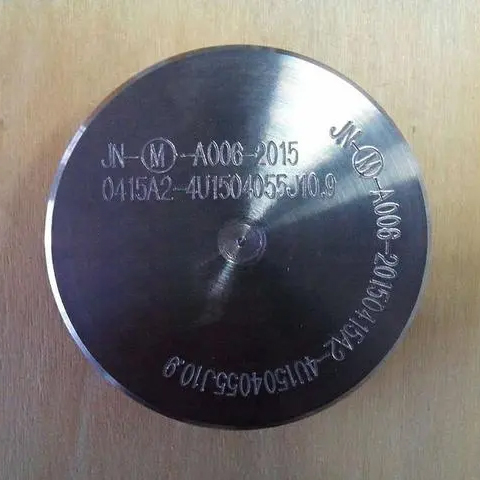

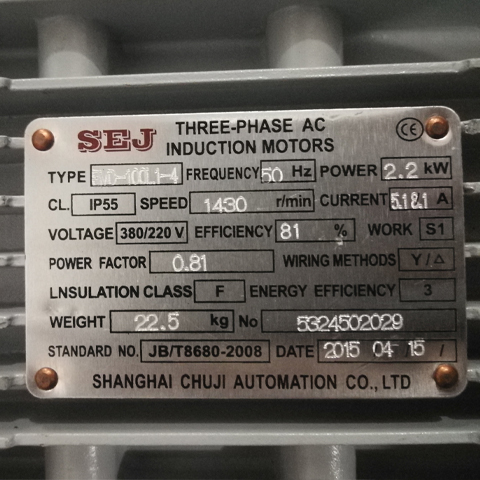

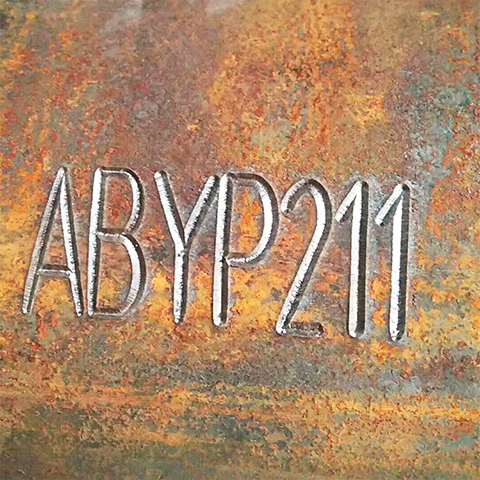

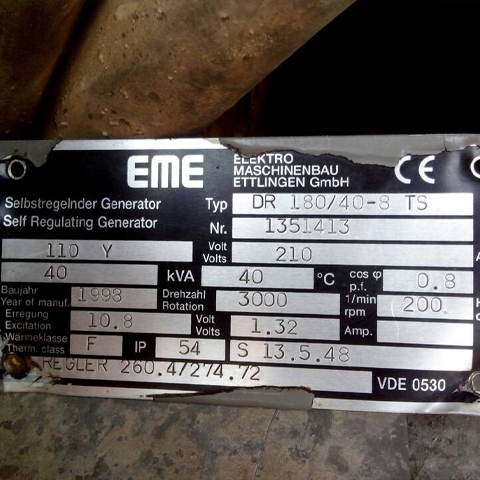

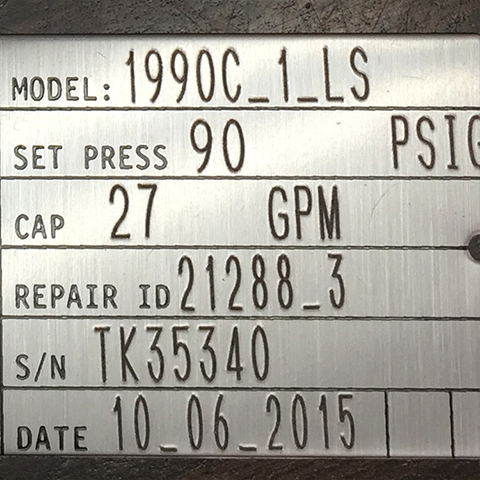

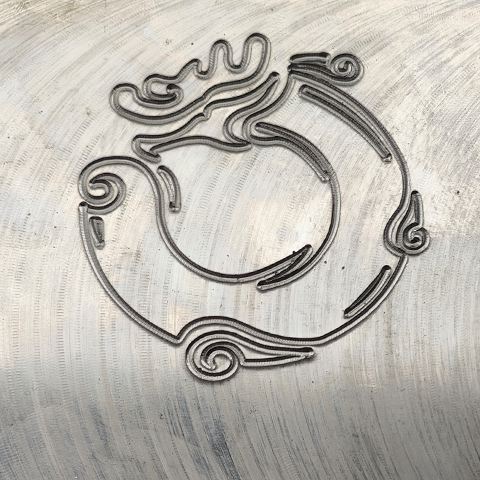

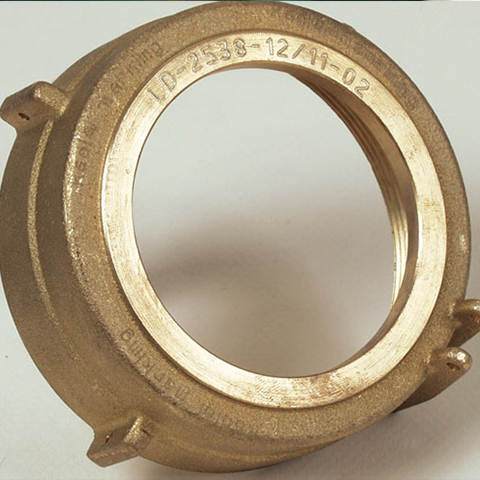

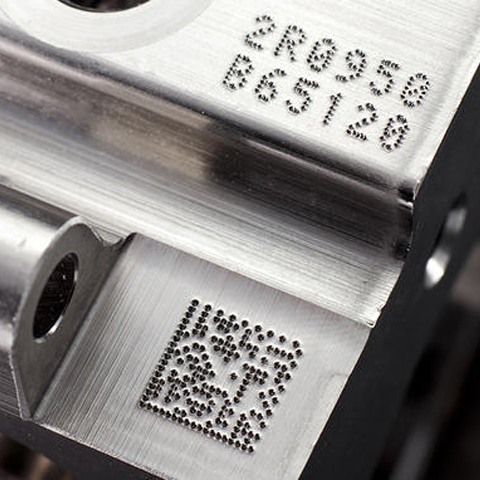

Sample
Specifications
| Marking Type | Pneumatic dotting |
| Marking speed | 2-5 characters (2x2mm)/s |
| Marking depth | 0.01 ~ 1.2mm (Vary to the material) |
| Marking contents | English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc. |
| Stylus Pin Hardness | HRA93 |
| Marking area | 250mm * 150mm |
| Marking materials | Below HRC60 metallic and nonmetallic materials |
| Repeat accuracy | 0.02 ~ 0.04mm |
| Rated Power | 300W |
| Power Input | AC 110V 60HZ or AC220V 50HZ |
| Control Software | Thorx-6、Thorx-7 or Kingmark-8 |
| Controller | 7” or 10.1” touchscreen controller |

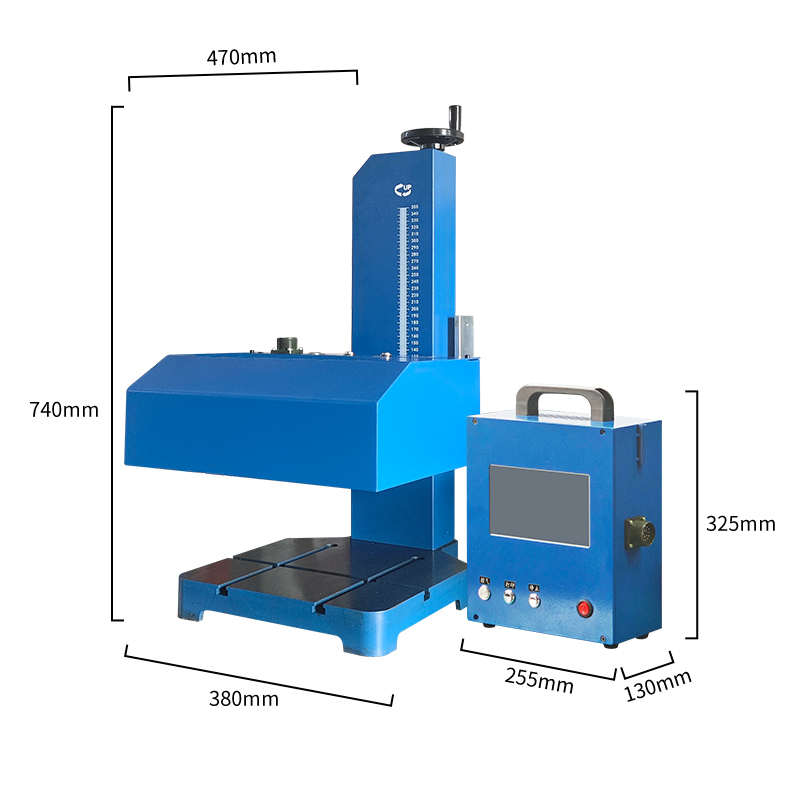

| Dimensions | 470 * 380 * 740mm & 255 * 130 * 325mm |
| N.W. | 35kg |
| Packaged Dimensions | 600 * 400 * 900mm |
| G.W. | 54kg |
