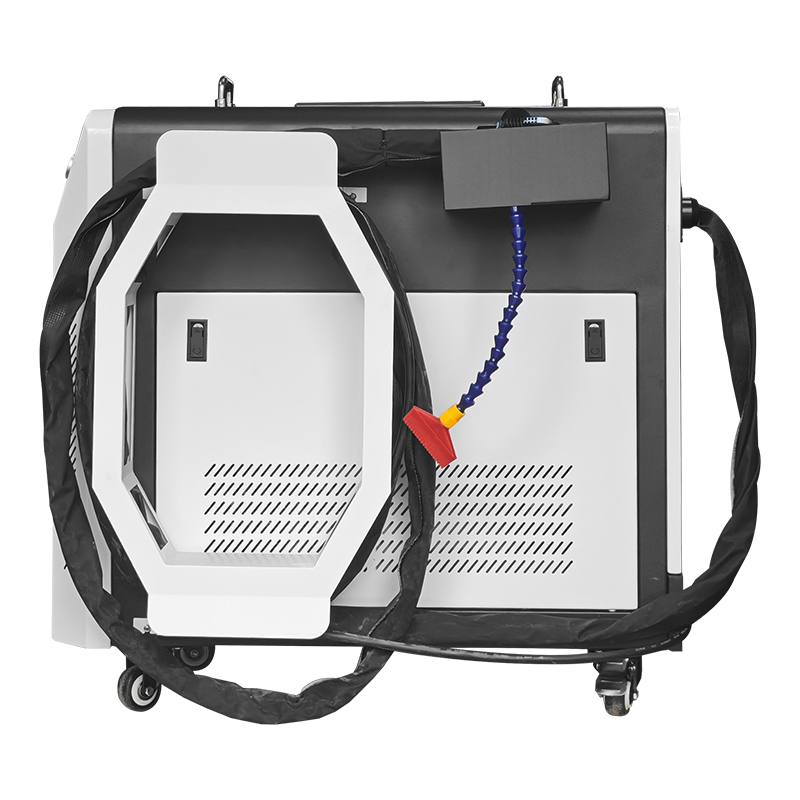

Air-cooled small server rack

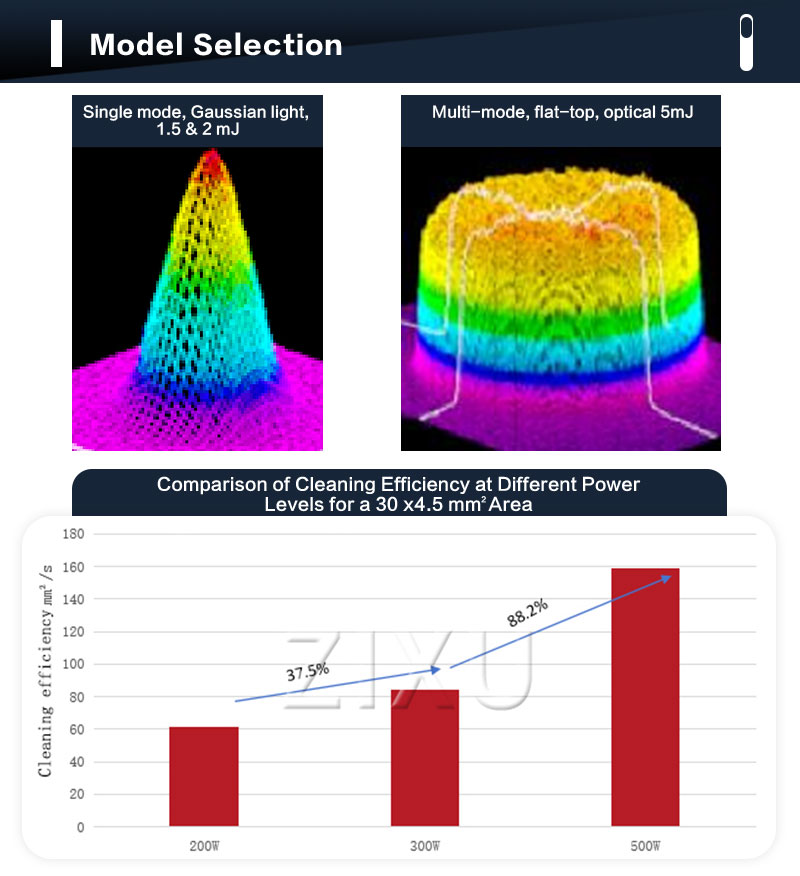

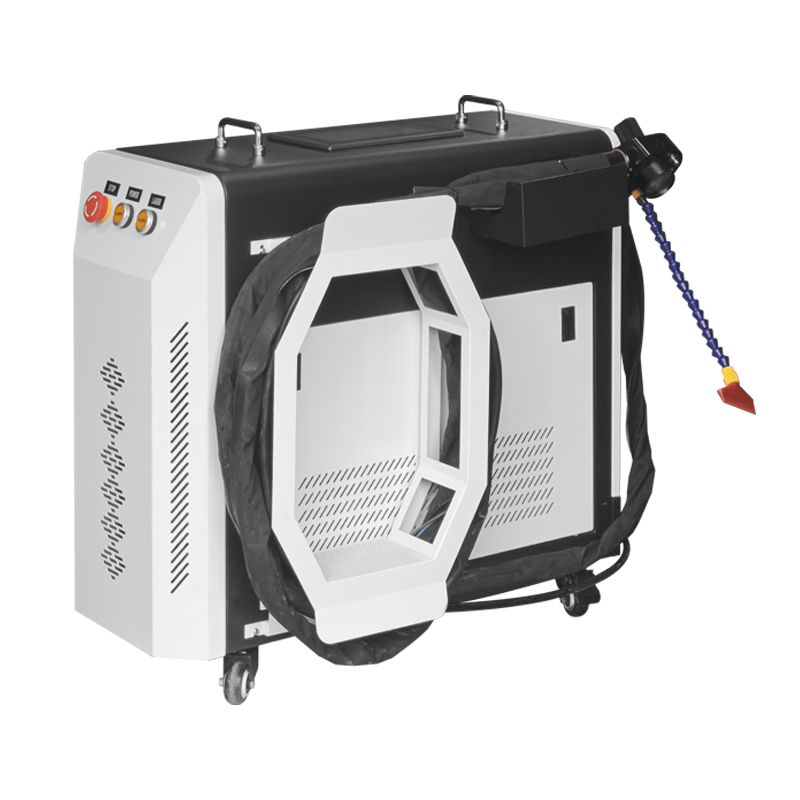

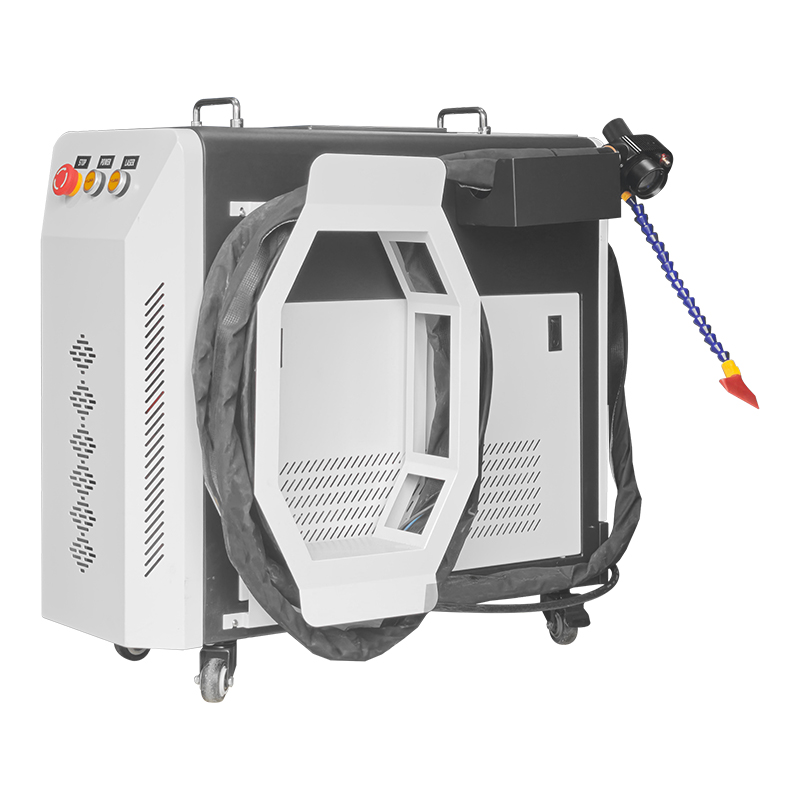

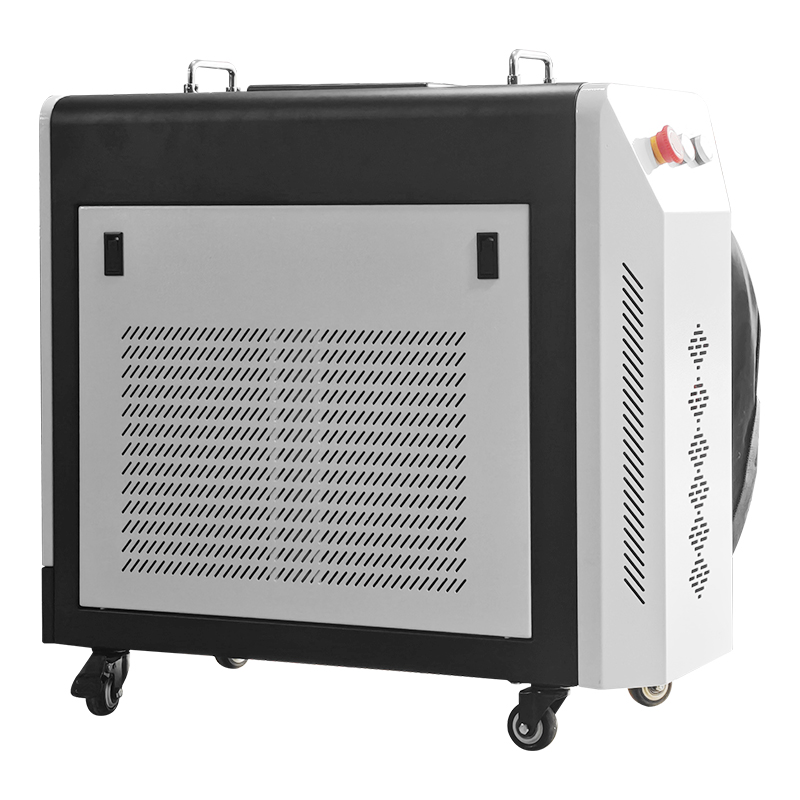

Compact Handheld Pulse Laser Cleaning Machine 200W 300W 500W Air Cooled This is our most recommended pulsed laser cleaning machine. Due to the rapid popularization of pulsed laser cleaning machines in recent years, their power has been continuously increasing while their price has been continuously decreasing. Air-cooled pulsed laser cleaning machines, because they do not require a cabinet with an internal chiller, can be made very small. At power levels below 500W, the long-term stability of the laser has greatly improved, making it the most popular type of pulsed laser cleaning machine. This type of laser cleaning machine uses a MOPA fiber laser optimized for cleaning, with adjustable pulse width and frequency. Combined with adjustments to power and scanning speed, under proper configuration, it can achieve a cleaning effect with almost no damage to the workpiece surface, and the cleaning efficiency is far superior to continuous wave (CW) laser cleaning machines or traditional chemical cleaning. It is currently widely recognized and applied in many industries, including metallurgy, metal products, automotive and shipbuilding, aerospace, pharmaceuticals and chemicals, home appliances, consumer electronics, and advanced materials, for flexible degreasing, paint removal, and rust removal.

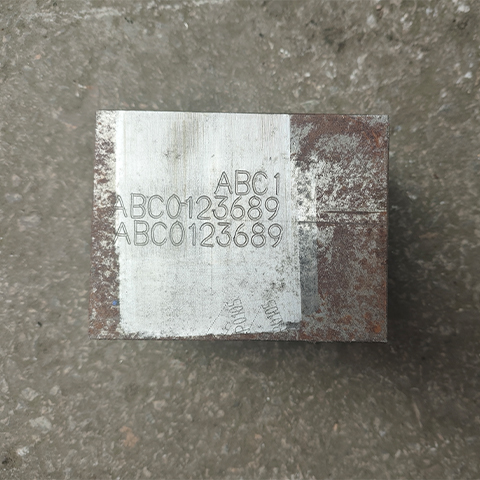

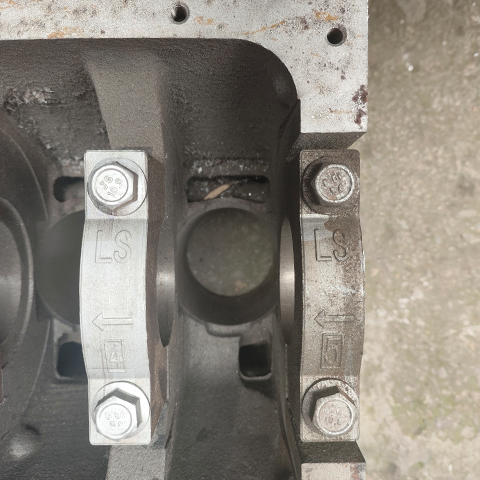

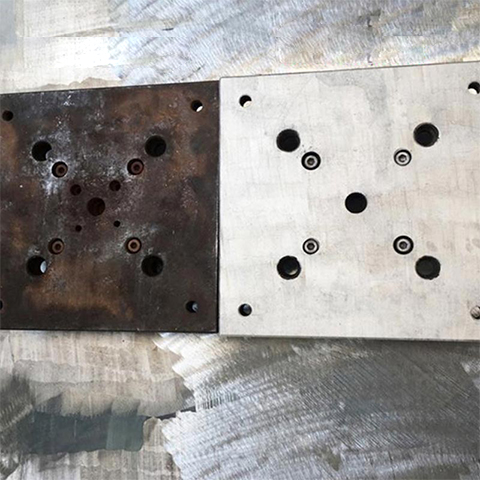

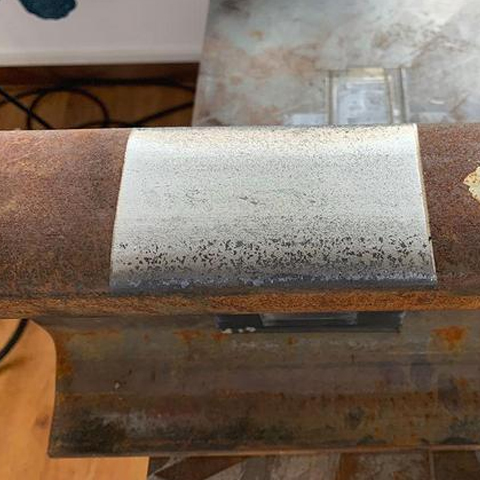

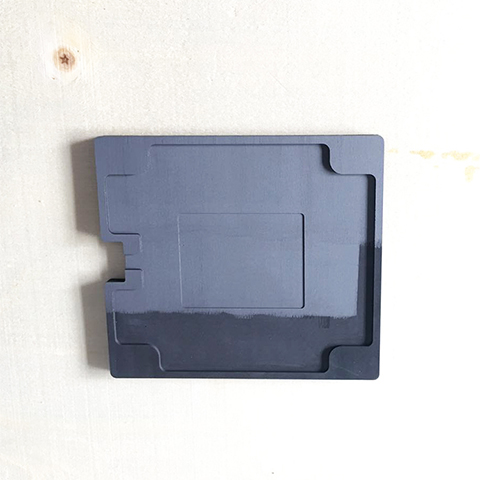

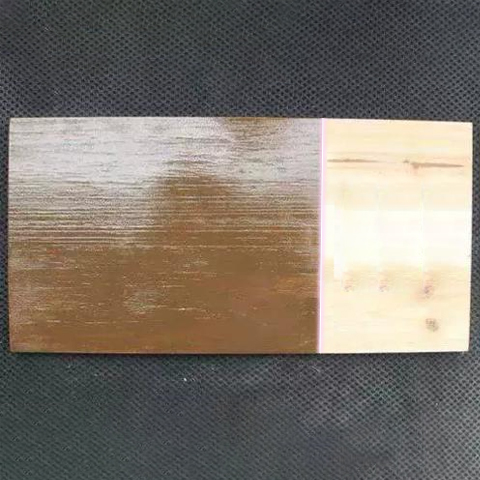

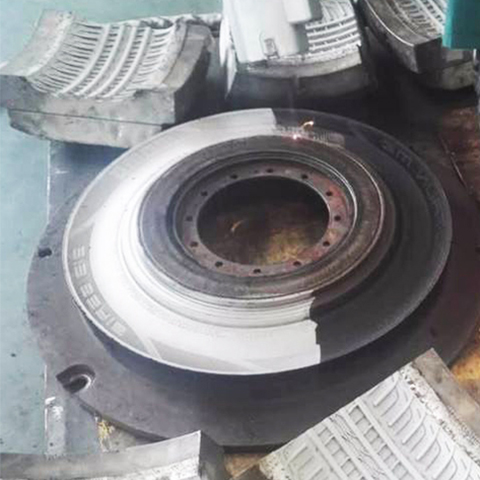

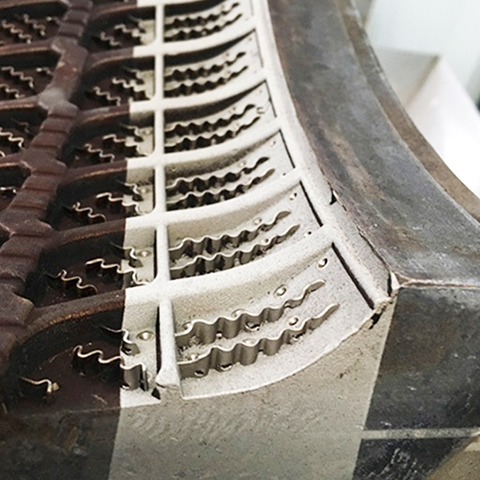

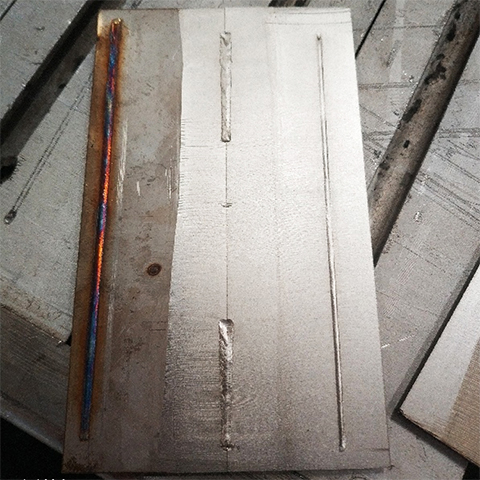

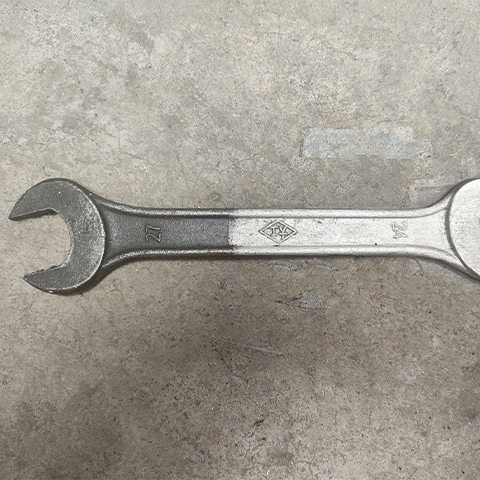

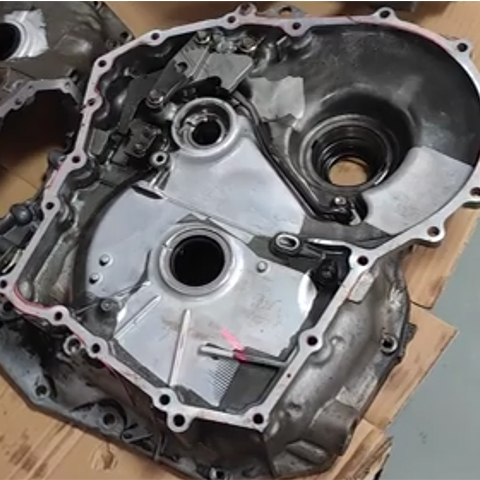

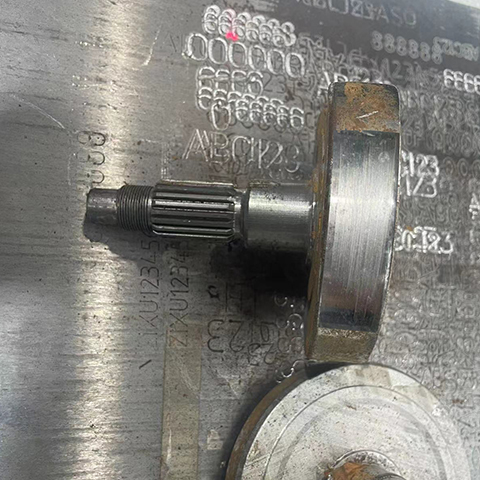

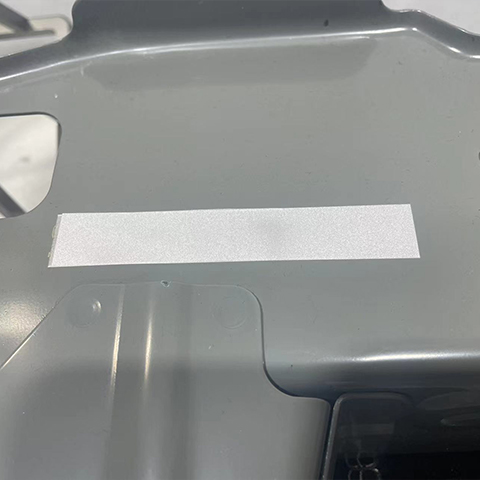

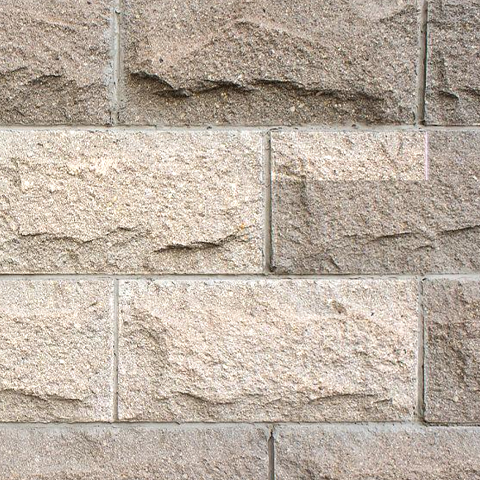

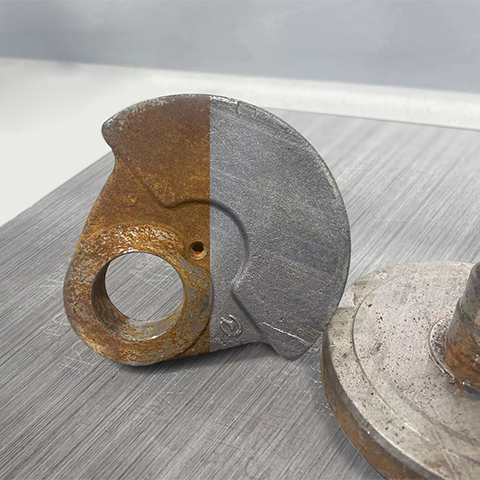

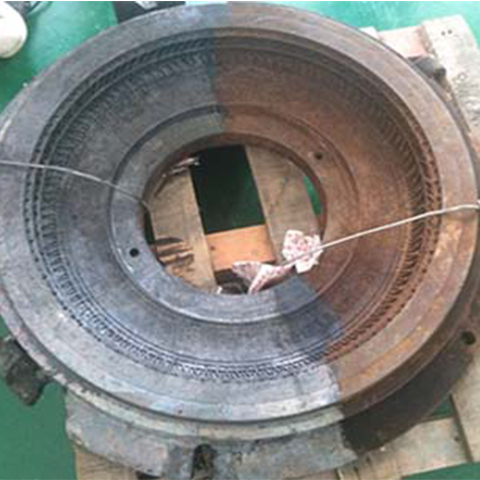

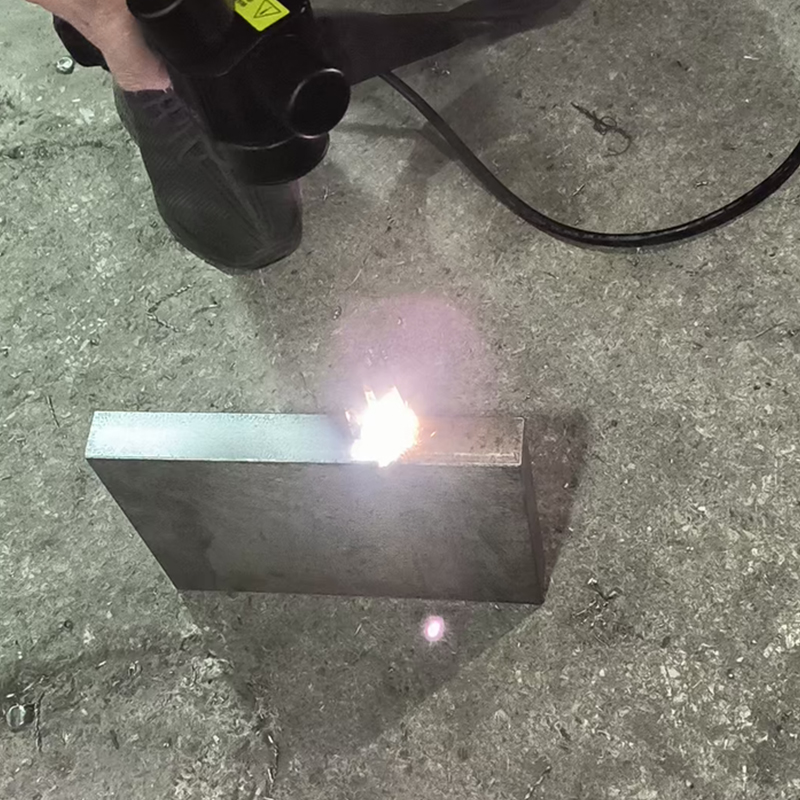

Sample
Specifications
| Laser Brand | JPT or customize | |||
| Laser Power | 100W | 200W | 300W | 500W |
| Energy per Pulse | 1.5mJ | 2mJ, 5mJ, 10mJ | 2mJ, 5mJ, 15mJ | 15mJ, 50mJ |
| Pulse Width | 190ns | 13 ~ 500ns | 30 ~ 500ns | |
| Pulse Repetition Rate Range | 20 ~ 200kHz | 1 ~ 3000kHz | 1 ~ 3000kHz | 1 ~ 4000kHz |
| Work Area | ≤185 * 185mm or customize | |||
| Cooling Method | Air cooling | |||
| Power Input | 100 ~ 240VAC @ 50 / 60 Hz | |||
| Operation Temperature: | 0 ~ 40℃ or 32 ~ 104℉ | |||
| Storage Temperature: | -10 ~ 60℃ or 14 ~ 140℉ | |||
| Relative Humidity: | 10 ~ 80%, no condensation | |||
| N.W. | 44kg | 45.5kg | 45.6kg | 48.5kg |
| Dimension | 680*410*650mm | |||
| G.W. | 66kg | 66kg | 69kg | |
| Packaging Dimension | 720*460*870mm | |||
| MOQ | 1 | |||
| Configuration | Price | |||
| 100W / 1.5mJ | 3375 | |||
| 200W / 2mJ | 4250 | |||
| 200W / 5mJ | 4400 | |||
| 300W / 5mJ | 4650 | |||
| 300W / 15mJ | 4800 | |||
| 500W / 15mJ | 16800 | |||
| 500W / 50mJ | 16800 | |||

This 6-axis CNC automatic platform laser welding machine is primarily designed for precision welding of small metal workpieces. Based on our standard model, it features a smaller 500*400*400mm travel module and a smaller cabinet to meet customer requirements for reduced space and logistics costs. The travel module of this model can also be flexibly customized to meet customer requirements.
We have equipped this machine with a CCD electron microscope camera and a separate display screen for precise adjustment and positioning of welding positions, as well as real-time monitoring of welding quality and results.
