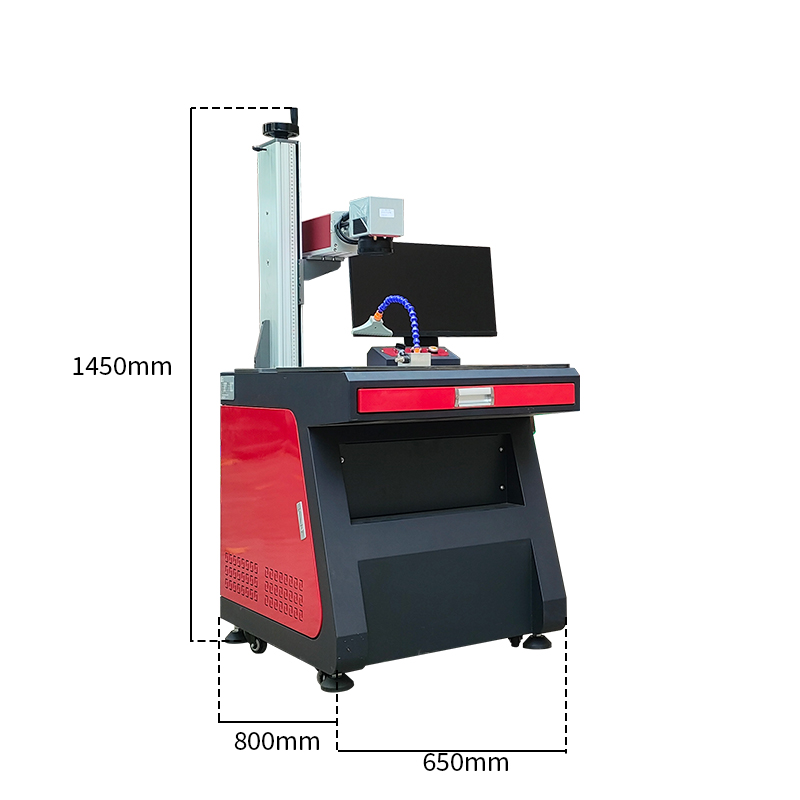

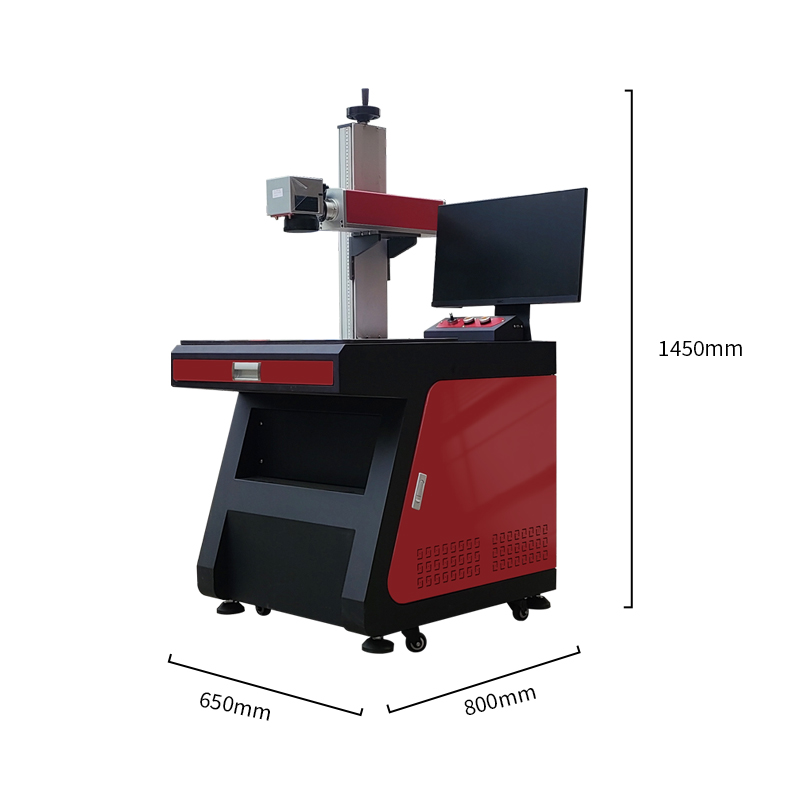

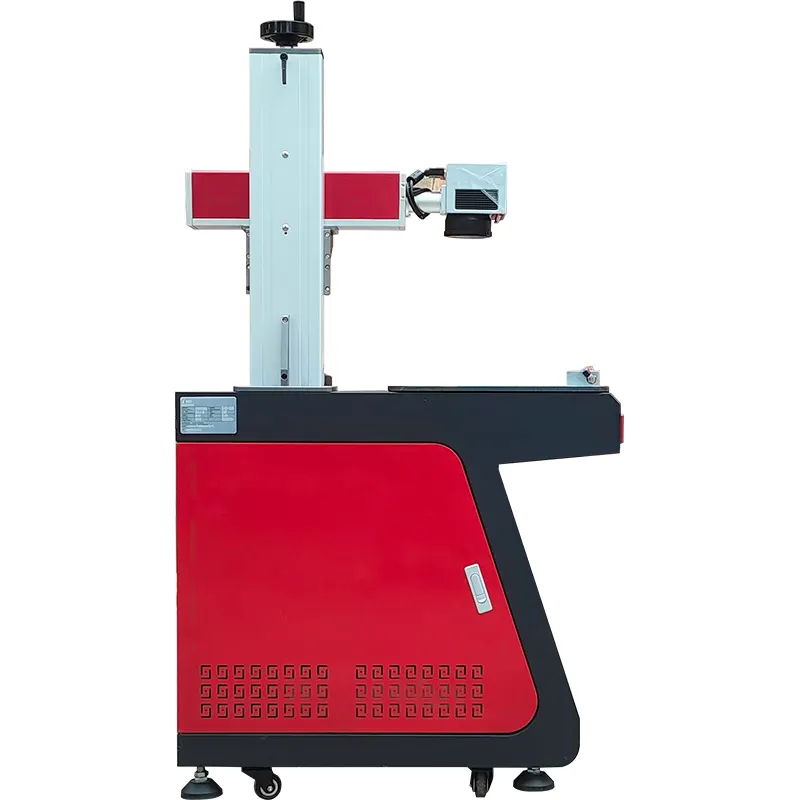

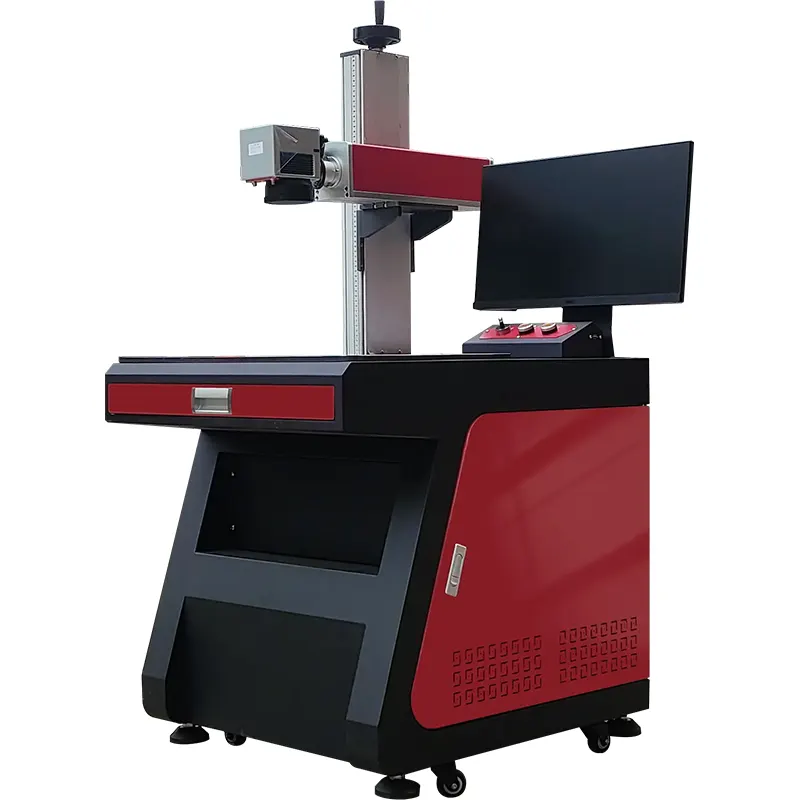

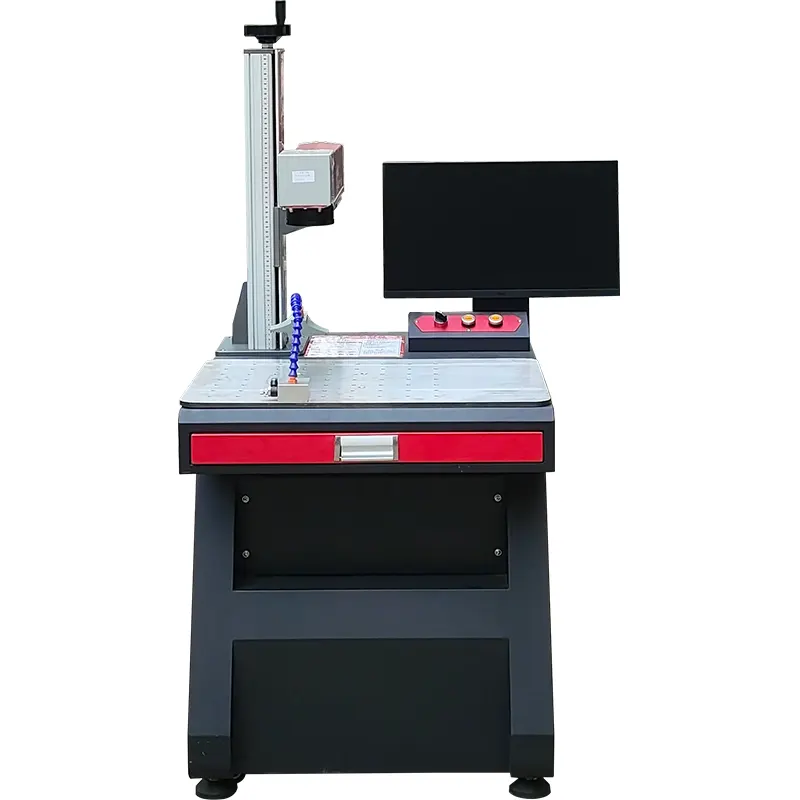

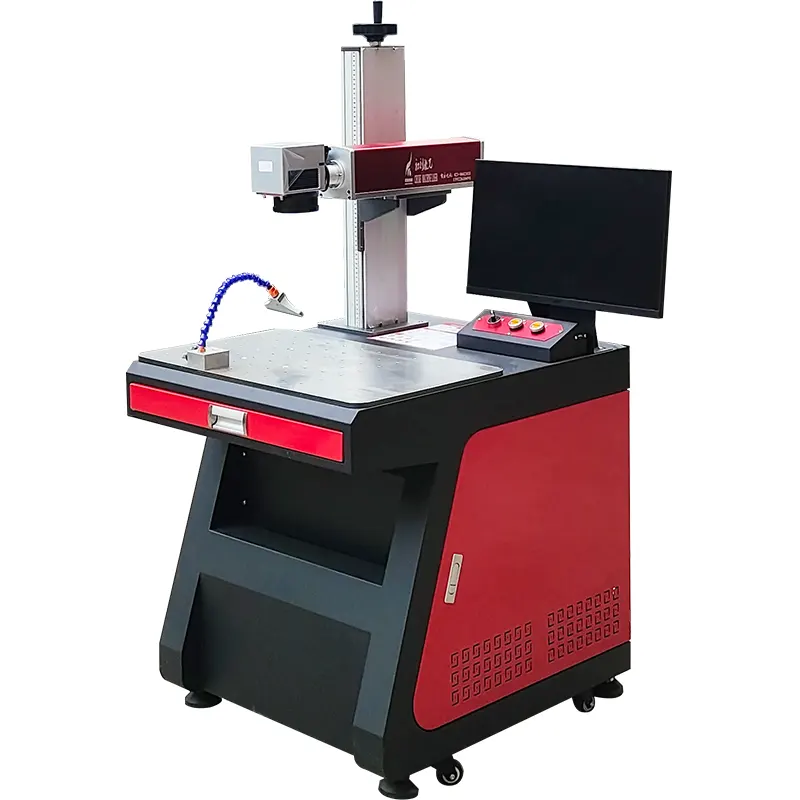

PLY-T50W Fiber Laser Marking Machine
Fiber laser marking machine using 1064nm Yb-doped fiber laser, delivering 20W to 500W output at up to 7000 mm/s for high-precision marking on metals and some non-metals, with no consumables.

Yb-doped fiber laser with up to 100,000-hour lifespan
Marking speeds up to 7,000 mm/s with 0.001 mm minimum line width and ±0.002 mm repeatability
20W–500W output for metals and select non-metals, with no consumables or chemical pollution.

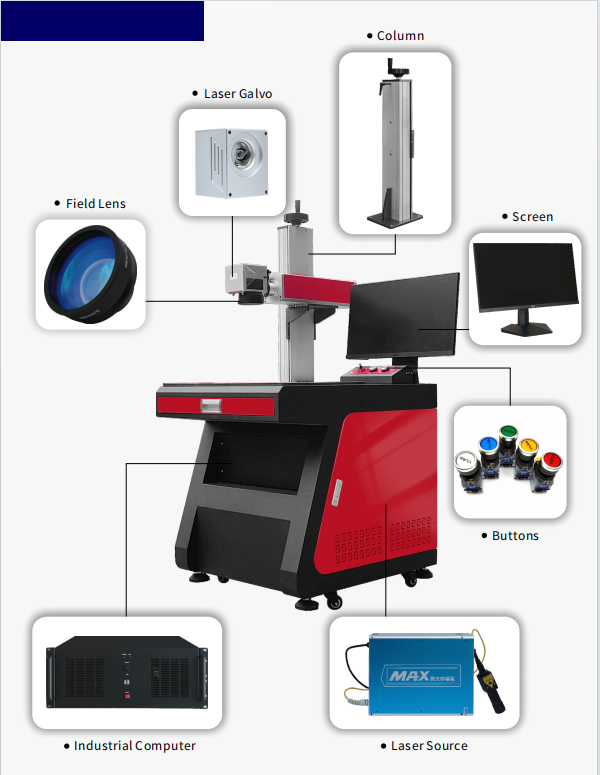

The fiber laser marking machine uses a fiber laser as its core light source. A ytterbium (Yb)-doped optical fiber generates a 1064 nm near-infrared laser, which is focused by a galvanometer system and applied to the surface of the workpiece. Marking is achieved through thermal or photochemical effects, making the system suitable for high-precision processing of metals and some non-metallic materials.
Output power options range from 20W to 500W, with a marking speed of up to 7000 mm/s, a minimum line width of 0.001 mm and repeatability of ±0.002. Light beam quality is below 2. Standard marking areas are 100×100 mm, 200×200 mm and 300×300 mm with customization available, and marking content covers graphics, characters, barcodes and QR codes. The laser source is rated for a 100,000-hour lifespan.
The machine uses air cooling and runs on AC 220V/110V ±10%, 50Hz/60Hz with power consumption below 1 kW. Because the process is non-contact and uses no consumables, maintenance requirements are low and there is no chemical pollution. Three cabinet configurations are available — a compact desktop unit, a floor-standing cabinet and an enclosed safety cabinet — along with optional fixtures such as an XY worktable, rotary chucks and a rotary disk. Before ordering, confirm the power rating, marking area and workpiece material with our team, since the available data lists material support as metals and some non-metals without further grade detail.
| Parameter | Specification |
| Model | CK-PLY-T50W |
| Laser Type | Fiber Laser (Yb-doped fiber, 1064nm) |
| Output Power | 20W / 30W / 50W / 60W / 100W / 200W / 300W / 500W |
| Wavelength | 1064 nm |
| Light Beam Quality | < 2 |
| Marking Speed | 7000 mm/s |
| Marking Area | 100×100 / 200×200 / 300×300 mm (Customization) |
| Marking Content | Graphic / Characters / Barcode / QR Code |
| Repeatability | ±0.002mm |
| Min. Line Width | 0.001 mm |
| Applicable Materials | Metals & non-metals |
| Lifespan of Laser Source | 100,000 hours |
| Cooling Way | Air Cooling |
| Power Supply | AC 220V/110V ±10%, 50Hz/60Hz |
| Power Consumption | < 1 kW |
| Cabinet Options | Desktop / table top / Enclosed |
| Weight | 120kg |

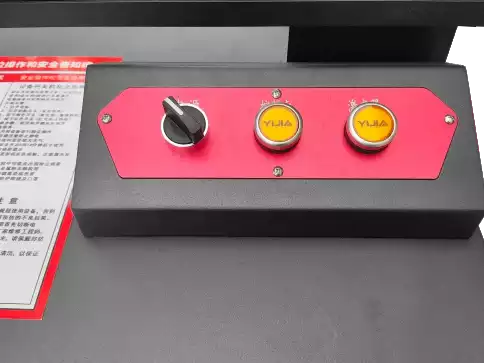

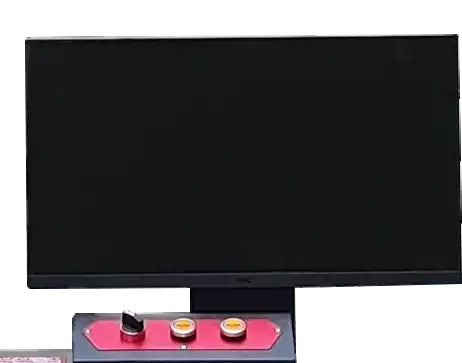

Features

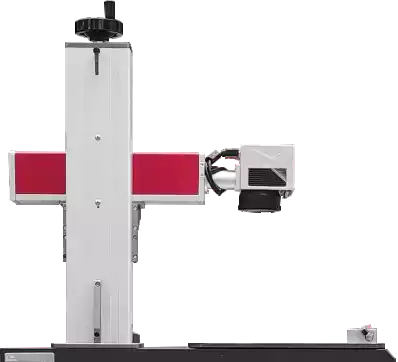

High Precision & Speed
Marking speed up to 7000 mm/s with a minimum line width of 0.001 mm and repeatability of ±0.002, supported by light beam quality below 2.
Strong Metal Adaptability
Designed for high-precision processing of metals, with output power options from 20W to 500W to match different marking depths and cycle times.
No Consumables, Low Maintenance
The non-contact process uses no ink or other consumables and produces no chemical pollution, reducing ongoing maintenance and operating cost.

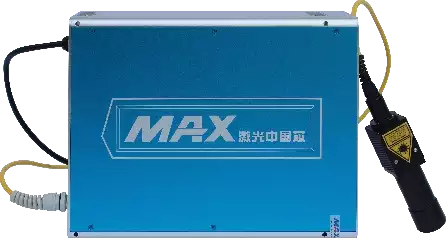

Long-Life Fiber Laser Source
The Yb-doped fiber laser source is rated for a 100,000-hour lifespan.

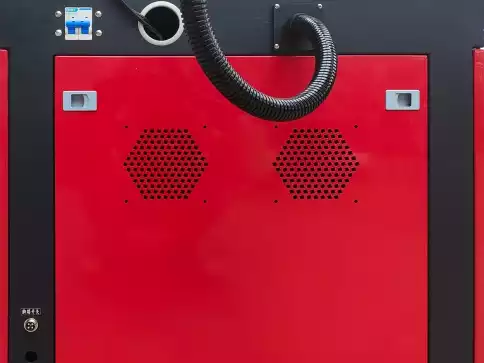

Flexible Configurations
Available with a compact desktop cabinet, a floor-standing cabinet or an enclosed safety cabinet, plus optional fixtures including an XY worktable, rotary chucks and a rotary disk.

Material Compatibility
| Material Category | Compatible Materials | Typical Marking Effect & Applications |
| Metals (Core Strength) | Metals | High-precision marking of text, logos, barcodes and QR codes. Samples show machined metal components, metal bars, ring/flange parts and die-cast housings. |
| Non-Metals (Partial Support) | Some non-metallic materials | Plastics/coatings/oxide layers, etc. |
| Sample-Marked Materials | Stainless steel (316L nameplate sample), red-colored part with white marking, die-cast metal housing | Stainless steel nameplate text, white lettering on red background workpieces, die-cast shell markings and QR codes. |
Explore the Materials You Can Engrave with Our Fiber Laser
| Material Category | Fiber Laser |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | √ |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | X |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | √ |
| Silicone Rubber | √ |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | √ |
| Rubber (NR / NBR / EPDM) | √ |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | √ |
| PU / PVC Synthetic Leather | √ |
| Fabric & Textile | √ |
| Denim & Garment | √ |
| Non-Woven Fabric | √ |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | X |
| Bamboo & Cork | X |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | √ |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | √ |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | X |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | √ |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | √ |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | √ |
| Abrasives & Grinding Wheels | X |
| Food, Eggshell, Produce | X |
Marking Samples
