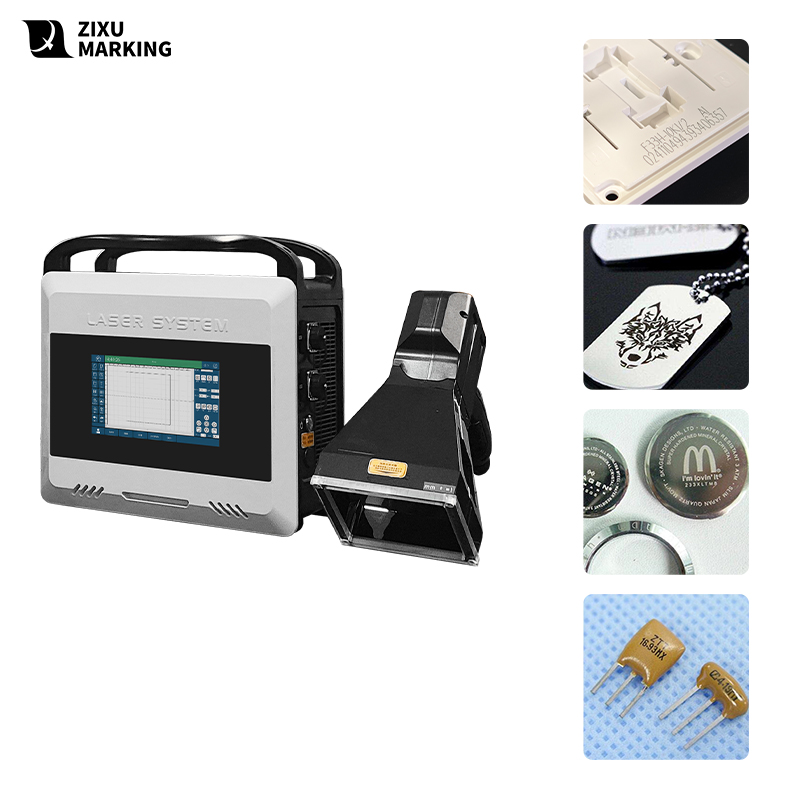

PLY-T30 Portable Handheld Laser Marking Machine
Plug-in handheld laser marking machine with 1064nm fiber laser, 20W to 50W, red-light positioning and a 7-inch touchscreen, marking metals, plastics, glass and painted surfaces at up to 7000 mm/s.
01. Handheld Head with Red-Light Positioning
The marking head is hand-held — press the handle button and control the mark with one hand. An intelligent red-light positioning system indicates exactly where the mark will be applied, so large, heavy or fixed workpieces can be marked in place without being moved to a machine table. Marking scope is 50 × 50 mm as standard, with 100 × 100 mm optional.
02. Fiber Laser Performance in a Portable Package
A 1064 nm fiber laser generator is offered at ≥20W, ≥30W or ≥50W with a maximum marking speed of 7,000 mm/s and a marking line type that combines dot-matrix and vector. The master control unit uses a highly integrated motherboard with a 7-inch touchscreen running Linux, and the standard reflector size is 8.5 mm.
03. Built for Production Integration
Independently developed software and control chip process large files and complex patterns, and both standard and custom communication protocols are supported. The thin high-density body, quartz-coated field lens and adjustable focal length allow the head to adapt to different working distances and to be integrated into existing production lines.

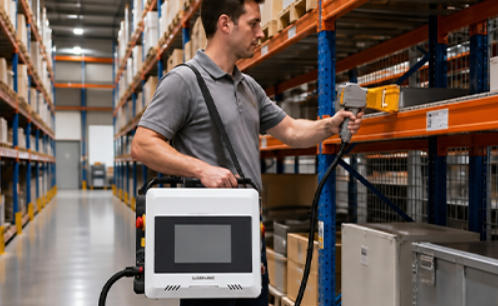

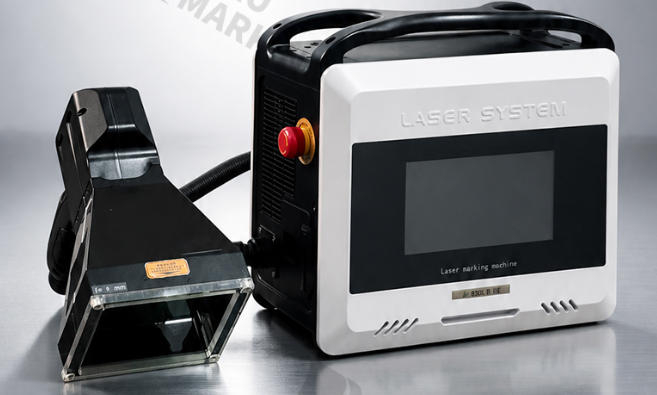

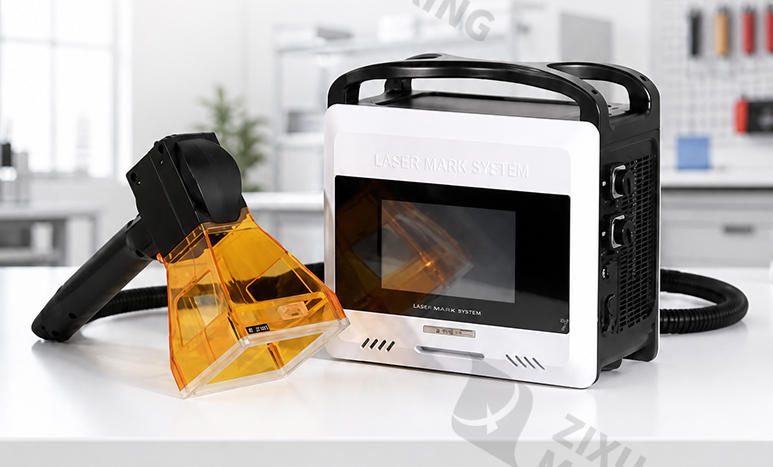

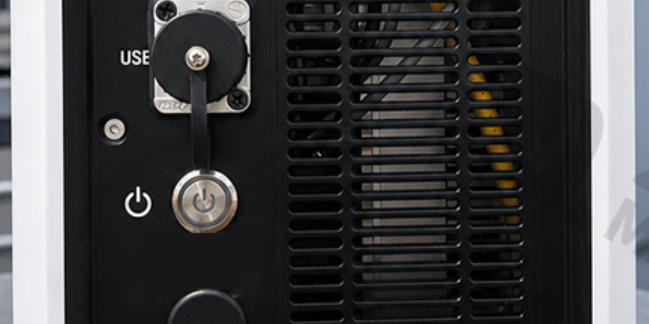

The plug-in portable handheld laser marking machine consists of a hand-held marking head and a separate control box connected by a flexible cable. Because the head is held in the hand rather than mounted on a fixed worktable, it can be used to mark large, heavy or already-installed workpieces on site. An intelligent red-light positioning system shows the operator where the mark will be placed before marking begins, which speeds up alignment on curved and hard-to-reach surfaces.
The machine uses a 1064 nm fiber laser generator available at ≥20W, ≥30W or ≥50W, with a maximum marking speed of 7,000 mm/s, a maximum pulse energy of 0.75 mJ and an adjustable frequency range of 30–60 kHz. Marking line types combine dot-matrix and vector output, and the standard reflector size is 8.5 mm. The marking scope is 50 × 50 mm as standard, with 100 × 100 mm available as an option, and positioning is carried out with red light.

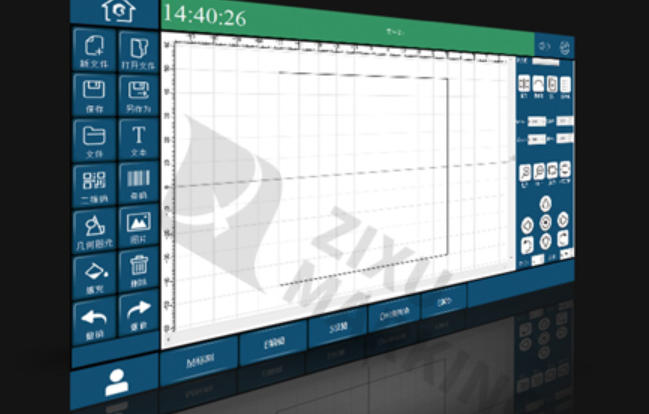

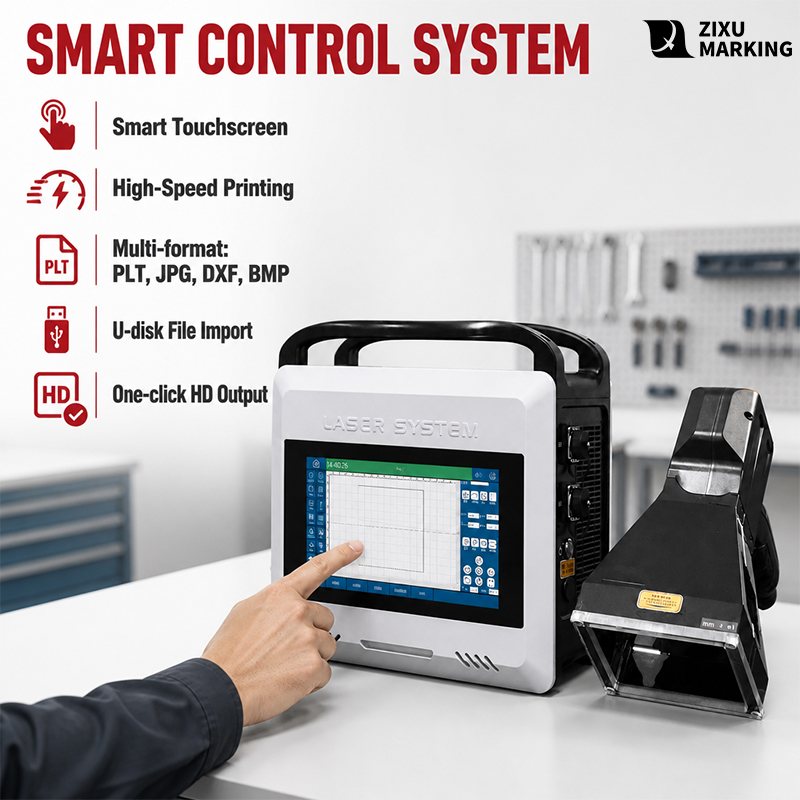

Control is handled by a highly integrated motherboard with a 7-inch touchscreen running the Linux operating system. Files can be imported from a USB drive and edited directly on the screen; supported file formats are BMP, DXF, HPGL, JPEG and PLT, and marking can be triggered with a single button. The character library covers Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard character sets, and barcode and QR code support includes CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE and HANXINCODE.

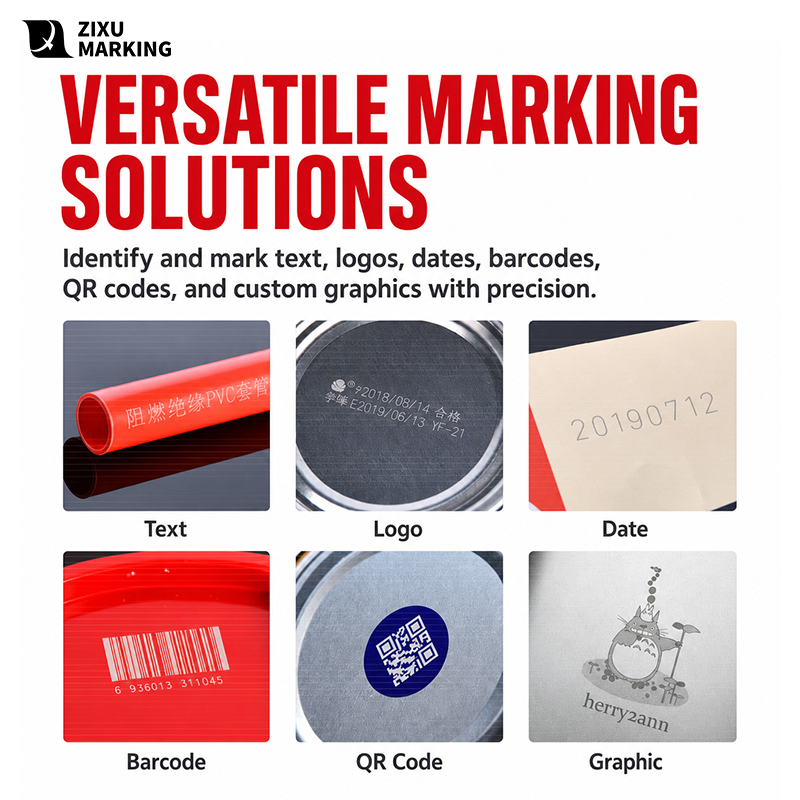

The machine marks metals such as steel, iron, aluminum, zinc and copper, as well as arc-shaped surfaces, hard plastics, painted carton board, melamine wood board and glass, and it reproduces Chinese, English, dates, logos, pictures, QR codes and barcodes. It operates on a 220V supply with a maximum power consumption of ≤200W or ≤300W depending on the laser option, and cooling is by ambient-temperature air, with no water chiller required. Net weight including host and control box is approximately 7.8–8.5 kg, and the working environment should be 0–40°C at 30–85% relative humidity without condensation (pollution degree 2, overvoltage category II).
| Parameter | 20W | 30W | 50W |
| Model | PLY-T20 | PLY-T30 | PLY-T50 |
| Machine Material | Engineering plastic | Engineering plastic | Engineering plastic |
| Laser Type | Fiber-optic laser generator | Fiber-optic laser generator | Fiber-optic laser generator |
| Output Power | ≥ 20W | ≥ 30W | ≥ 50W |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm |
| Marking Method | High-precision dual-dimensional scanning | High-precision dual-dimensional scanning | High-precision dual-dimensional scanning |
| Marking Speed | ≤ 7,000 mm/s | ≤ 7,000 mm/s | ≤ 7,000 mm/s |
| Master Control | Highly integrated motherboard with 7-inch screen | Highly integrated motherboard with 7-inch screen | Highly integrated motherboard with 7-inch screen |
| Maximum Pulse Energy | 0.75 mJ | 0.75 mJ | 0.75 mJ |
| Frequency Range | 30–60 kHz | 30–60 kHz | 30–60 kHz |
| Operating System | Linux | Linux | Linux |
| Cooling | Air cooling (ambient temperature) | Air cooling (ambient temperature) | Air cooling (ambient temperature) |
| Marking Line Type | Dot-matrix and vector all-in-one | Dot-matrix and vector all-in-one | Dot-matrix and vector all-in-one |
| Reflector Size | 8.5 mm (standard) | 8.5 mm (standard) | 8.5 mm (standard) |
| Marking Scope | 50 × 50 mm (standard) / 100 × 100 mm (optional) | 50 × 50 mm (standard) / 100 × 100 mm (optional) | 50 × 50 mm (standard) / 100 × 100 mm (optional) |
| Positioning Mode | Red light positioning | Red light positioning | Red light positioning |
| Print Rate | 650 characters/second | 650 characters/second | 650 characters/second |
| Character Library | Simplified & Traditional Chinese, English, Korean, Russian, Arabic numerals and standard character library | Simplified & Traditional Chinese, English, Korean, Russian, Arabic numerals and standard character library | Simplified & Traditional Chinese, English, Korean, Russian, Arabic numerals and standard character library |
| File Format | BMP / DXF / HPGL / JPEG / PLT | BMP / DXF / HPGL / JPEG / PLT | BMP / DXF / HPGL / JPEG / PLT |
| Barcode / QR Code | CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE | CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE | CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE |
| Power Supply | 220V | 220V | 220V |
| Max. Power Consumption | ≤ 200W | ≤ 300W | ≤ 300W |
| Net Weight (host + control box) | 7.8 kg位） | 8.5 kg | 8.5 kg |
| Handheld Head Size | 325 × 79 × 151 mm | 325 × 79 × 151 mm | 325 × 79 × 151 mm |
| Control Box Size | 310 × 260 × 307 mm | 310 × 269 × 307 mm | 310 × 269 × 307 mm |
| Pollution Degree | 2 | 2 | 2 |
| Overvoltage Category | II | II | II |
| Operating Temperature | 0–40 °C | 0–40 °C | 0–40 °C |
| Operating Humidity | 30–85% RH (no condensation) | 30–85% RH (no condensation) | 30–85% RH (no condensation) |
Features
One-Hand Handheld Operation
Hold the handle button and control the marking with one hand; an intelligent red-light positioning system shows the marking position before the mark is applied.
20W/30W/50W Fiber Laser Options
A 1064 nm fiber laser generator with maximum pulse energy of 0.75 mJ and adjustable frequency of 30–60 kHz, delivering marking speeds up to 7,000 mm/s.
High-Speed Coding Capability
A print rate of up to 650 characters per second (depending on material and content), with dot-matrix and vector marking line types combined in one machine.
Smart Touchscreen Control
A 7-inch touchscreen running Linux supports USB file import and on-screen editing of BMP, DXF, HPGL, JPEG and PLT files, with multi-language character libraries and one-key marking.
Wide Material Coverage
Marks steel, iron, aluminum, zinc and copper, as well as arc-shaped surfaces, hard plastics, painted carton board, melamine wood board and glass.

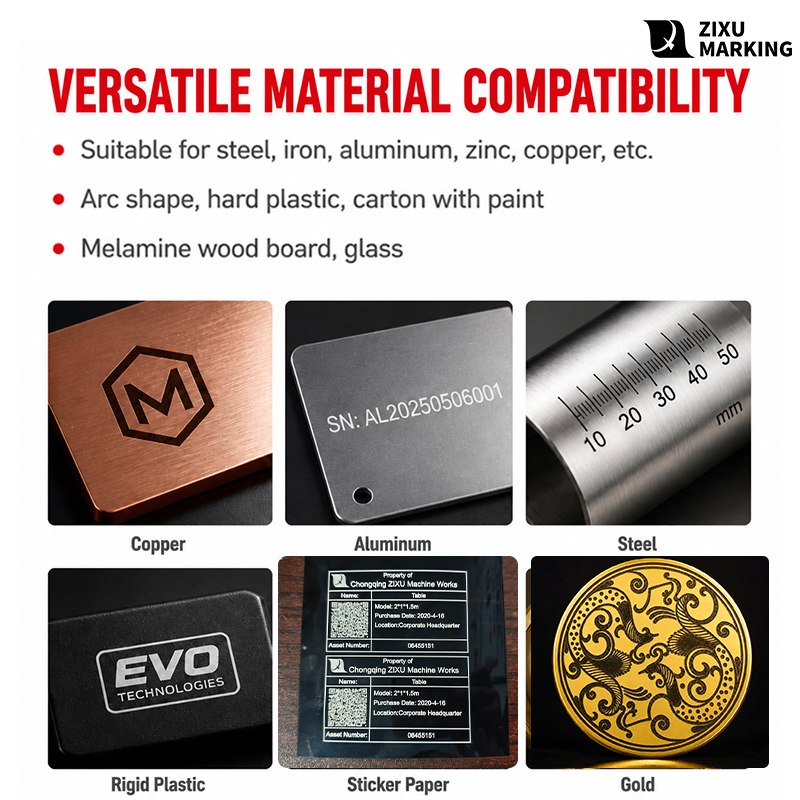

Material Compatibility
| Category | Compatible Materials | Effect & Applications |
| Metals | Steel, iron, aluminum, zinc, copper and other metals | Marking of identifiers, characters, dates, logos, and QR codes/barcodes; marking results on copper, aluminum, and steel fittings, as well as gold rings. |
| Arc / Curved Surfaces | Arc-shaped parts | The handheld marking head conforms to curved surfaces and large workpieces that are difficult to move. |
| Plastics & Coatings | Hard plastics, painted cardboard, melamine wood board | Marking on rigid plastic parts and coated paper surfaces |
| Marking Content | Chinese, English, dates, logos, pictures, QR codes and barcodes | Supports multilingual character sets and mainstream barcode/QR code formats. |

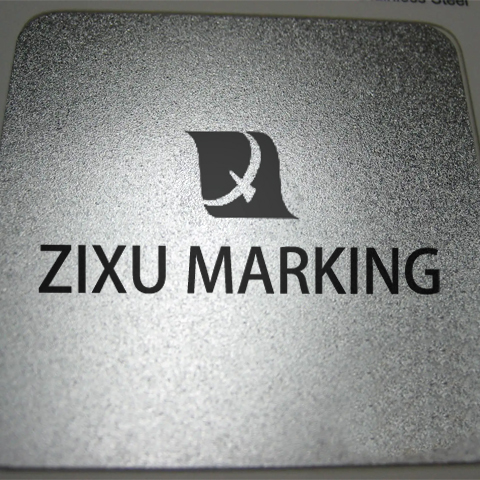

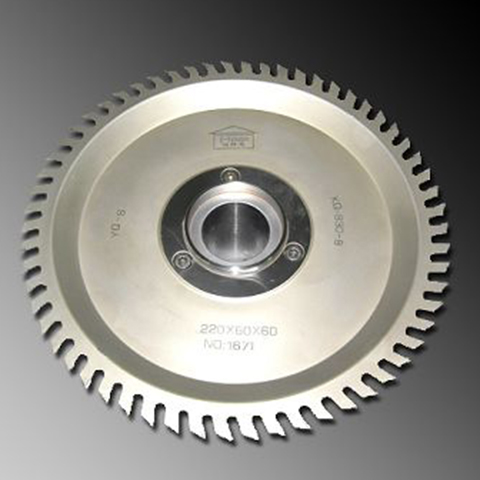

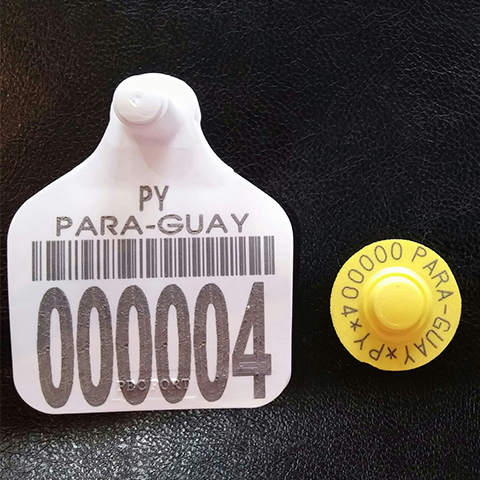

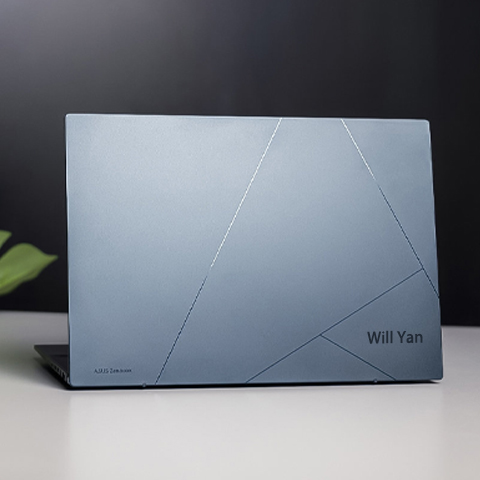

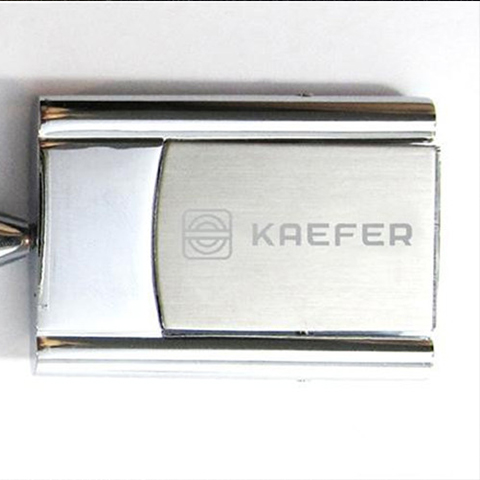

Marking Samples
Contact us for your specific needs.
Send us an email to get further information you need, including our latest price, the best-customized solution, or any problem with the existing machine.
