PLY-T30 Portable Handheld Laser Marking Machine
Plug-in handheld laser marking machine with 1064nm fiber laser, 20W to 50W, red-light positioning and a 7-inch touchscreen, marking metals, plastics, glass and painted surfaces at up to 7000 mm/s.
Enables one-handed operation and precise positioning for large, heavy or fixed workpieces. Standard 50 × 50 mm marking area, with 100 × 100 mm optional.
Available in ≥20W, ≥30W and ≥50W options, with marking speeds up to 7,000 mm/s and a 7-inch Linux touchscreen.
Supports large files, complex patterns and custom communication protocols, with adjustable focal length for integration into existing production lines.

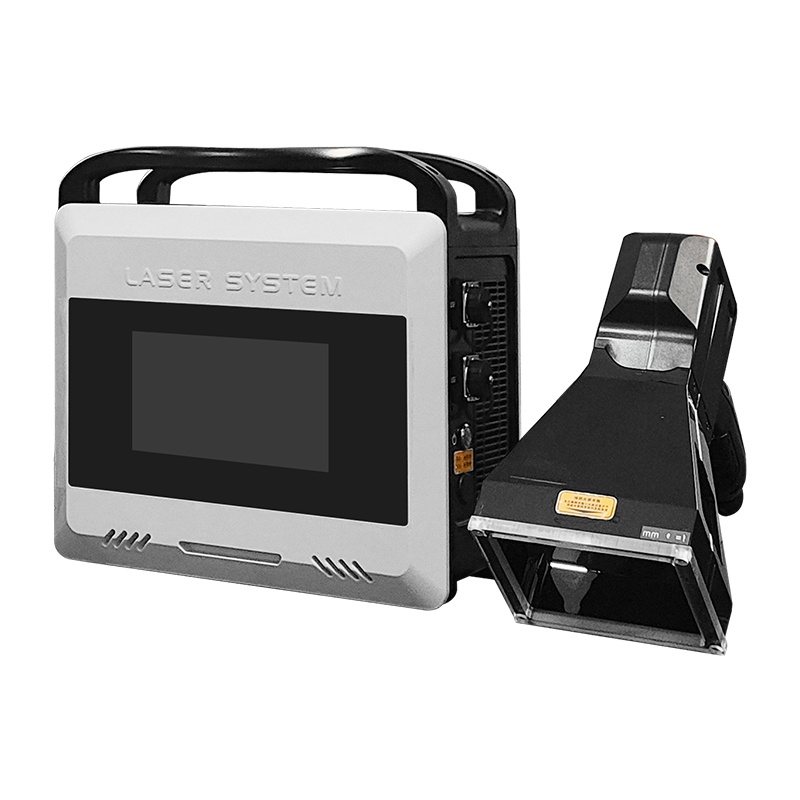

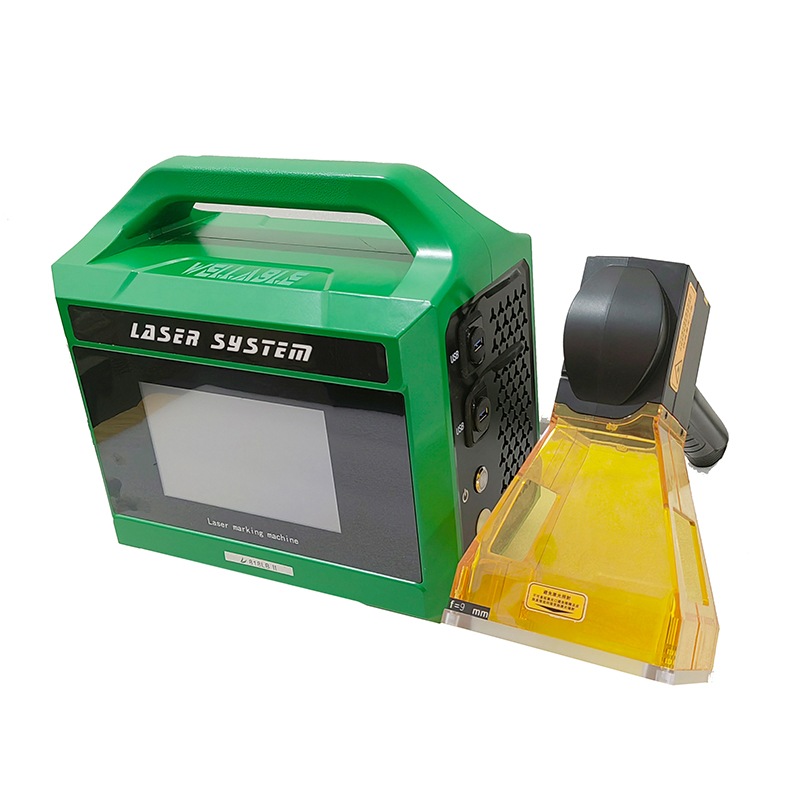

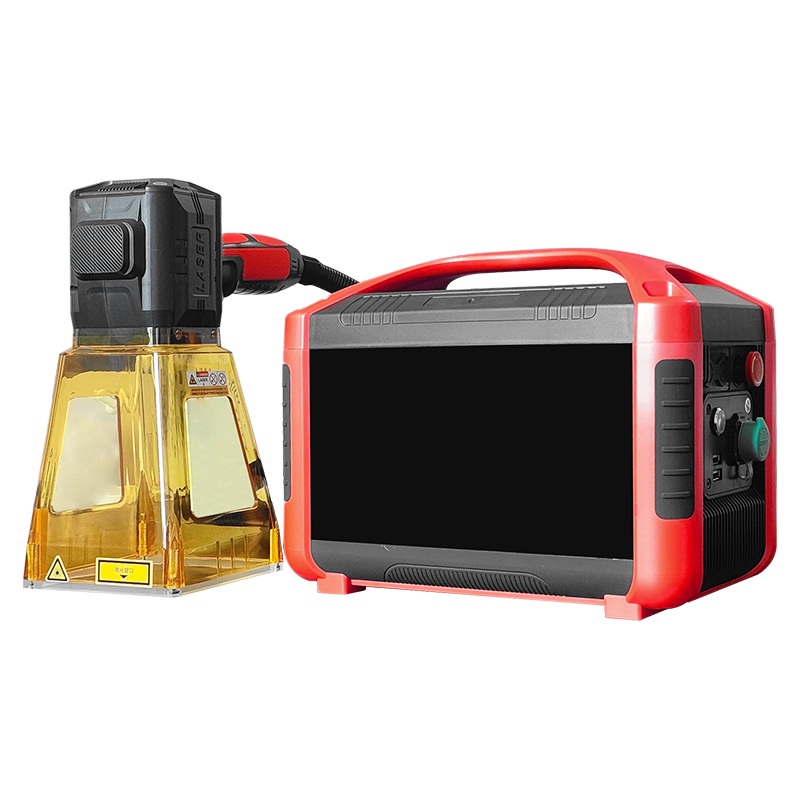

The plug-in portable handheld laser marking machine features a handheld marking head connected to a separate control box by a flexible cable. Its portable design and intelligent red-light positioning system enable easy marking on large, heavy, installed or hard-to-reach workpieces.
Powered by a 1064 nm fiber laser, the machine is available in ≥20W, ≥30W and ≥50W options, with marking speeds up to 7,000 mm/s. It offers a standard 50 × 50 mm marking area, with 100 × 100 mm optional, and supports both dot-matrix and vector marking.
A 7-inch Linux touchscreen allows users to import files via USB, edit content and start marking with one button. Supported content includes text, logos, graphics, serial information, barcodes and QR codes.
The machine marks metals such as steel, iron, aluminum, zinc and copper, as well as selected plastics, coated carton board, melamine wood board and glass. Air-cooled operation eliminates the need for a water chiller. With a net weight of approximately 7.8–8.5 kg and power consumption of ≤200W or ≤300W depending on the laser option, it is suitable for flexible marking applications in workshops and on site. Operating conditions are 0–40°C and 30–85% relative humidity without condensation.
| Parameter | 20W | 30W | 50W |
| Model | PLY-T20 | PLY-T30 | PLY-T50 |
| Machine Material | Engineering plastic | Engineering plastic | Engineering plastic |
| Laser Type | Fiber-optic laser generator | Fiber-optic laser generator | Fiber-optic laser generator |
| Output Power | ≥ 20W | ≥ 30W | ≥ 50W |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm |
| Marking Method | High-precision dual-dimensional scanning | High-precision dual-dimensional scanning | High-precision dual-dimensional scanning |
| Marking Speed | ≤ 7,000 mm/s | ≤ 7,000 mm/s | ≤ 7,000 mm/s |
| Master Control | Highly integrated motherboard with 7-inch screen | Highly integrated motherboard with 7-inch screen | Highly integrated motherboard with 7-inch screen |
| Maximum Pulse Energy | 0.75 mJ | 0.75 mJ | 0.75 mJ |
| Frequency Range | 30–60 kHz | 30–60 kHz | 30–60 kHz |
| Operating System | Linux | Linux | Linux |
| Cooling | Air cooling (ambient temperature) | Air cooling (ambient temperature) | Air cooling (ambient temperature) |
| Marking Line Type | Dot-matrix and vector all-in-one | Dot-matrix and vector all-in-one | Dot-matrix and vector all-in-one |
| Reflector Size | 8.5 mm (standard) | 8.5 mm (standard) | 8.5 mm (standard) |
| Marking Scope | 50 × 50 mm (standard) / 100 × 100 mm (optional) | 50 × 50 mm (standard) / 100 × 100 mm (optional) | 50 × 50 mm (standard) / 100 × 100 mm (optional) |
| Positioning Mode | Red light positioning | Red light positioning | Red light positioning |
| Print Rate | 650 characters/second | 650 characters/second | 650 characters/second |
| Character Library | Simplified & Traditional Chinese, English, Korean, Russian, Arabic numerals and standard character library | Simplified & Traditional Chinese, English, Korean, Russian, Arabic numerals and standard character library | Simplified & Traditional Chinese, English, Korean, Russian, Arabic numerals and standard character library |
| File Format | BMP / DXF / HPGL / JPEG / PLT | BMP / DXF / HPGL / JPEG / PLT | BMP / DXF / HPGL / JPEG / PLT |
| Barcode / QR Code | CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE | CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE | CODE39, CODE128, CODE126, EAN 13, PDF417, 01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE |
| Power Supply | 220V | 220V | 220V |
| Max. Power Consumption | ≤ 200W | ≤ 300W | ≤ 300W |
| Net Weight (host + control box) | 7.8 kg | 8.5 kg | 8.5 kg |
| Handheld Head Size | 325 × 79 × 151 mm | 325 × 79 × 151 mm | 325 × 79 × 151 mm |
| Control Box Size | 310 × 260 × 307 mm | 310 × 269 × 307 mm | 310 × 269 × 307 mm |
| Pollution Degree | 2 | 2 | 2 |
| Overvoltage Category | II | II | II |
| Operating Temperature | 0–40 °C | 0–40 °C | 0–40 °C |
| Operating Humidity | 30–85% RH (no condensation) | 30–85% RH (no condensation) | 30–85% RH (no condensation) |
Features
One-Hand Handheld Operation
Hold the handle button and control the marking with one hand; an intelligent red-light positioning system shows the marking position before the mark is applied.
20W/30W/50W Fiber Laser Options
A 1064 nm fiber laser generator with maximum pulse energy of 0.75 mJ and adjustable frequency of 30–60 kHz, delivering marking speeds up to 7,000 mm/s.
High-Speed Coding Capability
A print rate of up to 650 characters per second (depending on material and content), with dot-matrix and vector marking line types combined in one machine.
Smart Touchscreen Control
A 7-inch touchscreen running Linux supports USB file import and on-screen editing of BMP, DXF, HPGL, JPEG and PLT files, with multi-language character libraries and one-key marking.
Wide Material Coverage
Marks steel, iron, aluminum, zinc and copper, as well as arc-shaped surfaces, hard plastics, painted carton board, melamine wood board and glass.
Material Compatibility
| Category | Compatible Materials | Effect & Applications |
| Metals | Steel, iron, aluminum, zinc, copper and other metals | Marking of identifiers, characters, dates, logos, and QR codes/barcodes; marking results on copper, aluminum, and steel fittings, as well as gold rings. |
| Arc / Curved Surfaces | Arc-shaped parts | The handheld marking head conforms to curved surfaces and large workpieces that are difficult to move. |
| Plastics & Coatings | Hard plastics, painted cardboard, melamine wood board | Marking on rigid plastic parts and coated paper surfaces |
| Marking Content | Chinese, English, dates, logos, pictures, QR codes and barcodes | Supports multilingual character sets and mainstream barcode/QR code formats. |
Explore the Materials You Can Engrave with Our Fiber Laser
| Material Category | Fiber Laser |
| Metals | |
| Stainless Steel (304 / 316) | √ |
| Carbon Steel / Mild Steel | √ |
| Alloy Steel / Tool Steel (SKD11, H13) | √ |
| Hardened Steel (HRC > 50) | √ |
| Cast Iron / Ductile Iron | √ |
| Aluminum & Alloys | √ |
| Anodized Aluminum | √ |
| Copper & Brass | √ |
| Galvanized / Zinc-Coated Steel | √ |
| Titanium & Alloys | √ |
| Magnesium Alloy | √ |
| Precious Metals (Au / Ag / Pt) | √ |
| Cemented Carbide / Tungsten Steel | √ |
| Powder Metallurgy / Sintered Parts | √ |
| Magnetic Materials (NdFeB, Silicon Steel) | √ |
| Electroplated Parts (Cr / Ni / Zn) | √ |
| Painted & Powder-Coated Metal | √ |
| Metal Foil & Thin Sheet (< 0.5 mm) | √ |
| Medical Instruments & Implants (UDI) | √ |
| Hardware, Tools & Fasteners | √ |
| Plastics & Rubber | |
| ABS | ABS | √ |
| PC (Polycarbonate) | √ |
| ABS + PC Alloy | √ |
| PP / PE | √ |
| PVC | √ |
| PMMA / Acrylic (clear) | X |
| POM / PEEK | √ |
| PA / Glass-Fiber Reinforced Nylon | √ |
| TPU / TPE Elastomer | √ |
| Silicone Rubber | √ |
| Epoxy / Bakelite | √ |
| Laser-Markable Plastics (doped) | √ |
| Plastic Film & Label | √ |
| Rubber (NR / NBR / EPDM) | √ |
| Foam (EVA / EPE / Sponge) | X |
| Leather, Textile, Paper & Wood | |
| Genuine Leather | √ |
| PU / PVC Synthetic Leather | √ |
| Fabric & Textile | √ |
| Denim & Garment | √ |
| Non-Woven Fabric | √ |
| Paper & Cardboard | X |
| Corrugated Carton | X |
| Paper Label & Barcode | X |
| Wood & MDF | X |
| Bamboo & Cork | X |
| Glass, Ceramic & Stone | |
| Glass | X |
| Quartz Glass | X |
| Crystal & Gemstone (incl. 3D inner engraving) | X |
| Ceramic (Daily & Art Ware) | √ |
| Electronic Ceramics (Al₂O₃ / AlN / Piezo) | √ |
| Glazed Tile | X |
| Marble & Granite | √ |
| Concrete & Cement Products | X |
| Sapphire & Optical Crystal | X |
| Electronics & Semiconductor | |
| PCB / FPC | X |
| Silicon Wafer | X |
| IC Package & Semiconductor Device | X |
| Electronic Components | X |
| Cable & Wire | X |
| Keypad & Switch | √ |
| Battery Shell & Electrode | √ |
| Coatings & Others | |
| Paint & Coating (ablation marking) | √ |
| PTFE / Teflon Coating | X |
| Carbon Fiber & Composites | √ |
| Abrasives & Grinding Wheels | X |
| Food, Eggshell, Produce | X |
Marking Samples
