Flying CO2 Laser Marking Machine
The CO2 flying laser marking machine delivers high-speed, ink-free online coding up to 130m/min. It easily integrates into production lines for permanent date and batch marking on packaging materials.
01 Ultra-Fast Online Coding
Up to 130 m/min line speed and 12,000 mm/s marking speed.
02 Reliable RF CO2 Laser Technology
30W/40W/60W sealed RF laser with zero consumables and low maintenance.
03 Smart Factory Integration
10.2″ touchscreen, Linux OS, visual rejection, and IP55/IP65 protection.
The CO2 flying laser marking machine by CKLASER is a premium RF CO2 laser coding system engineered specifically for high-speed online production. Built with German craftsmanship and an integrated split design, this robust machine seamlessly mounts onto existing conveyor lines. Utilizing a sealed metal RF CO2 laser generator at a standard 10.6μm wavelength (10.2μm/9.3μm optional), it produces permanent, high-contrast marks through thermal effects without any toxic ink or consumables.
Ideal for the food, beverage, and pharmaceutical industries, this online CO2 laser coding machine effectively replaces traditional CIJ inkjet printers. It safely marks production dates, batch numbers, and traceability QR codes on plastic bottles, paper boxes, flexible packaging, and pill blisters. With an advanced Linux-based 10.2-inch touchscreen controller, it supports static, analog, and encoder marking modes, ensuring unmatched flexibility and precision at line speeds up to 130m/min
| Parameter | Specification |
| Model | CO2 (30W / 40W / 60W) |
| Laser Source | Sealed Metal RF CO2 Laser Generator |
| Laser Wavelength | Standard 10.6μm (Optional 10.2μm or 9.3μm) |
| Output Power | ≥38W (for 30W) / ≥43W (for 40W) / ≥70W (for 60W) |
| Marking Speed | ≤12000 mm/s |
| Production Line Speed | 0 ~ 130 m/min (Based on material) |
| Repeatability | 0.01 mm |
| Min Line Width | 0.03 mm |
| Focusing Lens | Focal Length 145mm |
| Marking Area | 110 × 110 mm (Optional: 100*100/175*175/210*210/260*260mm) |
| Positioning Method | Red Light Focus (Dual Red Light) |
| Control System | 10.2-inch Touch Controller (Linux OS) |
| Cooling System | Air Cooling (for 30W/40W) / Water Cooling (for 60W) |
| Supported Formats | BMP, DXF, HPGL, JPEG, PLT |
| Barcode Types | CODE39, CODE128, CODE126, QR (Optional: Zhenzhi Code) |
| Power Supply | 220V/50HZ, 800W |
| Environment Requirements | 0°C-45°C; Humidity ≤95%; Non-condensing |

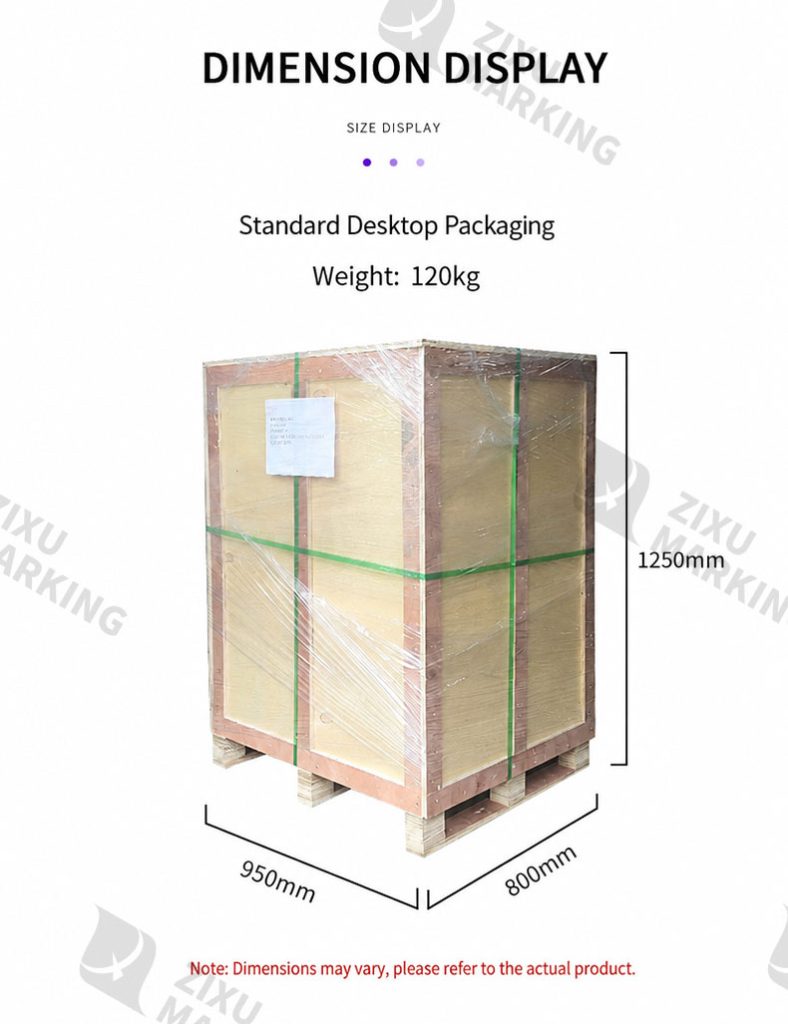

| Machine Head Dimensions | 666×165×130 mm (30/40W) / 850×165×130 mm (60W) |
| Net Weight | Laser Head: 14 kg (30/40W) / 23 kg (60W) | Flying Bracket: 30 kg |

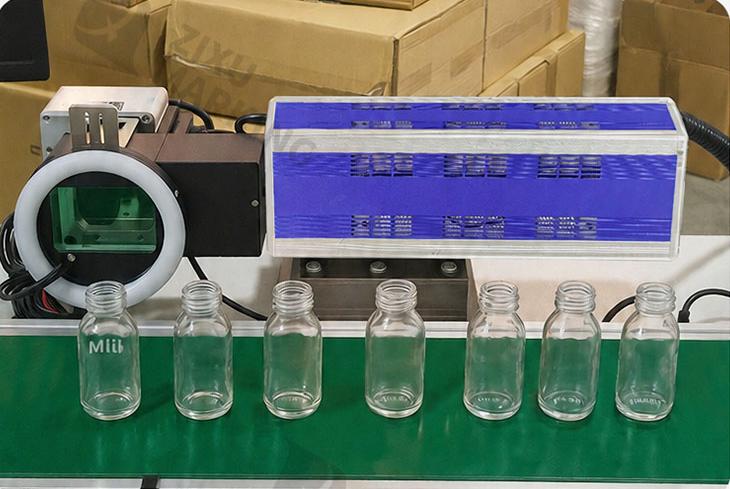

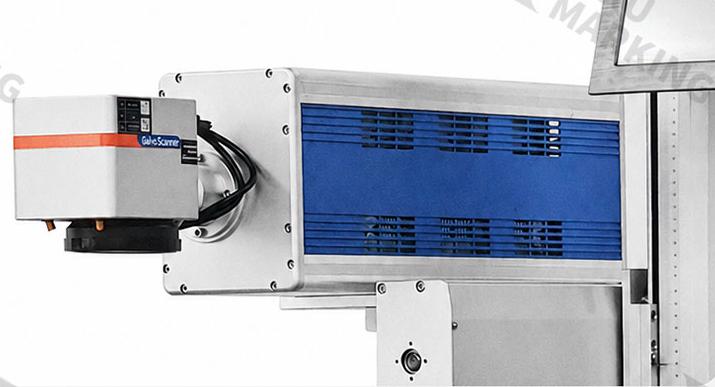

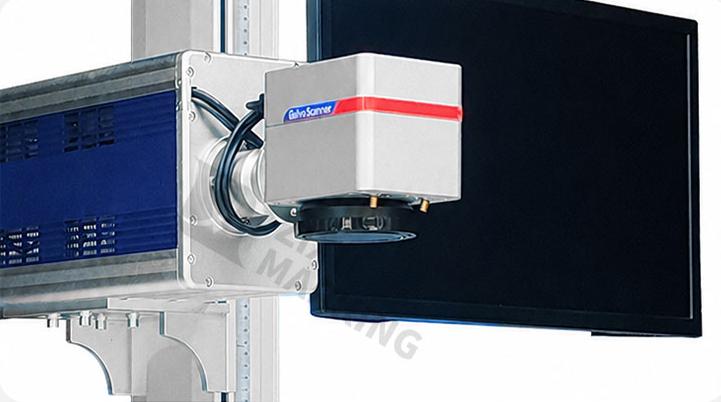

Features
Advanced Intelligent Control System
Driven by a secure Linux OS via a 10.2-inch color touchscreen. It features multi-level user management, power-off data protection, and an anti-overlap algorithm to ensure precise code generation.
Industrial-Grade Protection
Driven by a secure Linux OS via a 10.2-inch color touchscreen. It features multi-level user management, power-off data protection, and an anti-overlap algorithm to ensure precise code generation.
Seamless Line Integration
Description: Comes with a dedicated flying bracket, synchronizer, and photoelectric sensor. It natively supports visual rejection protocols and remote Ethernet control for complete automation.

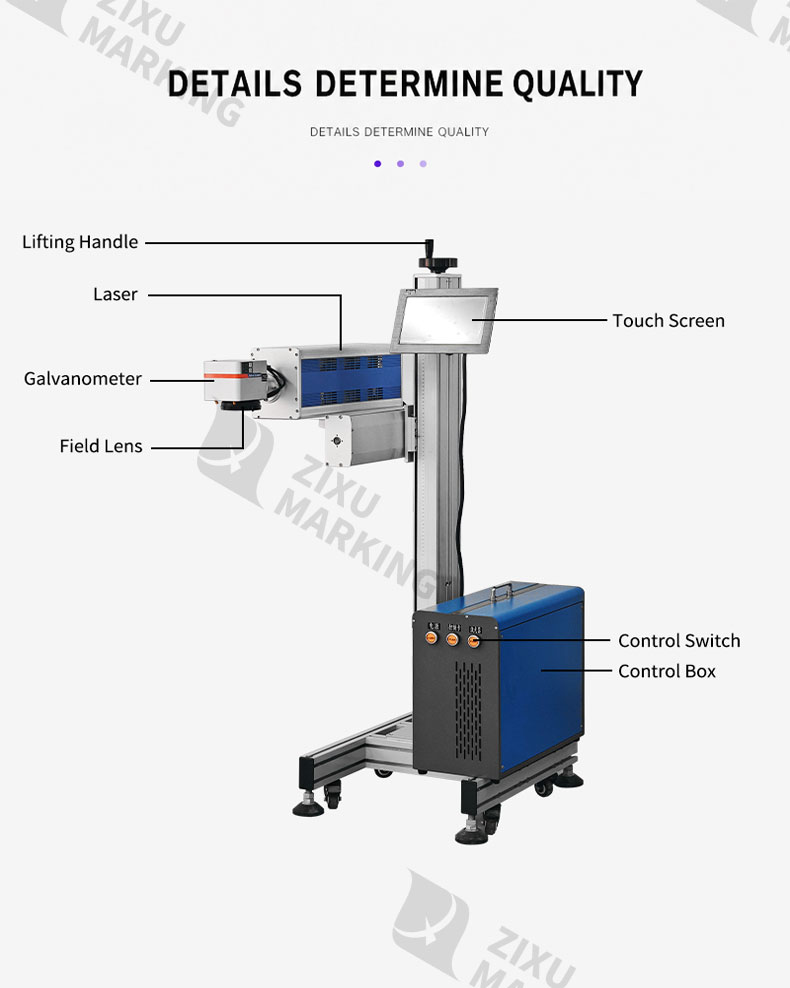

Product Structure
Available Models

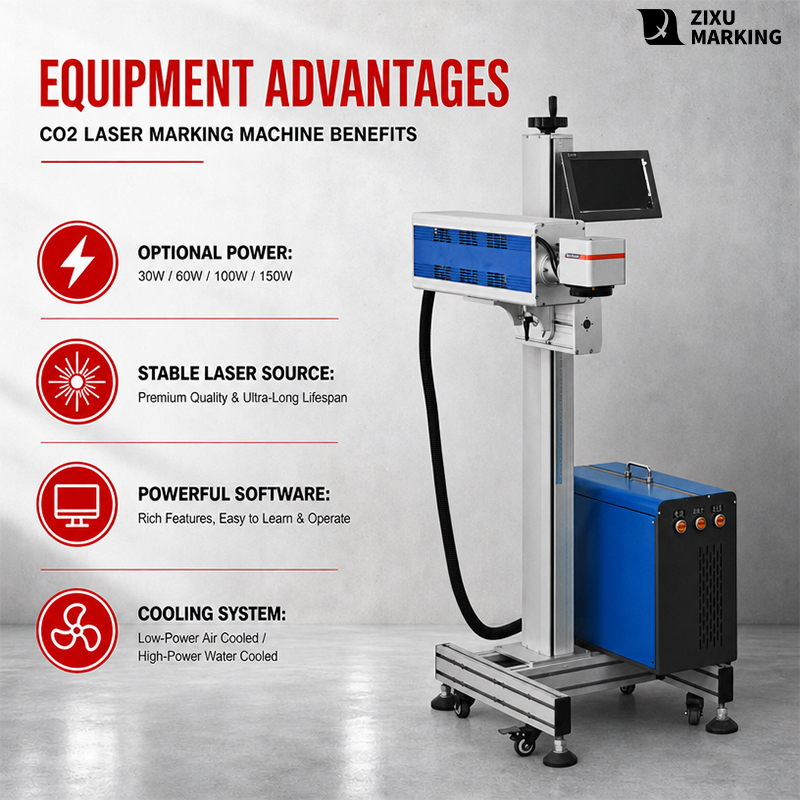

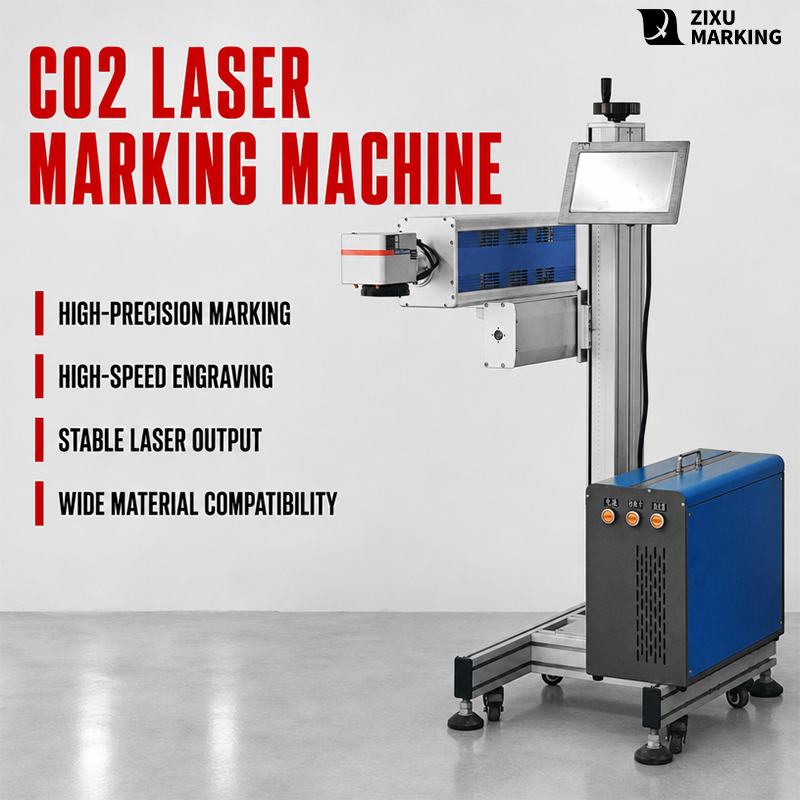

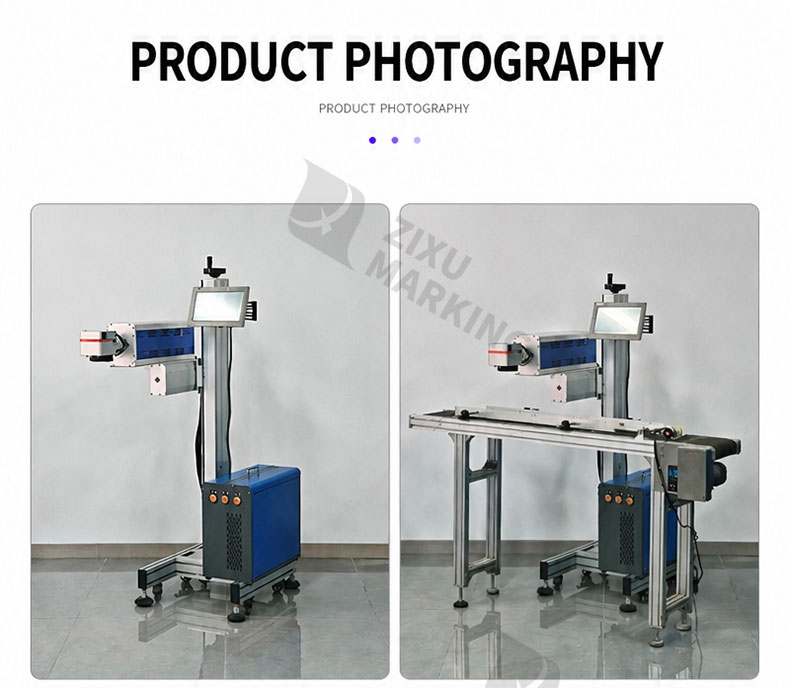

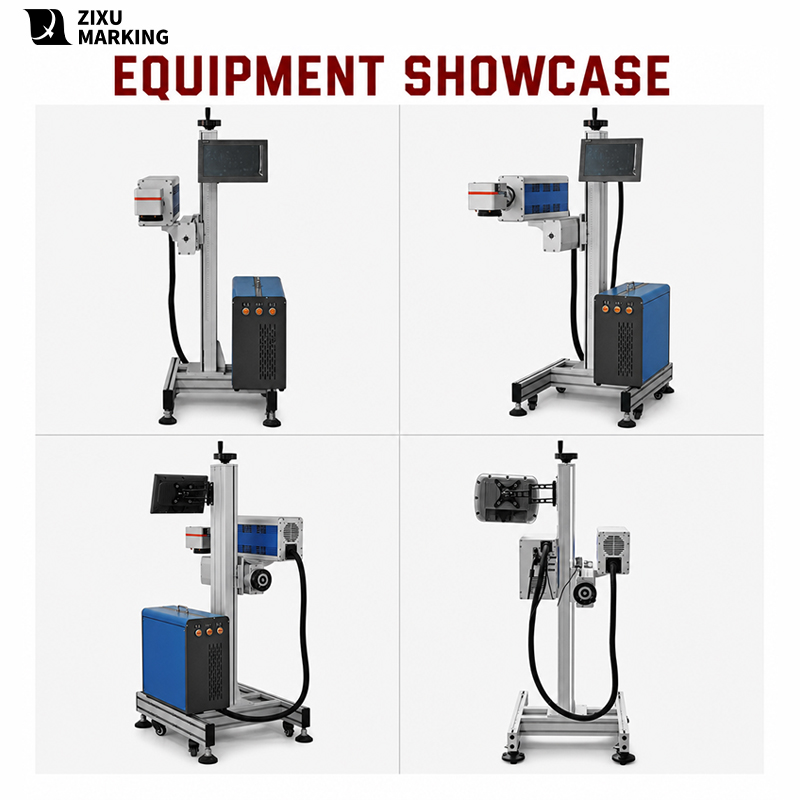

Flying Type

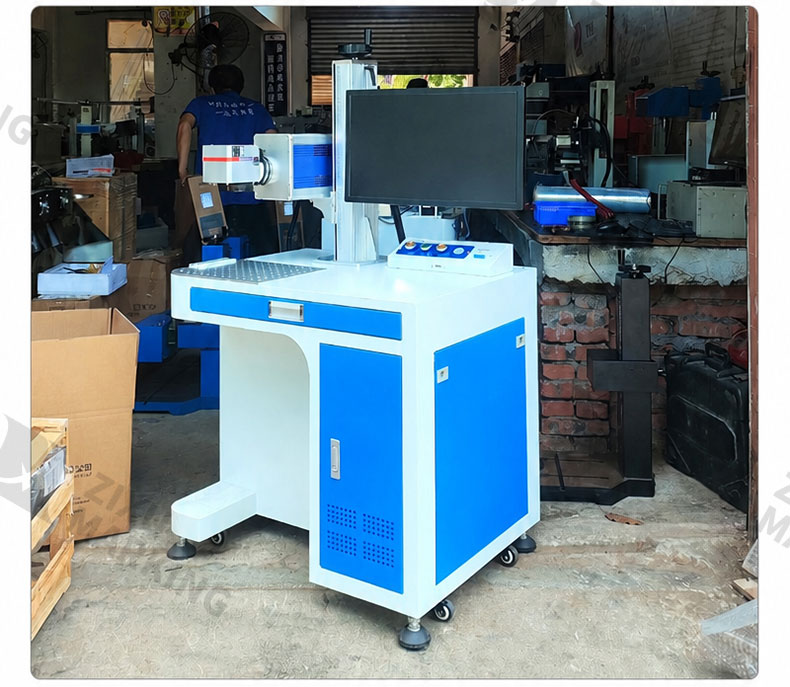

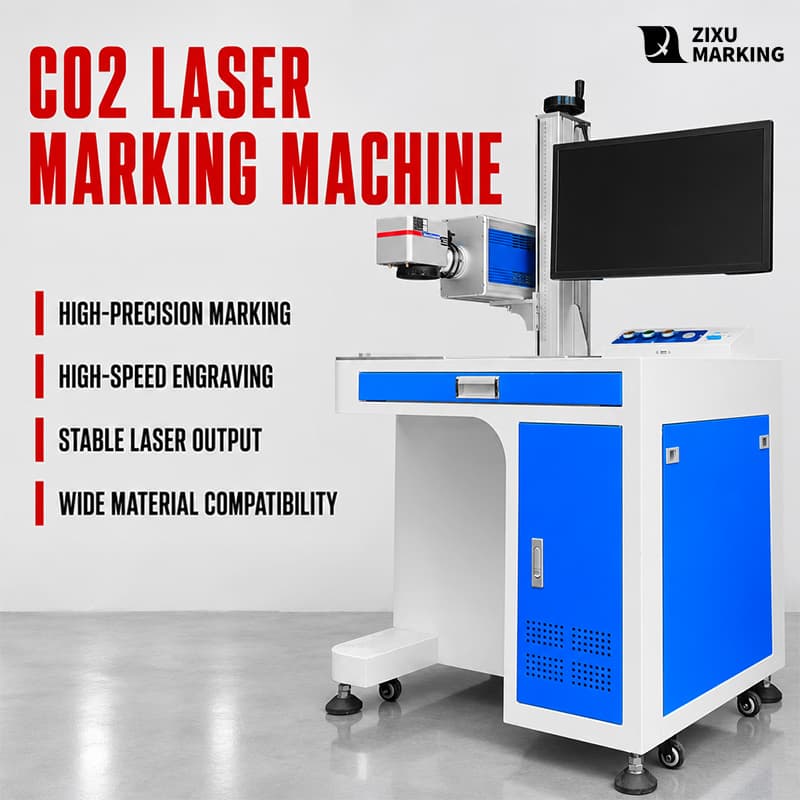

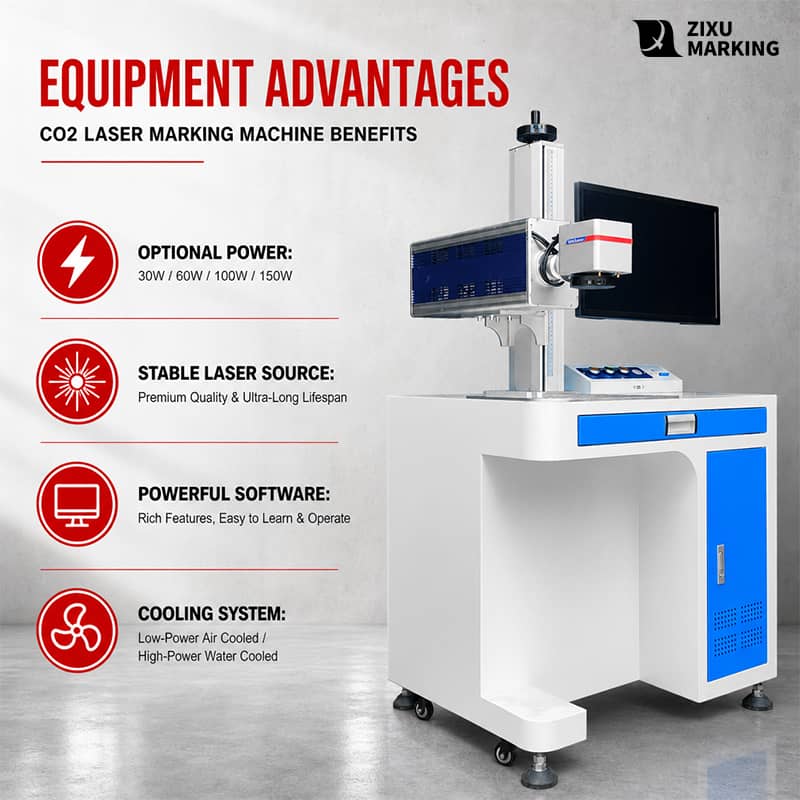

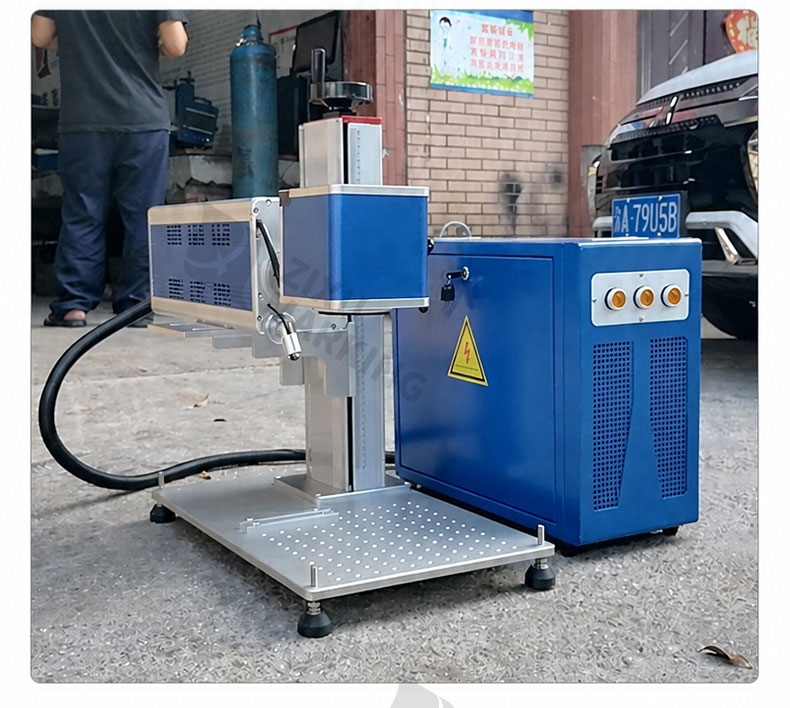

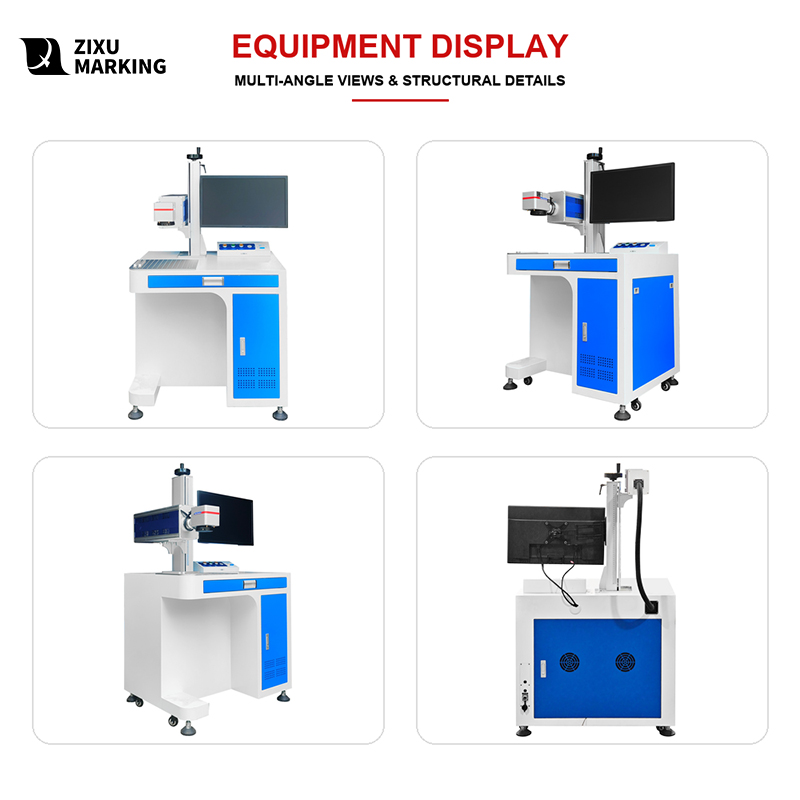

Benchtop Type

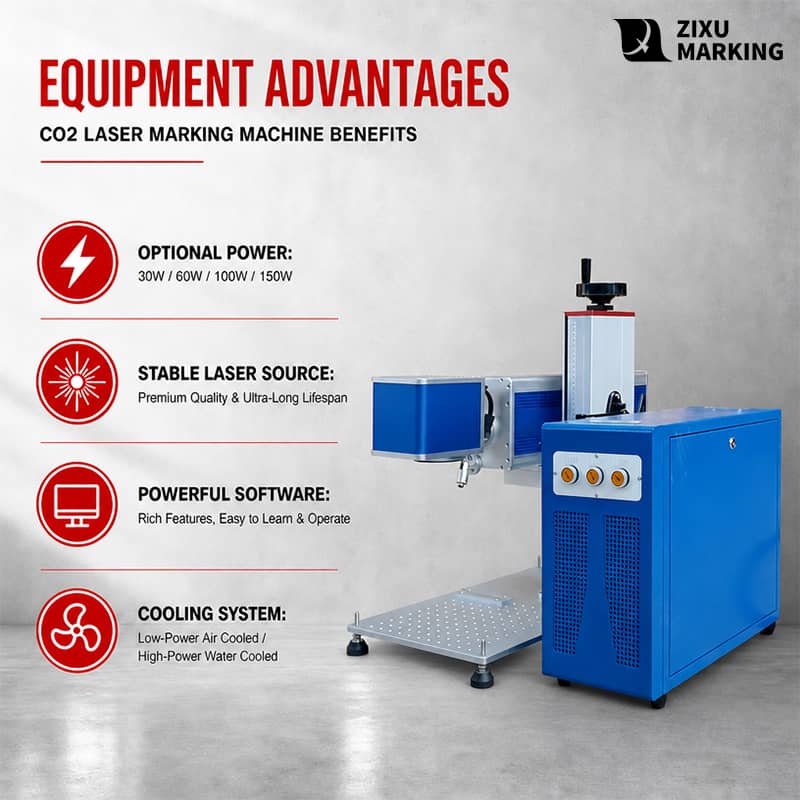

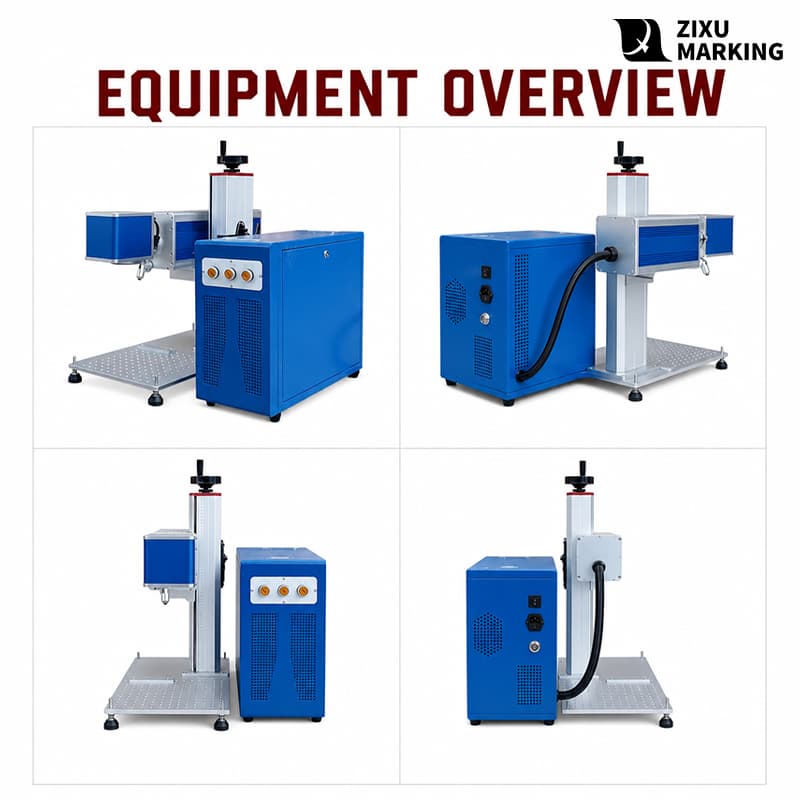

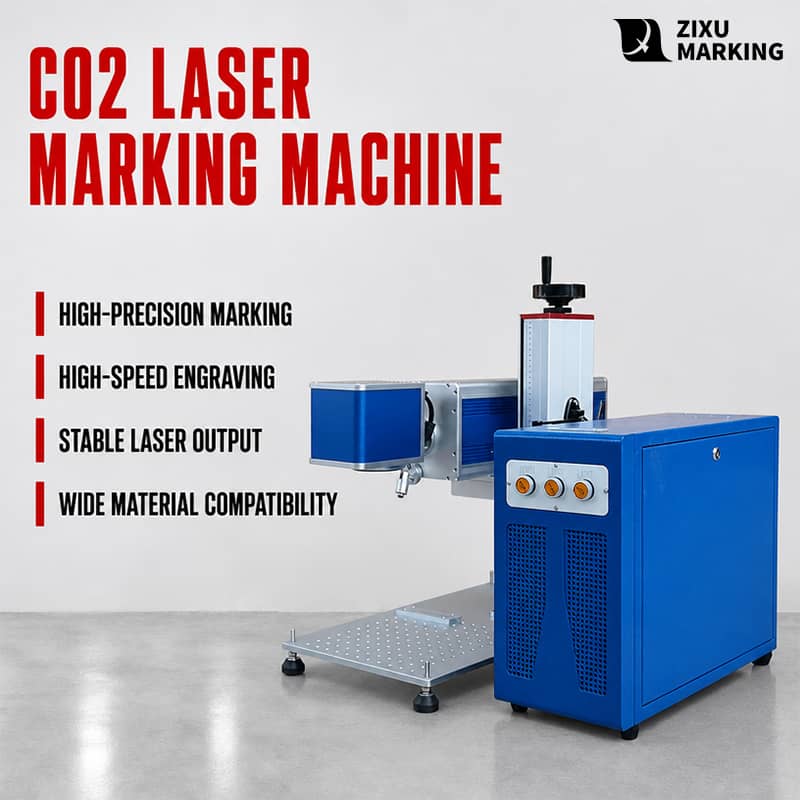

Desktop Type
Material Compatibility
| Material Category | Compatible Materials | Application / Notes |
| Plastics | ABS, PVC, PET, PC, PMMA (Acrylic), Polyurethane, Epoxy Resin | High-contrast frosted or carbonized black marks. Crucial for food/beverage and cosmetics packaging. |
| Wood & Bamboo | Solid wood, bamboo products | Deep engraving, high contrast. Used heavily in crafts and gifts. |
| Paper & Cardboard | Packaging boxes, labels, corrugated paper | Clear marking with no ink penetration. Ideal for pharma boxes. |
| Leather & Fabrics | Genuine leather, artificial leather, denim, cotton | Engraving, marking, and cutting (e.g., denim washing effect). |
| Glass & Ceramics | Glassware, ceramic products | Surface frosting marking (Requires power control to prevent cracking). |
| Rubber | Stamps, seals, rubber parts | Permanent engraving for automotive and daily use components. |

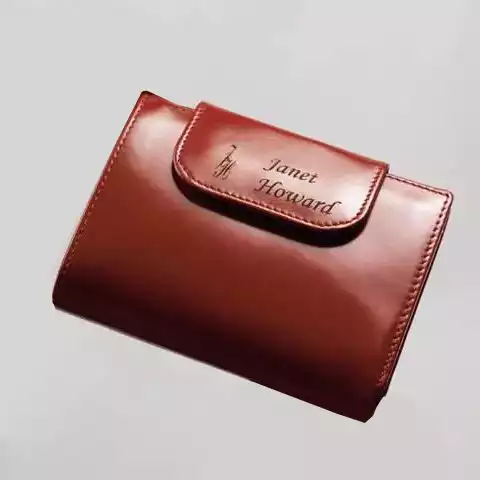

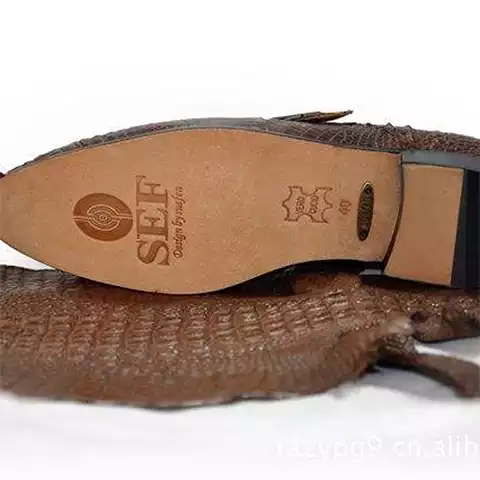

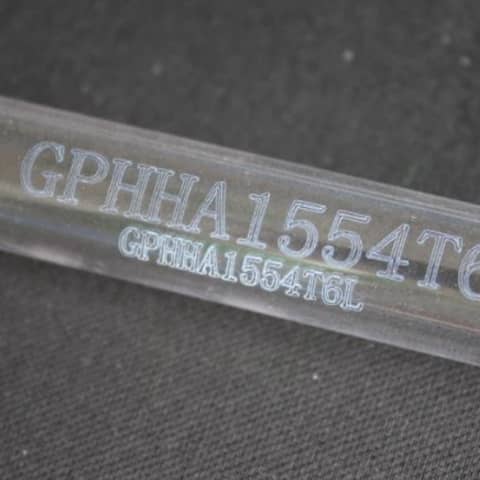

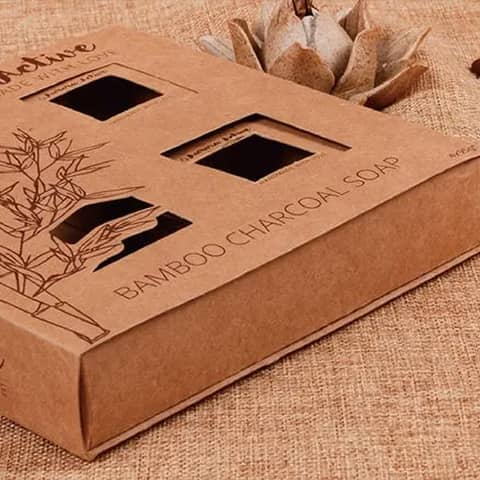

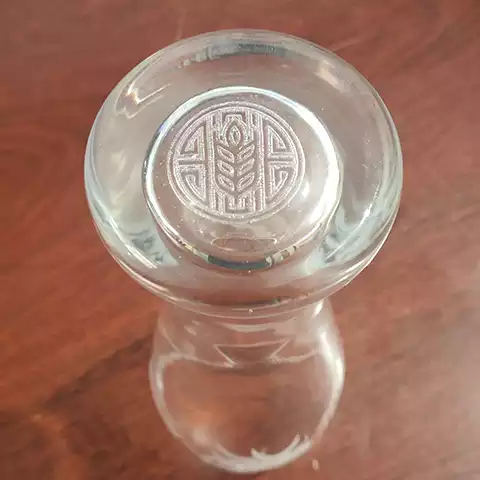

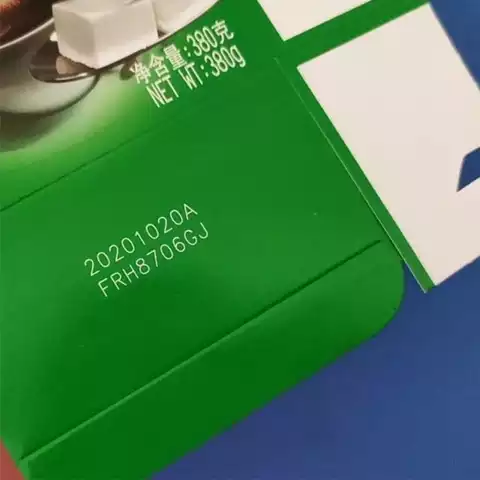

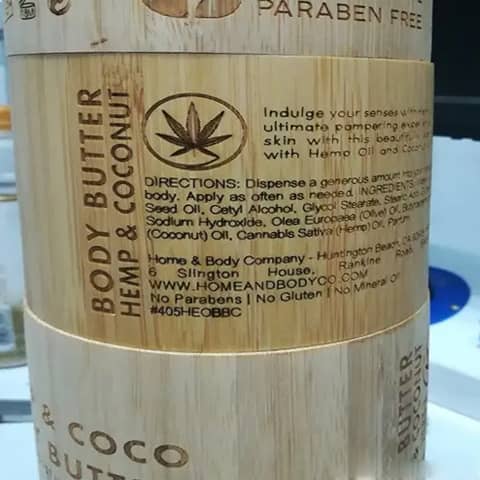

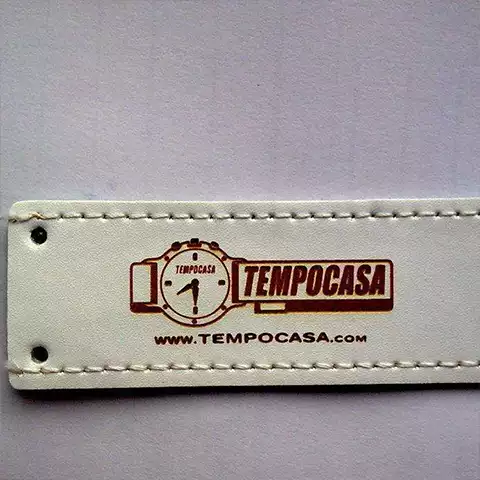

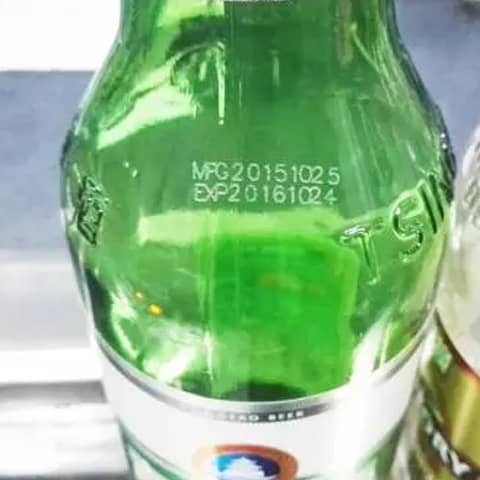

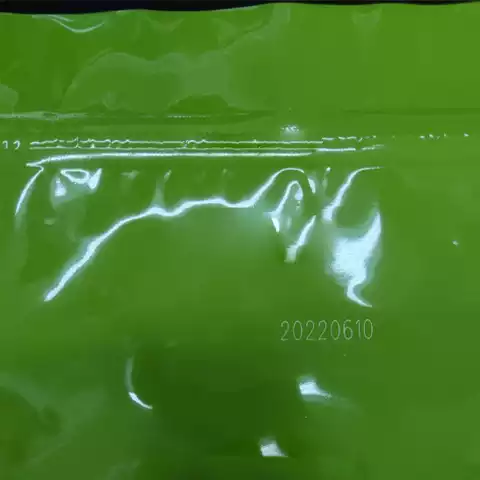

Marking Samples
Contact us for your specific needs.
