Semi-enclosed 3-in-1 MOPA Fiber Laser Marking Machine for Three-side Marking and Anodized Layer Ablation
Semi-enclosed 3-in-1 MOPA Fiber Laser Marking Machine for Three-side Marking and Anodized Layer Ablation

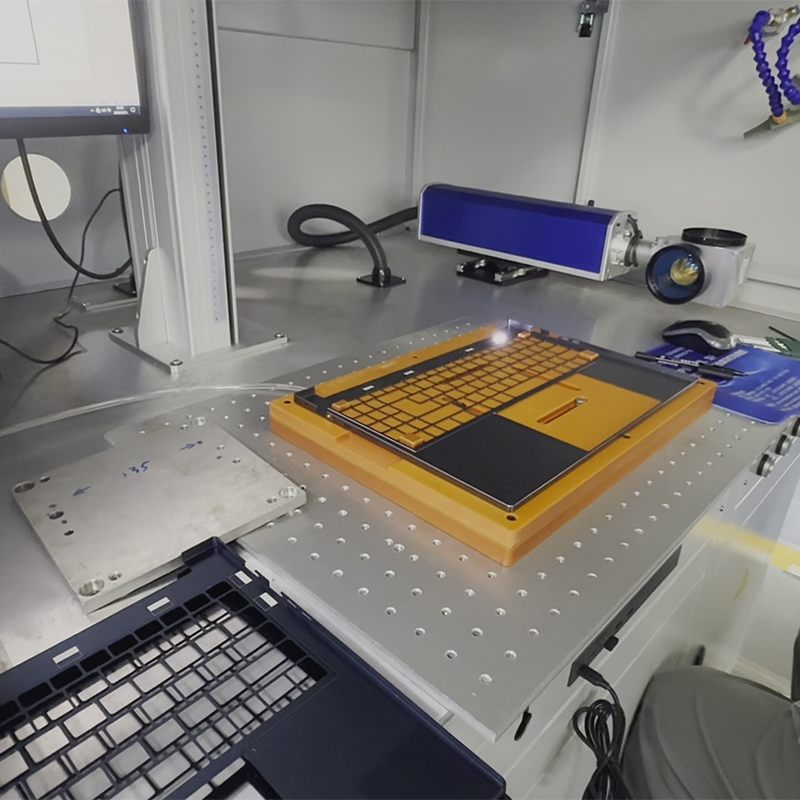

This semi-enclosed 3-in-1 MOPA fiber laser workstation is designed for notebook magnesium-aluminum housings that need side-interface marking and conductive-zone anodized layer ablation in one process. It combines a 20W high-peak-power GZTech MOPA source for ablation with a 30W JPT M7 MOPA source for side marking, helping contract manufacturers keep three-side processing consistent on the same workstation.
After fixture and template setup, the line supports synchronized three-side processing, automatic counting feedback to MES through API, and robotic loading for continuous 24/7 production.
For product pricing, customization, or other inquiries:
Description

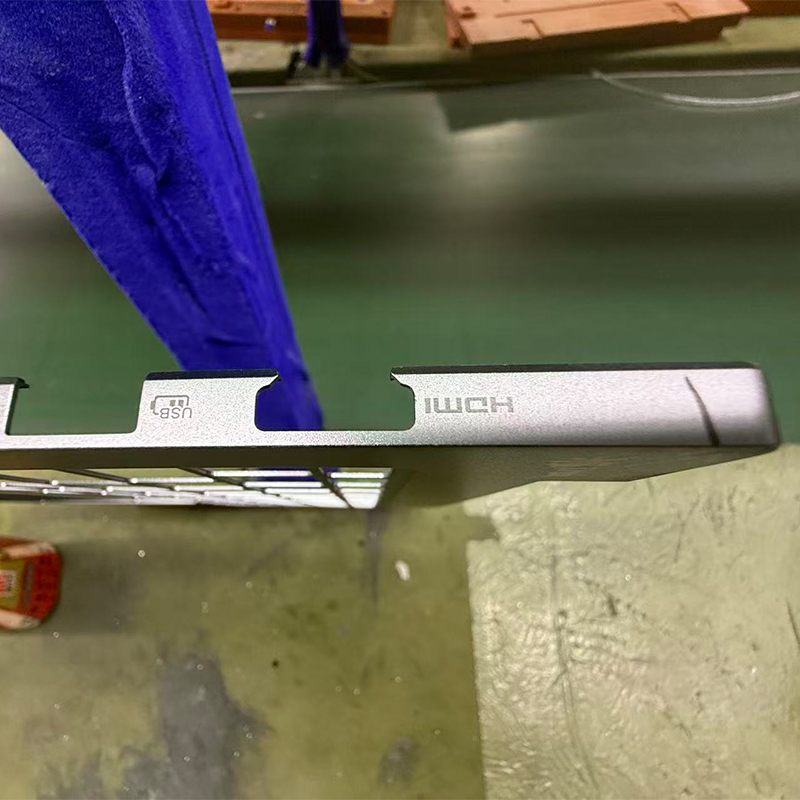

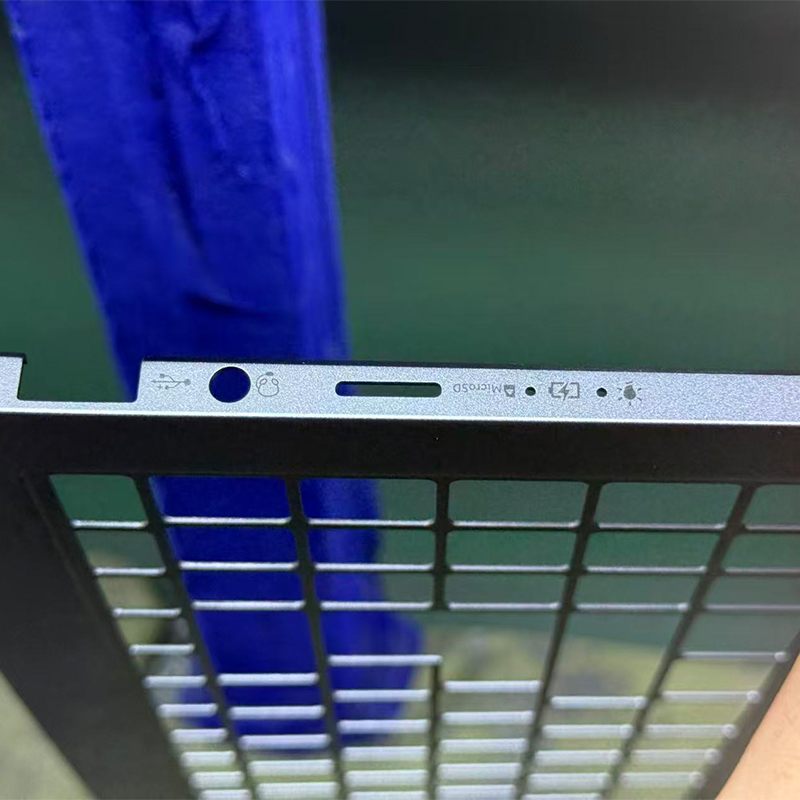

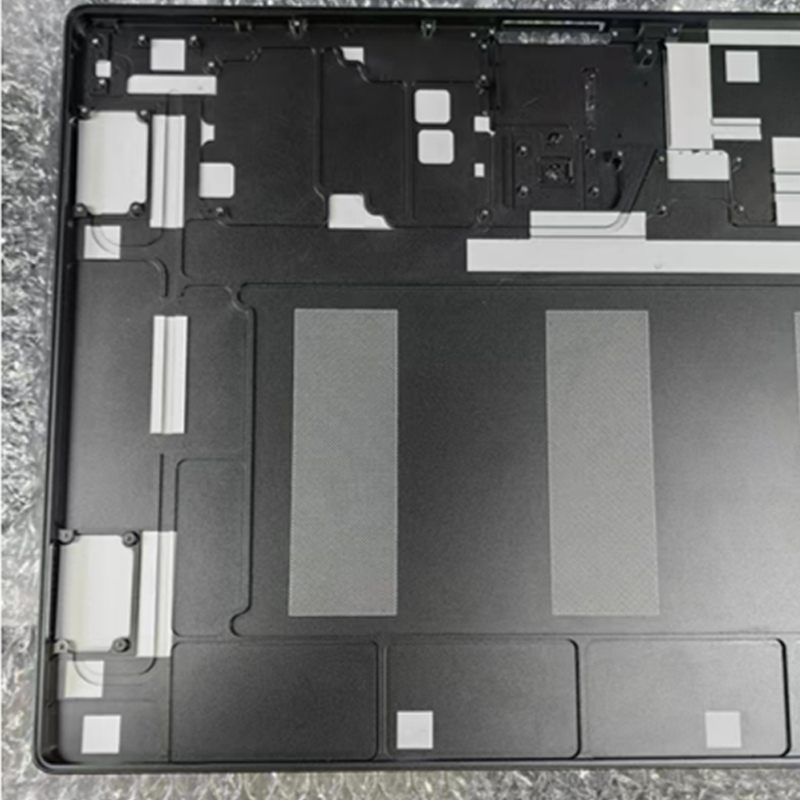

This machine was developed for notebook shell manufacturers that anodize magnesium-aluminum housings to improve corrosion resistance and reduce fingerprint contamination, but still need specific conductive positions exposed later in production. The C-side display cable position requires selective anodized layer ablation to restore conductivity, while both sides need interface marks for power, HDMI, USB and related positions.

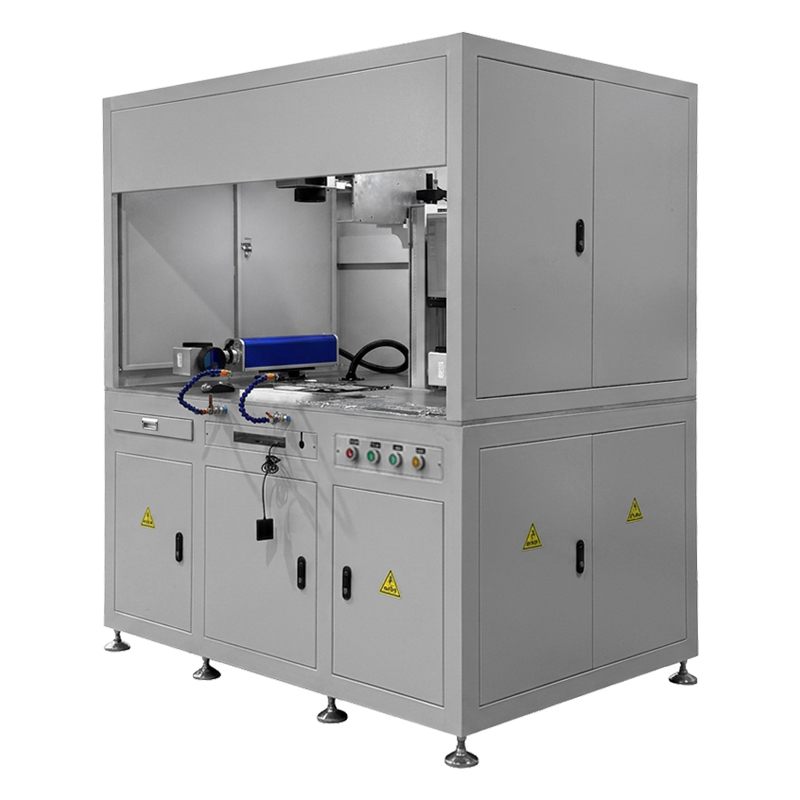

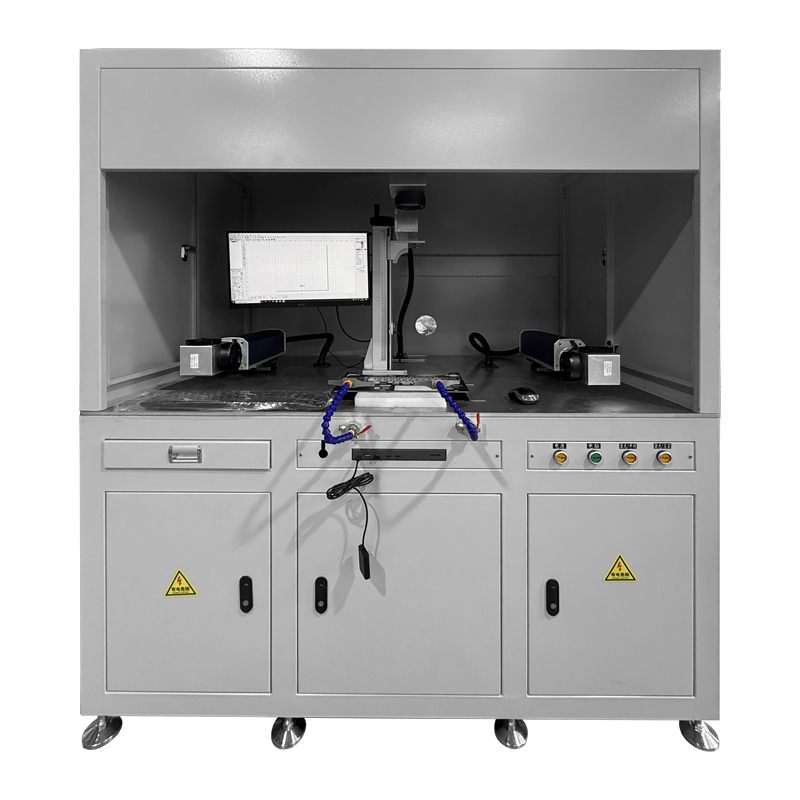

For the ablation task, CNMarking uses a GZTech 20W high-peak-power MOPA source with peak power above 80kW and pulse duration down to 0.2ns. For side marking, the workstation uses a 30W JPT M7 MOPA source. The semi-enclosed layout keeps the process stable for repetitive production while leaving room for automation and operator safety measures.
Basic Information
- Laser Type: MOPA Fiber
- Ablation Source: GZTech 20W high peak power MOPA, peak power above 80kW
- Side Marking Source: 30W JPT M7 MOPA
- Work Area: 100 x 100mm or customize
- Laser Wavelength: 1065 +/- 10nm
- Pulse Duration: 0.2 ~ 500ns
- Frequency: 1 ~ 3000kHz
- Positioning Speed: Above 80000mm/s
- Scanning Speed: Above 25000mm/s
- Repeat Accuracy: +/- 0.002mm
- Cooling Method: Air cooling

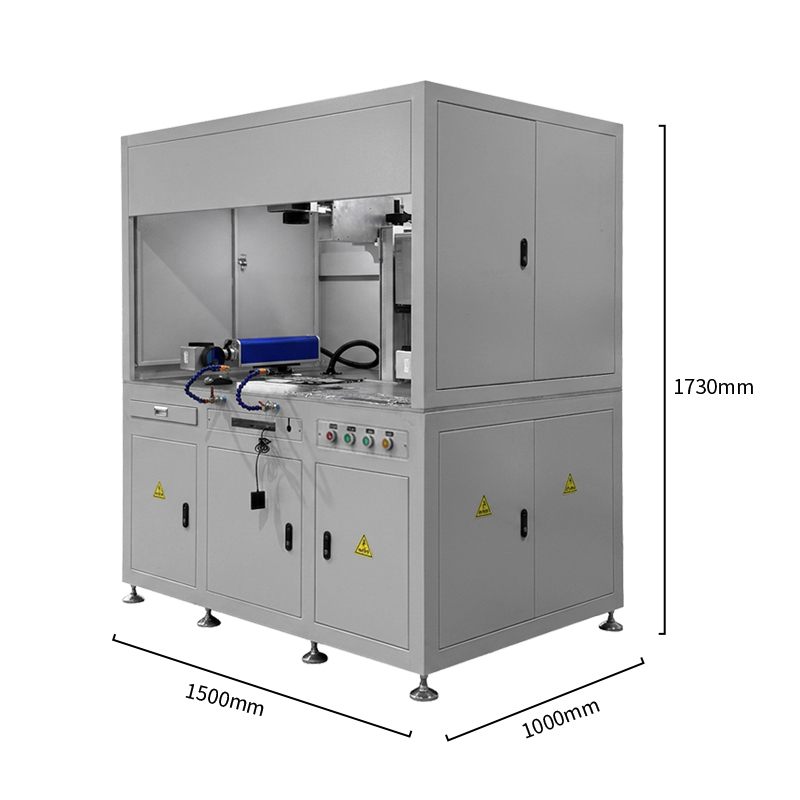

- Dimension and Weight: 1500 x 1000 x 1730mm, N.W. 280kg
About Company
Our company, Chongqing Zixu Machine Works, was founded in 2006 and has been focused on marking and laser-processing solutions for a wide range of industrial applications. We continue to develop customized workstations for different automation levels, work areas and materials to improve marking productivity and reduce labor dependence for our customers.
We have ISO9001, CE and RoHS certifications, and our products are exported to more than 170 countries. With long-term ODM experience in marking equipment, we support customers with customized fixtures, process recommendations, training and after-sales service for both standalone workstations and integrated production lines. Contact CNMarking with your notebook shell drawing, conductive-zone requirement, takt target or sample photos for a matching three-side marking and anodized layer ablation configuration.
