Automatic Tire Mounting Machine
Industrial automatic tire mounting machine with PLC control, rotary assembly structure and servo press arm, mounting 10–21 inch vacuum and standard tires in 10–15 seconds per cycle at 2 kW.
01. Automated Pressing Cycle

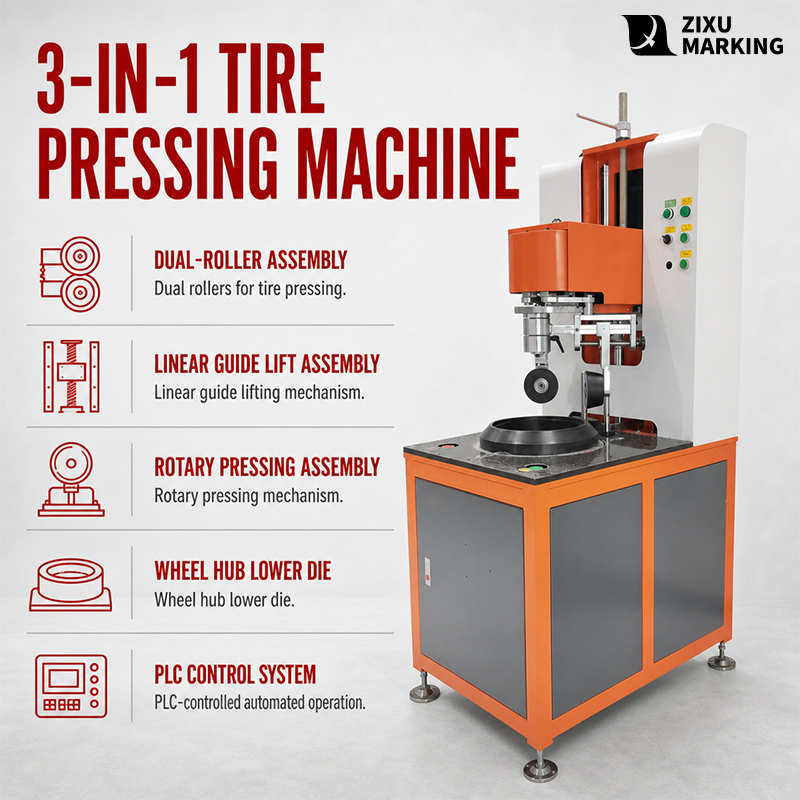

The machine combines a rotary assembly structure, a PLC control system and a servo motor set. Parameters are entered on the control panel, the machine positions the tire, and the servo motor drives the press arm to press the tire onto the rim, with an operating speed of 10–15 seconds per cycle.
02. Wide Tire Compatibility
Handles both vacuum tires and standard tires across 10–21 inches, covering the wheel sizes commonly used in motorcycle, electric vehicle and tricycle production.
03. Built for Production Environments

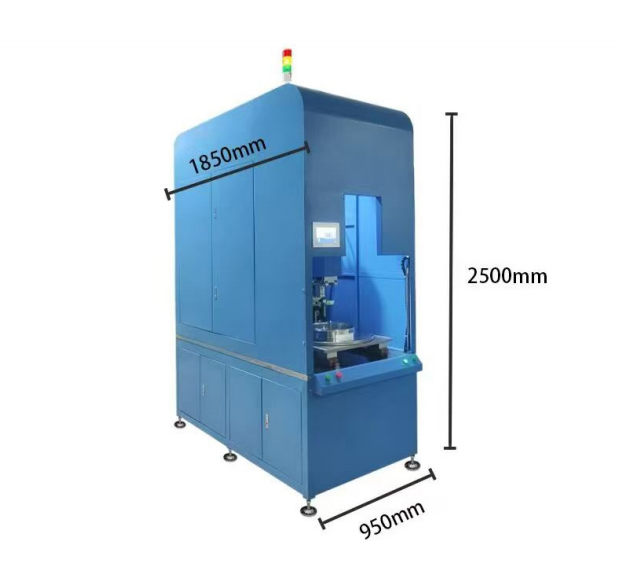

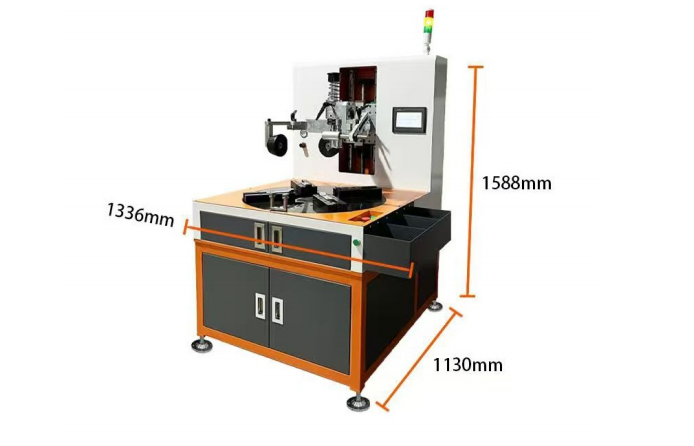

Working air pressure is 0.4–0.7 MPa and power is AC 220V/50Hz at 2 kW. Two configurations are available — an open-frame model (1130 × 1336 × 1588 mm) and a fully enclosed model (1850 × 950 × 2500 mm).

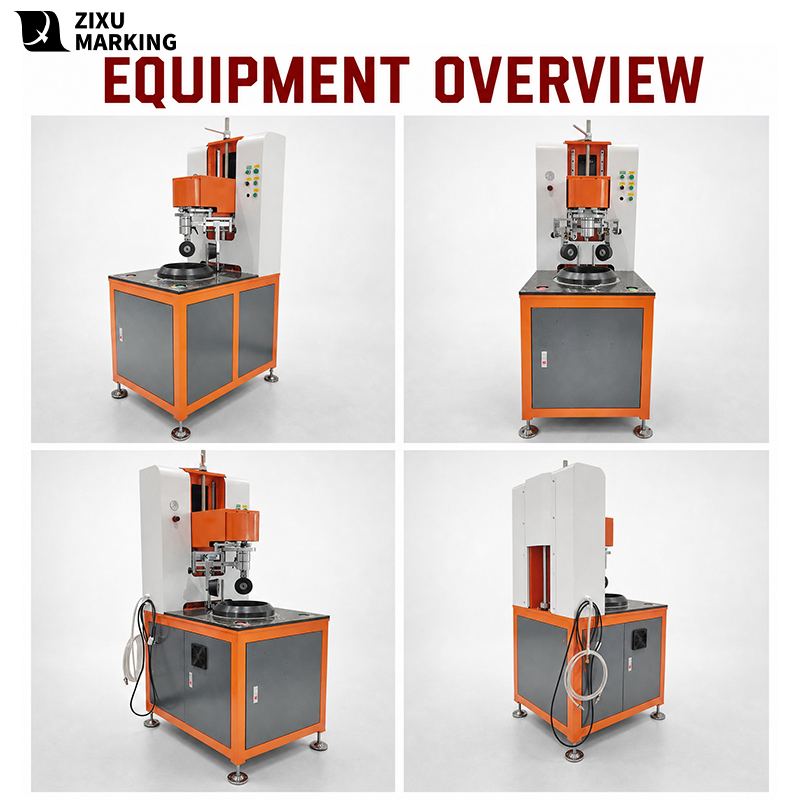

The automatic tire mounting machine is an automated assembly device for mounting tires onto rims. It consists of a rotary assembly structure, a PLC control system and a servo motor set, and is compatible with 10–21 inch vacuum tires and standard tires.

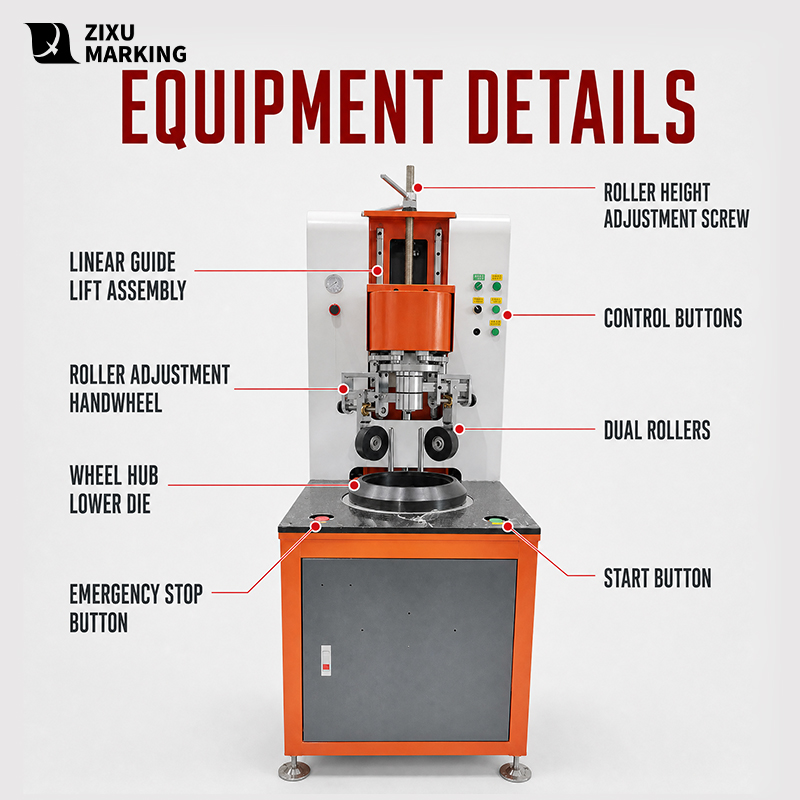

Operation is straightforward: parameters are entered on the control panel, the machine positions the tire, and the servo motor drives the press arm to press the tire onto the rim. The operating speed is 10–15 seconds per cycle, making the machine suitable for continuous production lines in motorcycle, electric vehicle and tricycle manufacturing.

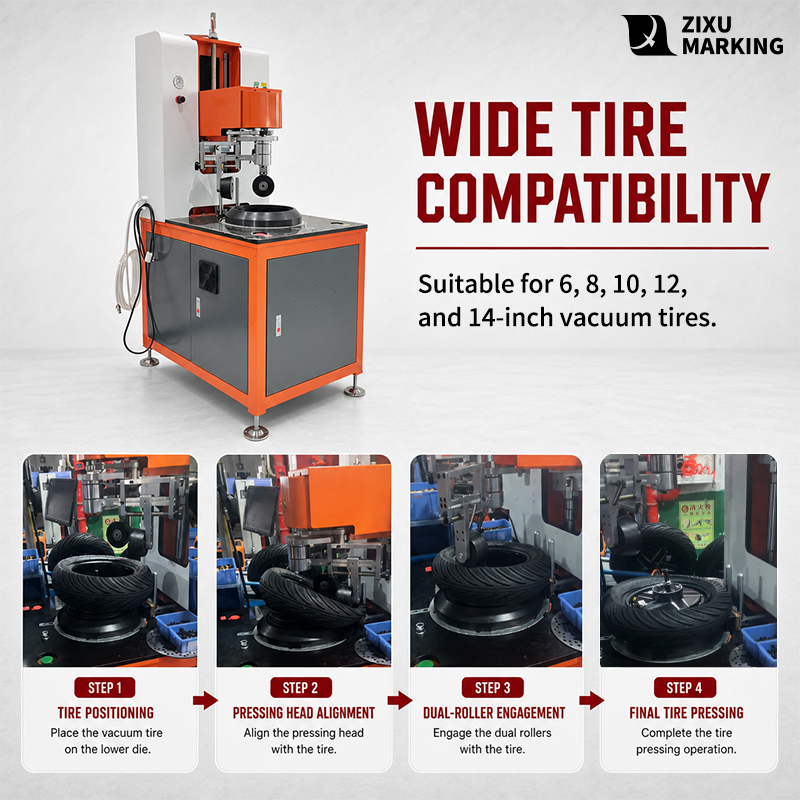

The machine runs on AC 220V, 50Hz power with a rated power of 2 kW and requires a working air pressure of 0.4–0.7 MPa. It is available in two configurations: an open-frame model measuring 1130 × 1336 × 1588 mm, and a fully enclosed model measuring 1850 × 950 × 2500 mm. Operating photos show the tire being placed on the rim by an operator before the press arm completes the mounting, so the automatic cycle covers positioning and pressing rather than the whole loading sequence; please confirm the exact operation sequence and staffing requirements with our team before ordering.
| Parameter | Specification |
| Equipment Name | Automatic Tire Mounting Machine |
| Model | CK-ATM |
| Working Voltage | AC 220V; 50Hz |
| Power | 2 kW |
| Working Air Pressure | 0.4–0.7 MPa |
| Operating Speed | 10–15 s |
| Applicable Tire Type | Vacuum tires, standard tires |
| Applicable Tire Size | 10–21 inches |
| Control System | PLC + servo motor set |
| Equipment Dimensions | 1130mm*1336mm*1588mm |
Features
PLC + Servo Control
A PLC control system works with a servo motor set to position the tire and drive the press arm, giving a repeatable automated pressing cycle.
Fast Cycle Time
Each mounting cycle takes 10–15 seconds, supporting continuous production output.
0–21 Inch Compatibility
Handles both vacuum tires and standard tires from 10 to 21 inches, matching common motorcycle, scooter and tricycle wheel sizes.
Two Machine Configurations
An open-frame model for easy access and a fully enclosed model for production environments, with published dimensions for both.
Target Production Lines
Designed for motorcycle, electric vehicle and tricycle manufacturing, where 10–21 inch tires are assembled in volume.
Material Compatibility
| Tire Category | Compatible Specifications | Applications / Notes |
| Vacuum Tires | 10–21 inches | Suitable for assembling tubeless tire wheelsets on motorcycles, electric vehicles, tricycles, etc. |
| Standard Tires | 10–21 inches | Suitable for assembling wheelsets with standard tires (with inner tube structure) of the same specification. |
| Rim / Wheel Type | 8-inch, 10-inch, and 12-inch Electric Vehicle and Motorcycle Tires | It is necessary to confirm whether different wheel types, such as cast rims and spoked rims, are compatible. |
